Presentation Transcript

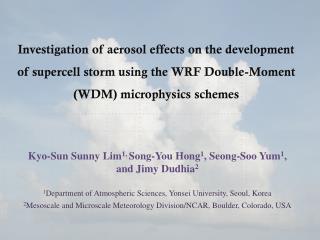

Slide1 l.jpg

Investigation of aerosol effects on the development of supercell storm using the WRF Double-Moment (WDM) microphysics schemes

Kyo-Sun Sunny Lim1, Song-You Hong1, Seong-Soo Yum1,

and Jimy Dudhia2

1Department of Atmospheric Sciences, Yonsei University, Seoul, Korea

2Mesoscale and Microscale Meteorology Division/NCAR, Boulder, Colorado, USA


Slide2 l.jpg

Introduction supercell storm using the WRF Double-Moment (WDM) microphysics schemes


Slide3 l.jpg

Convective storm structure supercell storm using the WRF Double-Moment (WDM) microphysics schemes

  • Impressive progress in understanding convective storm structure and convective weather precipitation has been made after the pioneering work of Schlesinger (1975) as well as Klemp and Wilhelmson (1978).

  • Li et al. (2008) stressed that graupel plays an important role in the Mesoscale Convective System (MCS)during the Kwajalein Experiment (KWAJEX) simulation because conversion processes of graupel are a significant component of latent heat release, which in turn has a significant impact on the dynamic, thermodynamic, and precipitation characteristics of the evolving MCS. Also, the greater fall speed of graupel compared to low-density ice particles allows graupel to remain suspended in strong updrafts longer and to fall out of weak updrafts faster.

  • Zhu and Zhang (2006) also mentioned the importance of the Bergeron processes, including the growth and rapid fallout of graupel in the eyewall, and the latent heat of fusion in determining the intensity and inner-core structures of hurricanes


Slide4 l.jpg

Aerosol Effects on precipitation supercell storm using the WRF Double-Moment (WDM) microphysics schemes

  • Cloud–aerosol interaction isincreasingly recognized as one of the key factors controlling precipitation regimeon local, meso-, and even global scales (Khain et al. 2005, 2008).

  • Even though the effect of aerosols on precipitation may be complex function of aerosol properties and cloud thermodynamics (Kain et al. 2005), several modeling studies with a graupel contained microphysics schemes show that the total precipitation amount increases with a decrease in the cloud condensation nuclei (CCN) number concentration in a deep convective storm simulation (Resin et al. 1996; Khain and Pokrovsky 2004).


Slide5 l.jpg

Purpose of this study supercell storm using the WRF Double-Moment (WDM) microphysics schemes

  • Investigating the aerosol effects on the development of supercell storm, focusing on the storm morphology and precipitation using the double-moment bulk microphysics scheme.

  • The Weather Research and Forecasting (WRF) Double-Moment 6-class (WDM6) Microphysics scheme has been developed and evaluated on an idealized two-dimensional thunderstorm testbed and on a three-dimensional heavy rainfall case (Lim and Hong 2009). The WDM6 scheme makes it possible to investigate the aerosol effects on cloud properties and precipitation process with prognostic variables of CCN, cloud water, and rain.

  • The mixed phase WRF Double-Moment 5-class Microphysics (WDM5) scheme is also tested under the varying CCN number concentration. The WDM5 microphysics scheme, which includes the cloud water, rain, ice, and snow substances, also predicts the number concentrations for cloud and rain waters with a prognostic variable of the CCN number concentration.


Slide6 l.jpg

Warm rain processes supercell storm using the WRF Double-Moment (WDM) microphysics schemes :

(Khairoutdinov and Kogan, 2000; Cohardt and Pinty, 2000)

Cold rain processes :

(Hong et al.,2004; Hong and Lim 2006)

CCN

Ice

Vapor

Cloud water

RAIN

Vapor

Snow

N,q for 2 hydrometeors will be predicted (Double Moment)

Graupel

q for 4 hydrometeors will be predicted (Single Moment)

WDM6

The WRF Double-Moment 6-class (WDM6) Microphysics scheme

  • Flow chart of the microphysical processes in the WRF Single-Moment 6-class (WSM6) Microphysics scheme


Slide7 l.jpg

Warm rain processes supercell storm using the WRF Double-Moment (WDM) microphysics schemes :

(Khairoutdinov and Kogan, 2000; Cohardt and Pinty, 2000)

Cold rain processes :

(Hong et al.,2004; Hong and Lim 2006)

CCN

Ice

Vapor

Cloud water

RAIN

Snow

N,q for 2 hydrometeors will be predicted (Double Moment)

Vapor

q for 3 hydrometeors will be predicted (Single Moment)

WDM5

The WRF Double-Moment 5-class (WDM5) Microphysics scheme

  • Flow chart of the microphysical processes in the WRF Single-Moment 5-class (WSM5) Microphysics scheme


Slide8 l.jpg

І. supercell storm using the WRF Double-Moment (WDM) microphysics schemesIdeal Case Simulation


Slide9 l.jpg

Numerical Experimental Setup supercell storm using the WRF Double-Moment (WDM) microphysics schemes


Slide10 l.jpg

Experimental Design supercell storm using the WRF Double-Moment (WDM) microphysics schemes

Case

3D idealized supercell thunderstorm

Grid: Both directions comprised 81 points with a 2 km grid spacing.

The number of vertical layers was 40.

Integration Time: 2 hours with a time step of 12 seconds.

Physics

MPS: WDM6 and WDM5 (Lim and Hong 2009)

PBL : Yonsei University (YSU) (Hong et al. 2006)

SW : A simple cloud-interactive (Dudhia 1989)

LW : Rapid Radiative Transfer Model (RRTM) (Mlawer et al. 1997)

Surface temperature is not predicted without any surface model.


Slide11 l.jpg

Experimental Design supercell storm using the WRF Double-Moment (WDM) microphysics schemes

Sensitivity Experiment

  • Impact of the initial aerosol concentration on the development of supercell storm is evaluated by varying the number and mass of aerosols, as is reflected in the changes in the number concentrations of CCN.

  • Simulations were initiated with the six different initial CCN number concentrations from 10 cm-3 to 104 cm-3with the both WDM6 and WDM5 microphysics scheme, respectively.

  • An additional sensitivity experiment, the WDM6(VG) experiment, was performed to explore the effect of faster sedimentation velocity of graupel than that of snow. In the WDM6(VG) experiment, the value of VDGis replaced with that of VDS. The density of graupel is also replaced by the value of snow.

Summary of conducted sensitivity experiments


Slide12 l.jpg

Previous Study supercell storm using the WRF Double-Moment (WDM) microphysics schemes

  • Simulated Storm structure using the Klemp-Wilhelmson (1978) numerical cloud model

  • Skew-T-log-P plot of temperature and dew point profiles

  • Hodograph and simulated storm structure at 40, 80, 120 min for the right-flank supercell from Weisman and Klemp (1984)


Slide13 l.jpg

  • CCN Effects : supercell storm using the WRF Double-Moment (WDM) microphysics schemes

  • Results with the WDM6 microphysics scheme


Slide14 l.jpg

Storm structure supercell storm using the WRF Double-Moment (WDM) microphysics schemes(Low level rain water fields, maximum vertical velocities, and surface wind)

WDM6_CCN1

WDM6_CCN2

WDM6_CCN3

WDM6_CCN4

Weisman and Klemp (1984)

The WDM6_CCN2 run shows similar storm structure with that in the Weisman and Klemp (1986).

More sporadic rain water field near the eyewall of simulated storm


Slide15 l.jpg

Cloud Properties supercell storm using the WRF Double-Moment (WDM) microphysics schemes

Effective Cloud Droplet Size

Cloud Droplet Number Concentration (CNC)

More activation of aerosols

A large number of cloud droplets are competing for a fixed amount of available water vapor

Rain Drop Number Concentration (RNC)

Effective Rain Drop Size

A large number of small cloud droplets hinder the effective autoconversion process


Slide16 l.jpg

Vertical Profiles of Hydrometeors supercell storm using the WRF Double-Moment (WDM) microphysics schemes

  • The effective radius of cloud droplets is reduced with an increasing CCN number concentration, hindering the conversion of cloud droplets to raindrops.

  • A largest graupel mass occurs in the lowest CCN number concentration case because a large amount of raindrops is transported and frozen in the cold cloud regime.


Slide17 l.jpg

Accumulated Precipitation supercell storm using the WRF Double-Moment (WDM) microphysics schemes

WDM6_CCN1

WDM6_CCN2

Reduced precipitation!

(Resin et al. 1996; Khain and Pokrovsky 2004; Li et al. 2008)

  • The reduced precipitation with increasing aerosol is explained by

  • suppressed conversion of cloud droplets to raindrops and

  • reduced convective strength over the strong convective core region

WDM6_CCN3

WDM6_CCN4


Slide18 l.jpg

Cross section :Hydrometeors and Wind supercell storm using the WRF Double-Moment (WDM) microphysics schemes

WDM6_CCN1

WDM6_CCN2

  • Well organized convective cell

  • Graupel can hang over the strong updraft regions.

WDM6_CCN3

Exaggerated snow-mass loading

WDM6_CCN4

Reduced rainfall amount over the heavy precipitation region and increased one over the over the eyewall region


Slide19 l.jpg

2-1. Graupel Effects : supercell storm using the WRF Double-Moment (WDM) microphysics schemes

Results with the WDM5 microphysics scheme


Slide20 l.jpg

Importance of Graupel Species in Simulating Convective Clouds

Numerical Modeling Studies

  • Li et al. (2008) stressed that graupel plays an important role in the Mesoscale Convective System (MCS) during the Kwajalein Experiment (KWAJEX) simulation because conversion processes of graupel are a significant component of latent heat release, which in turn has a significant impact on the dynamic, thermodynamic, and precipitation characteristics of the evolving MCS. Also, the greater fall speed of graupel compared to low-density ice particles allows graupel to remain suspended in strong updrafts longer and to fall out of weak updrafts faster.

  • Zhu and Zhang (2006) also mentioned the importance of the Bergeron processes, including the growth and rapid fallout of graupel in the eyewall, and the latent heat of fusion in determining the intensity and inner-core structures of hurricanes

  • Houze et al. (1992) found the development of the significant amount of graupel in the updrafts region in Hurricane Norbert (1984) though the mapping and interpolating data collected on board a WP-3D aircraft. To confirm the graupel effects in simulating convective storm cell, the WDM5 microphysics are implemented and tested.

Observational Study


Slide21 l.jpg

Storm structure Clouds(Low level rain water fields, maximum vertical velocities, and surface wind)

WDM5_CCN1

WDM5_CCN2

Weisman and Klemp (1984)

WDM5_CCN3

WDM5_CCN4

WDM6_CCN4

  • Hook type storm structure

  • Similar storm structure irrespective of CCN number


Slide22 l.jpg

Cloud Properties Clouds

Effective Cloud Droplet Size

Cloud Droplet Number Concentration (CNC)

Rain Drop Number Concentration (RNC)

Effective Rain Drop Size

Large differences in the magnitude of rain drop diameter under varying CCN number concentration in the WDM5


Slide23 l.jpg

Vertical Profiles of Hydrometeors Clouds

  • Without inclusion of graupel, the snow portion of the whole hydrometeors increases

  • A largest mixing ratio of snow reveals in the lowest CCN number concentration case because of the frozen process of more amount of rain water.

WDM6


Slide24 l.jpg

Accumulated Precipitation Clouds

WDM5_CCN1

WDM5_CCN2

Increased precipitation!

(Lynn et al. 2005; Khain et al. 2005; Lee et al. 2008 )

WDM5_CCN3

WDM5_CCN4

Increased precipitation at high aerosol:

due to stronger, more numerous updraughts, initiated by stronger convergence lines.


Slide25 l.jpg

Cross section :Hydrometeors and Wind Clouds

WDM5_CCN1

WDM5_CCN2

  • Ambiguous separation between the stratiform and convective core region

WDM5_CCN3

Increased CCN nucleation with more evaporation and stronger convergence

WDM5_CCN4

Increased rainfall amount along the convection region


Slide26 l.jpg

2-2. Graupel Effects : Clouds

Results with the WDM6(VG) experiment


Slide27 l.jpg

Sensitivity Experiment : CloudsWDM6(VG)

  • Accumulated Precipitation

  • Storm Structure

WDM6(VG)_CCN2

WDM5_CCN2

Increased precipitation!

  • Cross section (Hydrometeors and Wind)

Similar Responses with the WDM5 microphysics scheme under varying CCN number concentration

WDM6(VG)_CCN2

WDM5_CCN2

Denser graupel with relatively strong sedimentation velocity is essential for maintaining the observed supecell storm structure.


Slide28 l.jpg

Clouds. Real Case Simulation


Slide29 l.jpg

Precipitation Clouds

Observation

OBS (TMPA)

Statistics

[WDM6]

Bias (mm): 23.95

RMSE (mm): 151.5

PC: 0.66

[WDM5]

Bias (mm): 24.27

RMSE (mm): 149.7.5

PC: 0.63

WDM6

WDM5


Slide30 l.jpg

CCN Effects on Precipitation Clouds

WDM6

WDM5

The total precipitation decreases sharply when the CCN number concentration is over 103 cm-3 with the WDM6 microphysics scheme but increases with the WDM5 microphysics scheme.

Similar Responses with the ideal case simulation!!


Slide31 l.jpg

Concluding Remarks Clouds

  • The aerosol effects on the development of supercell storm were investigated using the double-moment microphysics schemes focusing on the storm morphology and precipitation.

  • The reason for the different storm structure and aerosol effects between the WDM6 and WDM5 microphysics schemes can be deduced from the existence of graupelin the bulk microphysics representation.

  • Without graupel, supercell storm structure is poorly captured and CCN effects are not correctly represented within the WDM5 microphysics scheme. The WDM6_VG experiment also confirms the importance of graupel in simulating the supercell storm.

  • To understand the aerosol effects properly within the GCM, more sophisticated and refined microphysical processes including the graupel quantity is demandable. Accurate treatment of aerosol related to the precipitation process is also needed.
