Presentation Transcript
organic compounds

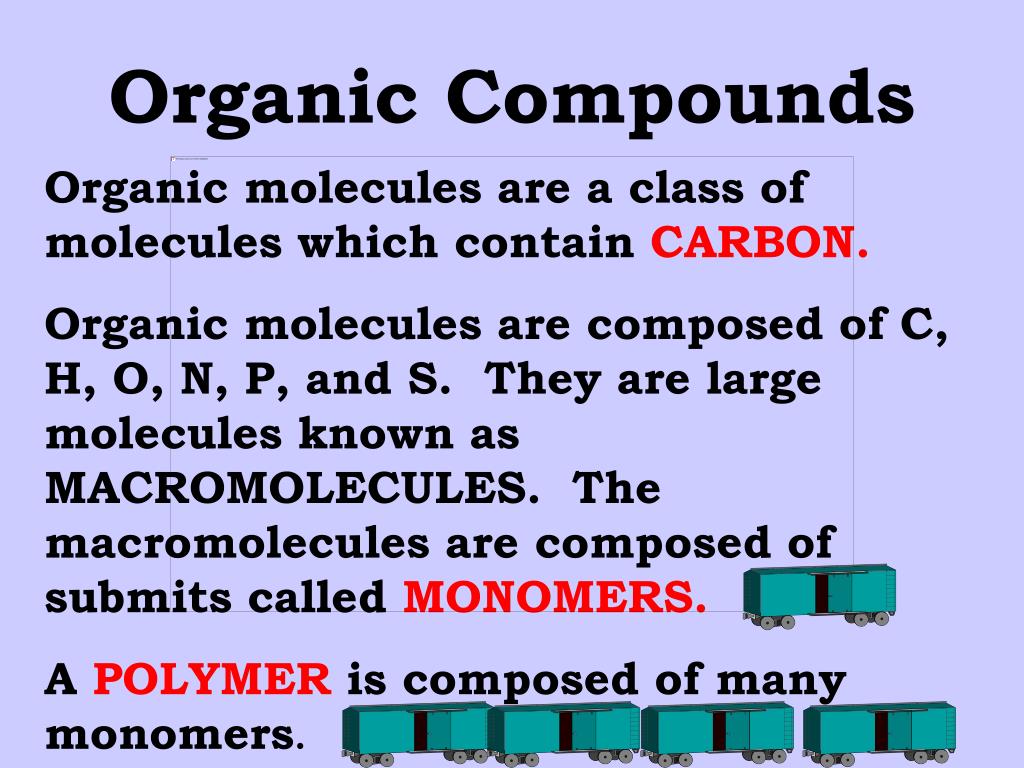

Organic Compounds

Organic molecules are a class of molecules which contain CARBON.

Organic molecules are composed of C, H, O, N, P, and S. They are large molecules known as MACROMOLECULES. The macromolecules are composed of submits called MONOMERS.

A POLYMER is composed of many monomers.

slide2

Each macromolecule has a carbon skeleton . This hydrocarbon chain may be :

1. Straight chain

2. Branched

3. Ringed

The carbon skeleton has functional groups in the structure. These are clusters of atoms that behave in a particular manner regardless of how the rest of the molecule looks.

Examples:

COOH is a carboxyl PO4 a phosphate

OH is an alcohol NH2 is an amino

C=O is a sugar

4 classes of important biological macromolecules
4 CLASSES OF IMPORTANT BIOLOGICAL MACROMOLECULES
  • CARBOHYDRATE
  • LIPIDS
  • PROTEINS
  • NUCLEIC ACIDS
carbohydrates
CARBOHYDRATES
  • Monomer is monosaccharide
  • Function is for energy storage or structural
  • Monosaccharides are the simplest sugars
      • They contain C, H and O in a 1:2:1 ratio and may be represented by the general formula CH2O
      • They usually have 5 or 6 carbons Monomer is monosaccharide Monomer is monosaccharide
formation of complex carbohydrates
Formation of complex CARBOHYDRATES
  • POLYSACCHARIDES form by condensation reaction
  • GLYCOGEN(animals) and STARCH(plants) are energy storing
  • Cellulose is in plant cells
  • Chitin is the major component in the exoskeleton of arthropods
lipids
LIPIDS
  • Monomer is the fatty acid
  • Class includes fats, oils, and waxes
  • DO NOT DISSOLVE IN WATER
  • Composed of a glycerol and 3 fatty acids
  • Energy storing molecule (9 calories/gram)

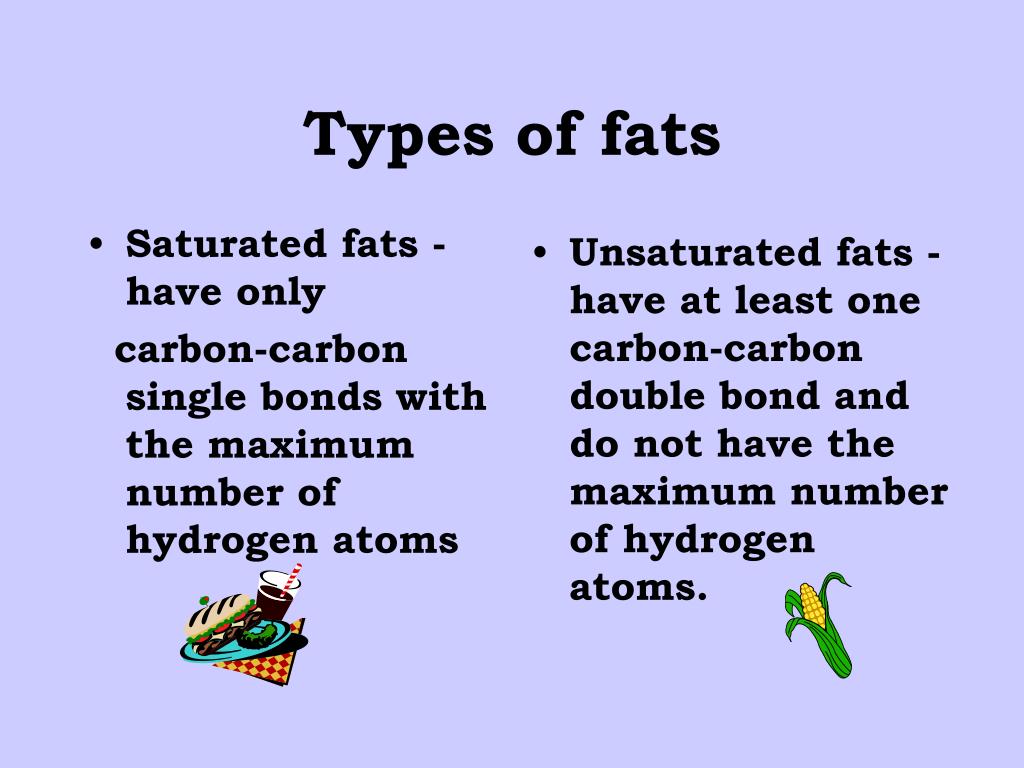

types of fats
Saturated fats - have only

carbon-carbon single bonds with the maximum number of hydrogen atoms

Unsaturated fats - have at least one carbon-carbon double bond and do not have the maximum number of hydrogen atoms.

Types of fats

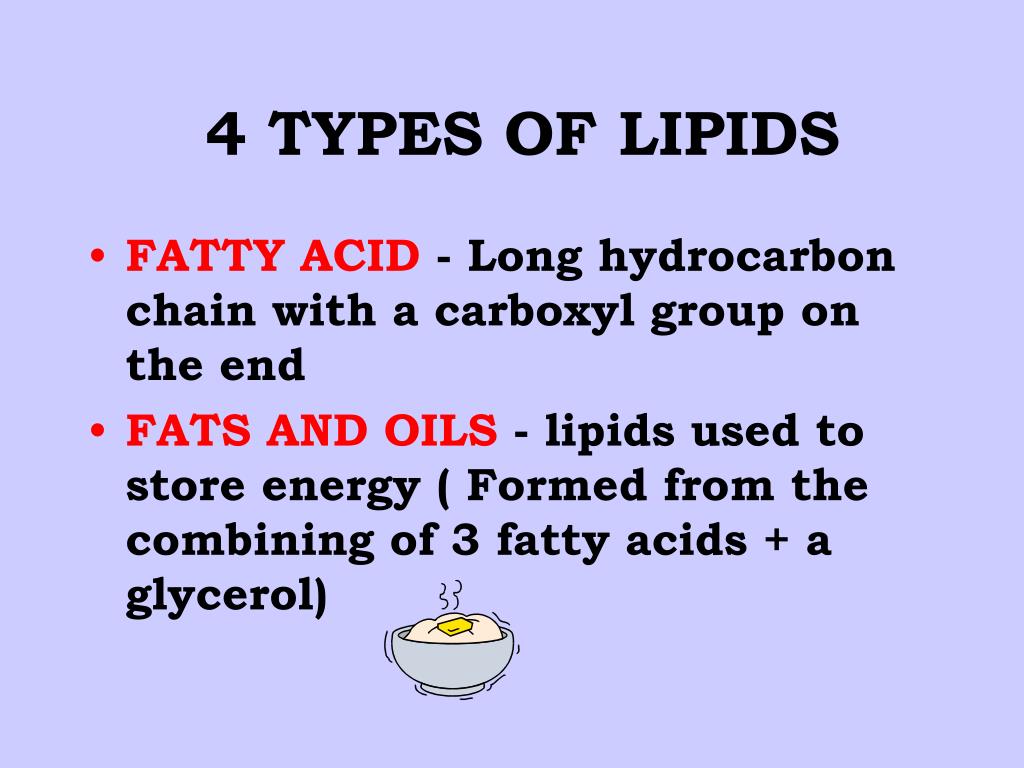

4 types of lipids
4 TYPES OF LIPIDS
  • FATTY ACID - Long hydrocarbon chain with a carboxyl group on the end
  • FATS AND OILS - lipids used to store energy ( Formed from the combining of 3 fatty acids + a glycerol)

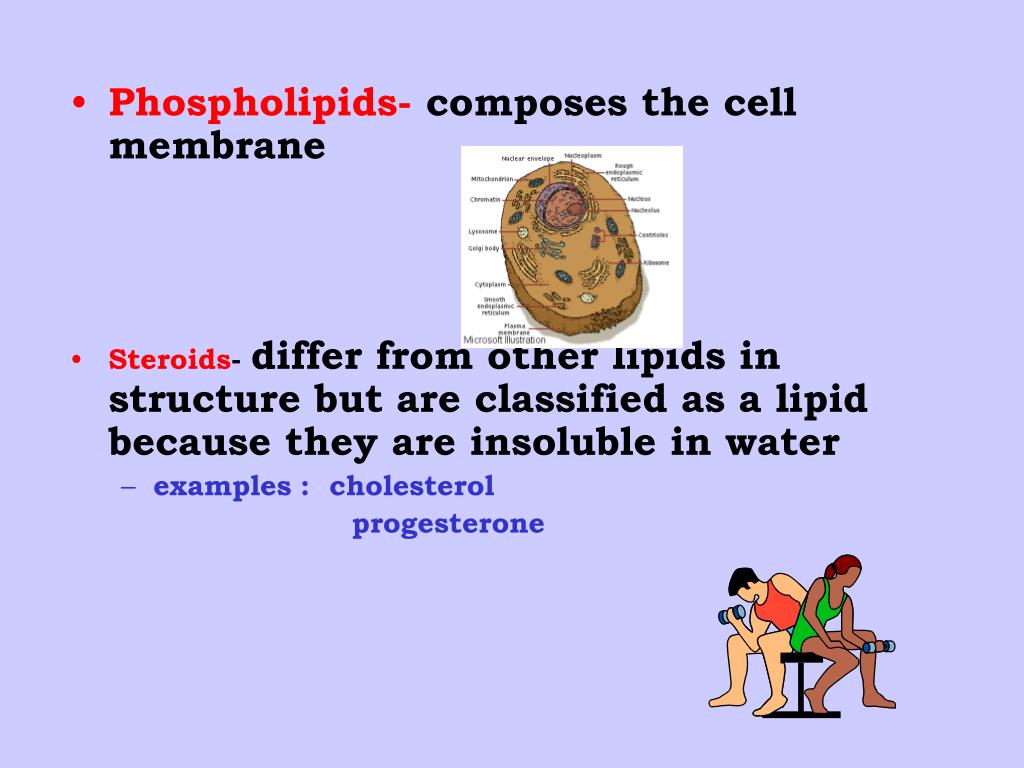

slide9
Phospholipids- composes the cell membrane
  • Steroids- differ from other lipids in structure but are classified as a lipid because they are insoluble in water
    • examples : cholesterol

progesterone

proteins
PROTEINS
  • Important structural functions
  • Proteins compose hair, muscles, nails,etc.
  • Collagen is the most abundant protein in your body
  • ENZYMES are special proteins which assist in chemical reactions
composition of a protein
COMPOSITION OF A PROTEIN
  • Monomer is amino acid
  • Each has an amino group (NH2)
  • 20 different amino acids
  • A polypeptide is a long chain of amino acids ( usually 100 - 300)
  • A protein is composed of one or more polypeptides
  • Insulin is the smallest protein (51)
structures of protein
STRUCTURES OF PROTEIN
  • . Primary - amino acid sequence
  • . Secondary- alpha or beta
  • . Tertiary-three dimensional shape
  • . Quaternary- arrangement of the polypeptides chains

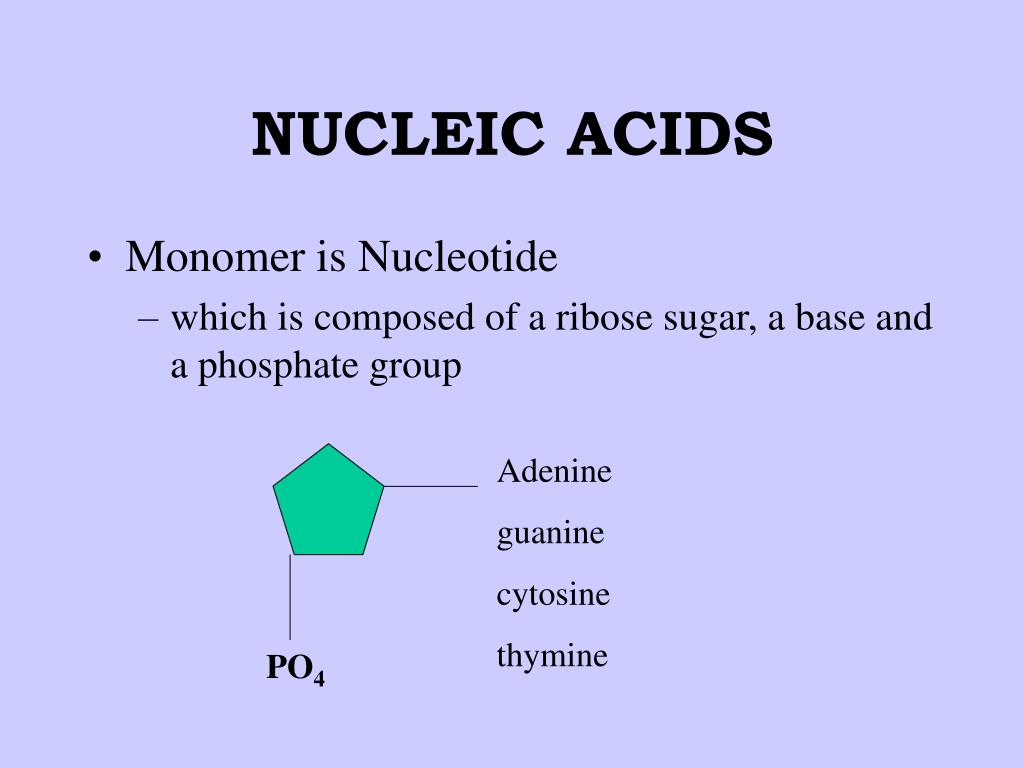

nucleic acids
NUCLEIC ACIDS
  • Monomer is Nucleotide
    • which is composed of a ribose sugar, a base and a phosphate group

Adenine

guanine

cytosine

thymine

PO4

slide14
DNA - Deoxyribonucleic Acid
    • Carries the genetic code
  • RNA - Ribonucleic Acid
