Comprehensive Installation Guide for the iCop R1800M Radar Speed Sign_ Step-by-Step Instructions

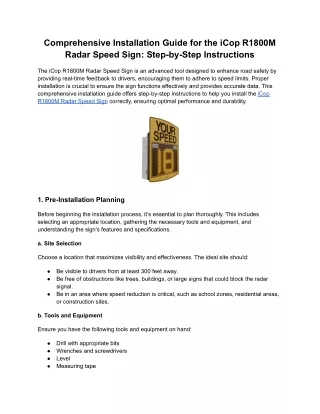

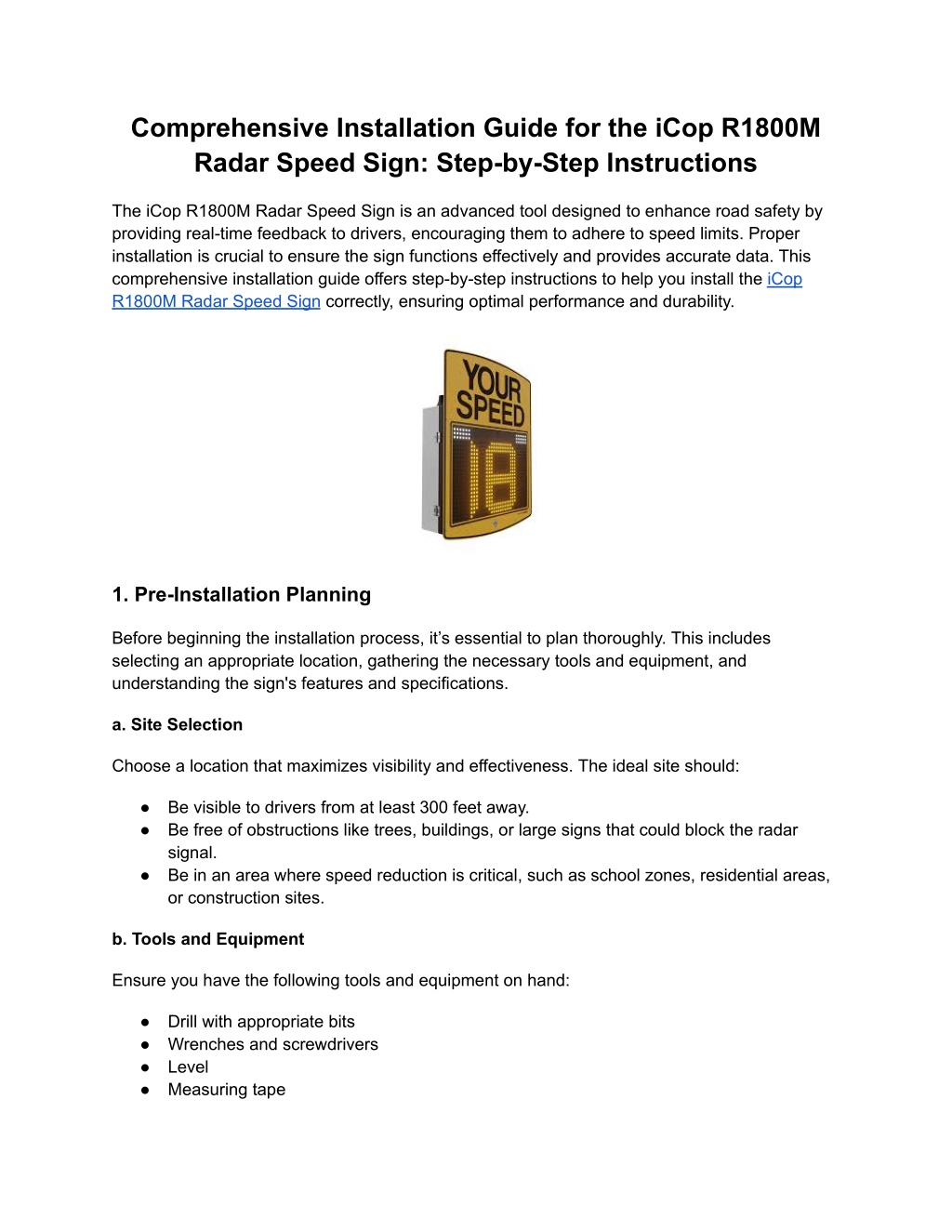

1. Comprehensive Installation Guide for the iCop R1800M Radar Speed Sign: Step-by-Step Instructions The iCop R1800M Radar Speed Sign is an advanced tool designed to enhance road safety by providing real-time feedback to drivers, encouraging them to adhere to speed limits. Proper installation is crucial to ensure the sign functions effectively and provides accurate data. This comprehensive installation guide offers step-by-step instructions to help you install the iCop R1800M Radar Speed Sign correctly, ensuring optimal performance and durability. 1. Pre-Installation Planning Before beginning the installation process, it’s essential to plan thoroughly. This includes selecting an appropriate location, gathering the necessary tools and equipment, and understanding the sign's features and specifications. a. Site Selection Choose a location that maximizes visibility and effectiveness. The ideal site should: ● ● Be visible to drivers from at least 300 feet away. Be free of obstructions like trees, buildings, or large signs that could block the radar signal. Be in an area where speed reduction is critical, such as school zones, residential areas, or construction sites. ● b. Tools and Equipment Ensure you have the following tools and equipment on hand: ● ● ● ● Drill with appropriate bits Wrenches and screwdrivers Level Measuring tape

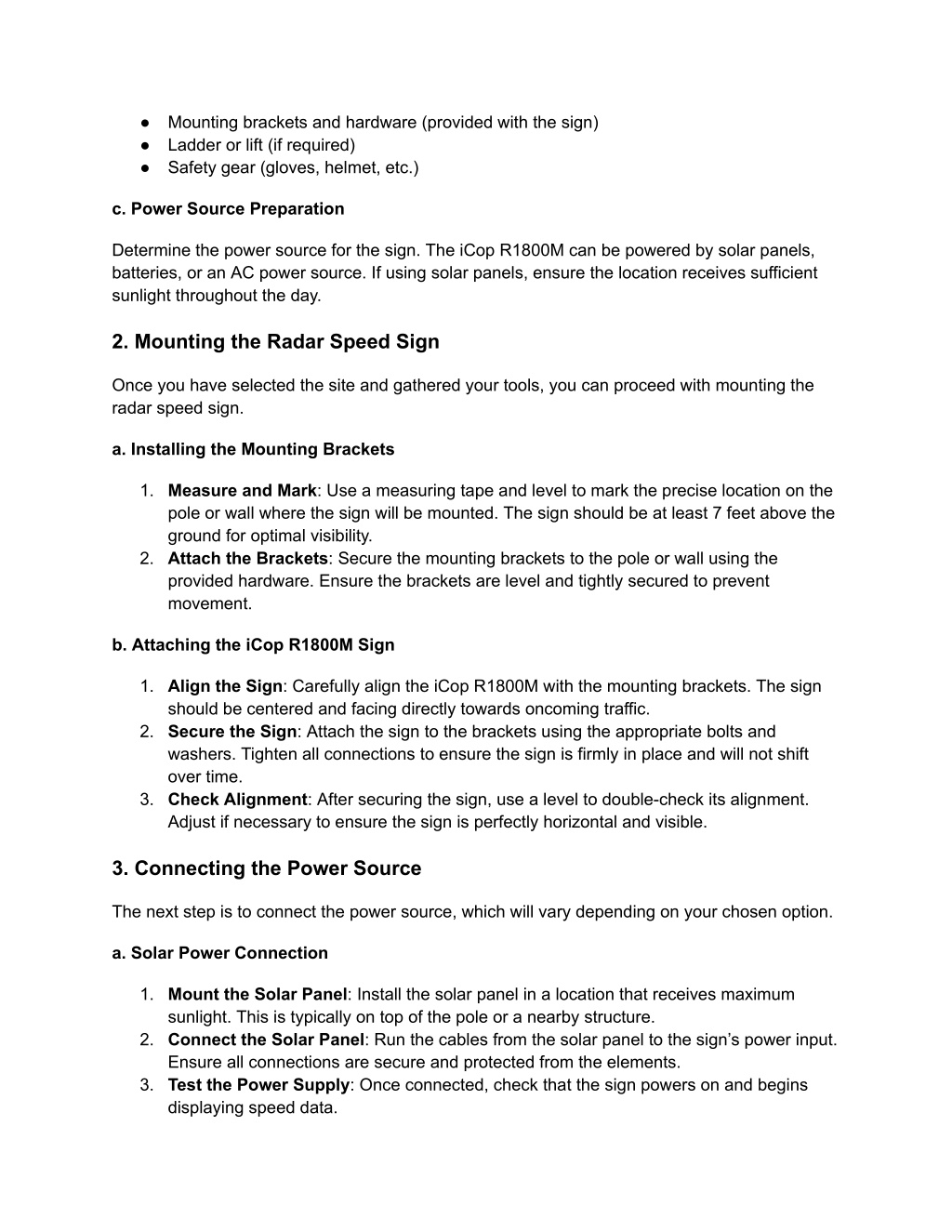

2. ● ● ● Mounting brackets and hardware (provided with the sign) Ladder or lift (if required) Safety gear (gloves, helmet, etc.) c. Power Source Preparation Determine the power source for the sign. The iCop R1800M can be powered by solar panels, batteries, or an AC power source. If using solar panels, ensure the location receives sufficient sunlight throughout the day. 2. Mounting the Radar Speed Sign Once you have selected the site and gathered your tools, you can proceed with mounting the radar speed sign. a. Installing the Mounting Brackets 1. Measure and Mark: Use a measuring tape and level to mark the precise location on the pole or wall where the sign will be mounted. The sign should be at least 7 feet above the ground for optimal visibility. 2. Attach the Brackets: Secure the mounting brackets to the pole or wall using the provided hardware. Ensure the brackets are level and tightly secured to prevent movement. b. Attaching the iCop R1800M Sign 1. Align the Sign: Carefully align the iCop R1800M with the mounting brackets. The sign should be centered and facing directly towards oncoming traffic. 2. Secure the Sign: Attach the sign to the brackets using the appropriate bolts and washers. Tighten all connections to ensure the sign is firmly in place and will not shift over time. 3. Check Alignment: After securing the sign, use a level to double-check its alignment. Adjust if necessary to ensure the sign is perfectly horizontal and visible. 3. Connecting the Power Source The next step is to connect the power source, which will vary depending on your chosen option. a. Solar Power Connection 1. Mount the Solar Panel: Install the solar panel in a location that receives maximum sunlight. This is typically on top of the pole or a nearby structure. 2. Connect the Solar Panel: Run the cables from the solar panel to the sign’s power input. Ensure all connections are secure and protected from the elements. 3. Test the Power Supply: Once connected, check that the sign powers on and begins displaying speed data.

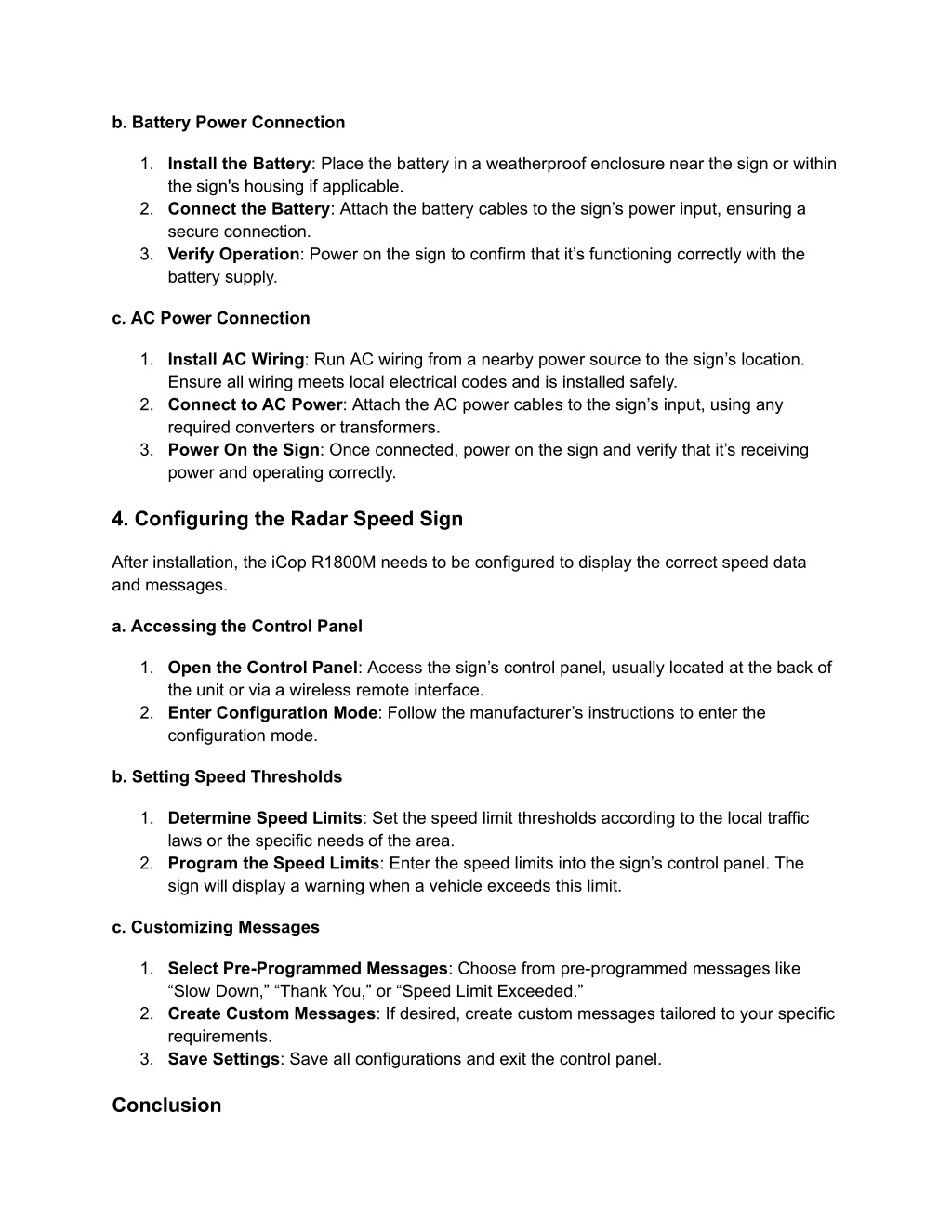

3. b. Battery Power Connection 1. Install the Battery: Place the battery in a weatherproof enclosure near the sign or within the sign's housing if applicable. 2. Connect the Battery: Attach the battery cables to the sign’s power input, ensuring a secure connection. 3. Verify Operation: Power on the sign to confirm that it’s functioning correctly with the battery supply. c. AC Power Connection 1. Install AC Wiring: Run AC wiring from a nearby power source to the sign’s location. Ensure all wiring meets local electrical codes and is installed safely. 2. Connect to AC Power: Attach the AC power cables to the sign’s input, using any required converters or transformers. 3. Power On the Sign: Once connected, power on the sign and verify that it’s receiving power and operating correctly. 4. Configuring the Radar Speed Sign After installation, the iCop R1800M needs to be configured to display the correct speed data and messages. a. Accessing the Control Panel 1. Open the Control Panel: Access the sign’s control panel, usually located at the back of the unit or via a wireless remote interface. 2. Enter Configuration Mode: Follow the manufacturer’s instructions to enter the configuration mode. b. Setting Speed Thresholds 1. Determine Speed Limits: Set the speed limit thresholds according to the local traffic laws or the specific needs of the area. 2. Program the Speed Limits: Enter the speed limits into the sign’s control panel. The sign will display a warning when a vehicle exceeds this limit. c. Customizing Messages 1. Select Pre-Programmed Messages: Choose from pre-programmed messages like “Slow Down,” “Thank You,” or “Speed Limit Exceeded.” 2. Create Custom Messages: If desired, create custom messages tailored to your specific requirements. 3. Save Settings: Save all configurations and exit the control panel. Conclusion

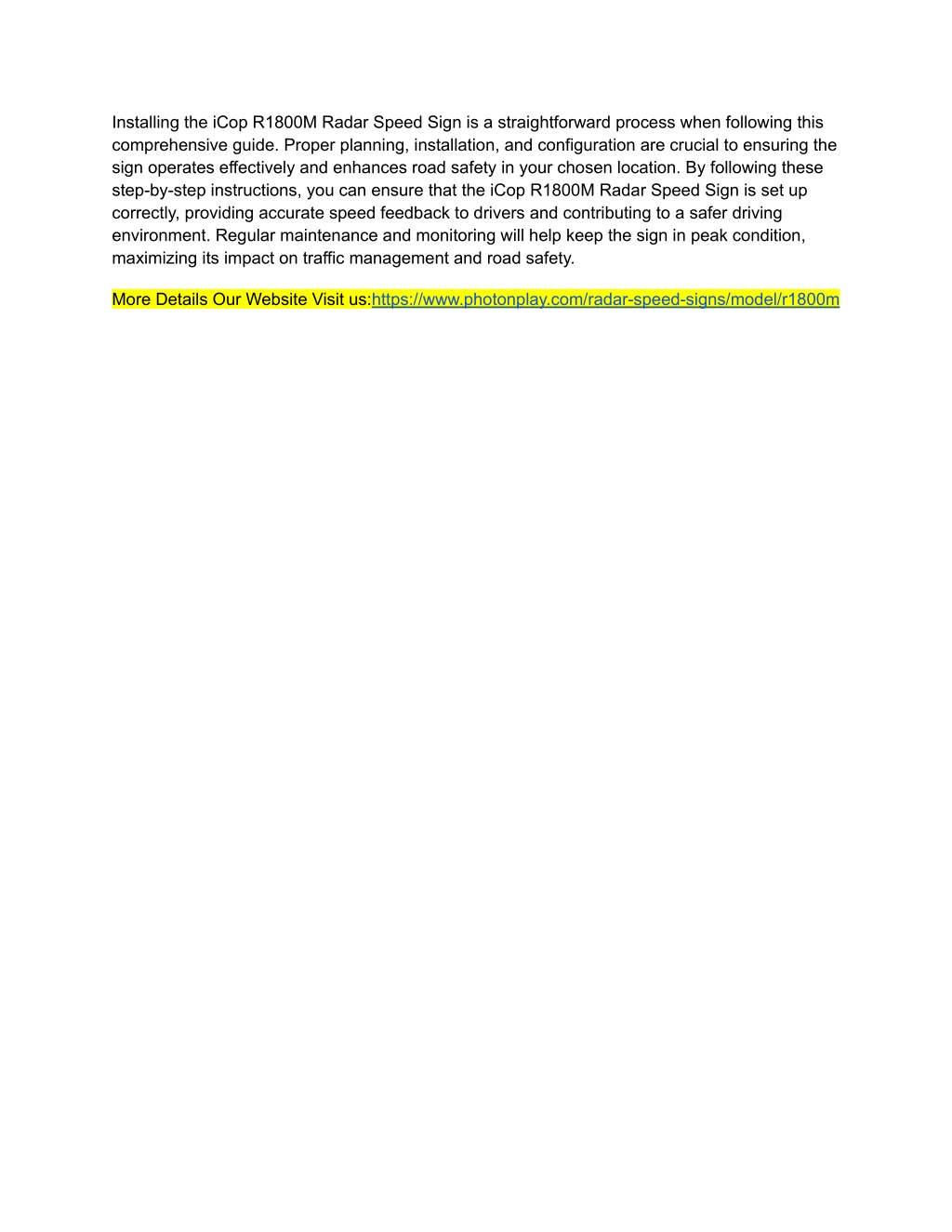

4. Installing the iCop R1800M Radar Speed Sign is a straightforward process when following this comprehensive guide. Proper planning, installation, and configuration are crucial to ensuring the sign operates effectively and enhances road safety in your chosen location. By following these step-by-step instructions, you can ensure that the iCop R1800M Radar Speed Sign is set up correctly, providing accurate speed feedback to drivers and contributing to a safer driving environment. Regular maintenance and monitoring will help keep the sign in peak condition, maximizing its impact on traffic management and road safety. More Details Our Website Visit us:https://www.photonplay.com/radar-speed-signs/model/r1800m
