Presentation Transcript
background
Background
  • Federal Motor Carrier Safety Administration (FMCSA) new cargo securement rules, January 1, 2004
  • Letter to FMCSA from WSP seeking guidance as to proper method of securement of fruit bins
  • FMCSA response in conjunction with decision on New Mexico chili pepper issue
federal motor carrier safety regulations pertaining to cargo securement
Federal Motor Carrier Safety Regulations pertaining to cargo securement

CFR 393.100 - …cargo must be secured to prevent load from leaking, spilling, blowing or falling from the motor vehicle.

CFR 393.102 – Securement systems must provide a downward force equivalent to at least 20% of the weight of the article of cargo…

CFR 393.106 – Cargo must be firmly immobilized or secured on or within a vehicle…

CFR 393.110 - ...the minimum number of tiedowns required to secure an article, or group of articles against movement depends on the length of the article.

current method of fruit bin securement

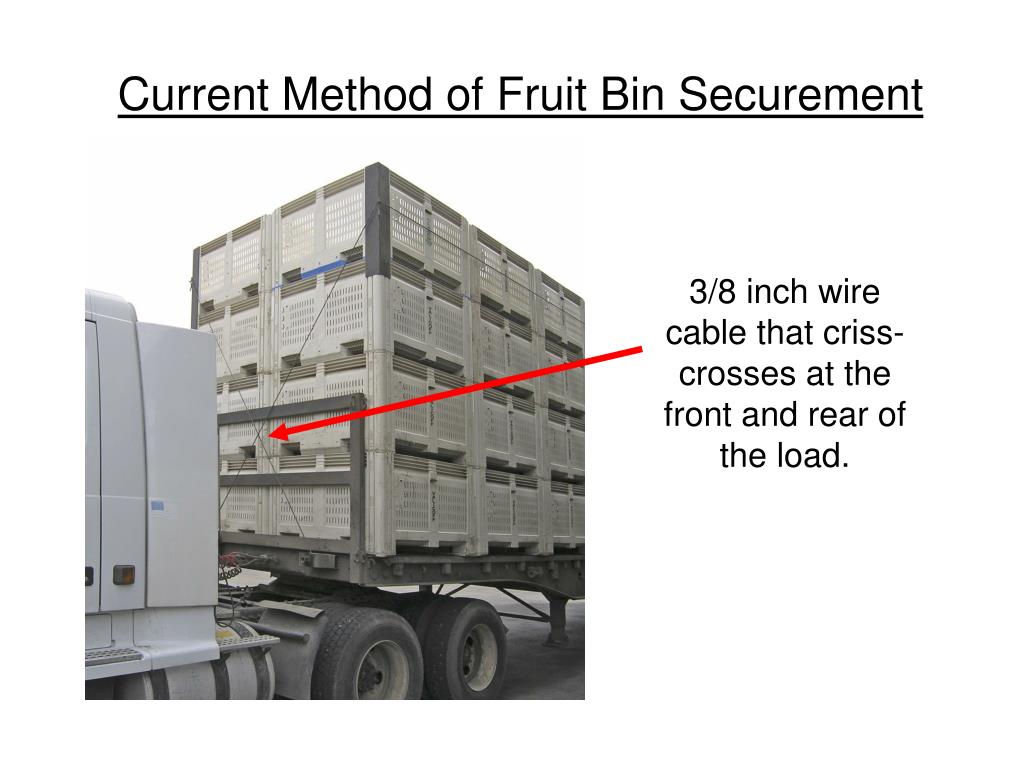

Current Method of Fruit Bin Securement

3/8 inch wire cable that criss-crosses at the front and rear of the load.

slide5

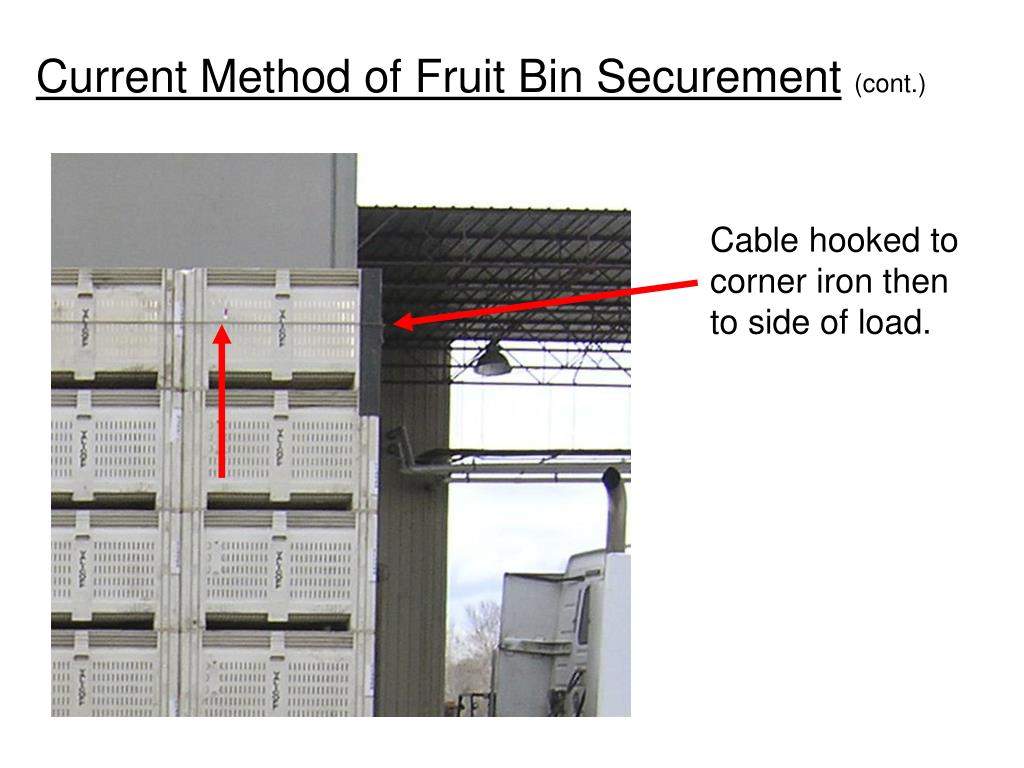

Current Method of Fruit Bin Securement(cont.)

Cable hooked to corner iron then to side of load.

new fruit bin securement method option 1

New Fruit Bin Securement Method - Option 1

Continue to use 3/8 inch cable criss-crossed in front and rear with cable running the length of the top row of bins.

In addition, one tiedown for every 10 feet of article length or fraction thereof (with headerboard).

new fruit bin securement method option 17

New Fruit Bin Securement Method - Option 1

3/8 inch cable

One extra tiedown within the first ten feet if no headerboard or bulkhead.

new fruit bin securement method option 2

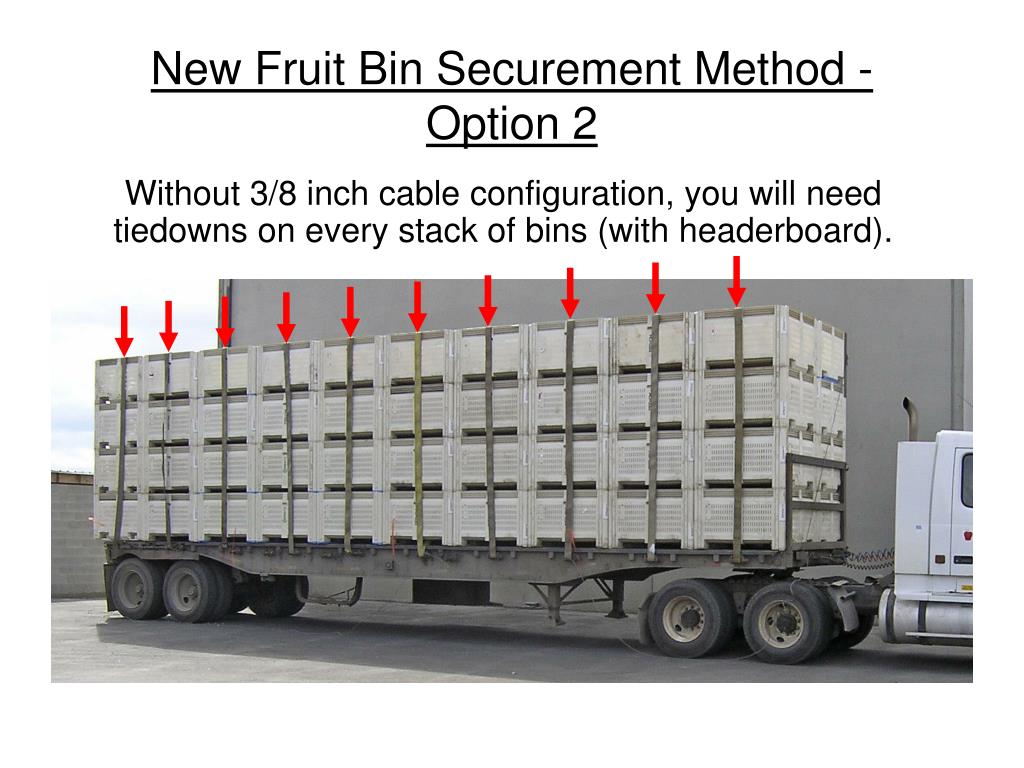

New Fruit Bin Securement Method - Option 2

Without 3/8 inch cable configuration, you will need tiedowns on every stack of bins (with headerboard).

new fruit bin securement method option 29

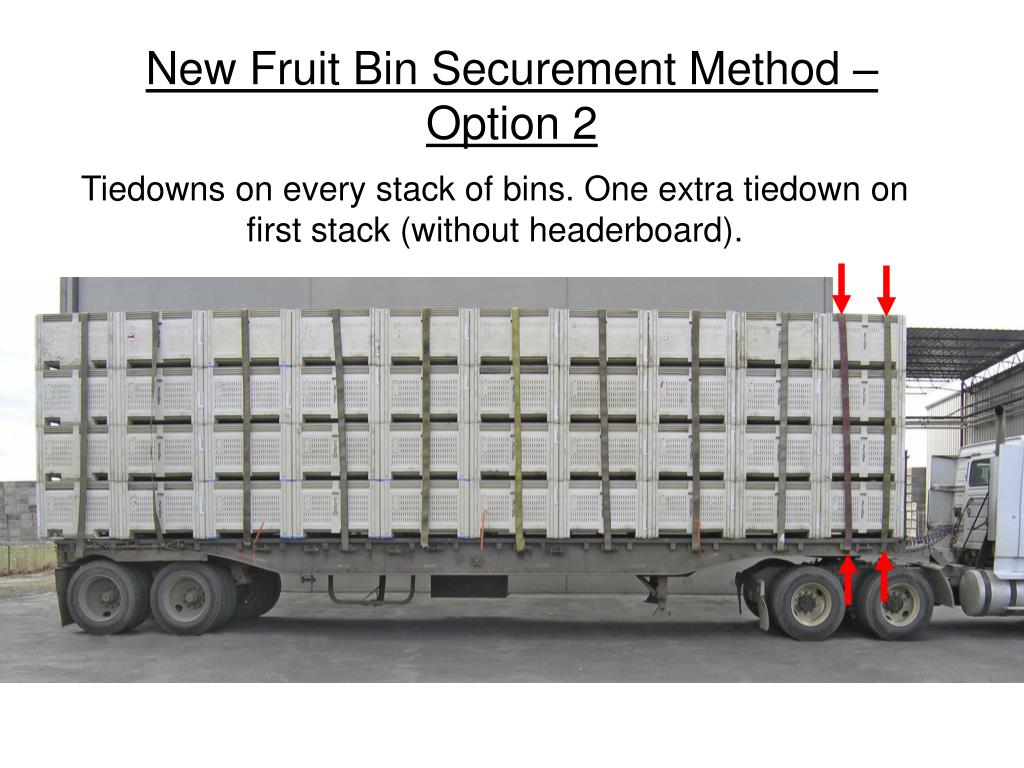

New Fruit Bin Securement Method – Option 2

Tiedowns on every stack of bins. One extra tiedown on first stack (without headerboard).

fruit bin securement method loaded
Fruit Bin Securement Method - Loaded
  • Tiedown every 10 feet; plus
  • Tiedown over each 3-high stack of bins; plus
  • 3/8 inch cable longitudinal securement
front end structure headerboard
Front End Structure (Headerboard)
  • CFR 393.114
  • 4 feet high
  • Width of the vehicle
  • Strength – Ability to block forward movement of article of cargo equal to one half (1/2) of the weight of the article.
  • Additional information – Federal Motor Carrier Safety Administration website: www.FMCSA.DOT.GOV
wsp fruit bin securement enforcement

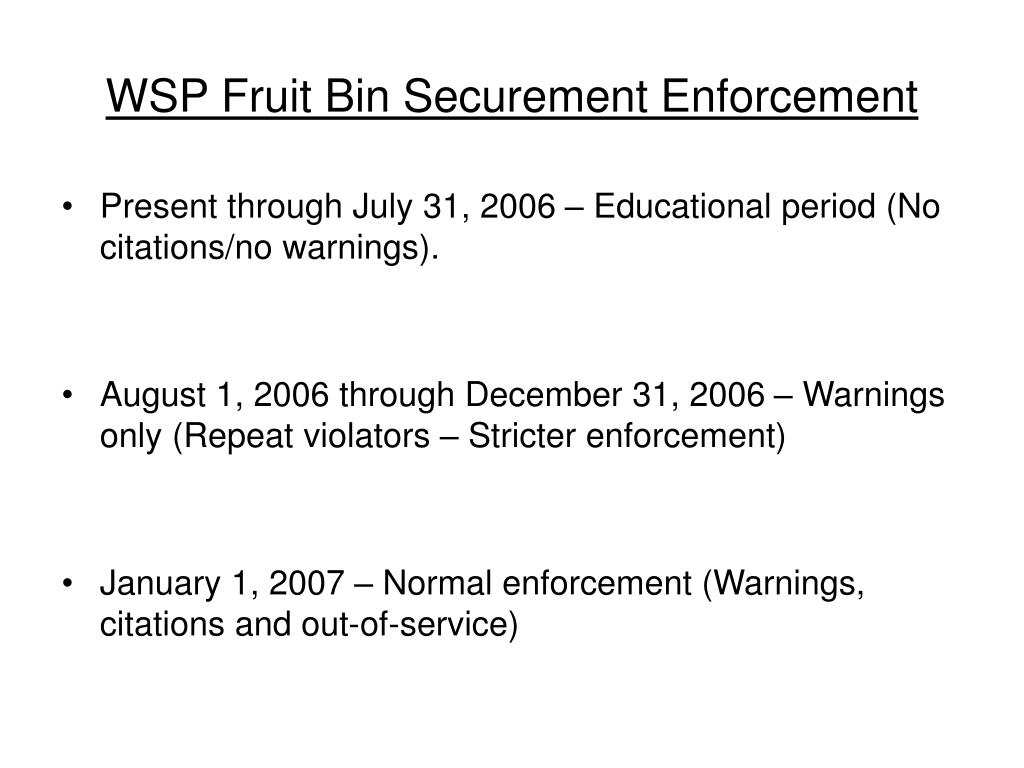

WSP Fruit Bin Securement Enforcement
  • Present through July 31, 2006 – Educational period (No citations/no warnings).
  • August 1, 2006 through December 31, 2006 – Warnings only (Repeat violators – Stricter enforcement)
  • January 1, 2007 – Normal enforcement (Warnings, citations and out-of-service)
website information

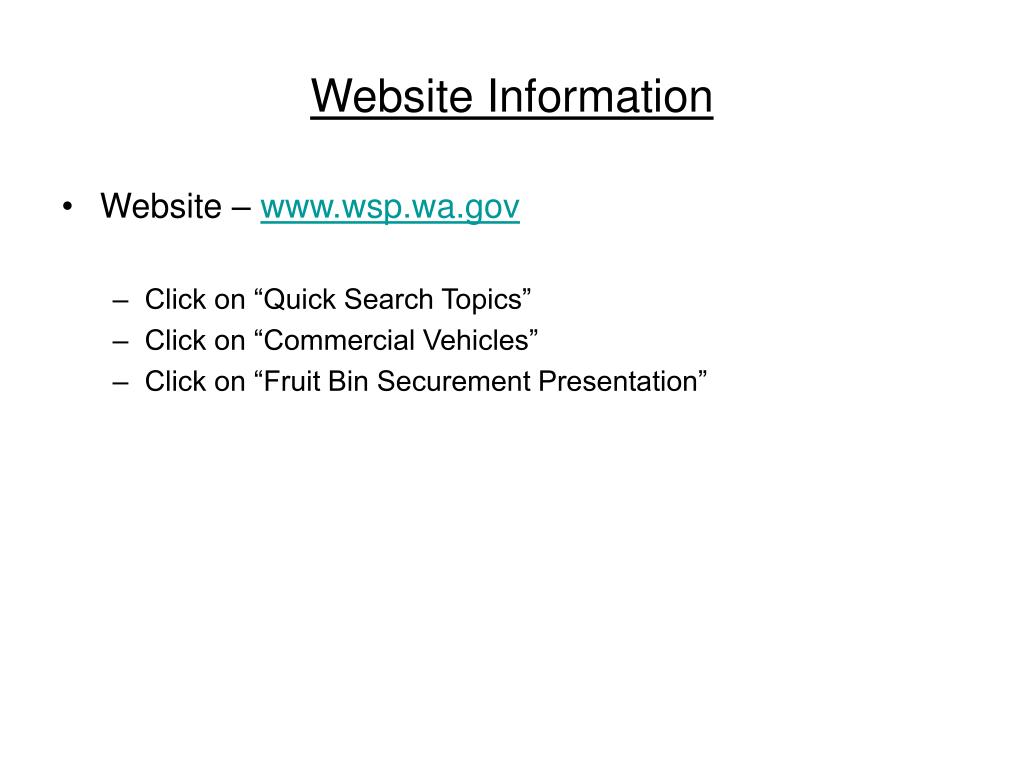

Website Information
  • Website – www.wsp.wa.gov
    • Click on “Quick Search Topics”
    • Click on “Commercial Vehicles”
    • Click on “Fruit Bin Securement Presentation”
contact information
Contact Information
  • WSP Yakima – Lt. Jeff Jones – (509)249-6703
  • WSP Headquarters – CVEO 4 John Nicholas – (360)753-0281
