  1. Plenary Lecture:Corrosion Standards- Who Needs Them? Sheldon W. Dean, Jr. Dean Corrosion Technology, Inc www.deancorrtech.com Corrosion 2010, San Antonio, TX NACE International

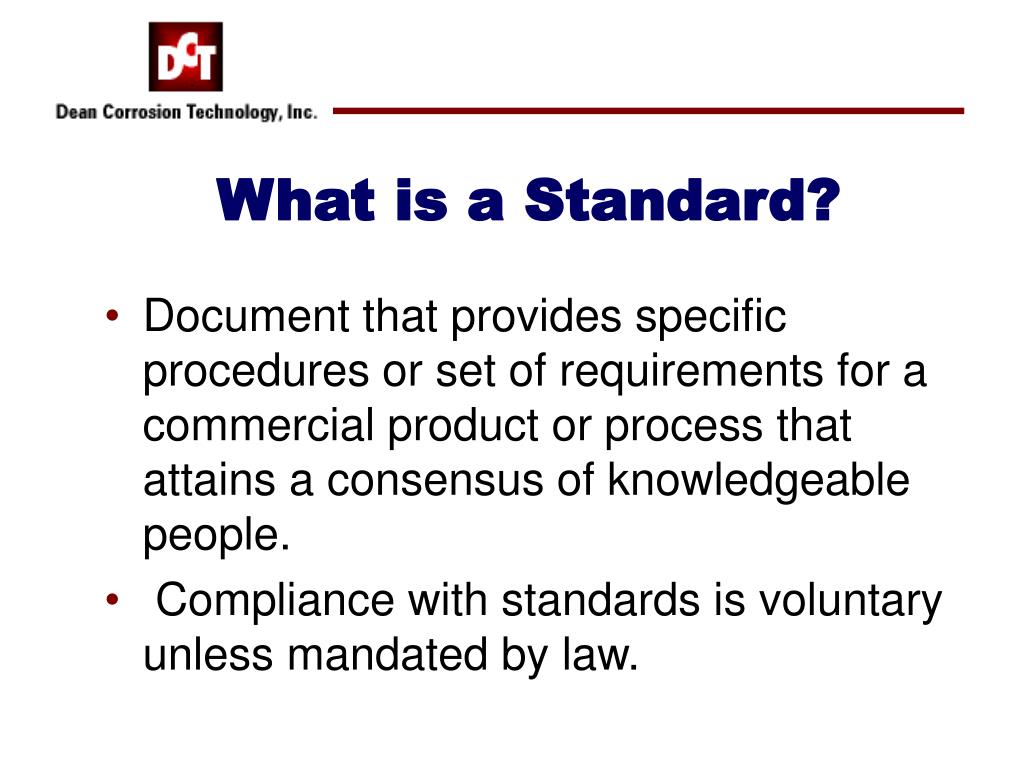

  2. What is a Standard? • Document that provides specific procedures or set of requirements for a commercial product or process that attains a consensus of knowledgeable people. • Compliance with standards is voluntary unless mandated by law.

  3. History of Standards • International Society of Testing Materials- 1880’s. • ASTM founded ~1898. • NACE founded 1948. • ISO ~1960.

  4. History of Corrosion Standards • • ASTM- 1904 • - Steel vs. wrought iron in atmosphere • • ASTM-1939 • - Salt Spray Test, B117 • • NACE- Cathodic protection issues

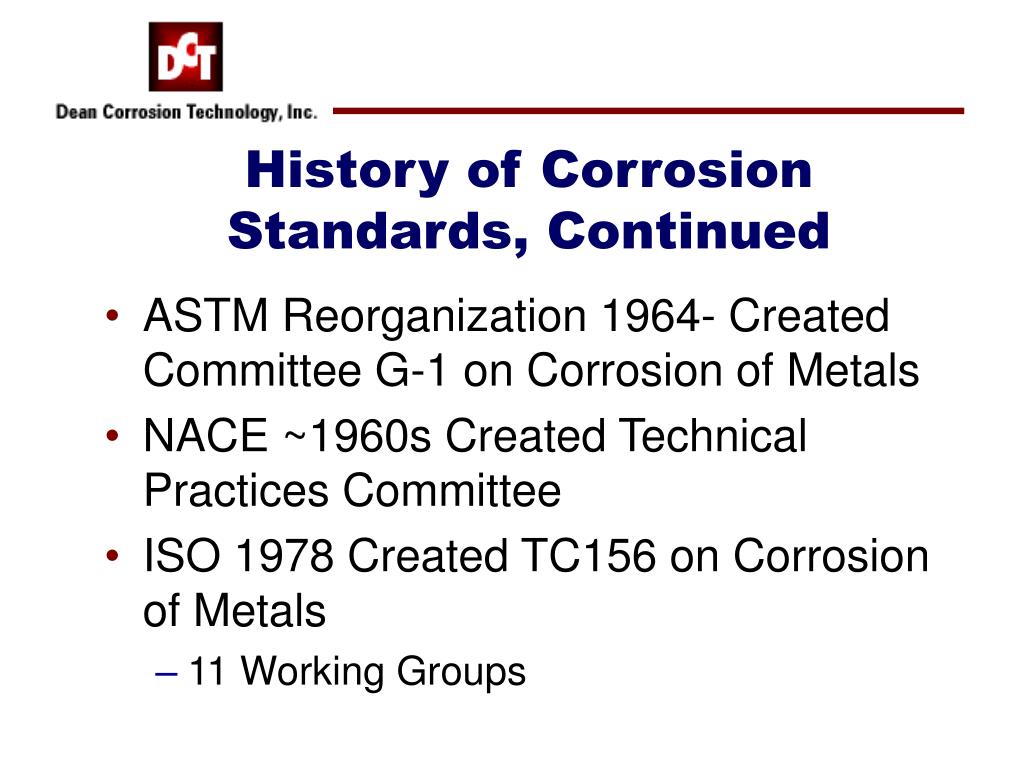

  5. History of Corrosion Standards, Continued • ASTM Reorganization 1964- Created Committee G-1 on Corrosion of Metals • NACE ~1960s Created Technical Practices Committee • ISO 1978 Created TC156 on Corrosion of Metals • 11 Working Groups

  6. 3 Examples of Standards • ASTM G 5 Potentiodynamic Polarization • NACE SP0294 Sulfuric Acid Storage Tanks • ASTM G186/G188 Leak Detection Fluids

  7. Potentiodynamic Polarization • Corrosion is electrochemical • Potentiostats became available (1960s) • Passive-active behavior of stainless steels revealed with potentiostat • Issues with reliability and reproducibility

  8. ASTM G5 Reference Method1969 • 430 stainless steel in 1.0 N H2SO4 • Single lot of stainless steel • Carefully designed procedure • 10 mV per min from Ecorr • Many participants • Reproducibility range shown

  9. ASTM G 5 Potentiodynamic Composite

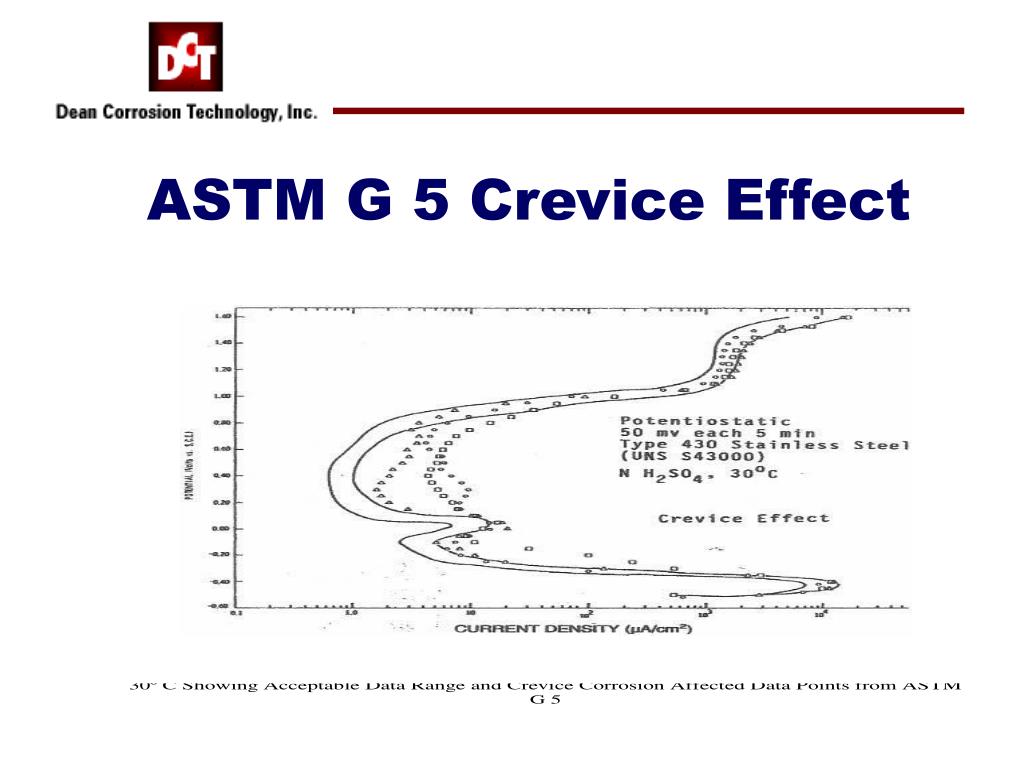

  10. ASTM G 5 Crevice Effect

  11. ASTM G 5 Standard Reference Method • First reference method • Results demonstrated reproducibility • Method widely used to qualify labs • Basis of many potentiodynamic studies • Method upgraded and improved several times

  12. Who Needs ASTM G5? • New researchers learning electrochemical methods • Technicians learning electrochemical techniques • Lab managers overseeing labs using electrochemical methods • Technical reviewers judging laboratory qualification to run electrochemical methods

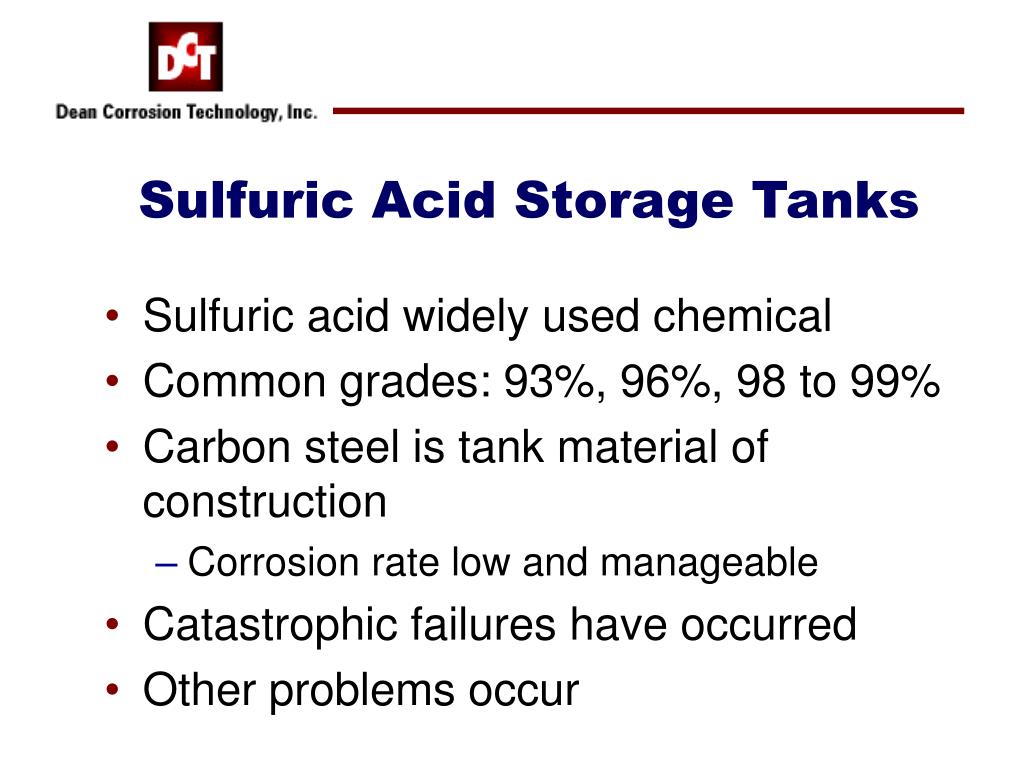

  13. Sulfuric Acid Storage Tanks • Sulfuric acid widely used chemical • Common grades: 93%, 96%, 98 to 99% • Carbon steel is tank material of construction • Corrosion rate low and manageable • Catastrophic failures have occurred • Other problems occur

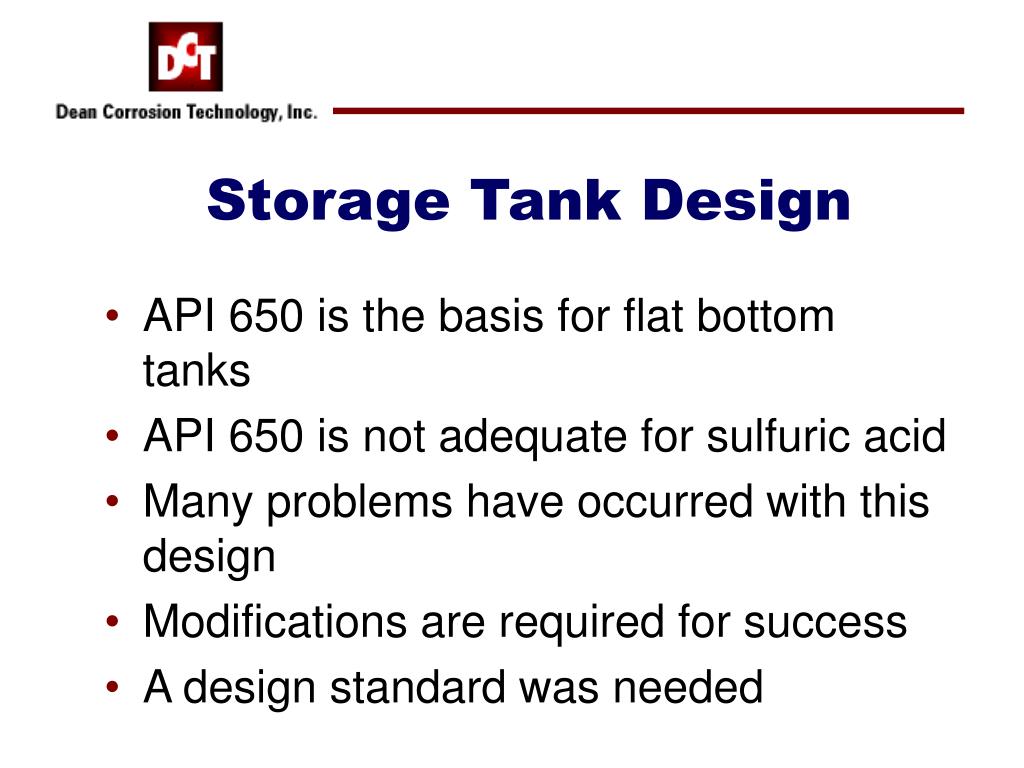

  14. Storage Tank Design • API 650 is the basis for flat bottom tanks • API 650 is not adequate for sulfuric acid • Many problems have occurred with this design • Modifications are required for success • A design standard was needed

  15. Problems with Concentrated Sulfuric Acid • Velocity accelerated corrosion of steel • Corrosion rate increases catastrophically when acid is diluted • Hydrogen corrosion product caused problems • Increased temperature increases corrosion rate

  16. 163C 325F 107C 225F 52C 125F 24C 75F

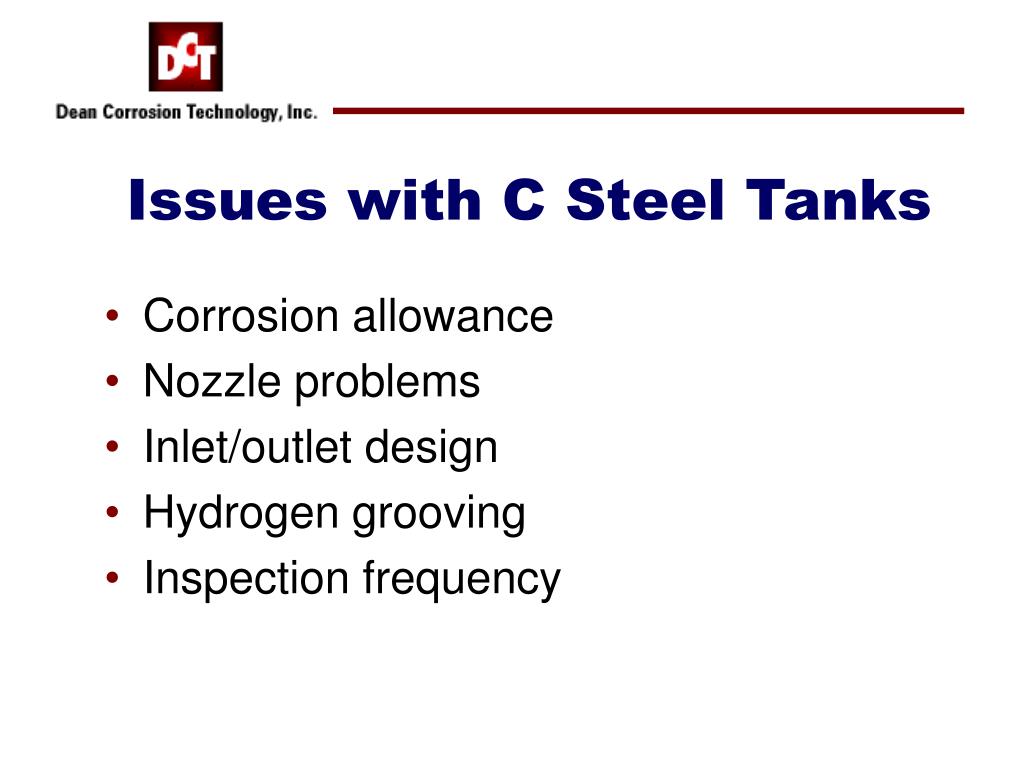

  17. Issues with C Steel Tanks • Corrosion allowance • Nozzle problems • Inlet/outlet design • Hydrogen grooving • Inspection frequency

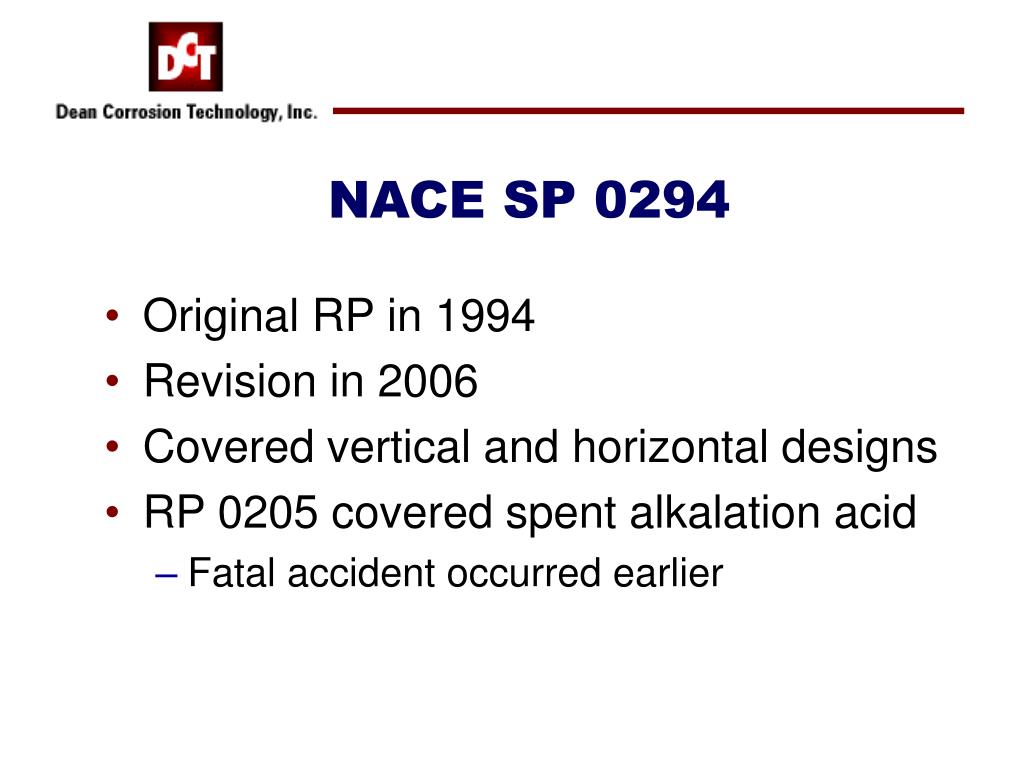

  18. NACE SP 0294 • Original RP in 1994 • Revision in 2006 • Covered vertical and horizontal designs • RP 0205 covered spent alkalation acid • Fatal accident occurred earlier

  19. Who Needs SP 0294? • Sulfuric acid producers • Sulfuric acid users • Tank inspectors • Plant maintenance engineers • Plant engineers • Consultants and contractors

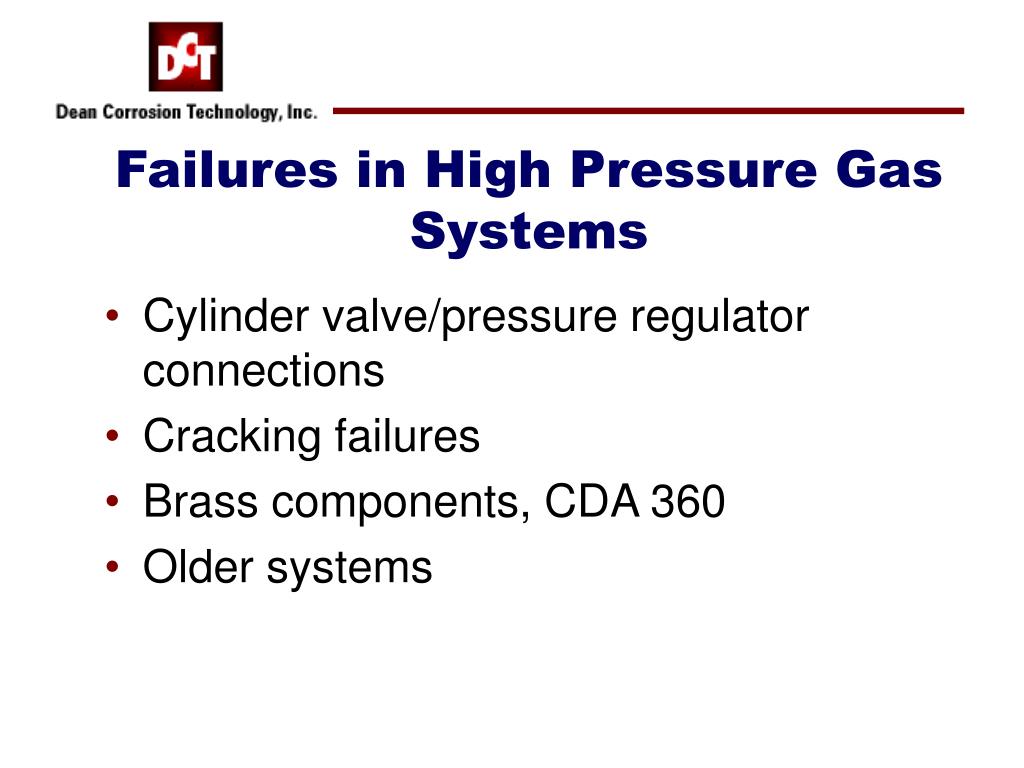

  20. Failures in High Pressure Gas Systems • Cylinder valve/pressure regulator connections • Cracking failures • Brass components, CDA 360 • Older systems

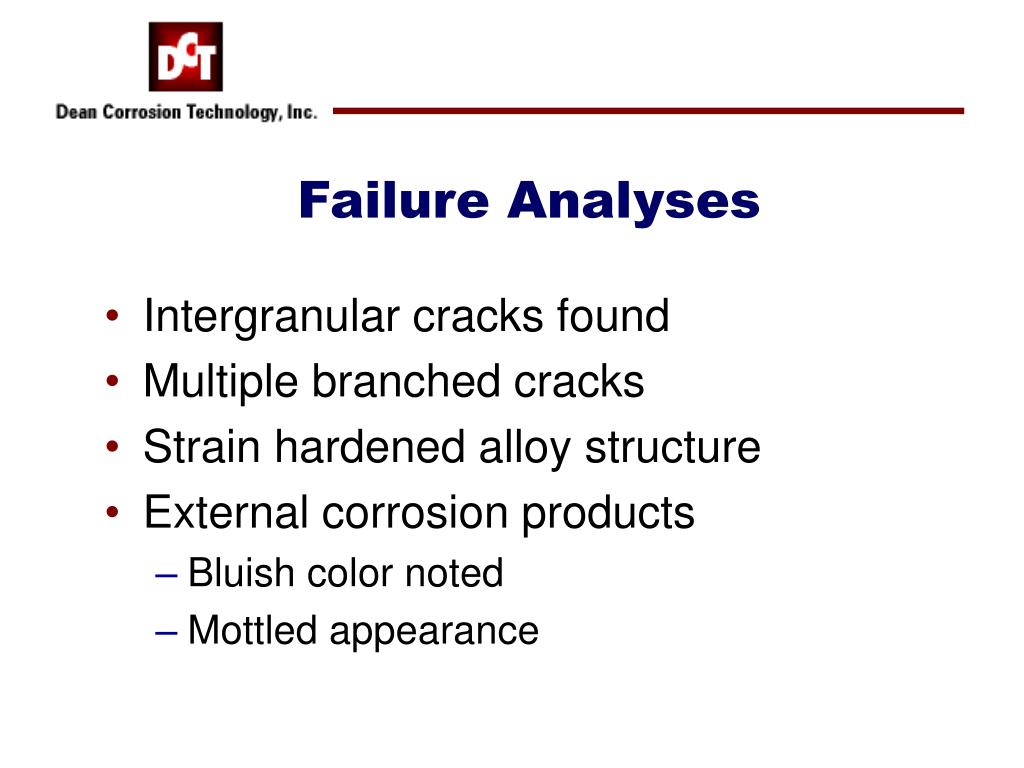

  21. Failure Analyses • Intergranular cracks found • Multiple branched cracks • Strain hardened alloy structure • External corrosion products • Bluish color noted • Mottled appearance

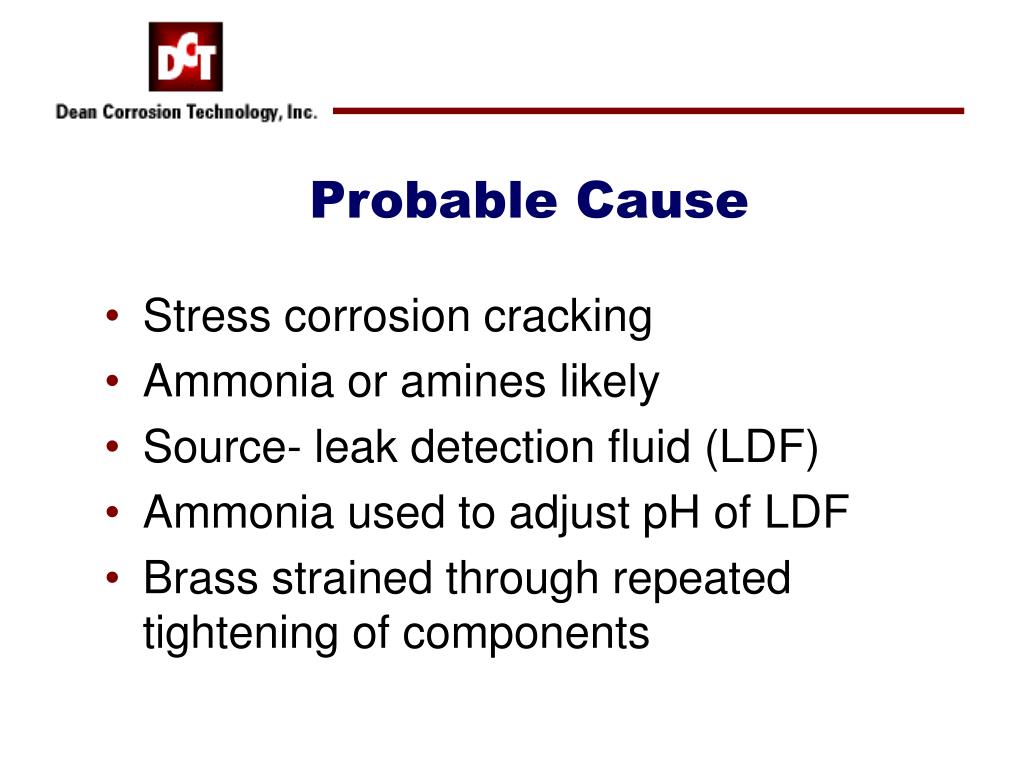

  22. Probable Cause • Stress corrosion cracking • Ammonia or amines likely • Source- leak detection fluid (LDF) • Ammonia used to adjust pH of LDF • Brass strained through repeated tightening of components

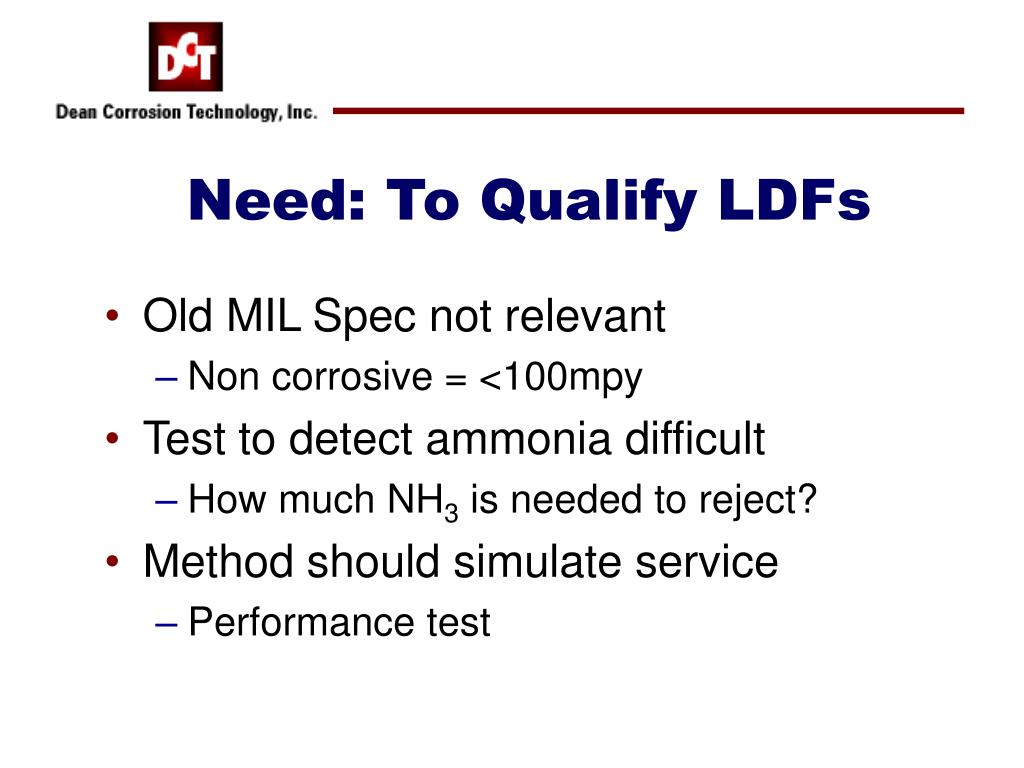

  23. Need: To Qualify LDFs • Old MIL Spec not relevant • Non corrosive = <100mpy • Test to detect ammonia difficult • How much NH3 is needed to reject? • Method should simulate service • Performance test

  24. Path Forward • Find an SCC test for LDFs • Find a susceptible brass specimen • Test to verify susceptibility • Design atmospheric exposure program • Need to qualify atmosphere • Ammonia fumes are common in labs • May cause unrelated failures

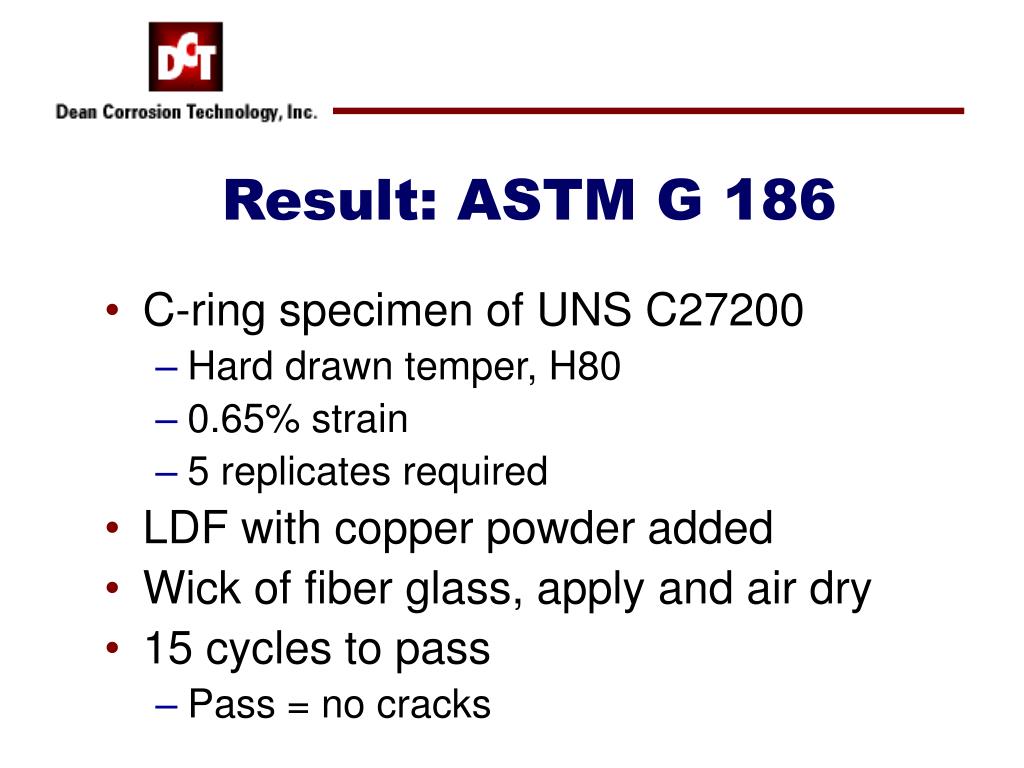

  25. Result: ASTM G 186 • C-ring specimen of UNS C27200 • Hard drawn temper, H80 • 0.65% strain • 5 replicates required • LDF with copper powder added • Wick of fiber glass, apply and air dry • 15 cycles to pass • Pass = no cracks

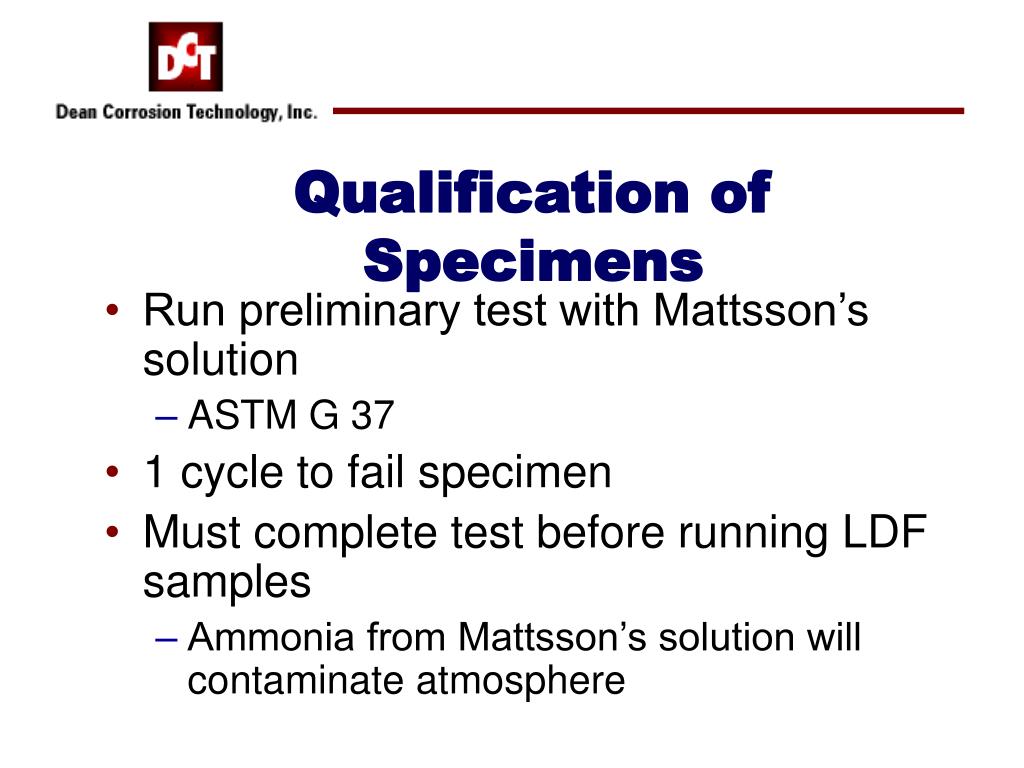

  26. Qualification of Specimens • Run preliminary test with Mattsson’s solution • ASTM G 37 • 1 cycle to fail specimen • Must complete test before running LDF samples • Ammonia from Mattsson’s solution will contaminate atmosphere

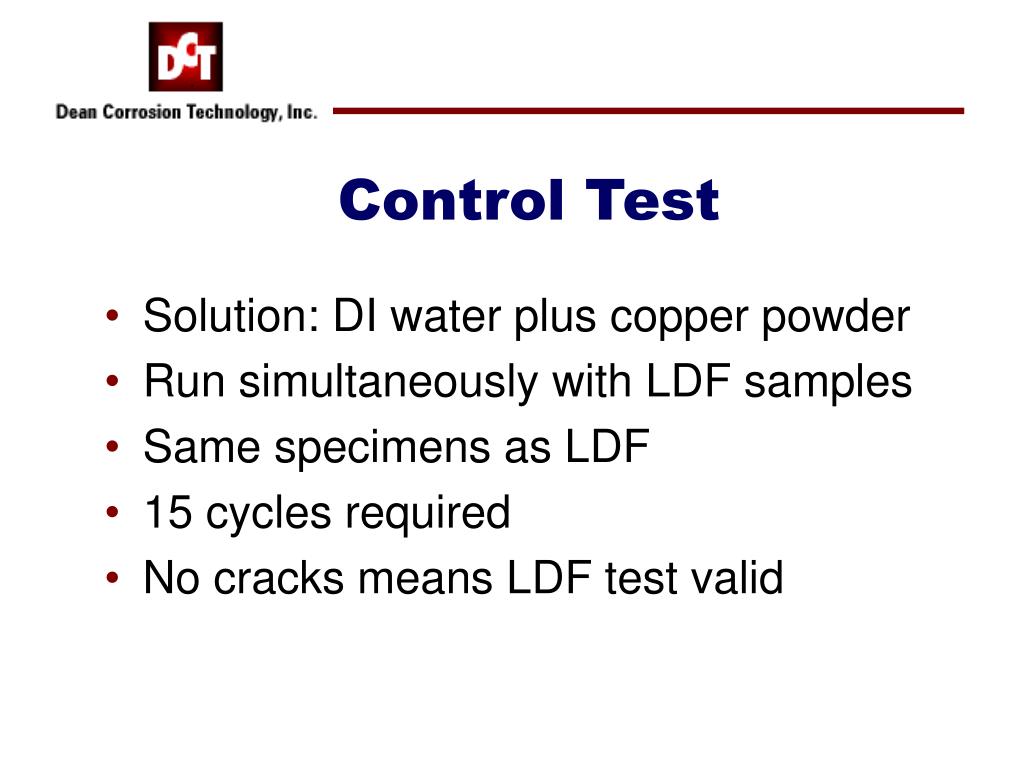

  27. Control Test • Solution: DI water plus copper powder • Run simultaneously with LDF samples • Same specimens as LDF • 15 cycles required • No cracks means LDF test valid

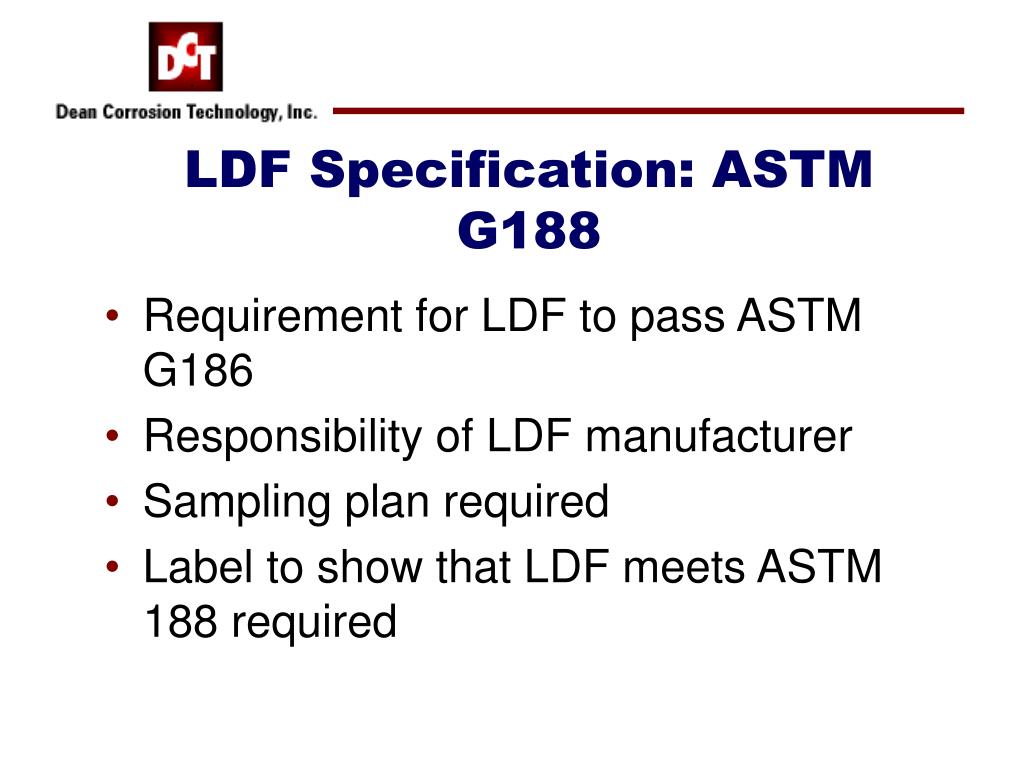

  28. LDF Specification: ASTM G188 • Requirement for LDF to pass ASTM G186 • Responsibility of LDF manufacturer • Sampling plan required • Label to show that LDF meets ASTM 188 required

  29. Who Needs ASTM G 186/188? • LDF manufacturers and suppliers • Users of compressed gas systems • Labs • Hospitals • Users of welding equipment • Industrial gas companies • Independent labs desiring to do qualifications of LDFs

  30. Types of Standards • Test methods (TM) • ASTM G186 • ASTM G 5-Reference Method • Standard Practice (SP) aka RP • NACE SP 0294 • NACE RP 0205 • Specification • ASTM G188

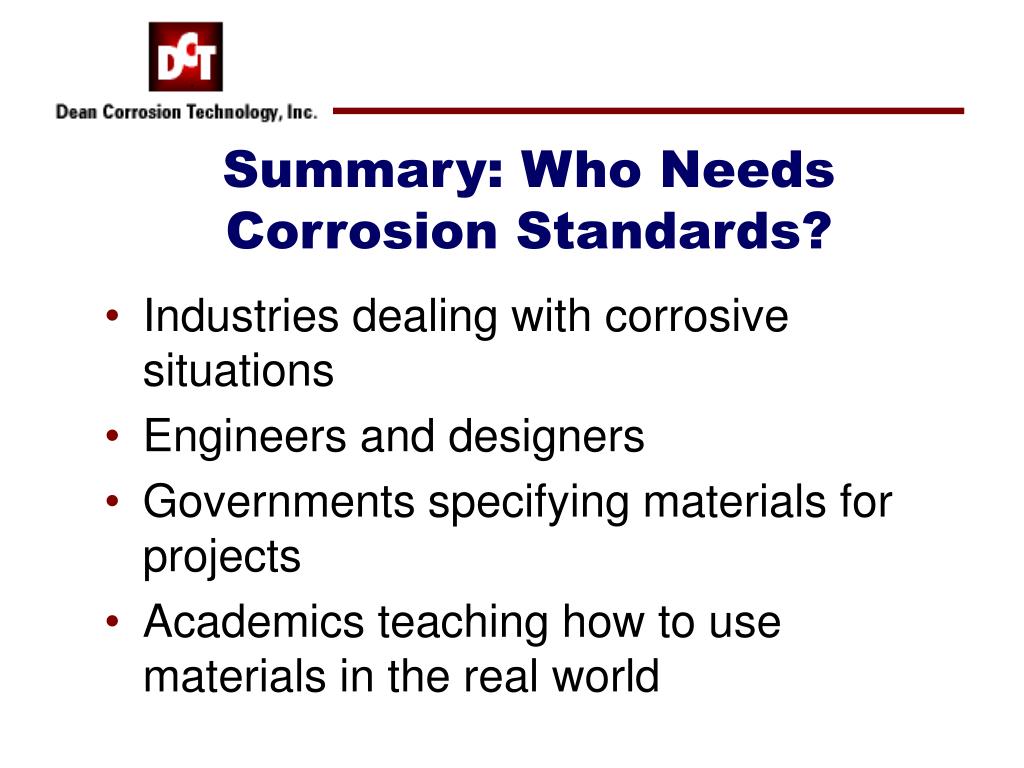

  31. Summary: Who Needs Corrosion Standards? • Industries dealing with corrosive situations • Engineers and designers • Governments specifying materials for projects • Academics teaching how to use materials in the real world

  32. Why Use Corrosion Standards? • Improve safety of equipment and systems • Improve reliability • Minimize unplanned shutdowns • Reduce cost of operation • Improve efficiency • Avoid duplication of effort

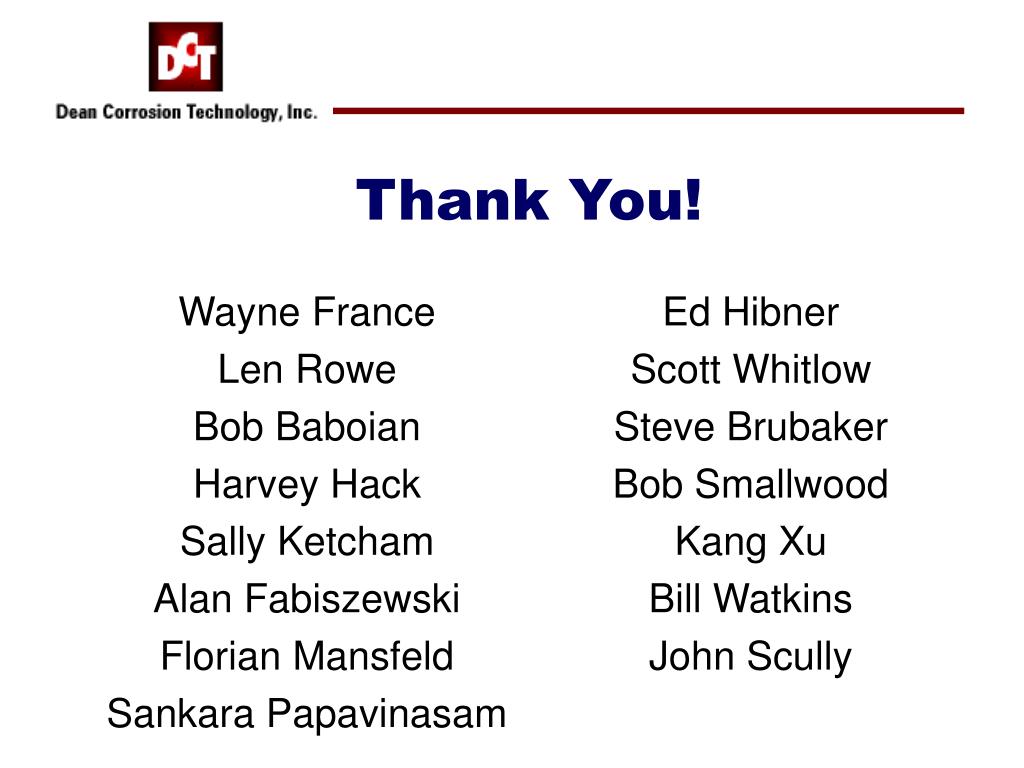

  33. Wayne France Len Rowe Bob Baboian Harvey Hack Sally Ketcham Alan Fabiszewski Florian Mansfeld Sankara Papavinasam Ed Hibner Scott Whitlow Steve Brubaker Bob Smallwood Kang Xu Bill Watkins John Scully Thank You!
