what is storage
What is Storage?
  • Holds data, instructions, and information needed for future use.
  • Storage Medium- is a physical item which a computer stores information, data, and instructions. ( also called secondary storage)
  • Ex: Floppy disks, Zip disks, CD’s and DVD’s, tape, and PC cards.
  • Storage requirements for the different users will vary greatly
capacity of storage media
Capacity of storage media
  • Capacity- is the amount of information or the number of bytes a storage medium can hold
terminology
Terminology
  • Storage device- the computer hardware that records and retrieves items to and from storage media
  • Writing- the process of transferring data, instructions, and information from memory to a storage medium
  • Reading- the process of transferring items from a storage medium into memory
  • Access time- (1) amount of time it takes a storage device to locate an item on a storage medium or (2) the time required to deliver an item from memory to the processor
  • Transfer rate- is the speed with witch data, instructions, and information transfer to and from a device
floppy disk

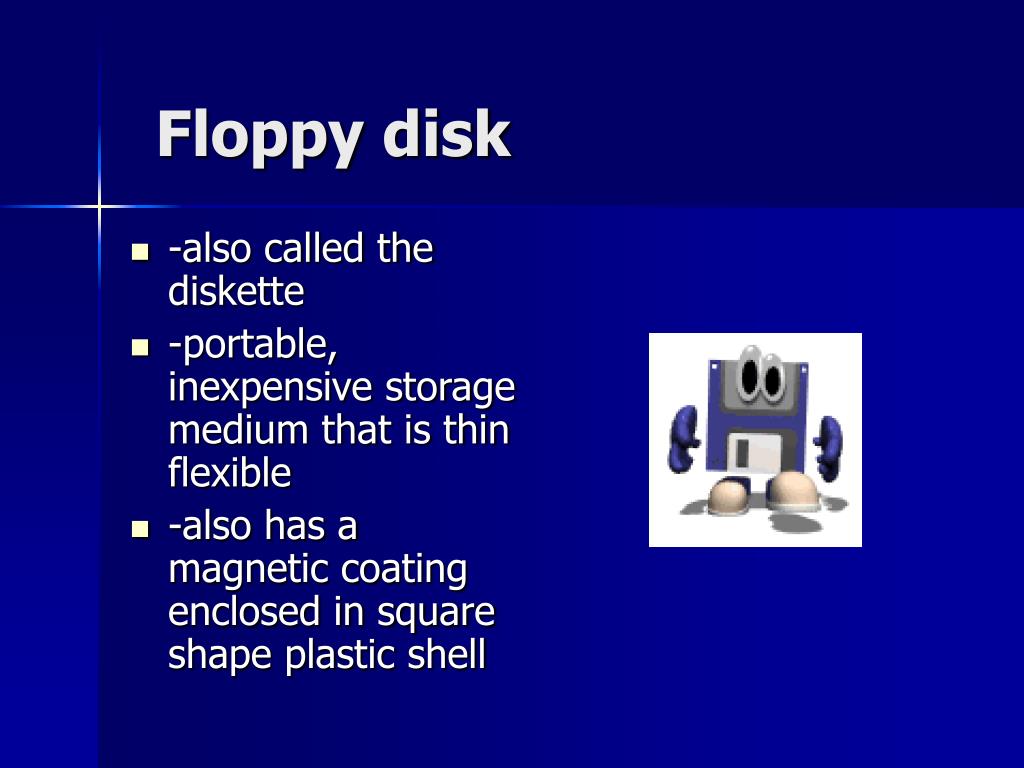

Floppy disk
  • -also called the diskette
  • -portable, inexpensive storage medium that is thin flexible
  • -also has a magnetic coating enclosed in square shape plastic shell

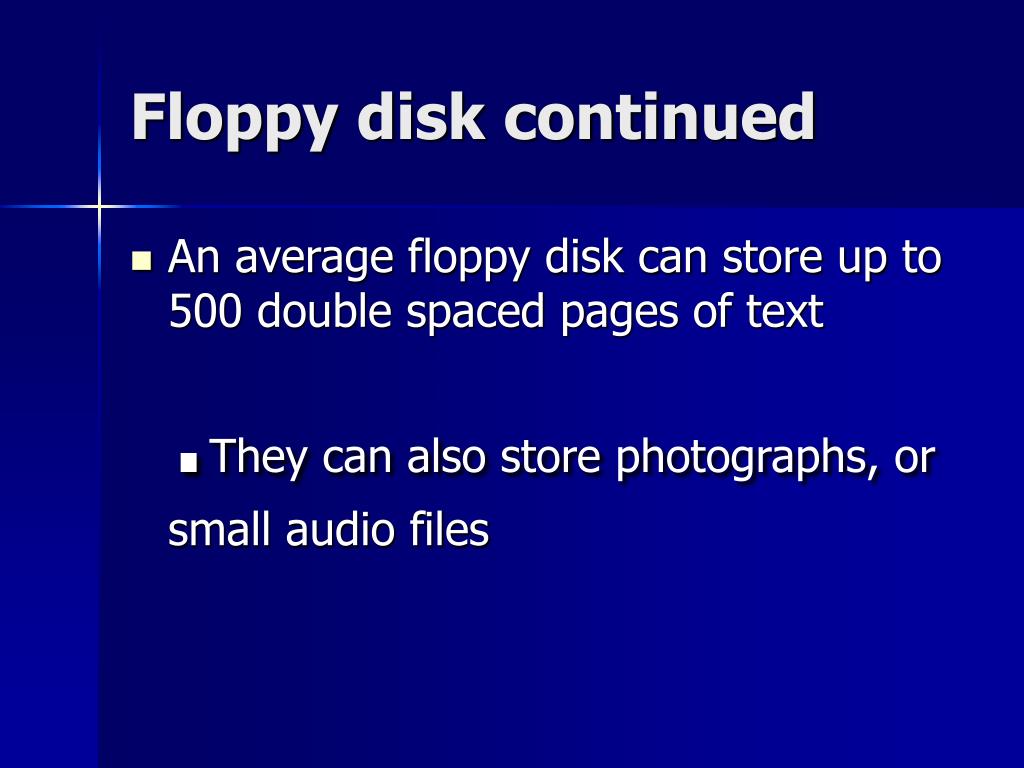

floppy disk continued
Floppy disk continued
  • An average floppy disk can store up to 500 double spaced pages of text .They can also store photographs, or small audio files

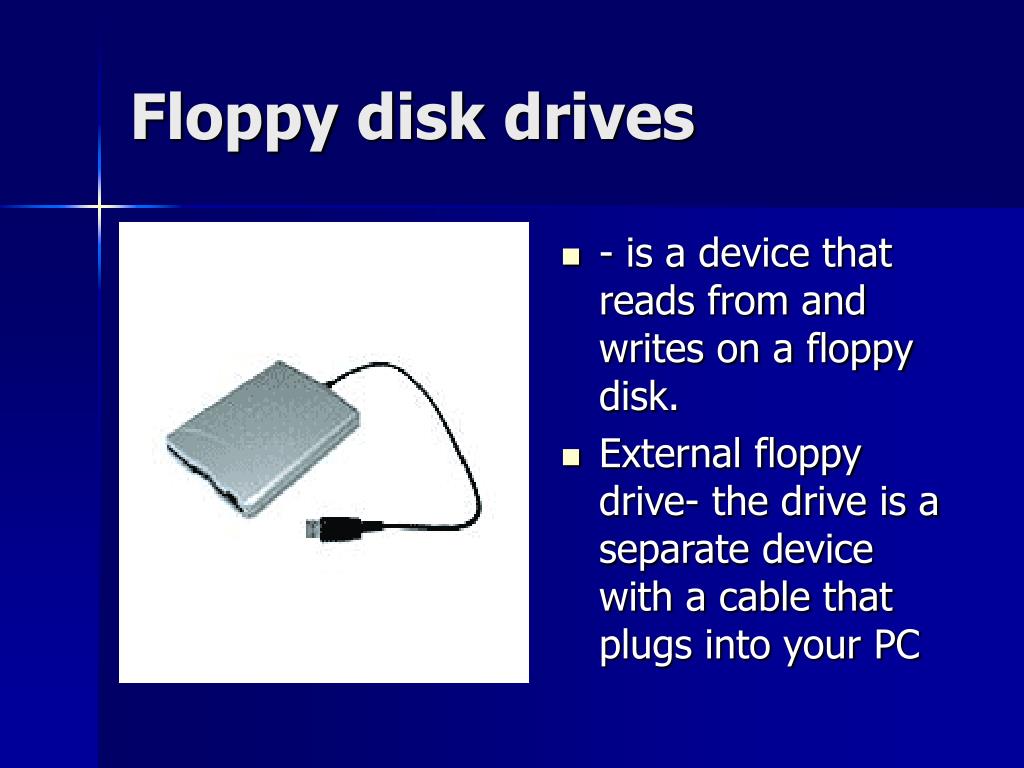

floppy disk drives
Floppy disk drives
  • - is a device that reads from and writes on a floppy disk.
  • External floppy drive- the drive is a separate device with a cable that plugs into your PC
key terms
Key Terms
  • Density- is the number of bytes in an area on a storage medium
  • Downward compatible- they can recognize and use earlier media
  • Shutter- the metal piece on the floppy disk

- The average time for a floppy disk to locate an item is 1/12 of a second

characteristics of a floppy disk

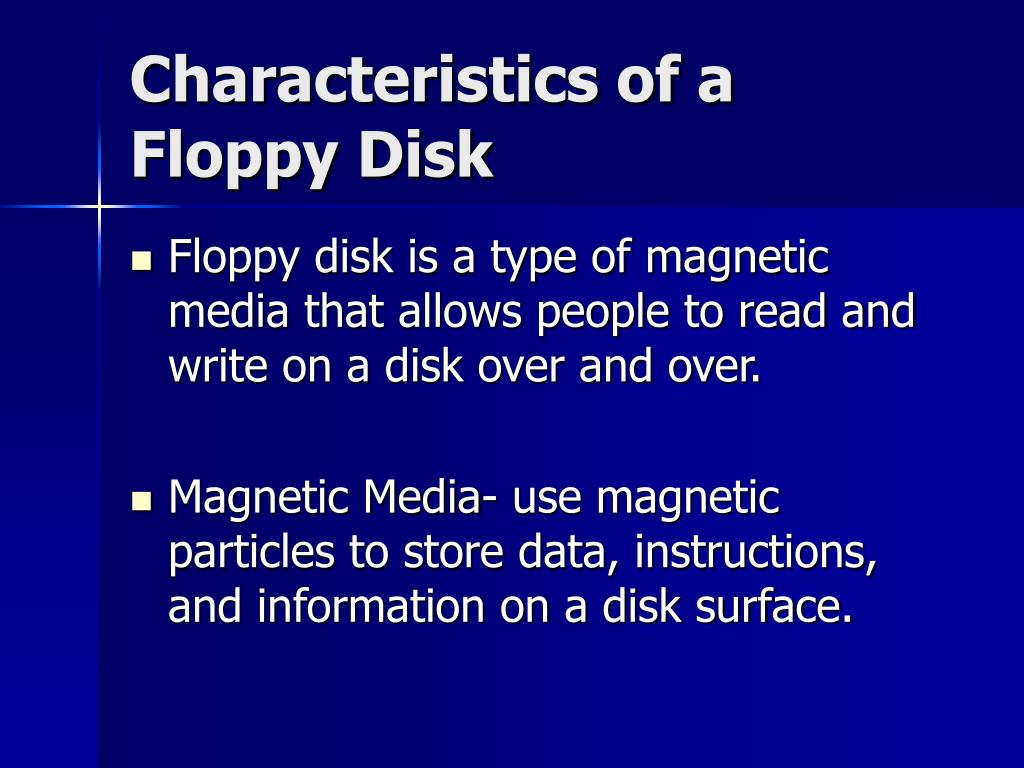

Characteristics of a Floppy Disk
  • Floppy disk is a type of magnetic media that allows people to read and write on a disk over and over.
  • Magnetic Media- use magnetic particles to store data, instructions, and information on a disk surface.
continued

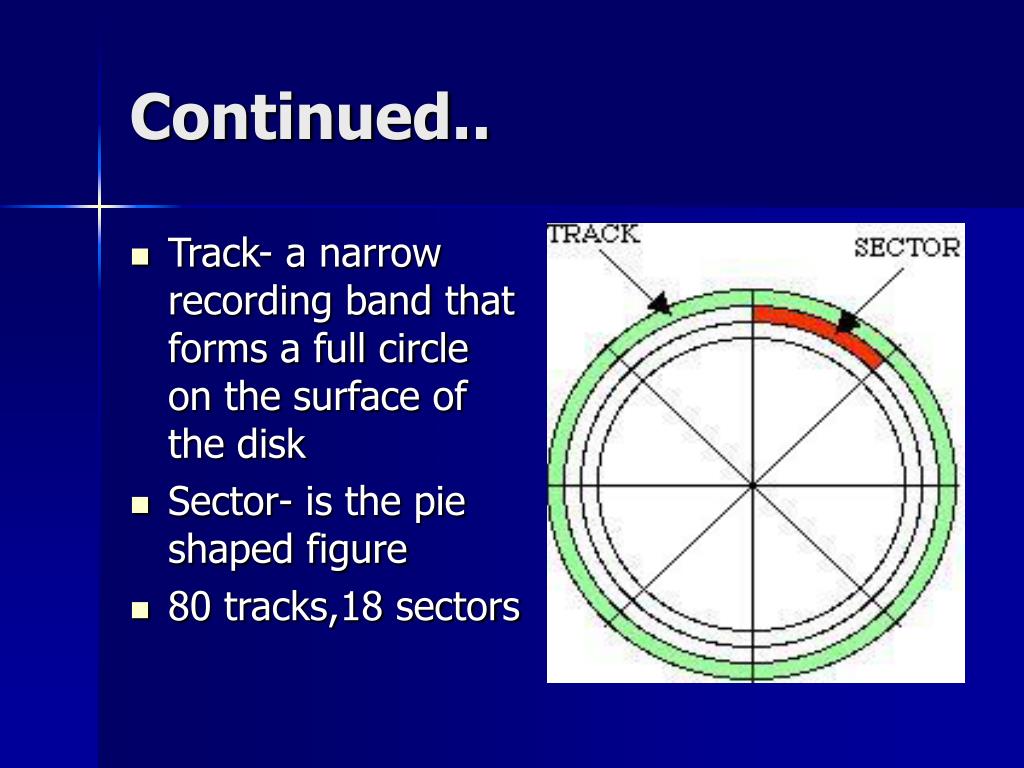

Continued..
  • Track- a narrow recording band that forms a full circle on the surface of the disk
  • Sector- is the pie shaped figure
  • 80 tracks,18 sectors
cds and dvds
CDs and DVDs
  • Are types of optical storage media that consists of a flat, round, portable disc made of metal plastic and lacquer.
  • Store software, data, digital photographs, movies, and music
characteristics of cds and dvds
Characteristics of CDs and DVDs
  • Are not magnetic media, instead they are optical media that store items such as data and instructions
  • Uses microscopic pits (indentations) and flat areas that are in the middle layer of the disc
how a cds and dvds are read
How a CDs and DVDs are read
  • A high powered laser light creates the pits.
  • A lower powered laser lights reads items from the disc by deflecting light through the bottom of the disc, which is usually gold or silver
  • The reflected light is converted into a series of bits the computer can process
  • A land causes the light to reflect, which is read as binary digit 1.
  • Pits absorb the light; this absence of light is read as binary digit 0.
  • Items are commonly store items in a single track that spirals form the center to the outside edges of the disc

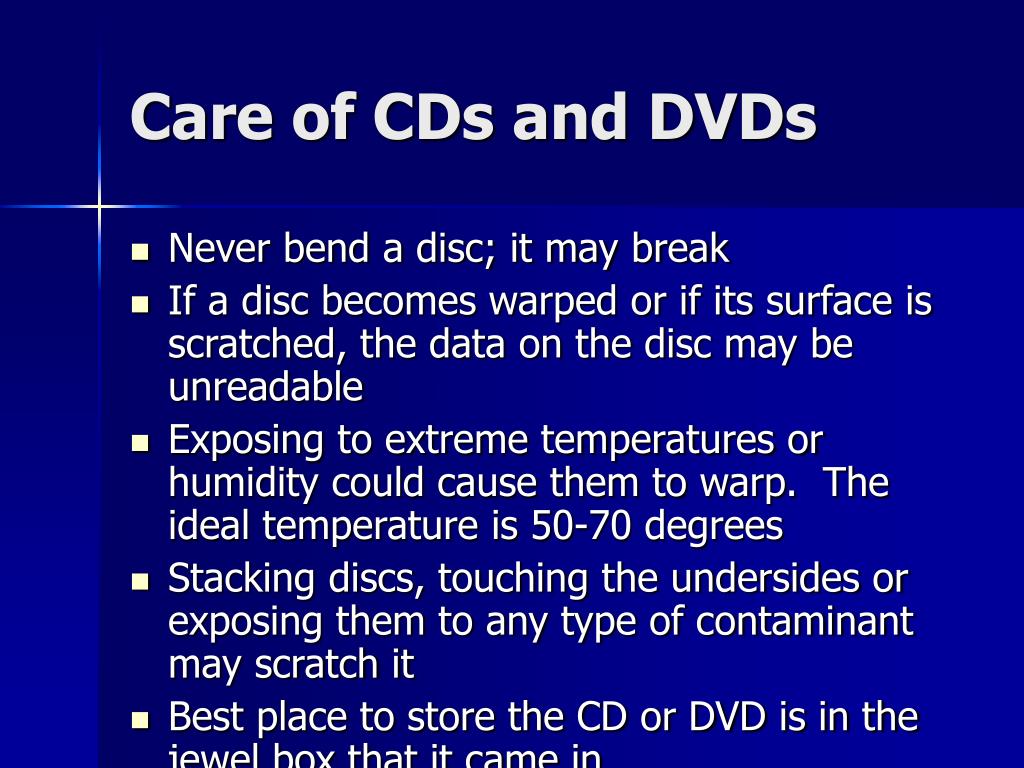

care of cds and dvds
Care of CDs and DVDs
  • Never bend a disc; it may break
  • If a disc becomes warped or if its surface is scratched, the data on the disc may be unreadable
  • Exposing to extreme temperatures or humidity could cause them to warp. The ideal temperature is 50-70 degrees
  • Stacking discs, touching the undersides or exposing them to any type of contaminant may scratch it
  • Best place to store the CD or DVD is in the jewel box that it came in
cd roms
CD-ROMs
  • Is used for storing data, instructions and information in addition to audio and video
  • Can only read the content on the discs, meaning that they cant be erased
  • A typical CD-ROM can hold from 650 MB to 1GB of data

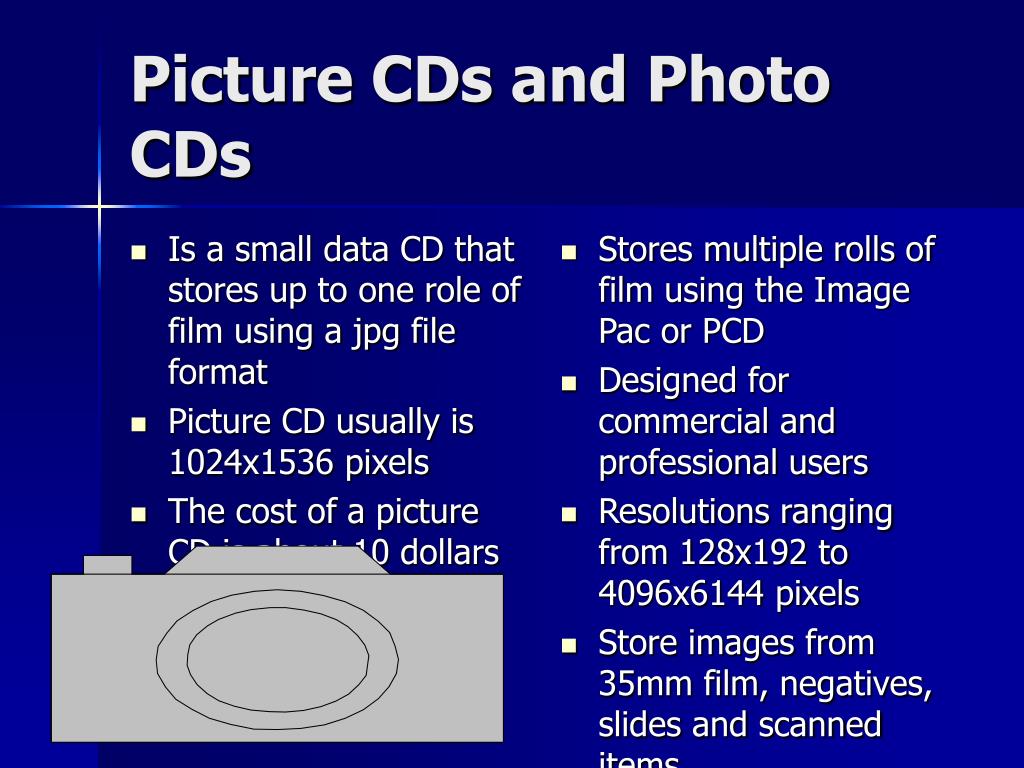

picture cds and photo cds
Is a small data CD that stores up to one role of film using a jpg file format

Picture CD usually is 1024x1536 pixels

The cost of a picture CD is about 10 dollars per role of film

Stores multiple rolls of film using the Image Pac or PCD

Designed for commercial and professional users

Resolutions ranging from 128x192 to 4096x6144 pixels

Store images from 35mm film, negatives, slides and scanned items

Picture CDs and Photo CDs
cd rs and cd rws
Multi session CD which user put there own information on to

To be able to write on the CD-R you need a CD-R drive to burn the CD

Has a speed of 40x or more

CD-RW is a rewritable CD that can be erased.

Is much like a floppy disc

Only down fall is that the more it is erased the more faulty the CD becomes

The CD-RW drive has a speed of 52x or more

CD-Rs and CD-RWs

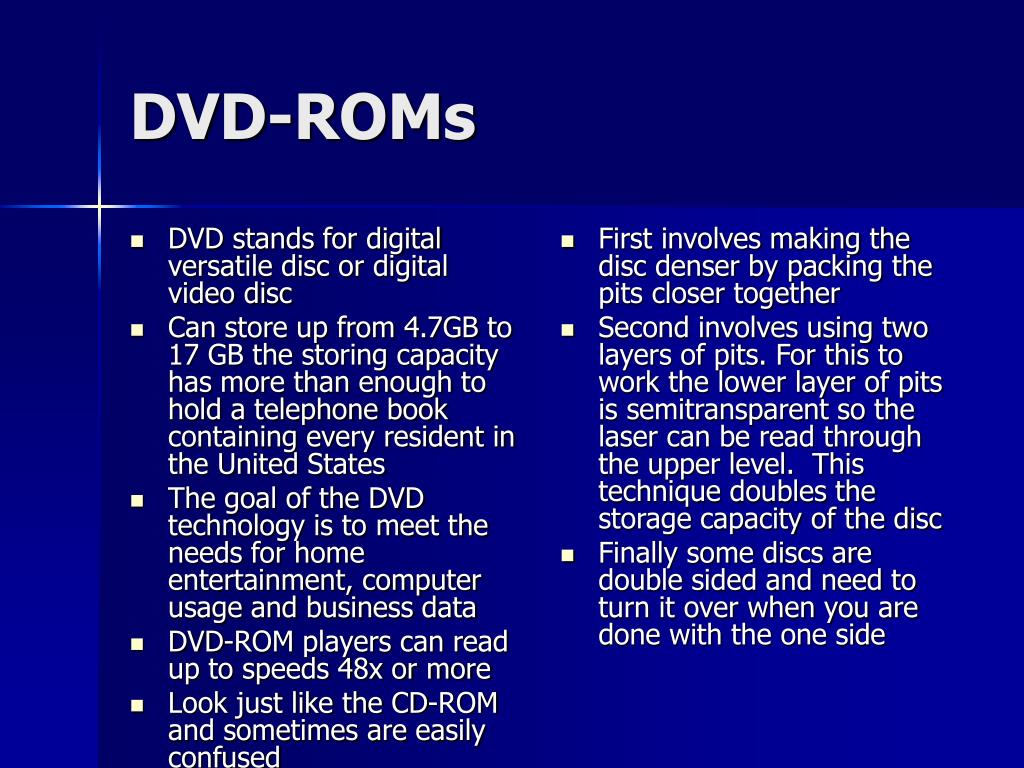

dvd roms
DVD stands for digital versatile disc or digital video disc

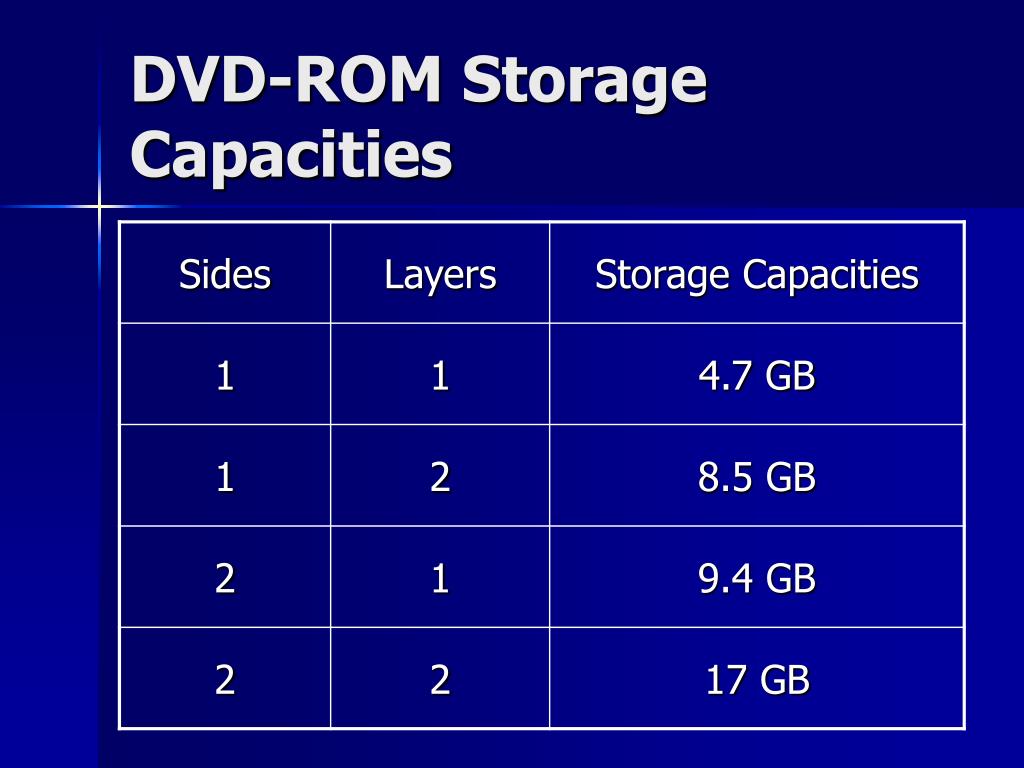

Can store up from 4.7GB to 17 GB the storing capacity has more than enough to hold a telephone book containing every resident in the United States

The goal of the DVD technology is to meet the needs for home entertainment, computer usage and business data

DVD-ROM players can read up to speeds 48x or more

Look just like the CD-ROM and sometimes are easily confused

First involves making the disc denser by packing the pits closer together

Second involves using two layers of pits. For this to work the lower layer of pits is semitransparent so the laser can be read through the upper level. This technique doubles the storage capacity of the disc

Finally some discs are double sided and need to turn it over when you are done with the one side

DVD-ROMs
slide20

TAPE

Tape is a magnetically coated ribbon of plastic capable of storing large amounts of data and information at a low cost.

Tape is no longer used for storage purposes; instead, most home users and businesses use tape for long-term storage and background.

tape drive
TAPE DRIVE
  • Comparable to a tape recorder.
  • Today’s computers use tape cartridges.

Tape cartridges are small, rectangular, plastic housings for tape.

They are slightly larger than an audio-cassette tape.

On larger computers, tape cartridges are mounted on a separate cabinet called a tape library.

  • Reads and writes data and information on a tape.
  • Transfer rate of tape drives range from 500 KBps to 1 MBps.
  • To access a certain piece of data, you must forward or rewind the tape.
pc cards
PC CARDS
  • A thin, credit-card-sized device that fits into a PC Card slot
  • Add storage, additional memory, fax/modem, networking, sound, and other capabilities
  • Commonly used in notebook computers
  • They are available in three different sizes according to thickness- Types I, II, III.
  • Cards that house a hard disk have storage capacities of up to 5 GB
mini mobile storage media
MINI MOBILE STORAGE MEDIA
  • PDAs, digital cameras, music players, and smart phones are devices that provide the user with instant access to technology
  • Because they have limited internal storage, they require these mini mobile storage devices to store digital images, music, or documents
  • Most are no larger than a postage stamp

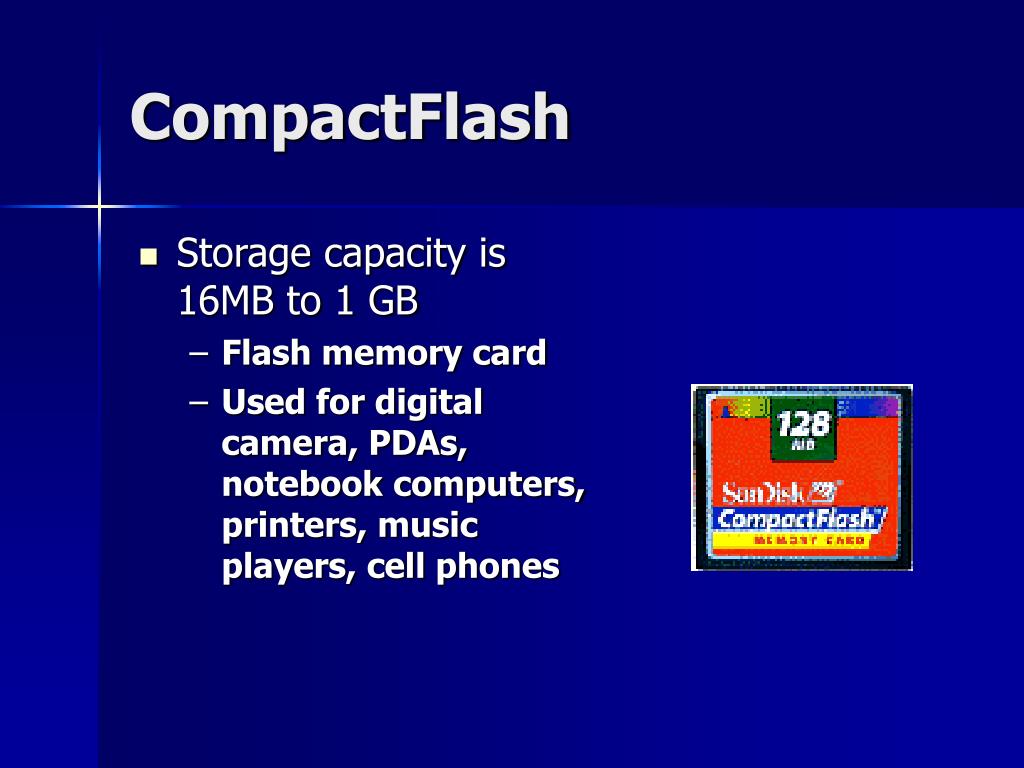

compactflash
CompactFlash
  • Storage capacity is 16MB to 1 GB
    • Flash memory card
    • Used for digital camera, PDAs, notebook computers, printers, music players, cell phones
secure digital
Secure Digital
  • 16 MB to 256 MB
  • Flash memory card
  • Used for digital cameras, PDAs, cell phones, digital video cameras, car navigation systems, e-books
memory stick
Memory Stick
  • 16 MB to 128 MB
  • Flash memory card
  • Used for digital cameras, notebook computers, photo printers
microdrive
Microdrive
  • 1 GB
  • Magnetic media
  • Digital cameras, PDAs, music players, notebook computers, video cameras
usbdrive
USBDrive
  • 32 MB to 2 GB
  • Flash memory card
  • Plugs into any USB port to function as a mini hard disk

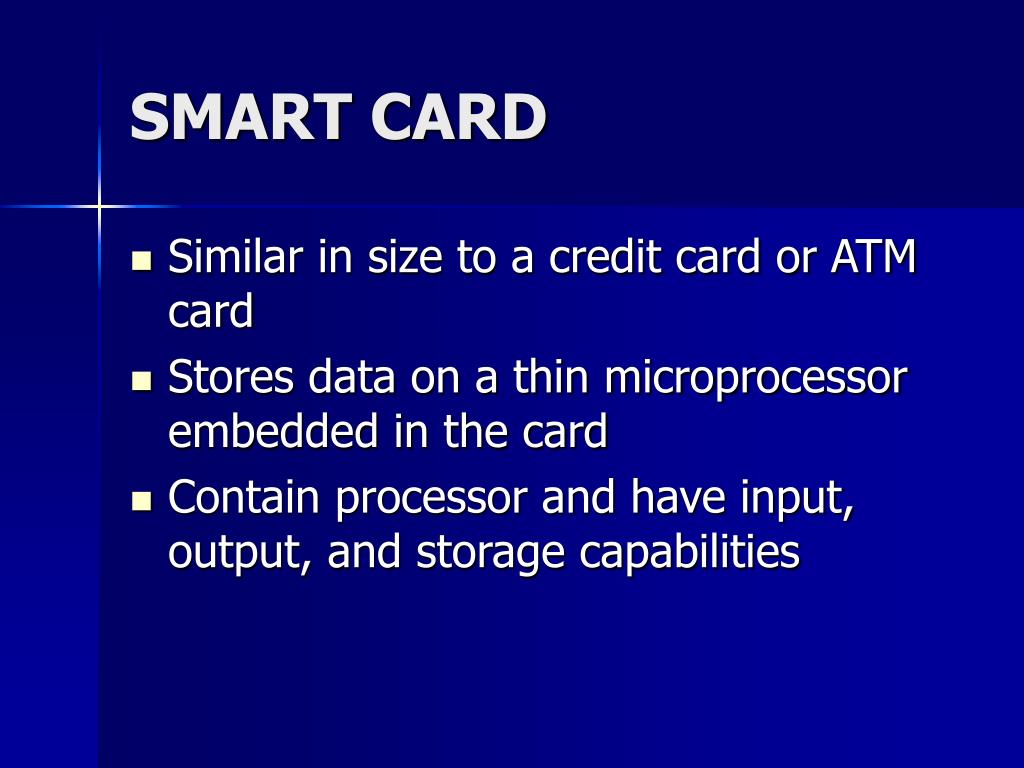

smart card
SMART CARD
  • Similar in size to a credit card or ATM card
  • Stores data on a thin microprocessor embedded in the card
  • Contain processor and have input, output, and storage capabilities
microfilm and microfiche

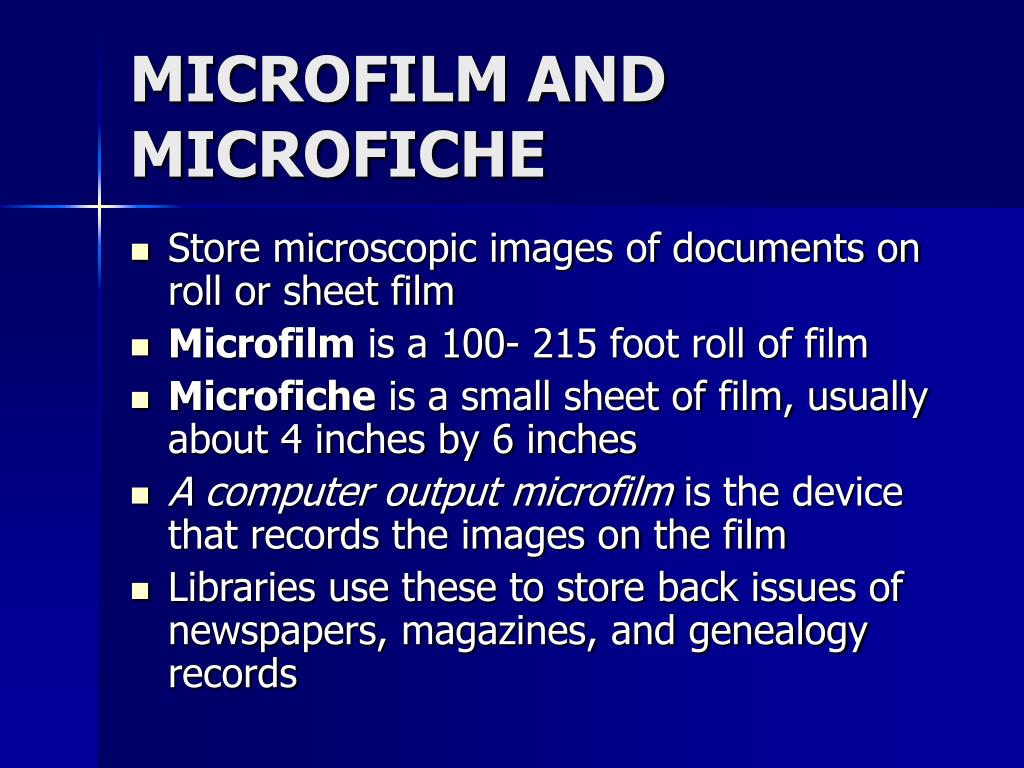

MICROFILM AND MICROFICHE
  • Store microscopic images of documents on roll or sheet film
  • Microfilm is a 100- 215 foot roll of film
  • Microfiche is a small sheet of film, usually about 4 inches by 6 inches
  • A computer output microfilm is the device that records the images on the film
  • Libraries use these to store back issues of newspapers, magazines, and genealogy records
