  1. Sendoline introduces a new rotary file system Fast, Safe and Efficient

  2. 23 mm 18 mm 8/30 6/30 4/30 4/25 4/20 • S5 Rotary Files • Only 5 files and all with the unique S-profile • Shorter shanks (13 mm) for better accessibility • Long progressive flutes to prevent the “screw-in-effect”, and • Enhanced debris transportation • Developed and intended to be used with the S5 Endo Motor • S5 Endo Motor • Perfect match:S5 Endo Motor + S5 Rotary files = S5 Rotary System • Uses only 5 settings with 5 files (S5 Rotary Files) • Complete versatility, works with most rotary file systems • Cordless freedom: no cables

  3. Localize all the root canals with a manual K or S-file no. 15.

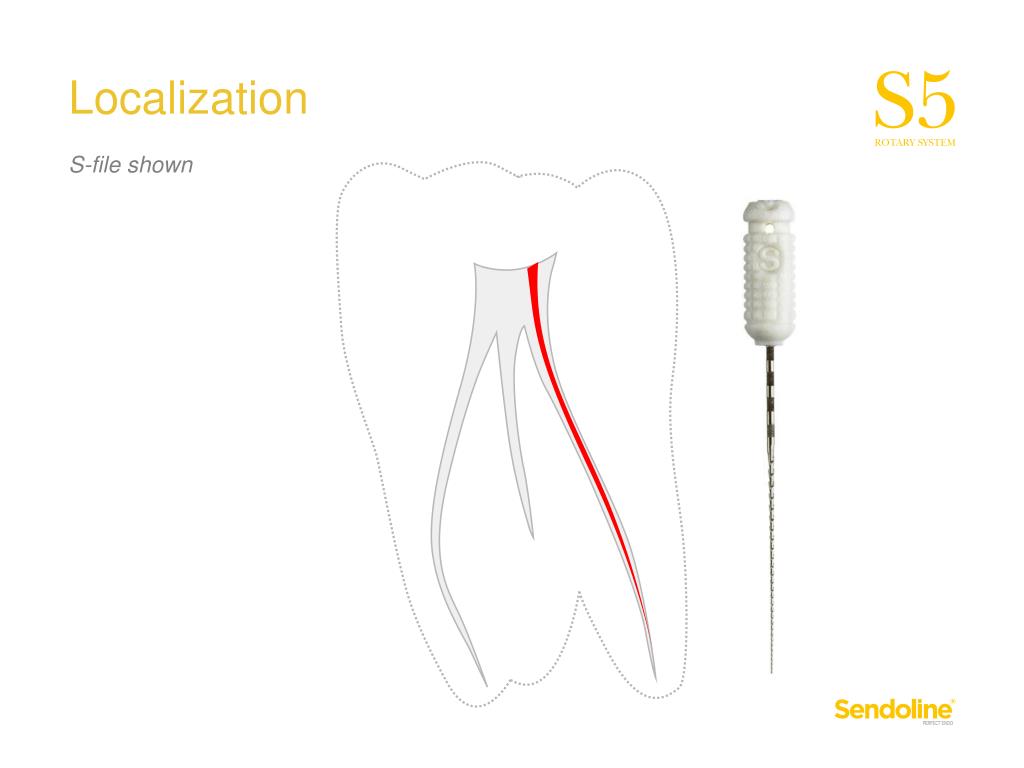

  4. Localization • S-file shown

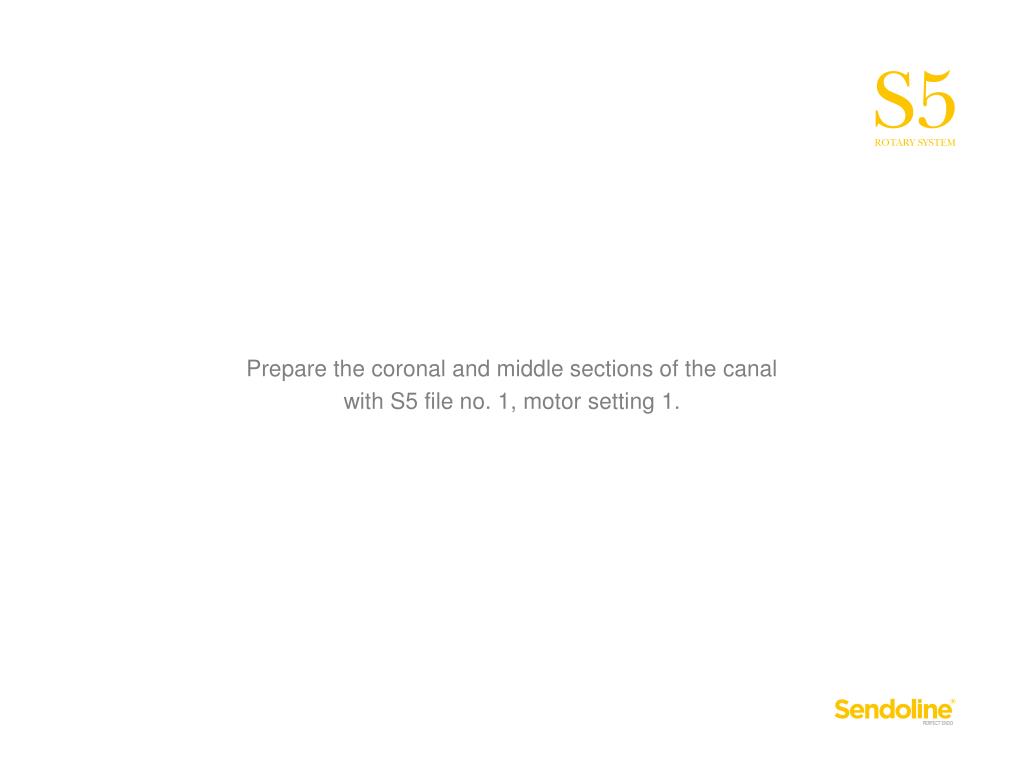

  5. Prepare the coronal and middle sections of the canal • with S5 file no. 1, motor setting 1.

  6. 8/30 8/30 • File 1 1 2 3 4 5 Motor Setting 1

  7. Continue with file no. 2, motor setting 2, • for as long as the instrument moves toward the apical section. • You often reach a depth of at least 2/3 of the root canal.

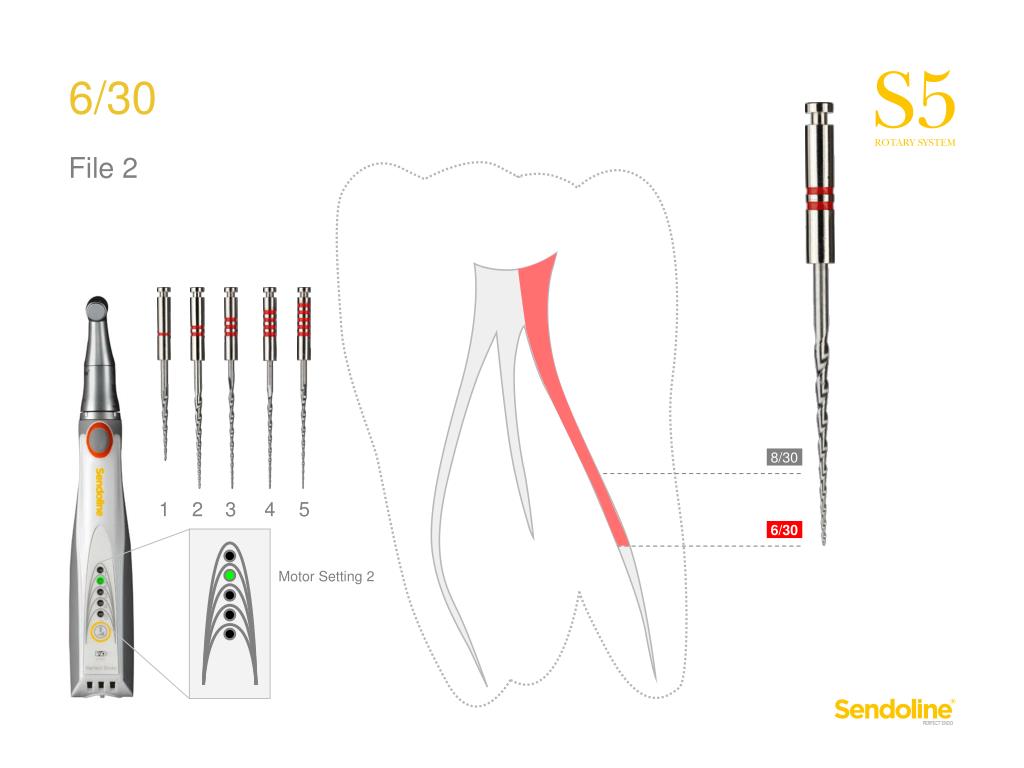

  8. 6/30 6/30 • File 2 8/30 1 2 3 4 5 Motor Setting 2

  9. Continue with file no. 3, motor setting 3 • working toward the apical section of the canal.

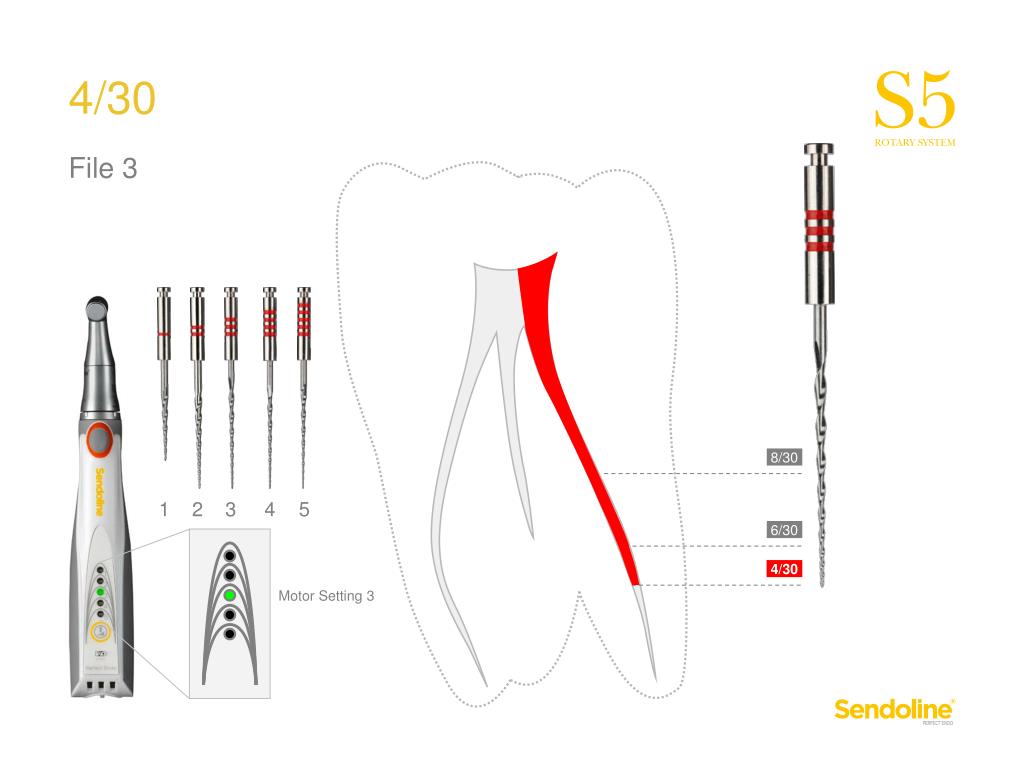

  10. 8/30 6/30 4/30 4/30 • File 3 1 2 3 4 5 Motor Setting 3

  11. Using file no. 4, motor setting 4, • the working length is normally reached.

  12. 8/30 4/25 4/25 • File 4 1 2 3 4 5 6/30 4/30 Motor Setting 4

  13. If needed, continue with file no. 5, • using motor setting 5.

  14. 4/20 4/20 • File 5 8/30 1 2 3 4 5 6/30 4/30 4/25 Motor Setting 5

  15. Pending on the desired apical width, • follow a reverse sequence using files no. 5-4-3-2, • to enlarge the apical depth. Use corresponding motor settings.

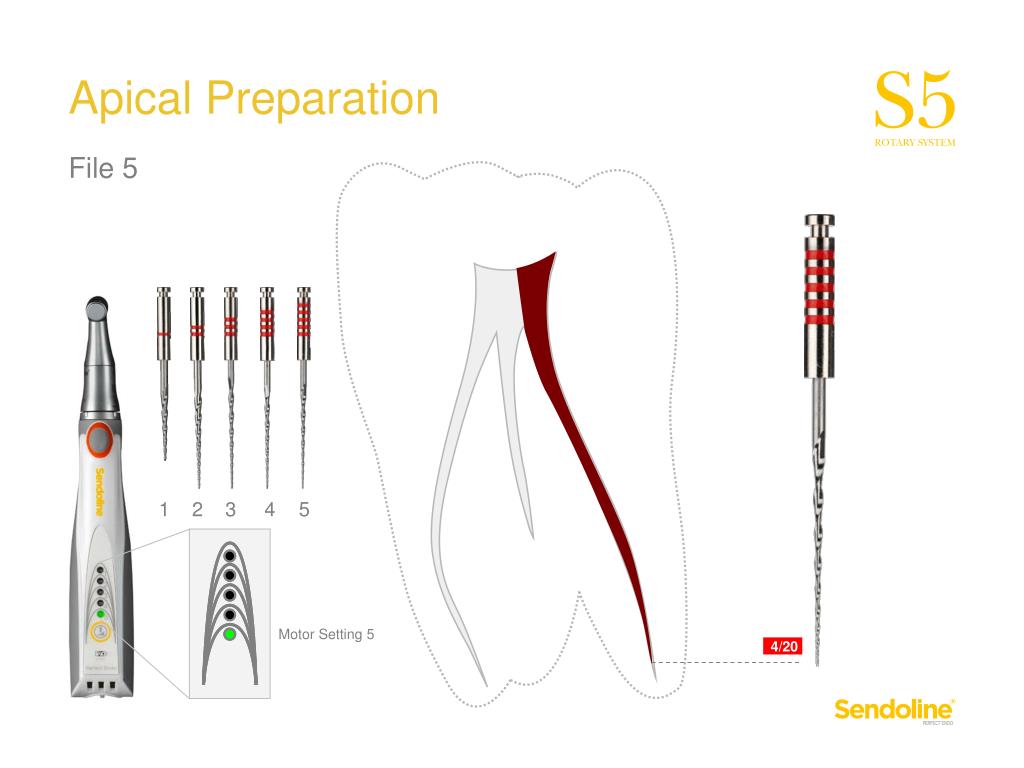

  16. 4/20 Apical Preparation File 5 1 2 3 4 5 Motor Setting 5

  17. Apical Preparation 4/25 File 4 1 2 3 4 5 Motor Setting 4

  18. Apical Preparation 4/30 File 3 1 2 3 4 5 Motor Setting 3

  19. Apical Preparation 6/30 File 2 1 2 3 4 5 Motor Setting 2

  20. 8/30 6/30 4/30 4/25 4/20 S5 Rotary Files S5 Endo Motor PERFECT MATCH!
