introduction to electronic access control

Introduction to Electronic Access Control

Basic Electricity, Electric Locking Hardware and Access Control Systems.

By Paul Chandler of IDN–Inc.

what is electricity
What Is Electricity?
  • Movement of “free electrons” between atoms
what is electricity3

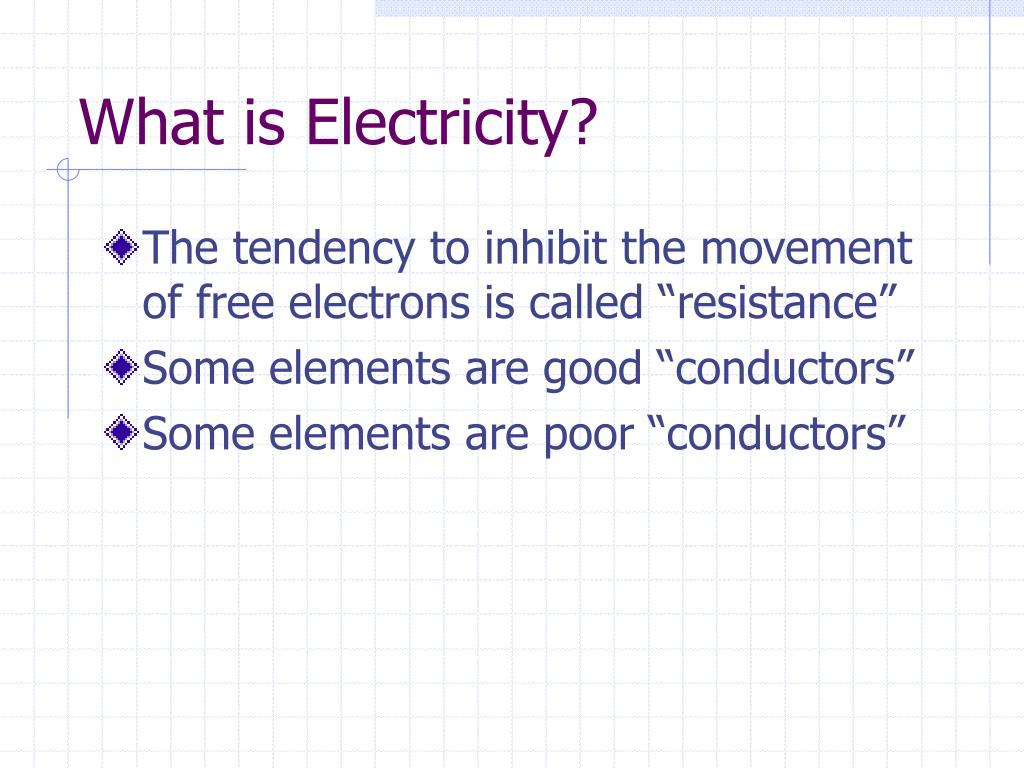

What is Electricity?
  • The tendency to inhibit the movement of free electrons is called “resistance”
  • Some elements are good “conductors”
  • Some elements are poor “conductors”
what is a circuit

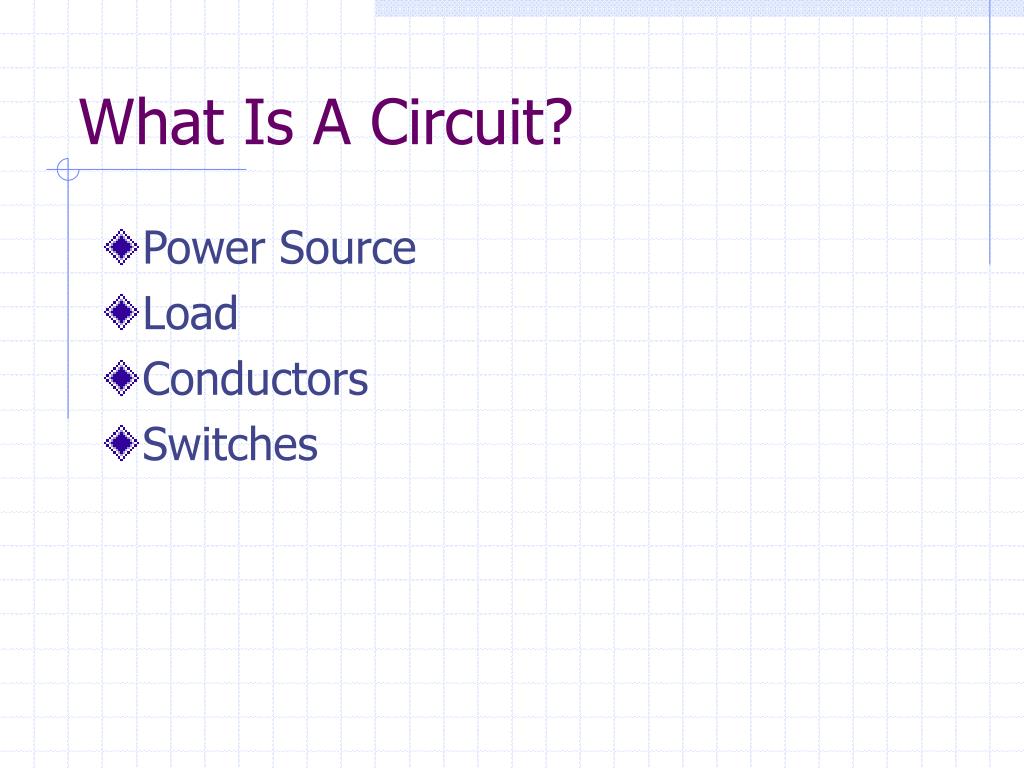

What Is A Circuit?
  • Power Source
  • Load
  • Conductors
  • Switches
basic circuit

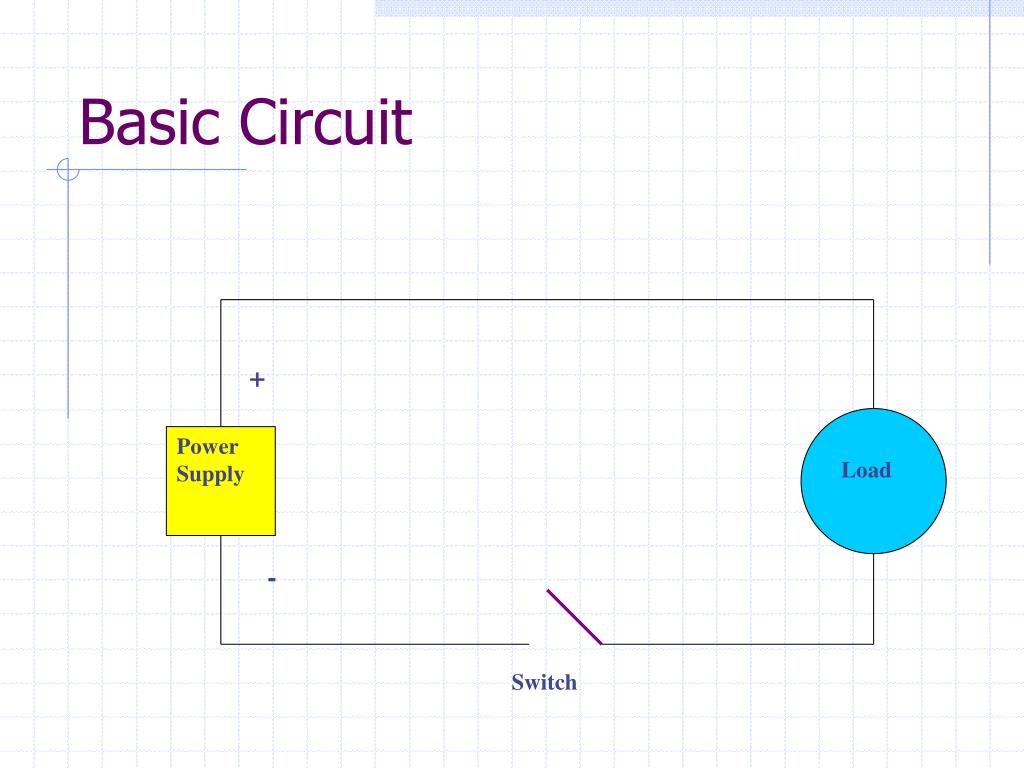

Basic Circuit

+

Load

Power Supply

-

Switch

ohm s law

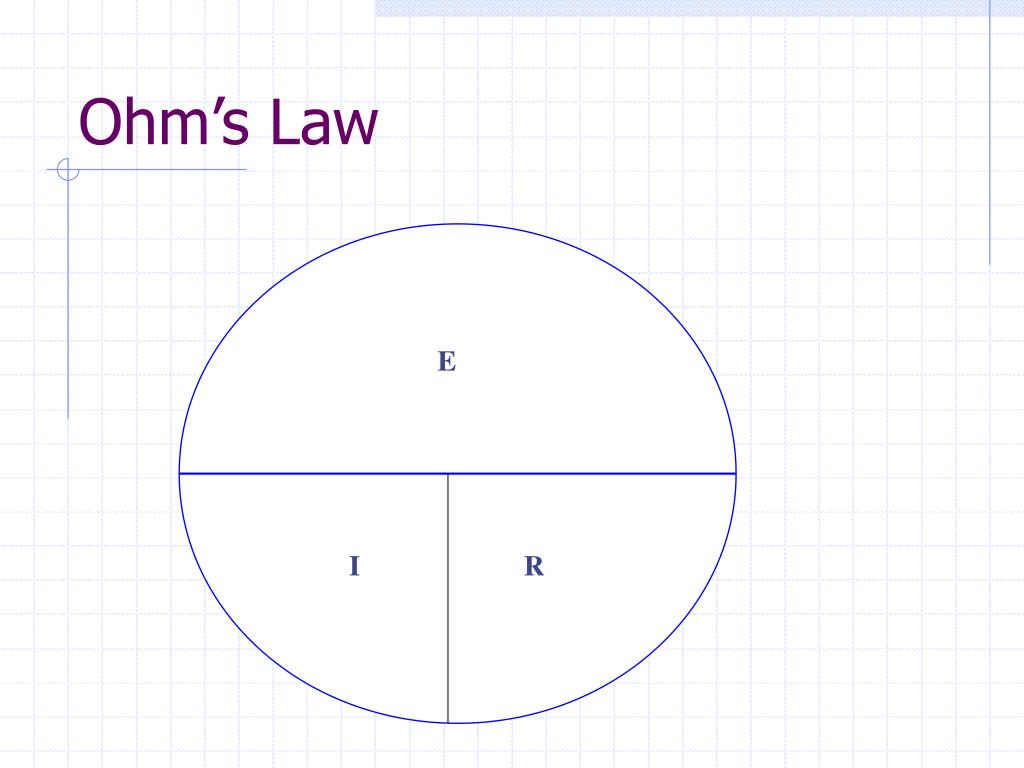

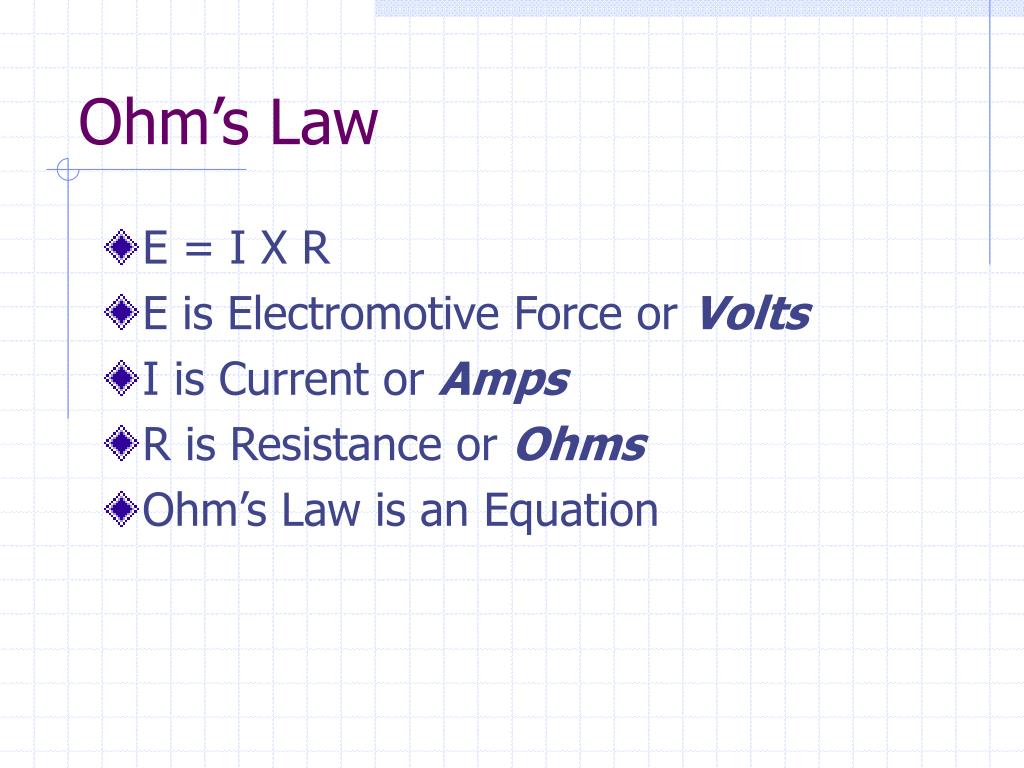

Ohm’s Law
  • E = I X R
  • E is Electromotive Force or Volts
  • I is Current or Amps
  • R is Resistance or Ohms
  • Ohm’s Law is an Equation
power formula

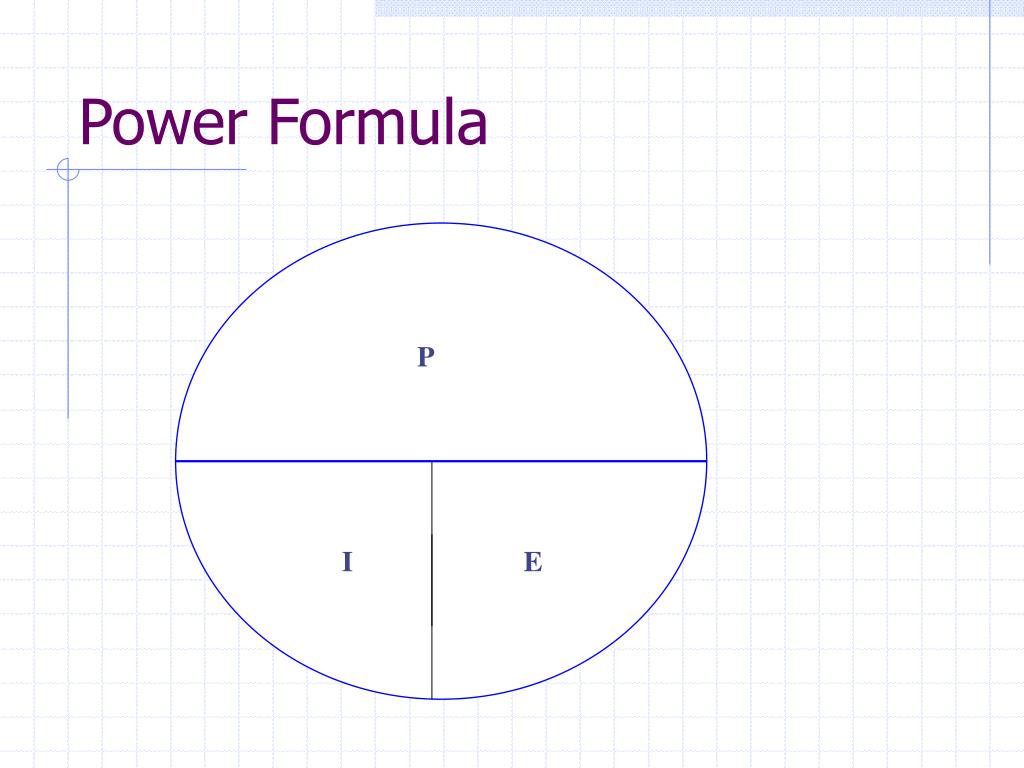

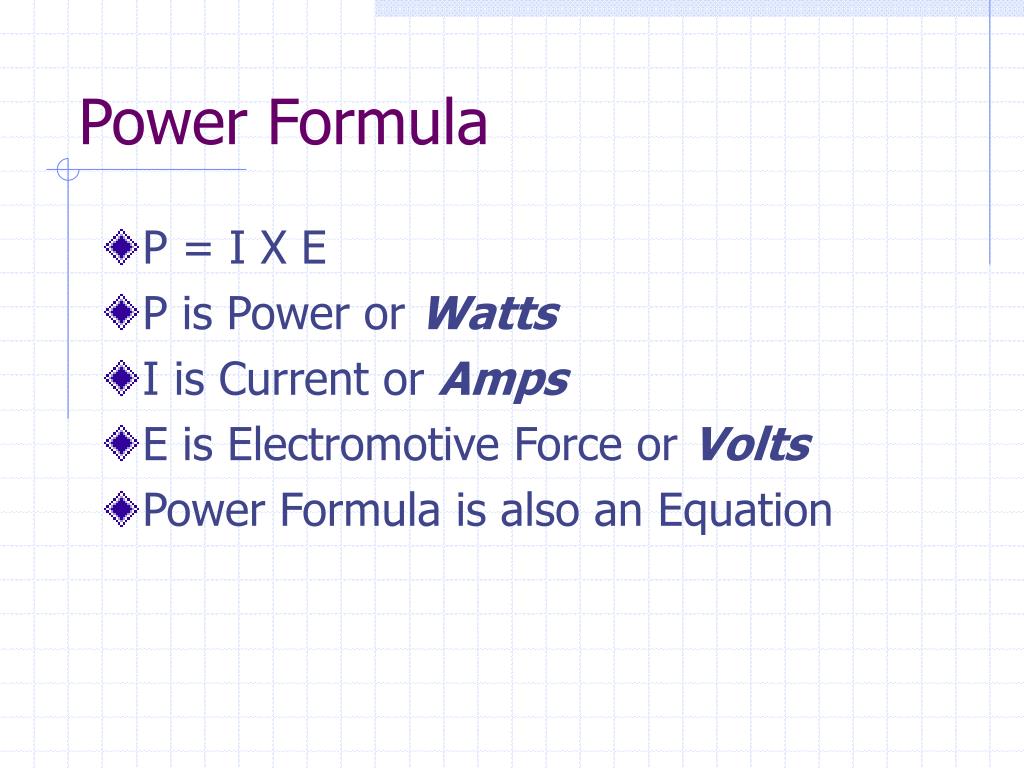

Power Formula
  • P = I X E
  • P is Power or Watts
  • I is Current or Amps
  • E is Electromotive Force or Volts
  • Power Formula is also an Equation
ac and dc

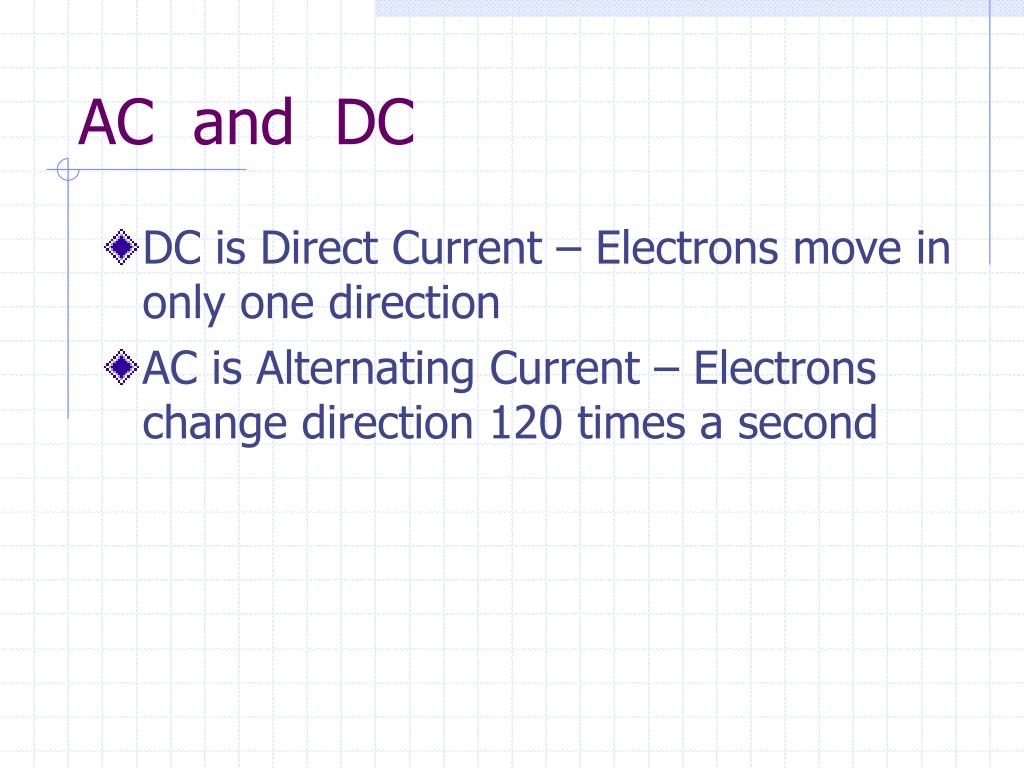

AC and DC
  • DC is Direct Current – Electrons move in only one direction
  • AC is Alternating Current – Electrons change direction 120 times a second
dc direct current

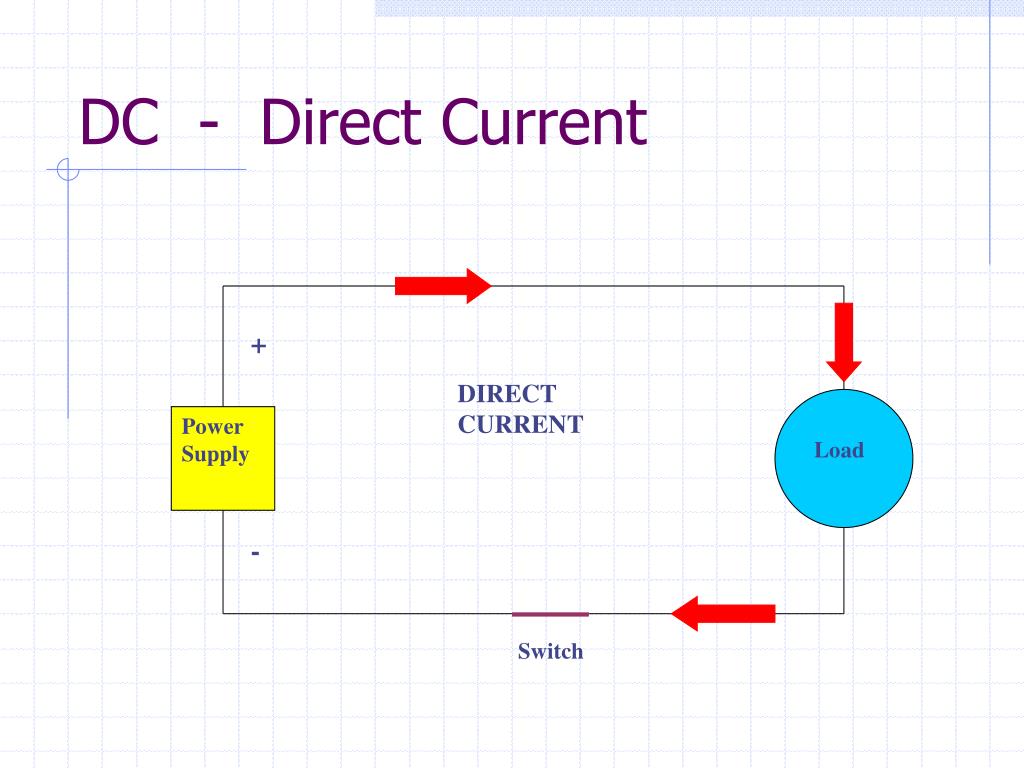

DC - Direct Current

+

DIRECT

CURRENT

Load

Power Supply

-

Switch

ac alternating current
AC - Alternating Current

+

ALTERNATING CURRENT

Load

Power Supply

-

Switch

ac and dc13

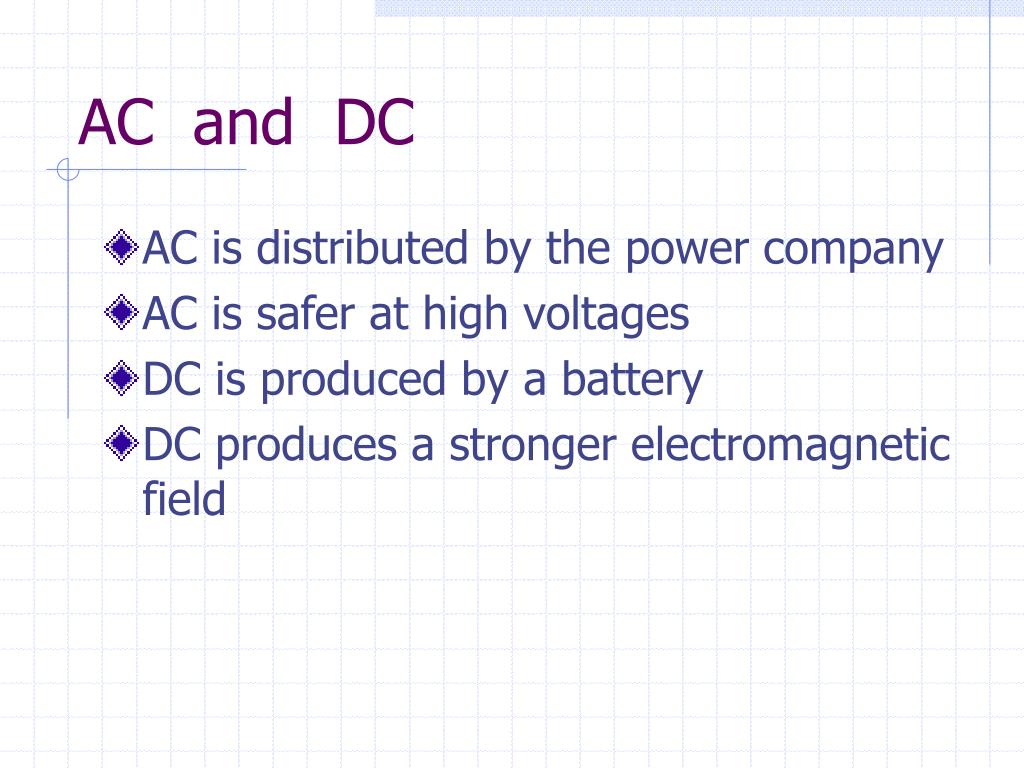

AC and DC
  • AC is distributed by the power company
  • AC is safer at high voltages
  • DC is produced by a battery
  • DC produces a stronger electromagnetic field
transformers

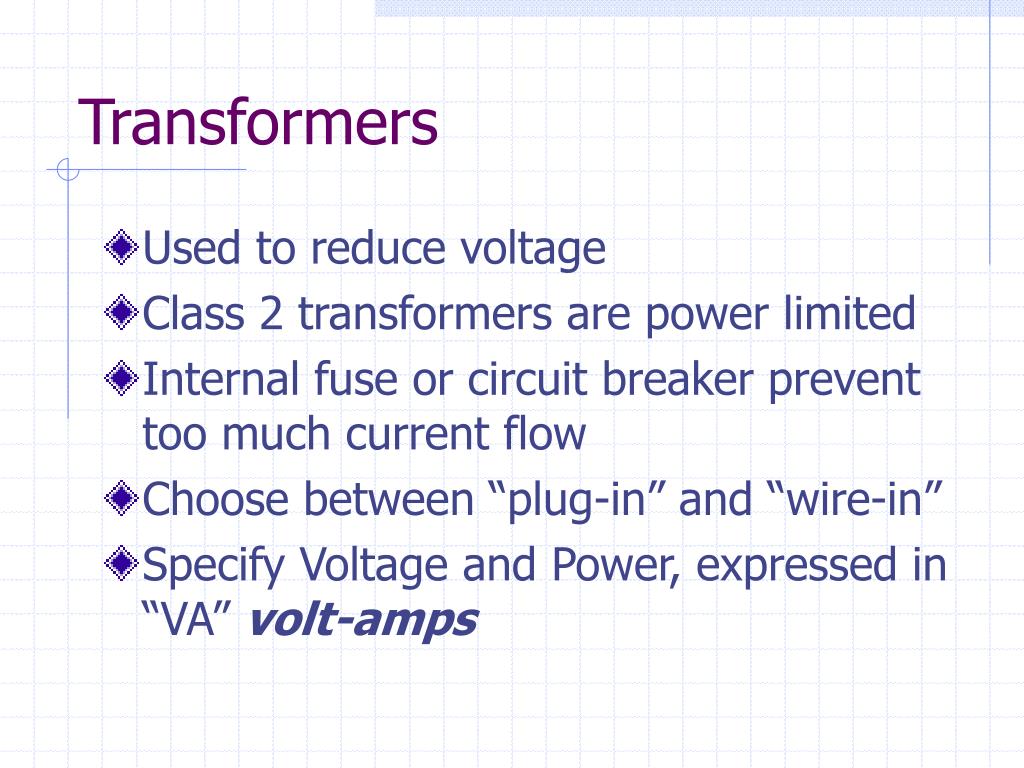

Transformers
  • Used to reduce voltage
  • Class 2 transformers are power limited
  • Internal fuse or circuit breaker prevent too much current flow
  • Choose between “plug-in” and “wire-in”
  • Specify Voltage and Power, expressed in “VA” volt-amps
power supplies

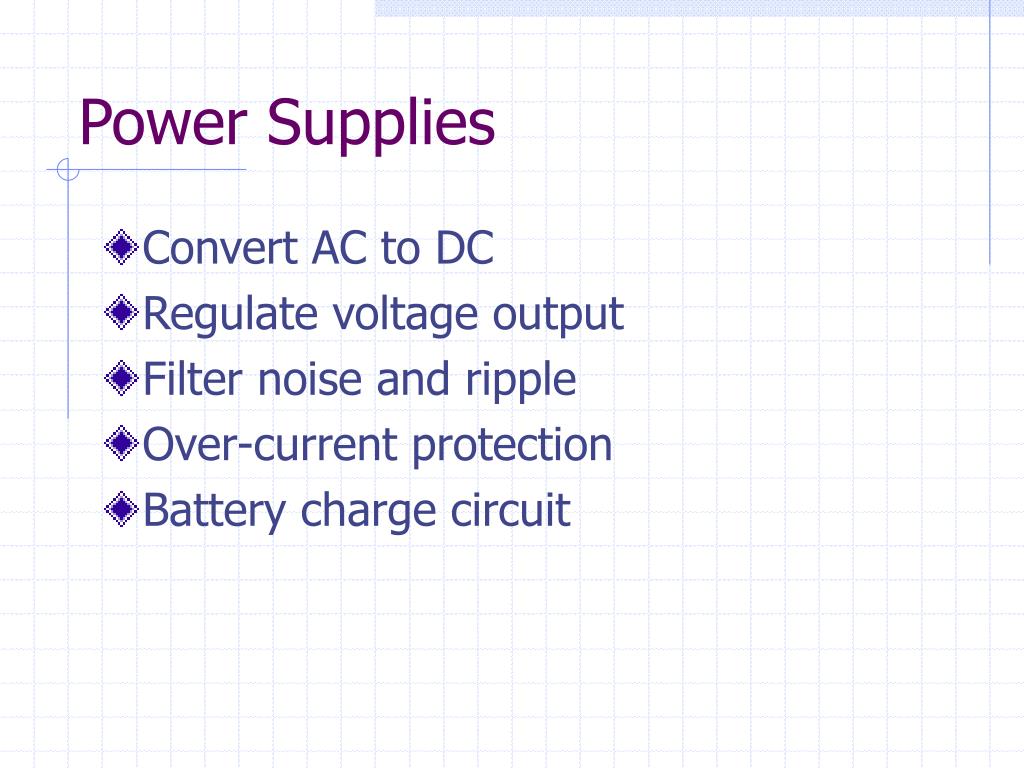

Power Supplies
  • Convert AC to DC
  • Regulate voltage output
  • Filter noise and ripple
  • Over-current protection
  • Battery charge circuit
batteries

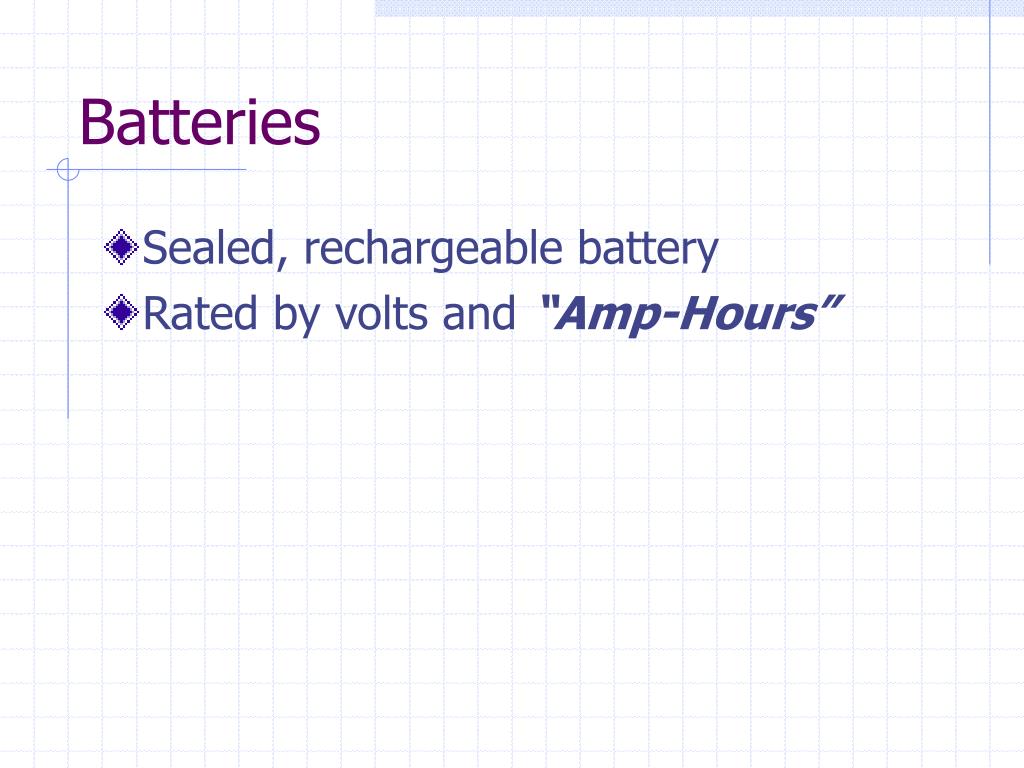

Batteries
  • Sealed, rechargeable battery
  • Rated by volts and “Amp-Hours”
batteries17

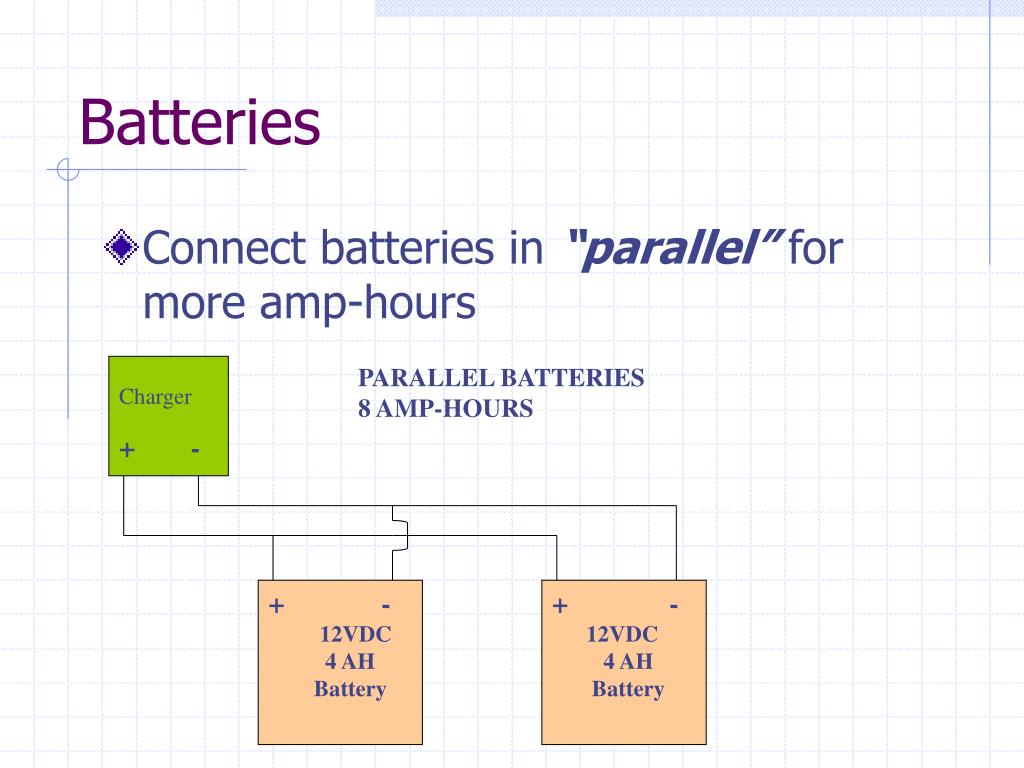

Batteries
  • Connect batteries in “parallel” for more amp-hours

Charger

+-

PARALLEL BATTERIES

8 AMP-HOURS

+ -

12VDC

4 AH

Battery

+ -

12VDC

4 AH

Battery

batteries18

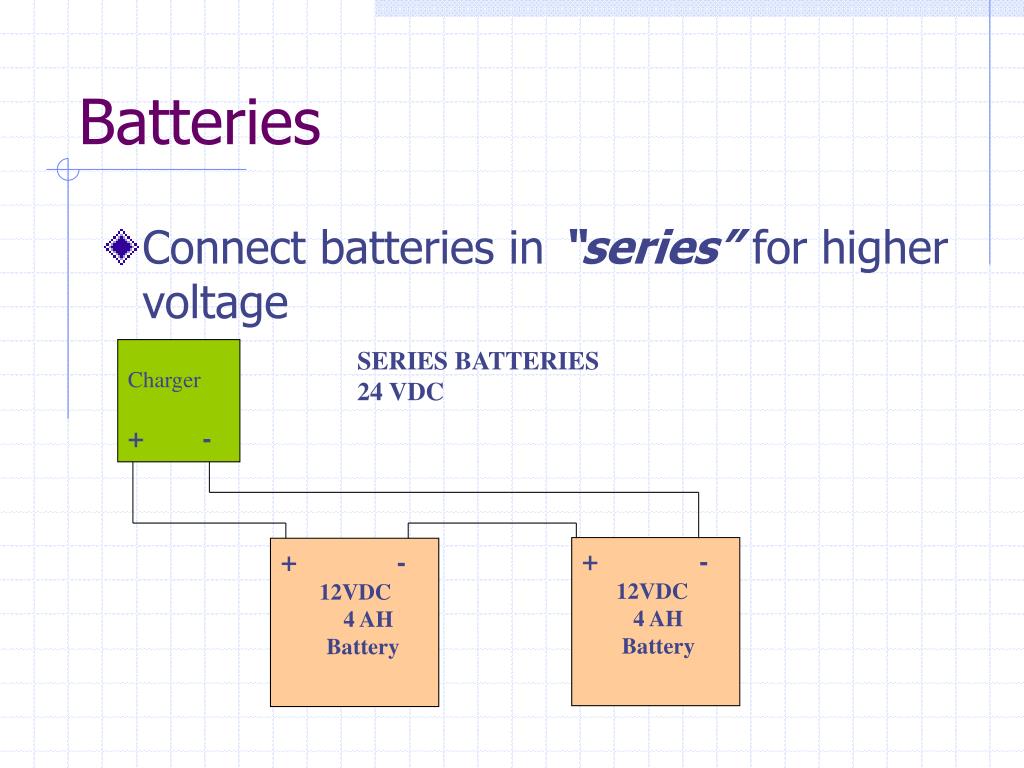

Batteries
  • Connect batteries in “series” for higher voltage

Charger

+ -

SERIES BATTERIES

24 VDC

+ -

12VDC

4 AH

Battery

+ -

12VDC

4 AH

Battery

circuits

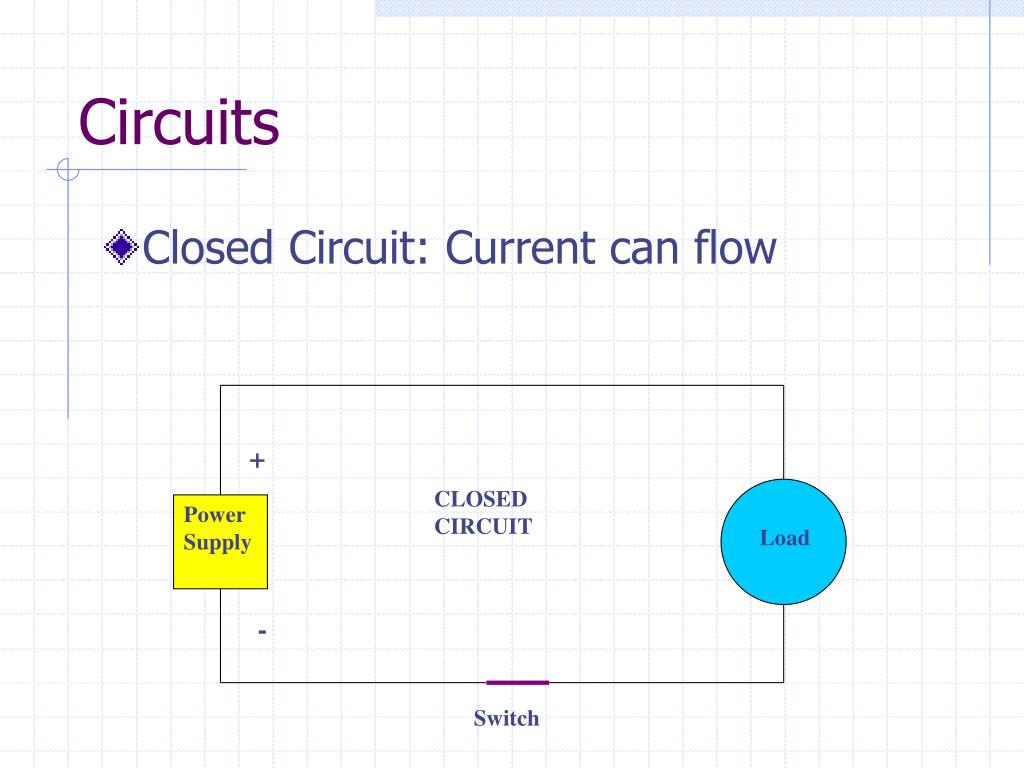

Circuits
  • Closed Circuit: Current can flow

+

CLOSED

CIRCUIT

Load

Power Supply

-

Switch

circuits20
Circuits
  • Open Circuit: Current flow is interrupted

+

OPEN

CIRCUIT

Load

Power Supply

-

Switch

circuits21

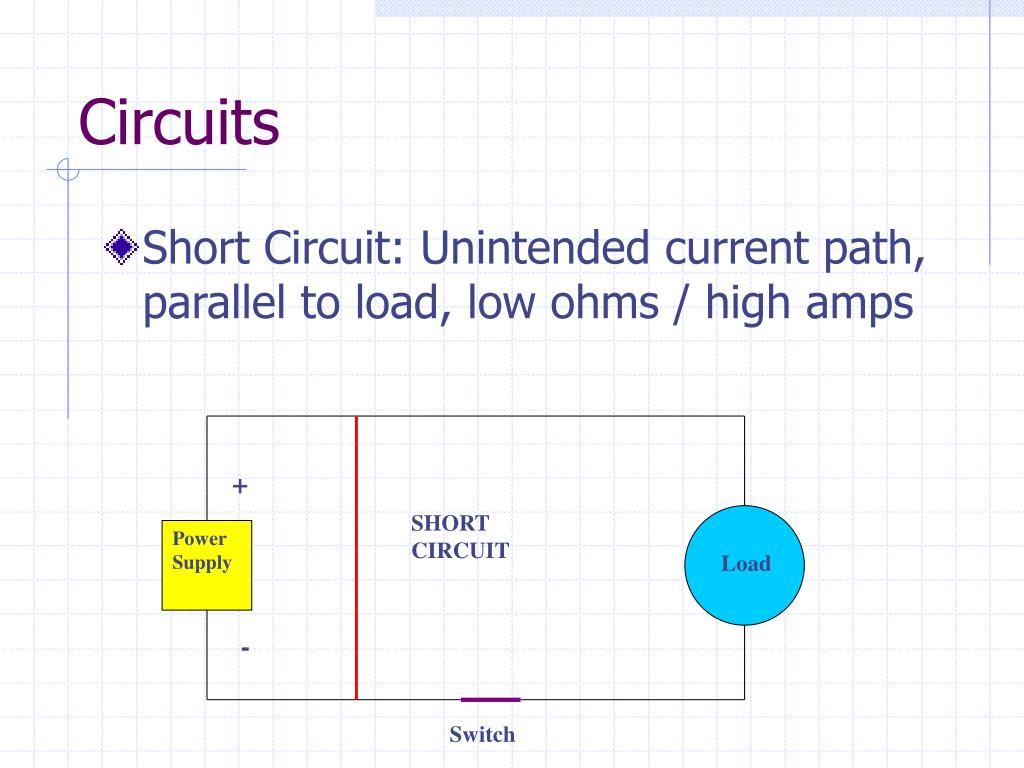

Circuits
  • Short Circuit: Unintended current path, parallel to load, low ohms / high amps

+

SHORT

CIRCUIT

Load

Power Supply

-

Switch

circuits22

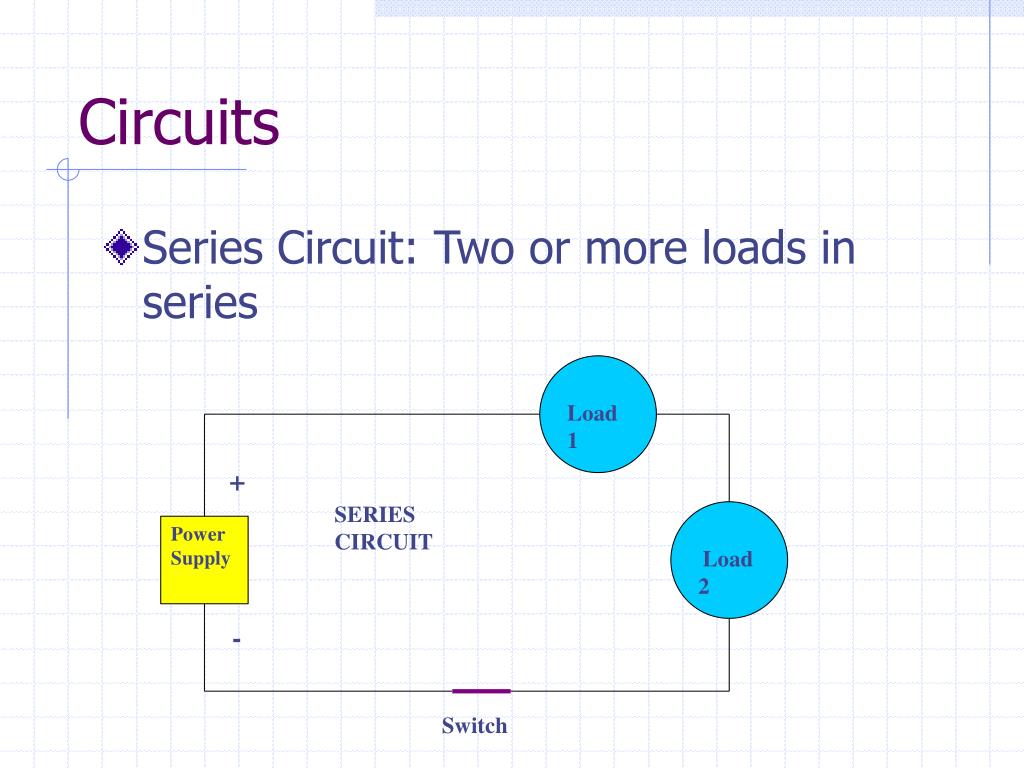

Circuits
  • Series Circuit: Two or more loads in series

Load 1

+

SERIES

CIRCUIT

Load 2

Power Supply

-

Switch

circuits23
Circuits

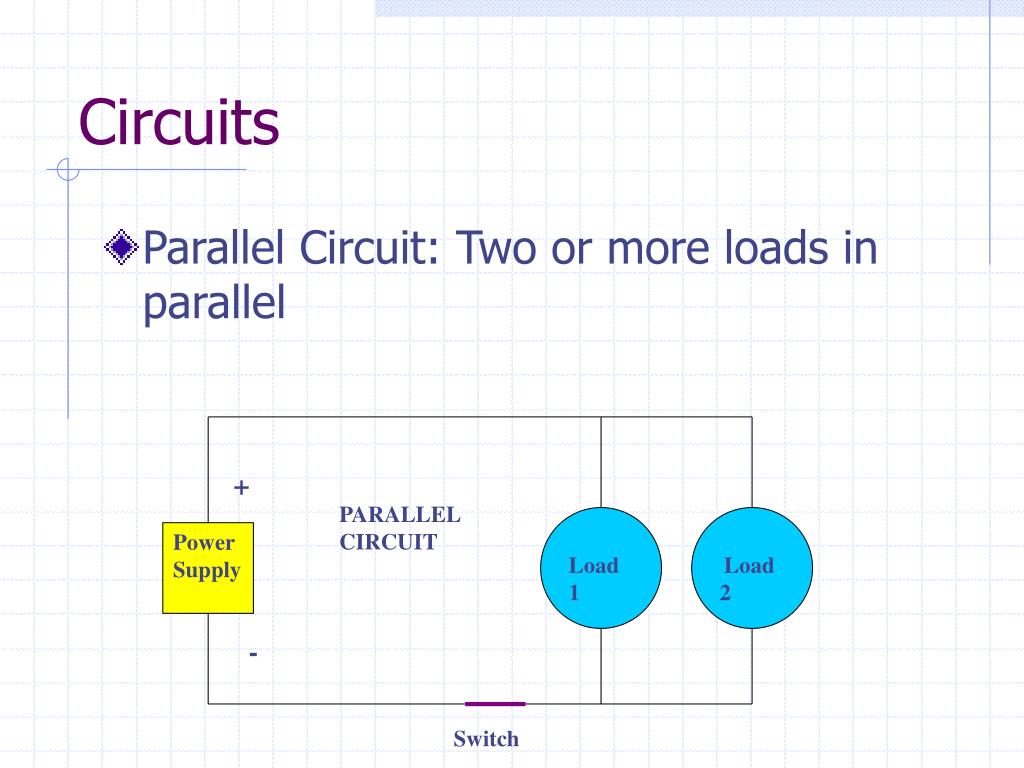

  • Parallel Circuit: Two or more loads in parallel

+

PARALLEL

CIRCUIT

Load 1

Load 2

Power Supply

-

Switch

parallel and series loads

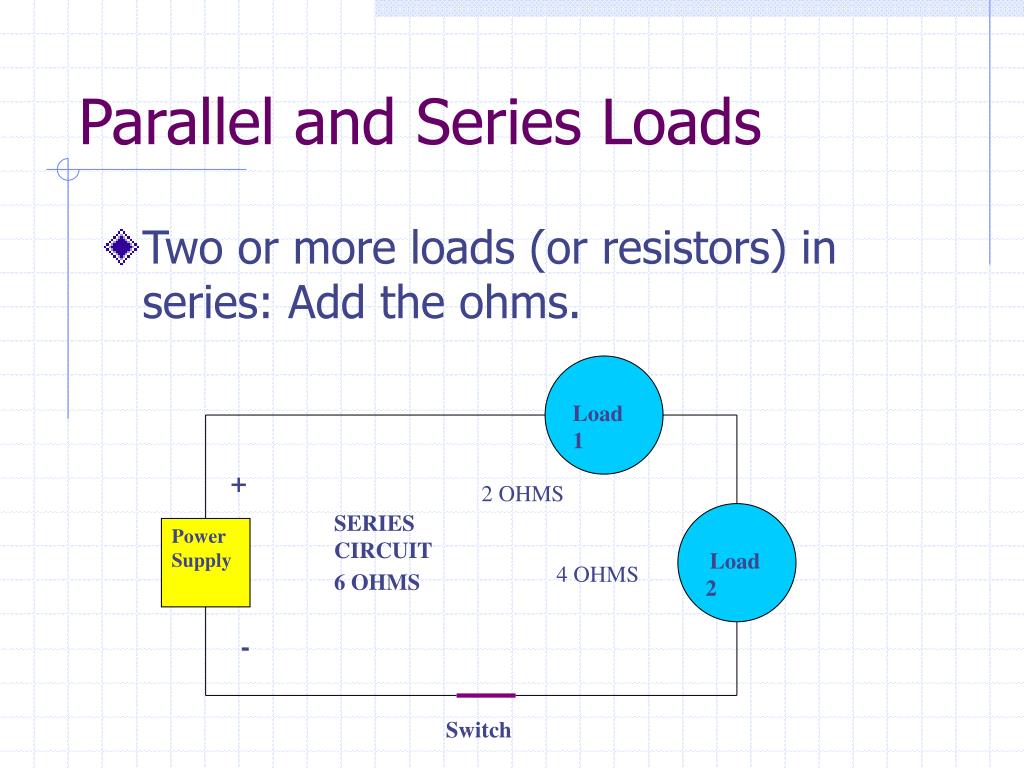

Parallel and Series Loads
  • Two or more loads (or resistors) in series: Add the ohms.

Load 1

+

2 OHMS

SERIES

CIRCUIT

Load 2

Power Supply

4 OHMS

6 OHMS

-

Switch

parallel and series loads25

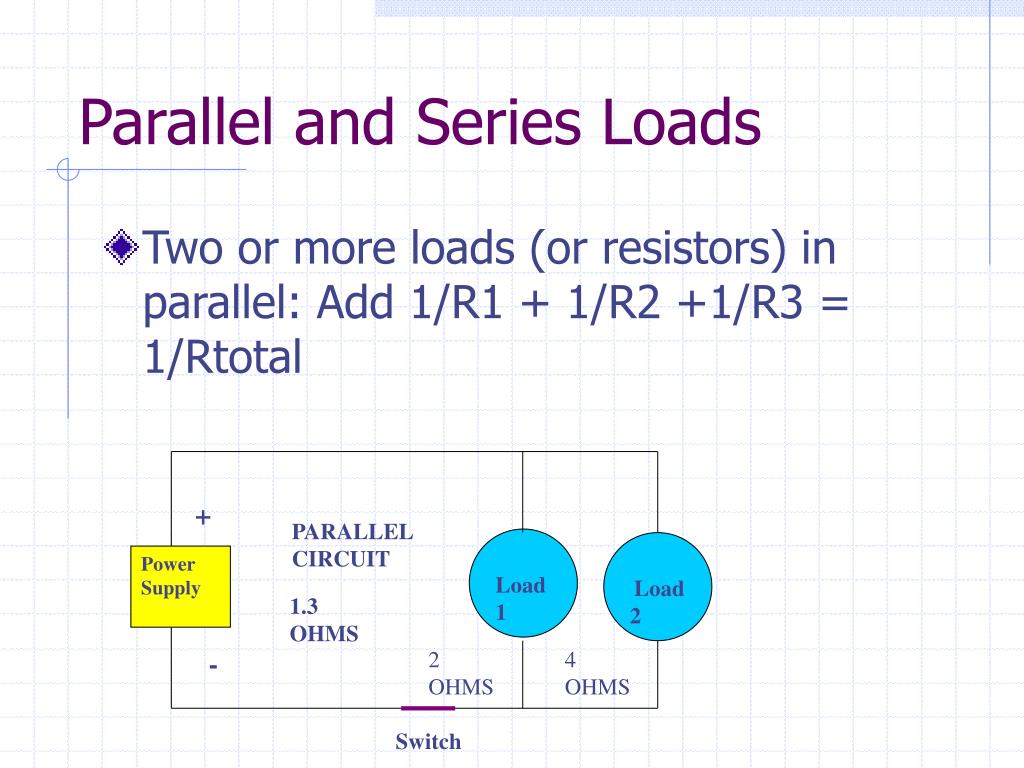

Parallel and Series Loads
  • Two or more loads (or resistors) in parallel: Add 1/R1 + 1/R2 +1/R3 = 1/Rtotal

+

PARALLEL

CIRCUIT

Load 1

Load 2

Power Supply

1.3 OHMS

2 OHMS

4 OHMS

-

Switch

electrical diagrams

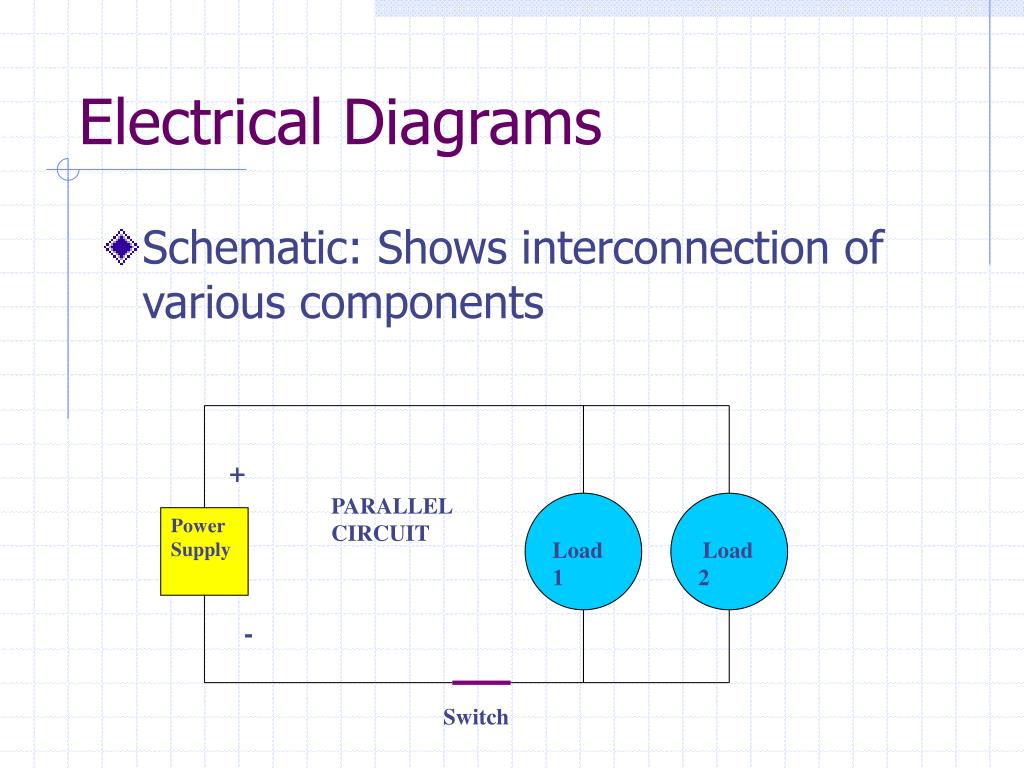

Electrical Diagrams
  • Schematic: Shows interconnection of various components

+

PARALLEL

CIRCUIT

Load 1

Load 2

Power Supply

-

Switch

electrical diagrams27

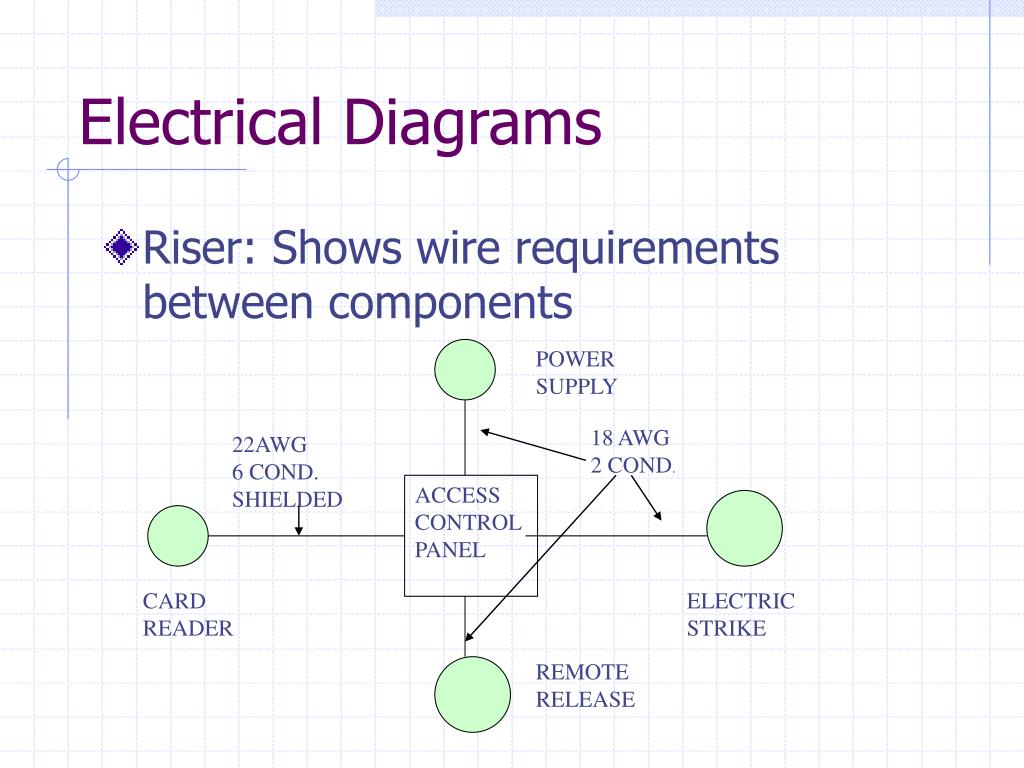

Electrical Diagrams
  • Riser: Shows wire requirements between components

POWER

SUPPLY

22AWG

6 COND.

SHIELDED

18 AWG

2 COND.

ACCESS

CONTROL

PANEL

CARD

READER

ELECTRIC STRIKE

REMOTE

RELEASE

electrical diagrams28

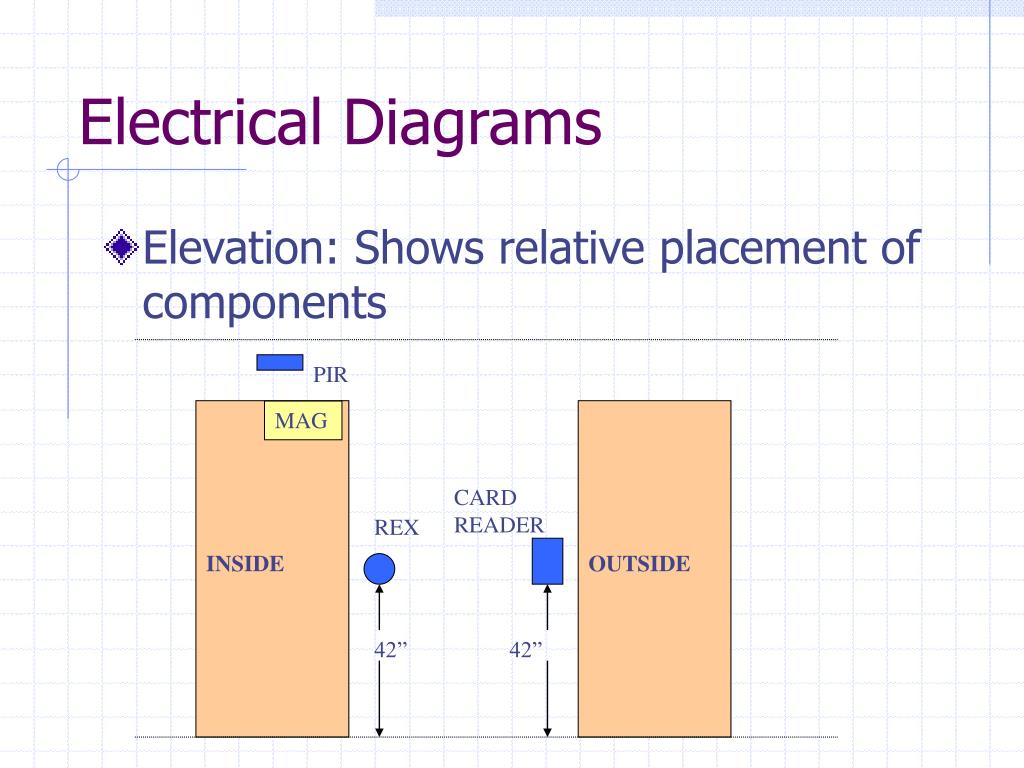

Electrical Diagrams
  • Elevation: Shows relative placement of components

PIR

INSIDE

OUTSIDE

MAG

CARD READER

REX

42” 42”

voltage variables

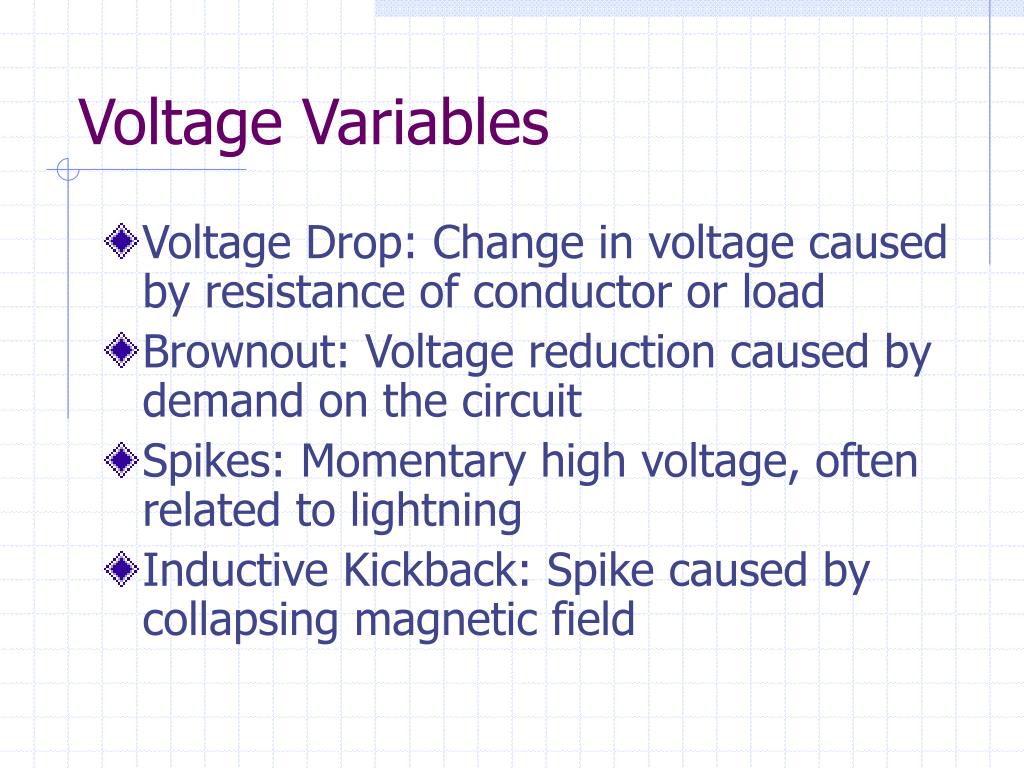

Voltage Variables
  • Voltage Drop: Change in voltage caused by resistance of conductor or load
  • Brownout: Voltage reduction caused by demand on the circuit
  • Spikes: Momentary high voltage, often related to lightning
  • Inductive Kickback: Spike caused by collapsing magnetic field
wire and cable
Wire and Cable
  • Solid or Stranded conductor
  • Conductor thickness measured in AWG smaller number = thicker conductor
  • Insulation material determines “general purpose”, “plenum” or “riser” cable
  • Shielded cable protects data from interference
multi meters

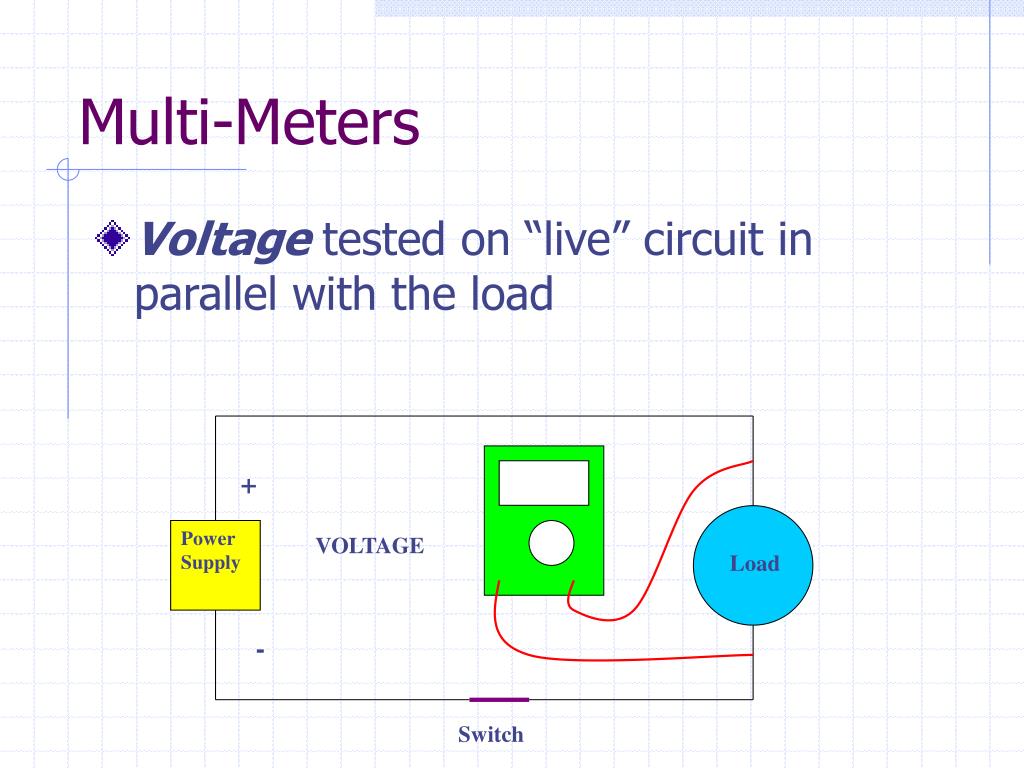

Multi-Meters
  • Voltage tested on “live” circuit in parallel with the load

+

VOLTAGE

Load

Power Supply

-

Switch

multi meters32

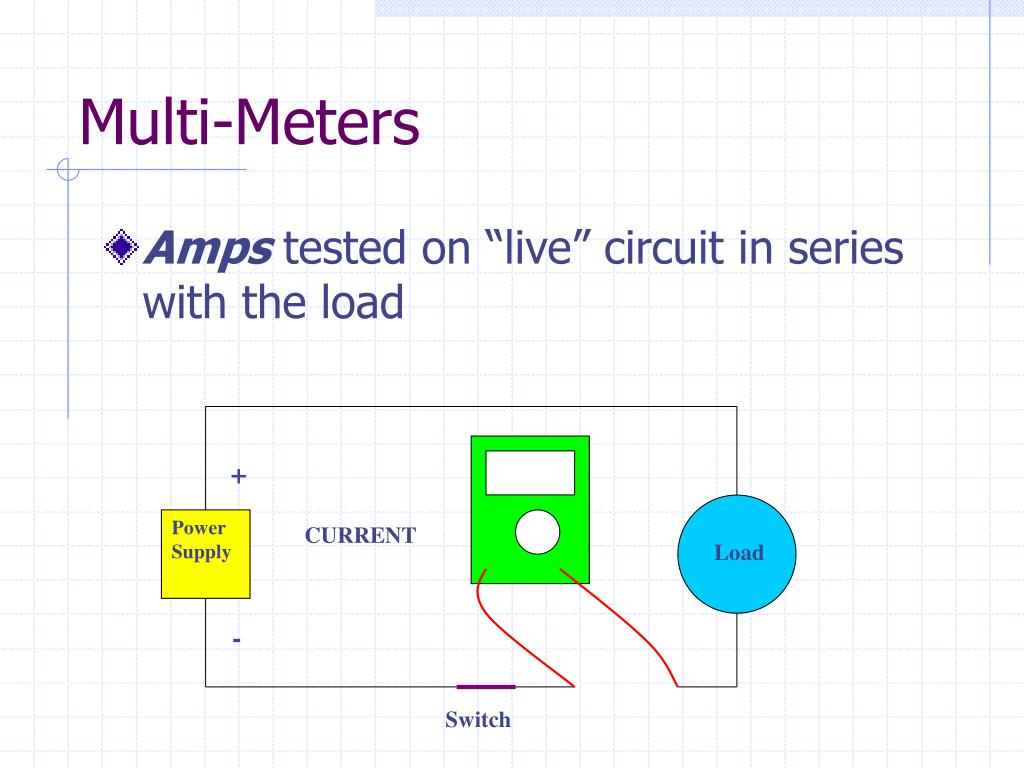

Multi-Meters
  • Amps tested on “live” circuit in series with the load

+

CURRENT

Load

Power Supply

-

Switch

multi meters33

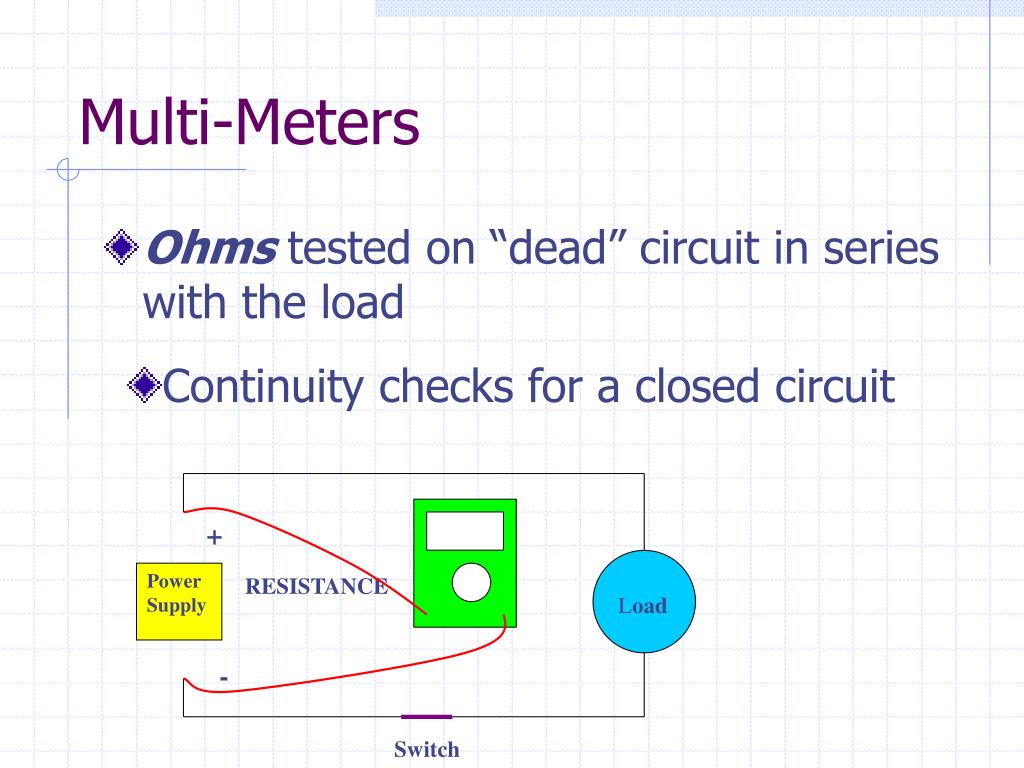

Multi-Meters
  • Ohms tested on “dead” circuit in series with the load

Continuity checks for a closed circuit

+

RESISTANCE

Load

Power Supply

-

Switch

switches
Switches
  • Used to open or close a circuit
  • Maintained switches can be toggled from open to closed, etc.
  • Momentary switches return to a “normal” open or closed condition
switches35

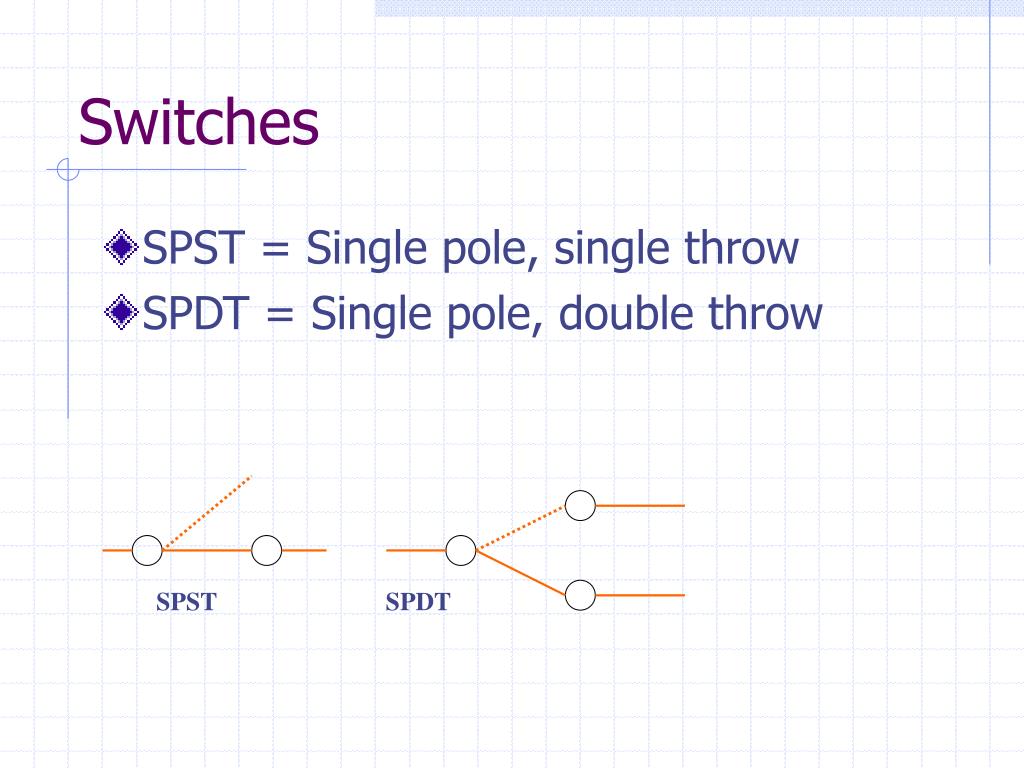

Switches
  • SPST = Single pole, single throw
  • SPDT = Single pole, double throw

SPST

SPDT

switches36

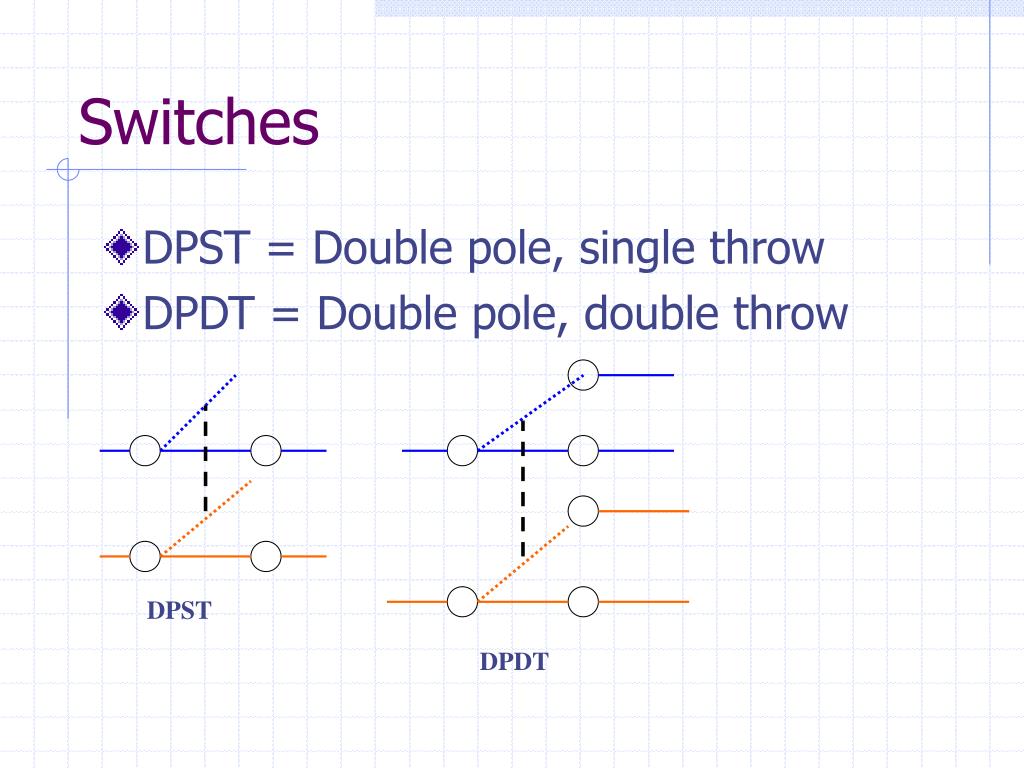

Switches
  • DPST = Double pole, single throw
  • DPDT = Double pole, double throw

DPST

DPDT

switches37
Switches

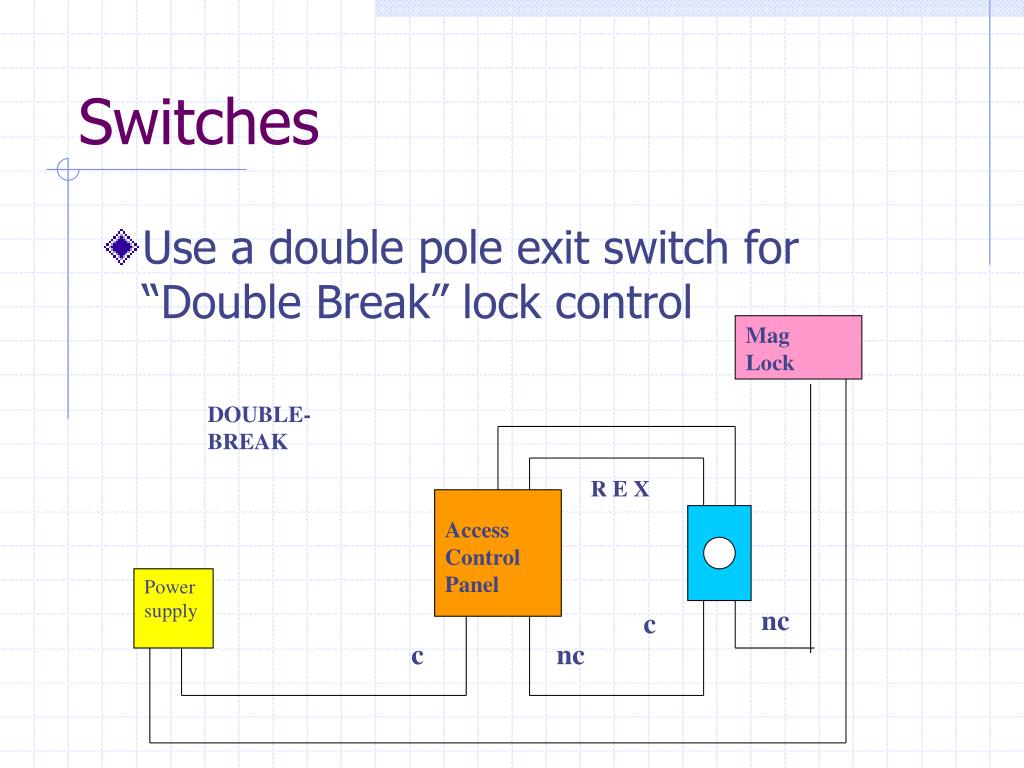

  • Use a double pole exit switch for “Double Break” lock control

Mag

Lock

DOUBLE-

BREAK

R E X

Access

Control

Panel

Power

supply

nc

c

c

nc

switches38

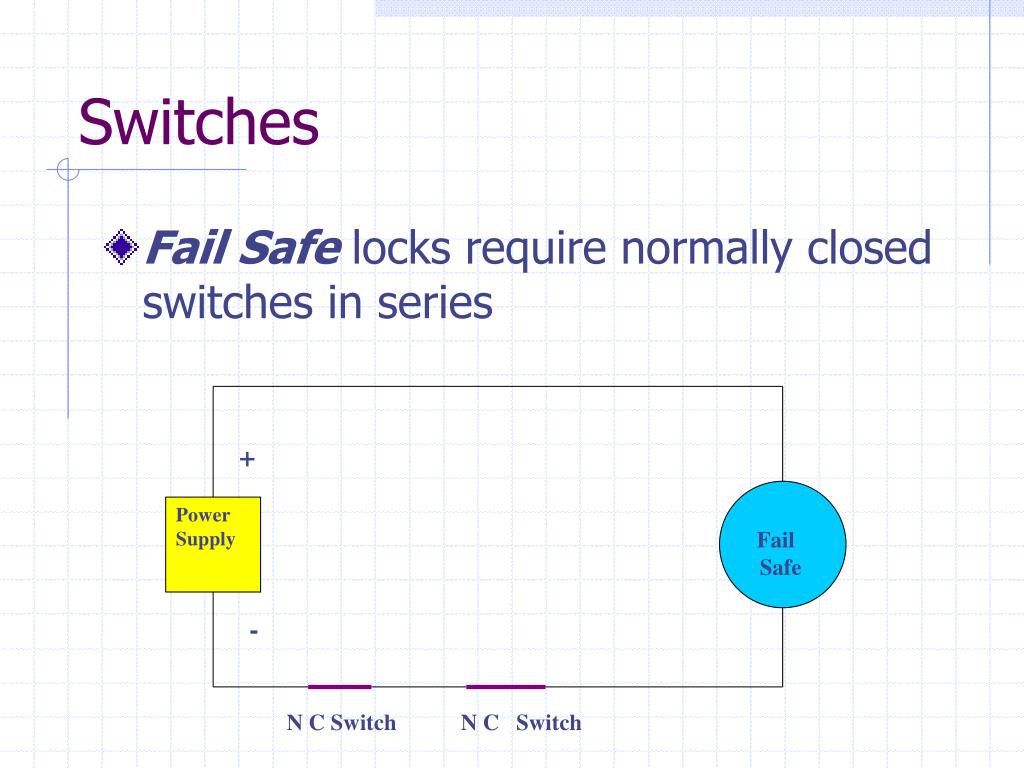

Switches
  • Fail Safe locks require normally closed switches in series

+

Fail

Safe

Power Supply

-

N C Switch

N CSwitch

switches39

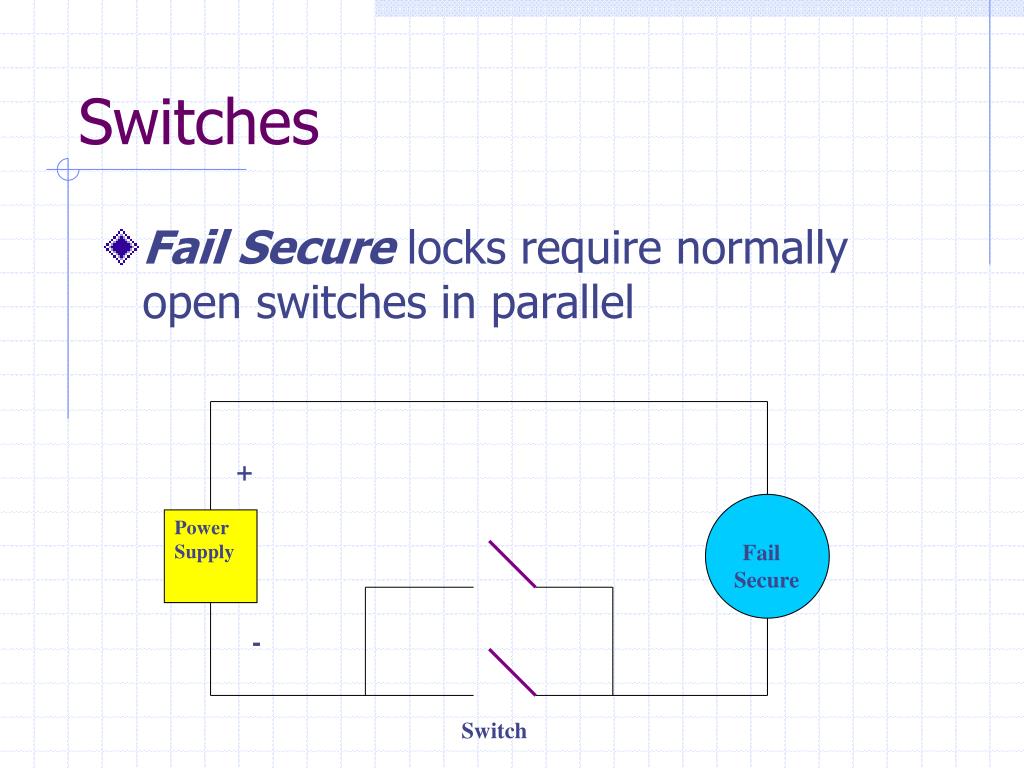

Switches
  • Fail Secure locks require normally open switches in parallel

+

Fail

Secure

Power Supply

-

Switch

relays

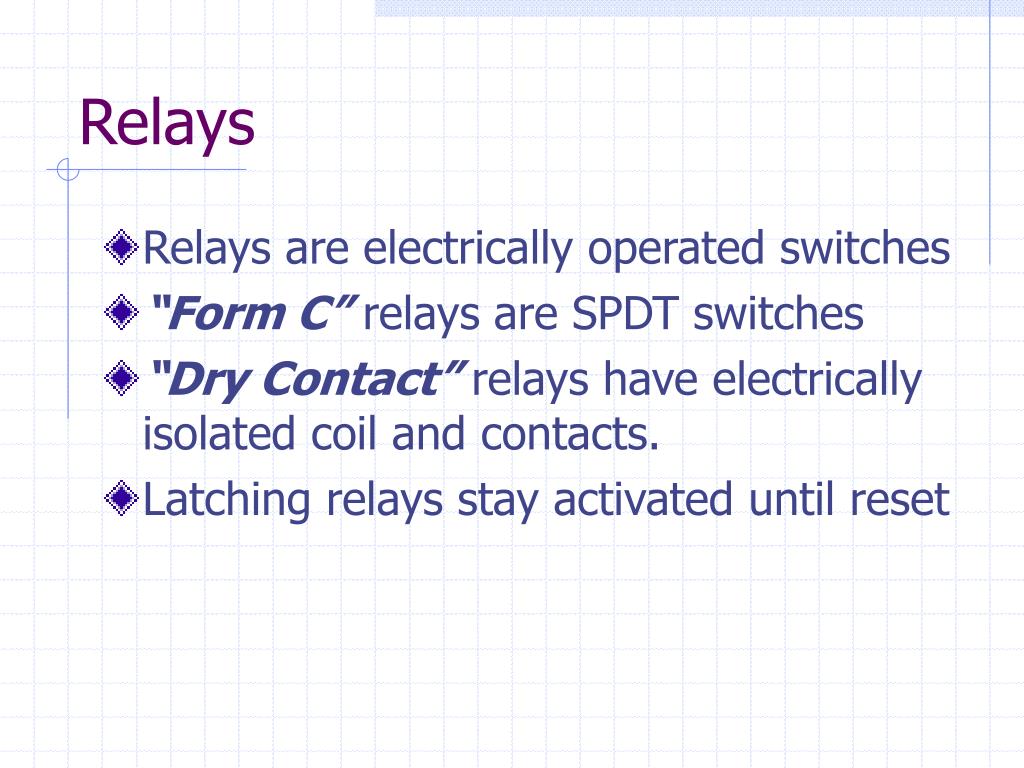

Relays
  • Relays are electrically operated switches
  • “Form C” relays are SPDT switches
  • “Dry Contact” relays have electrically isolated coil and contacts.
  • Latching relays stay activated until reset
relays41

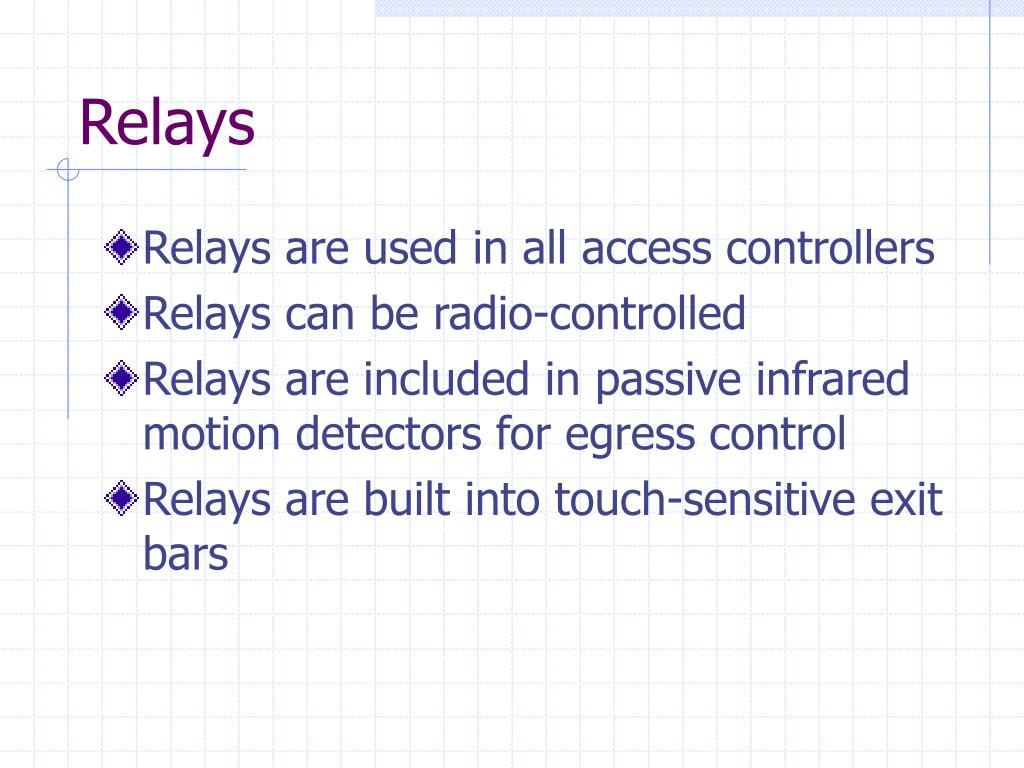

Relays
  • Relays are used in all access controllers
  • Relays can be radio-controlled
  • Relays are included in passive infrared motion detectors for egress control
  • Relays are built into touch-sensitive exit bars
timers
Timers
  • 7-Day / 24-Hour timers used to schedule door locking/unlocking
  • Delay timers used to keep door unlocked without holding in a switch
  • All access controllers have delay timers
  • Some access controllers have scheduling timers
electro mechanical locks

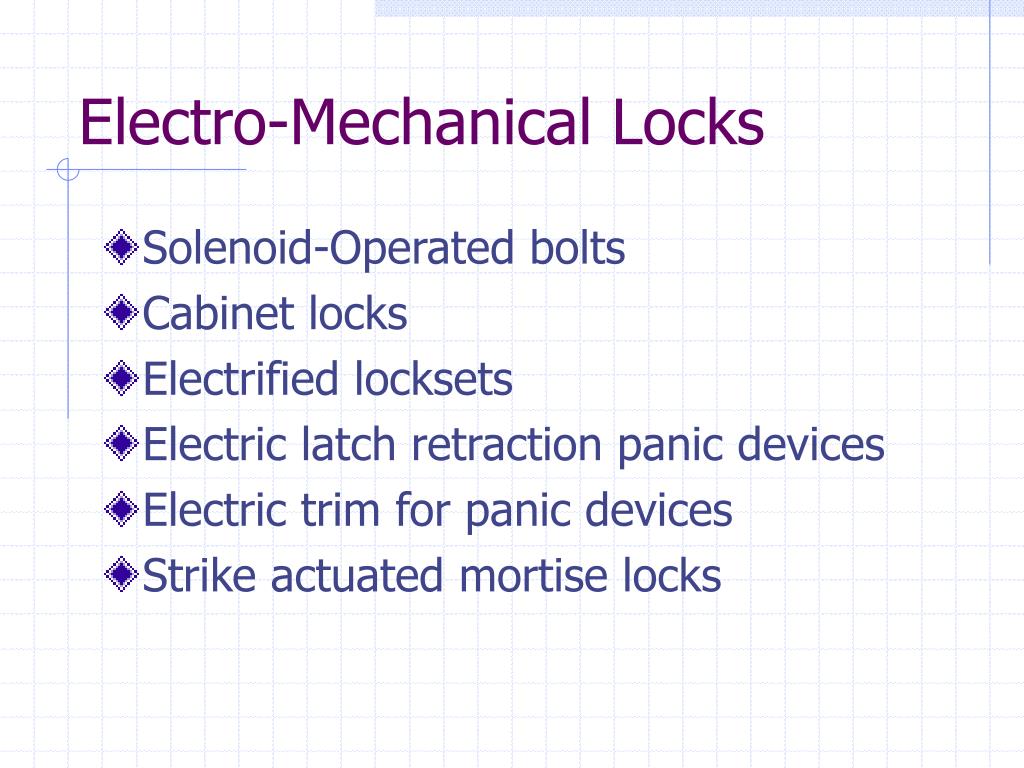

Electro-Mechanical Locks
  • Solenoid-Operated bolts
  • Cabinet locks
  • Electrified locksets
  • Electric latch retraction panic devices
  • Electric trim for panic devices
  • Strike actuated mortise locks
electro mechanical locks44

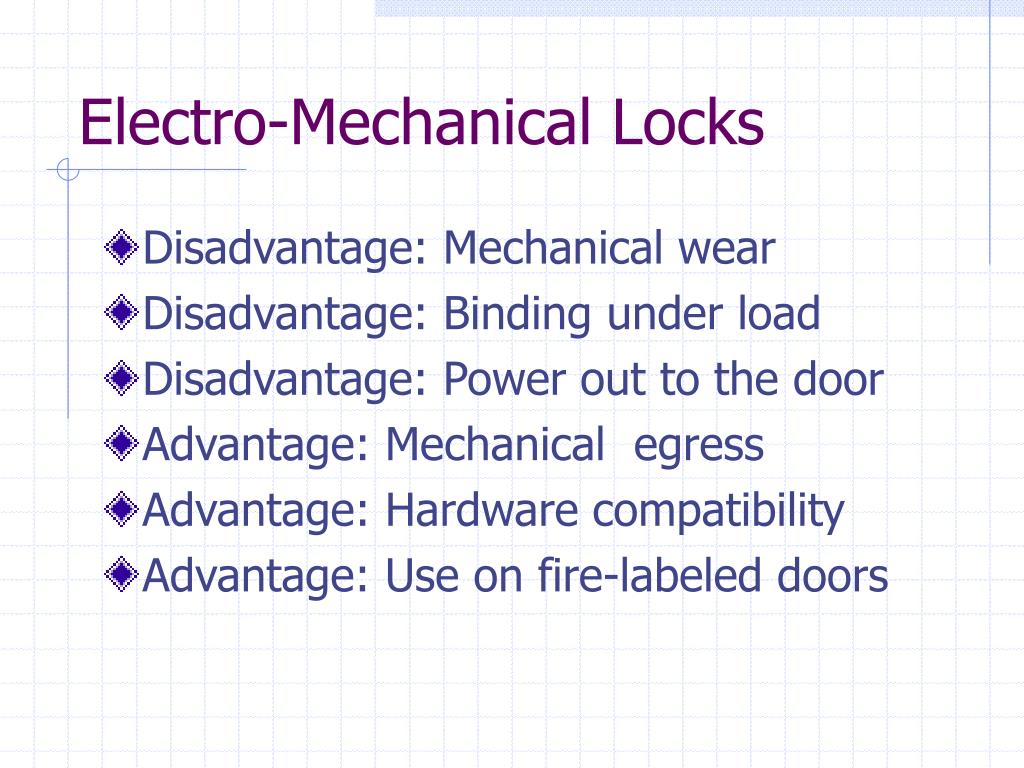

Electro-Mechanical Locks
  • Disadvantage: Mechanical wear
  • Disadvantage: Binding under load
  • Disadvantage: Power out to the door
  • Advantage: Mechanical egress
  • Advantage: Hardware compatibility
  • Advantage: Use on fire-labeled doors
electro magnetic locks

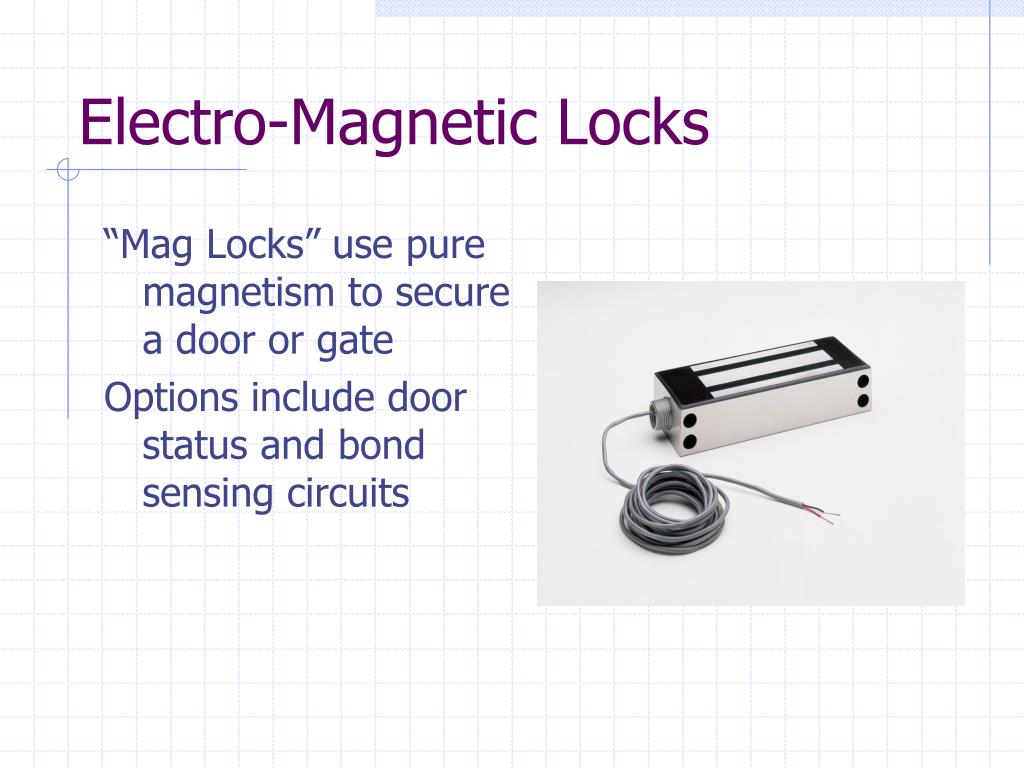

Electro-Magnetic Locks

“Mag Locks” use pure magnetism to secure a door or gate

Options include door status and bond sensing circuits

electro magnetic locks46

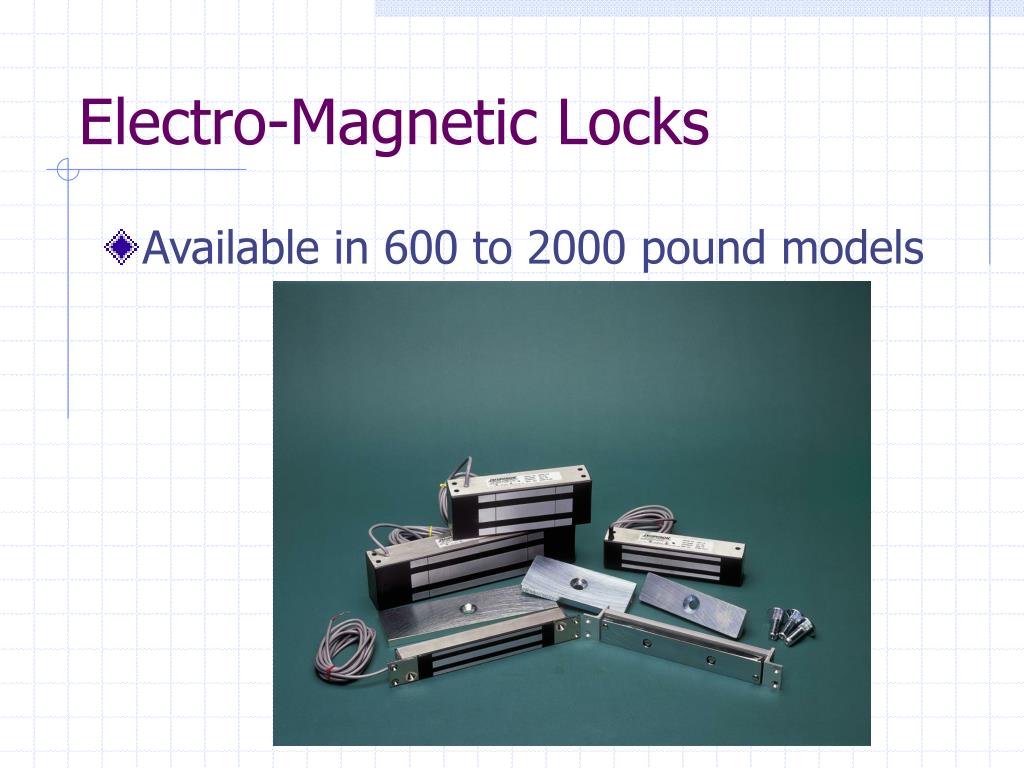

Electro-Magnetic Locks

Available in 600 to 2000 pound models

electro magnetic locks47

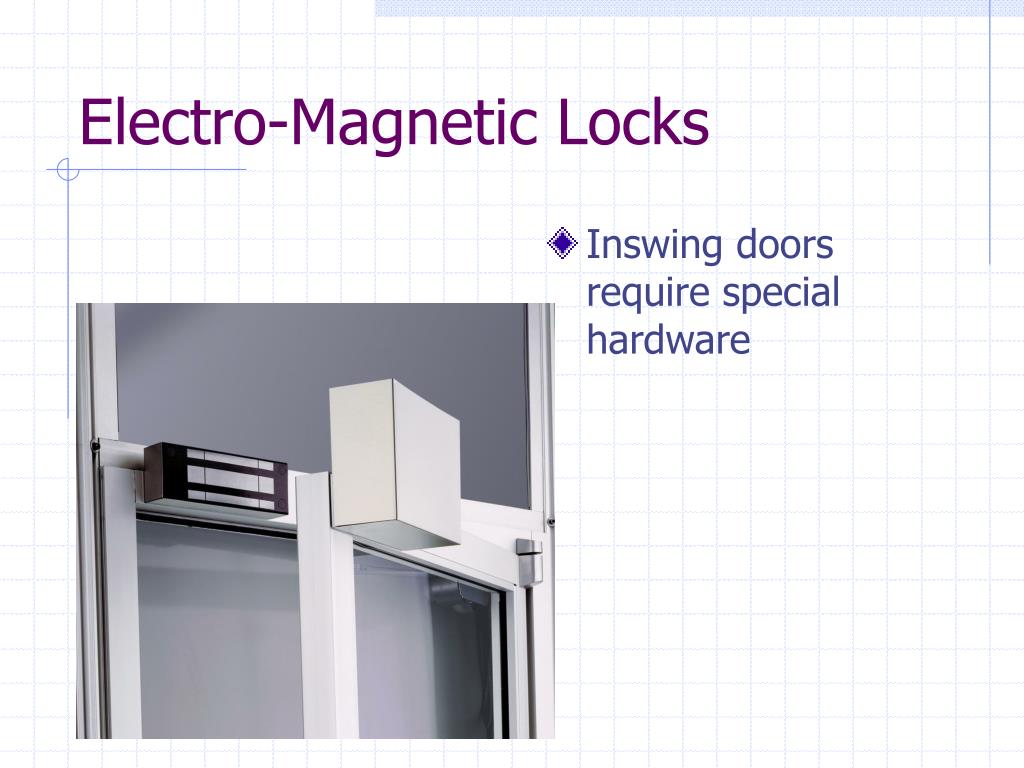

Electro-Magnetic Locks
  • Inswing doors require special hardware
electro magnetic locks48

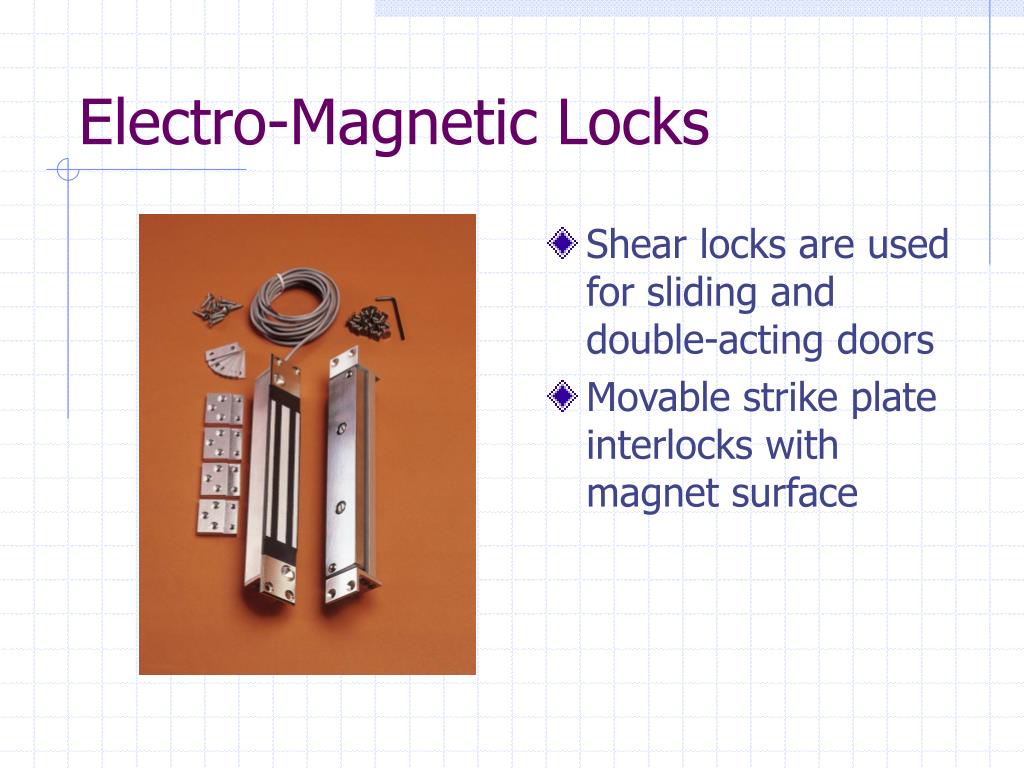

Electro-Magnetic Locks
  • Shear locks are used for sliding and double-acting doors
  • Movable strike plate interlocks with magnet surface
electro magnetic locks49

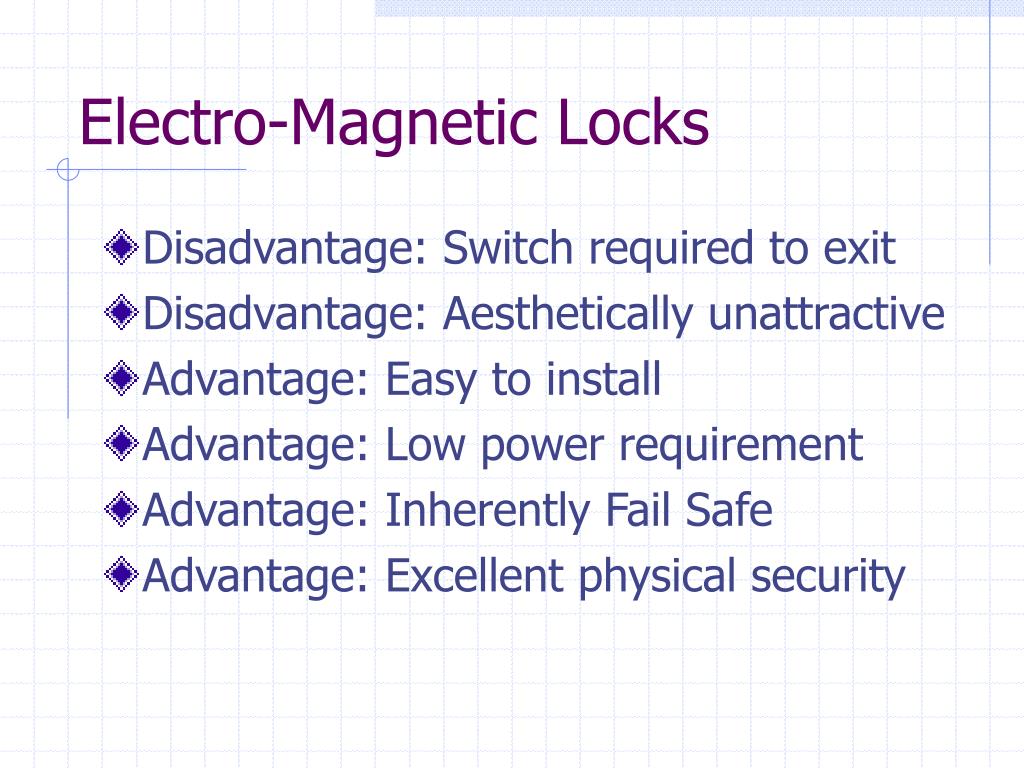

Electro-Magnetic Locks
  • Disadvantage: Switch required to exit
  • Disadvantage: Aesthetically unattractive
  • Advantage: Easy to install
  • Advantage: Low power requirement
  • Advantage: Inherently Fail Safe
  • Advantage: Excellent physical security
electric strikes

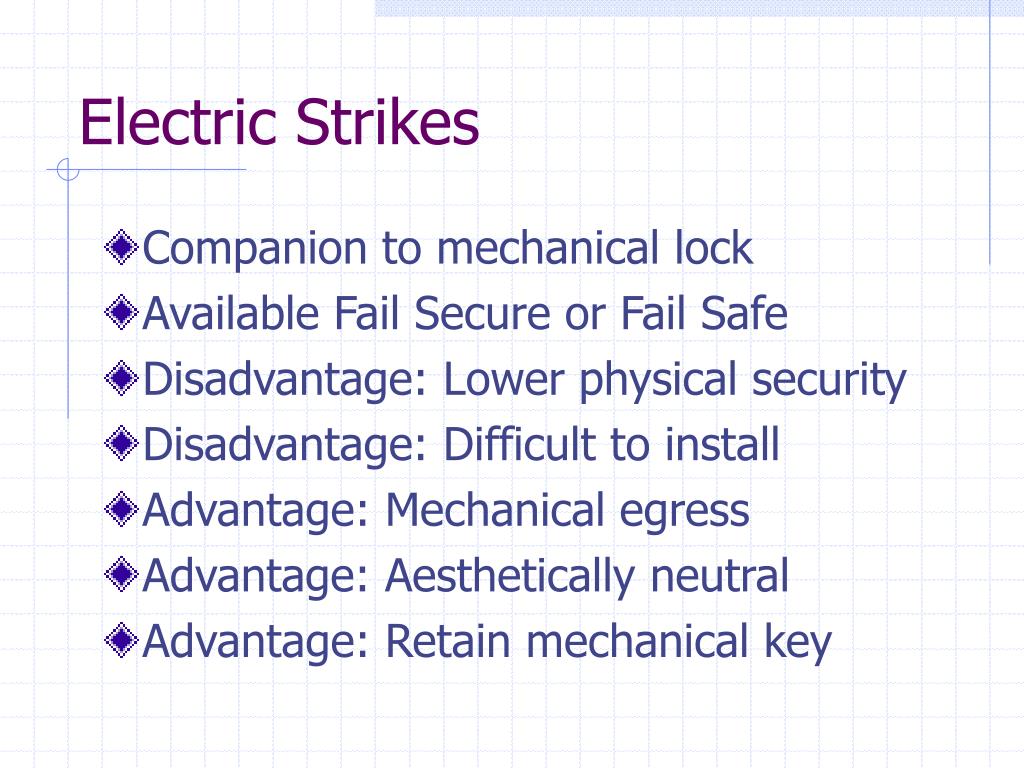

Electric Strikes
  • Companion to mechanical lock
  • Available Fail Secure or Fail Safe
  • Disadvantage: Lower physical security
  • Disadvantage: Difficult to install
  • Advantage: Mechanical egress
  • Advantage: Aesthetically neutral
  • Advantage: Retain mechanical key
electric strikes51
Electric Strikes
  • “UnLatch” works differently than conventional strikes
  • No cutting of frame face required
  • Models for cylindrical and mortise locks
electric strikes mechanical
Electric Strikes - Mechanical
  • Type of jamb: hollow metal, wood, aluminum,determines faceplate size and shape
  • Cylindrical Lock
  • Mortise Lock
  • Exit Device
electric strikes electrical
Electric Strikes - Electrical
  • Voltage – usually 12 or 24 volts
  • AC or DC – AC buzzes, DC silent
  • Continuous or Intermittent Duty
  • Fail Secure or Fail Safe
  • Current requirements
putting it together
Putting It Together
  • Select electric locking device
  • Select Access Control system
  • Determine means of egress
  • Plan additional switches, relays and timers
  • Select appropriate power source
benefits of electronic locking systems
Benefits Of Electronic Locking Systems
  • Keyless Entry
  • Timed Locking/Unlocking
  • Remote Unlocking
  • Delayed Egress
  • Easy Adds & Deletes
  • Audit Trail
  • Times Zones
design your system
Design Your System
  • Access Technology.
  • Hardwired or Wireless?
  • Audit Trail?
  • Time Restrictions?
  • Remote Monitoring?
  • Programming options.
access technology
Access Technology
  • Something You Know: Personal Identification Number.
  • Something You Have: Cards, Keys, Memory Chips.
  • Something About You: Biometrics.
card technologies
Card Technologies
  • Bar Code
  • Hollerith
  • Magnetic Stripe
  • Wiegand
  • Barium Ferrite
  • Infrared
card technologies59
Card Technologies
  • Proximity
  • Smart Card
  • Dallas Semiconductor i-Button
  • Data Chip Keys
generic features
Generic Features
  • Lock Release
  • Memory – Cardholders
  • Memory – Events
  • Alarm Shunt
  • Request-To-Exit
generic features61
Generic Features
  • Anti-Passback
  • Anti-Tailgating
  • Communications
  • Badging
  • Integration
access control pyramid
Access Control Pyramid
  • Easy Adds and Deletes
  • Audit Trail
  • Time Zones
  • Integrated Systems
