Presentation Transcript
Slide1 l.jpg

Liquid Polymer Epoxy (LPE) Coatings

SPC products for insitu rehab of pipeline coatings

Jeevan MenonBSc,BE


Slide2 l.jpg

-Liquid Polymer Epoxy (LPE ) - Novalac Technology involves multiple controlled crosslinks of C-C atoms

-In 3 Dimensions

-No of crosslinks, Bonds and degree of bonding are “designed or Controlled “


Slide3 l.jpg

History of the company – 30 years developing and applying high performance coating systems for the world of pipelines, Pipeline Rehab, storage tanks, offshore platforms, petrochemical, ships, jetties and pilings.


Slide4 l.jpg

SPC products used to Rehab high performance coating systems for the world of pipelines, Pipeline Rehab, storage tanks, offshore platforms, petrochemical, ships, jetties and pilings.

Over 200 km of 36 -42”

in 1998 – 2000

insitu

Transcanada Pipeline

TCPL


Slide5 l.jpg

Two product versions : high performance coating systems for the world of pipelines, Pipeline Rehab, storage tanks, offshore platforms, petrochemical, ships, jetties and pilings.

SP2888 (SP2889)– 80 C rated

SP8888 (SP8889)- 150C rated


Slide6 l.jpg

Products high performance coating systems for the world of pipelines, Pipeline Rehab, storage tanks, offshore platforms, petrochemical, ships, jetties and pilings.

Volume production

Complicated

Machinery

Spray for plural Gun application

SP2888 SP8888

Low Volume

EPL Spray for standard Airless

SP2889

SP8889

Simple machinery


Slide7 l.jpg

Spraying of small runs of Pipes , Using a standard airless gun (74 : 1 ratio or greater )

Kit is in 16 litres


Slide8 l.jpg

SP2889 , SP8889 (spray grade ) comes in 2 parts and is simply mixed and sprayed using a standard airless gun


Slide9 l.jpg

SP2889 SP8889 is mixed with a stirrer before spraying simply mixed and sprayed using a standard airless gun


Sp2889 sp889 uses a standard airless gun l.jpg
SP2889, SP889 uses a standard Airless Gun simply mixed and sprayed using a standard airless gun

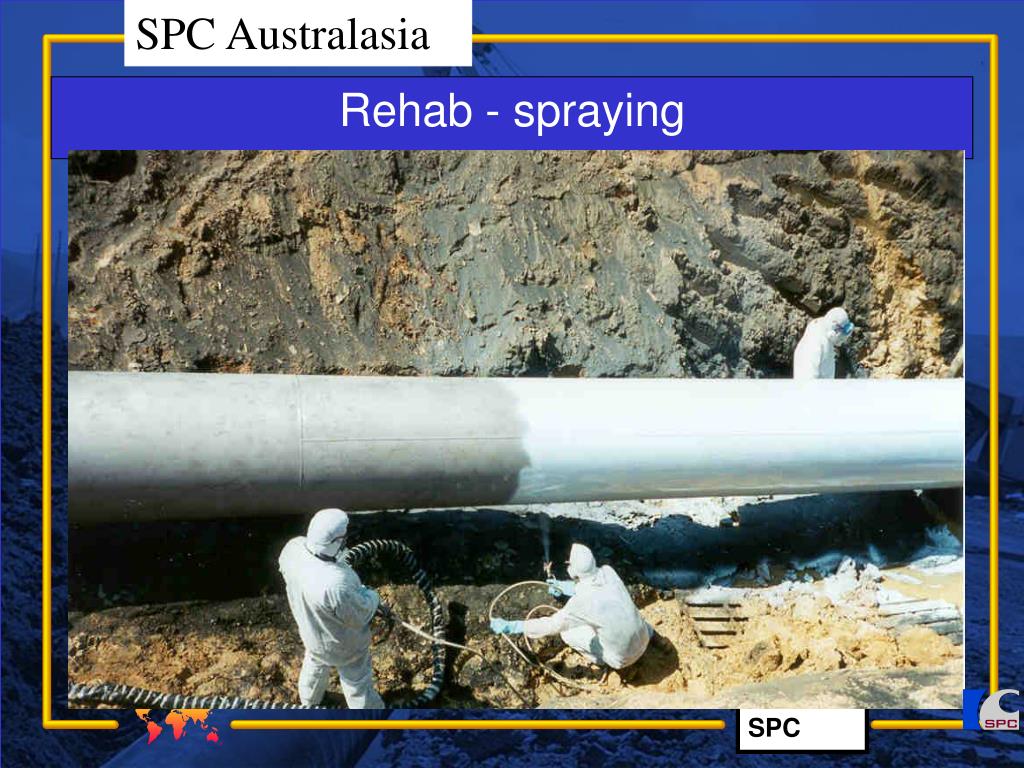

Rehab spraying l.jpg
Rehab - spraying simply mixed and sprayed using a standard airless gun


Slide12 l.jpg

PTT Trial Pipeline rehab Thailand simply mixed and sprayed using a standard airless gun

(Live Gas Line )

16” x with SP2888

Using Plural gun technology

May 2006


Slide13 l.jpg

The start of the pipeline rehab simply mixed and sprayed using a standard airless gun


Slide15 l.jpg

Exposing the Pipeline simply mixed and sprayed using a standard airless gun







Slide25 l.jpg

Test Results observed at Digup 2.5

Typical steel (Pipe) Wall Thickness : > 6.25mm

Chloride contamination < 100 ppm

Typical Blast profile :> 70 microns

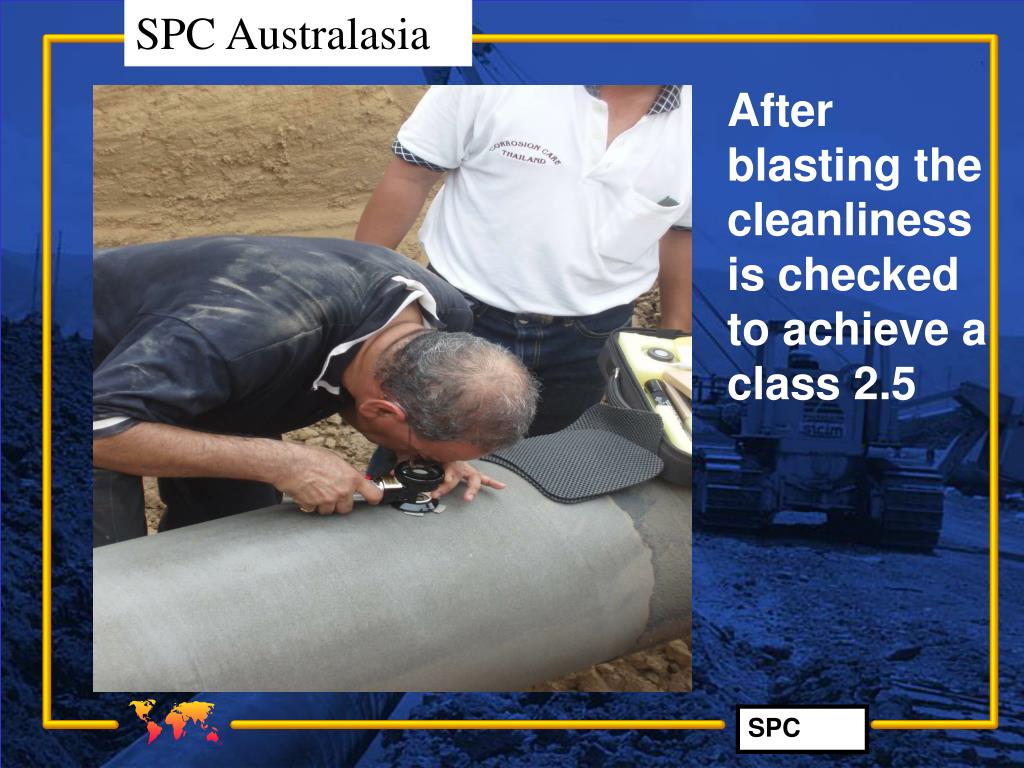

Typical Blast cleanliness: Class 2.5

Typical coating Thickness –DFT : > 700 microns

Typical Coating Hardness : Shore D. > 85
