Milk-Analyzer

The milk analyzer is a cutting-edge device for rapid and accurate assessment <br>of milk quality. It measures key parameters such as fat, protein, lactose, <br>and solids, ensuring precise dairy product composition. It is compact and <br>user-friendly, and it revolutionizes quality control in dairy production.

Mary238
Download Presentation

Milk-Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

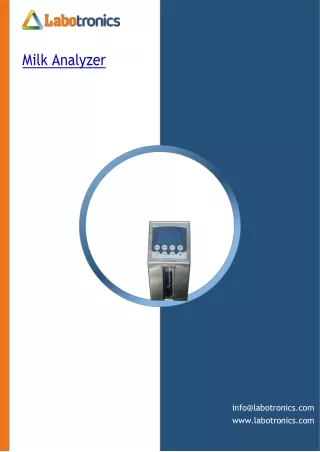

  1. Milk Analyzer info@labotronics.com www.labotronics.com

  2. Overview Milk Analyzer is a high-quality performance unit offers precise analysis and measurement of up to 9 milk parameters. Features reliable sophisticated sensor to perform analysis within 60/40/30 sec. Compact design with user friendly interface and 3 calibration channels, also support USB/RS232 interface for convenient and smooth operation. Specifications : Sample capacity 5 to 20 ml

  3. Fat: 0 to 25% SNF: 3 to 40% Density: 1000 to 1160 kg/m3 Protein: 2 to 15% Lactose: 0.01 to 20% Measuring range Salts: 0.4 to 4% Water: 0 to 70% Freezing point: -0.4 to -0.7°C pH: 0 to 14 Conductivity: 2 to 14 mS/cm

  4. Fat: ±1% SNF: ±0.15% Density: ±0.3 kg/m3 Protein: ± 0.15% Lactose: ±0.02% Accuracy Salts: ±0.05% Water: ±3% Freezing point: ±0.005°C pH: ±0.05% Conductivity: ± 0.1 mS/cm Temperature range 1 to 42°C Temperature accuracy ±1°C Analysis time 60/40/30 sec Humidity 0 to 80% RH Interface USB, RS232 Dimension (W×D×H) 110×280×195 mm Weight 2 kg Packaging dimension (W×D×H) 500×400×450 mm

  5. Gross weight Features : A compact and high-quality ultrasonic milk analyzer unit Precise analysis measurement of up to 9 milk parameters Sophisticated sensor to offer precise and quick analysis Compact design with user friendly interface 3 calibration channels for seamless operation Support RS232 interface for easy data processing Applications: Milk analyzer is used for analysis and measurement of fat content in milk across dairy, food industry, quality control etc. Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
