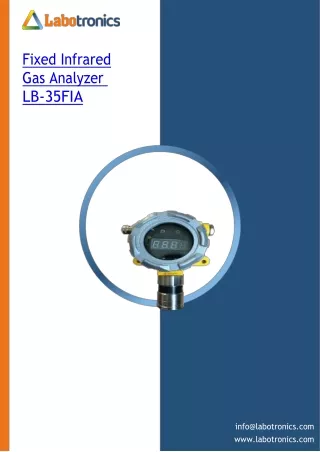

  1. Fixed Infrared Gas Analyzer LB-35FIA info@labotronics.com www.labotronics.com

  2. Overview Fixed infrared gas analyzer is a fixed model analyzer designed for monitoring, detection and analysis of combustible, toxic, poisonous gases present in severe environmental condition areas. Composed of aluminum alloy and stainless steel making it corrosion resistant. Equipped with control panel for remote controlled monitoring of large analysis area. Built-in alarm and fault relay system facilitates personnel and plant protection from flammable, toxic and oxygen hazards. Specifications : Sensor Non-dispersive infrared sensor Sampling method Diffusion CO, O2, Cl2, SO2, O3, CO2, CH4, H2S, NH3, NO, NO2, H2, LEL, LPG, PID, EXP, CH4 (IR), C3H8 (IR) Detection range Operating humidity ( non-condensing ) 15 % to 90 % RH Operating temperature ( -20 °C to 55 °C ) Operating pressure 86 kPa to 106 kPa Display panel 4-digit LED display Data interface RS485 interface Audible ( > 90 dB ) Bright dual color LEDs Alarm system Enclosure material Aluminum alloy and stainless steel

  3. System wiring 3-core shield cable ( 3 x 1.0 mm ) Protection class IP65 Signal output 4 to 20 mA Power supply 24 V DC Weight 1.8 kgs Features : Non-dispersive infrared sensor High sensor sensitivity range ( no oxygen dependence ) Continuous monitoring system ( 4 to 20 mA, RS485 MODBUS output ) Distributed Control System ( DCS ) compatible Three core shield cable 4 digit LED display of real time gas concentration data Audio-visual alarm system with LED light ( trigger process controls) Ex d IIC T6 Gb explosion proof grade enclosure Applications : Used for the measurement and analysis of gas output or leakage in ceramic, iron-steel industry, thermal treatment, electronic, agricultural, biochemical facilities for environmental pollution regulation and energy saving Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
