Portable Infrared Gas Detector

Portable Infrared Gas Detector is designed to detect the presence of SF6 (sulfur hexafluoride) gas in the environment by utilizing an infrared sensor and employs <br>a distinctive data processing approach. With a detection range of 0 to 50 ppm or 0 to 1000 ppm, it offers quick response times, allowing for rapid and accurate <br>detection. It achieves an exceptional detection resolution for leakages by utilizing the Non-Dispersive Infrared (NDIR) principle.

Kimber4
Download Presentation

Portable Infrared Gas Detector

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

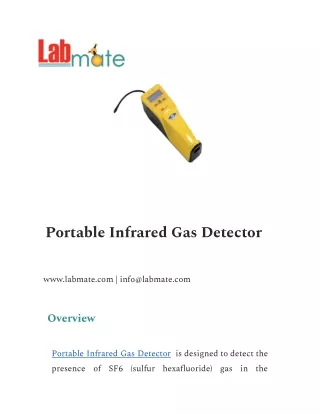

  1. Portable Infrared Gas Detector www.labmate.com | info@labmate.com Overview Portable Infrared Gas Detector is designed to detect the presence of SF6 (sulfur hexafluoride) gas in the

  2. environment by utilizing an infrared sensor and employs a distinctive data processing approach. With a detection range of 0 to 50 ppm or 0 to 1000 ppm, it offers quick response detection. resolution for leakages by utilizing the Non-Dispersive Infrared (NDIR) principle. times, It allowing achieves for rapid exceptional and accurate detection an Specifications : Measurem Non-dispersive infrared (NDIR) ent Principle Gas SF6: 0 to 50 ppm range/ 0 to 1000 ppm Detected range (as per req.)

  3. Detection <1.5 % F. S Uncertaint y Detection 0.1ppm Resolution Sampling Pumping type Mode Probe Unit 22 cm Rod Length Response 1 to 5 s Time

  4. Warm-Up 100 s Time Operation -10 to 60℃ Temperatu re Display OLED self-luminous with low power consumption, high brightness Power 4.2 V, internal lithium battery power Supply supply, 2200 mAh Shelf Life >10 years Hs Code 9027100090 Dimension 500 × 290 × 180 mm

  5. Weight 0.7 kg Features : - Automatic zero dri? adjustment feature - Equipped with imported sensors boasting extended shelf life - Immediate response and rapid recovery rate - Multiple-tiered audible and visual alarms - Highly sensitive data detection capabilities - Charging via USB or AC adapter - Data analysis facilitated through PC so?ware via a USB connection - Capability for storing and retrieving measurement data - Integrated OLED screen for clear visibility using light-emitting organic matter Applications :

  6. Used to measure the gas leakage of switchgear, GIS, circuit breakers, etc. in the electronic industry, also used in the greenhouse, painting, and chemical industries. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
