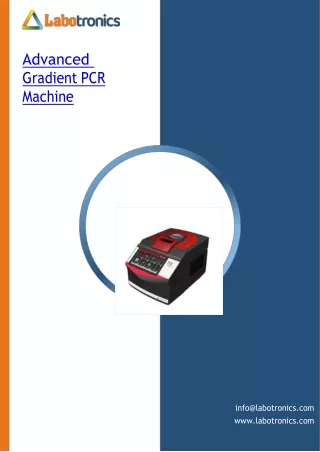

  1. Advanced Gradient PCR Machine info@labotronics.com www.labotronics.com

  2. Overview Advanced gradient PCR machine is a Peltier based unit with improved heat conduction. More than 100 self-diagnostic functions employ operational advantage. Mouse operation discards traditional push button operation. The sealed sample design ensures a low temperature preservation and dry cleaning. Independent network connection eliminates complex operations and inconvenience of rational program updating. The gold or silver plated module improves the efficiency of heat conduction. Specifications : Number of wells 96 Capacity per well 0.2 mL Operational temperature range 0 °C ~ 99.9 °C Gradient temperature range 30 °C ~ 99 °C Gradient speed 1 °C ~ 30 °C Gradient uniformity ≤ 0.2 °C Heating and cooling rate range 0.1 °C / s ~ 4.0 °C / s Maximum heating rate ≥4 °C / s Maximum cooling rate ≥4 °C / s Temperature uniformity ≤ ± 0.2 °C Temperature accuracy ≤ ± 0.1 °C Lid temperature 20 °C ~ 110 °C Maximum number of cycles 999 Ambient temperature 5 °C ~ 30 °C

  3. Relative humidity < 90 % Data storage program 2000 Dimensions 380 × 270 × 250 mm Weight 8.1 kgs Features : High definition LCD touch screen for visual monitoring and parameter setting Module replacement mode Adjustable lid knob for placement of variable tube sizes Data storage memory in case of power down through hard disk Top lid with multiple angle adjustments Multiple control operational access by PC connection Supports external U disk Buzzing alarm indication In-built TM (melting temperature) value calculation function Circulation nesting available Real time monitoring and printing function Anti-corrosive structural unit Applications : Used for DNA amplification under gradient temperature system in the fields of genetics, immunology, genotyping, forensic, etc. Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK

  4. info@labotronics.com | www.labotronics.com
