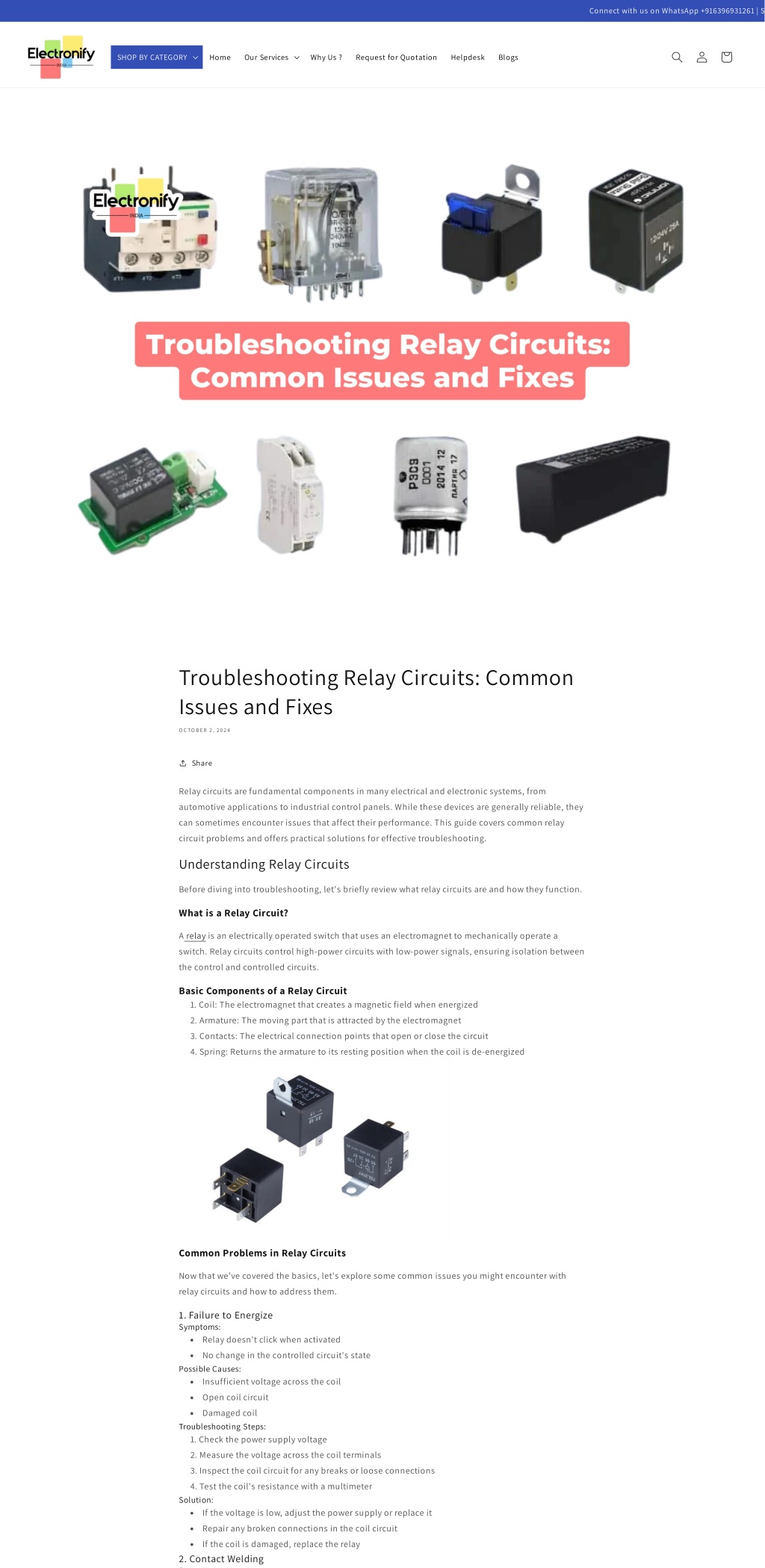

1. Connect with us on WhatsApp +916396931261 | S SHOP BY CATEGORY Home Our Services Why Us ? Request for Quotation Helpdesk Blogs Troubleshooting Relay Circuits: Common Issues and Fixes OCTOBER 2, 2024 Share Relay circuits are fundamental components in many electrical and electronic systems, from automotive applications to industrial control panels. While these devices are generally reliable, they can sometimes encounter issues that affect their performance. This guide covers common relay circuit problems and offers practical solutions for effective troubleshooting. Understanding Relay Circuits Before diving into troubleshooting, let's briefly review what relay circuits are and how they function. What is a Relay Circuit? A relay is an electrically operated switch that uses an electromagnet to mechanically operate a switch. Relay circuits control high-power circuits with low-power signals, ensuring isolation between the control and controlled circuits. Basic Components of a Relay Circuit 1. Coil: The electromagnet that creates a magnetic field when energized 2. Armature: The moving part that is attracted by the electromagnet 3. Contacts: The electrical connection points that open or close the circuit 4. Spring: Returns the armature to its resting position when the coil is de-energized Common Problems in Relay Circuits Now that we've covered the basics, let's explore some common issues you might encounter with relay circuits and how to address them. 1. Failure to Energize Symptoms: Relay doesn't click when activated No change in the controlled circuit's state Possible Causes: Insufficient voltage across the coil Open coil circuit Damaged coil Troubleshooting Steps: 1. Check the power supply voltage 2. Measure the voltage across the coil terminals 3. Inspect the coil circuit for any breaks or loose connections 4. Test the coil's resistance with a multimeter Solution: If the voltage is low, adjust the power supply or replace it Repair any broken connections in the coil circuit If the coil is damaged, replace the relay 2. Contact Welding S

2. Symptoms: Relay contacts remain closed even when de-energized Intermittent operation Possible Causes: Excessive current through contacts Frequent switching of high-inductive loads Arcing due to slow contact closure or opening Troubleshooting Steps: 1. Visually inspect the contacts for signs of welding or pitting 2. Check the load current against the relay's specifications 3. Measure the contact resistance when the relay is de-energized Solution: Replace the relay if contacts are welded Install a snubber circuit to reduce arcing Use a relay with higher current ratings if necessary 3. Coil Overheating Symptoms: Relay feels hot to the touch Coil insulation melts or becomes discolored Intermittent operation or complete failure Possible Causes: Excessive voltage applied to the coil Continuous energization beyond rated duty cycle Poor heat dissipation Troubleshooting Steps: 1. Measure the coil voltage and compare it to the relay's specifications 2. Check the relay's duty cycle rating and actual usage 3. Inspect the relay's environment for proper ventilation Solution: Adjust the coil voltage to match specifications Implement a duty cycle control system if necessary Improve ventilation or consider using a relay with better thermal characteristics 4. Mechanical Wear and Tear Symptoms: Inconsistent switching Unusual noises during operation Visible damage to relay components Possible Causes: Age and frequent use Exposure to harsh environments (dust, vibration, etc.) Manufacturing defects Troubleshooting Steps: 1. Visually inspect the relay for signs of wear or damage 2. Listen for unusual sounds during operation 3. Check the relay's datasheet for expected lifespan Solution: Replace the relay if significant wear is observed Consider using sealed relays in harsh environments Implement a preventive maintenance schedule 5. Electromagnetic Interference (EMI) Symptoms: Erratic relay behavior Unintended switching Interference with nearby electronic equipment Possible Causes: Lack of proper shielding Proximity to high-frequency devices or power lines Inadequate grounding Troubleshooting Steps: 1. Check for nearby sources of electromagnetic interference 2. Inspect the relay's shielding and grounding connections 3. Test the relay operation in a different location Solution: Improve shielding around the relay circuit Relocate the relay away from EMI sources Enhance grounding and use EMI suppression techniques Preventive Measures and Best Practices To minimize relay circuit problems and extend their lifespan, consider implementing these best practices: 1. Proper Selection: Choose relays that match your application's voltage, current, and environmental requirements. 2. Correct Installation: Follow manufacturer guidelines for mounting, wiring, and heat dissipation. 3. Protection Circuits: Implement snubber circuits, flyback diodes, or other protection methods to reduce stress on relay contacts. 4. Regular Maintenance: Establish a routine inspection and cleaning schedule for relay circuits. 5. Environmental Control: Protect relays from excessive heat, humidity, dust, and vibration when possible. 6. Duty Cycle Management: Avoid continuous energization of relay coils beyond their rated duty cycle. 7. Documentation: Keep detailed records of relay specifications, installation dates, and maintenance history. Conclusion Troubleshooting relay circuits requires a systematic approach and a good understanding of their working principles. Understanding common problems and solutions helps you quickly fix issues, reduce downtime, and extend the life of your relay circuits. Keep in mind that while many relay circuit issues can be fixed through troubleshooting, some may need the expertise of a qualified electrician or engineer. Always prioritize safety and consult professionals when dealing with complex electrical systems. By implementing the preventive measures and best practices outlined in this guide, you can significantly reduce the occurrence of relay circuit problems and ensure the reliable operation of your electrical systems. Contact Us for Expert Help If you're looking for professional guidance and expert solutions in handling relay circuits or other electrical components, look no further than Electronify India. Our team of skilled technicians and engineers is ready to help you ensure the safe and efficient operation of your electrical systems. Reach out to Electronify India today for reliable support and services. Back to blog
