HYPERTURN 200 POWERMILL

A brilliant fusion of state-of-the-art turning and milling technology. The aim: to increase productivity when machining complex workpieces. The equipment: state-of-the-art, with Y axis, B axis and the latest control and drive technology. Combined with innovative Turnkey Solutions: The unbeatable allrounders of the machine tool industry.

Malaika9
Download Presentation

HYPERTURN 200 POWERMILL

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

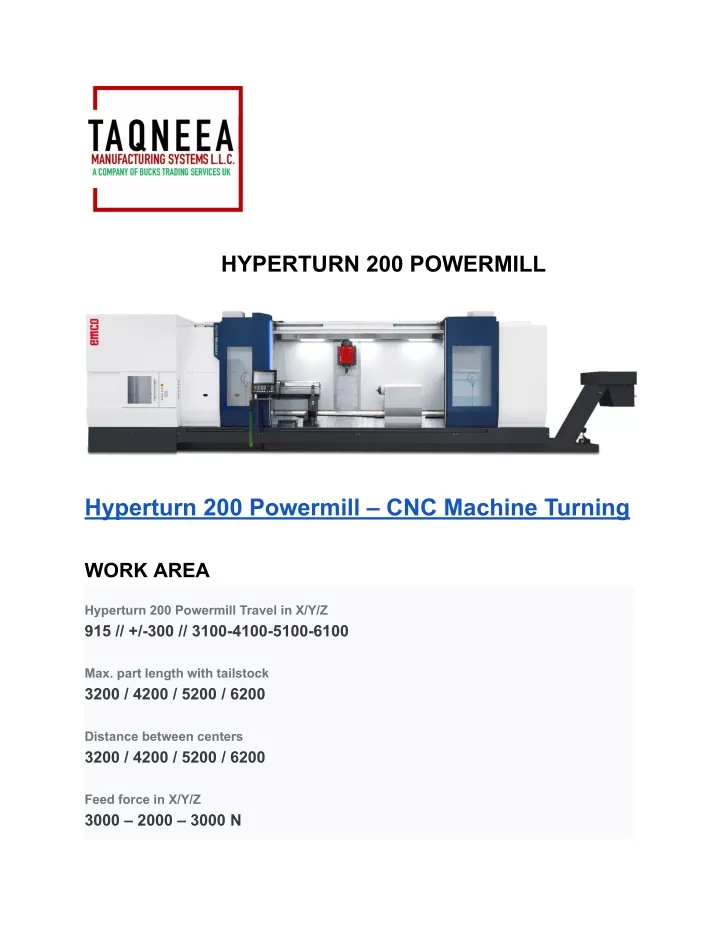

  1. HYPERTURN 200 POWERMILL Hyperturn 200 Powermill – CNC Machine Turning WORK AREA Hyperturn 200 Powermill Travel in X/Y/Z 915 // +/-300 // 3100-4100-5100-6100 Max. part length with tailstock 3200 / 4200 / 5200 / 6200 Distance between centers 3200 / 4200 / 5200 / 6200 Feed force in X/Y/Z 3000 – 2000 – 3000 N

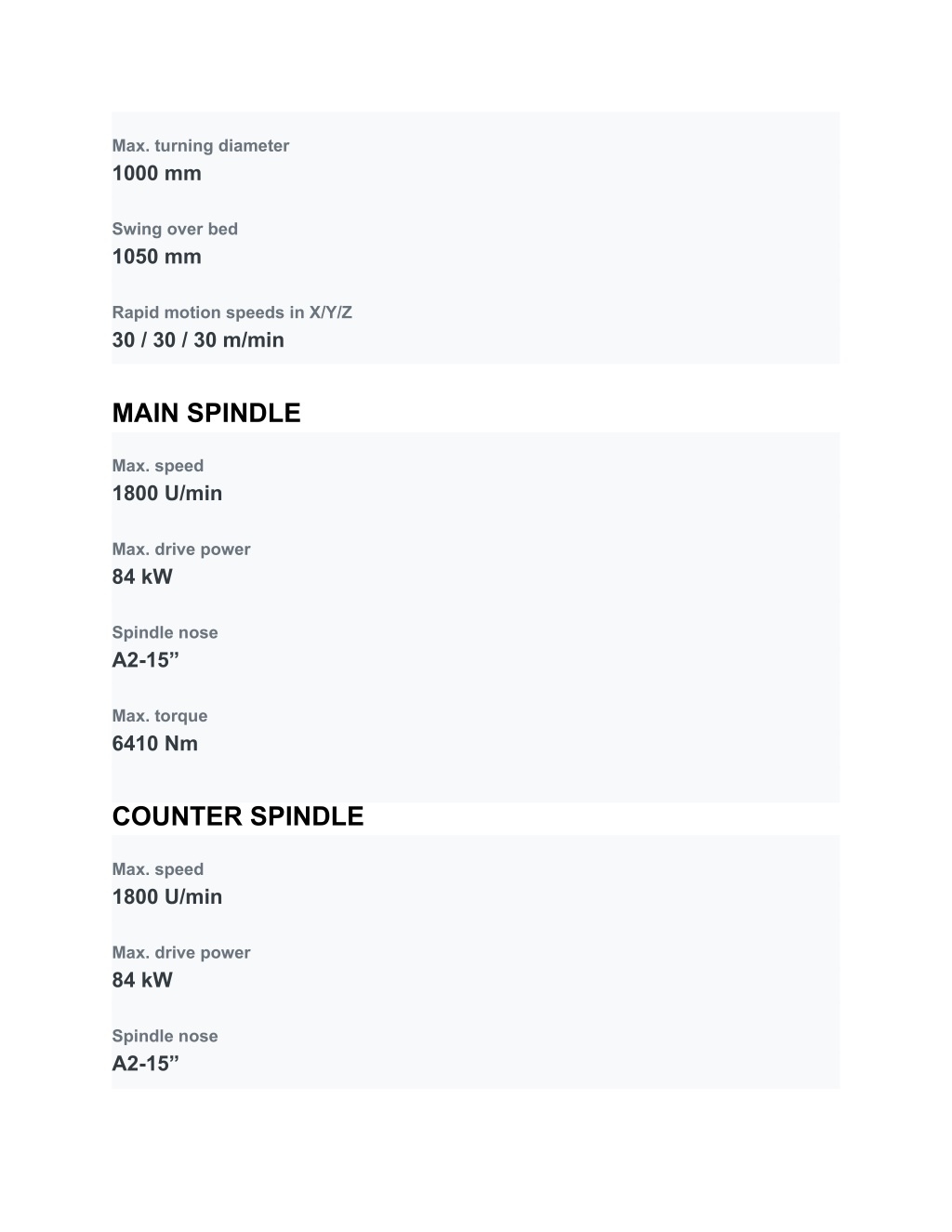

  2. Max. turning diameter 1000 mm Swing over bed 1050 mm Rapid motion speeds in X/Y/Z 30 / 30 / 30 m/min MAIN SPINDLE Max. speed 1800 U/min Max. drive power 84 kW Spindle nose A2-15” Max. torque 6410 Nm COUNTER SPINDLE Max. speed 1800 U/min Max. drive power 84 kW Spindle nose A2-15”

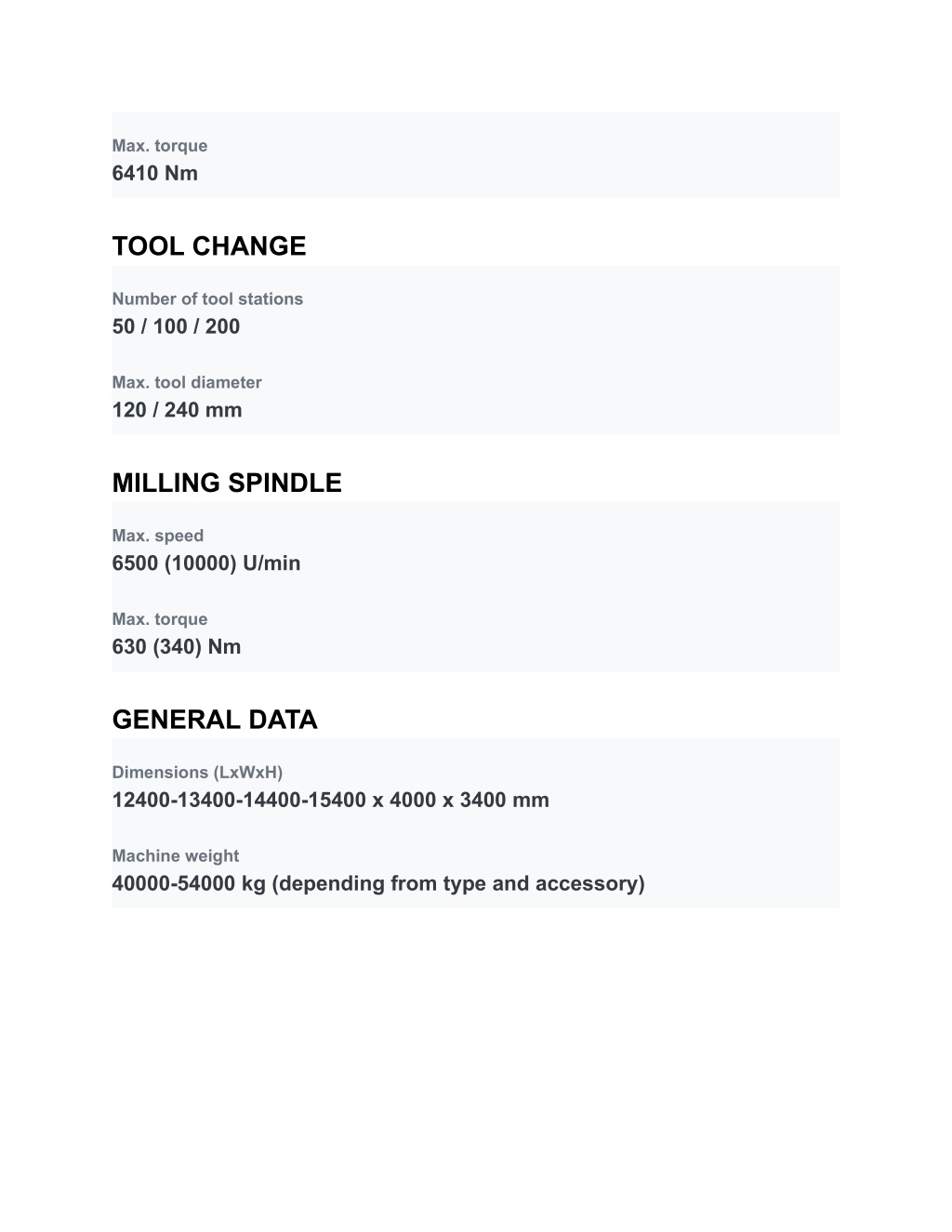

  3. Max. torque 6410 Nm TOOL CHANGE Number of tool stations 50 / 100 / 200 Max. tool diameter 120 / 240 mm MILLING SPINDLE Max. speed 6500 (10000) U/min Max. torque 630 (340) Nm GENERAL DATA Dimensions (LxWxH) 12400-13400-14400-15400 x 4000 x 3400 mm Machine weight 40000-54000 kg (depending from type and accessory)
