Perimeter machine guards refer to a barrier placed around a work area where an automated piece of equipment-like a robotic arm-performs a function. IES offers a wide range of perimeter guarding solutions for customers, We have modular safety panels made of Mild steel, SS 304, SS 316, We also provide a perimeter guarding solution in polycarbonate panel (PC) for high durability and visibility.<br><br>Perimeter Guarding solution to according to European safety standards<br>We adhere to comply most stringent machine safety standard for designing machine perimeter guarding. our company
E N D

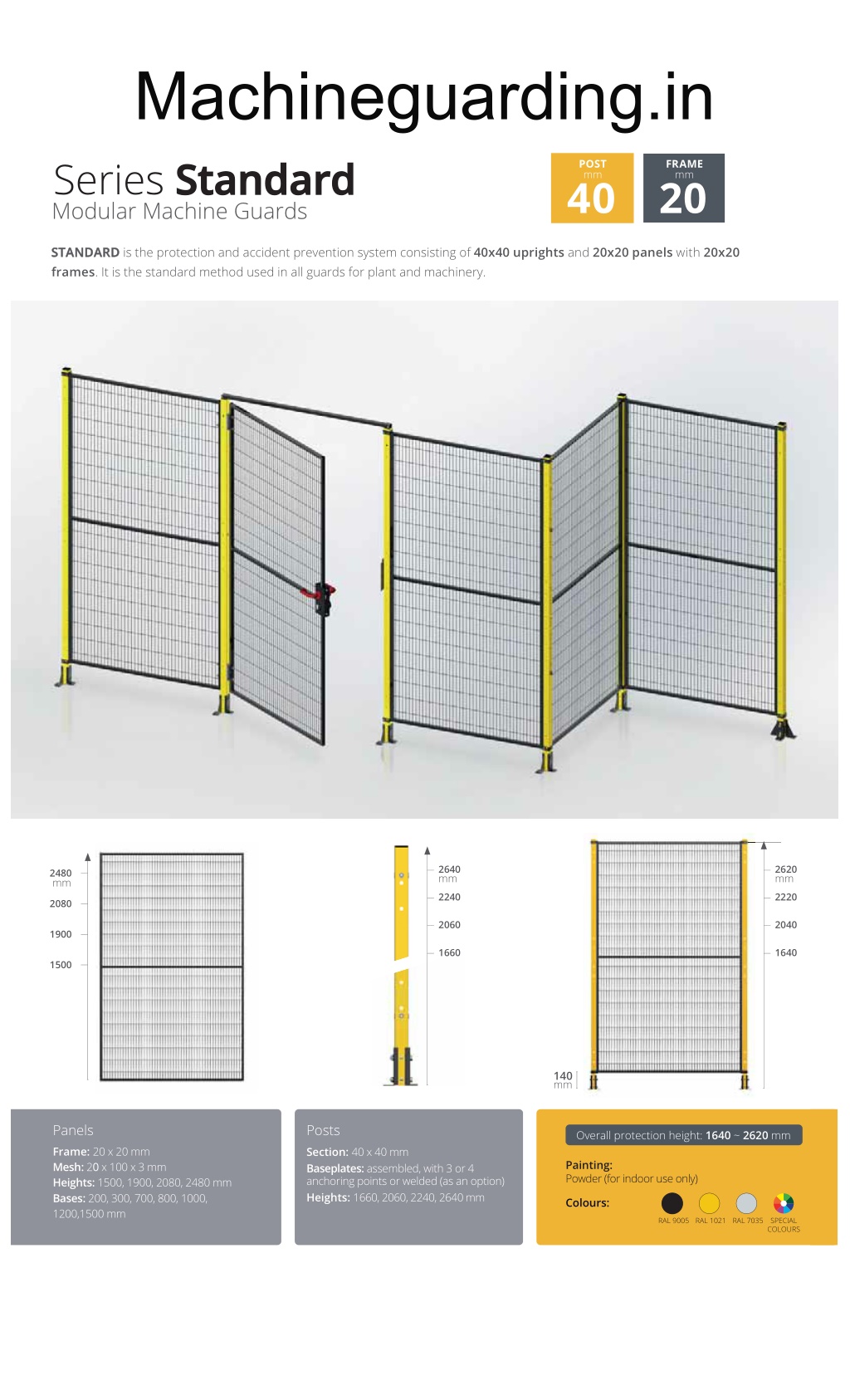

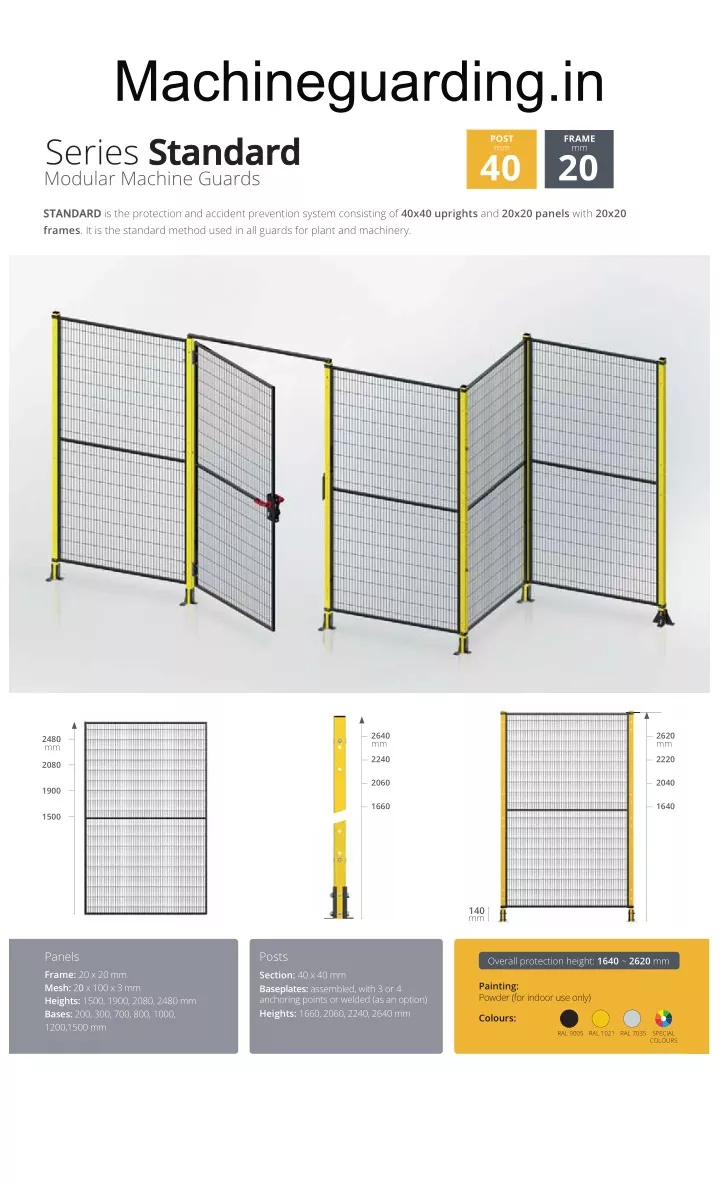

Machineguarding.in Series Standard Standard Modular Machine Guards POST mm 40 FRAME mm 20 STANDARD STANDARD is the protection and accident prevention system consisting of 40x40 uprights and 20x20 panels with 20x20 frames. It is the standard method used in all guards for plant and machinery. 2640 mm 2620 mm 2480 mm 2240 2220 2080 2060 2040 1900 1660 1640 1500 140 mm Panels Frame: ?????????? Mesh:??0????????????? ???????? 1500, 1900, 2080, 2480 mm Bases: 200, 300, 700, 800, 1000, 1200,1500 mm Posts Section: ?????????? Baseplates: assembled, with 3 or 4 anchoring points or welded (as an option) ???????? 1660, 2060, 2240, 2640 mm Overall protection height: 1640 ~ 2620 mm Painting: Powder (for indoor use only) Colours: RAL 9005 RAL 1021 RAL 7035 SPECIAL COLOURS

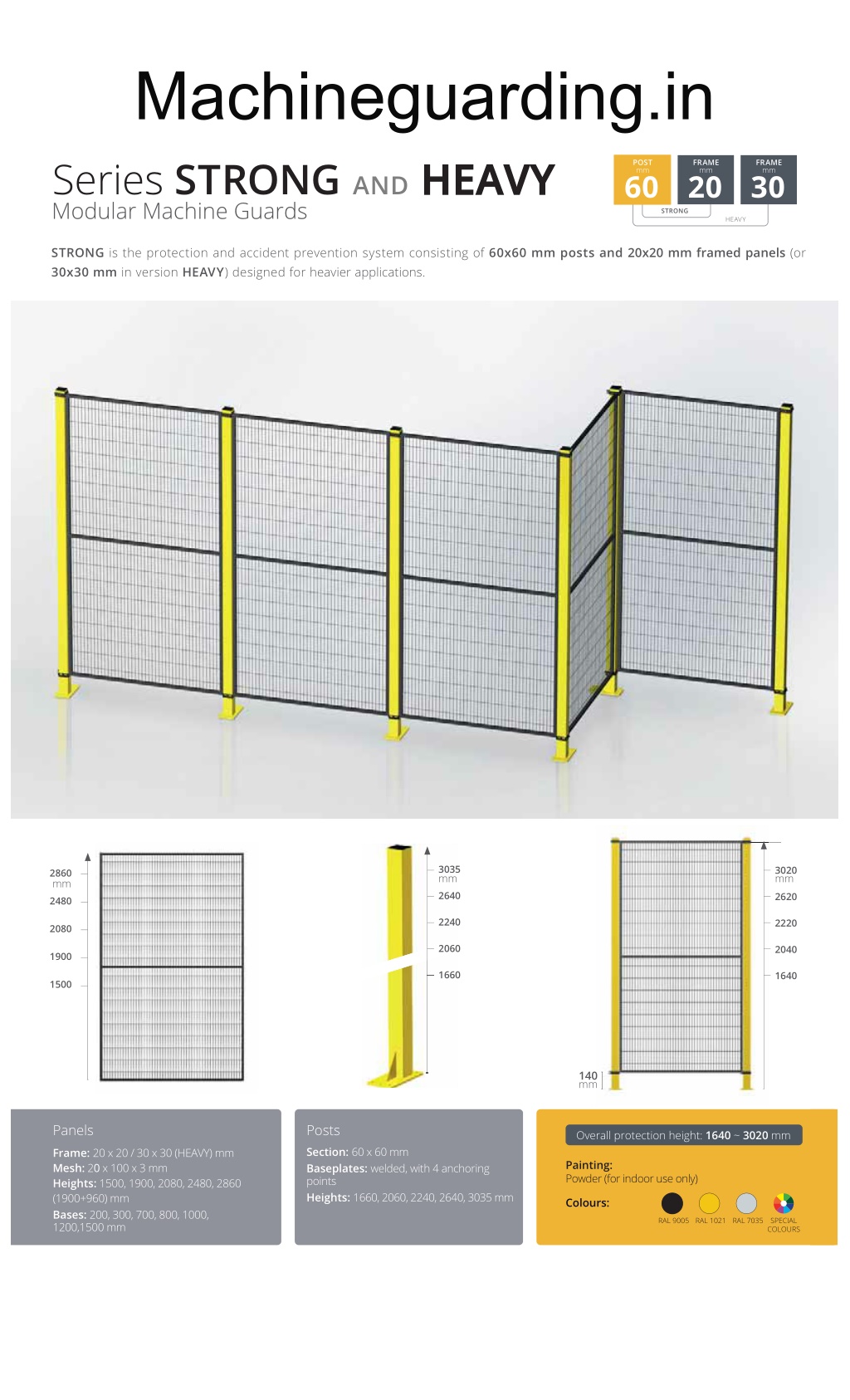

Machineguarding.in Series STRONGAND HEAVY Modular Machine Guards HEAVY POST mm 60 FRAME mm 20 FRAME mm 30 STRONG HEAVY STRONG is the protection and accident prevention system consisting of 60x60 mm posts and 20x20 mm framed panels (or 30x30 mm in version ?????)designed for heavier applications. 3035 3020 mm 2860 mm mm 2640 2620 2480 2240 2220 2080 2060 2040 1900 1660 1640 1500 140 mm Panels Posts Section: ?????????? Baseplates: welded, with 4 anchoring points ???????? 1660, 2060, 2240, 2640, 3035 mm Overall protection height: 1640 ~ 3020 mm Frame: ???????????????????????????? Mesh:??0????????????? ???????? 1500, 1900, 2080, 2480, 2860 (1900+960) mm Bases: 200, 300, 700, 800, 1000, 1200,1500 mm Painting: Powder (for indoor use only) Colours: RAL 9005 RAL 1021 RAL 7035 SPECIAL COLOURS

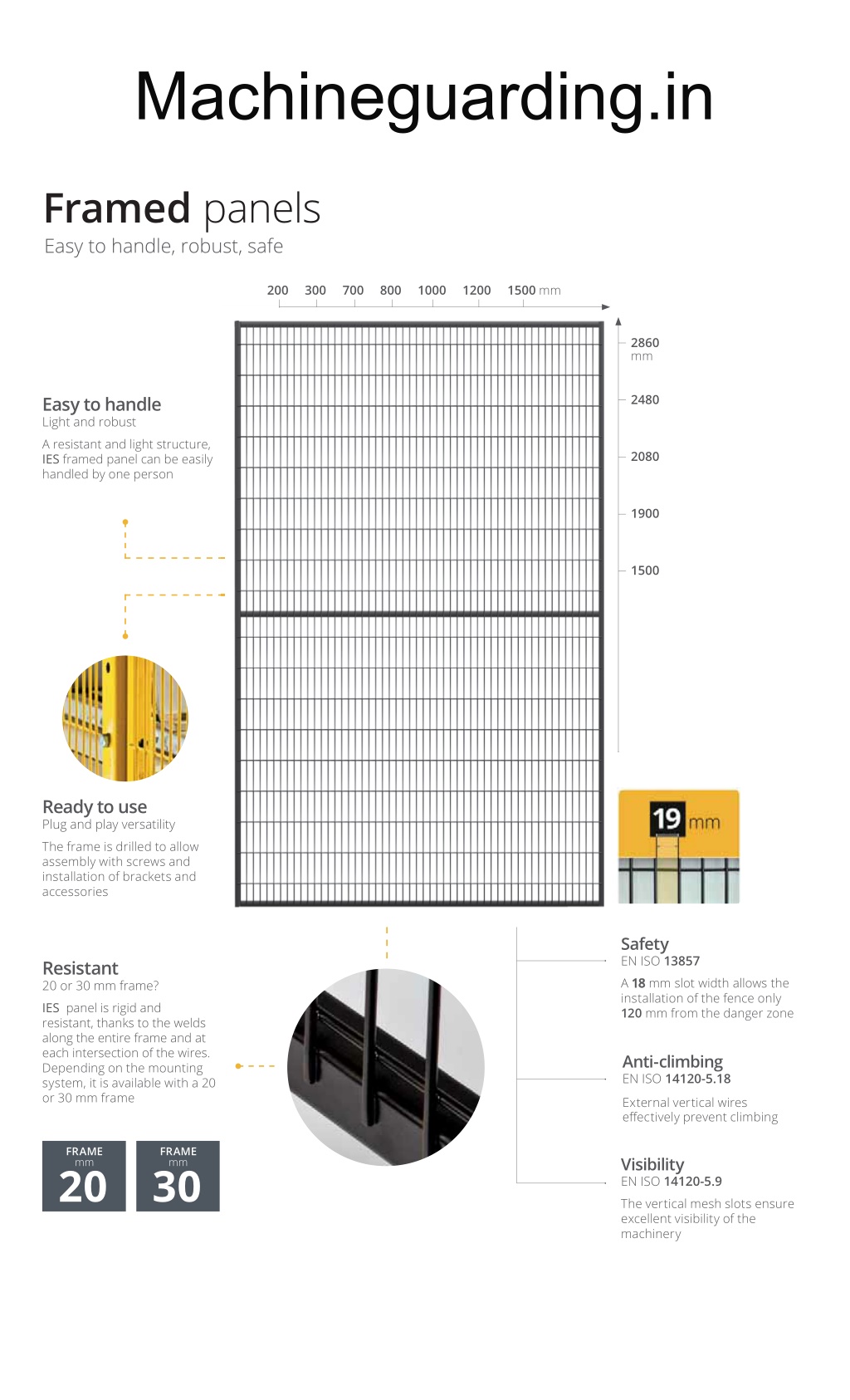

Machineguarding.in Framed panels Easy to handle, robust, safe 200 300 700 800 1000 1200 1500 mm 2860 mm 2480 Easy to handle Light and robust A resistant and light structure, IES framed panel can be easily handled by one person 2080 1900 1500 Ready to use Plug and play versatility The frame is drilled to allow assembly with screws and installation of brackets and accessories Safety EN ISO 13857 A 18 18 mm slot width allows the installation of the fence only 120 mm from the danger zone Resistant 20 or 30 mm frame? IES panel is rigid and resistant, thanks to the welds along the entire frame and at each intersection of the wires. Depending on the mounting system, it is available with a 20 or 30 mm frame Anti-climbing EN ISO 14120-5.18 ???????????????????????? ??????????????????????????? FRAME mm 20 FRAME mm 30 ?????????? EN ISO 14120-5.9 The vertical mesh slots ensure ???????????????????????????? machinery

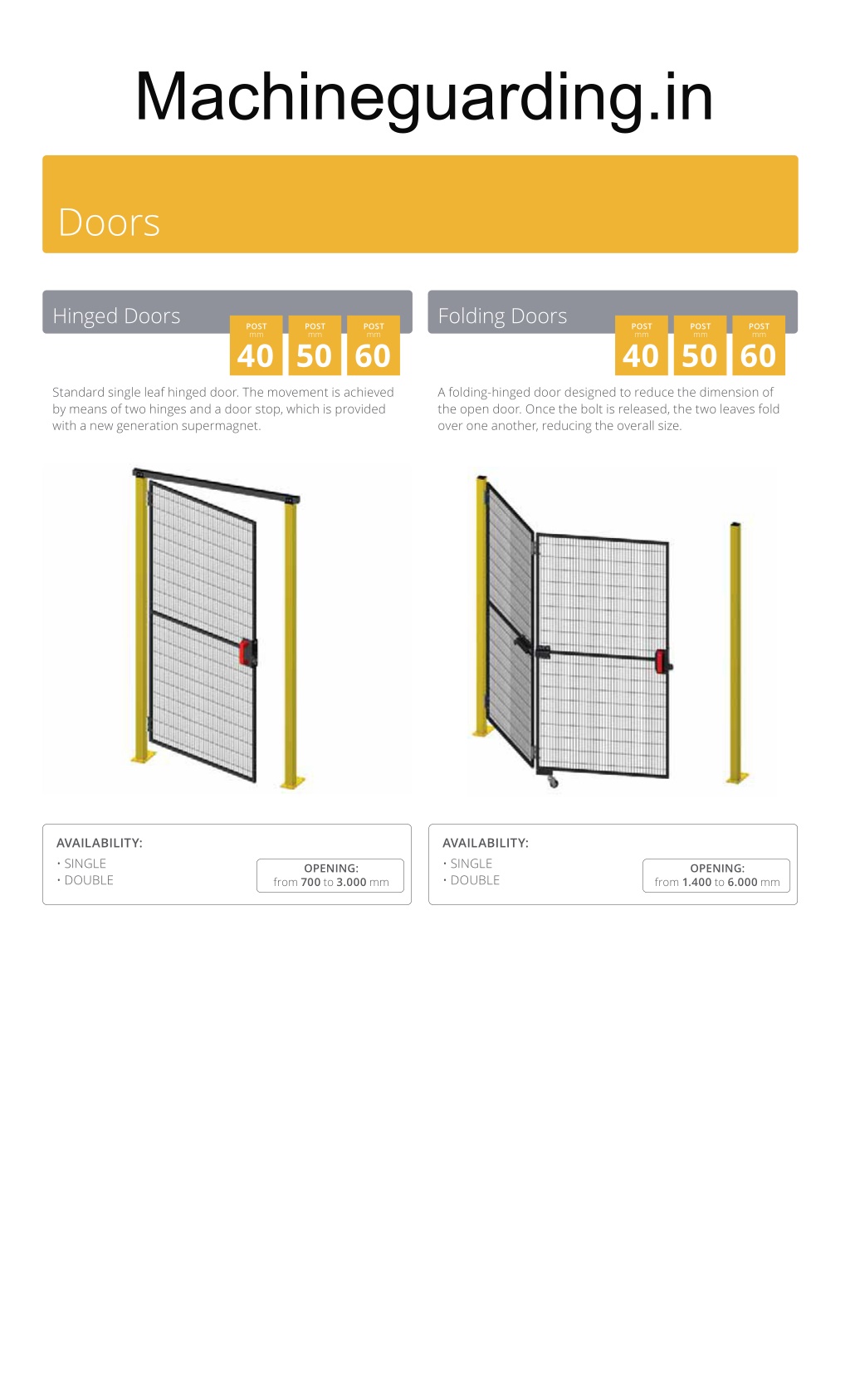

Machineguarding.in Doors Hinged Doors Folding Doors POST mm 40 POST mm 50 POST mm 60 POST mm 40 POST mm 50 POST mm 60 Standard single leaf hinged door. The movement is achieved by means of two hinges and a door stop, which is provided with a new generation supermagnet. A folding-hinged door designed to reduce the dimension of the open door. Once the bolt is released, the two leaves fold over one another, reducing the overall size. ????????????? • SINGLE • DOUBLE ????????????? • SINGLE • DOUBLE OPENING: OPENING: from 700 to 3.000 mm from 1.400 to 6.000 mm
