learning more powerful test statistics for click based retrieval evaluation

Learning More Powerful Test Statistics for Click-Based Retrieval Evaluation

SIGIR 2010

Yisong Yue

Cornell University

Joint work with:

Yue Gao, Olivier Chapelle, Ya Zhang, Thorsten Joachims

retrieval evaluation using click data
Retrieval Evaluation Using Click Data
  • Eliciting relative feedback
    • E.g., is A better than B?
  • Evaluation pipeline
    • Online experiment design (example to follow)
    • Collect clicks
    • Use standard statistical tests (e.g., t-test)
  • Contribution: Supervised learning algorithm for training a more efficient test statistic
retrieval evaluation using click data3
Retrieval Evaluation Using Click Data
  • Eliciting relative feedback
    • E.g., is A better than B?
  • Evaluation pipeline
    • Online experiment design (example to follow)
    • Collect clicks
    • Use standard test statistics (e.g., t-test)
  • Contribution: Supervised learning algorithm for training a more efficient test statistic
slide4

Team-Game Interleaving(Online Experiment for Search Applications)

(u=thorsten, q=“svm”)

A(u,q)  r1

B(u,q)  r2

1. Kernel Machines http://svm.first.gmd.de/

2. SVM-Light Support Vector Machine http://ais.gmd.de/~thorsten/svm light/

3. Support Vector Machine and Kernel ... References http://svm.research.bell-labs.com/SVMrefs.html

4. Lucent Technologies: SVM demo applet http://svm.research.bell-labs.com/SVT/SVMsvt.html

5. Royal Holloway Support Vector Machine http://svm.dcs.rhbnc.ac.uk

1. Kernel Machines http://svm.first.gmd.de/

2. Support Vector Machinehttp://jbolivar.freeservers.com/

3. An Introduction to Support Vector Machineshttp://www.support-vector.net/

4. Archives of SUPPORT-VECTOR-MACHINES ...http://www.jiscmail.ac.uk/lists/SUPPORT...

5. SVM-Light Support Vector Machine http://ais.gmd.de/~thorsten/svm light/

[Radlinski, Kurup, Joachims, CIKM 2008]

team game interleaving online experiment for search applications
Team-Game Interleaving(Online Experiment for Search Applications)

(u=thorsten, q=“svm”)

A(u,q)  r1

B(u,q)  r2

1. Kernel Machines http://svm.first.gmd.de/

2. SVM-Light Support Vector Machine http://ais.gmd.de/~thorsten/svm light/

3. Support Vector Machine and Kernel ... References http://svm.research.bell-labs.com/SVMrefs.html

4. Lucent Technologies: SVM demo applet http://svm.research.bell-labs.com/SVT/SVMsvt.html

5. Royal Holloway Support Vector Machine http://svm.dcs.rhbnc.ac.uk

1. Kernel Machines http://svm.first.gmd.de/

2. Support Vector Machinehttp://jbolivar.freeservers.com/

3. An Introduction to Support Vector Machineshttp://www.support-vector.net/

4. Archives of SUPPORT-VECTOR-MACHINES ...http://www.jiscmail.ac.uk/lists/SUPPORT...

5. SVM-Light Support Vector Machine http://ais.gmd.de/~thorsten/svm light/

Interleaving(r1,r2)

1. Kernel Machines T2http://svm.first.gmd.de/

2. Support Vector Machine T1http://jbolivar.freeservers.com/

3. SVM-Light Support Vector Machine T2http://ais.gmd.de/~thorsten/svm light/

4. An Introduction to Support Vector Machines T1http://www.support-vector.net/

5. Support Vector Machine and Kernel ... ReferencesT2 http://svm.research.bell-labs.com/SVMrefs.html

6. Archives of SUPPORT-VECTOR-MACHINES ... T1http://www.jiscmail.ac.uk/lists/SUPPORT...

7. Lucent Technologies: SVM demo applet T2http://svm.research.bell-labs.com/SVT/SVMsvt.html

  • Mix results of A and B
  • Relative feedback
  • More reliable

[Radlinski, Kurup, Joachims, CIKM 2008]

team game interleaving online experiment for search applications6
Team-Game Interleaving(Online Experiment for Search Applications)

(u=thorsten, q=“svm”)

A(u,q)  r1

B(u,q)  r2

1. Kernel Machines http://svm.first.gmd.de/

2. SVM-Light Support Vector Machine http://ais.gmd.de/~thorsten/svm light/

3. Support Vector Machine and Kernel ... References http://svm.research.bell-labs.com/SVMrefs.html

4. Lucent Technologies: SVM demo applet http://svm.research.bell-labs.com/SVT/SVMsvt.html

5. Royal Holloway Support Vector Machine http://svm.dcs.rhbnc.ac.uk

1. Kernel Machines http://svm.first.gmd.de/

2. Support Vector Machinehttp://jbolivar.freeservers.com/

3. An Introduction to Support Vector Machineshttp://www.support-vector.net/

4. Archives of SUPPORT-VECTOR-MACHINES ...http://www.jiscmail.ac.uk/lists/SUPPORT...

5. SVM-Light Support Vector Machine http://ais.gmd.de/~thorsten/svm light/

Interleaving(r1,r2)

1. Kernel Machines T2http://svm.first.gmd.de/

2. Support Vector Machine T1http://jbolivar.freeservers.com/

3. SVM-Light Support Vector Machine T2http://ais.gmd.de/~thorsten/svm light/

4. An Introduction to Support Vector Machines T1http://www.support-vector.net/

5. Support Vector Machine and Kernel ... ReferencesT2 http://svm.research.bell-labs.com/SVMrefs.html

6. Archives of SUPPORT-VECTOR-MACHINES ... T1http://www.jiscmail.ac.uk/lists/SUPPORT...

7. Lucent Technologies: SVM demo applet T2http://svm.research.bell-labs.com/SVT/SVMsvt.html

  • Mix results of A and B
  • Relative feedback
  • More reliable

Interpretation: (r1> r2) ↔ clicks(r1) > clicks(r2)

[Radlinski, Kurup, Joachims, CIKM 2008]

determining statistical significance
Determining Statistical Significance
  • Each q, interleave A(q) and B(q), log clicks
  • t-Test
    • For each q, score: % clicks on A(q)
      • E.g., 3/4 = 0.75
    • Sample mean score (e.g., 0.6)
determining statistical significance8
Determining Statistical Significance
  • Each q, interleave A(q) and B(q), log clicks
  • t-Test
    • For each q, score: % clicks on A(q)
      • E.g., 3/4 = 0.75
    • Sample mean score (e.g., 0.6)
    • Compute confidence (p value)
      • E.g., want p = 0.05 (i.e., 95% confidence)
    • More data, more confident
determining statistical significance9
Determining Statistical Significance
  • Each q, interleave A(q) and B(q), log clicks
  • Other Statistical Tests:
    • z-Test
      • (equal to t-Test for large samples)
    • Rank Test
    • Binomial Test
    • Etc…
    • All similar
limitation
Limitation
  • Example: query session with 2 clicks
    • One click at rank 1 (from A)
    • Later click at rank 4 (from B)
    • Normally would count this query session as a tie
limitation11
Limitation
  • Example: query session with 2 clicks
    • One click at rank 1 (from A)
    • Later click at rank 4 (from B)
    • Normally would count this query session as a tie
    • But second click is probably more informative…
    • …so B should get more credit for this query
linear model
Linear Model
  • Feature vector φ(q,c):
  • Weight of click is wTφ(q,c)
example
Example
  • wTφ(q,c) differentiates last clicks and other clicks
example14
Example
  • wTφ(q,c) differentiates last clicks and other clicks
  • Interleave A vs B
    • 3 clicks per session
    • Last click 60% on result from A
    • Other 2 clicks random
example15
Example
  • wTφ(q,c) differentiates last clicks and other clicks
  • Interleave A vs B
    • 3 clicks per session
    • Last click 60% on result from A
    • Other 2 clicks random
  • Conventional w = (1,1) – has significant variance
  • Only count last click w = (1,0) – minimizes variance
scoring query sessions

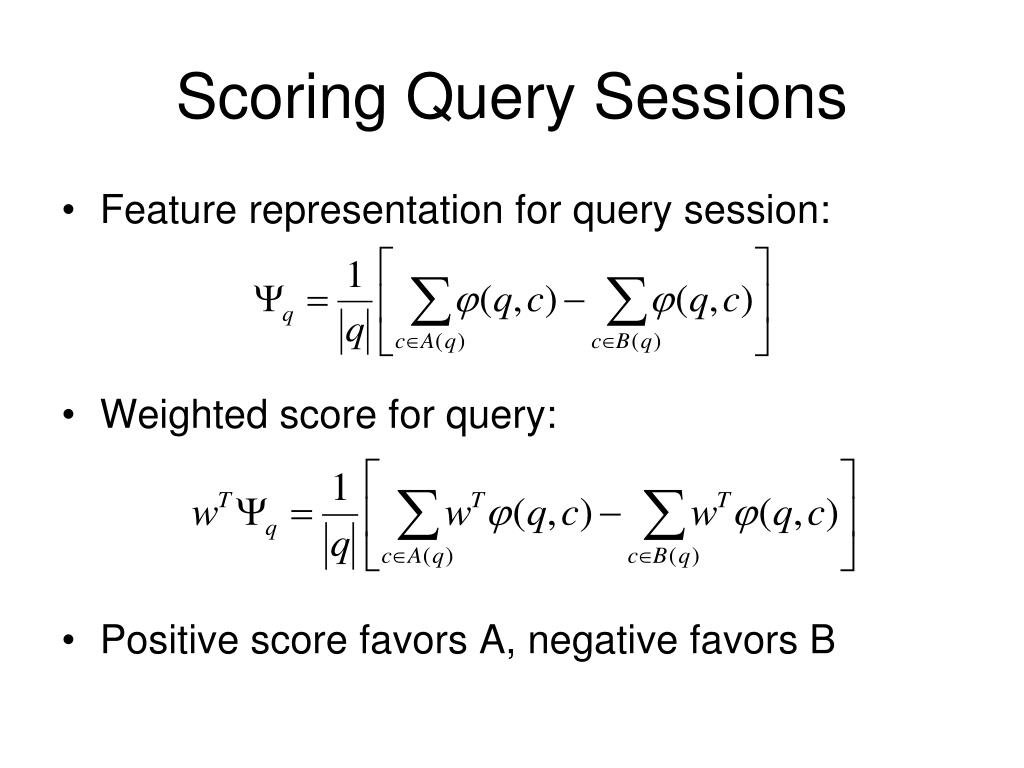

Scoring Query Sessions
  • Feature representation for query session:
scoring query sessions17
Scoring Query Sessions
  • Feature representation for query session:
  • Weighted score for query:
  • Positive score favors A, negative favors B
upgraded test statistic
Upgraded Test Statistic
  • t-Test:
    • Compute mean score wTψq over all queries
      • E.g., 0.2
    • Null hypothesis: mean = 0
    • Can reach statistical significance sooner
  • How to learn w?
supervised learning
Supervised Learning
  • Will optimize for z-Test: Inverse z-Test
    • Approximately equal t-Test for large samples
    • z-Score = mean / standard deviation

(Assumes A > B)

inverting other statistical tests
Inverting Other Statistical Tests
  • Most statistical tests uses a test statistic
    • E.g., z-score
    • Rank test: % concordant pairs in confidence ranking (ROC Area)
    • We optimized using logistic regression
recap
Recap
  • Collect training data
    • Pairs of retrieval functions A & B, (A > B)
    • Interleave them, collect usage logs
  • Build features
    • For each query session q: Ψq
    • Query session score: wTψq (positive favors A)
  • Train w to optimize test statistic
    • z-Test: maximize ( mean(w) / std(w) )
experiment setup
Experiment Setup
  • Data collection
    • Pool of retrieval functions
    • Hash users into partitions
    • Run interleaving of different pairs in parallel
  • Collected on arXiv.org
    • 2 pools of retrieval functions
    • Training Pool: (6 pairs) know A > B
    • New Pool: (12 pairs)
experimental results
Experimental Results
  • Inverse z-Test works well
    • Beats baseline on most of new interleaving pairs
    • Direction of tests all in agreement
    • In 6/12 pairs, for p=0.1, reduces sample size by 10%
    • In 4/12 pairs, achieves p=0.05, but not baseline
      • 400 to 650 queries per interleaving experiment
  • Weights hard to interpret (features correlated)
  • Largest weight: “1 if single click & rank > 1”
conclusion
Conclusion
  • Principled, offers practical benefits
  • Should perform better with more training data
  • Can be applied to other application domains
  • Limitations:
    • Treats training data as one sample
    • Might not work well when test data is very different from training data
    • Susceptible to adversarial behavior
training logistic regression
Training Logistic Regression
  • Need to mirror training data
  • E.g.,
    • ψq with label 1
    • -ψq with label 0
  • Otherwise, will learn a trivial model that always predicts 1
