Vacuum-Aspiration-System

A vacuum aspiration system is a laboratory device used for the removal of liquid from containers, such as cell culture dishes, microplates, or tubes. It operates by creating a vacuum to draw liquid from the source into a collection vessel. Vacuum aspiration systems are commonly used in various laboratory applications, including cell culture work, molecular biology, and analytical chemistry. Here are some key aspects of a vacuum aspiration system:

Lizanne
Download Presentation

Vacuum-Aspiration-System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

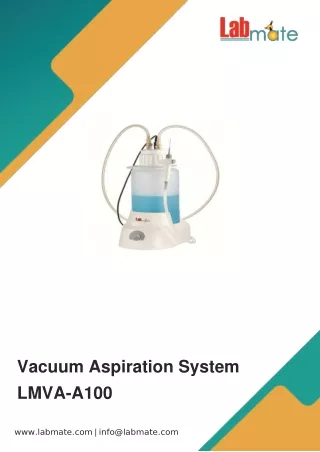

  1. Vacuum Aspiration System LMVA-A100 www.labmate.com info@labmate.com |

  2. Specifications : Vacuum Range 0 – 600 mbar Aspirating Speed 1 – 15 mL / s Hydrophobic Filter 0.45 μm , ɸ 6 mm Autoclavable Component Tube, Waste bottle and operation handle Bottle Volume 4 L Voltage 100 – 240 VAC, 50 / 60 Hz Dimension 180 x 240 x 450 mm Weight 3 Kg Features : - Adjustable Vacuum power from 1 mL / s to 15 mL / s aspiration speed - Fully autoclavable waste collection bottle, tubing and handle - Wide range of adapters to fit tube, microplate and disk plate for various tasks - Sensitive level sensor to prevent liquid overflow during operation - Interchangeable hand operator -tip adapters facilitates from single channel to 8-channel based on the applications in tube, micro plate, disk plate etc. - Hydrophobic filter protects pump from overflow Standard Accessories :

  3. Model No Specifications Image LMVA-A100-B1 4 L Vacuum Bottles LMVA-A100-N1 Single Needle Φ 1.5 mm, 60 mm LMVA-A100-N2 Long type Needle, Φ 1.5 mm, 120 mm LMVA-A100-N3 8 channel needle, Φ 1.5 mm LMVA-A100-A1 Tip detrusion adapter (200 μL Tip) LMVA-A100-A2 8-channel tip detrusion adapter (200 μL Tip) LMVA-A100-F1 Hydrophobic filter 0.45 μm (1 pc / pk)

  4. Labmate Scientific | Website: Email: info@labmate.com www.labmate.com
