Crystal structure of Diamond

Diamond structure is like a face-centered cubic(FCC) lattice. Each carbon atom joins four other carbon atoms in regular tetrahedrons. A tetrahedron has four faces and six edges. It is like an Egyptian pyramid in which the base is a triangle instead of a square.

diamond structure
Diamond structure

Imagine a face-centered cubic lattice!

Diamond is composed of pure carbon.

diamond structure3
Diamond structure

view the cube from a green arrow along the diagonal

a diagonal passing through the center of a cube

diamond structure4
1

3

2

1

2

3

Diamond structure

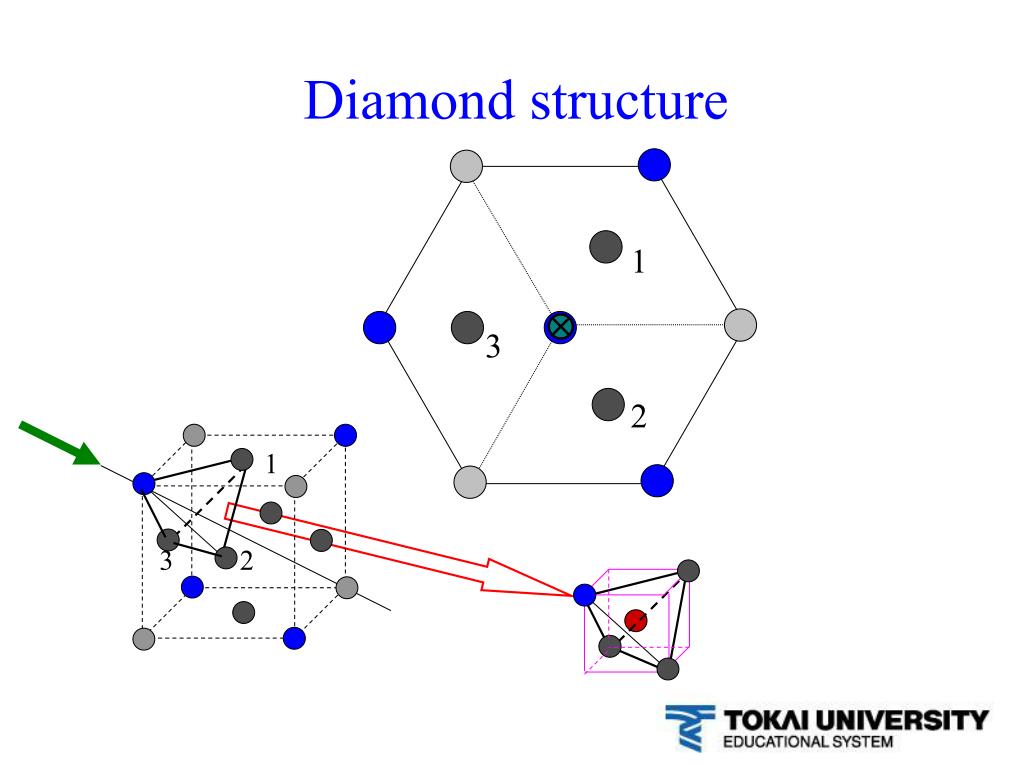

This is the cubic lattice viewed from a green arrow.

In a diamond structure,

a carbon exists at the center of a regular tetrahedron consisted of a and three .

diamond structure10
1

3

2

Diamond structure

This structure shows one unit cell of the diamond structure.

The diamond structure can be viewed as a face-centered cubic array with half of the tetrahedral holes filled.
