software architecture an overview

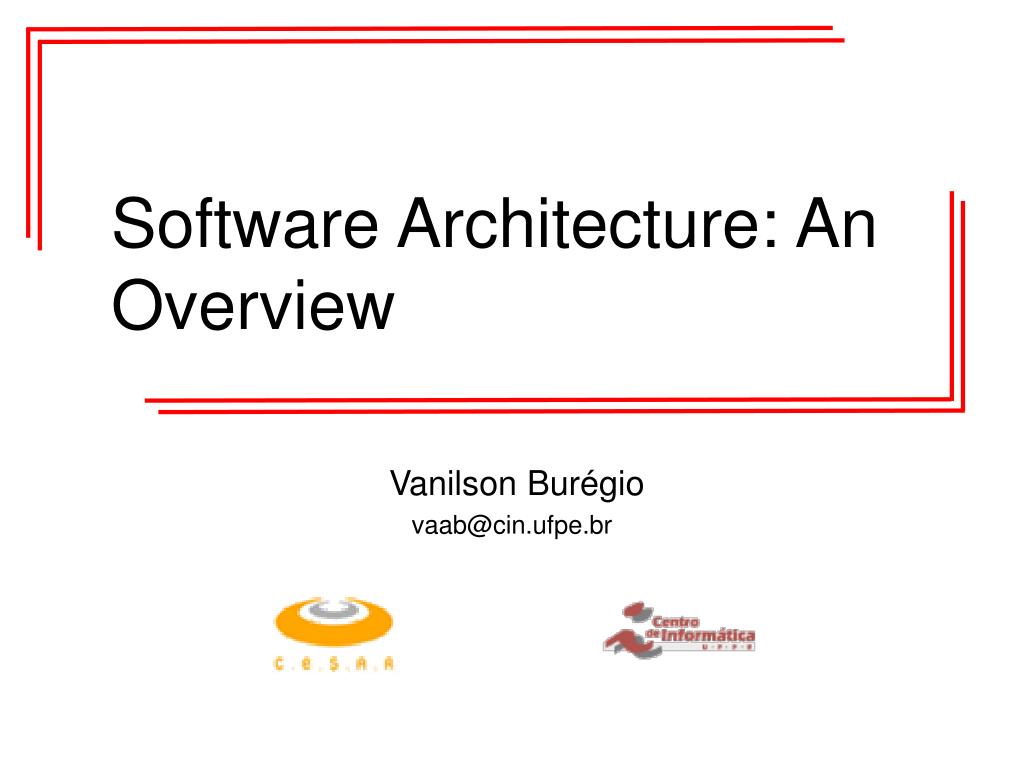

Software Architecture: An Overview

Vanilson Burégio

vaab@cin.ufpe.br

agenda
Agenda
  • History
  • Software Architecture
    • Definition
    • Motivation
    • Roles
  • Architectural Styles
  • Architectural Views
  • Architectural Description Language (ADL)
  • Architecture and Reuse
    • DSSA based reuse
    • PLA

Reuse in Software Engineering Group

history 19 50 s
History{1950s}
  • Machine language
    • programmers placed instructions and data explicitly in the computer`s memory
  • Symbolic Assemblers
    • Symbolic names
    • Memory layout and update references could be automated
  • High-level Programming Languages
    • Procedures invocations, loops, modules, …

Reuse in Software Engineering Group

history 196 0 s
History{1960s}
  • Problems of developing large-scale software Systems
    • Software structure
    • Specifications
    • Language issues
  • Abstract Data Types

Reuse in Software Engineering Group

history 197 0 s
History{1970s}
  • Software Design
    • Design is an activity separate from implementation
  • Research results
    • Notation
    • Techniques
    • CASE tools

Reuse in Software Engineering Group

history 198 0 s
History{1980s}
  • The focus of software engineering research:
    • Integrating designs and the design process
  • Result:
    • many of the notations and techniques developed for software design have been absorbed by implementation languages

Reuse in Software Engineering Group

history 199 0 s

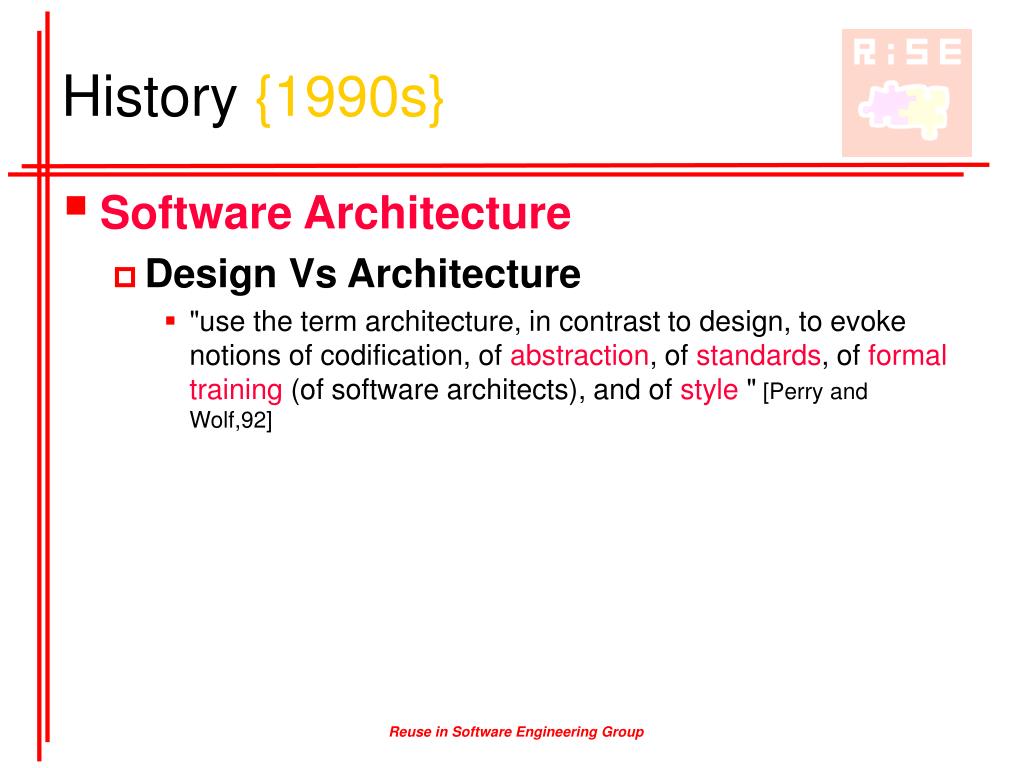

History{1990s}
  • Software Architecture
    • Design Vs Architecture
      • "use the term architecture, in contrast to design, to evoke notions of codification, of abstraction, of standards, of formal training (of software architects), and of style " [Perry and Wolf,92]

Reuse in Software Engineering Group

history summary
History{Summary}
  • 1950s - High-level Programming Languages
  • 1960s - large-scale software Systems
  • 1970s - Software Design
  • 1980s - Integrating designs and the design process
  • 1990s - Software Architecture

Abstraction level

Reuse in Software Engineering Group

software architecture definition
Software Architecture{Definition}
  • There are several different definitions of software architecture in the literature, all of them agree that it:
  • The most commonly used definitions:
    • [Perry & Wolf, 1992]
    • [Garlan & Shaw, 1994]

Describes the organization of the overall system

concentrate on thetopological view

Reuse in Software Engineering Group

software architecture definition10

"Processing elements“: Swimmers

"Data element": ball

It has a similar "architecture" but differ in the "glue"

"Connecting element" ("glue"): water

Software Architecture{Definition}
  • [Perry & Wolf, 1992]
    • Set of architectural elements that have a particular form, and an underlying rationale
      • Elements - processing, data and connecting elements
      • Form - consists of weighted properties of architectural elements
      • Rationale - captures the motivation for the choice of architectural style, the choice of elements, and the form
    • It is the connecting elements ("glue") that especially distinguish one architecture from another

Reuse in Software Engineering Group

software architecture definition11

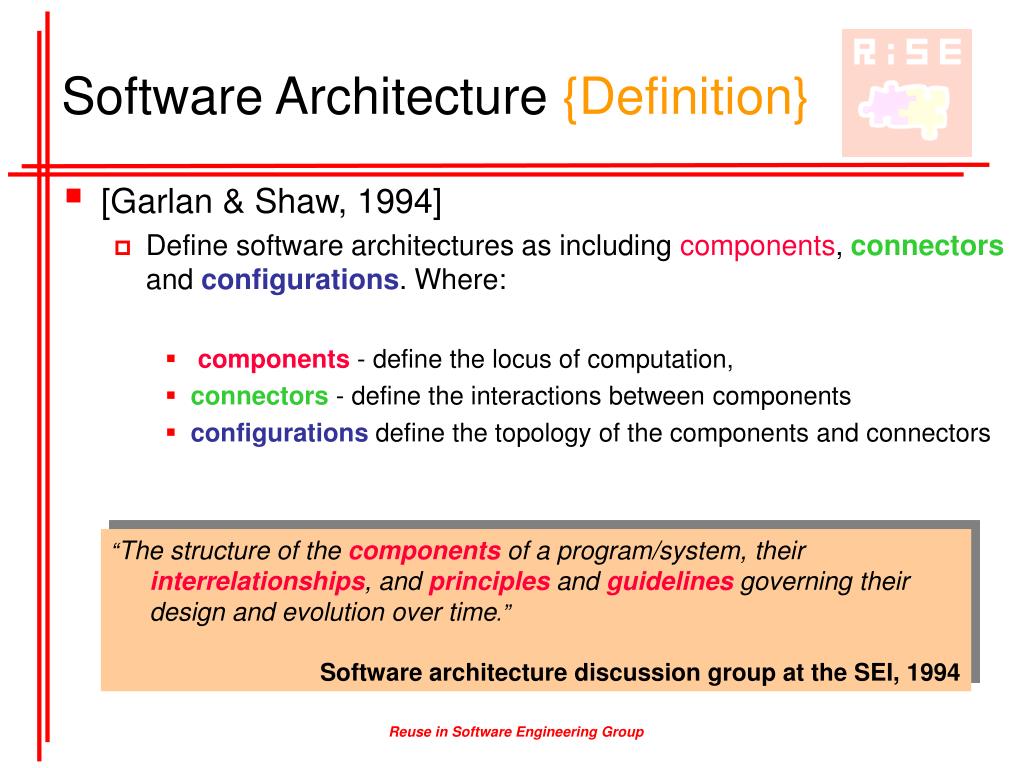

Software Architecture{Definition}
  • [Garlan & Shaw, 1994]
    • Define software architectures as including components, connectorsand configurations. Where:
      • components - define the locus of computation,
      • connectors - define the interactions between components
      • configurations define the topology of the components and connectors

“The structure of the components of a program/system, their interrelationships, and principles and guidelines governing their design and evolution over time.”

Software architecture discussion group at the SEI, 1994

Reuse in Software Engineering Group

software architecture motivation

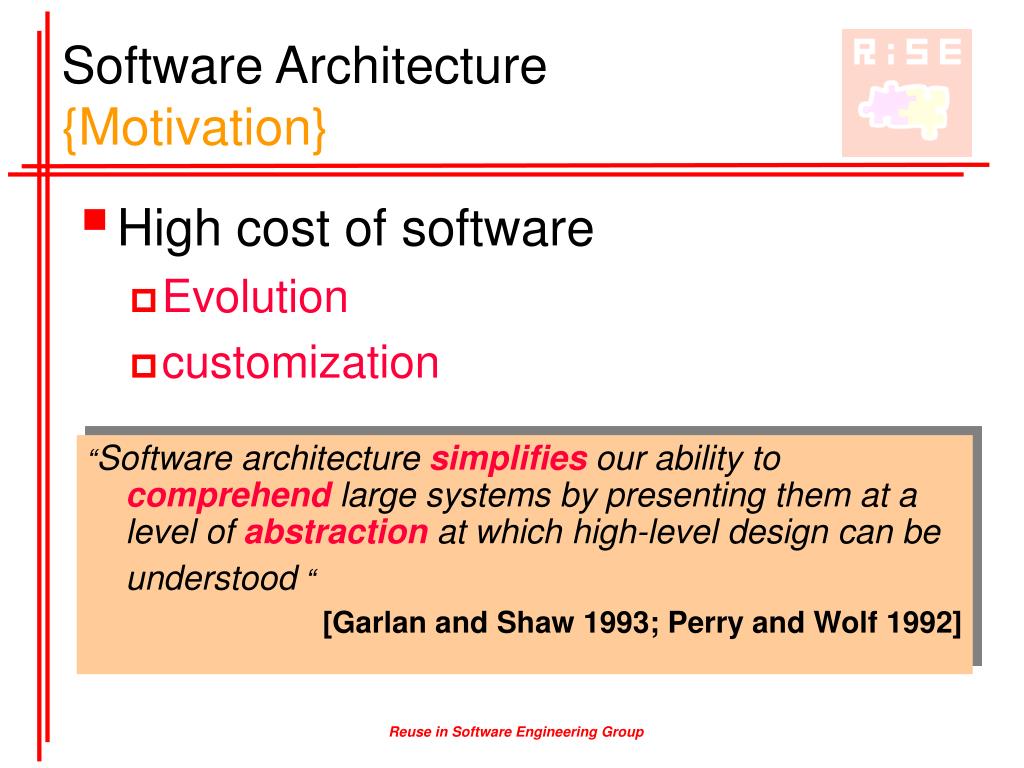

Software Architecture{Motivation}
  • High cost of software
    • Evolution
    • customization

“Software architecture simplifies our ability to comprehend large systems by presenting them at a level of abstraction at which high-level design can be understood “

[Garlan and Shaw 1993; Perry and Wolf 1992]

Reuse in Software Engineering Group

software architecture roles
Software Architecture{Roles}
  • [Eden & Kazman, 2003]
    • Communication among stakeholders
    • Early design decisions
    • Transferable abstraction of a system
  • Main considerations [Szyperski, 2002]
    • Functionality
    • Performance
    • Reliability
    • Security

Commonly, these aspects are ignored, emphasizing functionality. The consequences can be fatal!

Reuse in Software Engineering Group

software architecture context
Software Architecture{Context}

Requirements

Architecture

Design

Implementation

Reuse in Software Engineering Group

architectural styles16

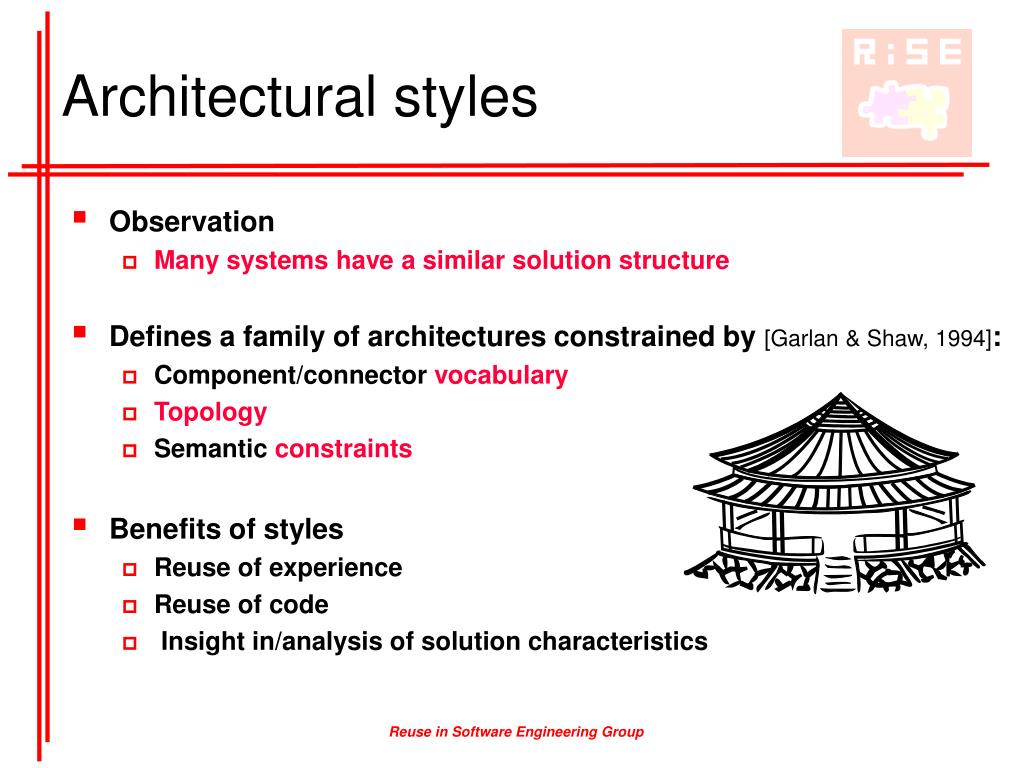

Architectural styles
  • Observation
    • Many systems have a similar solution structure
  • Defines a family of architectures constrained by[Garlan & Shaw, 1994]:
    • Component/connector vocabulary
    • Topology
    • Semantic constraints
  • Benefits of styles
    • Reuse of experience
    • Reuse of code
    • Insight in/analysis of solution characteristics

Reuse in Software Engineering Group

most common architectural styles garlan shaw
Most Common Architectural Styles [Garlan & Shaw]
  • Pipes and Filters
  • Data Abstraction and Object-Oriented Organization
  • Event-based, Implicit Invocation
  • Layered Systems
  • Repositories
  • Table Driven Interpreters
  • Heterogeneous Architectures

Reuse in Software Engineering Group

most common architectural styles garlan shaw18
Most Common Architectural Styles [Garlan & Shaw]
  • Pipes and Filters

Reuse in Software Engineering Group

most common architectural styles garlan shaw19
Most Common Architectural Styles [Garlan & Shaw]
  • Data Abstraction and Object-Oriented Organization

Reuse in Software Engineering Group

most common architectural styles garlan shaw20
Most Common Architectural Styles [Garlan & Shaw]
  • Event-based, Implicit Invocation

Reuse in Software Engineering Group

most common architectural styles garlan shaw21
Most Common Architectural Styles [Garlan & Shaw]
  • Layered Systems

Reuse in Software Engineering Group

most common architectural styles garlan shaw22
Most Common Architectural Styles [Garlan & Shaw]
  • Repositories

Reuse in Software Engineering Group

most common architectural styles garlan shaw23

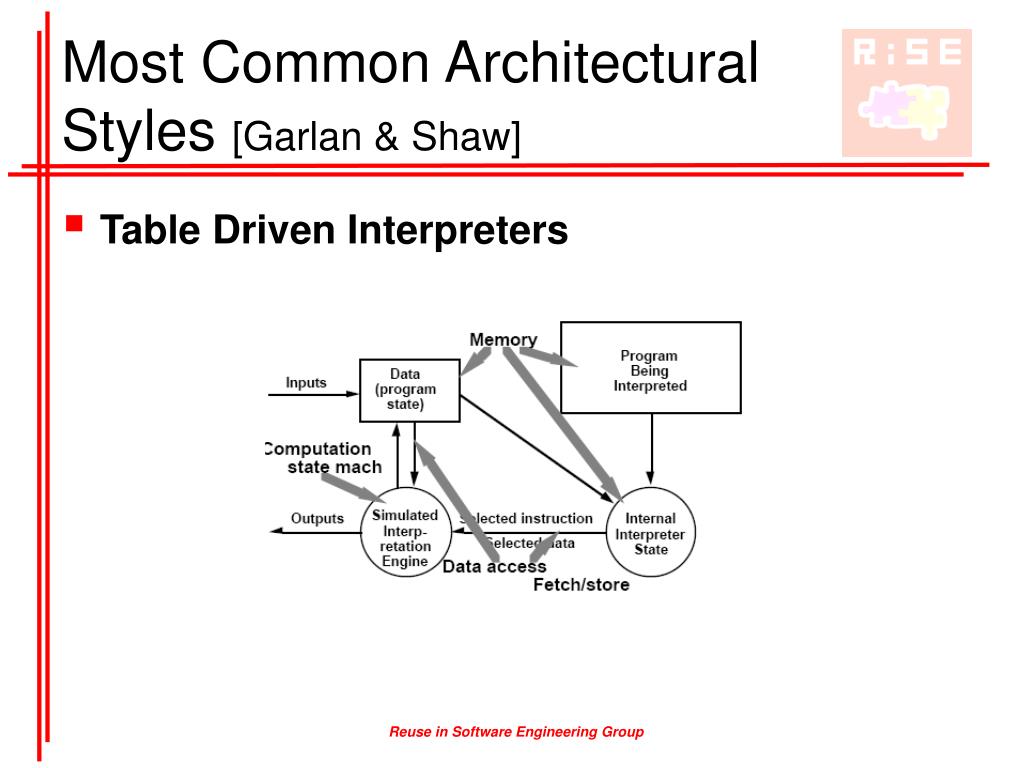

Most Common Architectural Styles [Garlan & Shaw]
  • Table Driven Interpreters

Reuse in Software Engineering Group

most common architectural styles garlan shaw24

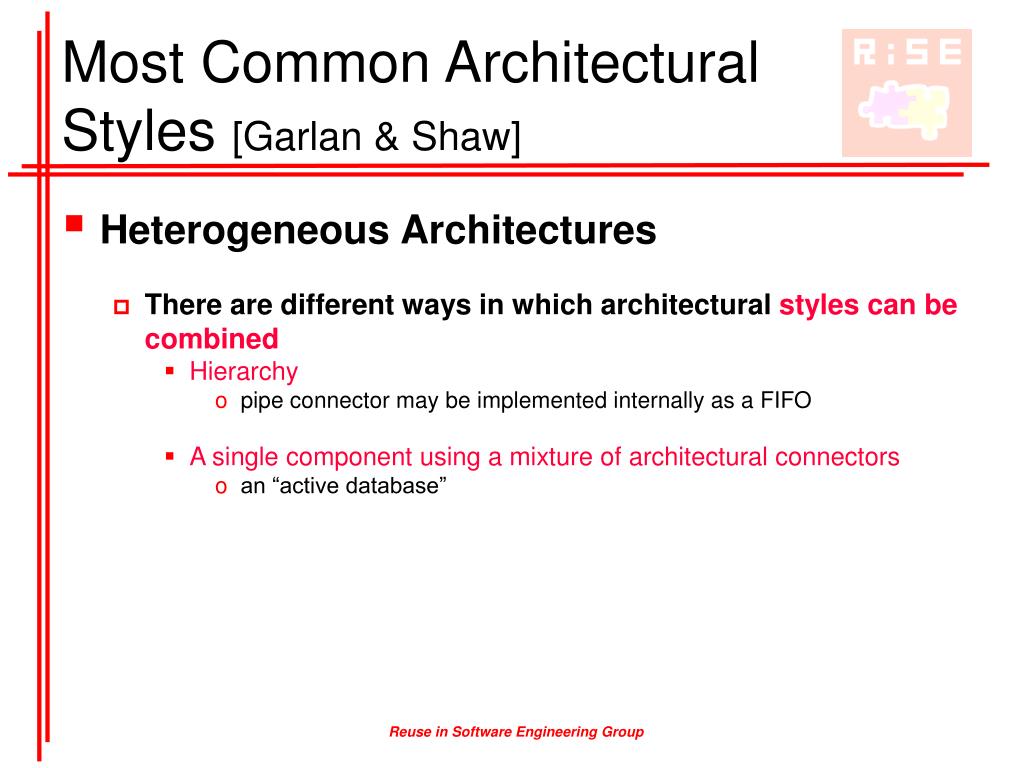

Most Common Architectural Styles [Garlan & Shaw]
  • Heterogeneous Architectures
    • There are different ways in which architectural styles can be combined
      • Hierarchy
        • pipe connector may be implemented internally as a FIFO
      • A single component using a mixture of architectural connectors
        • an “active database”

Reuse in Software Engineering Group

architectural styles25
Architectural styles
  • Formal approach [Abowd, 1993]

mapping

Abstract Sintaxe

Semantic Domain

Z especification

Reuse in Software Engineering Group

architectural views27
Architectural views
  • [Gacek, 1994]
    • “To accommodate the different expectations of the various stakeholders,a software architecture must incorporate different, multiple views“

Reuse in Software Engineering Group

architectural views28

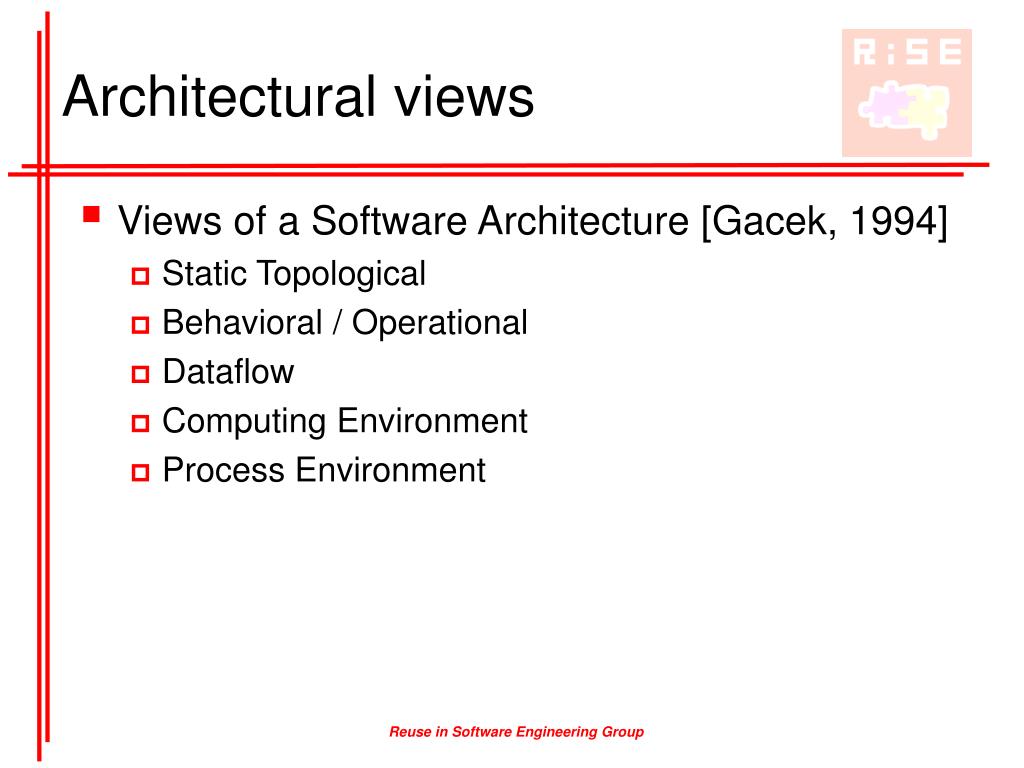

Architectural views
  • Views of a Software Architecture [Gacek, 1994]
    • Static Topological
    • Behavioral / Operational
    • Dataflow
    • Computing Environment
    • Process Environment

Reuse in Software Engineering Group

architectural views29
Architectural views
  • [Kruchten, 1995]
    • The 4+1 View Model
      • Logical view
      • Process view
      • Physical view
      • Development view
      • Scenarios
    • Scenario-driven approach capture the system`s critical functionality
    • Style Vs View…

End users, customers, data specialists

System engineers

Project managers,

software-configuration staff members

Reuse in Software Engineering Group

adl architecture description language
ADL - Architecture Description Language
  • ADL’s differ in their scope of use [Abd-Allah, 1994]

Architecture Description Languages (ADL’s) lay the formal basis for architecting

Reuse in Software Engineering Group

adl architecture description language31
ADL - Architecture Description Language
  • Goals
    • Rapid Prototyping
    • Reengineering
    • Better understanding of overall system
  • Main problem
    • A lot of ADLs are loosely coupled to implementation languages, causing problems in:
      • Analysis
      • Implementation
      • Understanding
      • evolution

Reuse in Software Engineering Group

adl architecture description language32
ADL - Architecture Description Language
  • Early ADLs were restricted to static connectivity
    • Rapide
    • Darwin
    • Wright
    • DICAM
  • Later ADLs added support for dynamic connectivity and dynamic reconfiguration
    • ArchJava [Aldrich, 2002]

Reuse in Software Engineering Group

adl archjava
ADL – {ArchJava}
  • Key concept: Communication Integrity [Luckham &Vera, 1995]
    • A system has Communication Integrity if implementation components only communicate directly with the components they are connected to in the architecture
  • Example

Reuse in Software Engineering Group

adl design model
ADL – {Design Model}
  • Integrating ADL with a Standard Design Method [Robbins, 1998]

C2 architecture expressed in UML

Wright`s CSP constructor

Reuse in Software Engineering Group

architecture and reuse

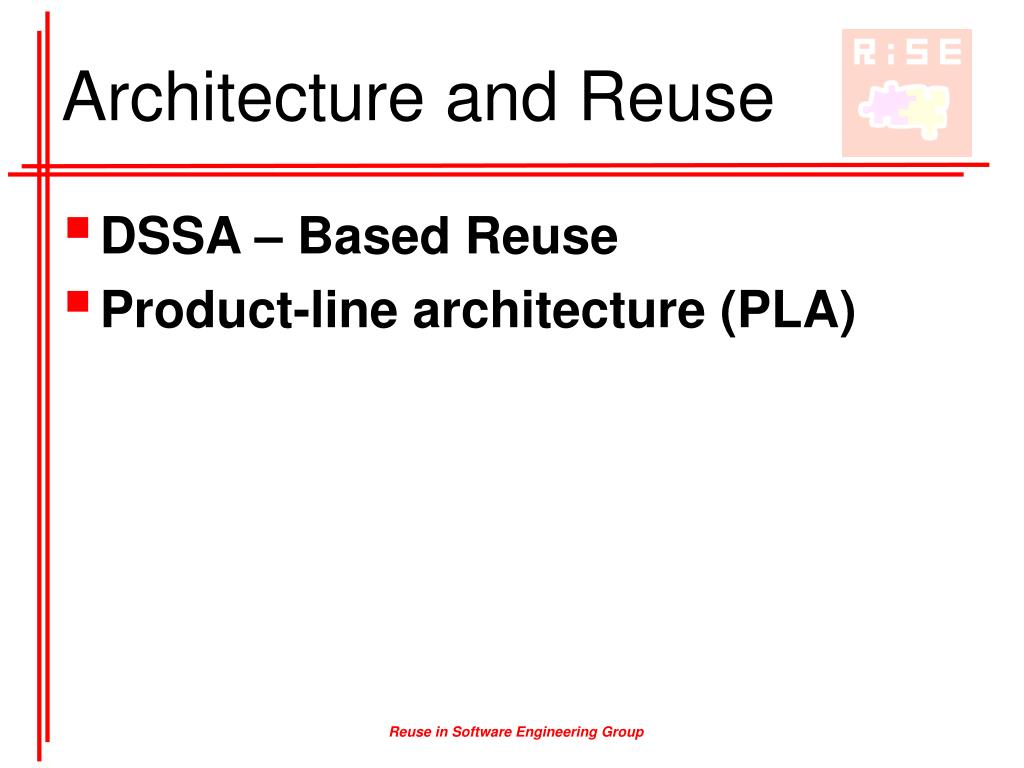

Architecture and Reuse
  • DSSA – Based Reuse
  • Product-line architecture (PLA)

Reuse in Software Engineering Group

domain specific software architecture based reuse
Domain Specific Software Architecture Based Reuse
  • Artifact involved:
    • Reference architecture, design, requirements and code
  • General characteristics:
    • Requires thorough domain understanding
    • Domain specific repository
    • Domain model, reference architecture and repository evolution
  • Example
    • SGS Reference Architecture [Gacek, 1995]

Reuse in Software Engineering Group

dssa based reuse

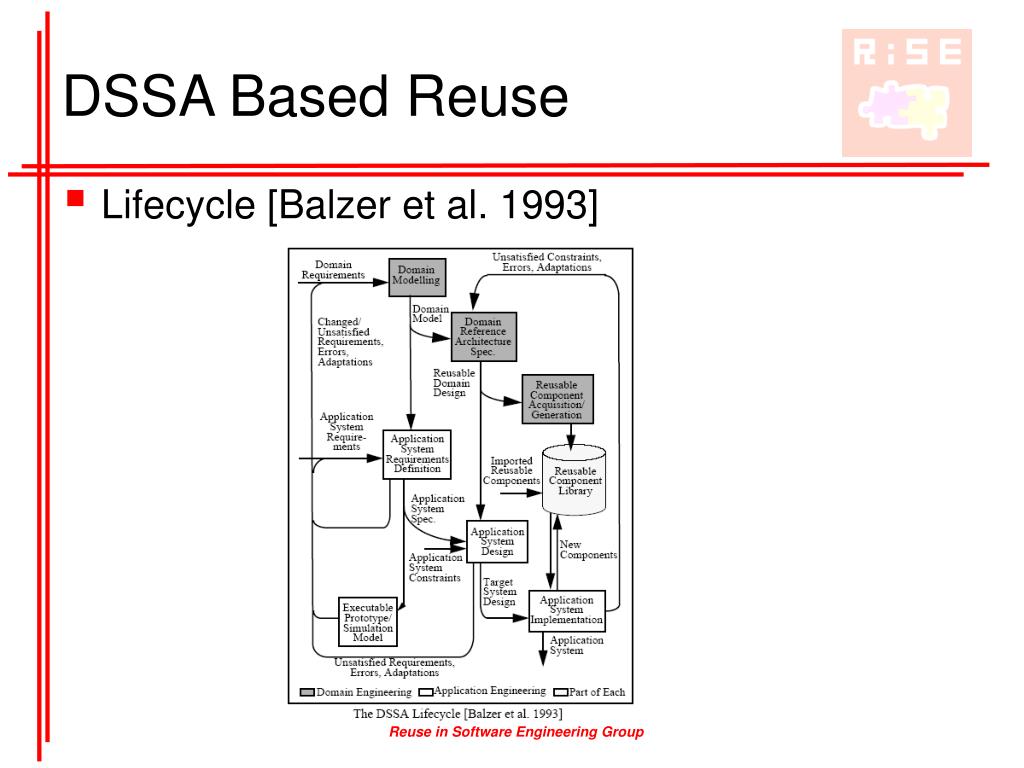

DSSA Based Reuse
  • Lifecycle [Balzer et al. 1993]

Reuse in Software Engineering Group

product line architecture context
Product-line architecture {Context}
  • Product-line architecture (PLA) have received special attention in software industry
    • Increase reuse
    • minimize product-specific development
    • Competitive advantage
  • Recent Area

Reuse in Software Engineering Group

pla cases

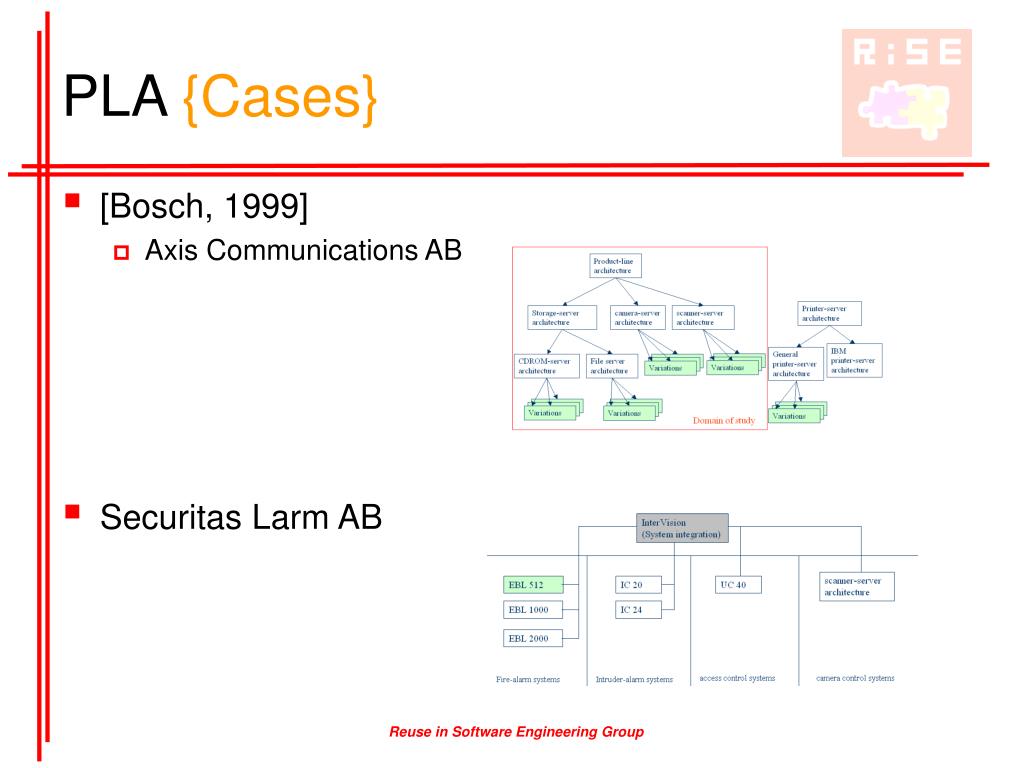

PLA {Cases}
  • [Bosch, 1999]
    • Axis Communications AB
  • Securitas Larm AB

Reuse in Software Engineering Group

pla problems
PLA {Problems}
  • Background knowledge
  • Information Distribution
  • Multiple versions of assets
  • Dependencies between assets
  • Assets in new contexts
  • Documentation
  • Tool support
  • Effort estimation

Reuse in Software Engineering Group

pla recently
PLA {recently}
  • PLA Development toolkit [Lesaint & Papamargaritis, 2004]
    • Support two operations:
      • Application configuration
      • Application generation
    • Process
      • Specifying the architecture
      • Configuring the application
      • Generating applications

Reuse in Software Engineering Group

references
References
  • [Abd-Allah, 1994] Ahmed A. Abd-Allah. Architecture Description Languages. 1994.
  • [Abowd, 1993] Gregory Abowd, Robert Allen, David Garlan. Using Style to Understand Descriptions of Software Architecture. 1993.
  • [Aldrich, 2002] Jonathan Aldrich, Craig Chambers, David Notkin. ArchJava: Connecting Software Architecture to Implementation. 2002.
  • [Balzer et. al. 1993] R. Balzer, C. Braun, F. Belz, L. Coglianese, L. Erman, K. Harbison, R. Might, R. Platek, and S. Vestal. DSSA Process Summary. Copies available from Chris Braun (braun@europa.eng.gtefsd.com), 1993.
  • [Bosch, 1999] Jan Bosch Product-Line Architectures in Industry: A Case Study. 1999.
  • [Clements, 1996] Paul C. Clements. A Survey of Architecture Description Languages. 1996.
  • [Eden & Kazman, 2003] Amnon H. Eden, Rick Kazman. Architecture, Design, Implementation. 2003.
  • [Gacek et. al. 1995] Cristina Gacek, Ahmed Abd-Allah, Bradford Clark, Barry Boehm. On the Definition of Software System Architecture. 1995.
  • [Gacek, 1994] Cristina Gacek. Domain Specific Software Architecture Based Reuse. 1994.

Reuse in Software Engineering Group

references43
References
  • [Gacek, 1995] Cristina Gacek. Exploiting Domain Architectures in Software Reuse. 1995.
  • [Garlan & Shaw, 1994] David Garlan, Mary Shaw. An Introduction to Software Architecture. 1994.
  • [Garlan et. al.. 1995] David Garlan, Robert Allen, Jihn Ackerbloom. Architectural Mismatch: Why Reuse is So Hard. 1995.
  • [Garlan, 1995] David Garlan. Research Directions in Software Architecture. 1995.
  • [Kruchten, 1995] P. Kruchten. The 4+1 View Model of Architecture. IEEE Software, Nov 1995.
  • [Lesaint & Papamargaritis, 2004] David Lesaint, George Papamargaritis. Aspects and Constraints for Implementing Configurable Product-Line Architectures. 2004.
  • [Luckham & Vera, 1995] David C. Luckham, James Vera. An Event Based Architecture Definition Language. IEEE Trans. Software Enginering 21(9), Sep 1995.
  • [Lutz & Gannod, 2003] Robyn R. Lutz, Gerald C. Gannod. Analysis of a software product line architecture: an experience report. 2003.
  • [Meekel, 2001] Jacques Meekel, Thomas B. Hortont, Robert B. Francet, CharlieMellone L Sajid Dalvi. From Domain Models to Architecture Frameworks. 1997.

Reuse in Software Engineering Group

references44
References
  • [Perry & Wolf, 1992] Dewayne E. Perry, Alexander L. Wolf. Foundations for the Study of Software Architecture. 1992.
  • [Robbins, 1998] Jason E. Robbins, Nenad Medvidovic, David F. Redmiles, David S. Rosenblumart.Integrating Architecture Description Languages with a Standard Design Method. 1998.
  • [Shaw, 1995] Mary Shaw. Comparing Architectural Design Styles. 1995.
  • [Szyperski, 2002] C. Szyperski, D. Gruntz, S. Murer, Component Software: Beyond Object-Oriented Programming, Addison-Wesley, 2002, pp. 588
  • [Wallnau, 2001] Kurt Wallnau, Judith Stafford, Scott Hissam, Mark Klein. On the Relationship of Software Architecture to Software Component Technology. 2001.

Reuse in Software Engineering Group
