Melting point apparatus

<br>Melting point apparatus consists of a fully automatic detection method with temperatures ranging from room temperature to 400u2103. With a USB, RS-232, SD, or network<br>port, the data can be transferred. The number of bytes that can be stored is around 400 with 10 map saves.

Kimber4
Download Presentation

Melting point apparatus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

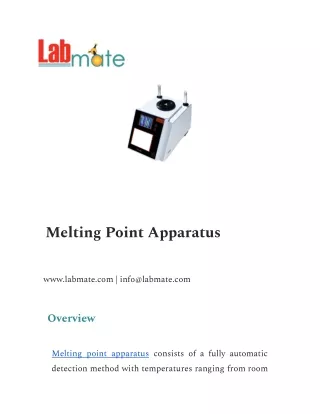

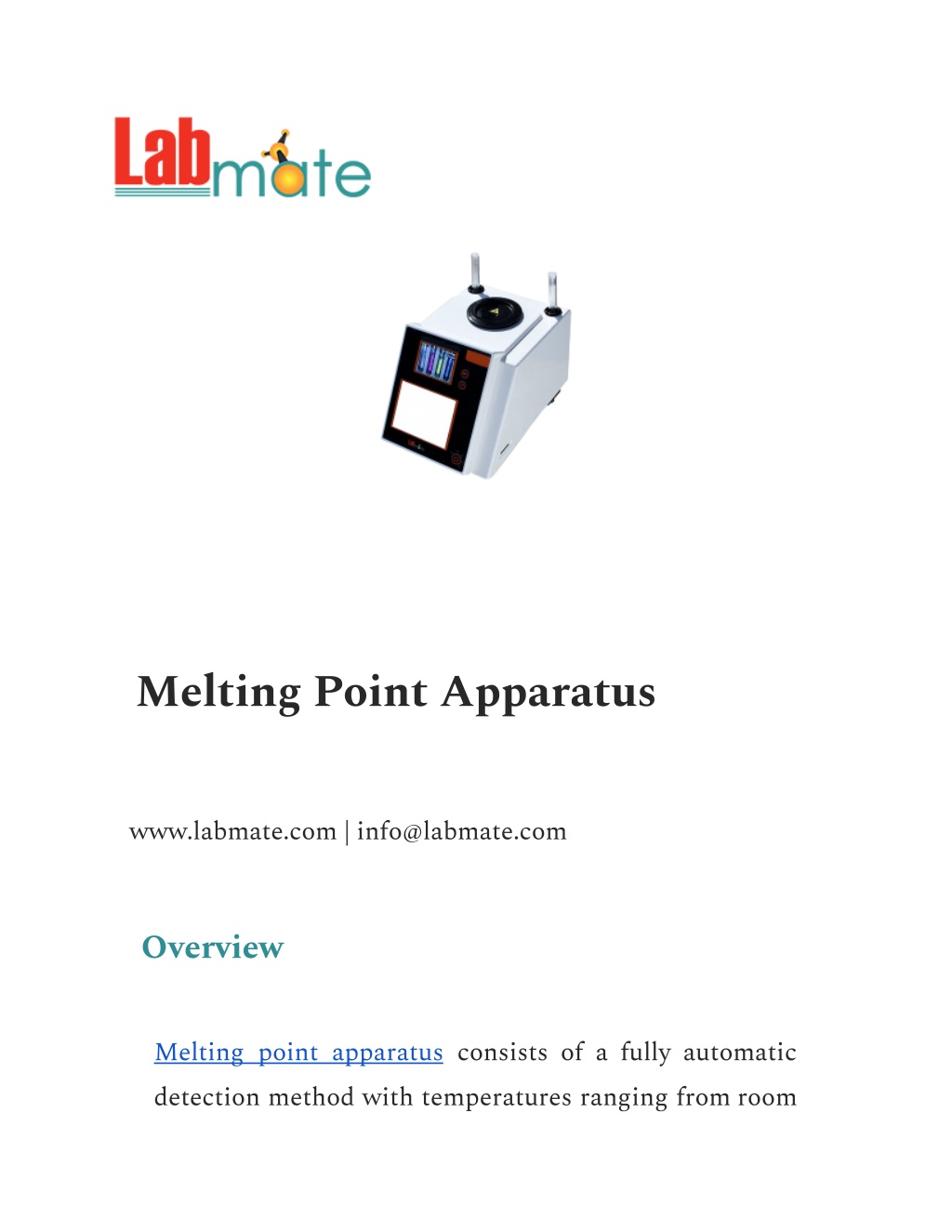

  1. Melting Point Apparatus www.labmate.com | info@labmate.com Overview Melting point apparatus consists of a fully automatic detection method with temperatures ranging from room

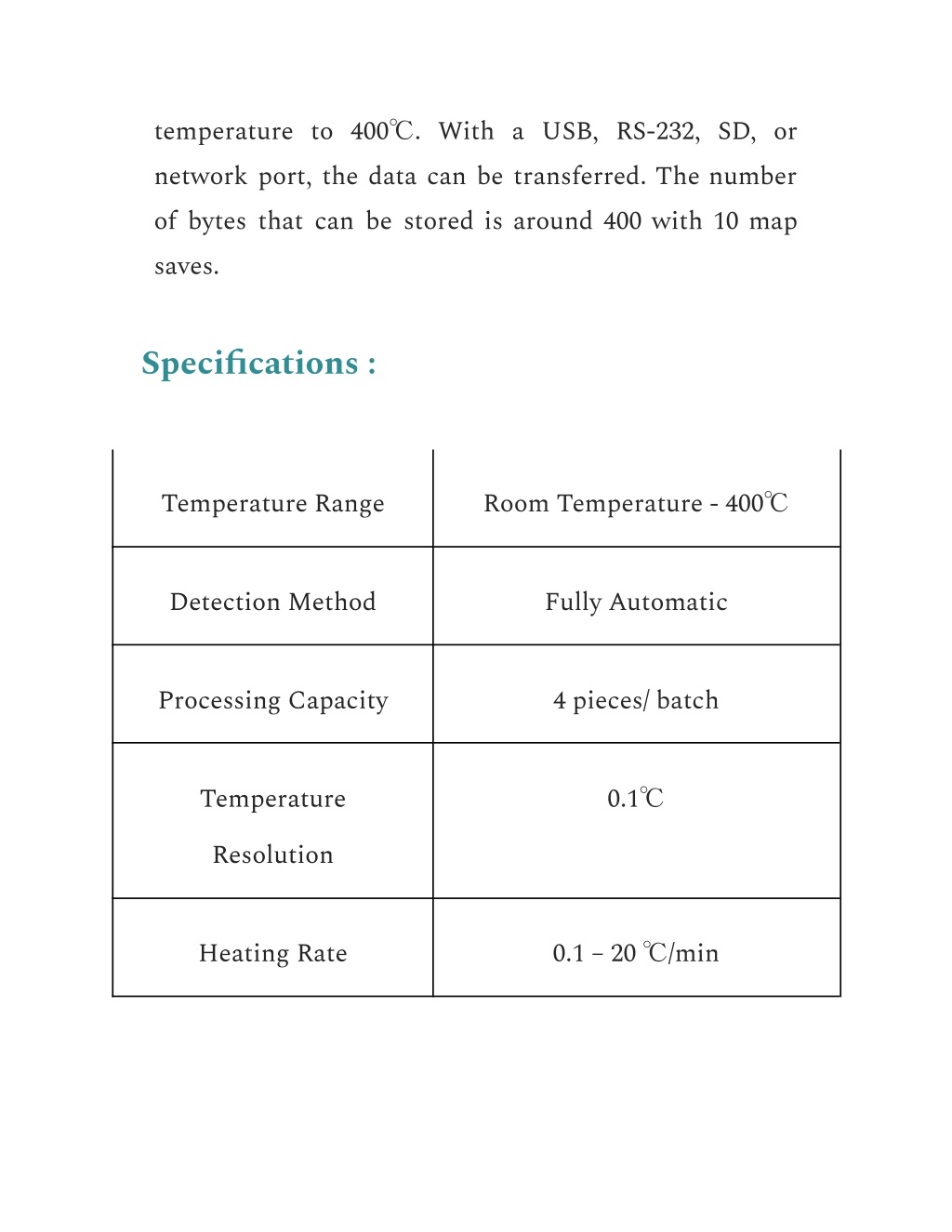

  2. temperature to 400℃. With a USB, RS-232, SD, or network port, the data can be transferred. The number of bytes that can be stored is around 400 with 10 map saves. Specifications : Temperature Range Room Temperature - 400℃ Detection Method Fully Automatic Processing Capacity 4 pieces/ batch Temperature 0.1℃ Resolution Heating Rate 0.1 – 20 ℃/min

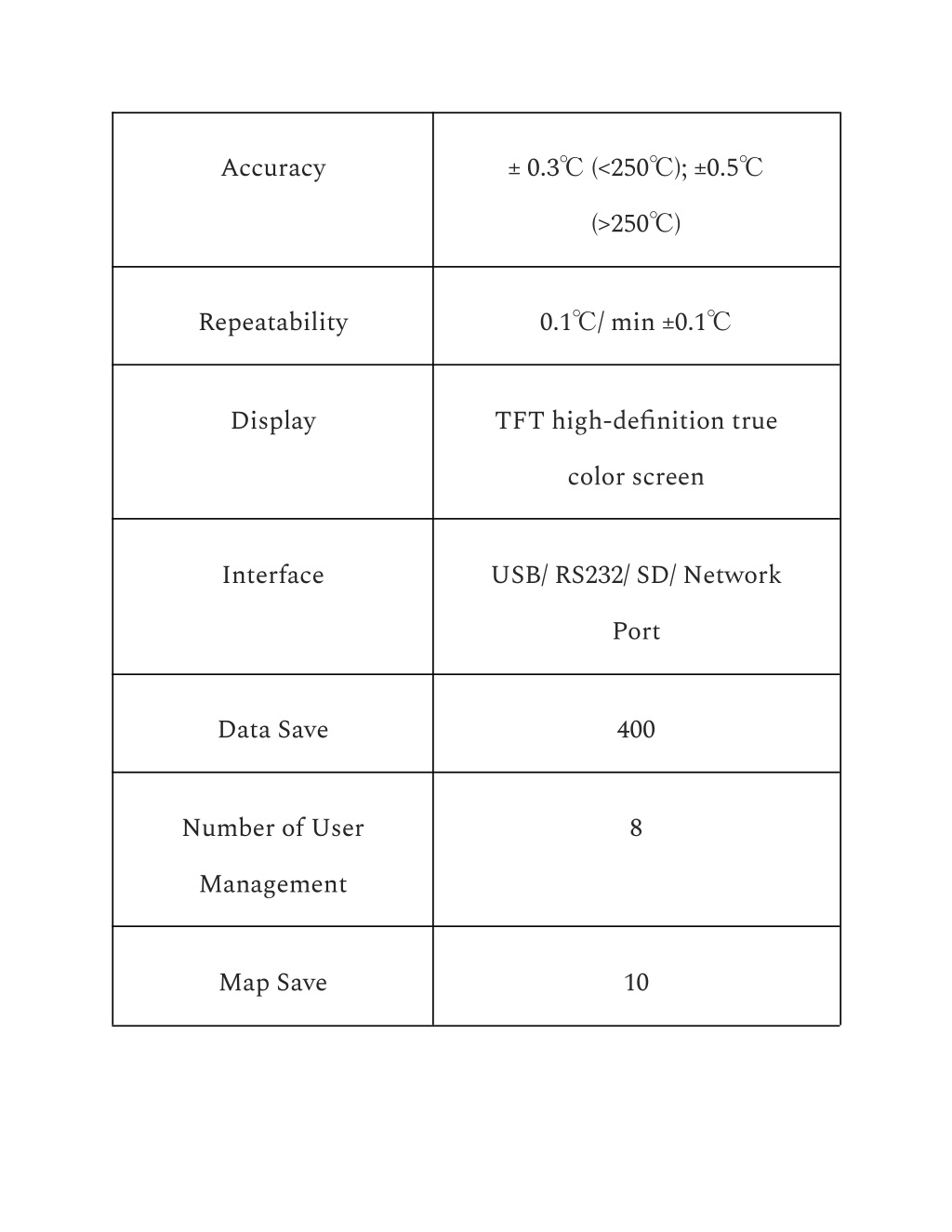

  3. Accuracy ± 0.3℃ (<250℃); ±0.5℃ (>250℃) Repeatability 0.1℃/ min ±0.1℃ Display TFT high-definition true color screen Interface USB/ RS232/ SD/ Network Port Data Save 400 Number of User 8 Management Map Save 10

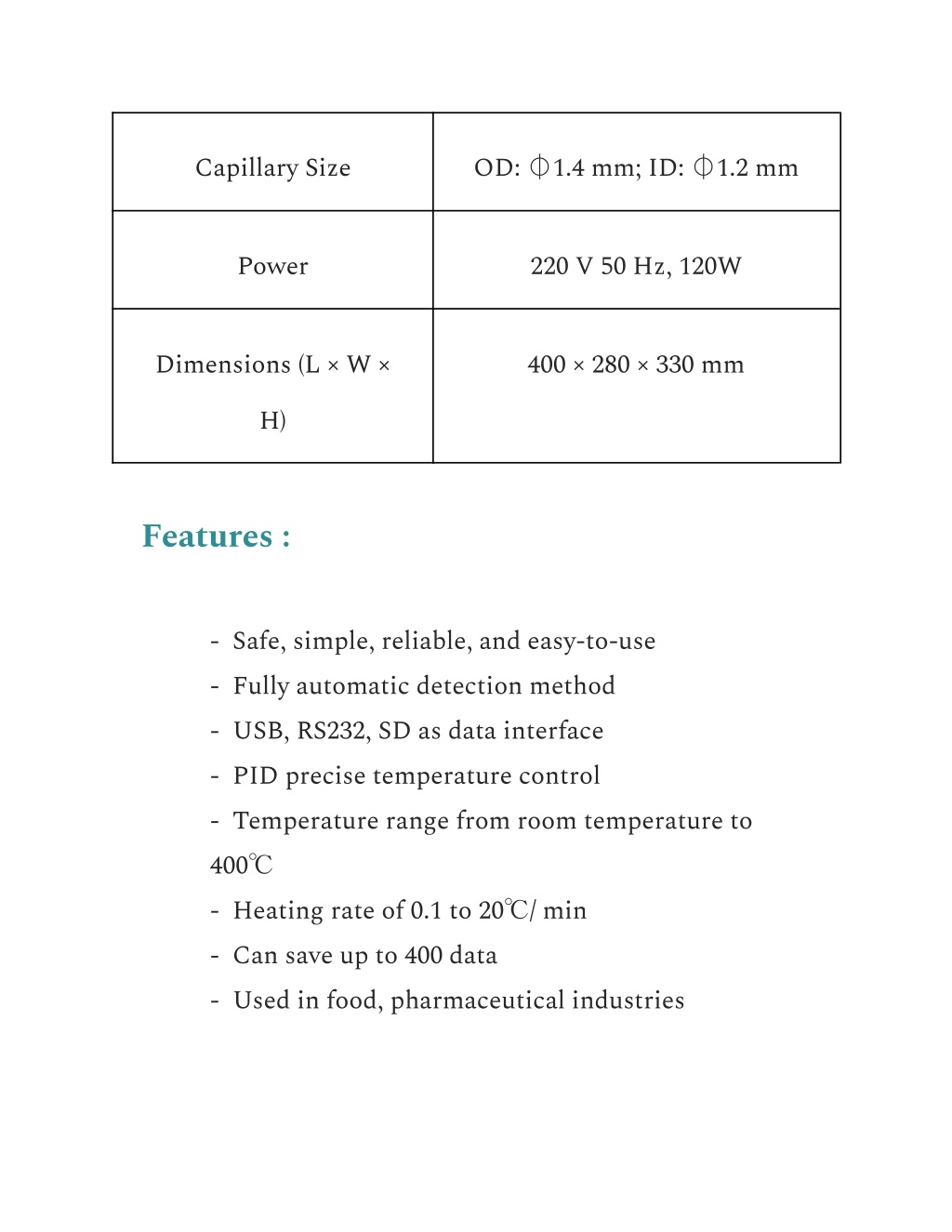

  4. Capillary Size OD: ⏀1.4 mm; ID: ⏀1.2 mm Power 220 V 50 Hz, 120W Dimensions (L × W × 400 × 280 × 330 mm H) Features : - Safe, simple, reliable, and easy-to-use - Fully automatic detection method - USB, RS232, SD as data interface - PID precise temperature control - Temperature range from room temperature to 400℃ - Heating rate of 0.1 to 20℃/ min - Can save up to 400 data - Used in food, pharmaceutical industries

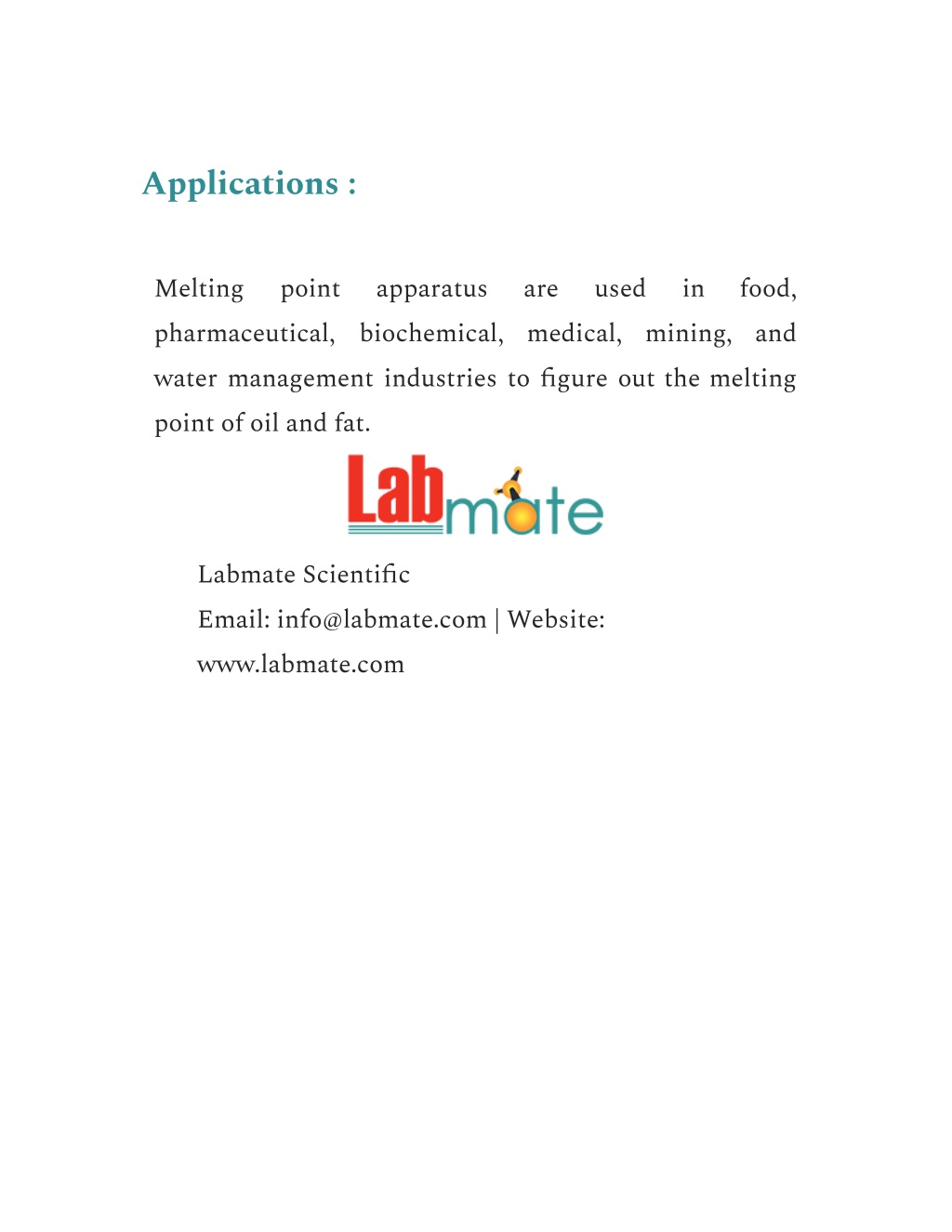

  5. Applications : Melting pharmaceutical, water management industries to figure out the melting point of oil and fat. point apparatus biochemical, medical, mining, and are used in food, Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
