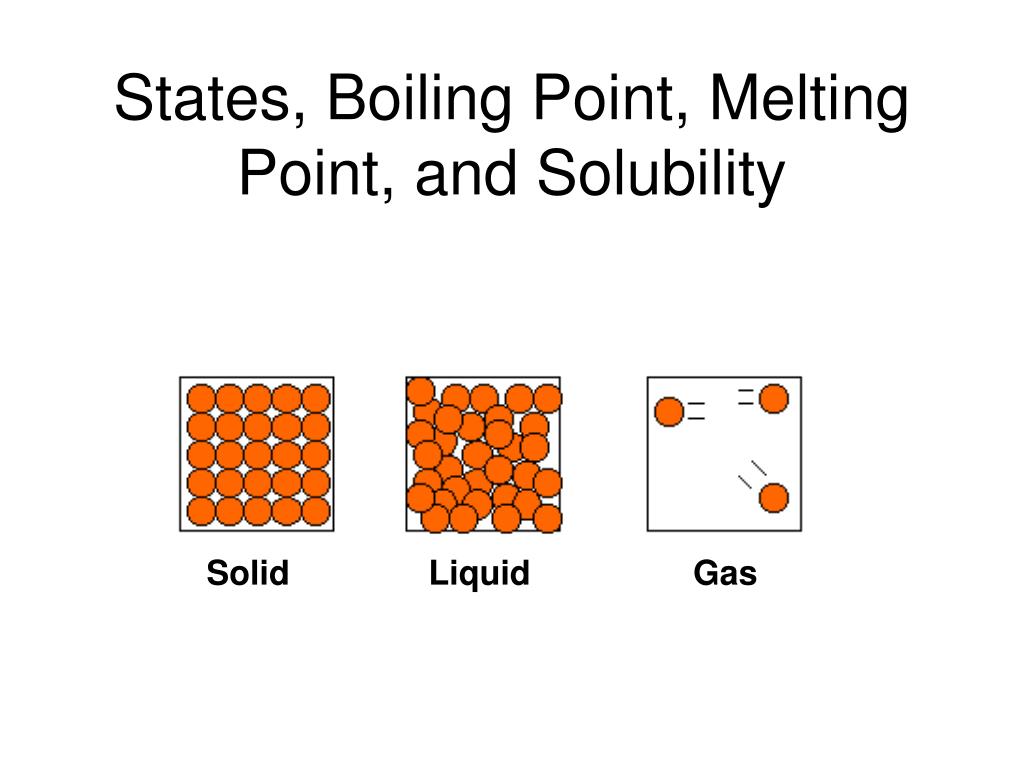

States, Boiling Point, Melting Point, and Solubility. Solid. Liquid. Gas. Questions. What are the 3 states of matter? Write a definition for each state?. Defining States of Matter. States of matter are NOT defined by what they are made of.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'States, Boiling Point, Melting Point, and Solubility' - otto-wilder


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
questions

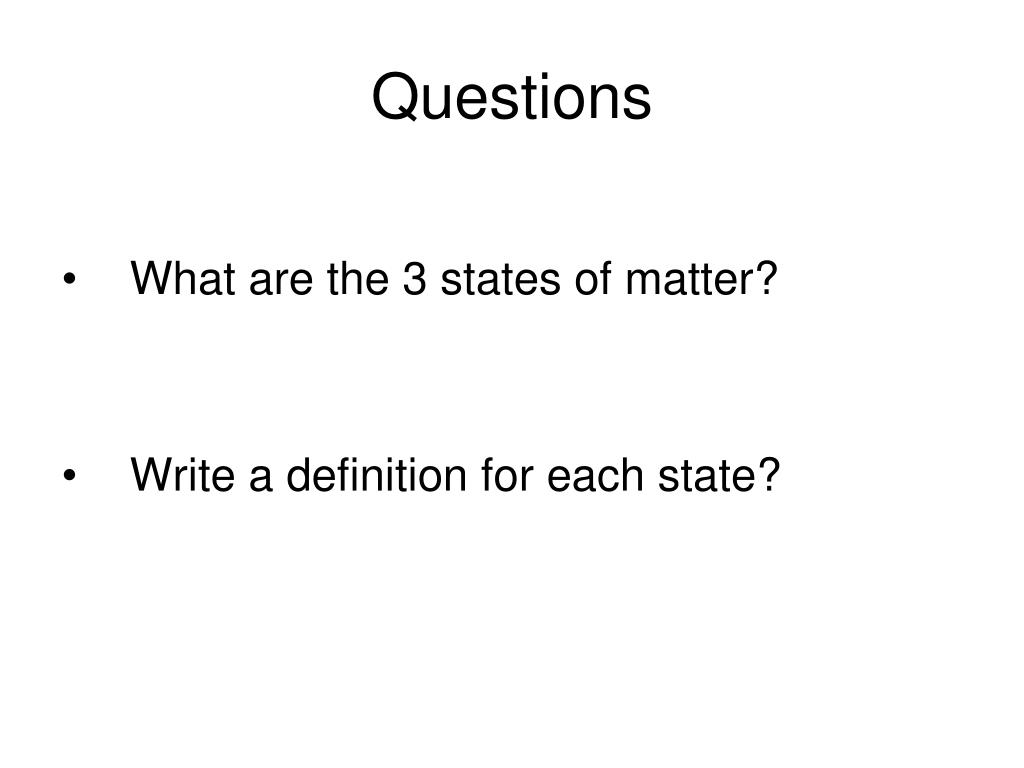

Questions
  • What are the 3 states of matter?
  • Write a definition for each state?
defining states of matter
Defining States of Matter
  • States of matter are NOT defined by what they are made of.
    • Example: solids can be elements (gold), compounds (Salt = NaCl), or mixtures (butter)

Element (Au)

Compound (NaCl)

Mixture (Milk, Salt, etc)

defining states of matter1

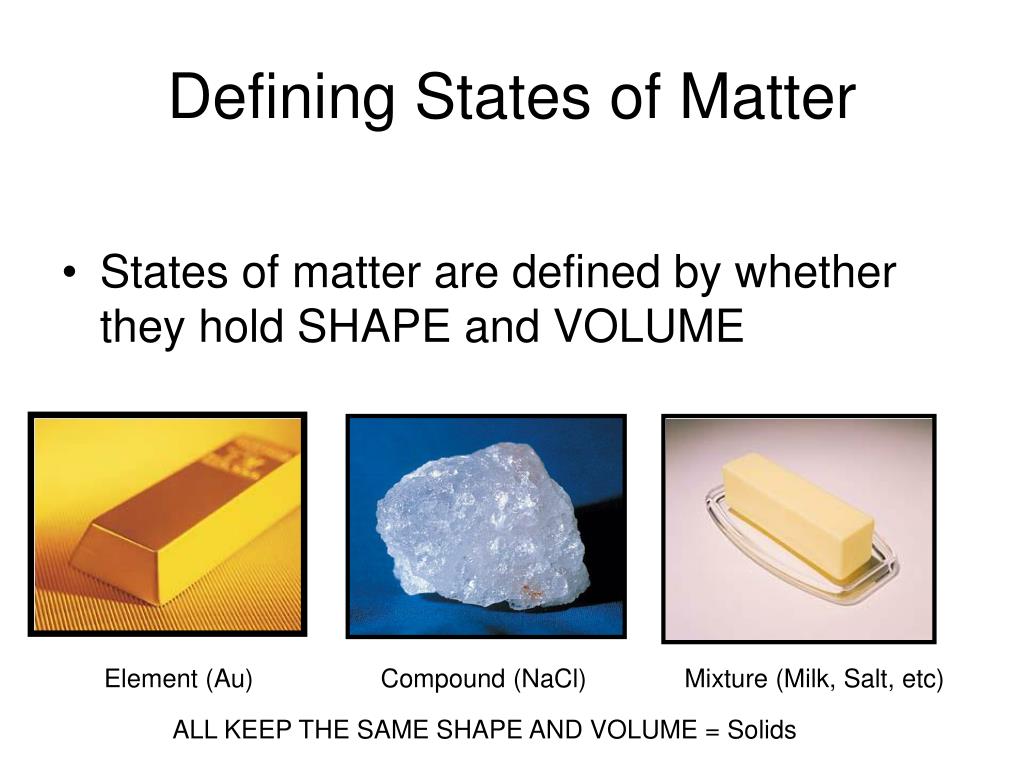

Defining States of Matter
  • States of matter are defined by whether they hold SHAPE and VOLUME

Element (Au)

Compound (NaCl)

Mixture (Milk, Salt, etc)

ALL KEEP THE SAME SHAPE AND VOLUME = Solids

defining states of matter2
Defining States of Matter
  • Solids – have a definite SHAPE and VOLUME.

Element (Au)

Compound (NaCl)

Mixture (Milk, Salt, etc)

ALL KEEP THE SAME SHAPE AND VOLUME

particle view of a solid
Particle View of a Solid
  • Particles in a solid are PACKED CLOSELY together and they are in a FIXED POSITION.

Particles vibrate in place

liquids
Liquids
  • Liquids – has definite VOLUME but no defined SHAPE

100 ml

particle view of a liquid

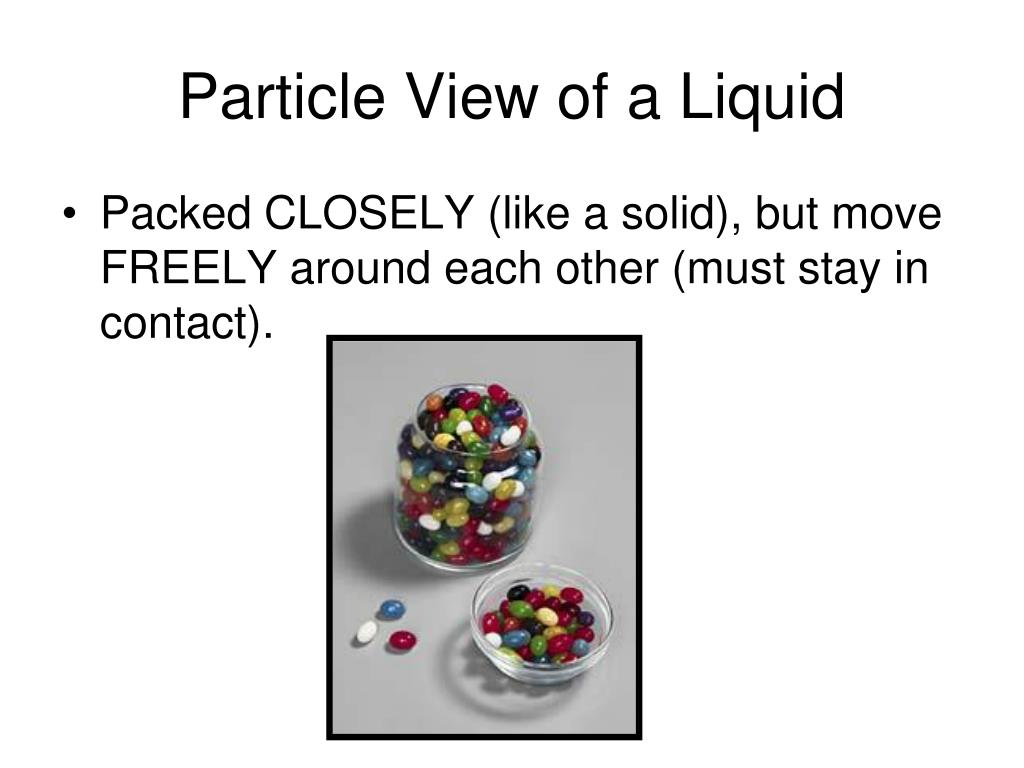

Particle View of a Liquid
  • Packed CLOSELY (like a solid), but move FREELY around each other (must stay in contact).
gases
Gases
  • Gases - do NOT have definite SHAPE or VOLUME.

Bromine gas fills up the entire volume of the container

particle view of a gas

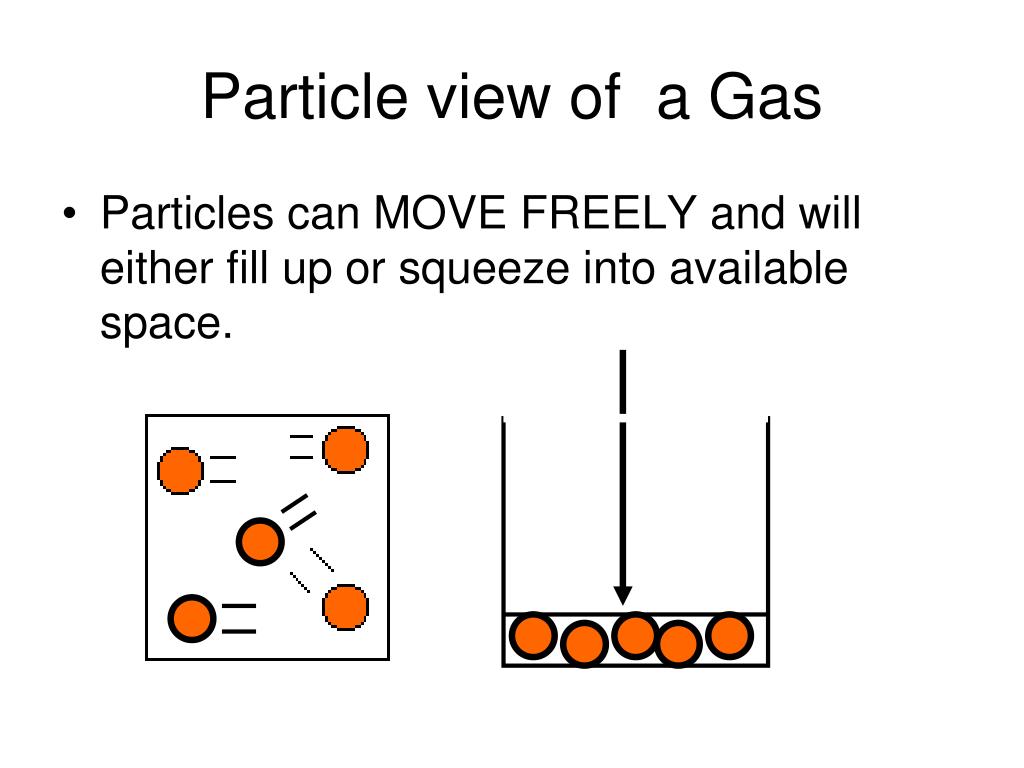

Particle view of a Gas
  • Particles can MOVE FREELY and will either fill up or squeeze into available space.
questions1

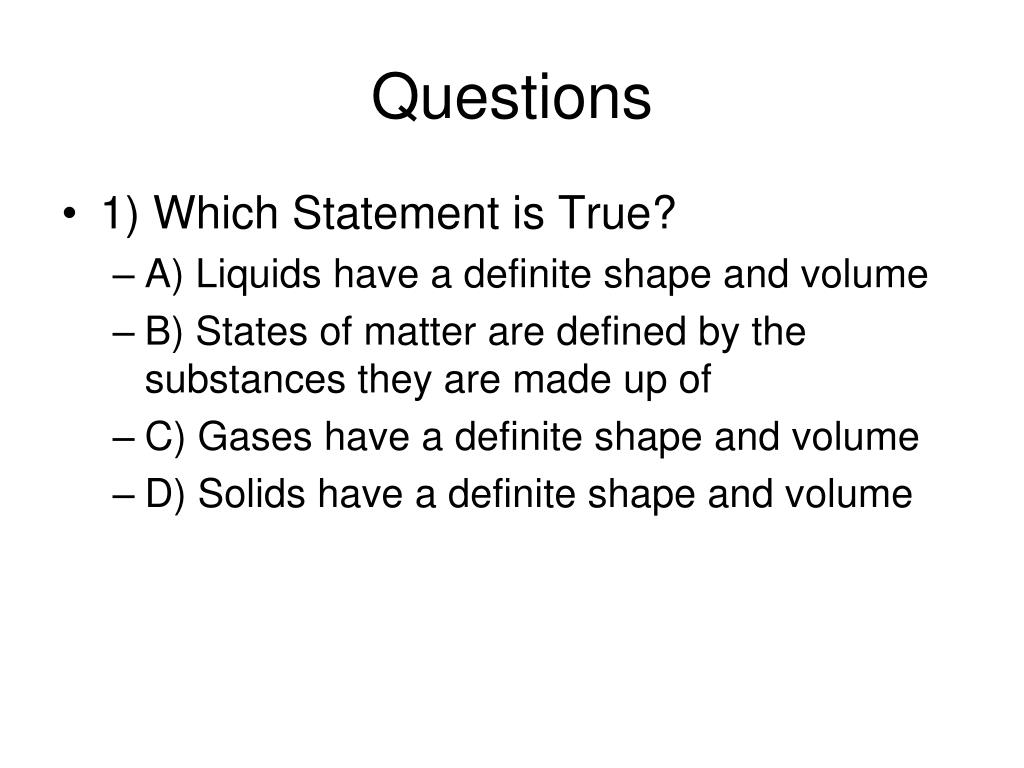

Questions
  • 1) Which Statement is True?
    • A) Liquids have a definite shape and volume
    • B) States of matter are defined by the substances they are made up of
    • C) Gases have a definite shape and volume
    • D) Solids have a definite shape and volume
slide12

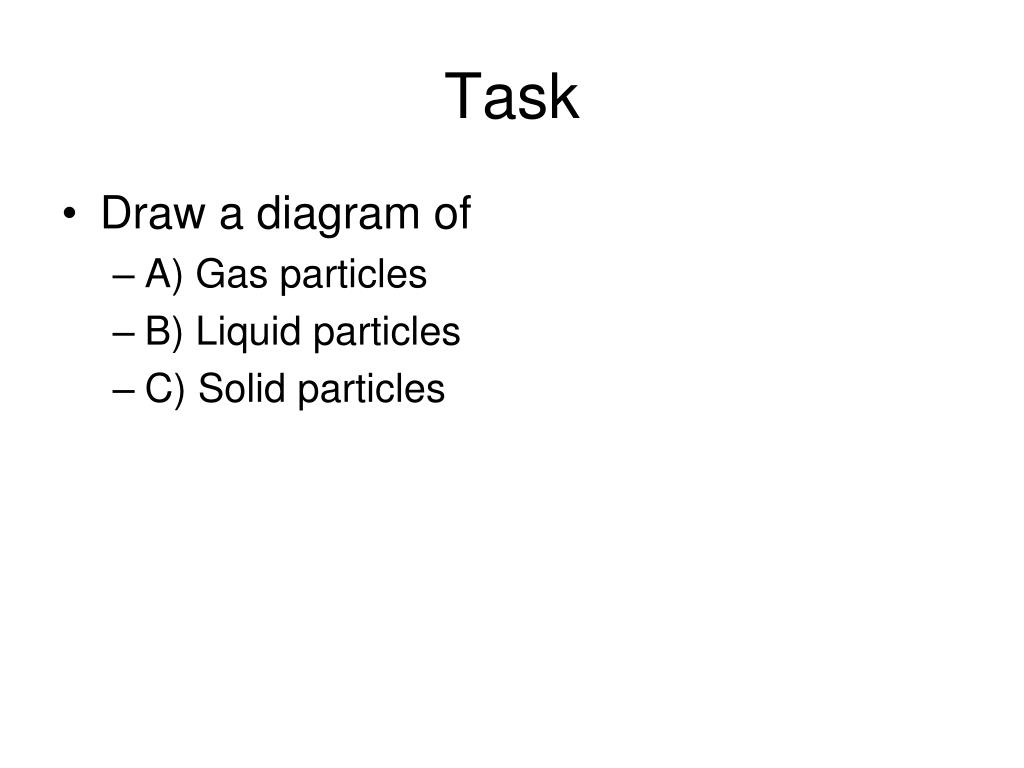

Task
  • Draw a diagram of
    • A) Gas particles
    • B) Liquid particles
    • C) Solid particles
changes in states of matter
Changes in States of Matter
  • Thermal Energy – heat energy.
  • More thermal energy = More particle movement
changing states
Changing States

Increase Thermal Energy (Heat up)

Solid

Gas

Liquid

Decrease Thermal Energy (Cool off)

melting point
Melting point
  • Melting - change from solid to liquid
  • Melting point - SPECIFIC temperature when melting occurs.
  • Each pure substance has a SPECIFIC melting point.
    • Examples:
    • M.P. of Water = 0°C (32°F)
    • M.P. of Nitrogen = -209.9 °C (-345.81998 °F)
    • M.P. of Silver = 961.93 °C (1763.474 °F)
    • M.P. of Carbon = 3500.0 °C (6332.0 °F)
melting point1
Melting Point
  • Particles of a solid vibrate so fast that they break free from their fixed positions.

Increasing Thermal Energy

Solid

Liquid

Melting point

vaporization

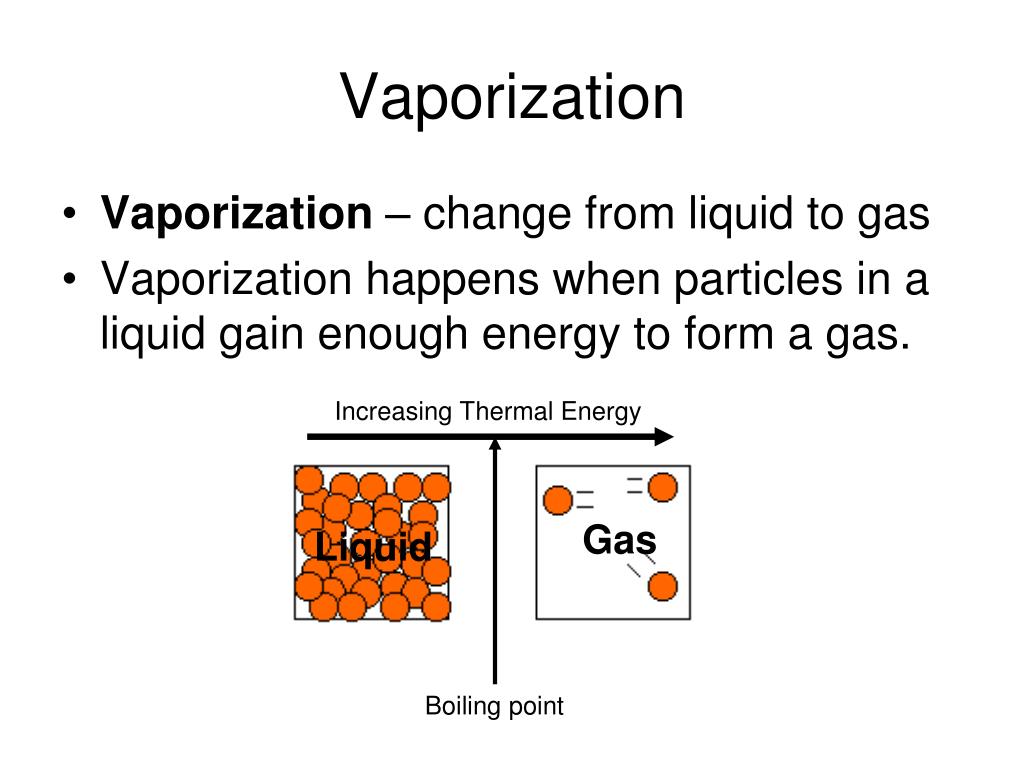

Vaporization
  • Vaporization – change from liquid to gas
  • Vaporization happens when particles in a liquid gain enough energy to form a gas.

Increasing Thermal Energy

Gas

Liquid

Boiling point

two kinds of vaporization
Two Kinds of Vaporization
  • Evaporation – vaporization that takes place only on the surface of the liquid
  • Boiling – when a liquid changes to a gas BELOW its surface as well as above.
boiling point
Boiling Point
  • Boiling Point – temperature at which a liquid boils
  • Each pure substance has a SPECIFIC boiling point.
    • Examples:
    • B.P. of Water = 100°C (212°F)
    • B.P. of Nitrogen = -195.79 °C (-320.42 °F)
    • B.P. of Silver = 2162 °C (3924 °F)
    • B.P. of Carbon = 4027 °C (7281 °F)
boiling point and melting point

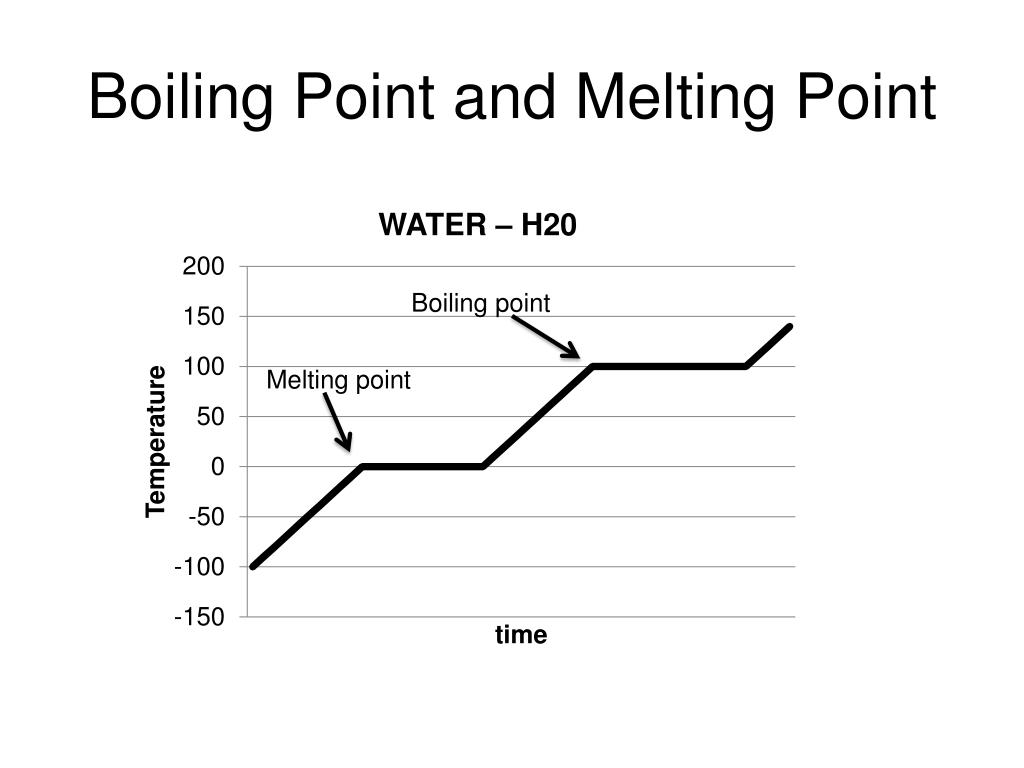

Boiling Point and Melting Point

Boiling point

Melting point

solubility

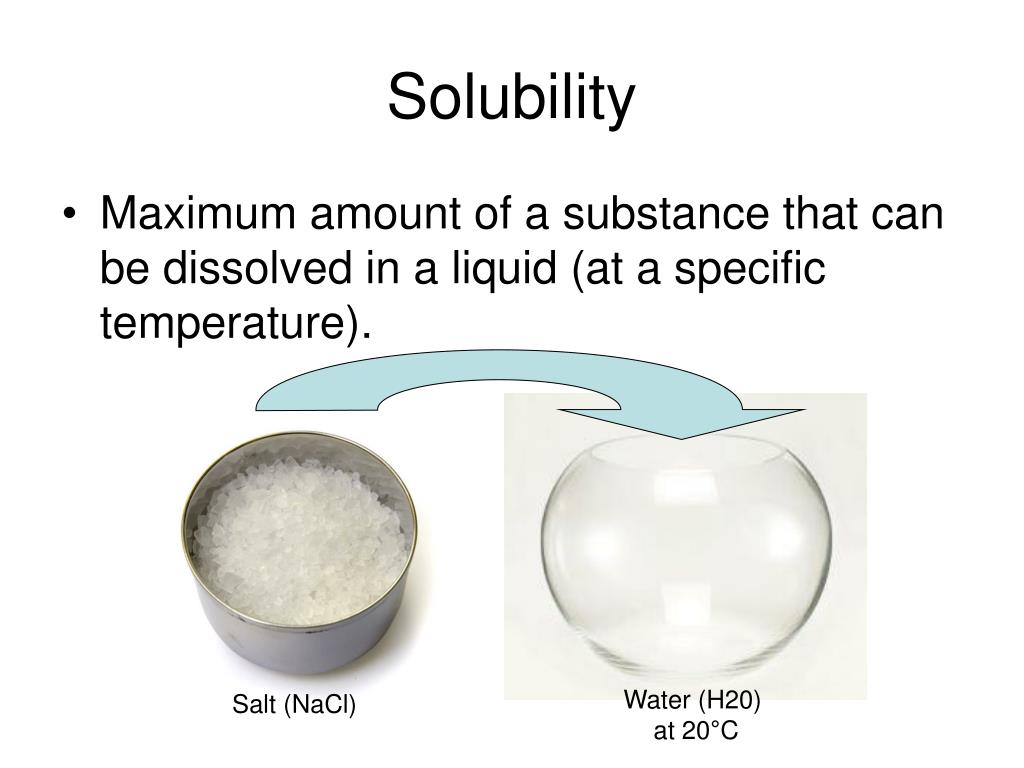

Solubility
  • Maximum amount of a substance that can be dissolved in a liquid (at a specific temperature).

Water (H20)

at 20°C

Salt (NaCl)

solubility1

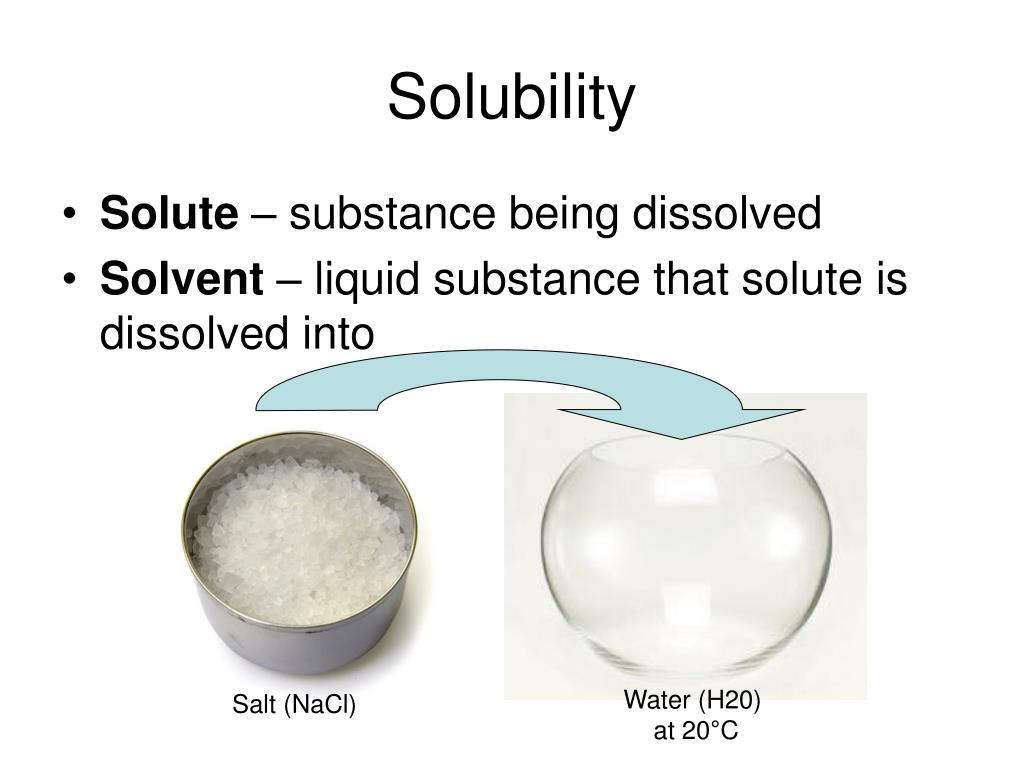

Solubility
  • Solute – substance being dissolved
  • Solvent – liquid substance that solute is dissolved into

Water (H20)

at 20°C

Salt (NaCl)

solubility2

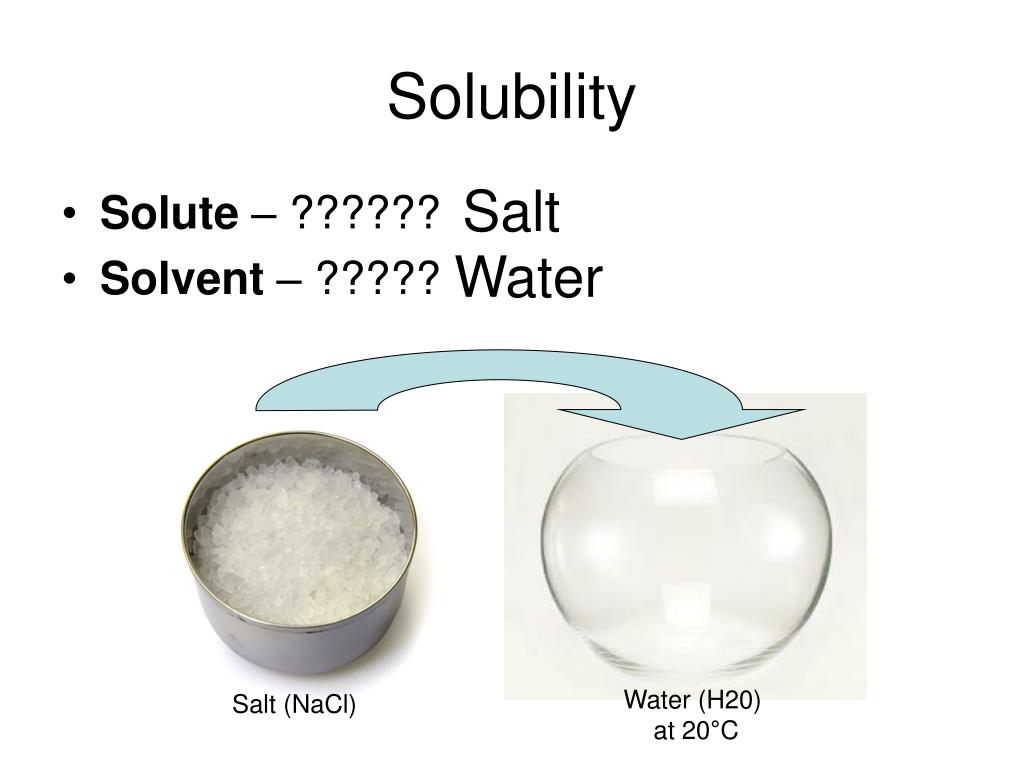

Solubility

Salt

  • Solute – ??????
  • Solvent – ?????

Water

Water (H20)

at 20°C

Salt (NaCl)

solubility can change
Solubility can change
  • Increased Temp = Increased Solubility
  • Different substances have different solubility curves
