Heredity (part 2): Present Day Understanding on Heredity based on Mendel findings

Students will be able to: <br>- define a gene as a unit of inheritance and distinguish clearly between the terms gene and allele <br>- explain the terms dominant, recessive, codominant, homozygous, heterozygous, phenotype and <br>genotype

Joshua21
Download Presentation

Heredity (part 2): Present Day Understanding on Heredity based on Mendel findings

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Present Day Understanding on Heredity based on Mendel’s Findings

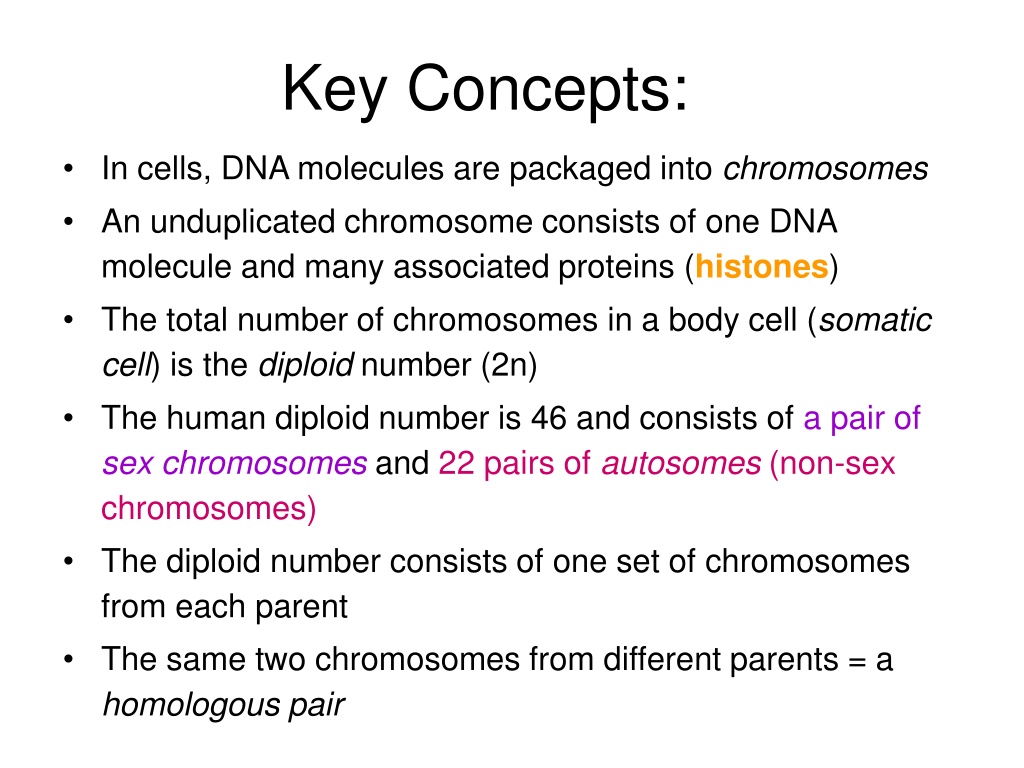

  2. Key Concepts: • In cells, DNA molecules are packaged into chromosomes • An unduplicated chromosome consists of one DNA molecule and many associated proteins (histones) • The total number of chromosomes in a body cell (somatic cell) is the diploid number (2n) • The human diploid number is 46 and consists of a pair of sex chromosomes and 22 pairs of autosomes (non-sex chromosomes) • The diploid number consists of one set of chromosomes from each parent • The same two chromosomes from different parents = a homologous pair

  3. DNA DNA is a double helix formed by base pairs attached to a sugar- phosphate backbone. http://ghr.nlm.nih.gov/handbook/illustrations/dnastructure

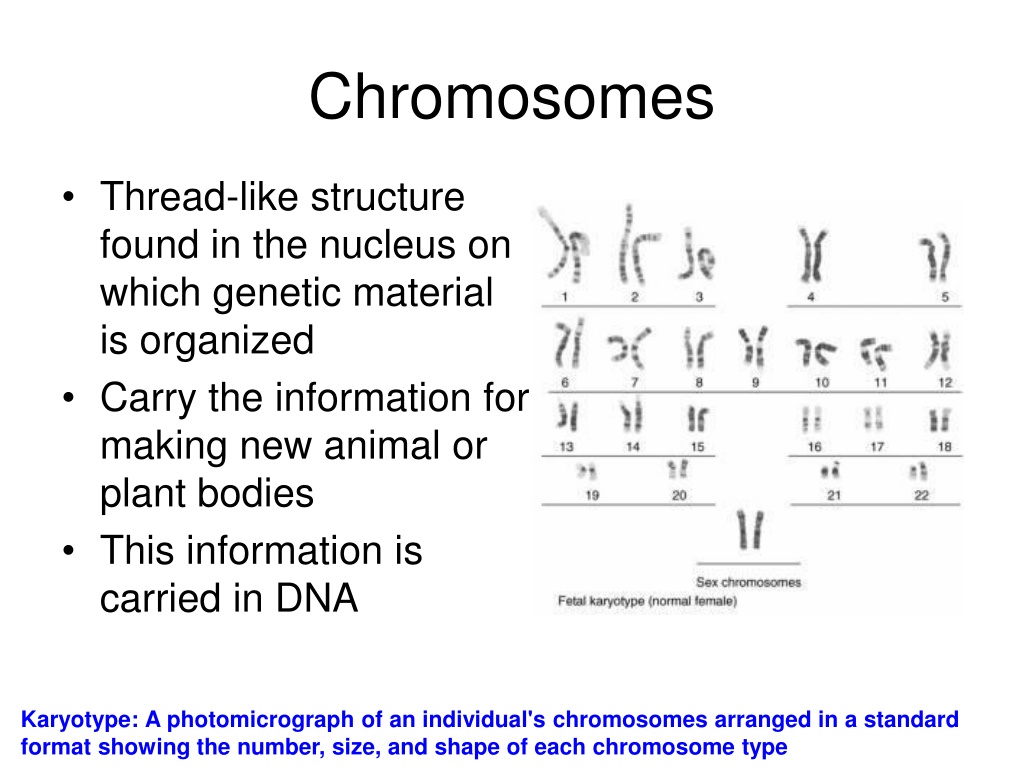

  4. Chromosomes • Thread-like structure found in the nucleus on which genetic material is organized • Carry the information for making new animal or plant bodies • This information is carried in DNA Karyotype: A photomicrograph of an individual's chromosomes arranged in a standard format showing the number, size, and shape of each chromosome type

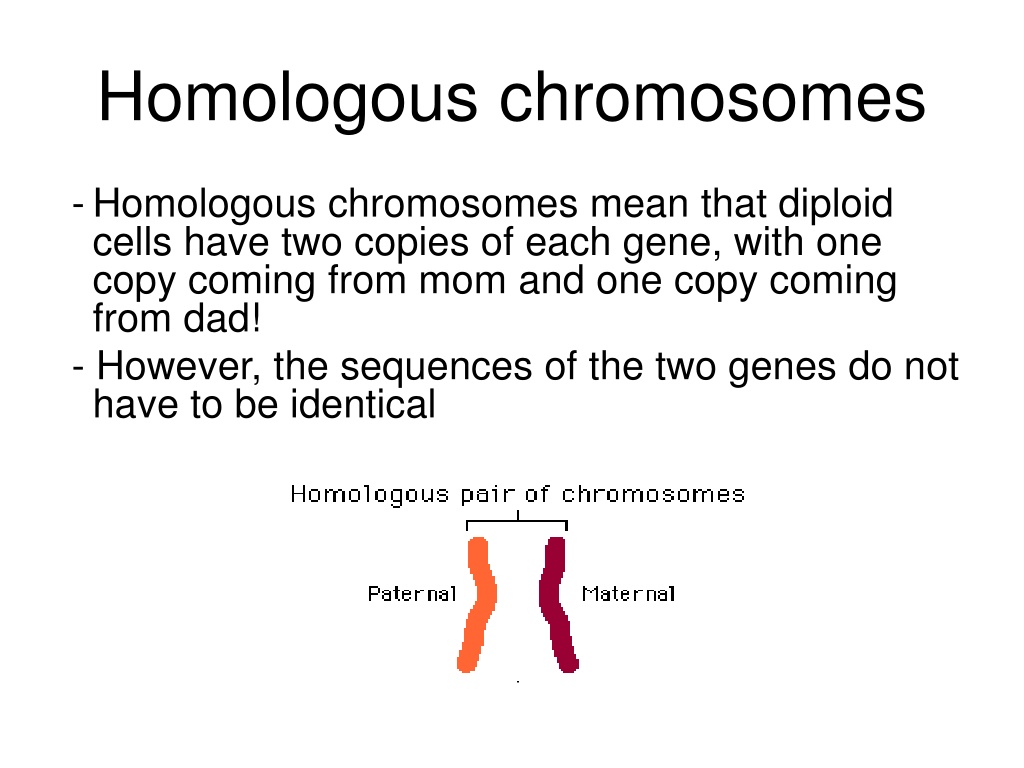

  5. Homologous chromosomes -Homologous chromosomes mean that diploid cells have two copies of each gene, with one copy coming from mom and one copy coming from dad! - However, the sequences of the two genes do not have to be identical

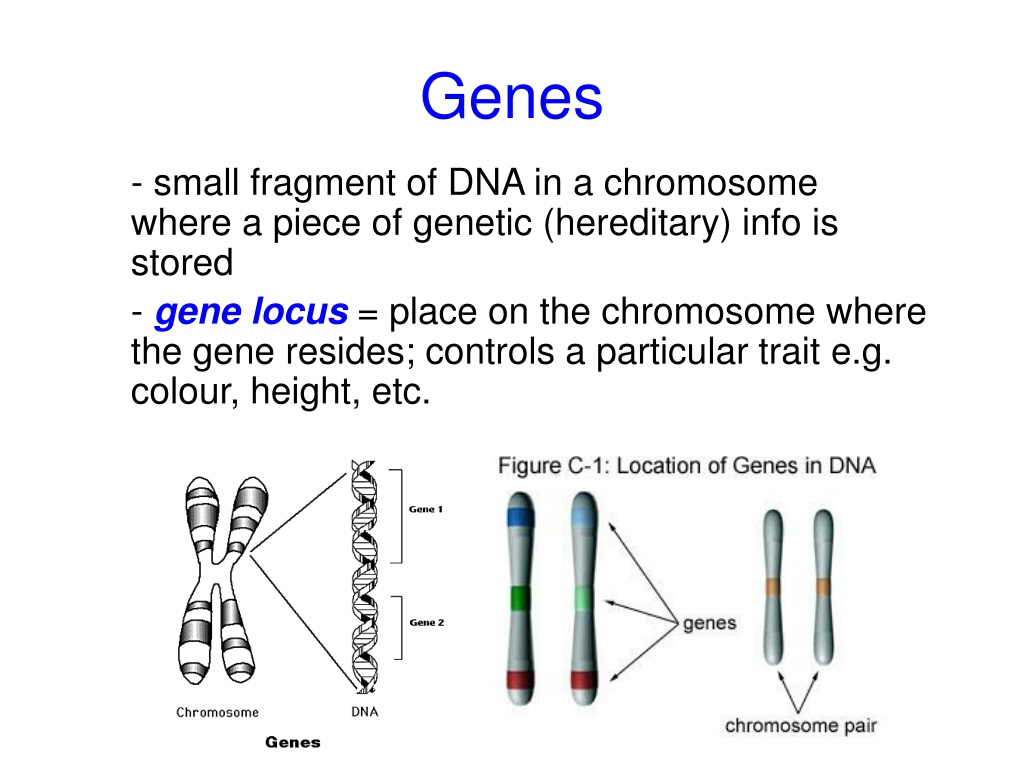

  6. Genes - small fragment of DNA in a chromosome where a piece of genetic (hereditary) info is stored - gene locus = place on the chromosome where the gene resides; controls a particular trait e.g. colour, height, etc.

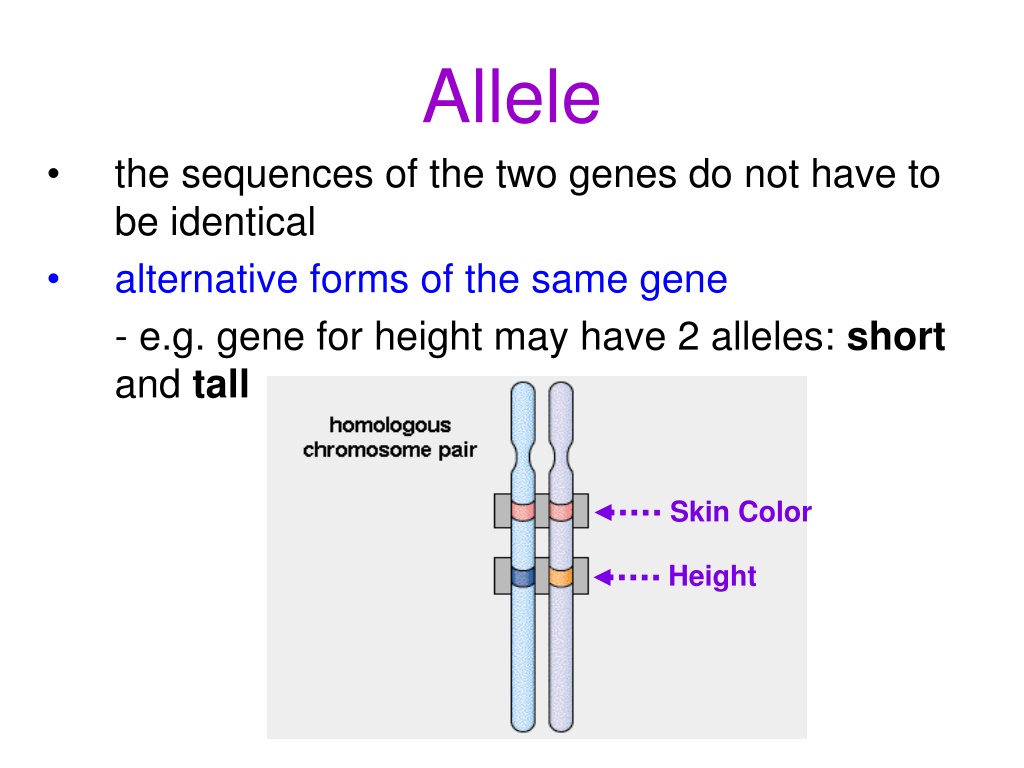

  7. Allele the sequences of the two genes do not have to be identical alternative forms of the same gene - e.g. gene for height may have 2 alleles: short and tall • • Skin Color Height

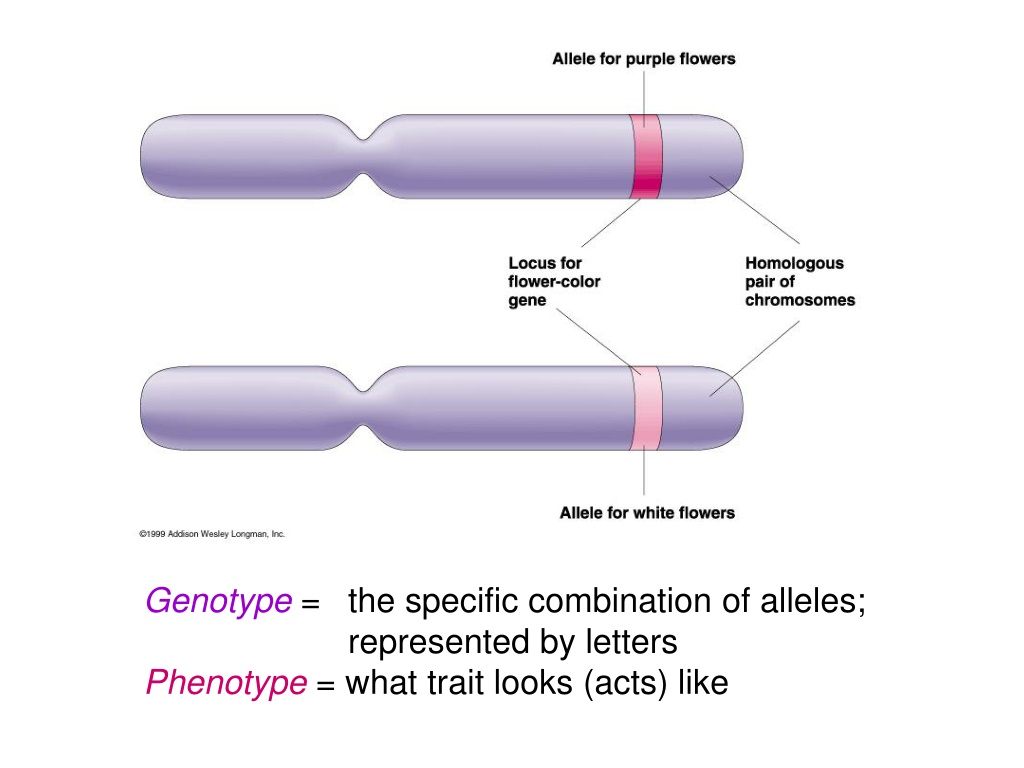

  8. Genotype = the specific combination of alleles; represented by letters Phenotype = what trait looks (acts) like

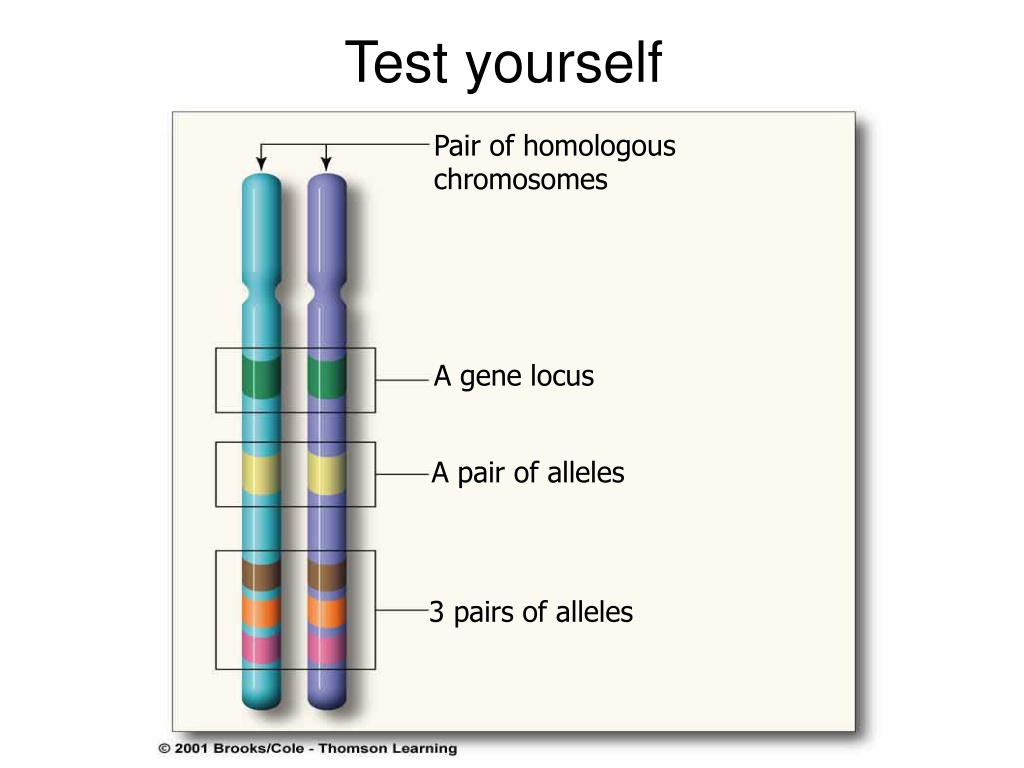

  9. Test yourself Pair of homologous chromosomes A gene locus A pair of alleles 3 pairs of alleles

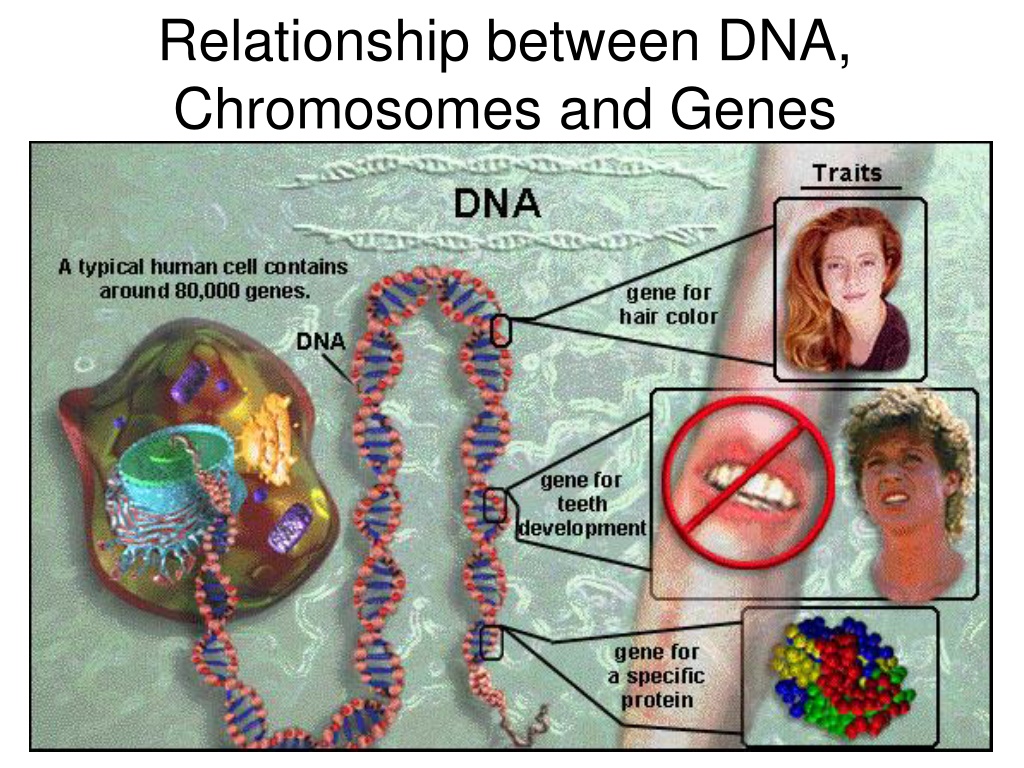

  10. Relationship between DNA, Chromosomes and Genes

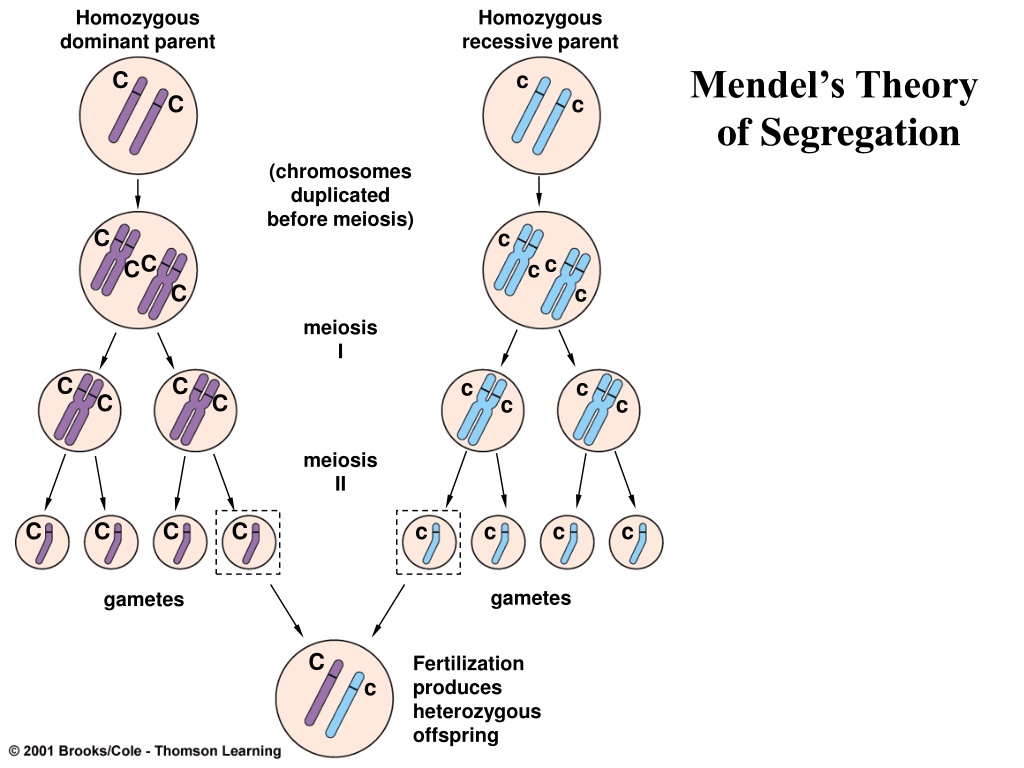

  11. Homozygous dominant parent Homozygous recessive parent Mendel’s Theory of Segregation C c C c (chromosomes duplicated before meiosis) C c C c C c C c meiosis I C C c c C C c c meiosis II C C C C c c c c gametes gametes C Fertilization produces heterozygous offspring c
