Cable Ferrites: Enhancing Signal Integrity and Suppressing Noise

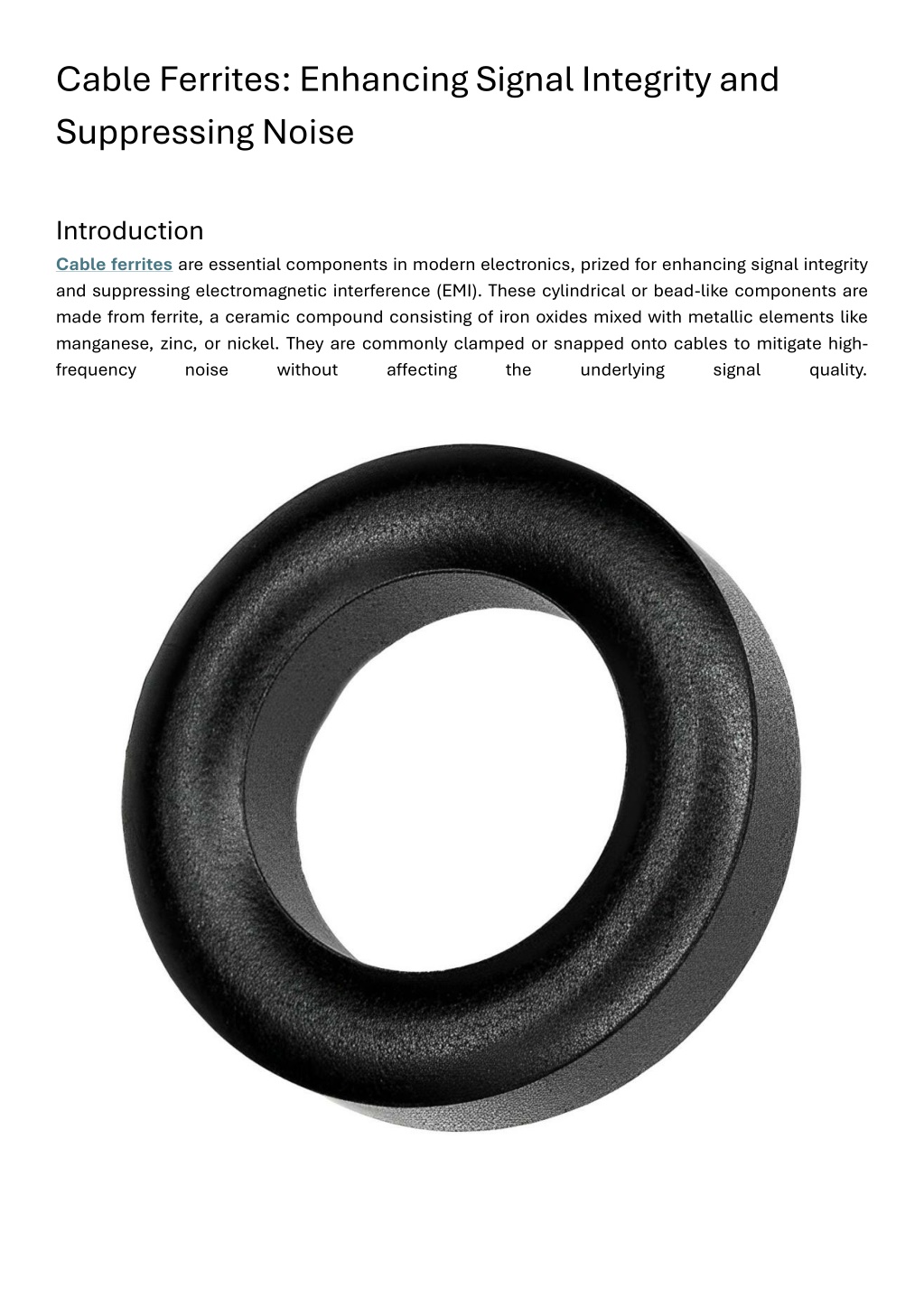

1. Cable Ferrites: Enhancing Signal Integrity and Suppressing Noise Introduction Cable ferrites are essential components in modern electronics, prized for enhancing signal integrity and suppressing electromagnetic interference (EMI). These cylindrical or bead-like components are made from ferrite, a ceramic compound consisting of iron oxides mixed with metallic elements like manganese, zinc, or nickel. They are commonly clamped or snapped onto cables to mitigate high- frequency noise without affecting the underlying signal quality.

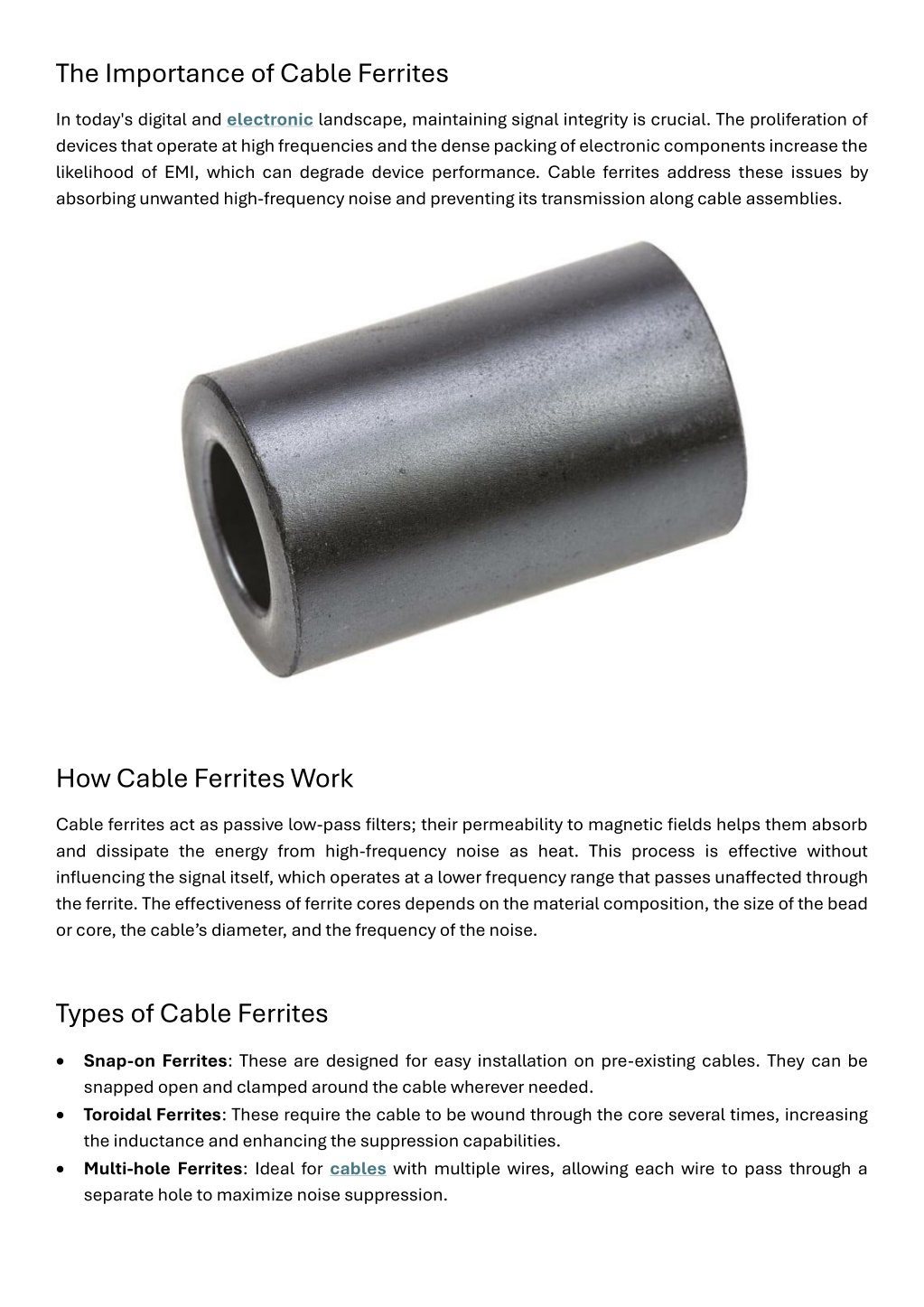

2. The Importance of Cable Ferrites In today's digital and electronic landscape, maintaining signal integrity is crucial. The proliferation of devices that operate at high frequencies and the dense packing of electronic components increase the likelihood of EMI, which can degrade device performance. Cable ferrites address these issues by absorbing unwanted high-frequency noise and preventing its transmission along cable assemblies. How Cable Ferrites Work Cable ferrites act as passive low-pass filters; their permeability to magnetic fields helps them absorb and dissipate the energy from high-frequency noise as heat. This process is effective without influencing the signal itself, which operates at a lower frequency range that passes unaffected through the ferrite. The effectiveness of ferrite cores depends on the material composition, the size of the bead or core, the cable’s diameter, and the frequency of the noise. Types of Cable Ferrites •Snap-on Ferrites: These are designed for easy installation on pre-existing cables. They can be snapped open and clamped around the cable wherever needed. •Toroidal Ferrites: These require the cable to be wound through the core several times, increasing the inductance and enhancing the suppression capabilities. •Multi-hole Ferrites: Ideal for cables with multiple wires, allowing each wire to pass through a separate hole to maximize noise suppression.

3. Applications of Cable Ferrites Cable ferrites are versatile and used across various industries: •Consumer Electronics: Enhancing audio and video quality by reducing interference in devices such as televisions, radios, and home theater systems. •Telecommunications: Improving signal clarity and reducing errors in data transmission systems. •Automotive: Mitigating EMI in the complex electronic environments of modern vehicles to ensure reliable operation of electronic control systems. •Medical Equipment: Shielding sensitive medical devices from disruptive interference which can lead to inaccuracies in diagnostics or treatment devices. Installation and Placement Proper installation of cable ferrites is key to maximizing their effectiveness. Placement is typically near the end of the cable closest to the device being protected; however, multiple ferrites may be used along the length of a cable for enhanced protection. The orientation and position can significantly affect performance, so it is often advised to experiment with these factors during installation.

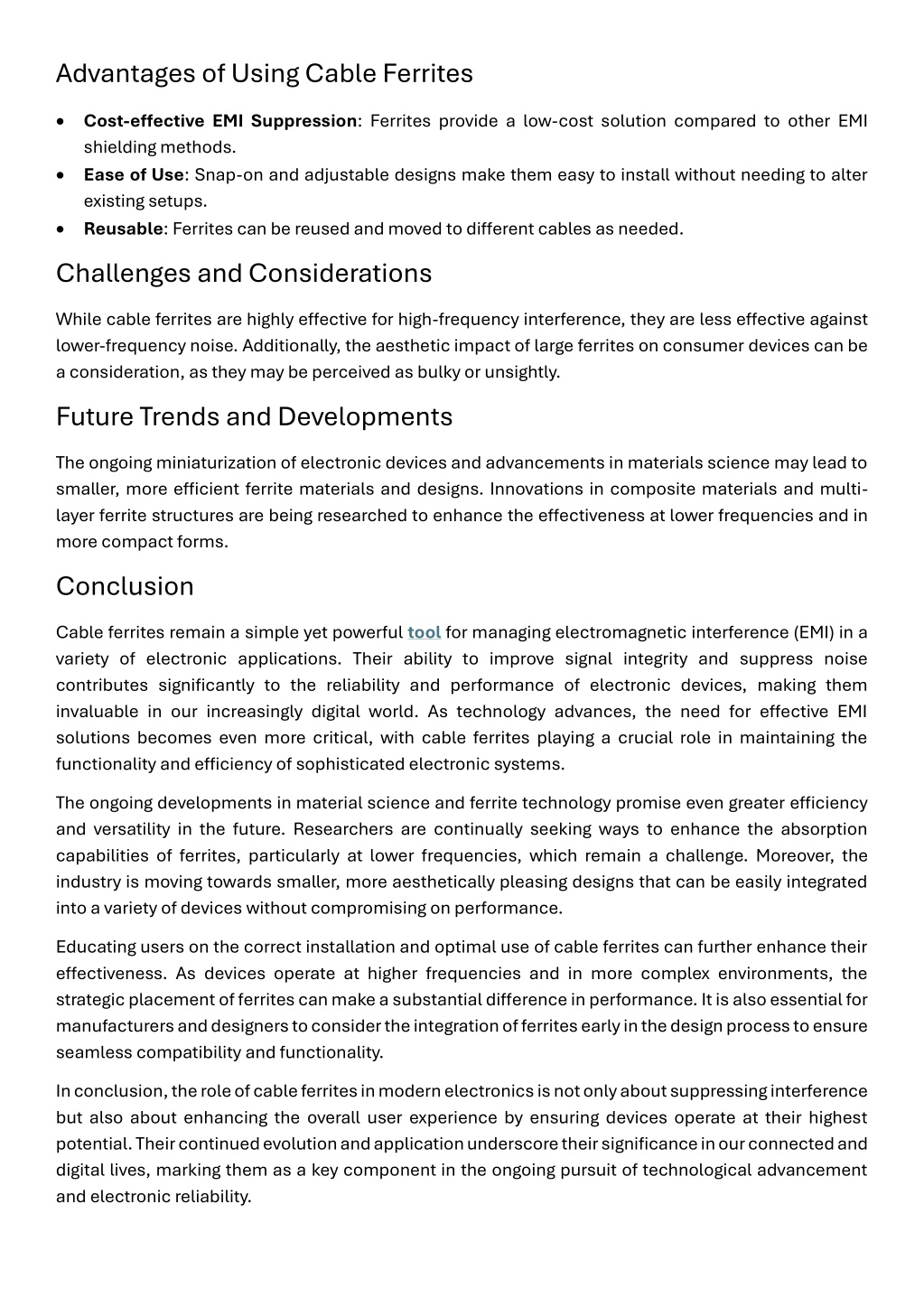

4. Advantages of Using Cable Ferrites •Cost-effective EMI Suppression: Ferrites provide a low-cost solution compared to other EMI shielding methods. •Ease of Use: Snap-on and adjustable designs make them easy to install without needing to alter existing setups. •Reusable: Ferrites can be reused and moved to different cables as needed. Challenges and Considerations While cable ferrites are highly effective for high-frequency interference, they are less effective against lower-frequency noise. Additionally, the aesthetic impact of large ferrites on consumer devices can be a consideration, as they may be perceived as bulky or unsightly. Future Trends and Developments The ongoing miniaturization of electronic devices and advancements in materials science may lead to smaller, more efficient ferrite materials and designs. Innovations in composite materials and multi- layer ferrite structures are being researched to enhance the effectiveness at lower frequencies and in more compact forms. Conclusion Cable ferrites remain a simple yet powerful tool for managing electromagnetic interference (EMI) in a variety of electronic applications. Their ability to improve signal integrity and suppress noise contributes significantly to the reliability and performance of electronic devices, making them invaluable in our increasingly digital world. As technology advances, the need for effective EMI solutions becomes even more critical, with cable ferrites playing a crucial role in maintaining the functionality and efficiency of sophisticated electronic systems. The ongoing developments in material science and ferrite technology promise even greater efficiency and versatility in the future. Researchers are continually seeking ways to enhance the absorption capabilities of ferrites, particularly at lower frequencies, which remain a challenge. Moreover, the industry is moving towards smaller, more aesthetically pleasing designs that can be easily integrated into a variety of devices without compromising on performance. Educating users on the correct installation and optimal use of cable ferrites can further enhance their effectiveness. As devices operate at higher frequencies and in more complex environments, the strategic placement of ferrites can make a substantial difference in performance. It is also essential for manufacturers and designers to consider the integration of ferrites early in the design process to ensure seamless compatibility and functionality. In conclusion, the role of cable ferrites in modern electronics is not only about suppressing interference but also about enhancing the overall user experience by ensuring devices operate at their highest potential. Their continued evolution and application underscore their significance in our connected and digital lives, marking them as a key component in the ongoing pursuit of technological advancement and electronic reliability.
