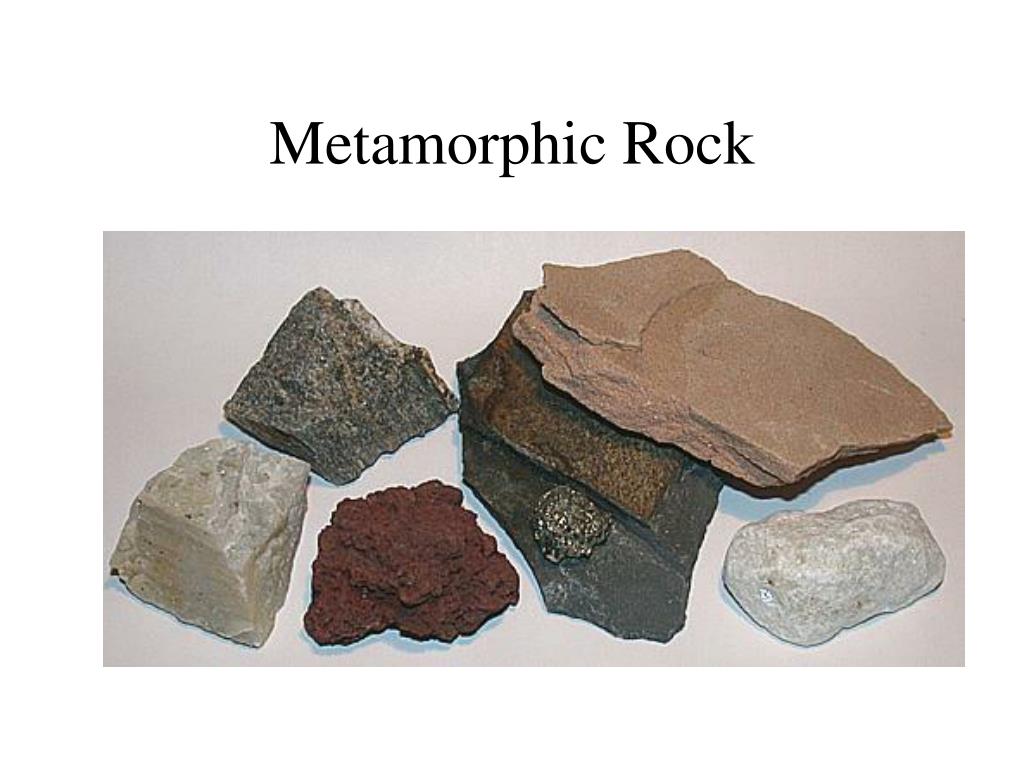

Metamorphic Rock

Loading in 2 Seconds...

play fullscreen
1 / 47

Metamorphic Rock - PowerPoint PPT Presentation


  • 532 Views
  • Uploaded on

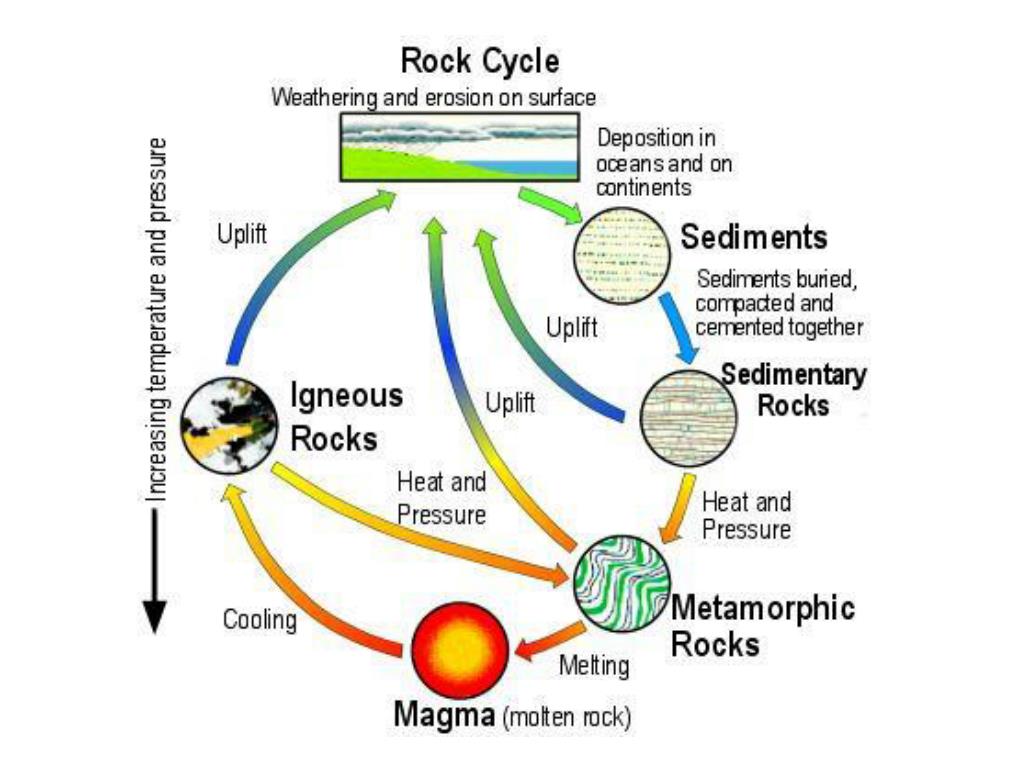

Metamorphic Rock. Rock Cycle. Metamorphism means "changed form". Agents of Metamorphism Changes occur because of: Heat Pressure Chemical fluids *Rocks adjust to become more stable under new, higher temperatures and pressures. HEAT

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Metamorphic Rock' - Jims


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
metamorphism means changed form
Metamorphism means "changed form".

Agents of Metamorphism

Changes occur because of:

  • Heat
  • Pressure
  • Chemical fluids

*Rocks adjust to become more stable under new, higher temperatures and pressures.

slide4

HEAT

    • There are several sources of heat for metamorphism.
      • a. Geothermal gradientTemperature increases with depth at a rate of 20 - 30 degrees C per km in the crust.Ultimate source of the heat? Radioactive decay.
      • b. Increase of temperature and pressure with depth causes Regional Metamorphism*Heat may come from large bodies of molten rock rising under a wide geographic area.
slide5

HEAT

  • Intrusions of hot magma can bake rocks as it intrudes them. Lava flows can also bake rocks on the ground surface.
slide6

2. Lava or magma in contact with other rock causes Contact Metamorphism.

  • Hornfels is a common
  • contact metamorphic rock.
slide8

Example of :

  • Contact metamorphism along a narrow (approx. 1 meter wide) diabase dike in the Deep River Basin of North Carolina. Diabase weathers tan.
  • Contact metamorphic hornfels are gray. Host rocks are red siltstones.
pressure

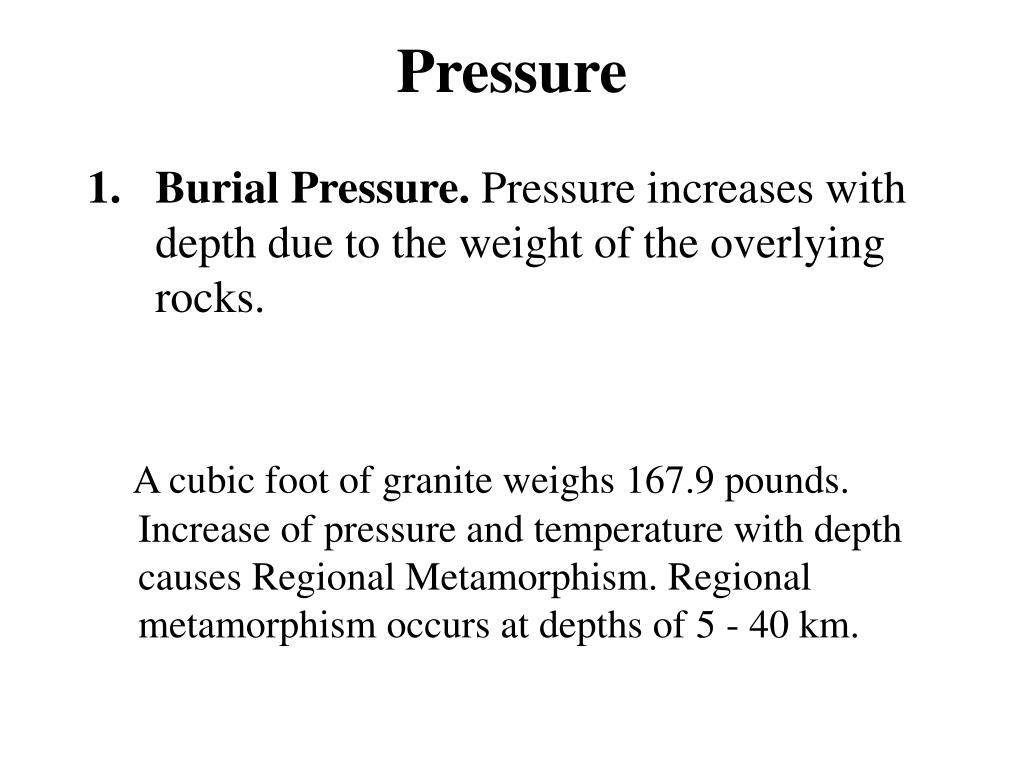

Pressure
  • Burial Pressure. Pressure increases with depth due to the weight of the overlying rocks.
  • A cubic foot of granite weighs 167.9 pounds. Increase of pressure and temperature with depth causes Regional Metamorphism. Regional metamorphism occurs at depths of 5 - 40 km.
slide10

Buried rocks are subjected to the force, or stress, Pressure (stress)as metamorphic agent exerted by the load above. This confining pressure is analogous to water pressure where the force is applied equally in all directions.

pressure11

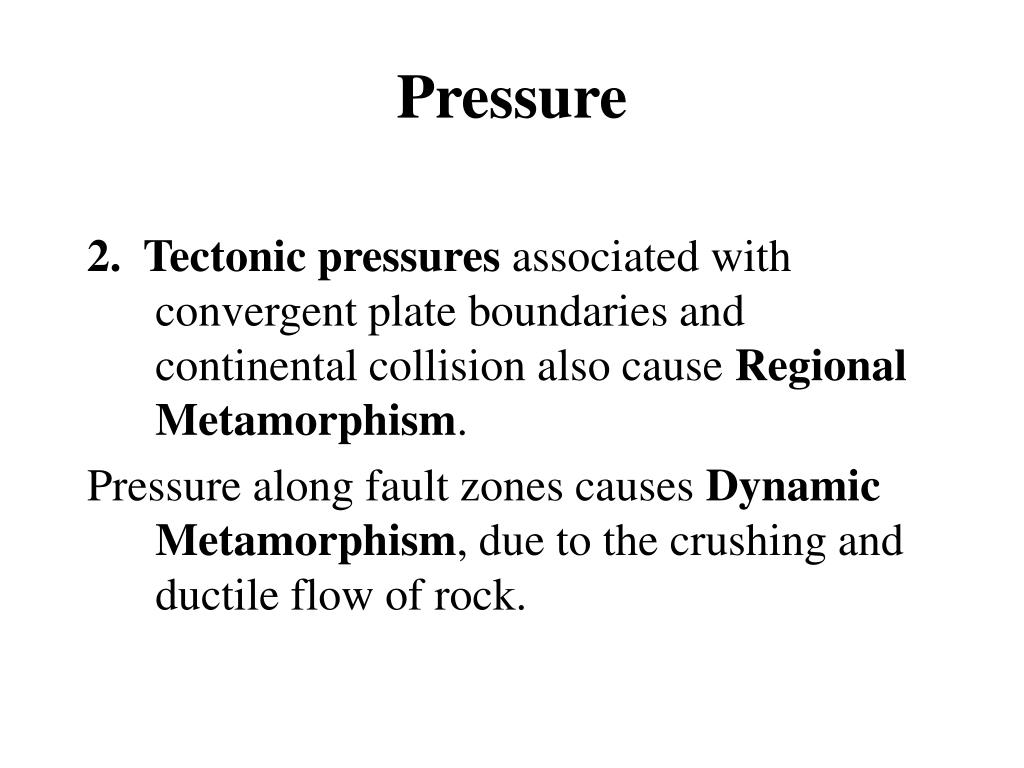

Pressure

2. Tectonic pressures associated with convergent plate boundaries and continental collision also cause Regional Metamorphism.

Pressure along fault zones causes Dynamic Metamorphism, due to the crushing and ductile flow of rock.

chemical fluids
Chemical Fluids

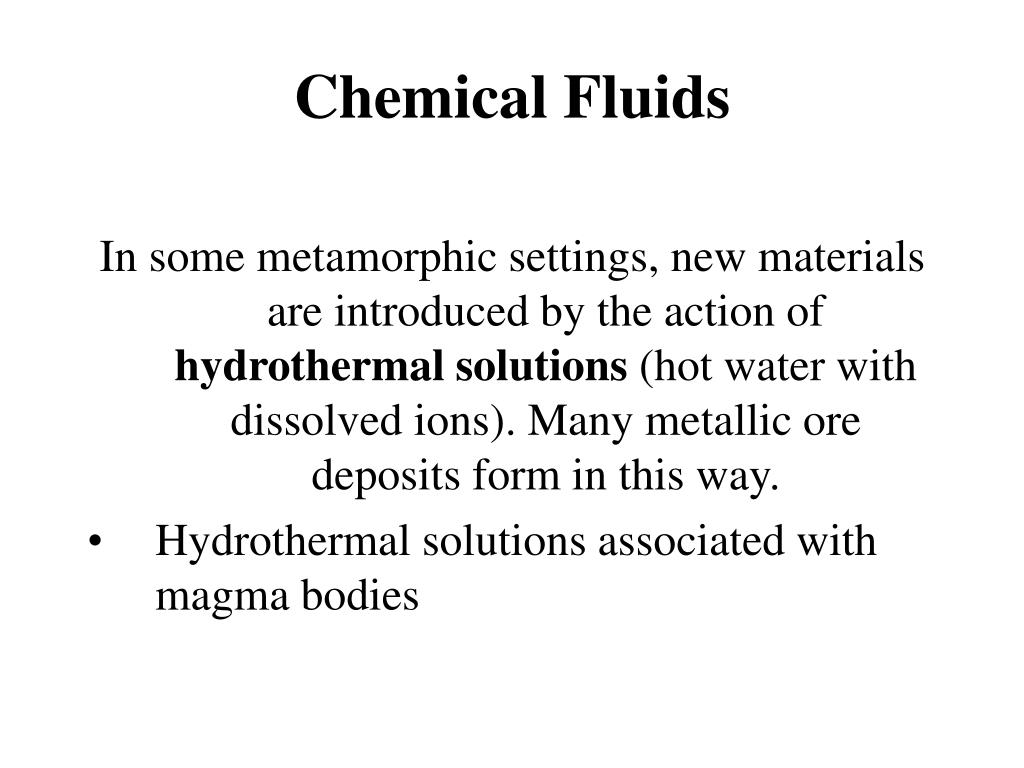

In some metamorphic settings, new materials are introduced by the action of hydrothermal solutions (hot water with dissolved ions). Many metallic ore deposits form in this way.

  • Hydrothermal solutions associated with magma bodies
chemical fluids14
Chemical Fluids

Black smokers - Sea water percolates through newly formed oceanic crust, dissolving out metallic sulfide minerals.

slide15

The hot sea water rises along fractures and pours from vents in the seafloor as black clouds of dark mineral-rich water pour from the vent.

slide16

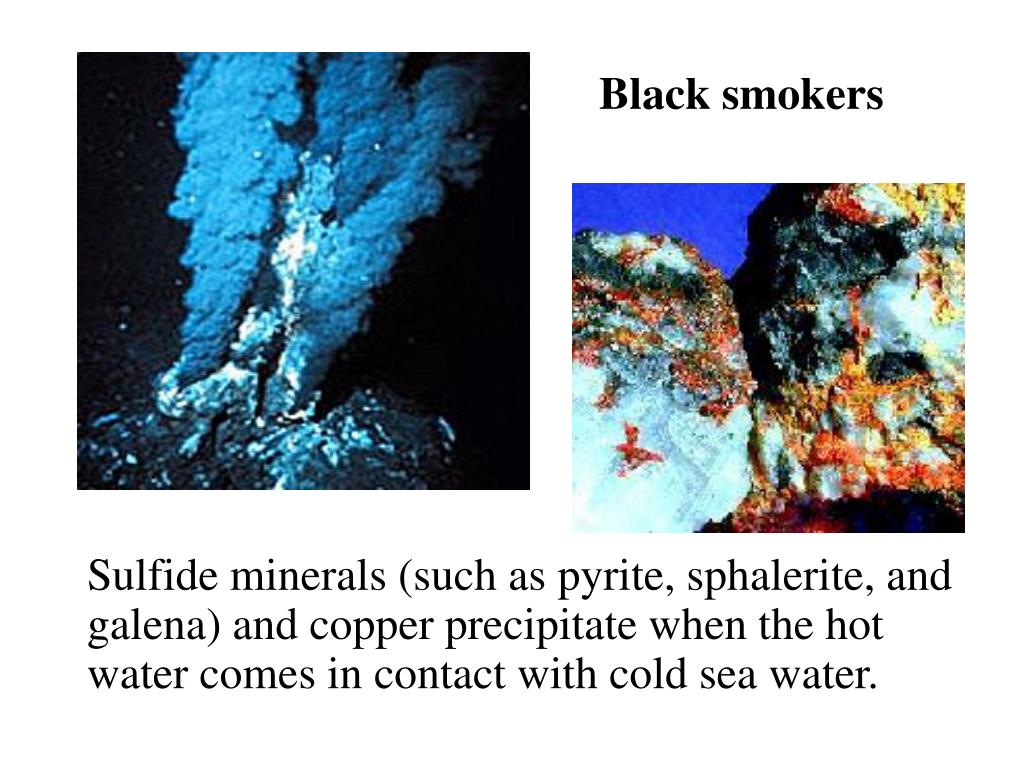

Black smokers

Sulfide minerals (such as pyrite, sphalerite, and galena) and copper precipitate when the hot water comes in contact with cold sea water.

how do rocks change
How do rocks change?
  • Metamorphism causes changes in:
  • Texture
  • Mineralogy

Texture

  • The processes of compaction and recrystallization change the texture of rocks during metamorphism.
compaction
Compaction
  • The grains move closer together.
  • The rock becomes more dense.
  • Porosity is reduced.
  • Example: clay to shale to slate
slide21

clay to shale to slate

(sediment) (sedimentary rock) (metamorphic)

recrystallization
Recrystallization

Growth of new crystals.

No changes in overall chemistry.

New crystals grow from the minerals already present.

A preferred orientation of minerals commonly develops under applied pressure. Platy or sheet-like minerals such as muscovite and biotite become oriented perpendicular to the direction of force. This preferred orientation is called foliation.

slide23

The diagram illustrates the effect of foliation.

A texture of this sort in a metamorphic rock is called FOLIATION and the rocks are said to be FOLIATED.

metamorphic textures
Metamorphic Textures
  • Foliation is a broad term referring to the alignment of sheet-like minerals. Types of foliation:
metamorphic textures25
Metamorphic Textures

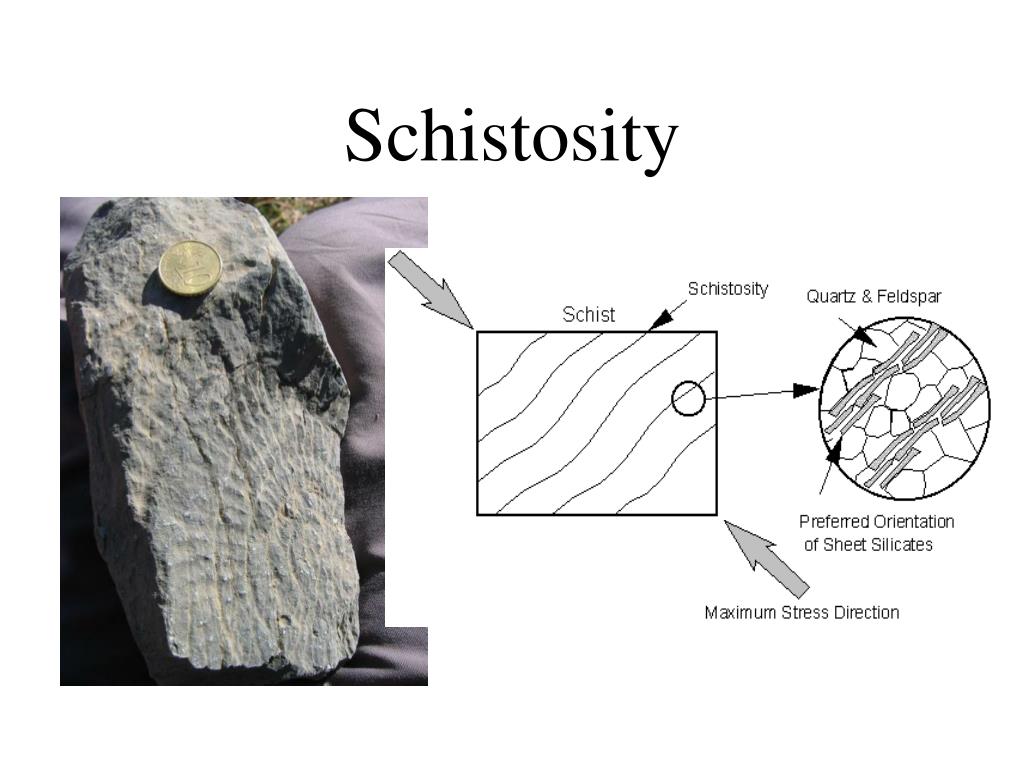

  • Schistosity - alignment of large mica flakes, as in a mica schist derived from the metamorphism of shale.
  • Slaty cleavage - alignment of very fine-grained micas, as in a slate derived from the metamorphism of shale.

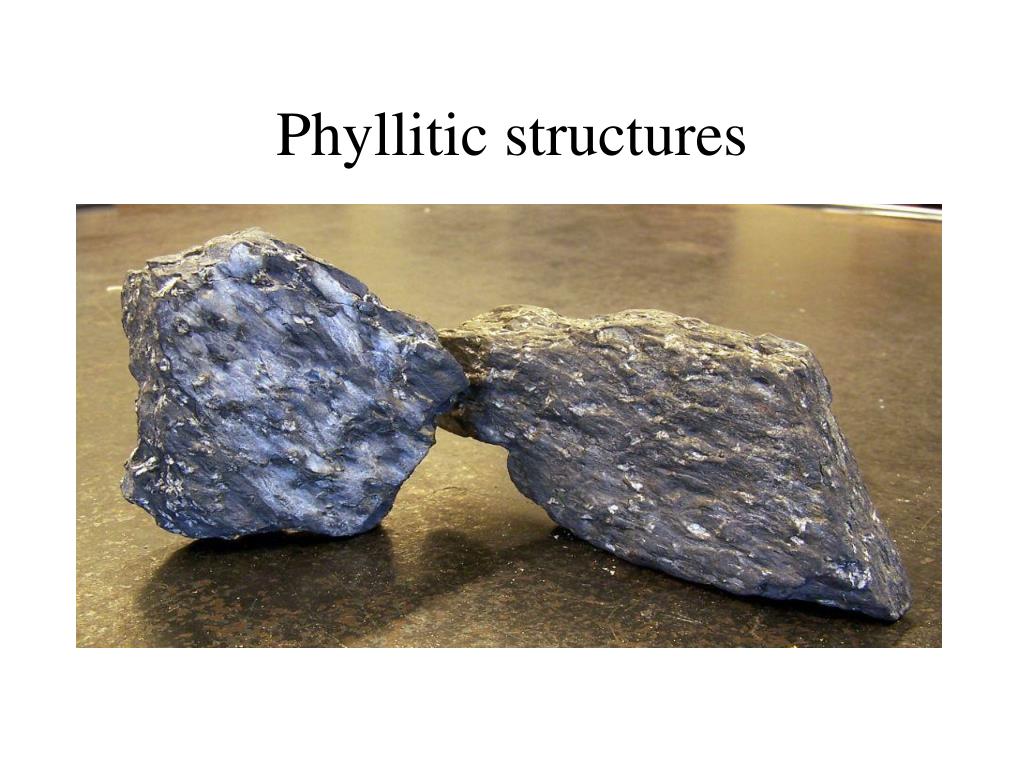

  • Phyllitic structure - alignment of fine-grained micas, as in a phyllite.

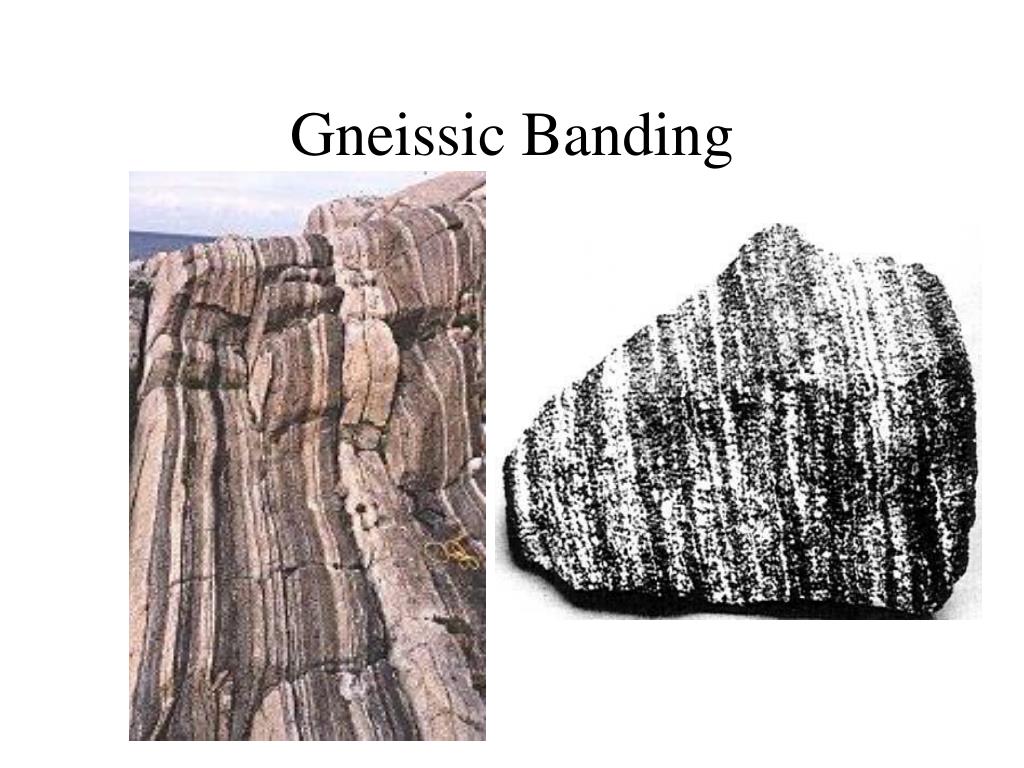

  • Gneissic banding - segregation of light and dark minerals into distinct layers in the rock, as in a gneiss.
slide27

Slate - very fine grained rock. Resembles shale.

  • Has slaty cleavage which may be at an angle to the original bedding. Relict bedding may be seen on cleavage planes. Often dark gray in color. "Rings" when you strike it. (Unlike shale, which makes a dull sound. Temperature about 200 degrees C; Depth of burial about 10 km.
slide29

Phyllite - fine-grained metamorphic rock. Has a frosted sheen, resembling frosted eye shadow. This is no coincidence.

  • Cosmetics commonly contain ground up muscovite (ground to a size similar to that occurring naturally in phyllite.)
slide31

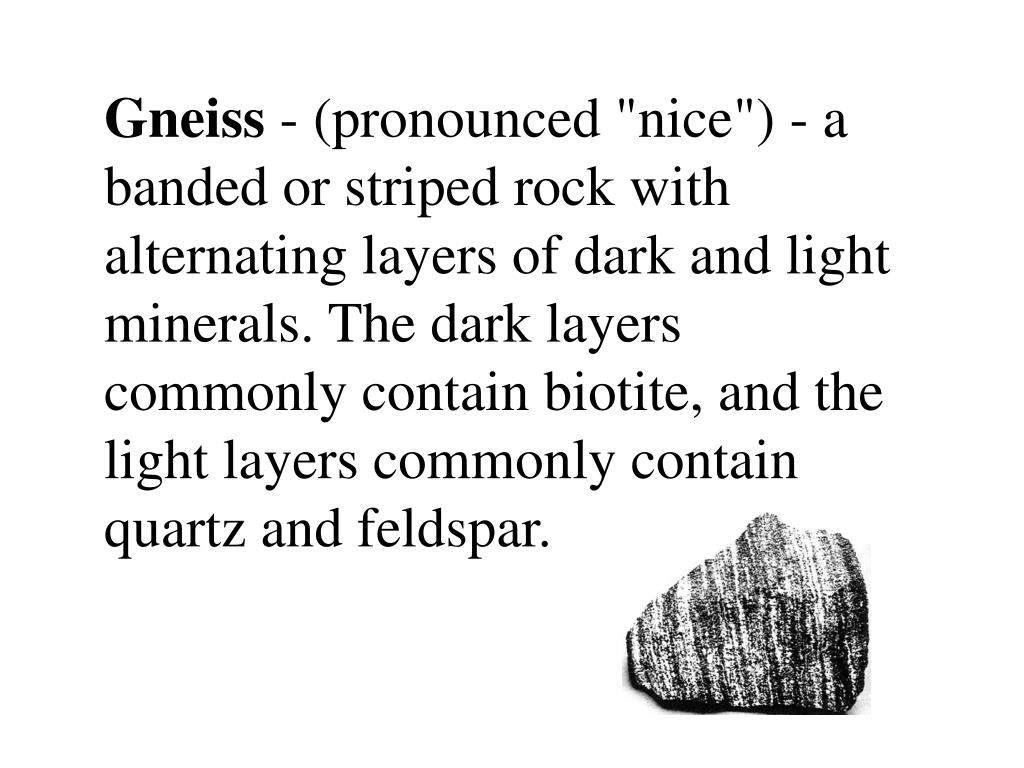

Gneiss - (pronounced "nice") - a banded or striped rock with alternating layers of dark and light minerals. The dark layers commonly contain biotite, and the light layers commonly contain quartz and feldspar.

slide33

Schist - metamorphic rock containing abundant obvious micas, several millimeters across. Several types of schist may be recognized, based on minerals which may be present:

    • mica schist
    • garnet schist
    • chlorite schist
    • kyanite schist
    • talc schist
non foliated
Non-foliated

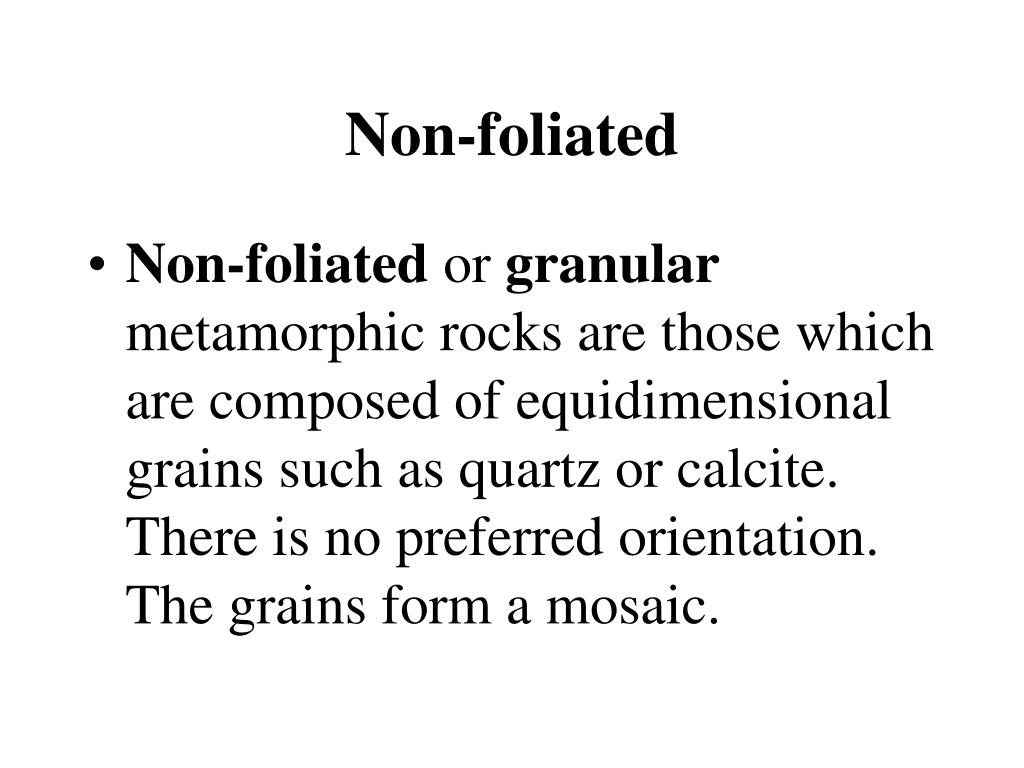

  • Non-foliated or granular metamorphic rocks are those which are composed of equidimensional grains such as quartz or calcite. There is no preferred orientation. The grains form a mosaic.
non foliated35
Non-foliated

Limestone to Marble Sandstone to Quartzite

slide36

Marble - fizzes in acid because its dominant minerals is calcite (or dolomite). The parent rock is limestone (or dolostone).

slide37

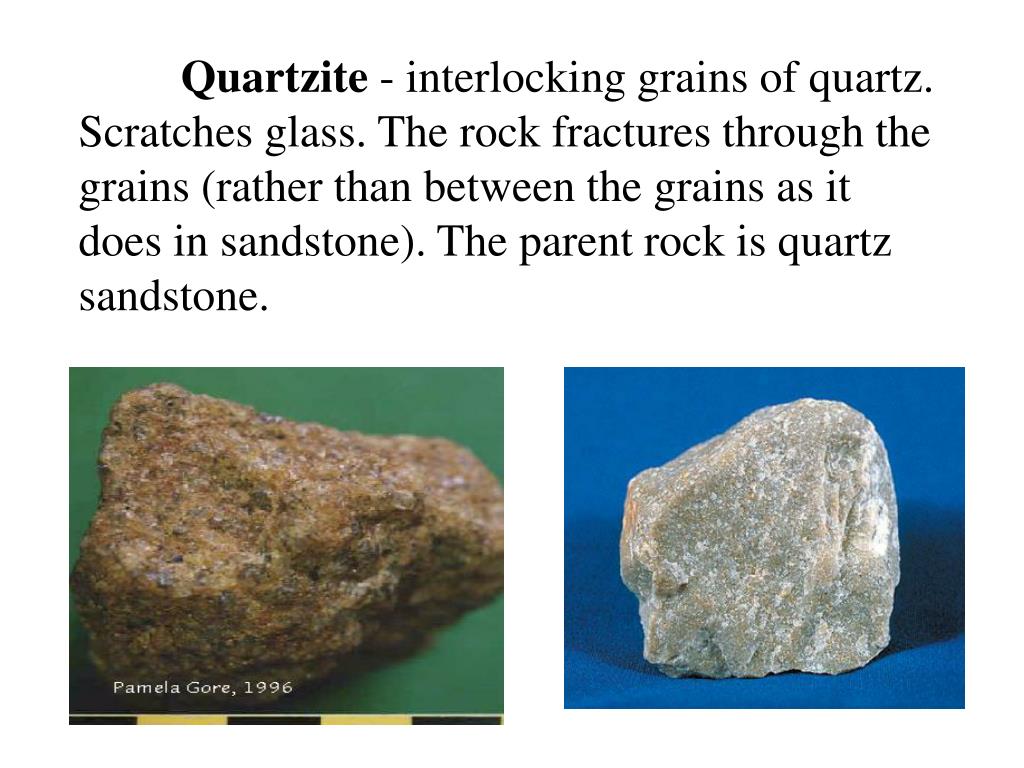

Quartzite - interlocking grains of quartz. Scratches glass. The rock fractures through the grains (rather than between the grains as it does in sandstone). The parent rock is quartz sandstone.

mineral changes in metamorphic rocks
Mineral changes in metamorphic rocks

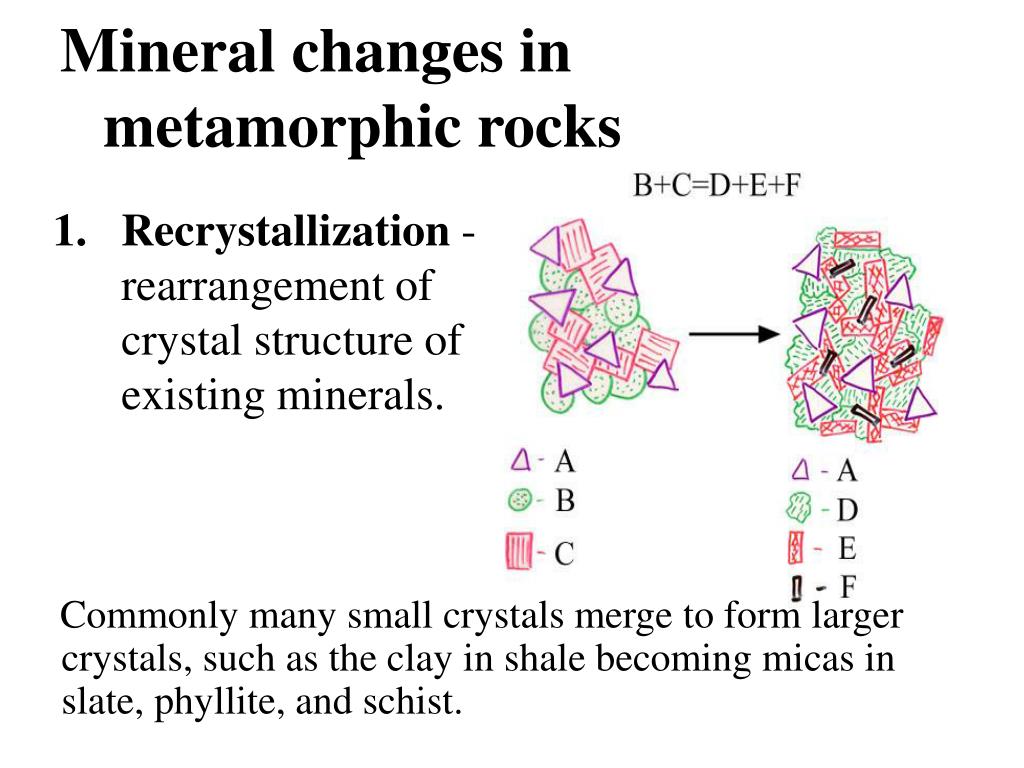

  • Recrystallization - rearrangement of crystal structure of existing minerals.

Commonly many small crystals merge to form larger crystals, such as the clay in shale becoming micas in slate, phyllite, and schist.

mineral changes in metamorphic rocks39
Mineral changes in metamorphic rocks
  • Formation of new minerals - there are a number of metamorphic minerals which form during metamorphism and are found exclusively (or almost exclusively) in metamorphic rocks:
  • Garnet - dark red dodecahedrons (12 sides)
  • Staurolite - brown lozenge-shaped minerals, commonly twinned to form "fairy crosses". State mineral of Georgia.
metamorphic index minerals
Metamorphic index minerals
  • In regional metamorphic terranes, the temperature and pressure regime is indicated by the distribution of metamorphic minerals across a large area. Low metamorphic grade (low temperatures and pressures) - about 200 degrees CSlate and phyllite
  • chlorite
  • muscovite
  • biotite
metamorphism of basalts and gabbros
Metamorphism of Basalts and Gabbros
  • Greenschist - Olivine, pyroxene, and plagioclase in an original basalt change to amphiboles and chlorite (both commonly green) as water in the pore spaces reacts with the original minerals at temperatures and pressures of low grade metamorphism.
  • Amphibolite - As pressure and temperature increase to intermediate grades of metamorphism, only dark colored amphiboles and plagioclase survive and the resulting rock is called an amphibolite.
  • Granulite - At the highest grade of metamorphism the amphiboles are replaced by pyroxenes and garnets, the foliation is lost and a granulite that has a granulitic texture is produced.
slide43

Greenschist –

Olivine, pyroxene, and plagioclase in an original basalt change to amphiboles and chlorite (both commonly green)

slide44

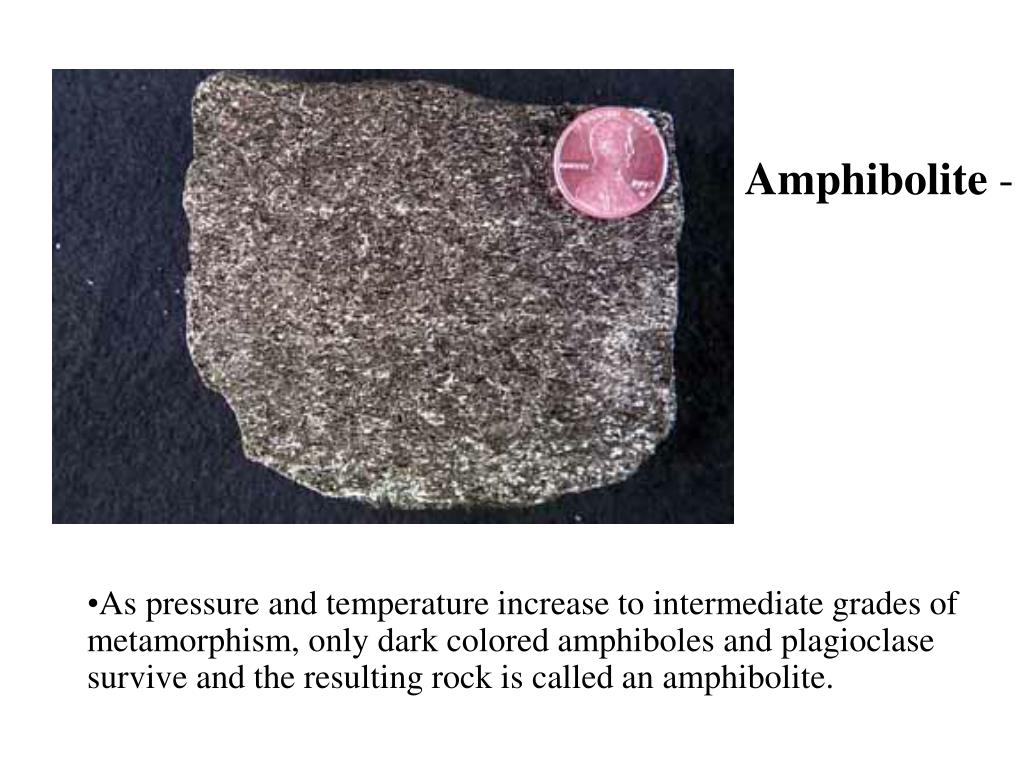

Amphibolite -

  • As pressure and temperature increase to intermediate grades of metamorphism, only dark colored amphiboles and plagioclase survive and the resulting rock is called an amphibolite.
slide45

Granulite -

At the highest grade of metamorphism the amphiboles are replaced by pyroxenes and garnets, the foliation is lost and a granulite that has a granulitic texture is produced.
