educational research data analysis and interpretation 1 descriptive statistics

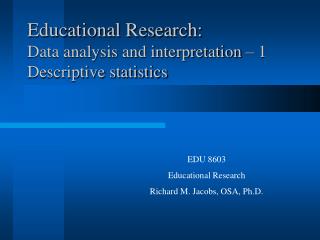

Educational Research: Data analysis and interpretation – 1Descriptive statistics

EDU 8603

Educational Research

Richard M. Jacobs, OSA, Ph.D.

statistics
Statistics...
  • A set of mathematical procedures for describing, synthesizing, analyzing, and interpreting quantitative data

…the selection of an appropriate statistical technique is determined by the research design, hypothesis, and the data collected

preparing data for analysis
Preparing data for analysis...

Data must be accurately scored and systematically organized to facilitate data analysis:

scoring: assigning a total to each participant’s instrument

tabulating: organizing the data in a systematic manner

coding: assigning numerals (e.g., ID) to data

slide4

descriptive statistics...

…permit the researcher to describe many pieces of data with a few indices

slide5

statistics...

…indices calculated by the researcher for a sample drawn from a population

slide6

parameters...

…indices calculated by the researcher for an entire population

types of descriptive statistics
Types of descriptive statistics…

1. graphs

2. measures of central tendency

3. measures of variability

slide8

graphs...

…representations of data enabling the researcher to see what the distribution of scores look like

1 graphs
1. Graphs…
  • frequency polygon
  • pie chart
  • boxplot
  • stem-and-leaf chart
slide10

measures of central tendency...

…indices enabling the researcher to determine the typical or average score of a group of scores

slide12

mode...

…the score attained by more participants than any other score

slide13

median...

…the point in a distribution above and below which are 50% of the scores

slide14

mean...

…the arithmetic average of the scores

slide15

measures of variability...

…indices enabling the researcher to indicate how spread out a group of scores are

3 measures of variability
3. Measures of variability…
  • range
  • quartile deviation
  • variance
  • standard deviation
slide17

range...

…the difference between the highest and lowest score in a distribution

slide18

quartile deviation...

…one half of the difference between the upper quartile (the 75%’ile) and the lower quartile (the 25%’ile) in a distribution

slide19

variance...

…a summary statistic indicating the degree of variability among participants for a given variable

slide20

standard deviation...

…the square root of variance providing an index of variability in the distribution of scores

normal distributions of data the normal curve
Normal distributions of data(the normal curve)...

A bell-shaped distribution of scores having four identifiable properties…

…50% of the scores fall above the mean and 50% of the scores fall below the mean

…the mean, median, and mode are the same value

slide22

…most scores are near the mean and, the farther from the mean a score is, the fewer the number of participants who attained that score

…the same number, or percentage, of scores is between the mean and plus one standard deviation as is between the mean and minus one standard deviation

non normal distributions of data skewed distributions
Non-normal distributions of data (skewed distributions)...

A non-bell-shaped distribution of scores where…

…mean < median < mode

(a “negatively skewed distribution”)

…mean > median > mode

(a “positively skewed distribution”)

slide24

measures of relative position...

…indices enabling the researcher to describe a participant’s performance compared to the performance of all other participants

4 measures of relative position
4. Measures of relative position…
  • percentile ranks
  • standard scores
slide26

percentile rank...

…indicates the percentage of scores that fall at or below a given score

slide27

standard score...

…a measure of relative position

slide28

Types of standard scores...

…z score

…T score

…stanines

slide29

z score...

…a statistic expressing how far a score is from the mean in terms of standard deviation units

slide30

T score...

…a transformed z score that voids negative numbers and decimals by multiplying the z score by 10 and adding 50

slide31

stanines...

…a standard score that divides a distribution into nine parts

slide32

measures of relationship...

…indices enabling the researcher to indicate the degree to which two sets of scores are related

5 measures of relationship
5. Measures of relationship…
  • Spearman Rho
  • Pearson r
slide34

correlations

…determines whether and to what degree a relationship exists between two or more quantifiable variables

…the degree of the relationship is expressed as a coefficient of correlation

slide35

…the presence of a correlation does not indicate a cause-effect relationship primarily because of the possibility of multiple confounding factors

correlation coefficient
Correlation coefficient…

-1.00

0.00

+1.00

strong positive

strong negative

no relationship

slide37

Spearman Rho...

…a measure of correlation used for rank and ordinal data

slide38

Pearson r...

…a measure of correlation used for data of interval or ratio scales

…assumes that the relationship between the variables being correlated is linear

mini quiz
Mini-Quiz…
  • True and false…

…the analysis of the data is as important as any other component of the research process

True

slide40
True and false…

…descriptive statistics are normally computed separately for each group in a research study

True

slide41
True and false…

…every instrument administered must always be scored accurately and consistently, using the same procedures and criteria

True

slide42
True and false…

…tentative scoring procedures must always be tried out beforehand by administering the instrument to the study participants

False

slide43
True and false…

…a computer should not be used to perform an analysis that a researcher has never completed by hand or, at least, studied extensively

True

slide44
True and false…

…the first step in data analysis is to describe, or summarize, the data using descriptive statistics

True

slide45
True and false…

…the number resulting from the computation of a measure of central tendency represents the typical score attained by a group of participants

True

slide46
True and false…

…the mean is the most precise, stable index of typical performance that is especially useful in situations in which there are extreme scores

False

slide47
True and false…

…unless a correlation coefficient is used to compute the reliability of an instrument in a causal-comparative or experimental study, a correlation coefficient is only computed in a correlation study

True

slide48
True and false…

…plus and/or minus two standard deviations includes more the 99% of the scores

False

slide49
True and false…

…standard scores are rarely used in research studies

True

slide50
True and false…

…to test a hypothesis adequately, more than descriptive statistics are normally needed

True

slide51
True and false…

…if the extreme scores are at the upper, or higher, end of the distribution, it is said to be positively skewed

True

slide52
True and false…

…the median of a set of scores corresponds to the 50% percentile

True

slide53
True and false…

…a standard score is a measure of relative position that is appropriate when the data represent a nominal scale

False

slide54
True and false…

…a z score expresses how far a score is from the mean in terms of standard deviation units

True

slide55
True and false…

…the Spearman Rho is the appropriate measure of correlation when the variables are expressed as ranks instead of scores

True

slide56
True and false…

…the assumption associated with the application of Pearson r is that the relationship between the variables being correlated is linear

True

slide57
Fill in the blank…

…statistics which permit the researcher to describe many scores with a small number of indices

descriptive statistics

slide58
Fill in the blank…

…the values calculated for a sample drawn form a population

statistics

slide59
Fill in the blank…

…the values calculated for an entire population

parameters

slide60
Fill in the blank…

…a convenient way to describe a set of data with a single number

measures of central tendency

slide61
Fill in the blank…

…the index of central tendency appropriate for nominal data

mode

slide62
Fill in the blank…

…the index of central tendency appropriate for ordinal data

median

slide63
Fill in the blank…

…the index of central tendency appropriate for interval or ratio data

mean

slide64
Fill in the blank…

…the score attained by more participants than any other score

mode

slide65
Fill in the blank…

…the point in a distribution above and below which are 50% of the scores

median

slide66
Fill in the blank…

…the arithmetic average of the scores

mean

slide67
Fill in the blank…

…the difference between the highest and lowest score in a distribution

range

slide68
Fill in the blank…

…the measure of variability identifying one half of the difference between the 75th percentile and the 25th percentile

quartile deviation

slide69
Fill in the blank…

…the measure of variability used for interval and ratio data

standard deviation

slide70
Fill in the blank…

…the only appropriate measure of variability for nominal data

range

slide71
Fill in the blank…

…+/- 1.00 standard deviations constitutes ____ % of the sample

68%

slide72
Fill in the blank…

…extreme scores at the lower end of the distribution indicates a ______ skewed distribution

positively

slide73
Fill in the blank…

…indices describing where a score is in relation to all other scores

measures of relative position

slide74
Fill in the blank…

…indicates the percentage of scores that fall at or below a given score

percentile ranks

slide75
Fill in the blank…

…if a set of scores is transformed into a set of z scores, the new distribution has a mean of ____ and a standard deviation of ____

zero; one

slide76
Fill in the blank…

…a set of standard scores that divide a distribution into nine parts

stanines

slide77
Fill in the blank…

…the most appropriate measure of correlation when the sets of data to be correlated represent either interval or ratio scales

Pearson r

this module has focused on
This module has focused on...

descriptive statistics

...the statistical procedures for describing, synthesizing, analyzing, and interpreting quantitative data

the next module will focus on
The next module will focus on...

inferential statistics

...the statistical procedures for generalizing to a population of individuals based on information obtained from a limited number of research participants
