Air Toxics Monitoring in the Houston-Galveston Area

David Brymer, Texas Commission on Environmental Quality

General monitoring information l.jpg

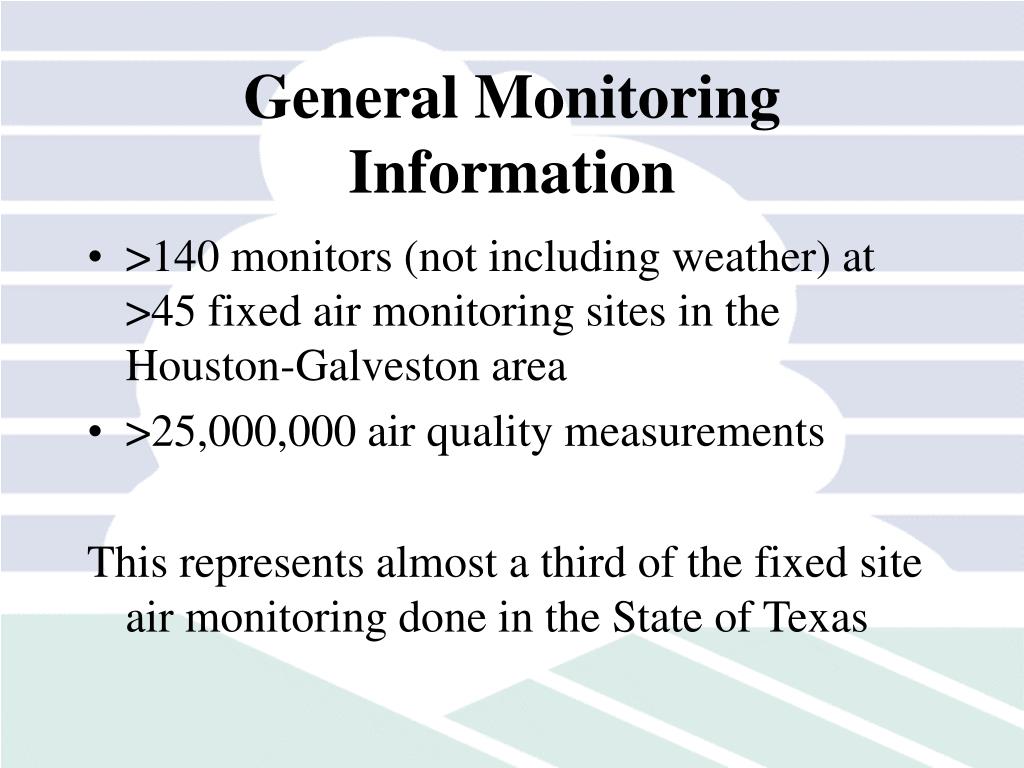

General Monitoring Information

  • >140 monitors (not including weather) at >45 fixed air monitoring sites in the Houston-Galveston area

  • >25,000,000 air quality measurements

    This represents almost a third of the fixed site air monitoring done in the State of Texas

Continuous monitoring sites l.jpg
Continuous Monitoring Sites

Topics of discussion l.jpg
Topics of Discussion

  • Who is doing this monitoring?

  • Where are we monitoring Air Toxics?

    • Network Design (why are we monitoring where we are?)

  • What compounds are we monitoring?

  • How are we monitoring Air Toxics?

    • Types of monitoring

    • Technology used/ Sampling frequency

Who does this monitoring l.jpg
Who Does this Monitoring?

  • Governmental Agencies

    • EPA

    • TCEQ

    • Local Governments (HCPC, GCHD, etc..)

  • Citizen Groups

  • Industry

    • Consortiums (HRM)

    • Individual facility fenceline and/or on-site monitoring

Network design l.jpg
Network Design

  • Fixed sites

    • Sited to address a specific monitoring objective

  • Mobile sites

    • Screening or addressing a specific concern/ incident

    • Upwind/downwind

Slide7 l.jpg

Fixed Air Toxics Monitoring Sites in the Greater Houston-Galveston Area

EISM Sites

HRM Sites

TCEQ Sites


Air toxics related projects with fixed sites l.jpg
Air Toxics Related Projects with Fixed Sites Houston-Galveston Area

  • National Air Toxics Trends Sites (NATTS) – EPA

  • Photochemical Assessment Monitoring Stations (PAMS) – EPA

  • Community Air Toxics Monitoring Network (CATMN) – State

  • Houston Regional Monitoring Network – Industry

  • Supplemental Environmental Projects/Agreed Order Monitoring – Gov’t/Industry

Catmn l.jpg
CATMN Houston-Galveston Area

  • Legislative directive in 1992

  • Assess community exposure to VOC concentrations

  • Determine potential long-term health effects

  • Data used to assess temporal/spatial variability

Catmn site considerations l.jpg
CATMN Site Considerations Houston-Galveston Area

  • Magnitude of pollution emissions within 10 km radius

  • Predominant wind direction/wind rose

  • Population density

  • Traffic patterns

  • Degree of public concern

  • Logistical considerations

    • 40 CFR Part 58, App. D & E

    • Access to the site

  • Available data – mobile monitoring

Slide11 l.jpg

Air Toxics Monitoring Sites Houston-Galveston Area

Toxics Monitoring Sites

Houston beaumont catmn l.jpg
Houston/Beaumont CATMN Houston-Galveston Area

Pams monitoring l.jpg
PAMS Monitoring Houston-Galveston Area

  • Monitoring required in non-attainment areas (1990 CAA Section 182[c][1])

  • Enhanced monitoring of ozone, its precursors (VOCs which include some air toxics & NOx) and influencing factors (meteorology and solar radiation)

  • In the Houston area this requirement includes upwind (Galveston), area of anticipated max VOC emissions (Clinton Dr), and downwind (Aldine)

National air toxics monitoring strategy l.jpg
National Air Toxics Monitoring Strategy Houston-Galveston Area

  • Urban Air Toxics Strategy (UATS) -1999

  • Attain substantial reduction of Non-cancer HAPs

  • Attain 75% reduction of cancer drivers from 1993 levels

  • Monitoring Goals

    • Trends

    • Exposure Assessments (ambient measurements as a surrogate for actual human exposure)

    • Air Quality Model Evaluation

Slide16 l.jpg

22 NATTS sites Houston-Galveston Area

  • 15 urban (1 in Tx – Deer Park)

  • 7 rural (1 in Tx – Karnac)

What compounds are being monitored l.jpg
What Compounds are Being Monitored? Houston-Galveston Area

  • Criteria Pollutants (ozone, particulate, CO, SO2, NO2, and lead)

  • Volatile Organic Compounds

    • 1 to over 150 compounds at a given site

    • Includes HRVOCs and air toxics at most sites

    • Dependent upon monitoring method and project/site objectives

What are hazardous air pollutants haps l.jpg
What are Hazardous Air Pollutants (HAPs)? Houston-Galveston Area

  • Hazardous air pollutants are those pollutants that are known or suspected to cause cancer or other serious health effects or adverse environmental effects, Source: EPA.

  • EPA classified 188 compounds as HAPs in the 1990 Clean Air Act Amendments

  • The National Air Toxics Assessment (NATA) study done by EPA in 1990 identified 6 risk drivers of particular interest nationwide.

    • VOCs – benzene, 1,3-butadiene, acrolein, formaldehyde

    • Metals – chromium* and arsenic

  • The 1999 NATA study using 1996 data did not identify 1,3-butadiene and arsenic as national risk drivers

Sources of air toxics l.jpg
Sources of Air Toxics Houston-Galveston Area

  • Mobile sources

  • Stationary point sources

  • Indoor sources

  • Area sources such as lawn mowing, heavy machinery, dry cleaners, and printing operations

  • Atmospheric reaction products

Where are haps monitored in houston l.jpg
Where are HAPs Monitored in Houston? Houston-Galveston Area

There are 32 TCEQ or industry-funded ambient air toxics monitors in the HGB area (not including SEP & Agreed Order monitoring)

Source: TCEQ

Houston galveston area hap monitors l.jpg
Houston-Galveston Area HAP Monitors Houston-Galveston Area


TCEQ & EISM sites

HRM sites

How are we doing fixed site monitoring l.jpg

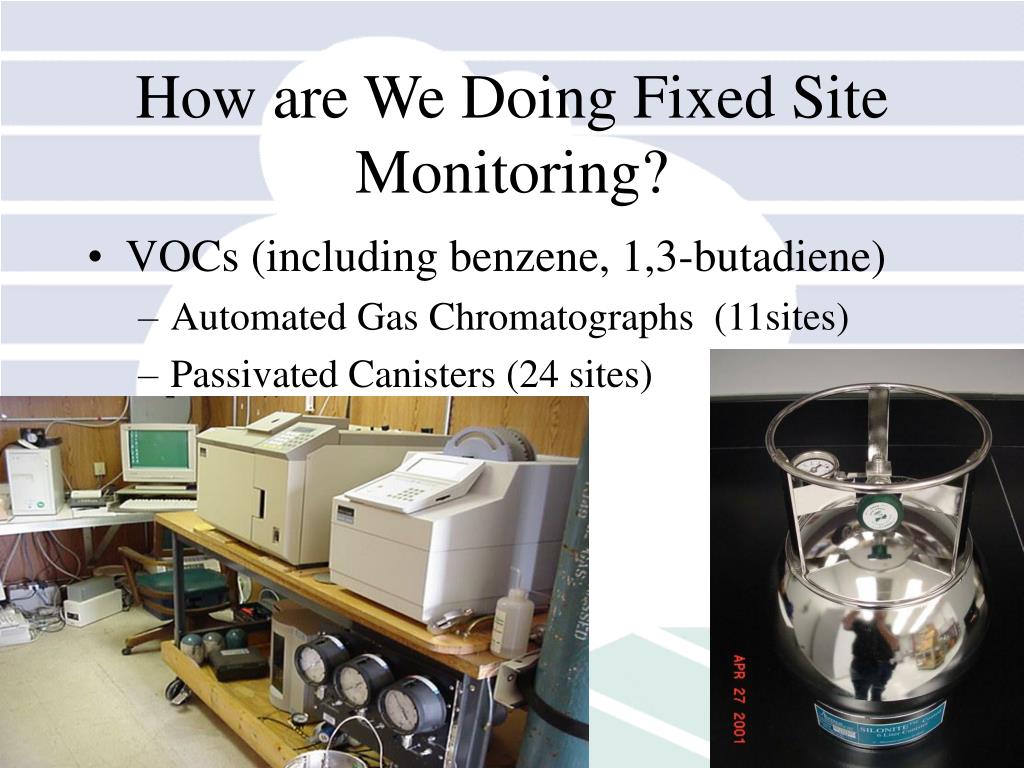

How are We Doing Fixed Site Monitoring? Houston-Galveston Area

  • VOCs (including benzene, 1,3-butadiene)

    • Automated Gas Chromatographs (11sites)

    • Passivated Canisters (24 sites)

How are we doing fixed site monitoring23 l.jpg
How are we Doing Fixed Site Monitoring? Houston-Galveston Area

  • Carbonyls ( including formaldehyde, acrolein)

    • DNPH cartridge collection and HPLC analysis

    • 3 sites

  • Metals

    • Filter collection

      and ICP analysis

    • 8 sites

Voc monitoring approaches l.jpg
VOC Monitoring Approaches Houston-Galveston Area

  • AutoGC’s

    • Provide hourly measurements

    • Provide sub ppbV detection limits

    • Preliminary data available within 2 hrs

    • Provides data on HRVOCs and air toxics

    • Limited target list (non-polar compounds)

    • Only 1 shot at the analysis

    • Large capital investment

    • Generates approx. 500,000 data points/yr

Voc monitoring approaches25 l.jpg

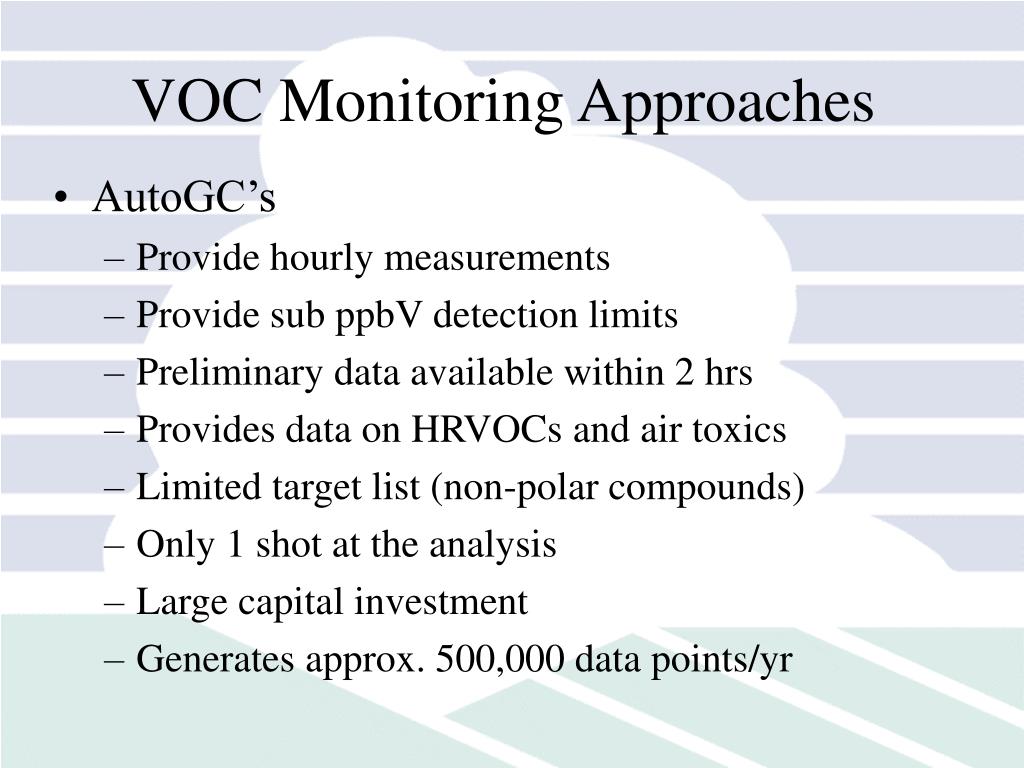

VOC Monitoring Approaches Houston-Galveston Area

  • Canisters

    • Can be configured for a wide variety of sample collection times (<1 min to > 1 day). We generally use 24 hr samples collected every 6th day.

    • Can be analyzed for a wide variety of compounds (>100 target compounds).

    • Lower initial and on-going costs.

    • Provide sub ppbV level detection limits with the ability to reanalyze or dilute a sample

    • Samples sent back to a lab for analysis. Results are not available in real-time or near real-time.

Voc monitoring with canisters l.jpg
VOC Monitoring with Canisters Houston-Galveston Area

Event triggered can sampler l.jpg
Event Triggered Can Sampler Houston-Galveston Area

Mobile site monitoring l.jpg
Mobile Site Monitoring Houston-Galveston Area

  • Mobile Laboratory Monitoring (In Field)

    • TCEQ

  • Screening/Incident Monitoring

    • EPA

    • TCEQ

      • HCPC

      • GCPC

      • Citizen groups

Mobile laboratory capabilities l.jpg
Mobile Laboratory Capabilities Houston-Galveston Area

  • Volatile Organics

    • Screening with portable GC/MS and other handheld instrumentation (soon to include IR camera)

    • In field analysis using GC/PID/FID

    • Confirmational sampling via canisters and GC/MS analysis

What is tceqs mobile laboratories role l.jpg
What is TCEQs Mobile Laboratories Role? Houston-Galveston Area

  • Find contributors to elevated ambient concentrations measured at fixed sites

  • Determine compliance with H2S/SO2/particulate Regulations

  • Respond to ongoing complaints that appear to match monitoring capabilities

  • Collect enforcement quality data

  • Identify/quantify air toxics in specific areas

When roles do tceqs mobile laboratories not fill l.jpg
When Roles Do TCEQs Mobile Laboratories not Fill? Houston-Galveston Area

  • Emergency response (timing, safety, response time)

  • General odor complaints (don’t do nuisance odor investigations - can analyze for H2S/SO and organics)

  • Source sampling (in most cases)

  • Not great at monitoring intermittent or batch operations

Screening incident investigation l.jpg

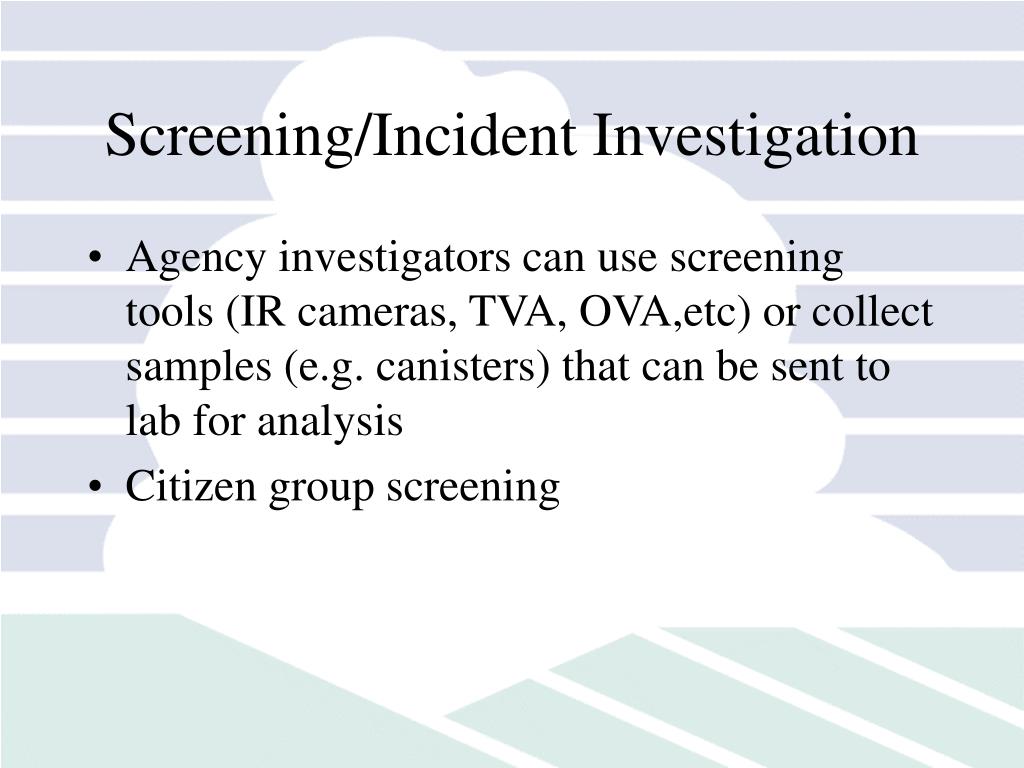

Screening/Incident Investigation Houston-Galveston Area

  • Agency investigators can use screening tools (IR cameras, TVA, OVA,etc) or collect samples (e.g. canisters) that can be sent to lab for analysis

  • Citizen group screening
