overview
Overview
  • OMG C4I GEOSIT Discussions
    • Who is Gallium and What is InterMAPhics
    • InterMAPhics Evolution
      • External definition of the components
      • External definition of the application
    • InterMAPhics 2D/3D
      • Visual Layering
      • Definition by component
      • Map Support
      • User Interaction
      • External Data Interface
      • Reduction in Life Cycle Costs

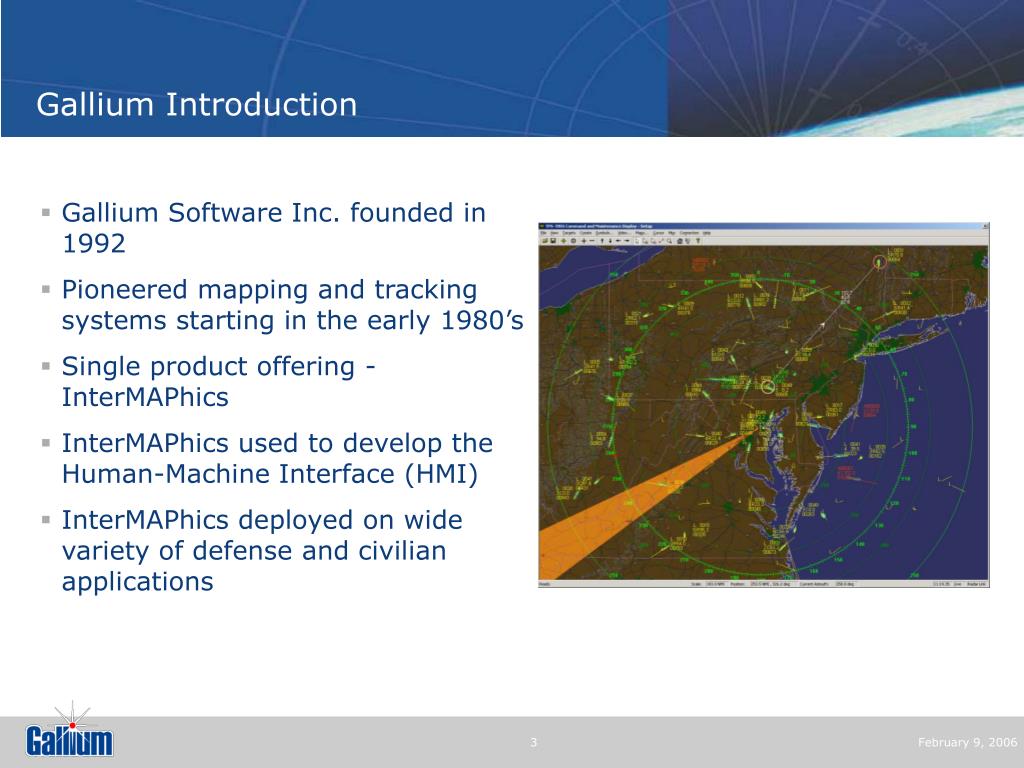

gallium introduction
Gallium Introduction
  • Gallium Software Inc. founded in 1992
  • Pioneered mapping and tracking systems starting in the early 1980’s
  • Single product offering - InterMAPhics
  • InterMAPhics used to develop the Human-Machine Interface (HMI)
  • InterMAPhics deployed on wide variety of defense and civilian applications
intermaphics history
InterMAPhics History

InterMAPhics 2D/3D

Version 7

Version 5

Version 4

Version 3

Version 1

Version 2

Customers

Current InterMAPhics

100

10

0

Legacy InterMAPhics

85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 06 07 08

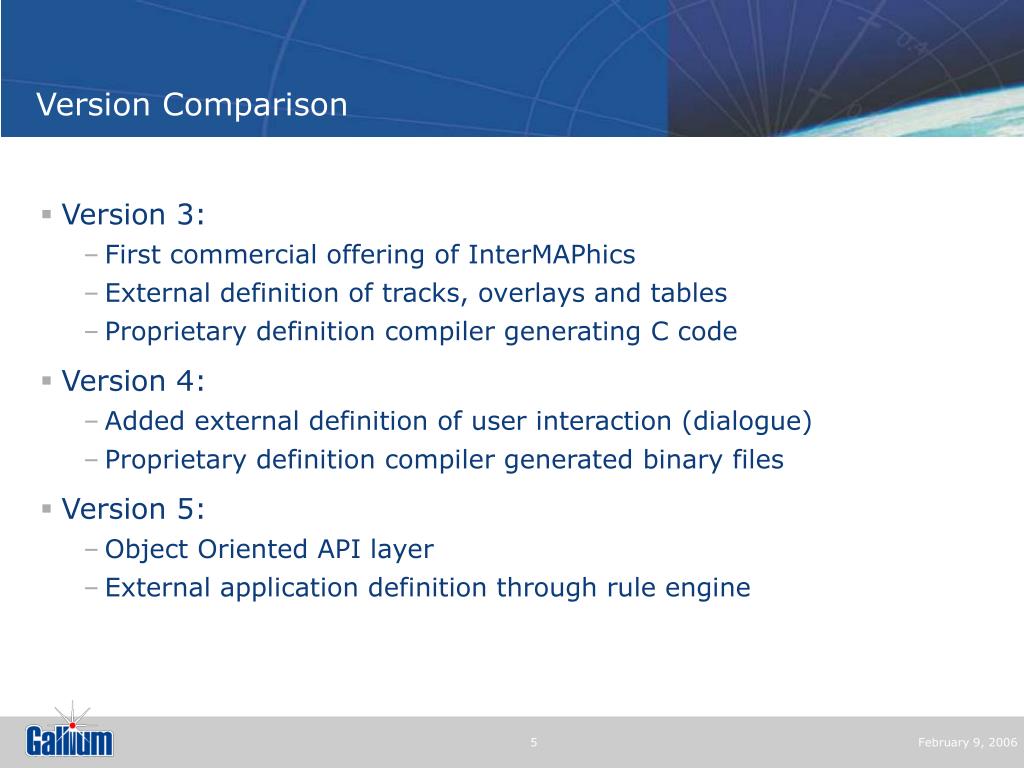

version comparison
Version Comparison
  • Version 3:
    • First commercial offering of InterMAPhics
    • External definition of tracks, overlays and tables
    • Proprietary definition compiler generating C code
  • Version 4:
    • Added external definition of user interaction (dialogue)
    • Proprietary definition compiler generated binary files
  • Version 5:
    • Object Oriented API layer
    • External application definition through rule engine
intermaphics 5 external definition languages
InterMAPhics 5 External Definition Languages

Display Program

InterMAPhics

Kernel

Native Graphics Library

Resource Definition

IM

Libraries

Map Data

Contact Definition

Display

Application

Code

Table Definition

Application Definition

Graphic Overlay Definition

Dialogue Definition

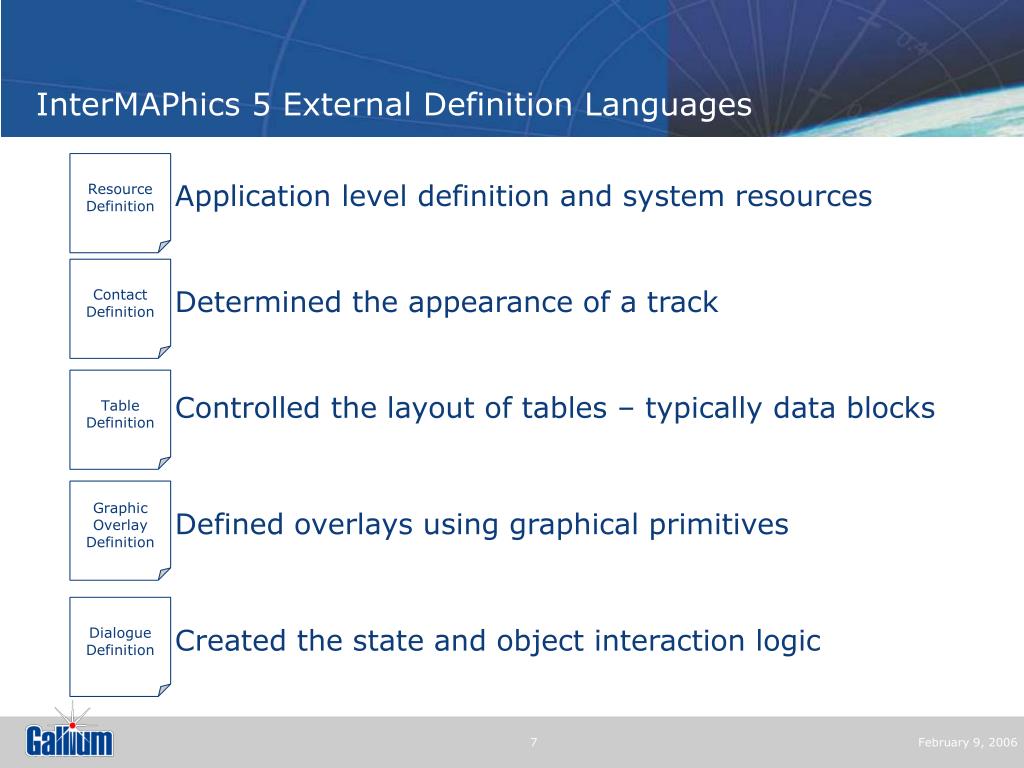

intermaphics 5 external definition languages1
InterMAPhics 5 External Definition Languages

Resource Definition

  • Application level definition and system resources
  • Determined the appearance of a track
  • Controlled the layout of tables – typically data blocks
  • Defined overlays using graphical primitives
  • Created the state and object interaction logic

Contact Definition

Table Definition

Graphic Overlay Definition

Dialogue Definition

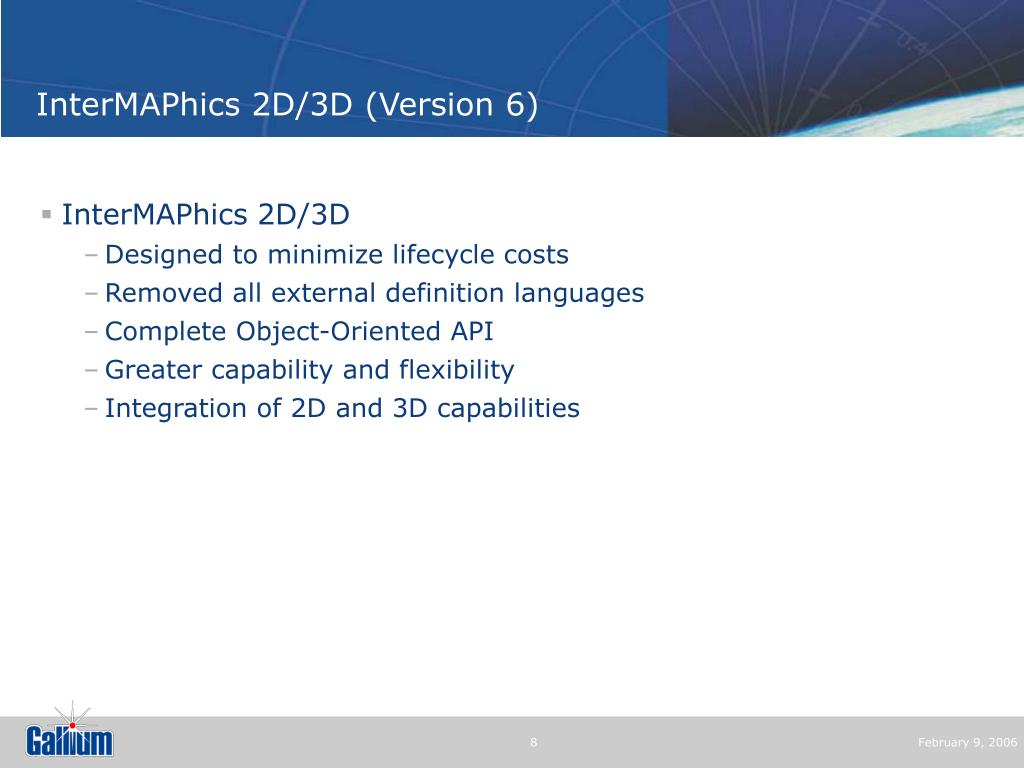

intermaphics 2d 3d version 6
InterMAPhics 2D/3D (Version 6)
  • InterMAPhics 2D/3D
    • Designed to minimize lifecycle costs
    • Removed all external definition languages
    • Complete Object-Oriented API
    • Greater capability and flexibility
    • Integration of 2D and 3D capabilities
visual layering
Visual Layering

50NM

ABC1234

123.0

ABC4321

250.0

  • Independent visual layers
    • Containment of entities
    • Display Rendering
    • Visual Control
    • Thread Independence

Viewport

PresentationLayer

MapLayer

definition of user components
Definition of User Components
  • Definition by containment
  • Collection of graphical primitives
  • Relative positioning
  • No preconceived appearance
  • Separation of data and visualization
  • Separation of visualization and behavior

PresentationLayer

Presentation

Primitive

PrimitiveGroup

application components
Application Components
  • Defined structure for common objects
    • Tracks
    • Plots
    • Compass Rose
    • Range Rings
  • Supporting application framework
    • Controllers
    • Tables
    • Common design patterns
  • Used for rapid-development
map support
Map Support
  • Leveraging mature standards
    • NGA
    • ESRI
  • Independent from component layers
  • Static visualization
  • Performance optimized
  • Layer any number of maps

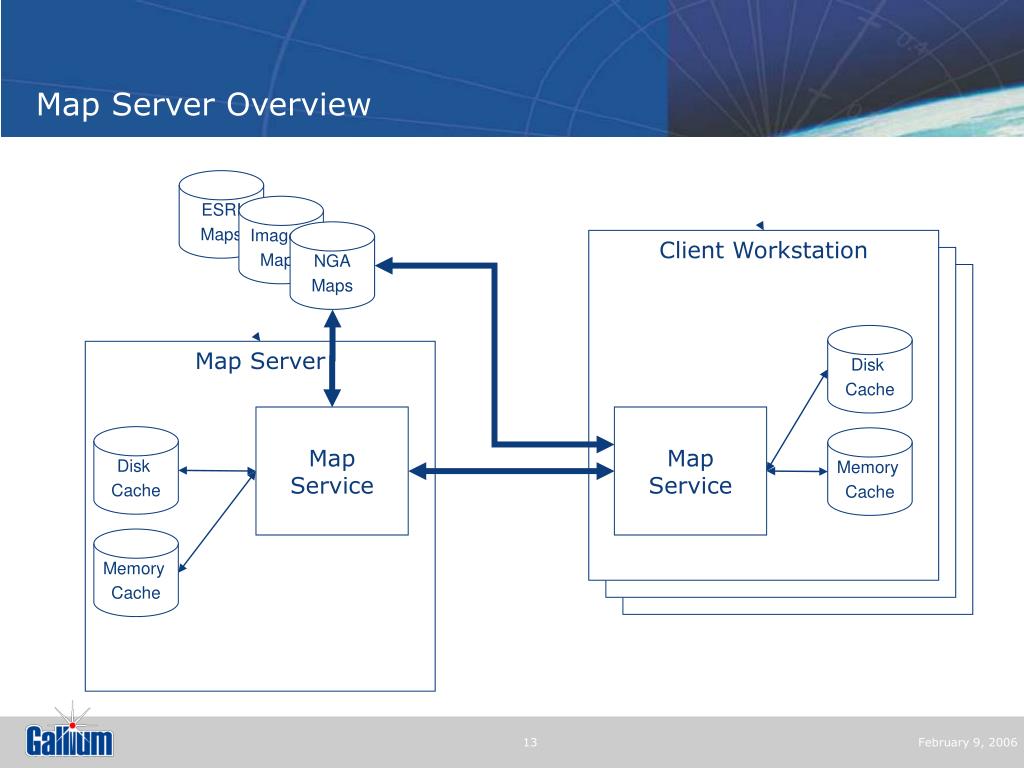

map server overview
Map Server Overview

ESRI

Maps

Imagery

Maps

NGA

Maps

Client Workstation

Client Workstation

Client Workstation

Disk

Cache

Map Server

Map Service

Map Service

Disk

Cache

Memory

Cache

Memory

Cache

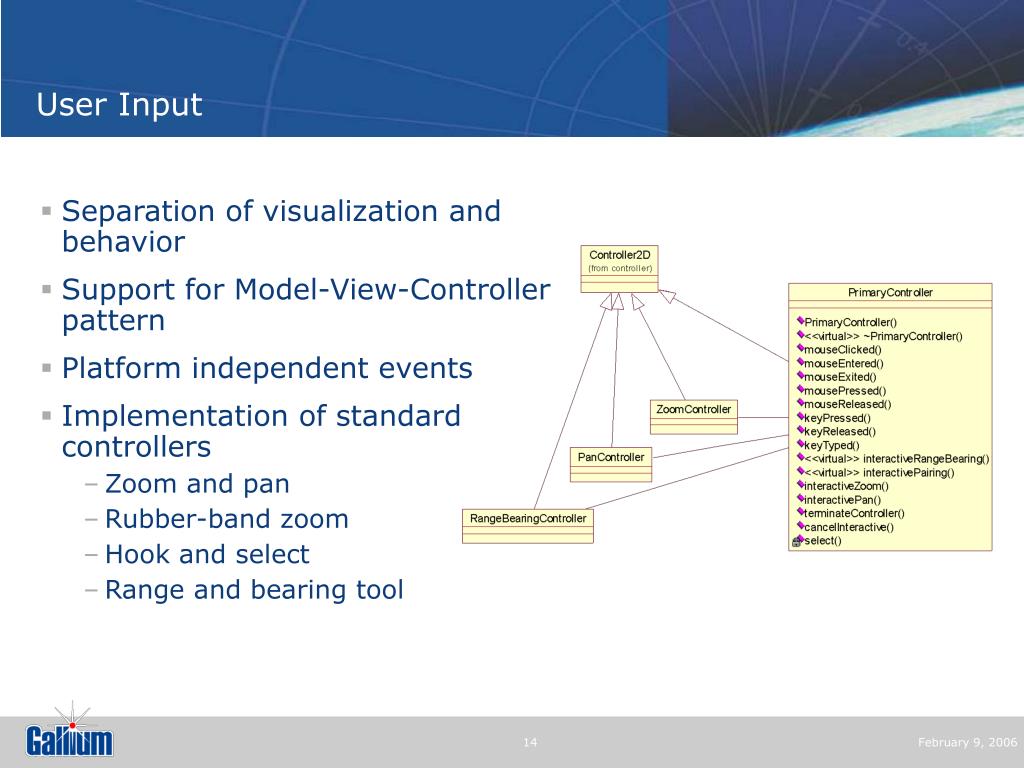

user input
User Input
  • Separation of visualization and behavior
  • Support for Model-View-Controller pattern
  • Platform independent events
  • Implementation of standard controllers
    • Zoom and pan
    • Rubber-band zoom
    • Hook and select
    • Range and bearing tool
separation of data and visualization model
Separation of data and visualization - Model
  • Separation of model and view
  • Bridge between GEOSIT product and application
  • Supports any data source
  • Tailor visuals to match data source
separation of data and visualization view
Separation of data and visualization - View

InterMAPhics

Application (MFC, QT, Swing)

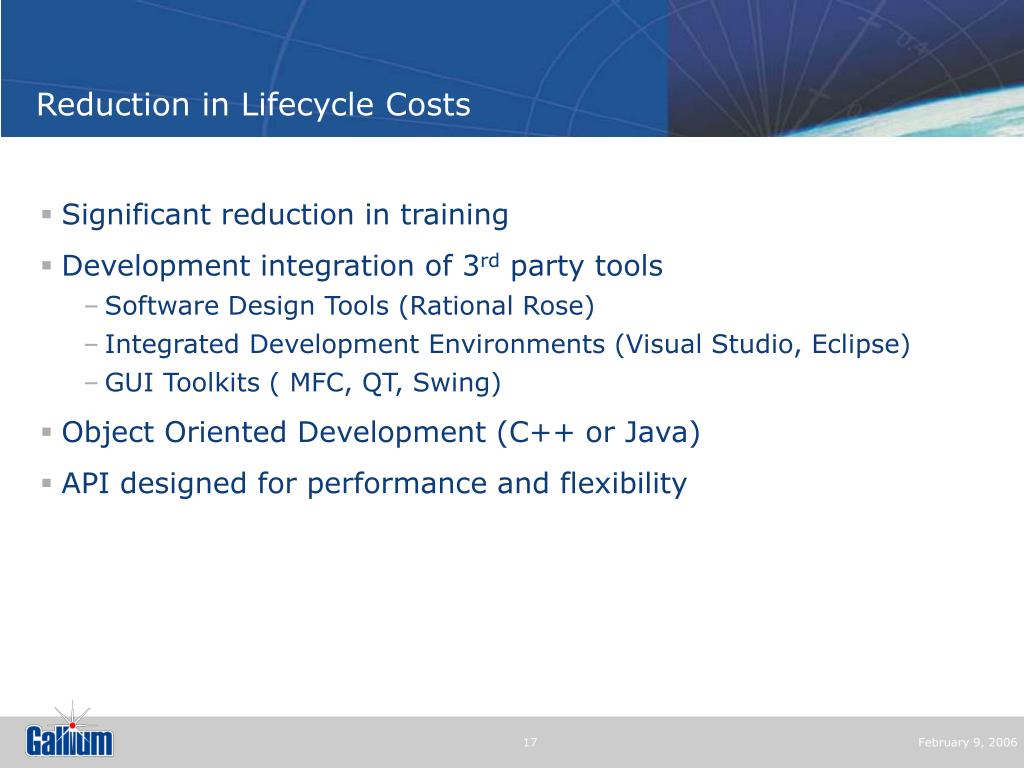

reduction in lifecycle costs
Reduction in Lifecycle Costs
  • Significant reduction in training
  • Development integration of 3rd party tools
    • Software Design Tools (Rational Rose)
    • Integrated Development Environments (Visual Studio, Eclipse)
    • GUI Toolkits ( MFC, QT, Swing)
  • Object Oriented Development (C++ or Java)
  • API designed for performance and flexibility
slide21
Case 1: Standardize the services used to compose a GEOSIT picture
  • This approach allows system implementers considerable control to “build the picture” in whichever ways they need to while removing some unnecessary redundancies found in current systems and added flexibility in vendor selection. However the means for setting up these features will continue to vary widely from one vendor to the next. If done properly, it provides a means for sharing the data between different “brands” of GEOSIT application such as maps, tracks, overlays, etc within a heterogeneous GEOSIT environment. This approach reduces the scope of each individual service to a more manageable sized elements.
  • Case 2: Standardize the interface to control and tailor the GEOSIT application
  • This approach allows system implementers to interact with the GEOSIT at a general application level, thus insulating themselves from vendor-specific implementation issues. At a minimum it provides a standard way to (technically) interact with and manipulate the features within the GEOSIT application. This reduces the complexity and learning curve of programming in a heterogeneous GEOSIT environment.
intermaphics 5 development cycle
InterMAPhics 5 Development Cycle

Offline Configuration

RuntimeManipulation

IM

Libraries

Display Program

Compile

& link

Display

Application

InterMAPhics

Kernel

.tsm

.tdl

.csm

.cdl

.ssm

Native Graphics Library

.sdl

DDL compile

Graphic

Symbol

Files

.tds

load

Graphic

DDL

.cds

.sds

Graphic

Datasets

.gdl

GraphicService Layer

.ddl

Dialogue

DDL

DDL compile

.dds

Dialogue

Dataset

include

Module 2: Overview of InterMAPhics

typical track composition
Typical Track Composition

GeoPresentation

TrackPresentation2D

ScreenString

ScreenGroup

ScreenMarker

ScreenString

ScreenString

ModelListener

WorldPolyline

12

290 450

Module 5: Creating a Track
