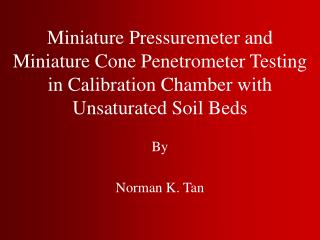

Miniature Pressuremeter and Miniature Cone Penetrometer Testing in Calibration Chamber with Unsaturated Soil Beds

By

Norman K. Tan

outline
Outline
  • Introduction
  • Objective
  • Research task
  • Why calibration chamber?
  • OU calibration chamber
  • Preparation of soil beds
  • Test results
  • Research question.
introduction
Introduction
  • Cone Penetrometer (CPT) & Pressuremeter (PMT)
    • Popular in situ testing devices
    • Give estimates of in situ soil properties
    • Methods developed to interpret results focus around:
      • Saturated soil
      • Dry sand
  • About 1/3 of earth ~ arid/semi arid regions
  • Behavior of unsaturated soil is different from saturated soil
  • Motivation: No methods for interpreting CPT & PMT in unsaturated soil
objective
Objective
  • Develop a method to predict PMT and CPT responses for various matric suction based on one test result
research task
Research Task
  • Calibration chamber testing
  • Numerical and analytical analysis and modeling
  • Laboratory testing
research task1

Calibration Chamber Testing

Modeling

Laboratory Testing

~Soil properties

Research task
why calibration chamber
Why Calibration Chamber?
  • Field Testing
    • Easy and cheaper
    • Lack of control over the boundary conditions
    • Heterogeneous of soil
    • Unknown stress history, stress state, etc.
  • Calibration Chamber Testing
    • Controlled environment
      • Boundary condition
      • Stress state
      • Homogeneous soil beds
      • Etc.
ou calibration chamber oucc
OU Calibration Chamber (OUCC)
  • Allows independent control of radial & axial stress (BC1)
  • Designed working pressure ~ 1380 kPa
  • Capable to perform axis translation
  • Pore air & pore water can be controlled independently
  • Burettes system: measure water volume change
  • DAVI: measure diffused air volume
slide9
LVDTs ~ measure total volume change
  • Soil beds
    • diameter: 610 mm
    • Height: 450 mm to 1350 mm
preparation of soil beds
Preparation of Soil Beds
  • Soil preparation:
    • Oven dried
    • Pass #10 sieve
    • Mixed with water in large concrete mixer
    • Store in 5 gallon pails for minimum of 1 day
  • Soil bed consolidation
    • 35 kPa increment
    • Up to 103 kPa
  • Soil used:
    • Minco Silt
    • From Tuttle, OK
    • CL-ML soil
    • PI: 8
  • Soil bed preparation:
    • Statically compacted
    • 152 mm/layer
ou miniature pressuremeter mpmt
OU Miniature Pressuremeter (MPMT)
  • Diameter: 15.2 mm
  • Length: 130 mm
  • H/D: 8.5
  • Dsoilbed/Dprobe: 40
  • Test Depth:
    • 267 mm (center of probe)
    • 495 mm (center of probe)
ou miniature cone penetrometer mcpt
OU Miniature Cone Penetrometer (MCPT)
  • Diameter: 8.9 mm
  • Dsoilbed/Dprobe: 68.5
  • Penetration rate: 0.5 cm/sec
typical mpmt results
Typical MPMT Results
  • Limit Pressure

~ defined as pressure at which vol. of the cavity is twice of initial soil cavity volume

~ determined using 1/v vs P plot

  • From test: CCT6 PMT 6-2
mcpt results3
MCPT Results
  • CPT 1 A ~ w: 8%
research questions
Research Questions ???
  • What is the true value of H, v for Minco Silt?
  • Does c`, `, b varies with initial water content, dry unit weight? How significant?
  • Are the interpreted matric suctions the true matric suctions?
  • Explanations for the PMT response:

~ trend in ua-uw vs. Pl plot
