integrated management systems

Integrated Management Systems

Author:

Dr Rhys Rowland-Jones

session plan
Session Plan
  • What do we mean by an integrated management system?
  • Why should management systems be integrated?
  • Management systems.
  • A word of caution on IMS.
  • Considerations for the Integrated Management Process.
  • Publicly Available Specification (PAS) 99.
  • Breaking down the structure.
what do we mean by an integrated management system
What do we mean by an integrated management system?
  • Integrated means combined; putting all the internal management practices into one system but not as separate components.
  • For these systems to be an integral part of the company's management system there have to be linkages so that the boundaries between processes are seamless.
  • An integrated management system (IMS) is a management system which integrates all components of a business into one coherent system so as to enable the achievement of its purpose and mission.
        • Source IQA.2007
why should management systems be integrated

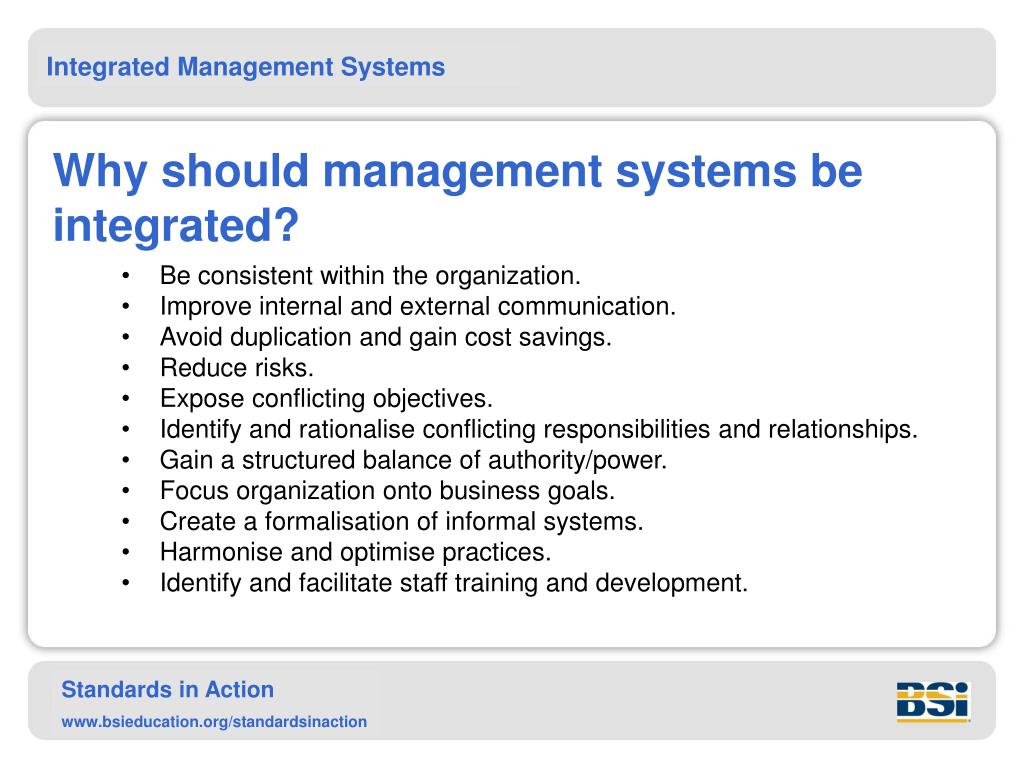

Why should management systems be integrated?
  • Be consistent within the organization.
  • Improve internal and external communication.
  • Avoid duplication and gain cost savings.
  • Reduce risks.
  • Expose conflicting objectives.
  • Identify and rationalise conflicting responsibilities and relationships.
  • Gain a structured balance of authority/power.
  • Focus organization onto business goals.
  • Create a formalisation of informal systems.
  • Harmonise and optimise practices.
  • Identify and facilitate staff training and development.
management system

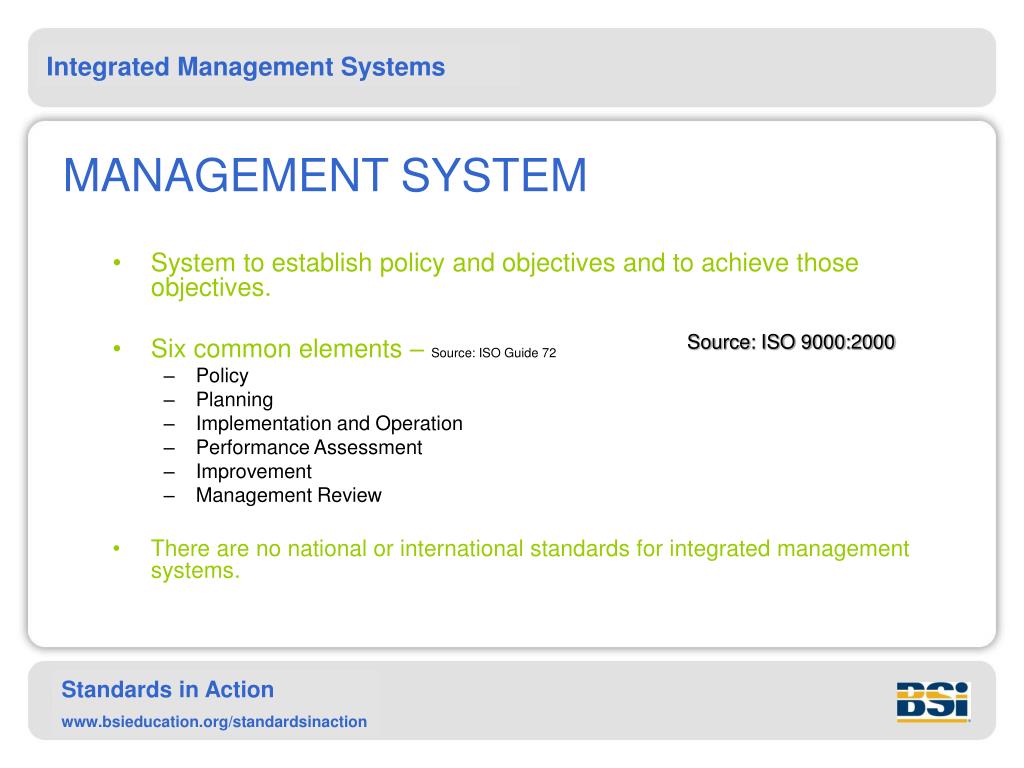

MANAGEMENT SYSTEM
  • System to establish policy and objectives and to achieve those objectives.
  • Six common elements – Source: ISO Guide 72
    • Policy
    • Planning
    • Implementation and Operation
    • Performance Assessment
    • Improvement
    • Management Review
  • There are no national or international standards for integrated management systems.

Source: ISO 9000:2000

slide6

What does a system comprise of ?

  • The controlling factors through which the business process is realized.
  • Remember that:
    • A system is a collection of sub-systems.
    • A subsystem is a collection of processes.
    • A process is a collection of tasks.
    • An activity is the smallest parcel of work to be carried out by a person or group of people.
    • A procedure is just a way of doing things.
which management systems standards can be integrated

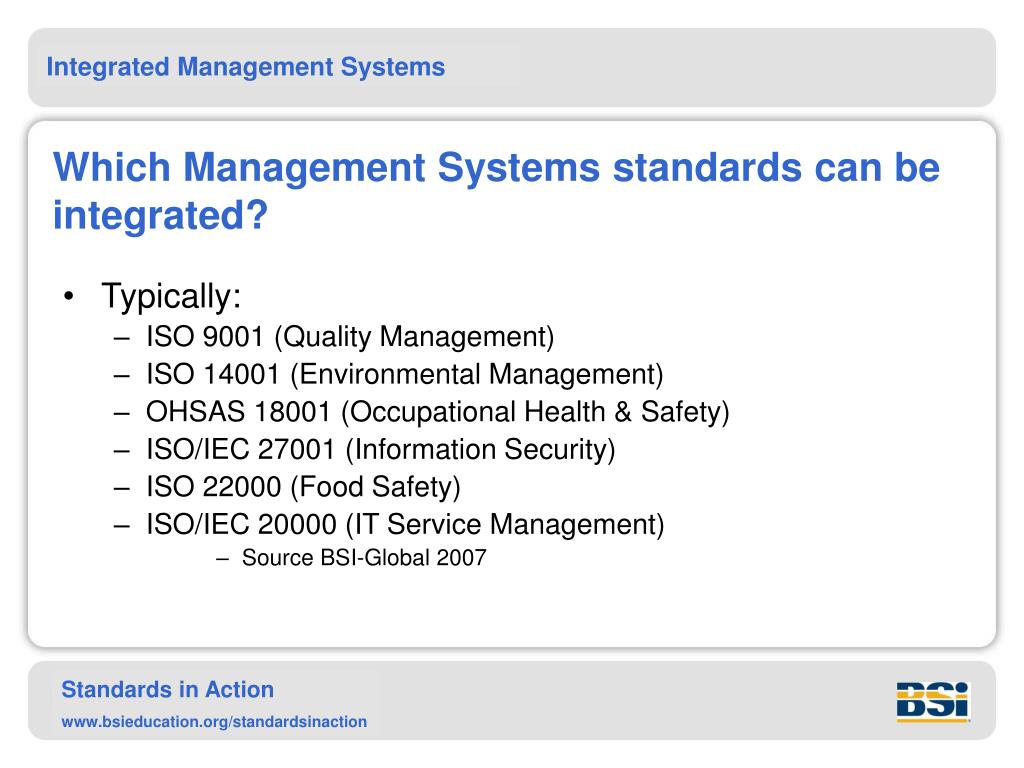

Which Management Systems standards can be integrated?
  • Typically:
    • ISO 9001 (Quality Management)
    • ISO 14001 (Environmental Management)
    • OHSAS 18001 (Occupational Health & Safety)
    • ISO/IEC 27001 (Information Security)
    • ISO 22000 (Food Safety)
    • ISO/IEC 20000 (IT Service Management)
        • Source BSI-Global 2007
quality management system
QUALITY MANAGEMENT SYSTEM

A management system to direct and control an organization

with regard to quality ISO 9000:2000

The ISO 9000 family of standards was revised in December 2000,

and comprises of:

  • ISO 9000 Quality Management Systems fundamentals and vocabulary installation and servicing
  • ISO 9001 Quality Management Systems requirements
  • ISO 9004 Quality Management Systems guidelines for performance improvement
  • ISO 19011Guidelines on Quality and Environment Management Systems Auditing
environmental management

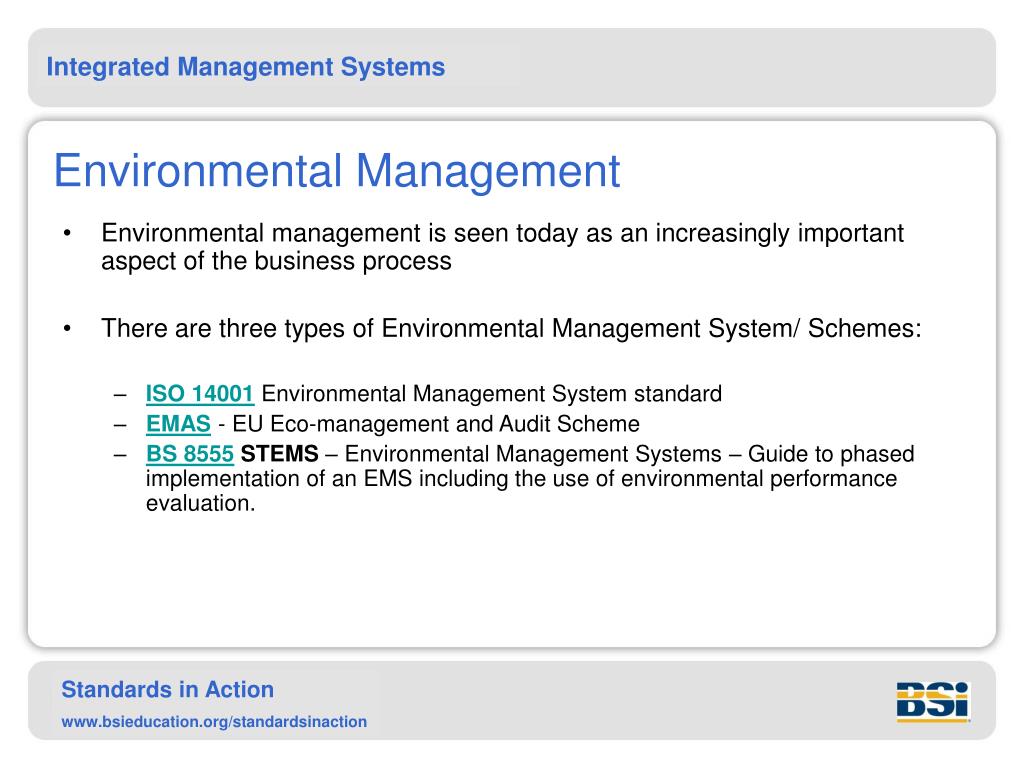

Environmental Management
  • Environmental management is seen today as an increasingly important aspect of the business process
  • There are three types of Environmental Management System/ Schemes:
    • ISO 14001 Environmental Management System standard
    • EMAS- EU Eco-management and Audit Scheme
    • BS 8555 STEMS – Environmental Management Systems – Guide to phased implementation of an EMS including the use of environmental performance evaluation.
management system targets
Management System Targets

QMS -The Customer

EMS -Stakeholders, Regulators

OH&S -Primarily Employees

flowchart of a generic management system

Internal factors

External factors

Initial and periodicstatus review

Policy

Audit

Organising

Planning and implementing

Measuring performance

Information link

CONTROL LINK

Flowchart of a generic management system
slide12

Continual improvement of the quality management system

Customers

(and other

interested

parties)

Customers

(and other

interested

parties)

Management

responsibility

Measurement, analysis and improvement

Resource

management

Satisfaction

Requirements

Input

Output

Product

realisation

Product

Key:

Value adding activity

information flow

Source: BS EN ISO 9001:2000

typical qms structure

Policy, objectives, organization,

outline of quality system

QUALITY MANUAL

Processes, practices,

responsibilities,

interfaces

PROCESS DOCUMENTS

AND PROCEDURES

Detailed instructions

on how to carry out

specific tasks

INSTRUCTIONS

Quality

records

FORMS

Design IT Support Installation Training

Typical QMS Structure

STANDARD - ISO 9001 OR SIMILAR

schematic diagram of the stages in the implementation of an environmental management system

Commitment

Initial Review

Policy

organization and Personnel

Reviews

Audits

Regulations Register

Records

Objectives and Targets

Operational Control

organization and Personnel

Management Manual

Schematic diagram of the stages in the implementation of an Environmental Management System

Source: British Standard 7750:1992

a word of caution on ims
A word of caution on IMS
  • Before looking at integrated management, you should consider the management structures and styles within which it must be embedded.
  • You need, therefore, to assess how effectively and efficiently the organization is currently managed in a general sense.
  • There are many factors which affect how it operates.
considerations for the integrated management process
Considerations for the Integrated Management Process
  • The extent to which integration should occur.
  • The political and cultural situation within the company.
  • The levels of competence necessary.
  • Legal and other regulatory requirements.
  • Clear objectives for the integration project.
publicly available specification pas 99

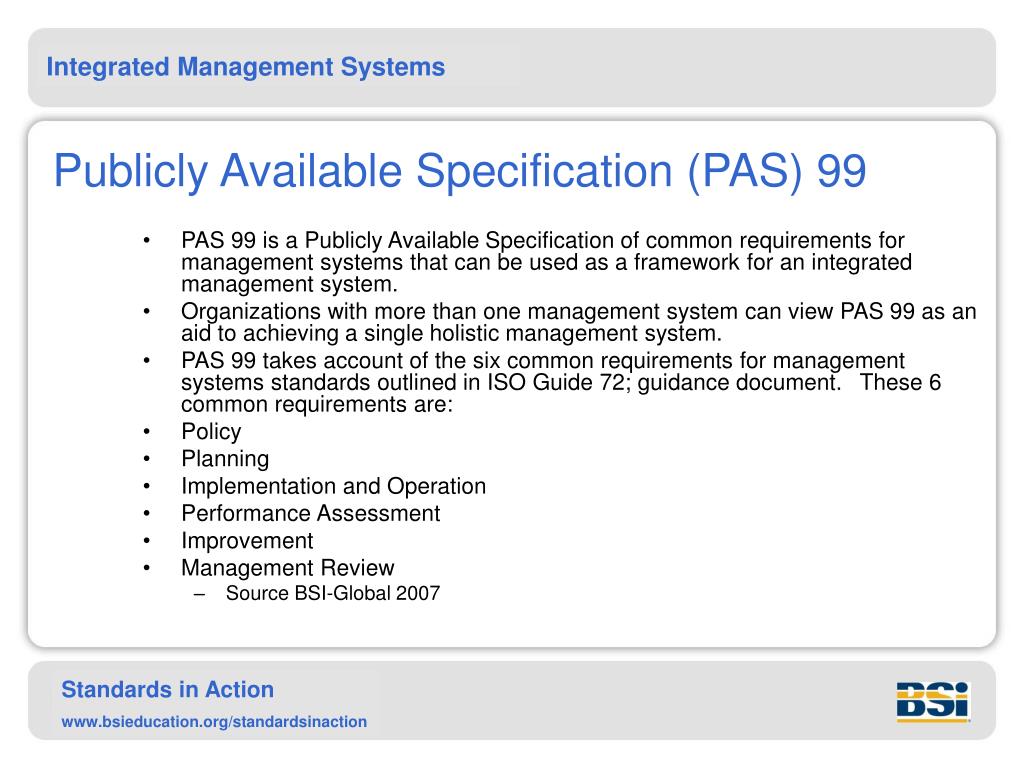

Publicly Available Specification (PAS) 99
  • PAS 99 is a Publicly Available Specification of common requirements for management systems that can be used as a framework for an integrated management system.
  • Organizations with more than one management system can view PAS 99 as an aid to achieving a single holistic management system.
  • PAS 99 takes account of the six common requirements for management systems standards outlined in ISO Guide 72; guidance document. These 6 common requirements are:
  • Policy
  • Planning
  • Implementation and Operation
  • Performance Assessment
  • Improvement
  • Management Review
    • Source BSI-Global 2007
slide18

Breaking down the structure – a Decomposition Strategy

Functional decompositionbreaks down activities according to what isdone, rather than how itis done, and is probably the most common strategy.

Role decompositionbreaks down things according to whodoes what, it can be an easy and useful starting point, but is likely to constrain improvements if it is maintained.

Subsystems decompositiondivides systems first by major subsystem. This is useful when these subsystems are largely independent of one another.

Lifecycle decompositionbreaks down a system first by the phases of activity. Again, this is most useful when these phases are clearly defined and relatively independent.

slide19

Understanding your business

  • Decide on the viewpoint you intend to take in attempting to describe your business process. Engineers may have a particular viewpoint, sales staff may think slightly differently, administrators with differing criteria.
  • Multi-disciplinary cross-functional teams may provide the overall viewpoint which you need
understanding management systems
Understanding Management Systems
  • A QMS does not in itself decide the technical or commercial specification of a product, but establishes disciplines that assist in the consistent attainment of quality requirements.
  • An environmental management system (EMS) requires in the main that an organization identifies and registers its environmental effects, while promoting continual environmental improvement, but does not need to comment on overall environmental performance.
conclusions

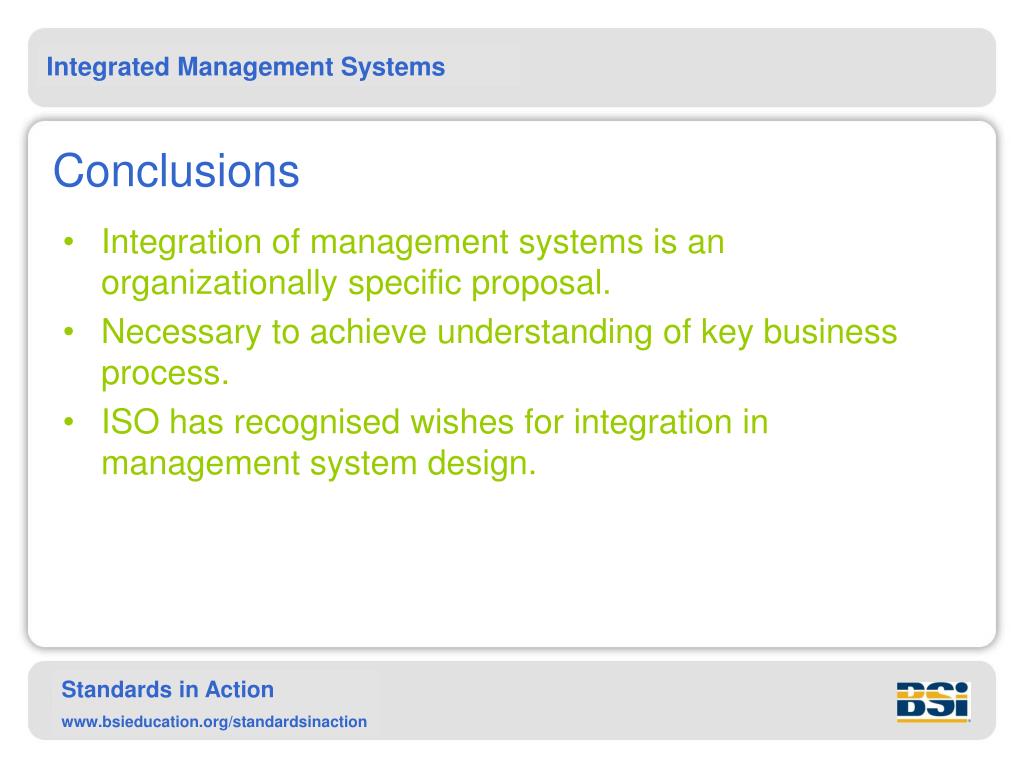

Conclusions
  • Integration of management systems is an organizationally specific proposal.
  • Necessary to achieve understanding of key business process.
  • ISO has recognised wishes for integration in management system design.
