  1. Magnetic Drilling Machines Know All About The Mechanisms Of The Machine.

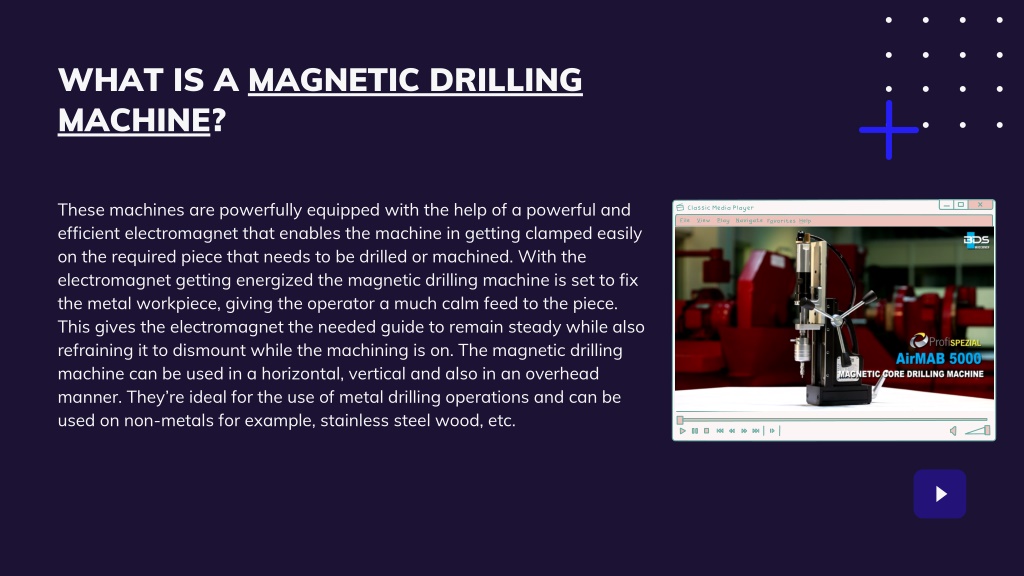

  2. WHAT IS A MAGNETIC DRILLING MACHINE? These machines are powerfully equipped with the help of a powerful and efficient electromagnet that enables the machine in getting clamped easily on the required piece that needs to be drilled or machined. With the electromagnet getting energized the magnetic drilling machine is set to fix the metal workpiece, giving the operator a much calm feed to the piece. This gives the electromagnet the needed guide to remain steady while also refraining it to dismount while the machining is on. The magnetic drilling machine can be used in a horizontal, vertical and also in an overhead manner. They’re ideal for the use of metal drilling operations and can be used on non-metals for example, stainless steel wood, etc.

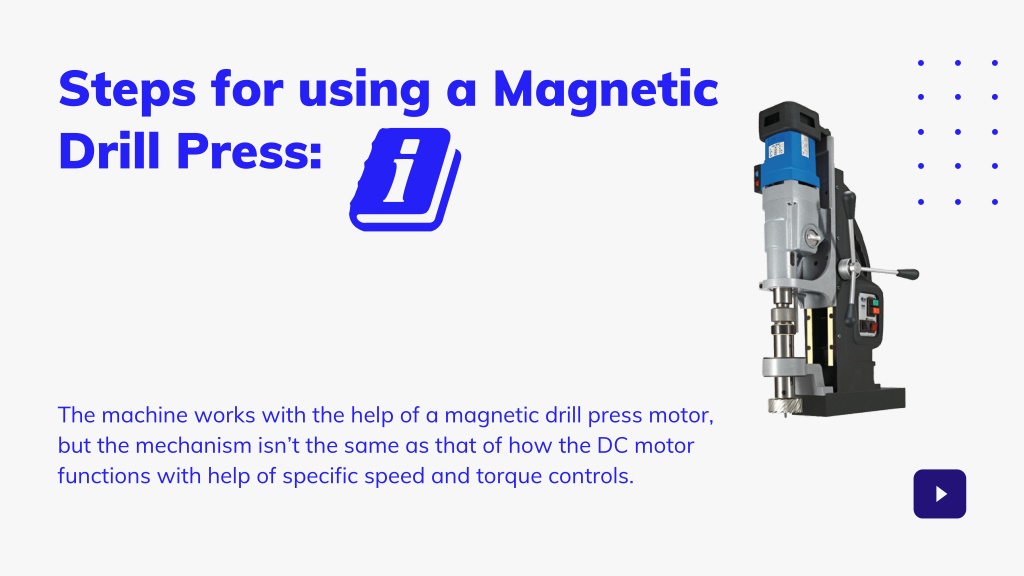

  3. Steps for using a Magnetic Drill Press: The machine works with the help of a magnetic drill press motor, but the mechanism isn’t the same as that of how the DC motor functions with help of specific speed and torque controls.

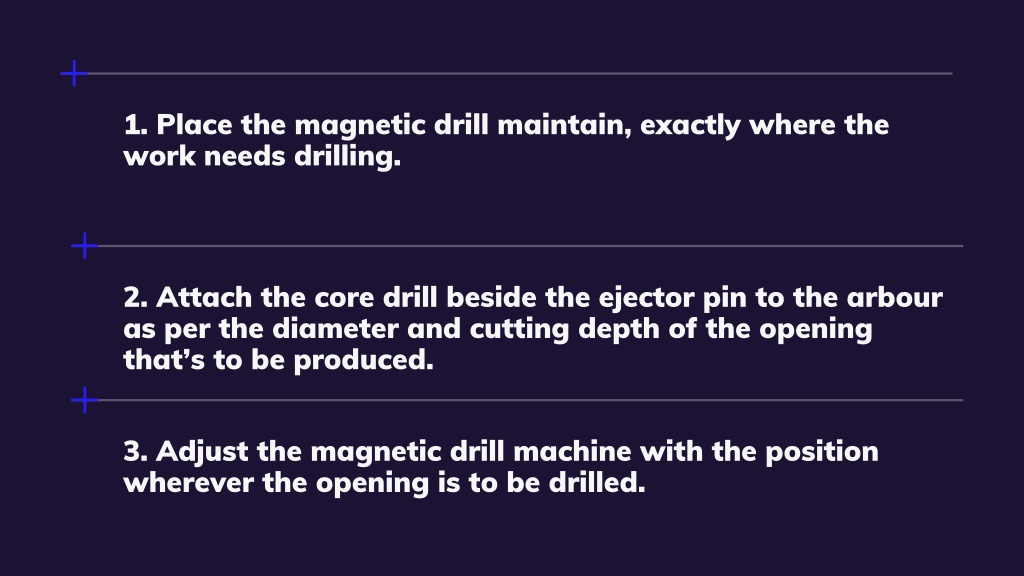

  4. 1. Place the magnetic drill maintain, exactly where the work needs drilling. 2. Attach the core drill beside the ejector pin to the arbour as per the diameter and cutting depth of the opening that’s to be produced. 3. Adjust the magnetic drill machine with the position wherever the opening is to be drilled.

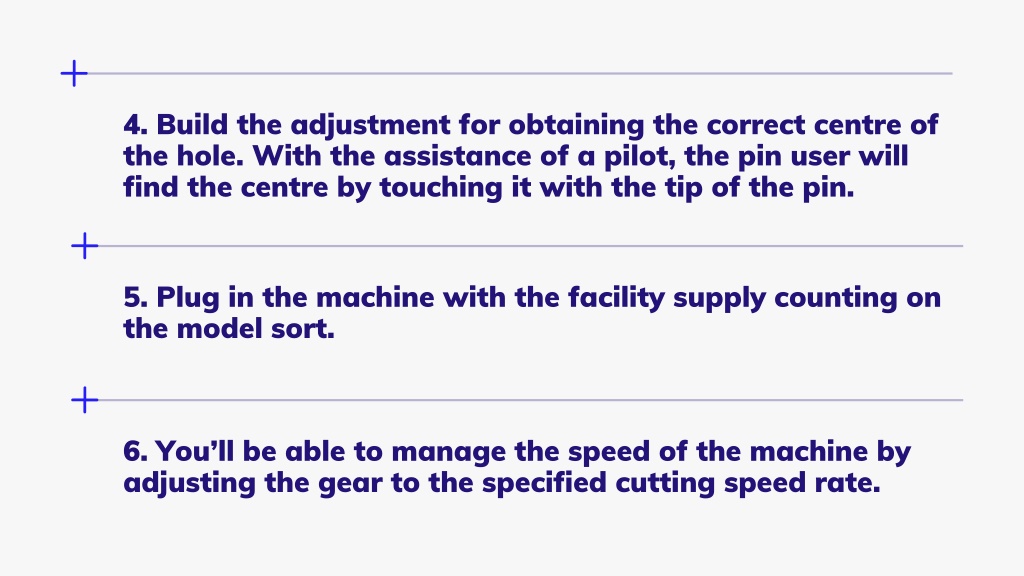

  5. 4. Build the adjustment for obtaining the correct centre of the hole. With the assistance of a pilot, the pin user will find the centre by touching it with the tip of the pin. 5. Plug in the machine with the facility supply counting on the model sort. 6. You’ll be able to manage the speed of the machine by adjusting the gear to the specified cutting speed rate.

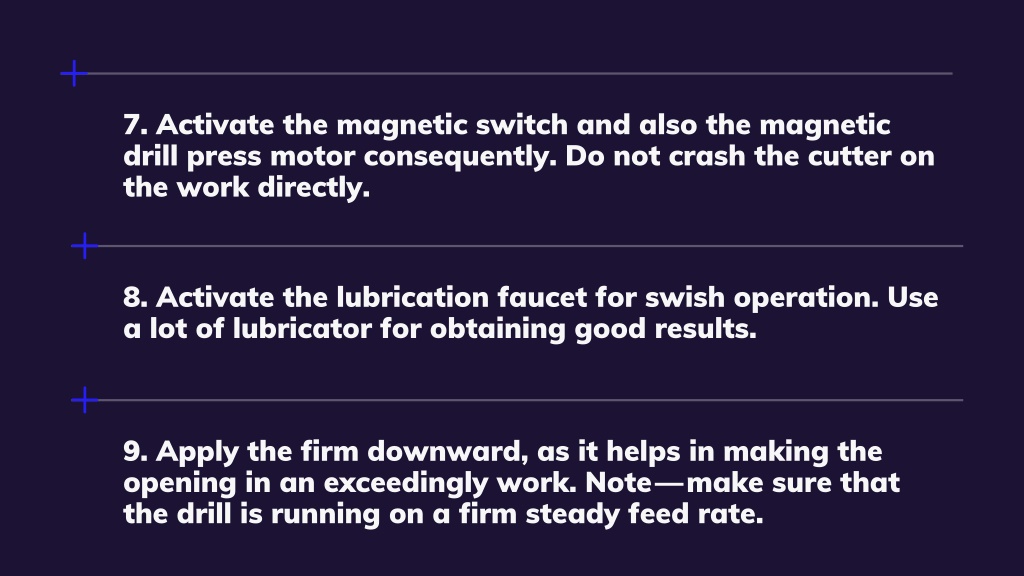

  6. 7. Activate the magnetic switch and also the magnetic drill press motor consequently. Do not crash the cutter on the work directly. 8. Activate the lubrication faucet for swish operation. Use a lot of lubricator for obtaining good results. 9. Apply the firm downward, as it helps in making the opening in an exceedingly work. Note — make sure that the drill is running on a firm steady feed rate.

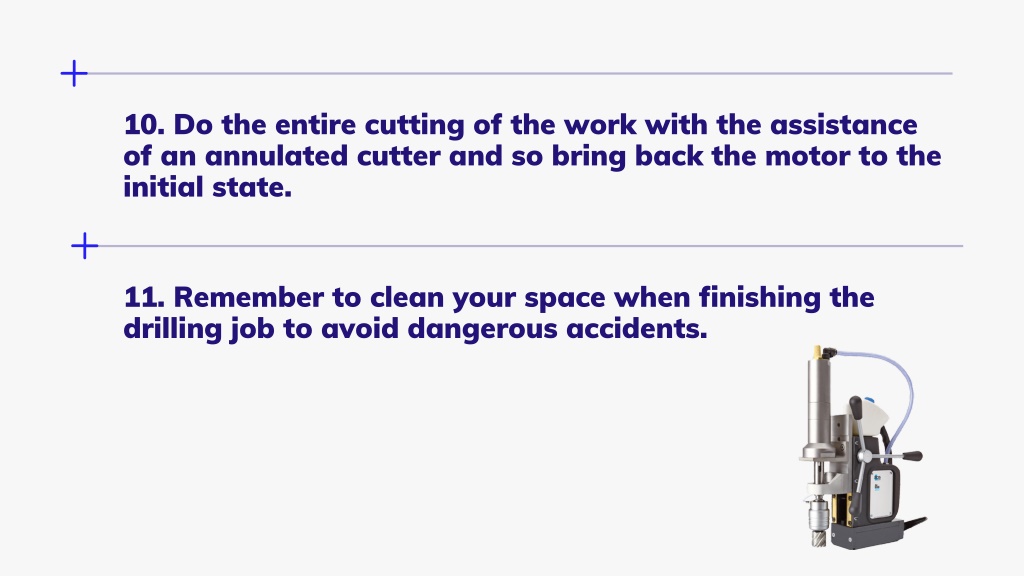

  7. 10. Do the entire cutting of the work with the assistance of an annulated cutter and so bring back the motor to the initial state. 11. Remember to clean your space when finishing the drilling job to avoid dangerous accidents.
