slide1

Integrated Circuit

History

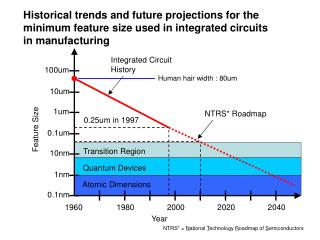

100um

Human hair width : 80um

10um

1um

NTRS* Roadmap

0.25um in 1997

Feature Size

0.1um

Transition Region

10nm

Quantum Devices

1nm

Atomic Dimensions

0.1nm

1960

1980

2000

2020

2040

Year

Historical trends and future projections for the

minimum feature size used in integrated circuits

in manufacturing

NTRS* = National Technology Roadmap of Semiconductors

slide2

Year of first DRAM

shipment

1997

1999

2003

2006

2009

2012

Minimum Feature Size

250nm

180nm

130nm

100nm

70nm

50nm

DRAM Bits/Chip

256M

1G

4G

16G

64G

256G

DRAM Chip Size (mm2)

280

400

560

790

1120

1580

Microprocessor

Transistor/Chip

11M

21M

76M

200M

520M

1.40B

Maximum Wiring Levels

6

6-7

7

7-8

8-9

9

Minimum Mask Count

22

22-24

24

24-26

26-28

28

Minimum Supply

Voltage (volts)

1.8-2.5

1.5-1.8

1.2-1.5

0.9-1.2

0.6-0.9

0.5-0.6

Future projections for silicon technology taken from SIA NTRS

slide3

Basic process

Light

Photoresist

Mask

Deposition Film

Substrate

Film Deposition

Photoresist application

Exposure

Development

Etching

Resist removal

slide4

Input

Output

Input

Output

CMOS Inverter

What is CMOS ?

W

TiSi2

TiSi2

Ti

TiSi2

P+

P+

N+

N+

P-

P-

N-

N-

N-Well

P-Well

P

PMOS

NMOS

slide5

L’

t’ox

W’

0.262nm

0.162nm

Why needs Scaling?

L

tox

W

L=30nm, tox=1nm

@IEDM2002 Toshiba, Sony

  • (1) Ids ∝ W/L x C x (Vg-Vth)2
  • High Current drive
  • (a) Low Power (b) High Speed

(2)Small Chip Area

 Low Cost, High Yield

Silicon

Oxygen

particle

Chip Size 1/2

Yield : ¾=75%

Chip Failure
