Intrapartum Fetal


placental physiology
Placental Physiology
  • Maternal blood flows through the uterine arteries into the intervillous spaces then return through uterine veins to maternal circulation
  • Fetal blood flows through the umbilical arteries into the villous capillaries and returns through the umbilical vein to fetal circulation.
  • Exchange of blood gases depends on an unobstructed blood flow through the placenta.
uteroplacental exchange
Uteroplacental exchange
  • As the myometrium contracts, the flow of oxygenated blood through the uterine artery may be decreased.
  • Therefore, the fetus may have less oxygen available.



Fetal Heart Rate

regulation of fetal heart rate

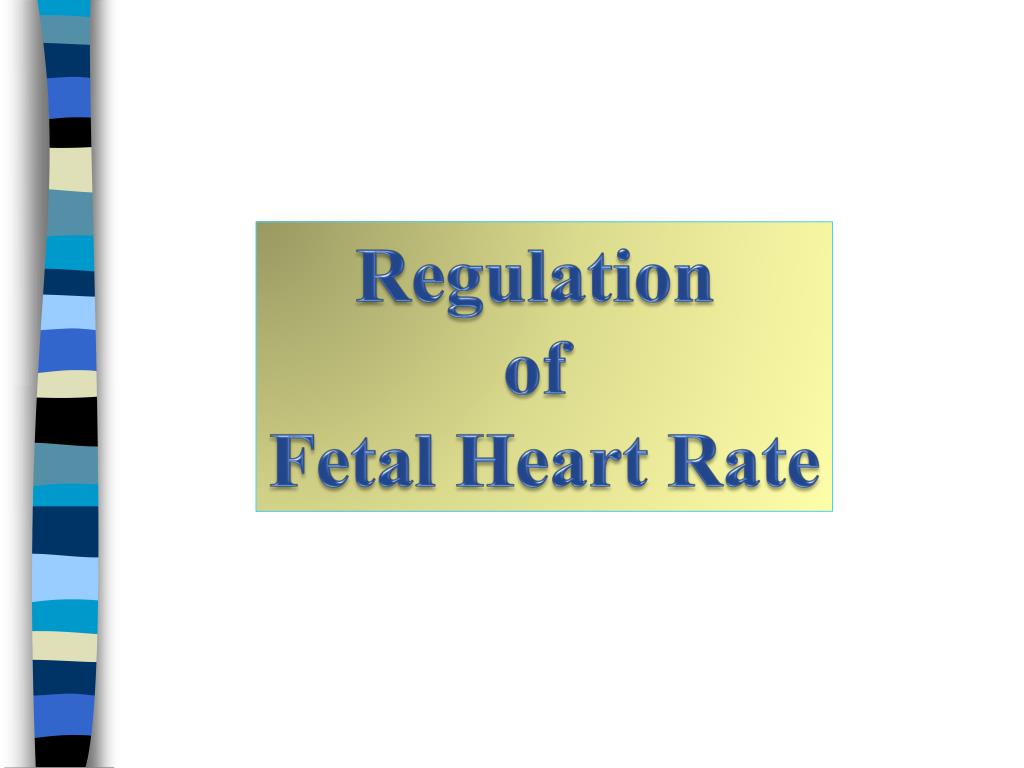

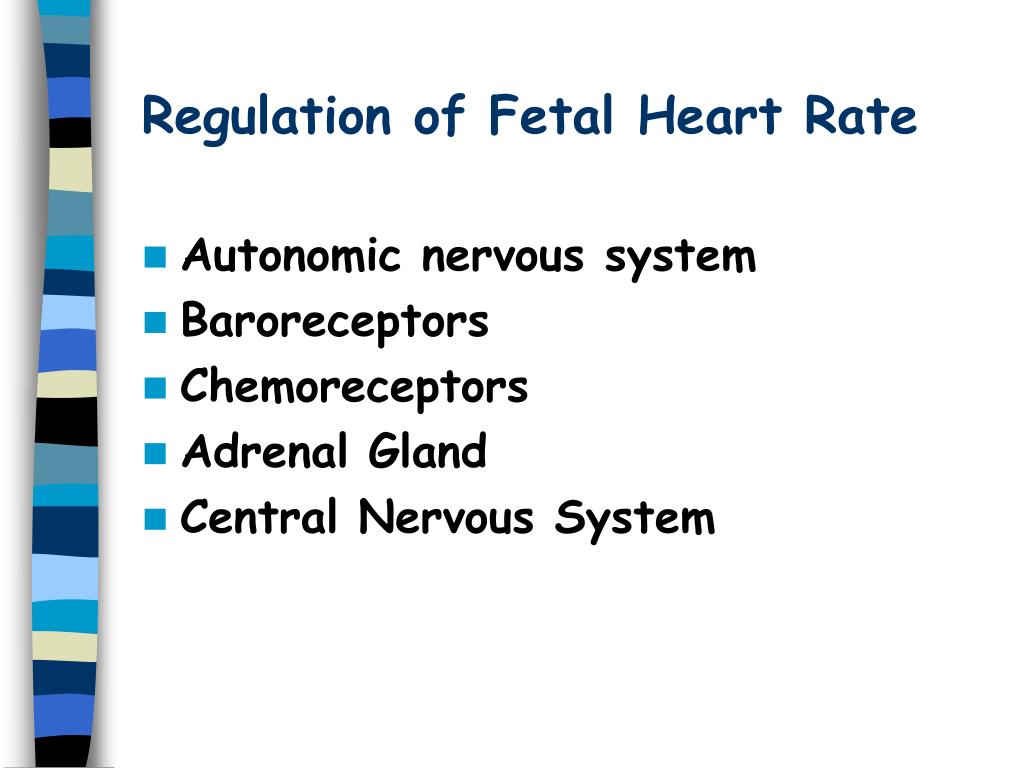

Regulation of Fetal Heart Rate
  • Autonomic nervous system
  • Baroreceptors
  • Chemoreceptors
  • Adrenal Gland
  • Central Nervous System
electronic fetal monitoring standard of care

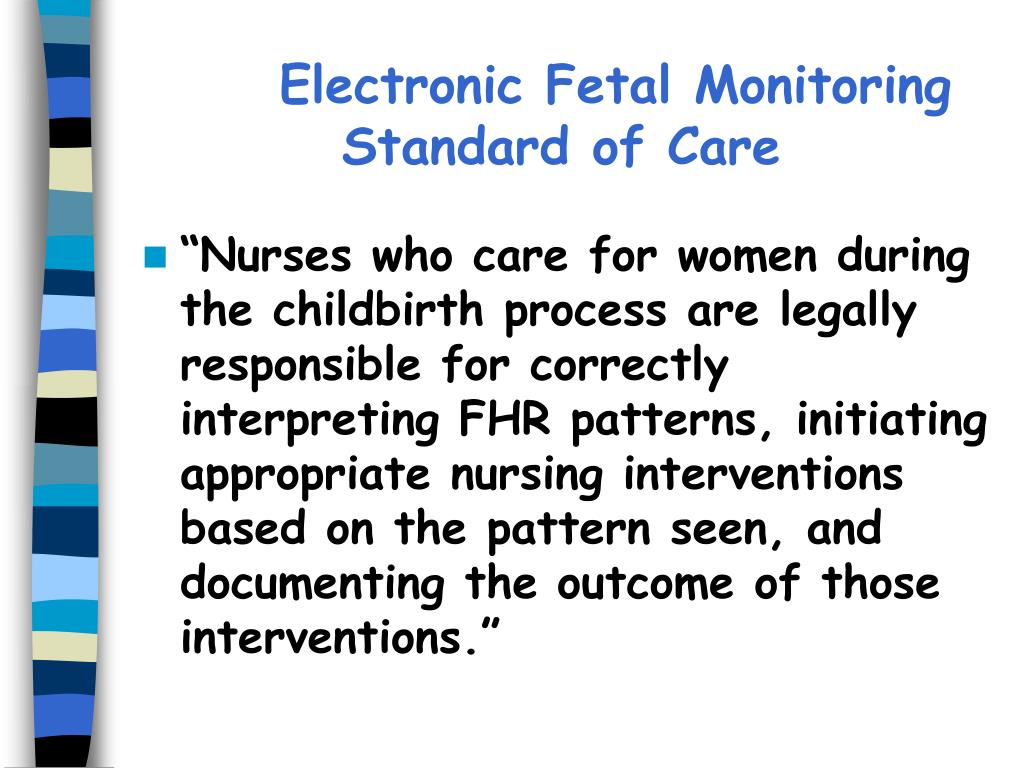

Electronic Fetal Monitoring Standard of Care
  • “Nurses who care for women during the childbirth process are legally responsible for correctly interpreting FHR patterns, initiating appropriate nursing interventions based on the pattern seen, and documenting the outcome of those interventions.”

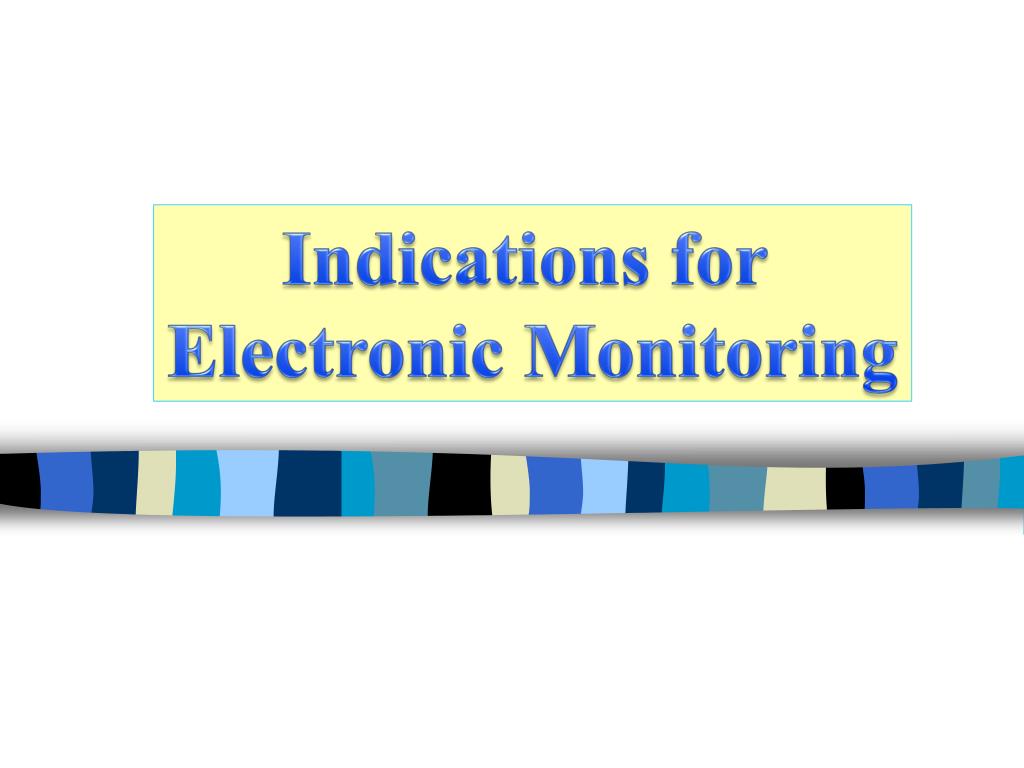

Indications for

Electronic Monitoring

indications for electronic fetal monitoring
Indications for Electronic Fetal Monitoring
  • Previous history of stillbirth
  • Complications of pregnancy
  • Induction of Labor
  • Preterm labor
  • Nonreassuring fetal status; fetal movement
  • Meconium staining of amniotic fluid




Fetal Monitoring

advantages of efm

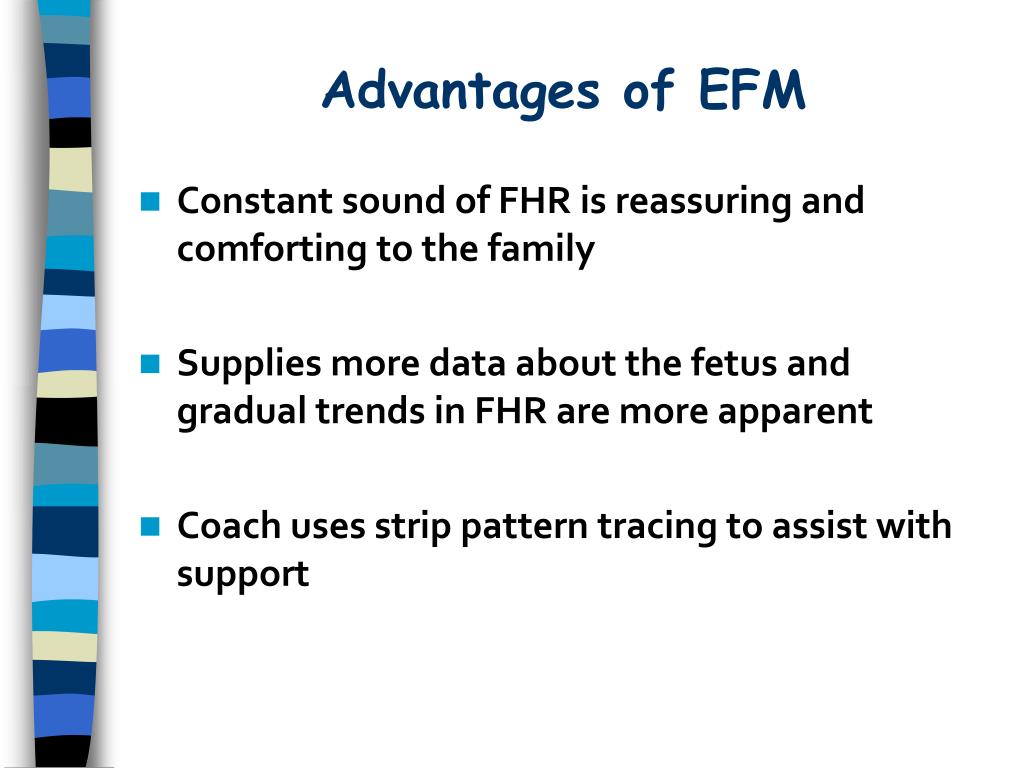

Advantages of EFM
  • Constant sound of FHR is reassuring and comforting to the family
  • Supplies more data about the fetus and gradual trends in FHR are more apparent
  • Coach uses strip pattern tracing to assist with support
disadvantages of efm

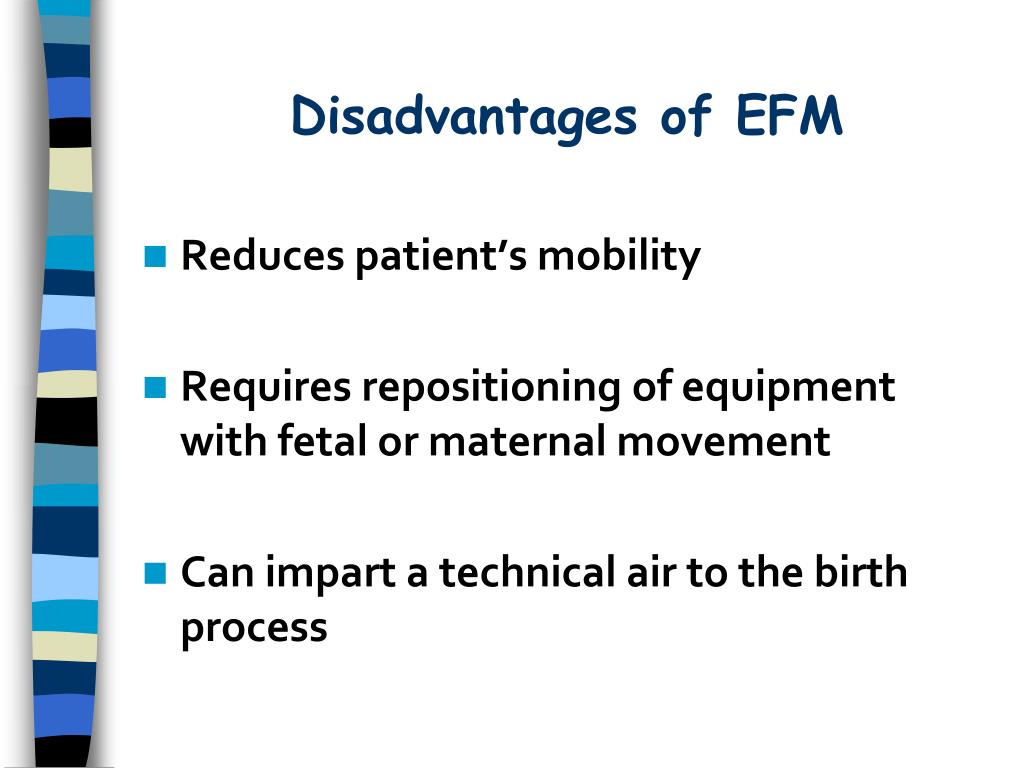

Disadvantages of EFM
  • Reduces patient’s mobility
  • Requires repositioning of equipment with fetal or maternal movement
  • Can impart a technical air to the birth process
auscultation by doppler
Auscultation by Doppler
  • Intermittent auscultation can be done with a



  • Doppler

for FHT’s

external monitoring

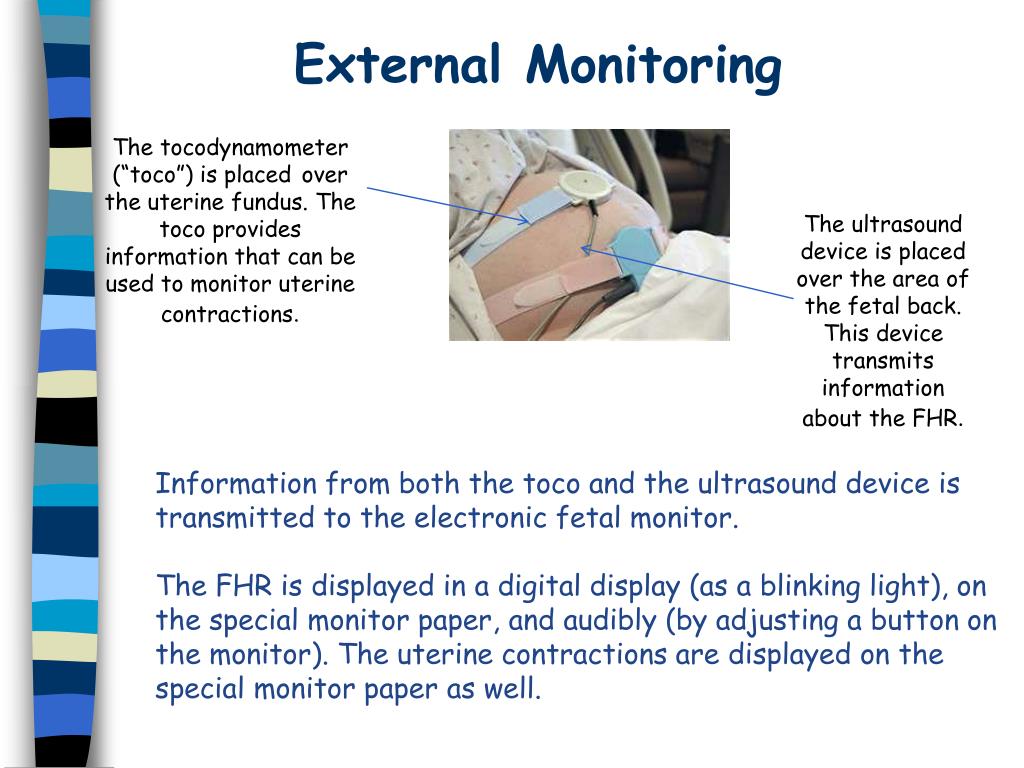

External Monitoring

The tocodynamometer (“toco”) is placedover the uterine fundus. The toco provides information that can be used to monitor uterinecontractions.

The ultrasound device is placed over the area of the fetal back. This device transmits information about the FHR.

Information from both the toco and the ultrasound device is transmitted to the electronic fetal monitor.

The FHR is displayed in a digital display (as a blinking light), on the special monitor paper, and audibly (by adjusting a button on the monitor). The uterine contractions are displayed on the special monitor paper as well.

internal monitoring
Internal Monitoring
  • Criteria for Internal Monitoring:
  • Amniotic membranes must be ruptured
  • Cervix dilated 2 cm.
  • Presenting part down against the
  • cervix

Spiral Electrode is placed on the fetal occiput which allows for more accurate continuous data then external monitoring.

Also is not affected by mom or fetal movement as with external monitoring.

internal monitoring17
Internal Monitoring

The spiral electrode is attached to the

fetal scalp

Wires that extend from attached spiral electrode are attached to a leg plate and then attached to electronic fetal monitor.

nursing responsibilities electronic fetal monitoring
Nursing Responsibilities Electronic Fetal Monitoring
  • Placement of equipment
  • Teaching the woman about use
  • Notation of events on the strip
  • Evaluation of data
  • Intervention as indicated by data
baseline fetal heartrate normal pattern
Baseline Fetal Heartrate Normal Pattern
  • Baseline FHR = 120 – 160 bpm
  • Tachycardia – baseline above 160 BPM
    • RT= maternal fever, fetal hypoxia, intrauterine infection, drugs
  • Bradycardia – baseline below 110 BPM
    • RT = profound hypoxia, anesthesia, beta-adrenergic blocking drugs
  • Normal/ increased variability or irregularity of a cardiac rhythm.
  • Absence or decreased variability, or a smooth flat baseline, is a sign of fetal compromise.
periodic changes in the fhr
Periodic changes in the FHR
  • Accelerations – increase in the fetal heart rate with a return to baseline.
  • Indication of fetal well-being is an acceleration of 15 bpm for 15 seconds.
reassuring acceleration pattern
Reassuring Acceleration Pattern

Baseline fetal heart rate is 120-160 with preserved beat-to-beat variability.

Accelerations last for 15 or more seconds above baseline, and

peak to 15 or more bpm.

periodic changes in the fhr decelerations

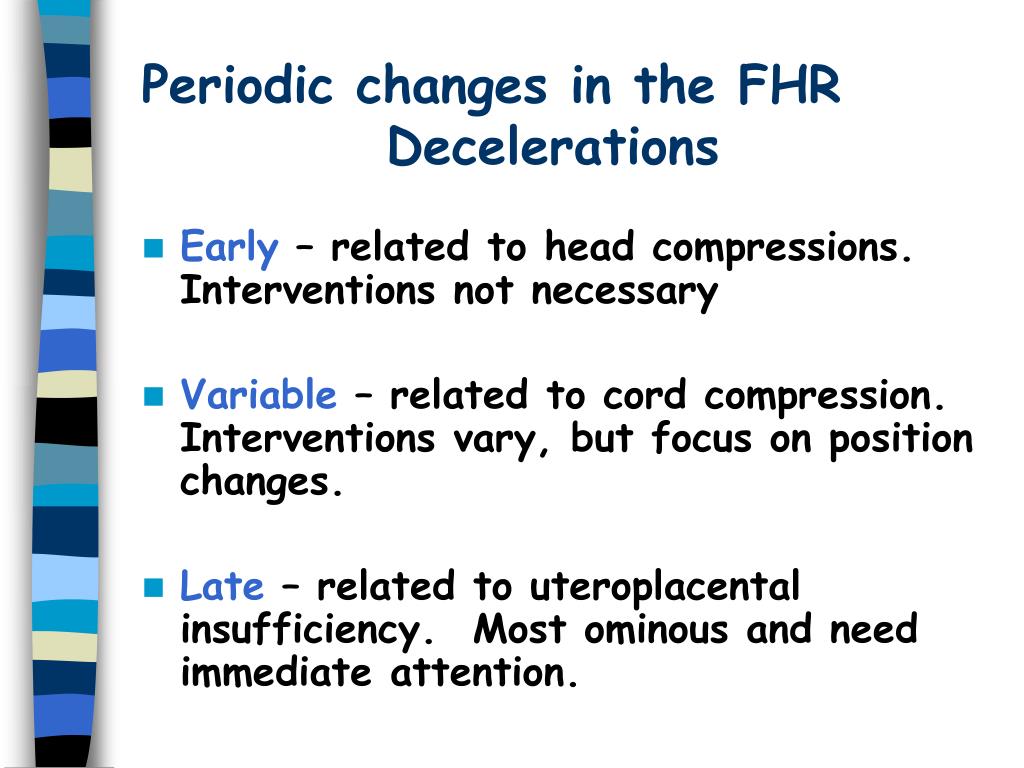

Periodic changes in the FHR Decelerations
  • Early – related to head compressions. Interventions not necessary
  • Variable – related to cord compression. Interventions vary, but focus on position changes.
  • Late – related to uteroplacental insufficiency. Most ominous and need immediate attention.
early deceleration

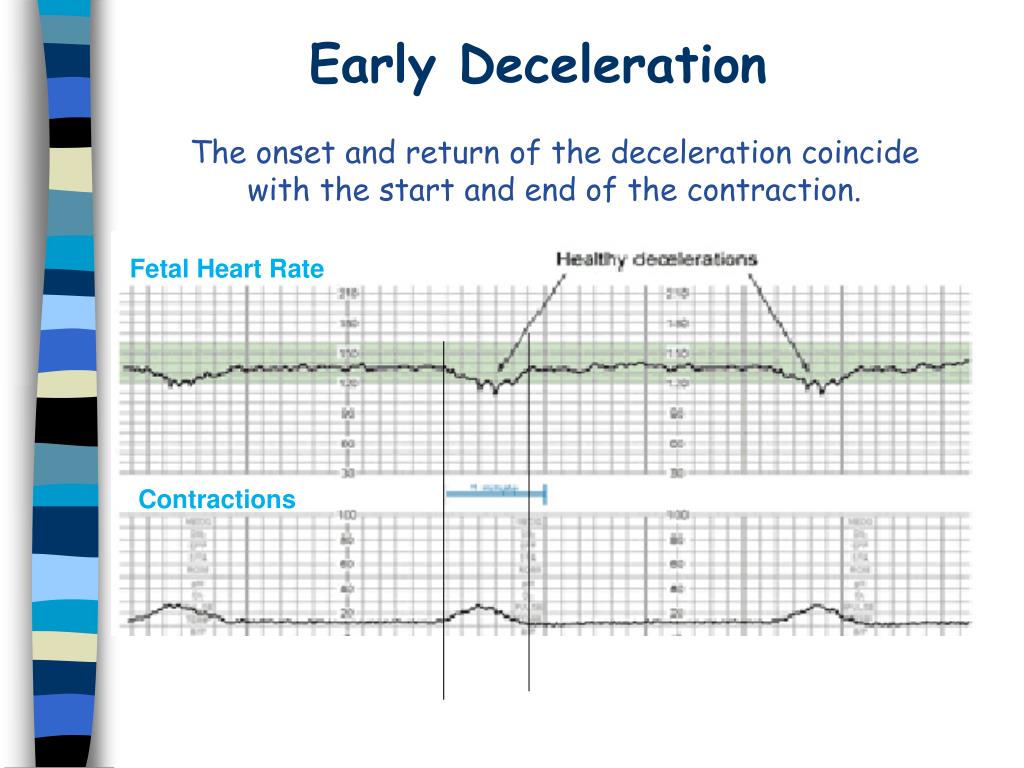

Early Deceleration

The onset and return of the deceleration coincide with the start and end of the contraction.

Fetal Heart Rate


early decelerations
Early Decelerations
  • Related to Head Compression
  • Intervention
    • No intervention necessary. Just continue to watch for any changes.
variable deceleration
Variable Deceleration
  • Variable decelerations are variable in duration, intensity, and timing
variable decelerations
Variable Decelerations
  • Related to cord compression
  • Intervention
    • Reposition
    • Amnioinfusion
late deceleration

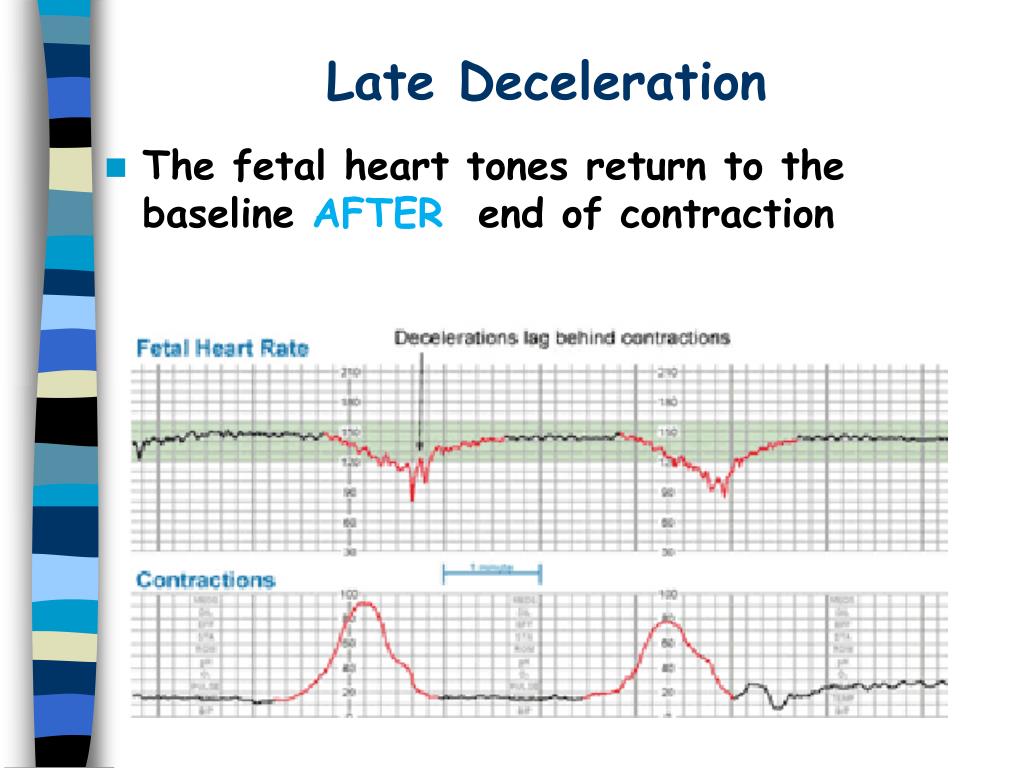

Late Deceleration
  • The fetal heart tones return to the baseline AFTER end of contraction
late decelerations

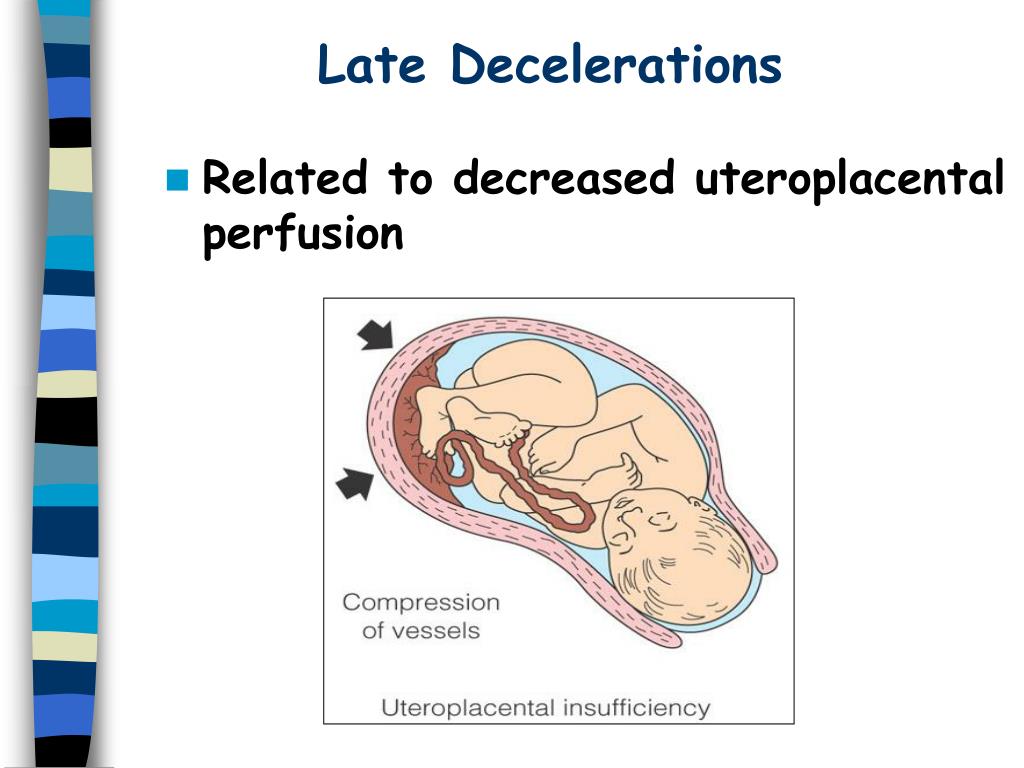

Late Decelerations
  • Related to decreased uteroplacental perfusion
nursing care for fhr decelerations
Nursing Care for FHR Decelerations
  • Stop the Pitocin
  • Reposition - Turn woman to a side-lying position, or knee- chest position. Avoid supine position
  • Increase rate of the mainline IV
  • Administer oxygen by mask at 10 L/min.
  • Give Terbutaline sub-q.
nursing care
Nursing Care
  • Notify the primary care provider
  • If condition does not improve, then prepare for immediate delivery
fetal scalp stimulation
Fetal Scalp Stimulation
  • Gently stroke or massage fetal scalp for 15 sec. during a vaginal examination
  • Assess fetal tracing for signs of accelerations of 15 bpm for 15 sec.
  • This is a sign of fetal well-being
fetal scalp blood sampling
Fetal Scalp Blood Sampling
  • Requires rupture of


  • Acidosis is present if

the pH is less

than 7.20

cord blood analysis
Cord Blood Analysis
  • Criteria
    • Significant abnormal FHR
    • Meconium stained amniotic fluid
    • Infant is depressed at birth
  • Small amount of blood obtained from umbilical cord and tested for acidosis
    • Normal fetal blood pH should be >7.25
    • Lower level indicate acidosis and hypoxia
montevideo units
Montevideo Units
  • Montevideo units is a measure of uterine contraction intensity during labor.
  • Units are calculated via internal pressure monitor, measuring uterine contraction peak pressure and subtracting the baseline resting tone. This is done over a 10 minute interval.
  • Generally, above 200 MVUs is considered necessary for adequate labor to bring about dilation and effacement during the active phase.
