Dispersed systems l.jpg

Dispersed Systems

FDSC400

2004 Version


Goals l.jpg
Goals

  • Scales and Types of Structure in Food

  • Surface Tension

  • Curved Surfaces

  • Surface Active Materials

  • Charged Surfaces



Dispersed systems4 l.jpg
Dispersed Systems

A kinetically stable mixture of one phase in another largely immiscible phase. Usually at least one length scale is in the colloidal range.


Dispersed systems5 l.jpg
Dispersed Systems

Dispersed phase

Continuous phase

Interface

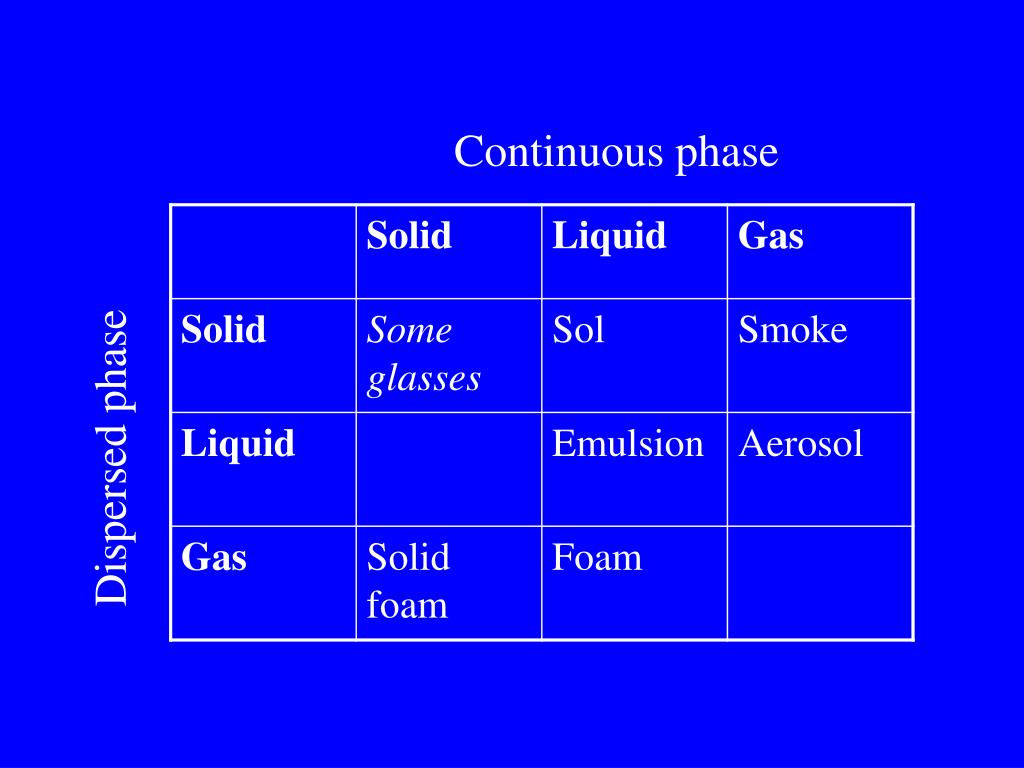

Slide6 l.jpg

Continuous phase

Dispersed phase

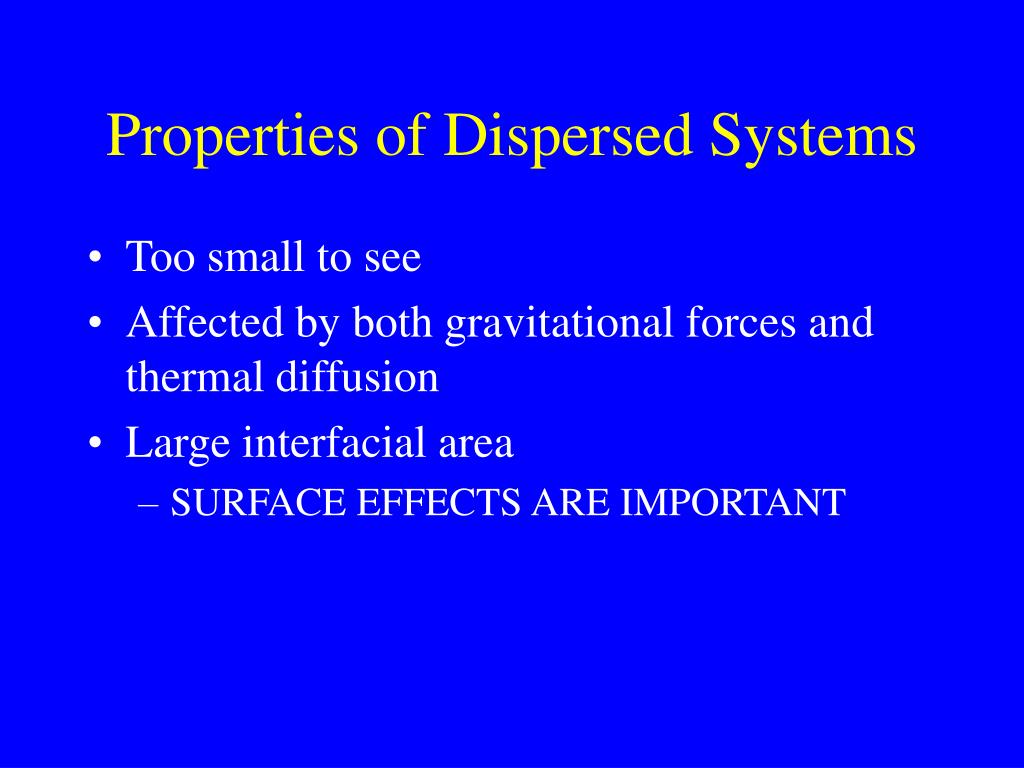

Properties of dispersed systems l.jpg
Properties of Dispersed Systems

  • Too small to see

  • Affected by both gravitational forces and thermal diffusion

  • Large interfacial area

    • SURFACE EFFECTS ARE IMPORTANT


Slide8 l.jpg

Increased Surface Area

The same oil is split into 0.1 cm radius droplets, each has a volume of 0.004 cm3 and a surface area 0.125 cm2.

As we need about 5000 droplets we would have a total area of 625 cm2

We have 20 cm3 of oil in 1 cm radius droplets. Each has a volume of (4/3.p.r3) 5.5 cm3 and a surface area of (4.p.r2) 12.5 cm2.

As we need about 3.6 droplets we would have a total area of 45.5 cm2


For a fixed composition l.jpg
For a Fixed COMPOSITION

  • Decrease size, increase number of particles

  • Increase AREA of interfacial contact

decrease area


Tendency to break l.jpg

LYOPHOBIC

Weak interfacial tension

Little to be gained by breaking

e.g., gums

LYOPHILIC

Strong interfacial tension

Strong energetic pressure to reduce area

e.g., emulsions

Tendency to break

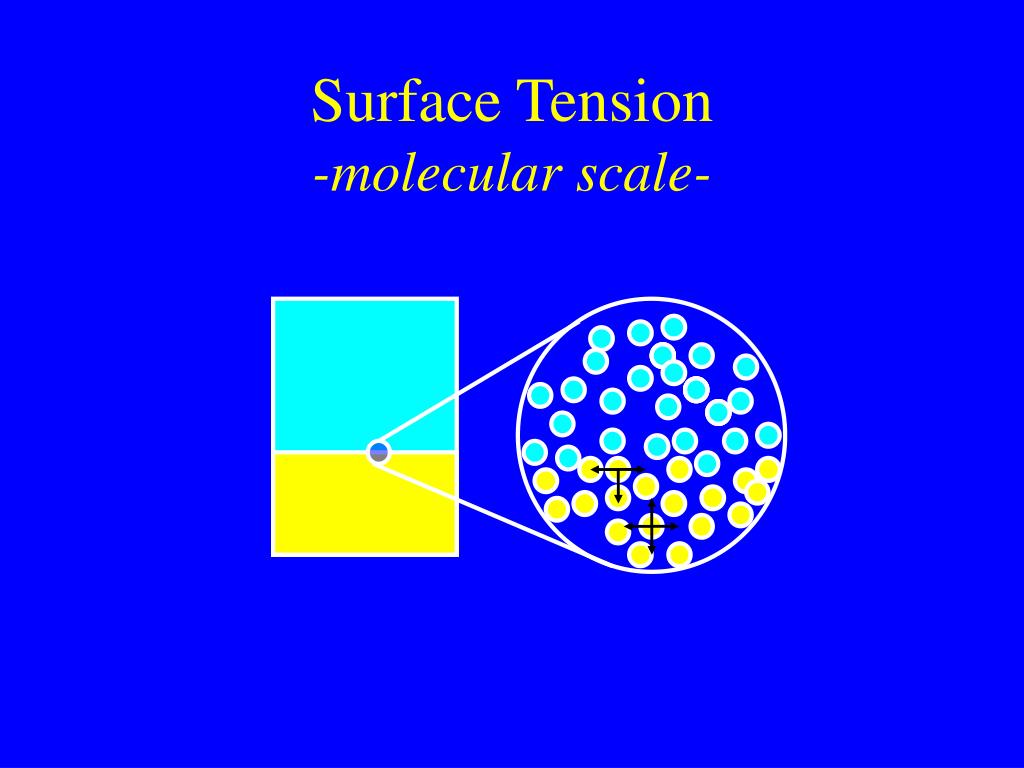

Surface tension molecular scale l.jpg
Surface Tension-molecular scale-


Surface tension bulk scale l.jpg
Surface Tension-bulk scale-

Force, g

Slope g

Interfacial energy

Area, A

Interfacial area


Surface active material l.jpg
Surface Active Material

  • Types of surfactant

  • Surface accumulation

  • Surface tension lowering

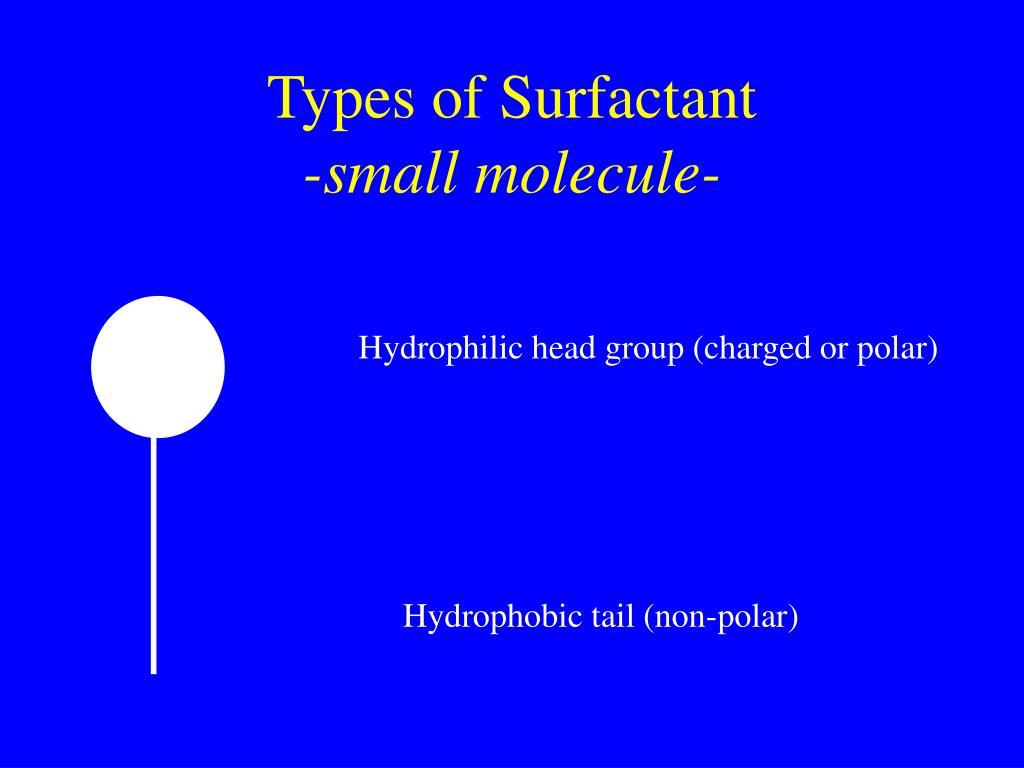

Types of surfactant small molecule l.jpg
Types of Surfactant-small molecule-

Hydrophilic head group (charged or polar)

Hydrophobic tail (non-polar)


Types of surfactant polymeric l.jpg
Types of Surfactant-polymeric-

Polymer backbone

Sequence of more water soluble subunits

Sequence of less water soluble subunits


Surface binding l.jpg
Surface Binding

Equilibrium

ENTHALPY COST

ENTROPY COST

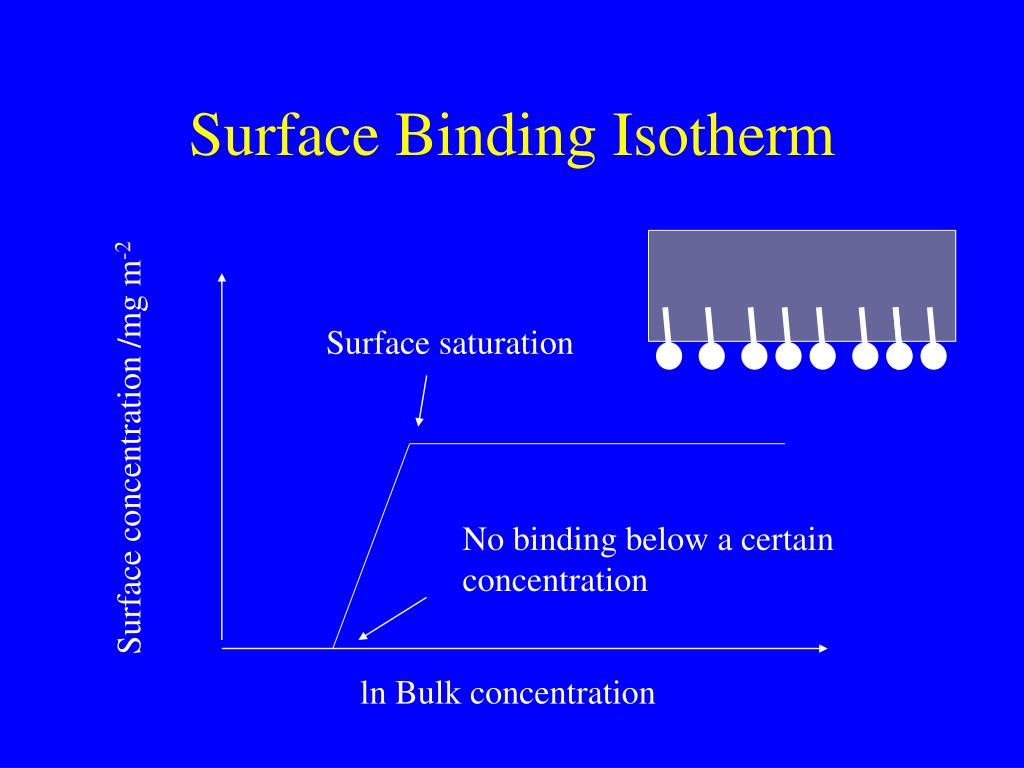

Surface binding isotherm l.jpg
Surface Binding Isotherm

Surface saturation

Surface concentration /mg m-2

No binding below a certain concentration

ln Bulk concentration


Surface tension lowering l.jpg
Surface Tension Lowering

Bare surface

(tension g0)

Interface partly “hidden”

(tension g)

Surface pressure – the ability of a surfactant to lower surface tension

p = g-g0


Summary l.jpg
Summary

  • Small particles have a large surface area

  • Surfaces have energy associated with them (i.e., they are unstable) because of their interfacial tension

  • Dispersions will tend to aggregate to reduce the interfacial area

  • Proteins and small molecule surfactants will adsorb to the surface to reduce surface tension and increase stability.



Emulsion l.jpg

Emulsion

A fine dispersion of one liquid in a second, largely immiscible liquid. In foods the liquids are inevitably oil and an aqueous solution.


Types of emulsion l.jpg
Types of Emulsion

mm

Water

Oil

Oil-in-water emulsion

Water-in-oil emulsion


Chemical composition l.jpg
Chemical Composition

Interfacial layer. Essential to stabilizing the emulsion

Oil Phase. Limited effects on the properties of the emulsion

Aqueous Phase. Aqueous chemical reactions affect the interface and hence emulsion stability


Emulsion size l.jpg

< 0.5 mm

0.5-1.5 mm

1.5-3 mm

>3 mm

Emulsion Size


Number distributions l.jpg

Very few large droplets contain most of the oil

Number Distributions

Number

  • < 0.5 mm

  • 0.5-1.5 mm

  • 1.5-3 mm

  • >3 mm


Slide26 l.jpg

Large droplets often contribute most to instability

Median

(Volume in class Total volume measured)

Polydispersity

Note log scale


Volume fraction l.jpg
Volume Fraction

f=Total volume of the dispersed phase

 Total volume of the system

Close packing, fmax

Monodisperse

Ideal ~0.69

Random ~0.5

Polydisperse

Much greater


Emulsion viscosity l.jpg

Emulsion droplets disrupt streamlines and require more effort to get the same flow rate

Emulsion Viscosity

Dispersed phase

volume fraction

Viscosity of emulsion

Continuous phase viscosity


Emulsion destabilization l.jpg
Emulsion Destabilization effort to get the same flow rate

  • Creaming

  • Flocculation

  • Coalescence

  • Combined methods


Creaming l.jpg
Creaming effort to get the same flow rate

Buoyancy

(Archimedes)

h Continuous phase viscosity

Dr density difference

g Acceleration due to gravity

ddroplet diameter

v droplet terminal velocity

vs Stokes velocity

Friction

(Stokes-Einstein)


Flocculation and coalescence l.jpg
Flocculation and Coalescence effort to get the same flow rate

Collision and

sticking (reaction)

Stir or change chemical conditions

FLOCCULATION

Rehomogenization

Film rupture

COALESCENCE


Aggregation kinetics l.jpg
Aggregation Kinetics effort to get the same flow rate

  • Droplets diffuse around and will collide often

  • In fact only a tiny proportion of collisions are reactive

DG

2P

G

kslow=kfast/W

P2

Function of energy barrier


Interaction potential l.jpg
Interaction Potential effort to get the same flow rate

  • Non-covalent attractive and repulsive forces will act to pull droplets together (increase flocculation rate) or push them apart (decrease flocculation rate)

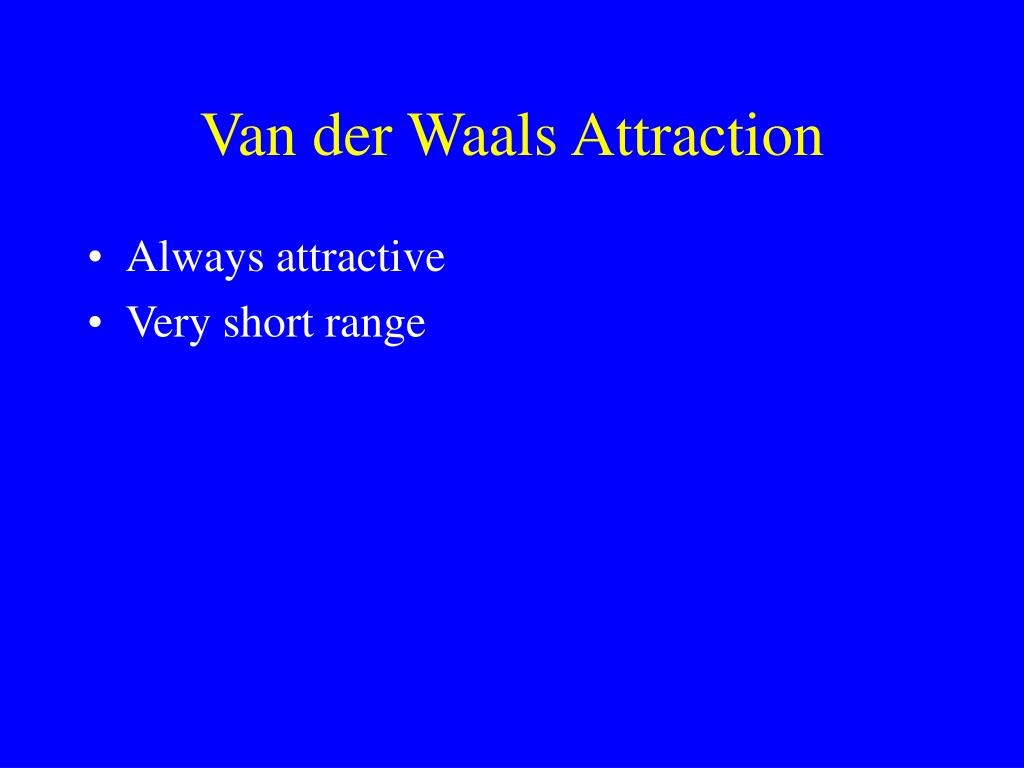

Van der waals attraction l.jpg
Van der Waals Attraction effort to get the same flow rate

  • Always attractive

  • Very short range


Electrostatic repulsion l.jpg
Electrostatic Repulsion effort to get the same flow rate

  • Repulsive or attractive depending on sign of charges

  • Magnitude depends on magnitude of the charge

  • Gets weaker with distance but reasonably long range


Steric repulsion l.jpg
Steric Repulsion effort to get the same flow rate

Droplets approach each other

Protein layers overlap

Proteins repel each other mechanically & by osmotic dehydration

What happens when protein molecules on different droplets are reactive?


Rheology of flocculated emulsions l.jpg

Flocculation leads to an increase in viscosity effort to get the same flow rate

Water is trapped within the floc and must flow with the floc

Effective volume fraction increased

Rheology of Flocculated Emulsions

rg


Gelled emulsions l.jpg
Gelled Emulsions effort to get the same flow rate

Thin liquid

Viscous liquid

Gelled solid
