  1. CONCRETE WOLF Vibration Laser Screed https://concretewolf.eu

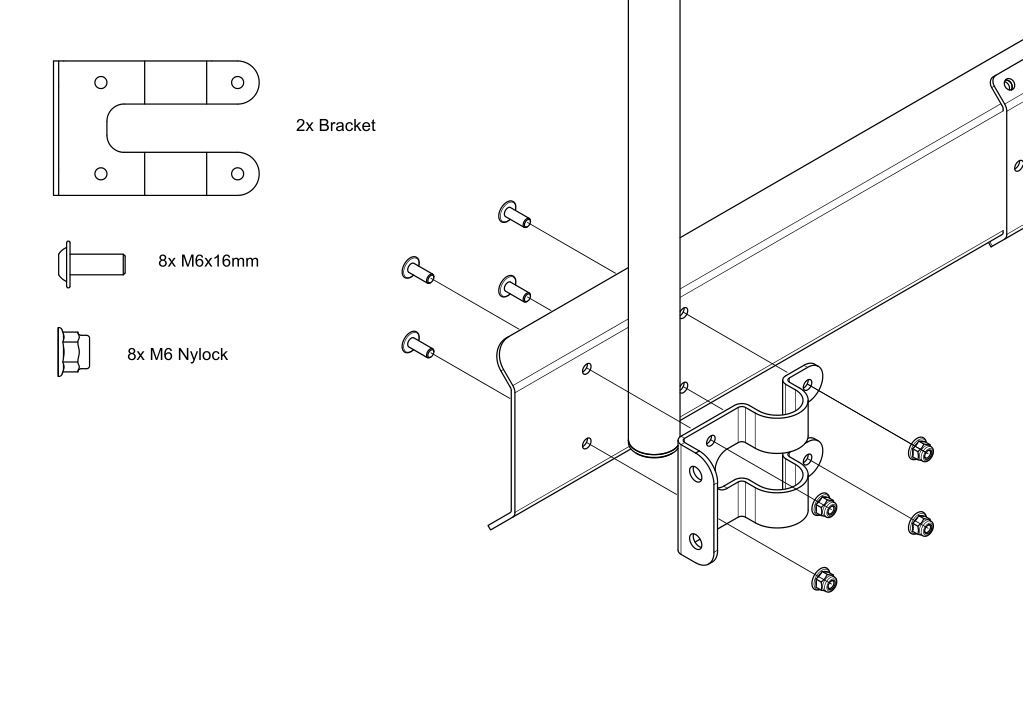

  2. 2x Bracket 8x M6x16mm 8x M6 Nylock

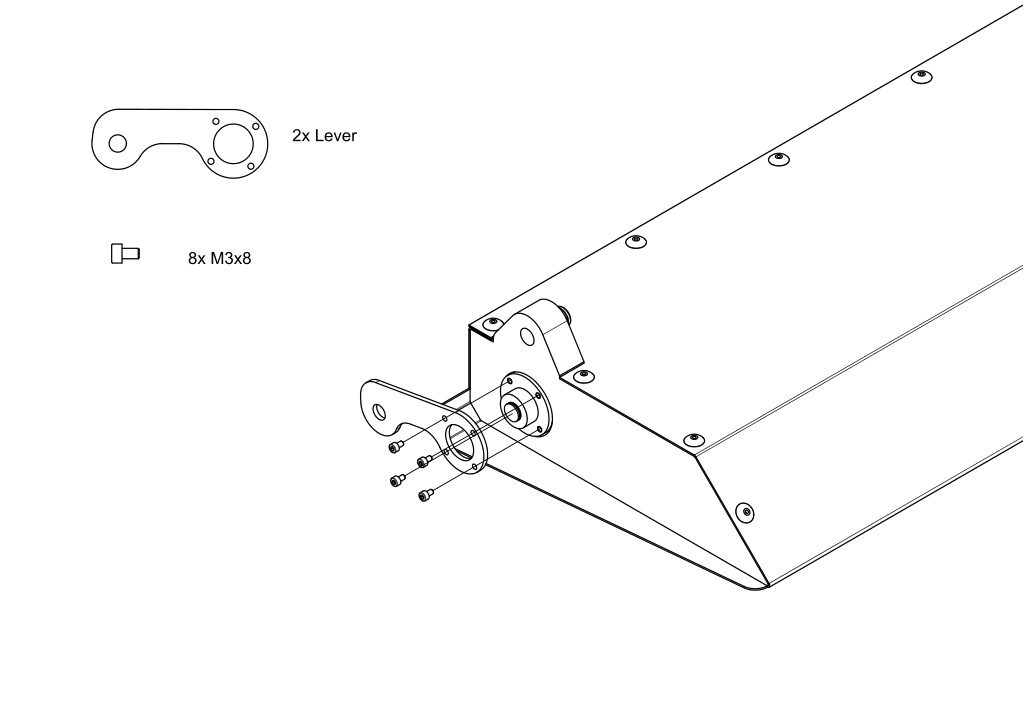

  3. 2x Lever 8x M3x8

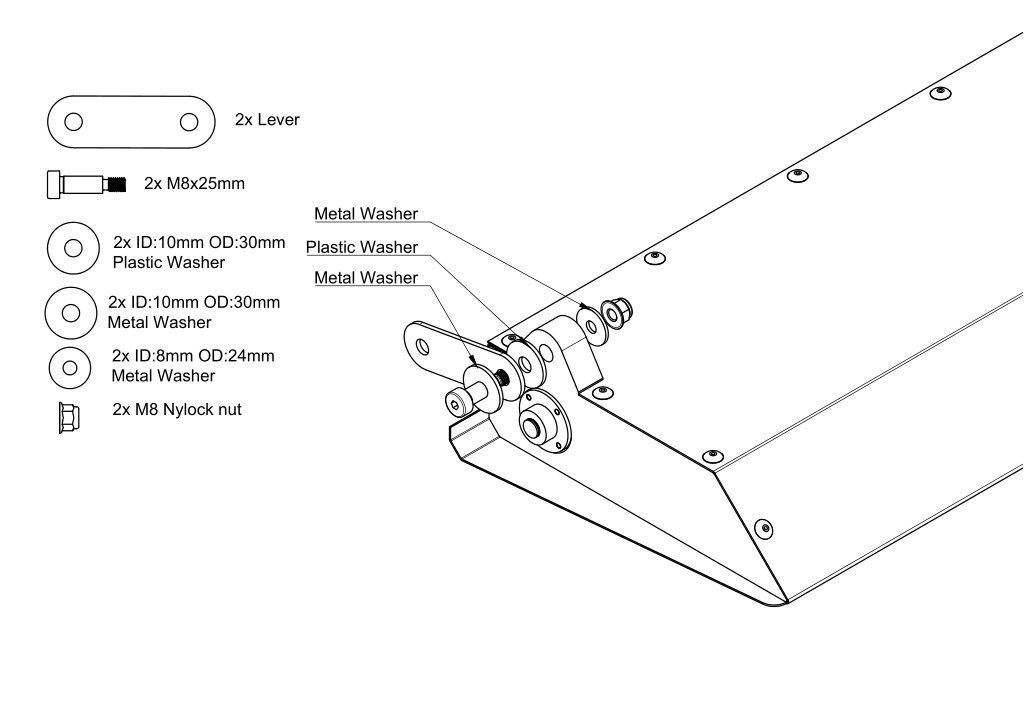

  4. 2x Lever 2x M8x25mm Metal Washer 2x ID:10mm OD:30mm Plastic Washer Plastic Washer Metal Washer 2x ID:10mm OD:30mm Metal Washer 2x ID:8mm OD:24mm Metal Washer 2x M8 Nylock nut

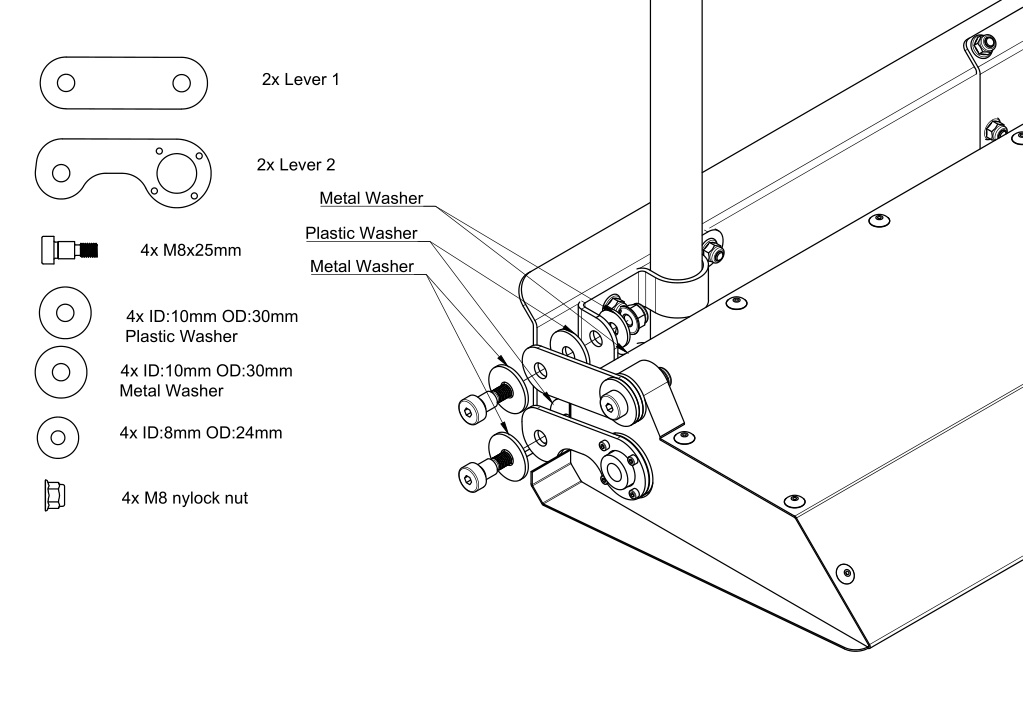

  5. 2x Lever 1 2x Lever 2 Metal Washer Plastic Washer 4x M8x25mm Metal Washer 4x ID:10mm OD:30mm Plastic Washer 4x ID:10mm OD:30mm Metal Washer 4x ID:8mm OD:24mm 4x M8 nylock nut

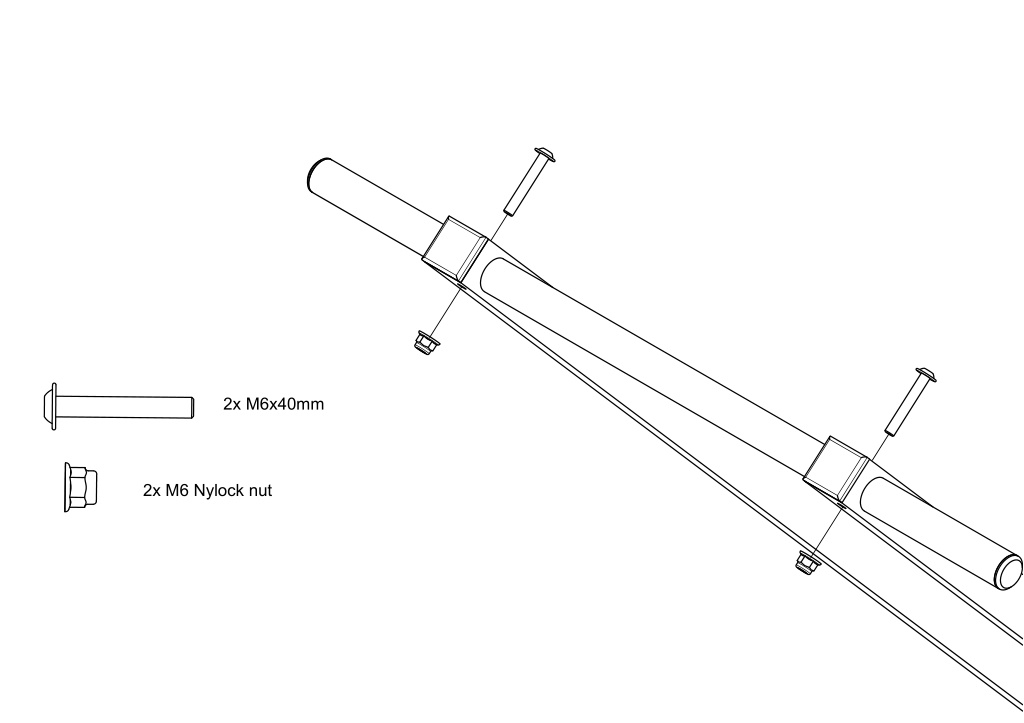

  6. 2x M6x40mm 2x M6 Nylock nut

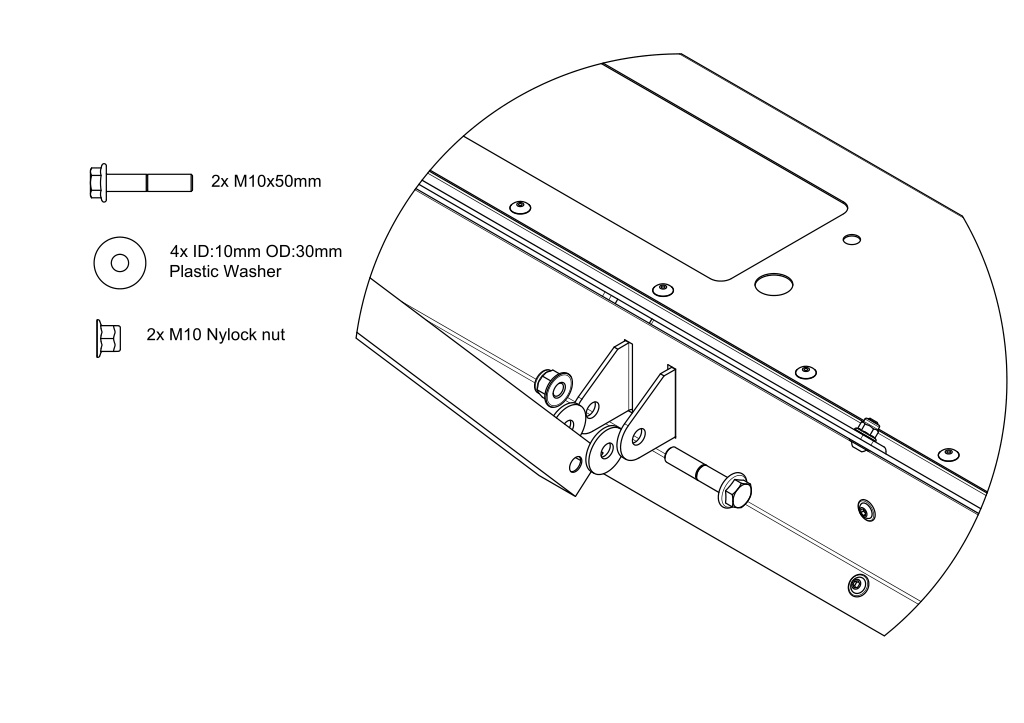

  7. 2x M10x50mm 4x ID:10mm OD:30mm Plastic Washer 2x M10 Nylock nut

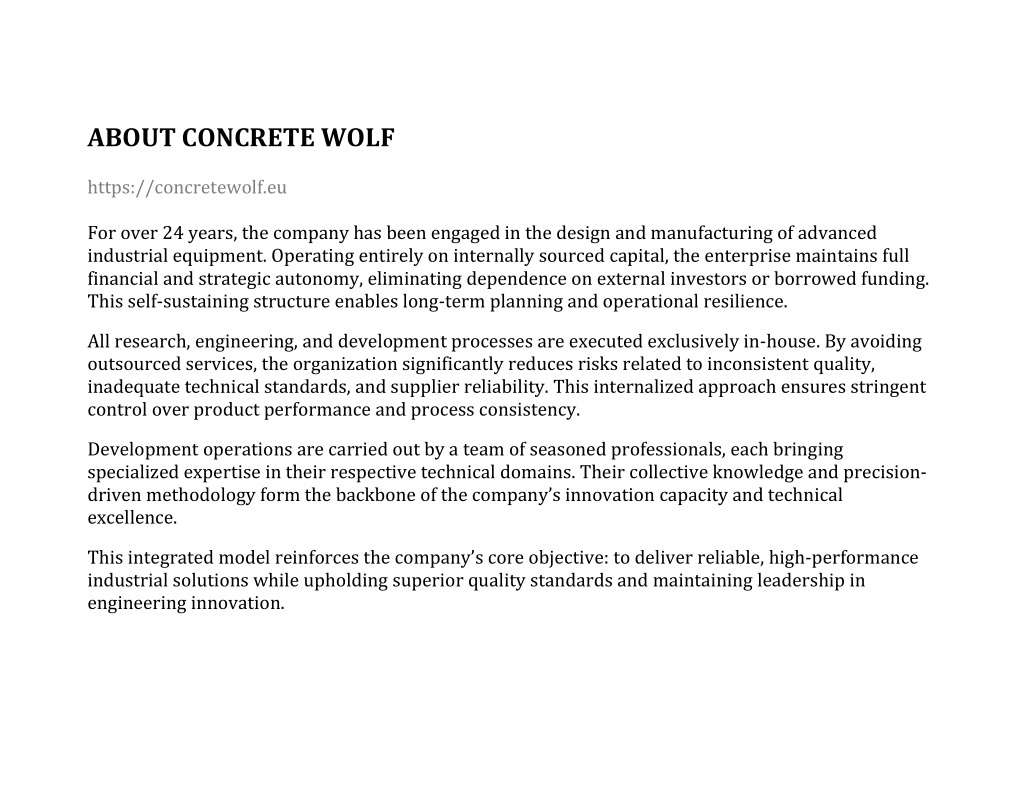

  8. ABOUT CONCRETE WOLF https://concretewolf.eu For over 24 years, the company has been engaged in the design and manufacturing of advanced industrial equipment. Operating entirely on internally sourced capital, the enterprise maintains full financial and strategic autonomy, eliminating dependence on external investors or borrowed funding. This self-sustaining structure enables long-term planning and operational resilience. All research, engineering, and development processes are executed exclusively in-house. By avoiding outsourced services, the organization significantly reduces risks related to inconsistent quality, inadequate technical standards, and supplier reliability. This internalized approach ensures stringent control over product performance and process consistency. Development operations are carried out by a team of seasoned professionals, each bringing specialized expertise in their respective technical domains. Their collective knowledge and precision- driven methodology form the backbone of the company’s innovation capacity and technical excellence. This integrated model reinforces the company’s core objective: to deliver reliable, high-performance industrial solutions while upholding superior quality standards and maintaining leadership in engineering innovation.
