the fsm model of a control system practical information

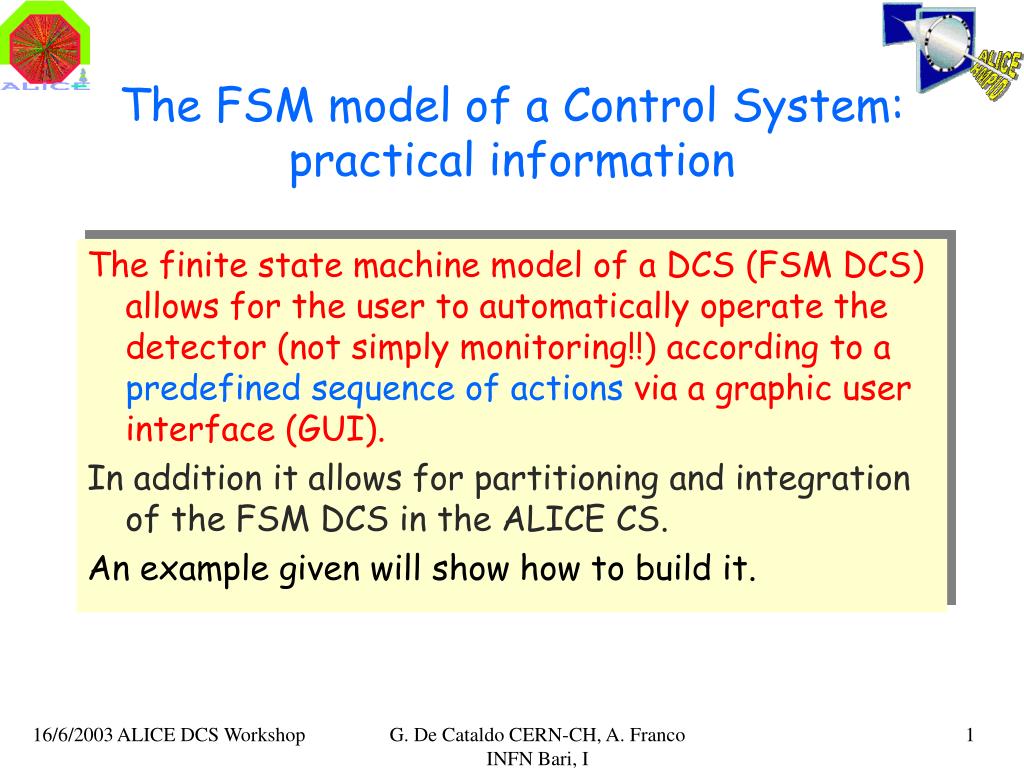

The FSM model of a Control System:practical information

The finite state machine model of a DCS (FSM DCS) allows for the user to automatically operate the detector (not simply monitoring!!) according to a predefined sequence of actions via a graphic user interface (GUI).

In addition it allows for partitioning and integration of the FSM DCS in the ALICE CS.

An example given will show how to build it.

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

the device oriented control system
The Device Oriented Control System

To get the FSM DCS it has proven effective to follow these steps:

  • Once the detector’s subsystems have been defined (HV, LV, Gas, Cooling,…..) then the integrationin PVSS of the related devices (PS, Board, channel) should be done via the JCOP Framework (FW) editor/navigator panel (an application running in PVSS). This operation will result in the Device Oriented Control System that contains simple monitoring and operation features. Since now this will be referred as the DeviceO CS which is mirrored in a well defined PVSS data points structure (Dp).

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide3

e.g.: the present HMPID CS Hardware

Win2000 WS running Step7

for PLC prog. development

Win2000

DCS Workstation

with JCOP FW(PVSS),

CAEN and Siemens OPC’s…

Ethernet

CAEN SY1527

CAEN A1676W  WIENER PL500F8

PLC

Some actuators

( as Liq. circ.

Sub -system)

CANbus

Physical

Parameters

HV Sub-system

LV Sub-system

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide4

Device definition in the FW:

e.g. SY1527, A1821P and A1676W CAEN boards

Device oriented hierarchy

The A1821P is a 12 ch HV board to provide about 2KV to the HMPID MWPC, while the A1676W is a branch controller that allows for to control up to eight WIENER PL500F8 fully equipped with 64 channels. So the A1676W appear to be a CAEN board with 64 channel, then compatible with the CAEN OPC server!

New Dps are defined for the A1676W board as well as its new simbol in the CAEN board library

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide5

Channel Definition on the

A1676W Board in the FW 1.2

This is a modified panel (by A. Franco, HMPID) for the WienerPS configuration provided by S. Popescu in the FW1.2

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide6

LV Channel Monitoring and simple operation

for the A1676W board in fw 1.2

This is a modified panel (by A. Franco, HMPID) for the WienerPS configuration provided by S. Popescu in the FW1.2

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

the detector oriented control system
The Detector Oriented Control System
  • According to the physicist experience a Detector oriented CS, provides a more effective detector monitoring and operation. In order to build this DetectorO CS,
  • first of all the detector has to be represented by means of minimal independent parts (e.g. modules, sectors…) that, as the case may be, they can be operated independently providing useful data for the analysis.

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

detector oriented cs hierarchy
Detector Oriented CS hierarchy
  • Secondlyvia the FW, the specific Dps, representing the detector parts, and the related Detector Oriented panels (GUI) should be respectively defined and designed. The panels should be mainly intended for monitoring purposes and all the related monitoring information have to be there presented.

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide9

Monitoring panel of the

HMPID LV sub-system

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide10

Linking panel between the DeviceO CS and the DetectorO CS (e.g. FERO sector)

This linking panel has been developed ad hoc to establish a connection between LV channels and the HMPID LV Modules. Any failure of one of this channel can be recovered changing the link from the bad channel to a new one. The CS will continue to work perfectly.

Link with the FEE/RO Segment

List of the available LV channels

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide11

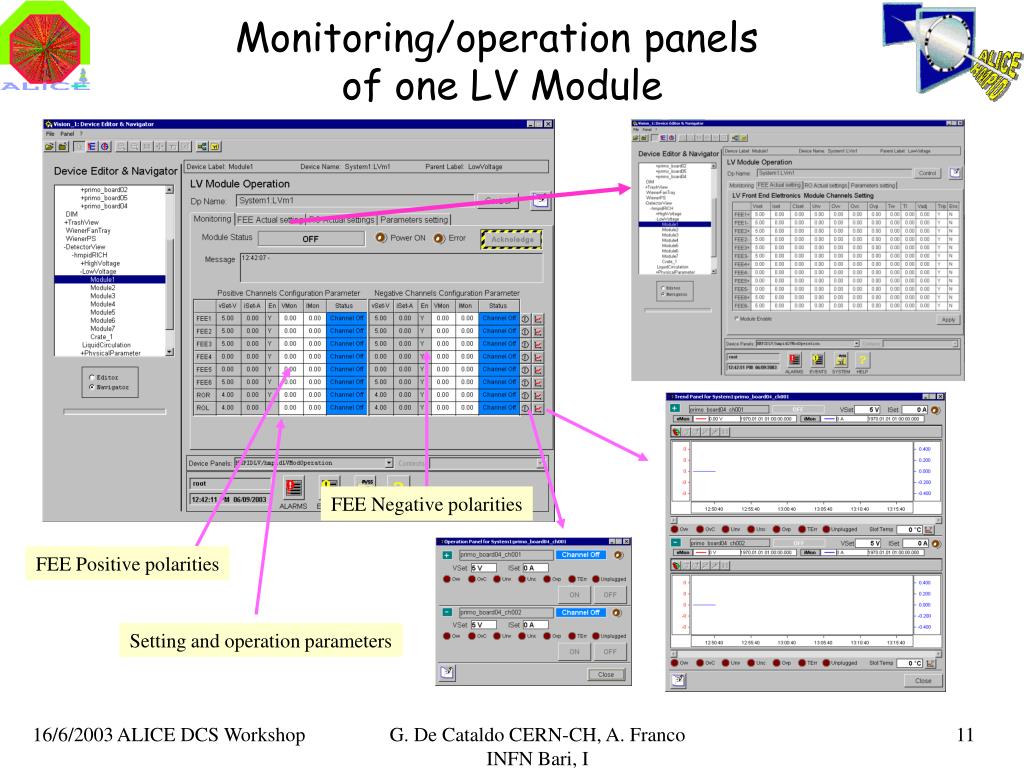

Monitoring/operation panels

of one LV Module

FEE Negative polarities

FEE Positive polarities

Setting and operation parameters

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide12

Monitoring panel of the

HMPID HV sub-system

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide13

Monitoring/operation panels

of one HMPID HV Module

Trend panel

Single HV channel operation panel

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

the fsm cs for automation integration and partitioning of the dcs
The FSM CS for automation, integration and partitioning of the DCS
  • The third step is intended to implement the DCS automation, partitioning and finally its integration in the ALICE CS. All these features can be obtained, at the same time, if a Finite State Machine model of the DCS (FSM DCS) is implemented. This step should be carried out in the SMI++ environment which has its interface in the JCOP FW. In this environment new links between Dps representing detector parts and logical objects, as Control and Device Units (CU, DU), have to be established. All the related documentation can be found starting from :

http://clara.home.cern.ch/clara/fw/FSMConfig.pdf

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

cu and du the basic elements for the fsm dcs
CU and DU, the basic elements for the FSM DCS

The DU and CU are logical objects behaving as a FSM! For both of them can be defined a finite number of states they can assume (ON, OFF, RmUP…), and related commands (GO_ON, GO_OFF, RESET…) to let them to move between the states according to the relevant state diagram that the expert has defined for its detector. For some subsystems (HV and LV) a standardization of the state diagrams is under way. Moreover, the CU (not the DU) can contain a control program (in State Management Language SML) which includes the sequence of operations to be automatically performed once a command has been issued. The resulting behavior arising from the combination of some of these logical objects represents the Finite State Machine model of the DCS (or sub-system CS).

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide16

SMI Control Unit

HMPID

DCS

SMI Device Unit

HVPS1

PLC

S300

Hardware Device

e.g.: Control & Device Units in the HMPID CS Architecture

Working in progress

This CU and DU architecture, mirrors the Detector Oriented CS

Advanced Status

External to the HMPID CS

HMPID

DCS

HV

LV

LCS

COOL

GAS

Phis. Par

Cooling

System

Gas

System

HVMod 1

LVSctr 1

LCSMod 1

HVPS1

LVPS1

LCSMain

LVPS1

CAEN

SY1527

HV PS

PLC

S300

PLC

S300

WIENER

PL500F8

LV PS

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

working with the smi toolkit

Config. Panel for Device Type

Working with the SMI++ toolkit

Config. Panel for Logical Object type

Configuring Hierarchy of FSM

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide18

FSM Device Units

FSM Device Units

FSM Device Units

FSM DP

FSM DP

FSM DP

HVm1

HVm1

HVm1

HV Channels

A Flexible and tailored interface between the hardware and HVmodule

  • At present, in order to get a FSM DCS Detector Oriented, the best compromise is to combine the features of the SMI++ language with the PVSSII script programs. While the first is manly oriented to manage logical states, the second is more powerful. Their combination in the HMPID FSM CS has allowed not only to define the FSM model(SMI++), but also to manage alarm conditions on one or more sectors in one HMPID module, to provide log features to track the user operation while trying to repair the fault condition (PVSSII script).
  • All the parameters and variables of the CAEN SY1527 Crate are linked, by the OPC server/client, to a set of PVSS DataPoints defined in the Device oriented CS in the Framework.
  • Eight additional DataPoints are defined as Logical Devices, one for the HV Power Supply and 7 for the HMPID HV Modules, they are the interfaces to the FSM Device Units
  • For each Device Unit an associated FSM has been defined using the SMI++ Framework tools
  • An High Voltage Control Unit Domain and the relative SMI++ control program have been created.
  • A devoted Interface Control Scripts Program (PVSS II) is requested to convert, all the information including the alarm conditions coming from the SY1527, plugged boards and channels, in logical objects (Device Unit) behaving as FSM’s …

HV

(Control Prog

In SML)

Interface

Script Program

(PVSS)

Framework

device DPs

DCOM/OPC

connection

CAEN SY1527

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

the gui for the fsm cs
The GUI for the FSM CS

For each CU or DU there are related operation panel from where the commands can be issued and the logical state read to operate the corresponding detector or sub-system part. In this panel, those developed for the Detector oriented CS may be included and then recycled! Nothing prevent the definition of a new one.

In the final HMPID CS, the combination in one panel of monitoring and operation features has proven to be effective for the detector operation (e.g.during test beam), monitoring, debugging. Of course, some lock mechanism on the detector operation will prevent interference with the Experiment Control System once the detector control will be demanded at that level.

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide20

C6F14 RADIATOR

ROL

ROR

COOLING

e.g.: the HMPID GUI operation

and monitoring panel

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide21

HV system monitoring and control

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

conclusions
Conclusions
  • To build a FSM CS the first step is the implementation of the Device Oriented CS in the JCOP FW;
  • The Second step is to realize the Detector Oriented CS in the JCOP FW;
  • Finally, profiting of the DeviceO and DetectorO CS, the implementation of the FSM CS in the SMI++ environment to get automation, partitioning and integrating features for your control system.
  • Suggestion: try to define the minimal parts of which your detector can be made of ( it has to provide useful data for the analysis!) and sketch your Detector Oriented Graphic User Interface. Do not hesitate to contact us for a conversation on the subject.

G. De Cataldo CERN-CH, A. Franco INFN Bari, I

slide23

The Interface Control Script Program

  • When the Domain Control Program send an action (command) to a FSM Device Unit, the related DataPoint values change.
  • This results in the execution of a subroutine that according to the command received modify all the related values in the DataPoint elements.

Physical

Devices

FSM

Device Units

Event fired

by a Request of Action

Command

to Devices

Jasd j

i= 0

If(kjsad) asd asda

Jkd askd aksd

kaksd as

Asdas asd

1 CAEN

SY1527 crate

Primo

[FwSy1527]

HVpa1

[hmpidHVPS]

HV

Power Supply

5 CAEN

A1821 boards

Primo_board01

[FwCaen1527Board]

HV Module 1

Primo_board01

[FwCaen1527Board]

Primo_board01

[FwCaen1527Board]

Primo_board01

[FwCaen1527Board]

Primo_board01

[FwCaen1527Board]

HV Module 2

Jasd j

i= 0

If(kjsad) asd asda

Jkd askd aksd

kaksd as

Asdas asd

49 CAEN

HV channels

Primo_board01_ch01

[FwCaenChannel]

Primo_board01_ch01

[FwCaenChannel]

Primo_board01_ch01

[FwCaenChannel]

Primo_board01_ch01

[FwCaenChannel]

HVm1

[hmpidHVM]

HV Module 3

Primo_board01_ch01

[FwCaenChannel]

HVm1

[hmpidHVM]

Primo_board01_ch01

[FwCaenChannel]

HVm1

[hmpidHVM]

Primo_board01_ch01

[FwCaenChannel]

HVm1

[hmpidHVM]

HVm1

[hmpidHVM]

HVm1

[hmpidHVM]

HVm1

[hmpidHVM]

HV Module 4

Changing of the

Device Status

Event fired

by value changing

HV Module 5

HV Module 6

  • When a parameter value of the Physical Device changes, this variation is propagated into the corresponding DataPoint element value.
  • This event activate a subroutine that according to new parameter value may bring the corresponding D.U.(HV Module) in a new state.

HV Module 7

G. De Cataldo CERN-CH, A. Franco INFN Bari, I
