slide1

Section 4

Flight Software

. . . Ray Whitley

EO-1 WARP Flight Software Lead

spacecraft bus architecture

S-Band

RF

SA

GPS

RWA

R000

R000

R000

Mongoose - V

CSS

ACE

COMM

H/K

ACS/C&DH

AST

RSN

IRU

RSN

RSN

PSE

RT

RT

RT

BC

RT

RT

RCS

RSN

MTB

TAM

PPT

SADE

R000

R000

R000

R000

M - V

RT

RT

RT

RT

RT

RT

XBAND

WARP

ALI

RSN

RSN

RSN

LAC

Hyperion

WARP

X-Band

RF

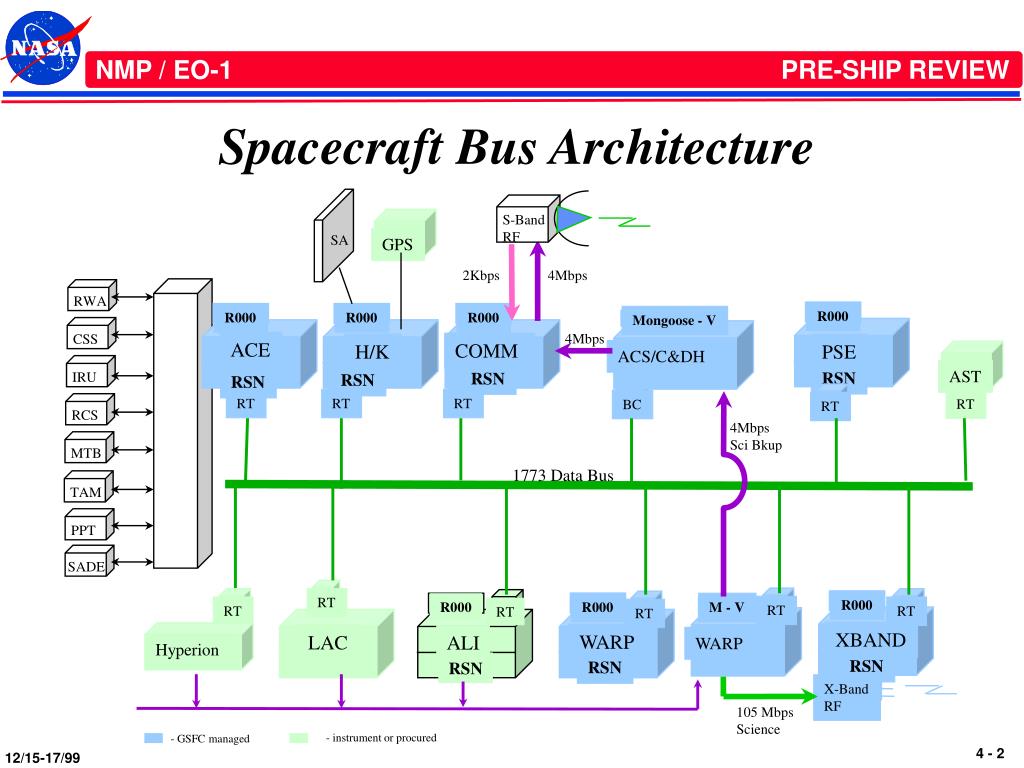

Spacecraft Bus Architecture

2Kbps

4Mbps

4Mbps

4Mbps

Sci Bkup

1773 Data Bus

105 Mbps

Science

- instrument or procured

- GSFC managed

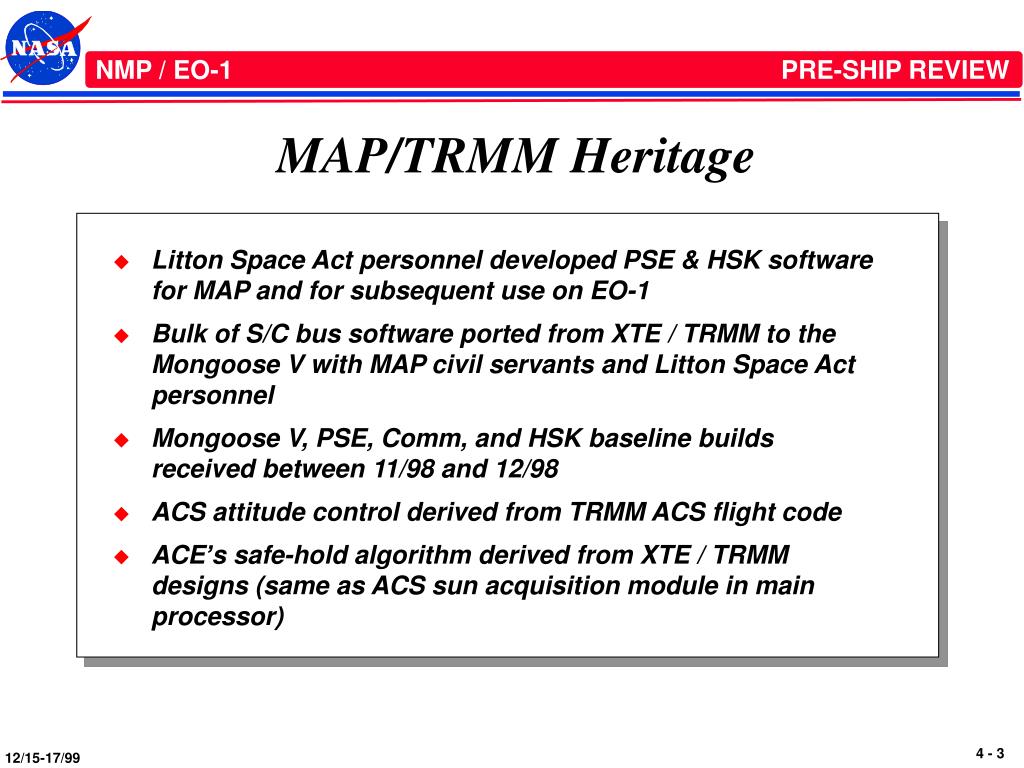

map trmm heritage
MAP/TRMM Heritage
  • Litton Space Act personnel developed PSE & HSK software for MAP and for subsequent use on EO-1
  • Bulk of S/C bus software ported from XTE / TRMM to the Mongoose V with MAP civil servants and Litton Space Act personnel
  • Mongoose V, PSE, Comm, and HSK baseline builds received between 11/98 and 12/98
  • ACS attitude control derived from TRMM ACS flight code
  • ACE’s safe-hold algorithm derived from XTE / TRMM designs (same as ACS sun acquisition module in main processor)
functionality by processor

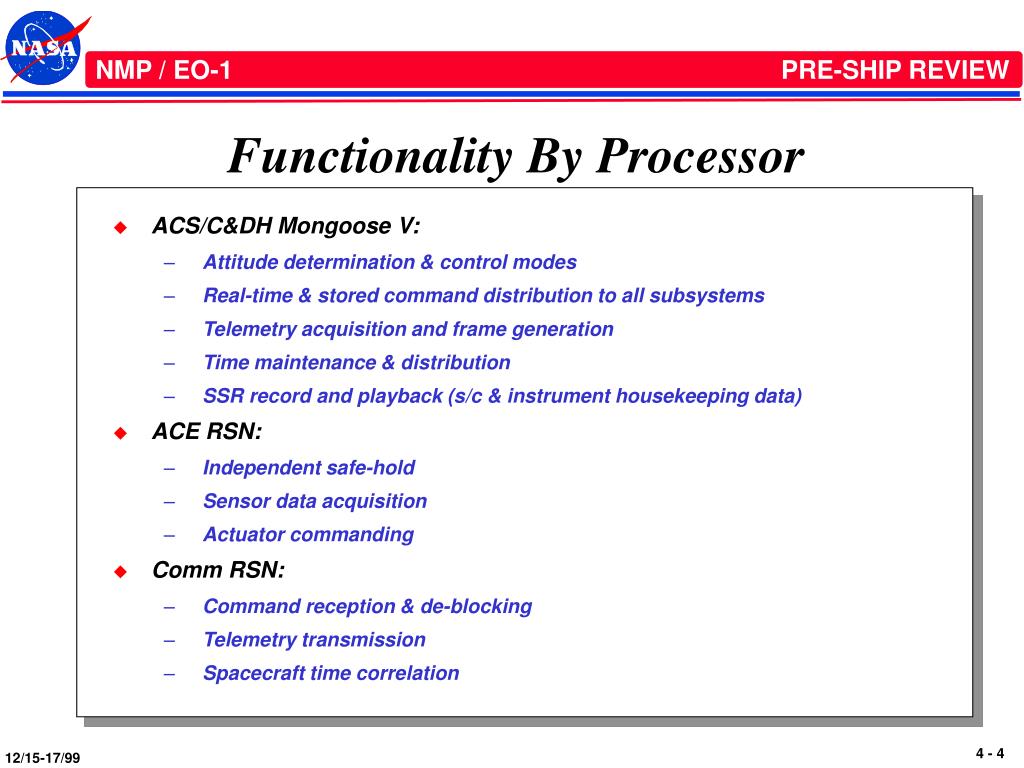

Functionality By Processor
  • ACS/C&DH Mongoose V:
    • Attitude determination & control modes
    • Real-time & stored command distribution to all subsystems
    • Telemetry acquisition and frame generation
    • Time maintenance & distribution
    • SSR record and playback (s/c & instrument housekeeping data)
  • ACE RSN:
    • Independent safe-hold
    • Sensor data acquisition
    • Actuator commanding
  • Comm RSN:
    • Command reception & de-blocking
    • Telemetry transmission
    • Spacecraft time correlation

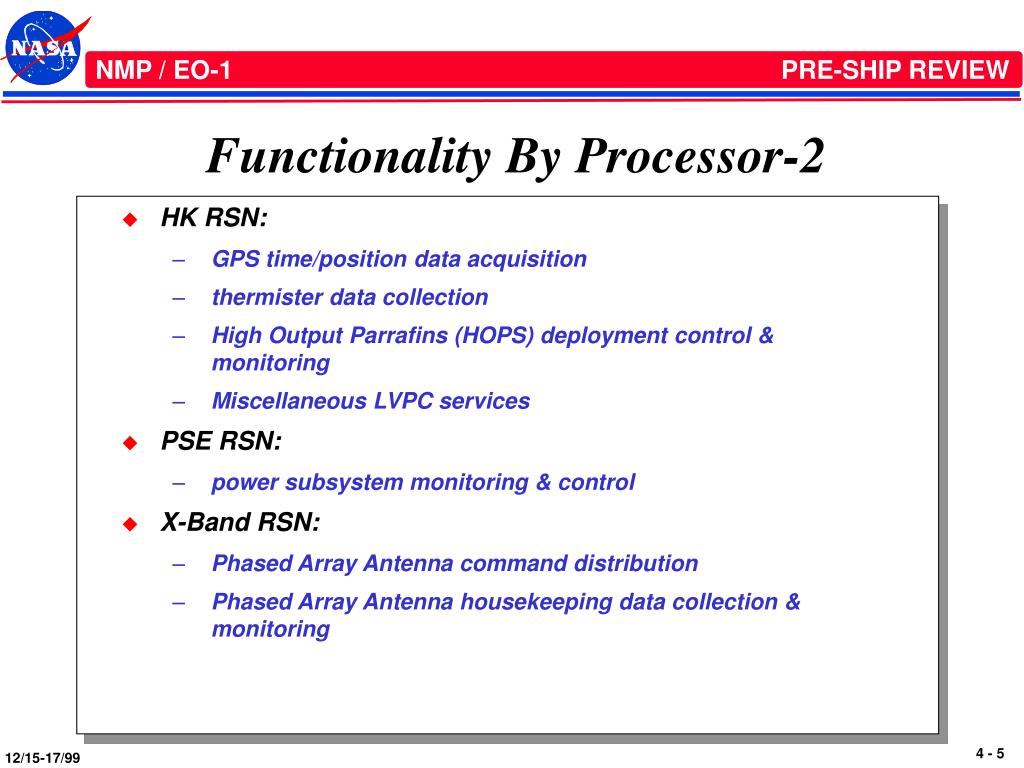

functionality by processor 2
Functionality By Processor-2
  • HK RSN:
    • GPS time/position data acquisition
    • thermister data collection
    • High Output Parrafins (HOPS) deployment control & monitoring
    • Miscellaneous LVPC services
  • PSE RSN:
    • power subsystem monitoring & control
  • X-Band RSN:
    • Phased Array Antenna command distribution
    • Phased Array Antenna housekeeping data collection & monitoring
functionality by processor 3
Functionality By Processor-3
  • WARP Mongoose V:
    • Science data record set-up and control
    • Science data X-band & S-band playback control
  • WARP RSN:
    • Command distribution for LVPS services inside WARP
    • Housekeeping data acquisition & monitoring for the WARP

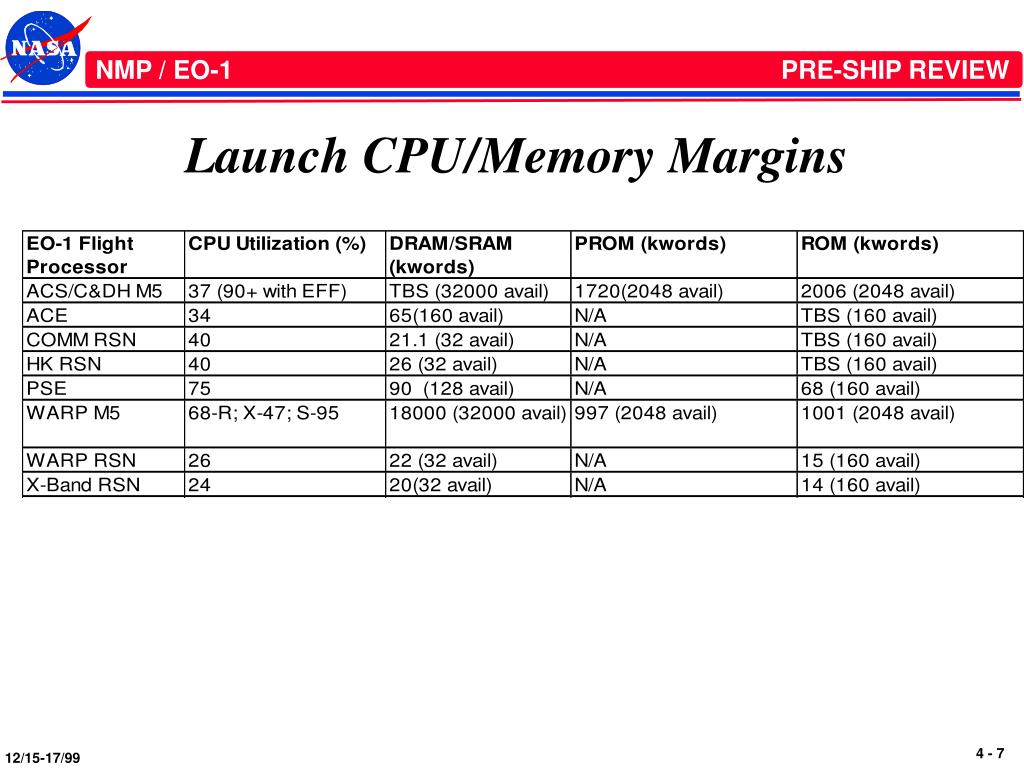

verification approach
Verification Approach
  • Component & system level I&T at software lab prior to and at s/c delivery
    • Well documented and repeatable stol test procedures executed in lab and repeated upon delivery to spacecraft
    • Equivalent to “long form functional”
  • Code walk-thrus with panel of FSW peers, subsystem lead, & s/c systems engineering
  • Spacecraft subsystem functional, CPTs, “special tests”
    • Bus error injection and memory corruption
    • Processor stress test

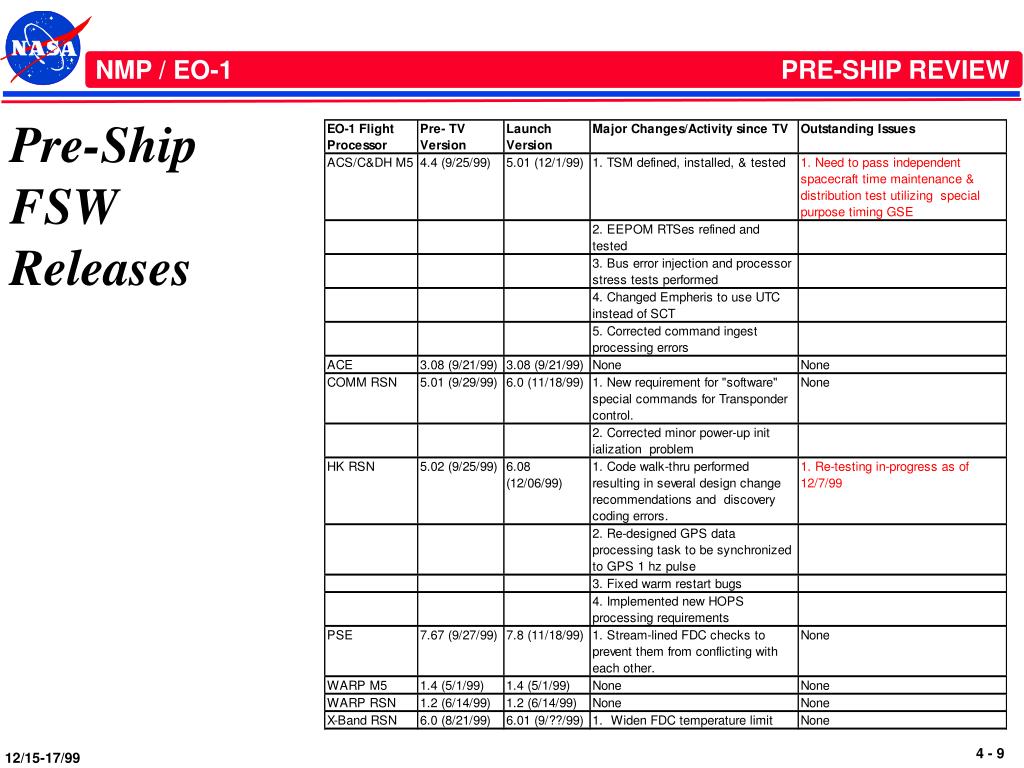

significant test results

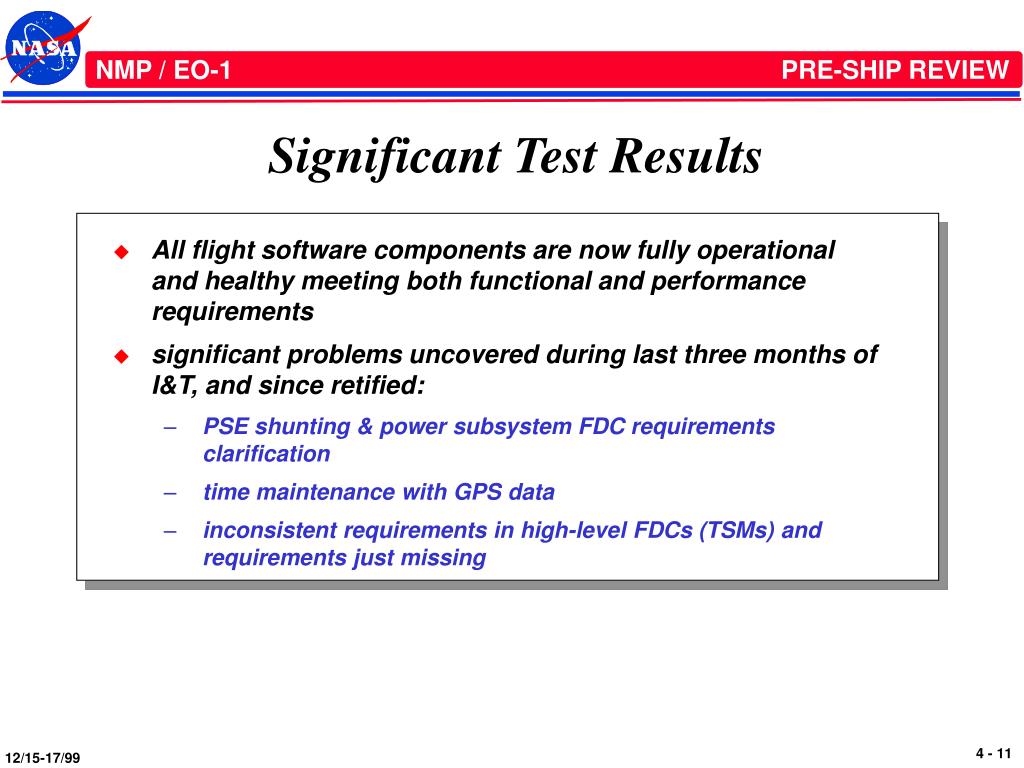

Significant Test Results
  • All flight software components are now fully operational and healthy meeting both functional and performance requirements
  • significant problems uncovered during last three months of I&T, and since retified:
    • PSE shunting & power subsystem FDC requirements clarification
    • time maintenance with GPS data
    • inconsistent requirements in high-level FDCs (TSMs) and requirements just missing
slide12

Special Topic:

Flight Software Maintenance Capability

on orbit sustaining engineering

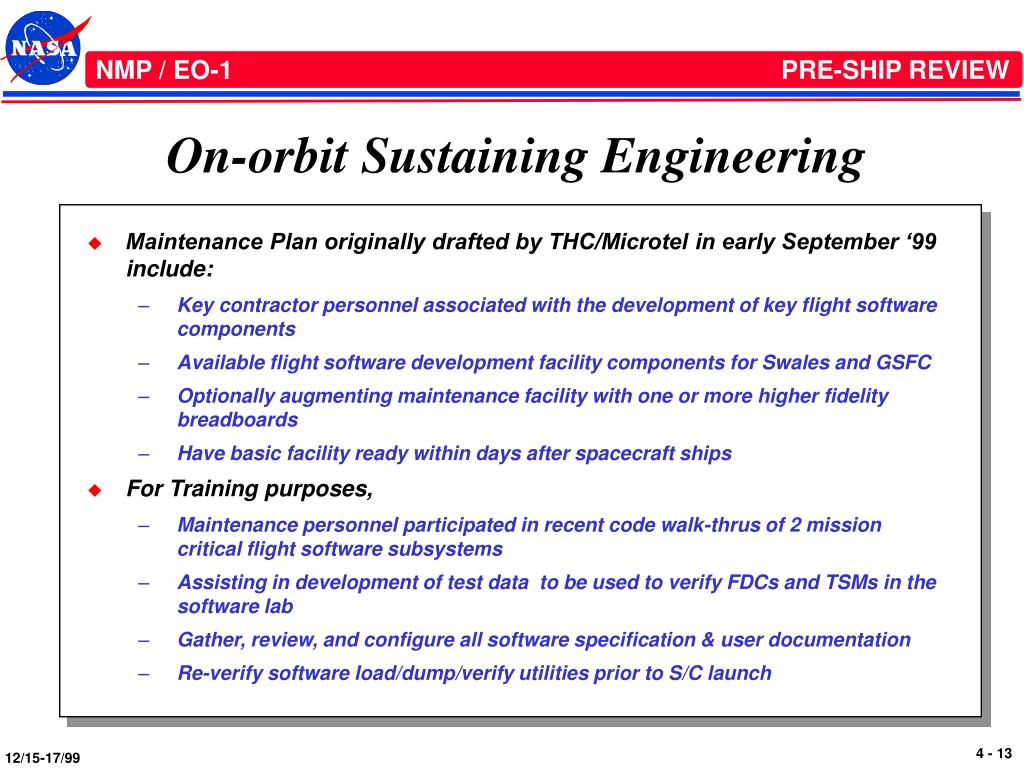

On-orbit Sustaining Engineering
  • Maintenance Plan originally drafted by THC/Microtel in early September ‘99 include:
    • Key contractor personnel associated with the development of key flight software components
    • Available flight software development facility components for Swales and GSFC
    • Optionally augmenting maintenance facility with one or more higher fidelity breadboards
    • Have basic facility ready within days after spacecraft ships
  • For Training purposes,
    • Maintenance personnel participated in recent code walk-thrus of 2 mission critical flight software subsystems
    • Assisting in development of test data to be used to verify FDCs and TSMs in the software lab
    • Gather, review, and configure all software specification & user documentation
    • Re-verify software load/dump/verify utilities prior to S/C launch
eo 1 flight software maintenance functional organization chart

ACS/EFF

ACE

CM

HK

PSE

FSW Lead

COMM

X BAND

Sys. Eng.

WARP M5/RSN

C&DH

* The following engineers are available for consultation should the need arise during the mission:

C. Xenophontas (Litton) J. Marquardt (GSFC)

G. Smith (Litton) A. Cudmore (GSFC)

E. Stagmer (Litton) T. Miller (GSFC)

S. Slegel (Raytheon) D. Molock (GSFC)

S. Mann

*

L. Gaudaen

(THC)

L. Bashar

(THC)

J. Hengemihle

(Microtel)

J. Hengemihle

R. Mason

(Microtel)

L. Bashar

R. Mason

*

R. Mason

*

(Microtel)

S. Mann

*

S. Mann

(THC)

J. D’Agostino

K. Blackman

A. Hawkins

(THC)

L. Bashar

J. Hengemihle

*

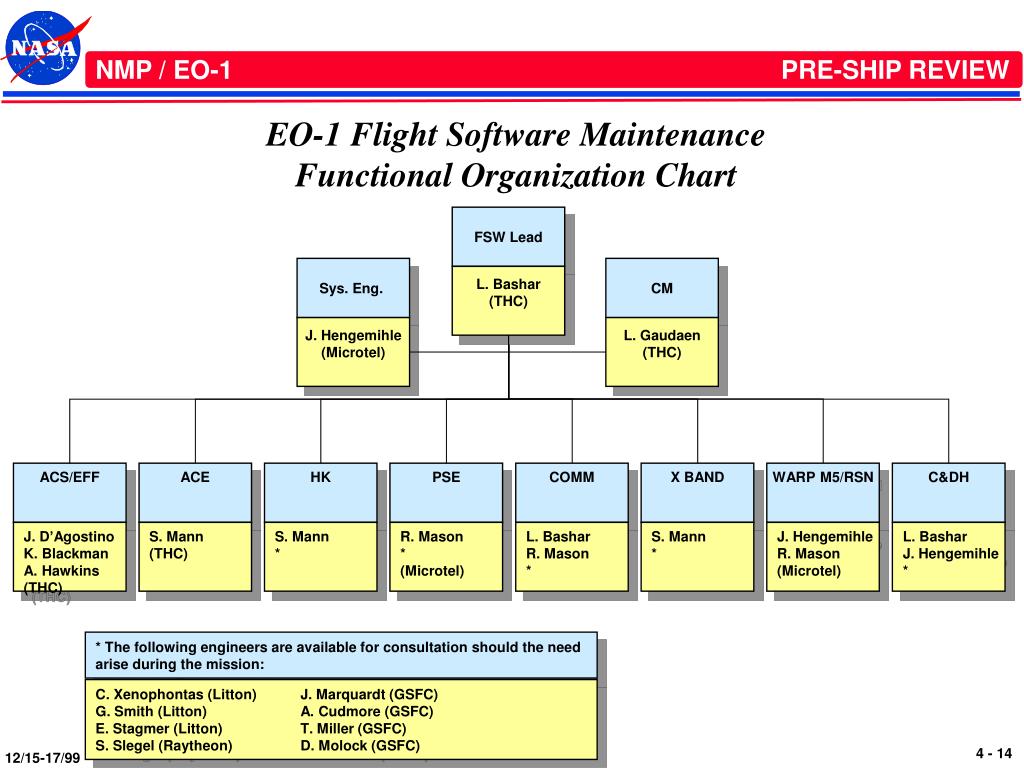

EO-1 Flight Software Maintenance Functional Organization Chart

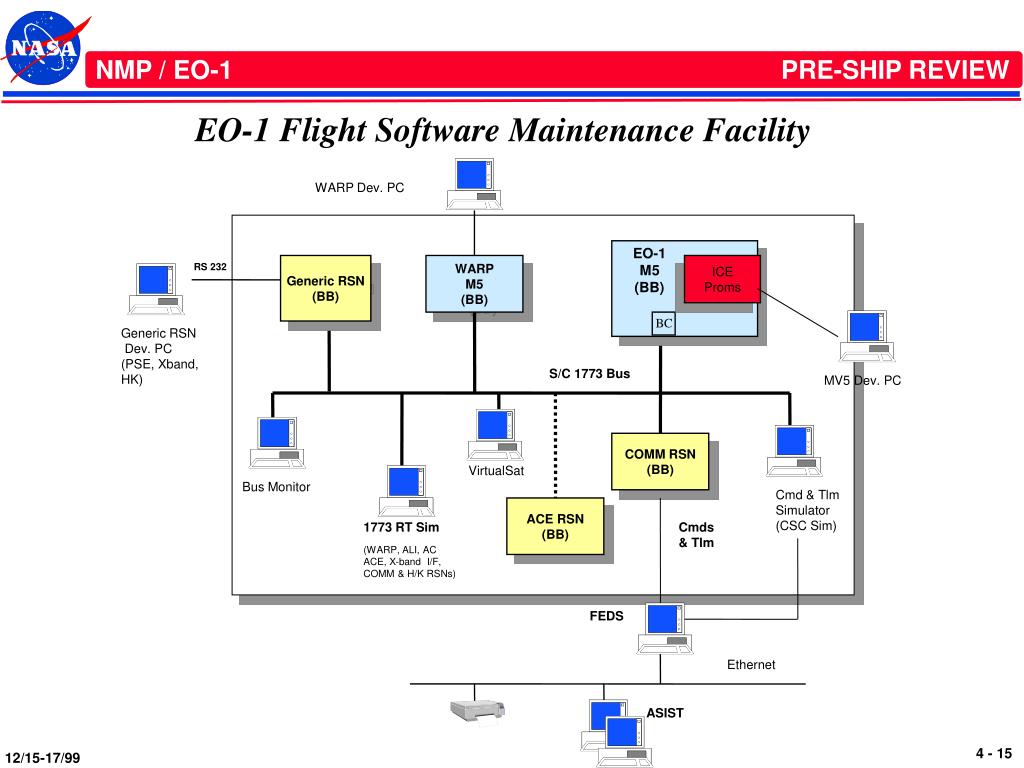

eo 1 flight software maintenance facility
EO-1 Flight Software Maintenance Facility

WARP Dev. PC

EO-1

M5

(BB)

RS 232

Generic RSN

(BB)

WARP

M5

(BB)

ICE

Proms

BC

MV5 Dev. PC

Generic RSN

Dev. PC

(PSE, Xband,

HK)

S/C 1773 Bus

COMM RSN

(BB)

VirtualSat

Bus Monitor

Cmd & Tlm Simulator

(CSC Sim)

ACE RSN

(BB)

1773 RT Sim

Cmds & Tlm

(WARP, ALI, AC

ACE, X-band I/F,

COMM & H/K RSNs)

FEDS

Ethernet

ASIST

slide17

Special Topic:

TSMs, Including Comprehensive Failure & Correction

. . . Tom Feild

EO-1 Systems Engineer, GSFC Code 568

comprehensive failure detection and correction
Comprehensive Failure Detection and Correction
  • EO-1 employs 2 methods to autonomously detect fault conditions and take appropriate action to safe the observatory:
    • TSM/RTS System
      • A Telemetry Statistics Monitor (TSM) is a telemetry point or combination of points that are used to verify observatory health
      • A Relative Time Sequence (RTS) is a list of commands that can be executed in response to a hazardous condition
      • TSMs monitor spacecraft health and when they detect a fault condition they can execute an RTS and/or issue an event message
      • Runs on the ACDS Mongoose 5
    • FDC System
      • The Fault Detection and Correction (FDC) System consists of software checks and corrective actions that are embedded in the flight software running on the various processors on EO-1
slide19

Failure Detection and Correction Philosophy

  • Philosophy is ‘Keep it Simple’
    • Only conditions that threaten observatory health are addressed
    • Simplest ‘safe’ action is taken, often to power off the device whose health is in question
  • The TSM/RTS System is the primary method of detecting and correcting hazardous conditions on EO-1
    • Except for certain instrument fault conditions, when one hazard has both a TSM/RTS action and an FDC action then the thresholds are set such that the TSM/RTS will trip first
  • All TSMs, RTSs, and FDCs will be tested prior to launch
    • Many ACS FDCs can only be tested on the high fidelity simulator
    • Many instrument FDCs only tested prior to instrument delivery
  • All TSMs/RTSs or FDCs will be retested after every new software load. Many are tested during the CPT.
slide20

Event Messages

  • The Observatory sends down ‘Event Messages’ to provide information on all significant events that occur on the observatory such as:
    • Changes in spacecraft configuration (e.g. data rates, filter tables, day/night transitions)
    • Anomalous events such as activated TSMs, RTSs, and FDCs
  • All Event Messages are stored in VR-2
    • VR-2 is downloaded during each pass
  • Provides Flight Ops Team with immediate access to information on spacecraft health and autonomous actions
  • Event messages are generated by:
    • ALL TSM activations
    • All RTS calls by TSMs
    • Most FDCs
slide21

TSMs

  • Current version is TSM Rev G
  • Contains 33 TSMs (plus 17 monitor point TSMs)
  • Loaded on November 30, 1999
  • 3 problems have been identified to date
    • 2 TSMs have tripped when not expected
    • 1 TSM did not trip when expected
  • Most already tested
    • 21 tested in special test
    • 6 to be tested during CPT (12/6 to 12/10)
    • 3 require retest
    • 3 require troubleshooting

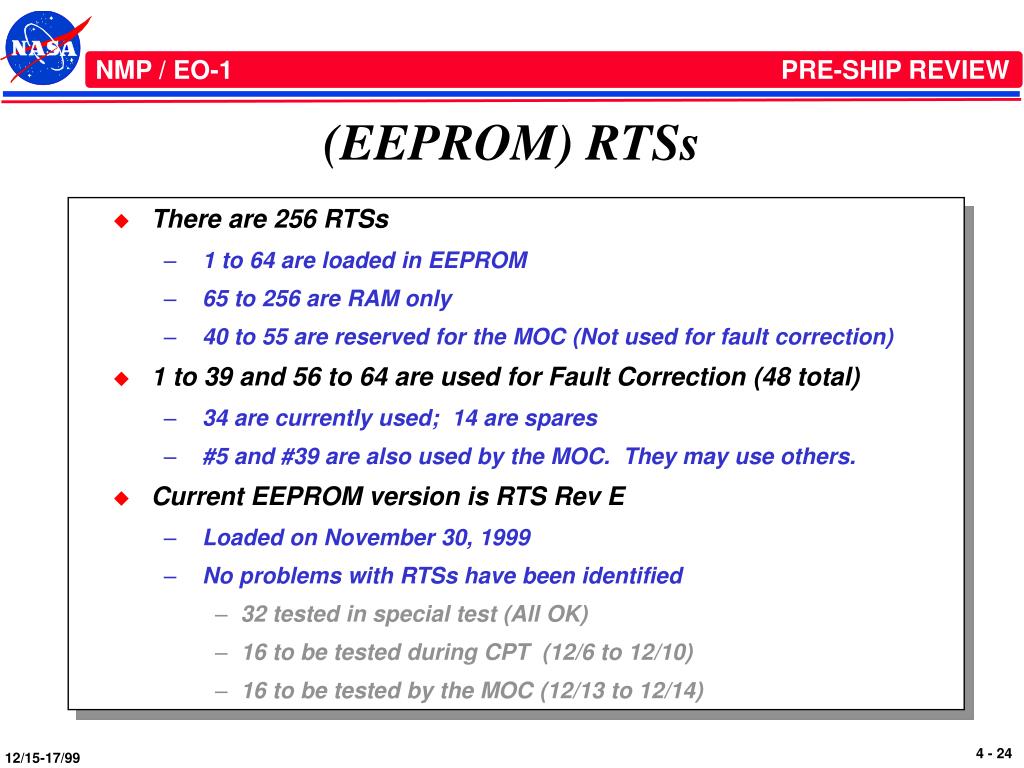

slide24

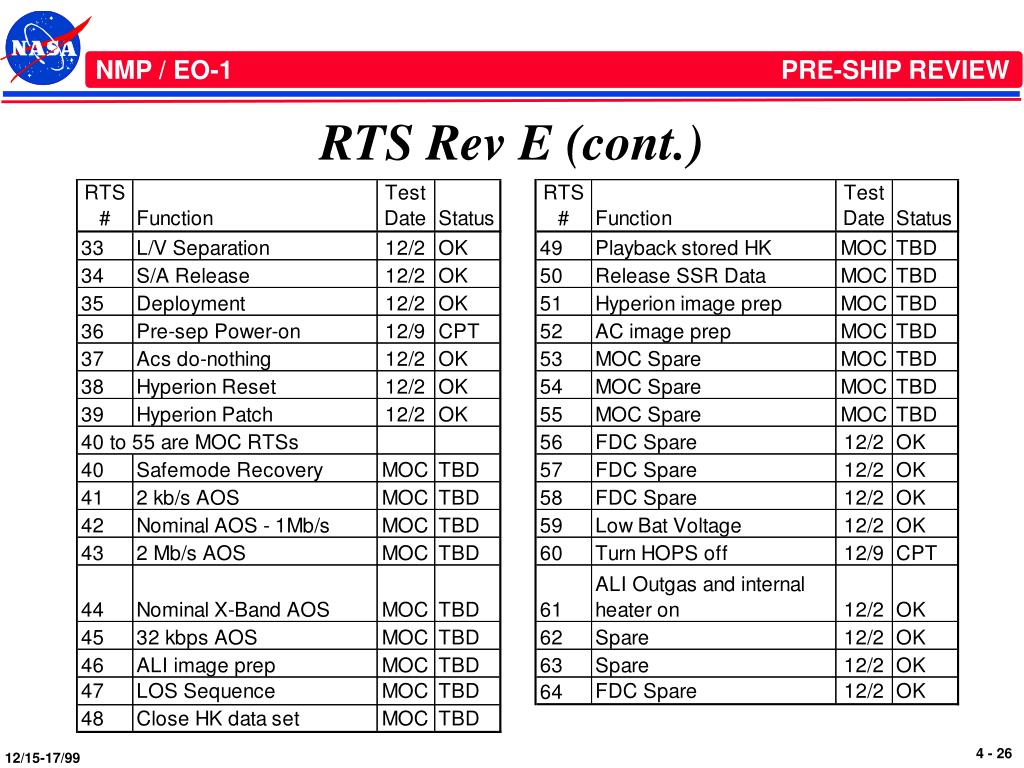

(EEPROM) RTSs

  • There are 256 RTSs
    • 1 to 64 are loaded in EEPROM
    • 65 to 256 are RAM only
    • 40 to 55 are reserved for the MOC (Not used for fault correction)
  • 1 to 39 and 56 to 64 are used for Fault Correction (48 total)
    • 34 are currently used; 14 are spares
    • #5 and #39 are also used by the MOC. They may use others.
  • Current EEPROM version is RTS Rev E
    • Loaded on November 30, 1999
    • No problems with RTSs have been identified
      • 32 tested in special test (All OK)
      • 16 to be tested during CPT (12/6 to 12/10)
      • 16 to be tested by the MOC (12/13 to 12/14)
slide27

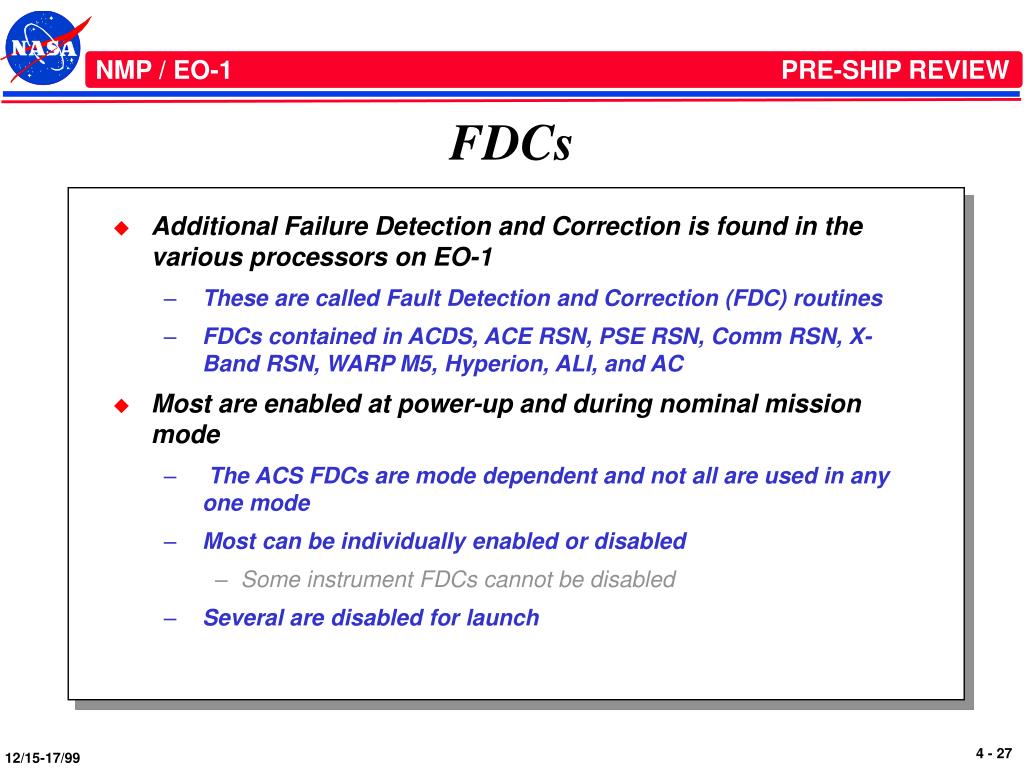

FDCs

  • Additional Failure Detection and Correction is found in the various processors on EO-1
    • These are called Fault Detection and Correction (FDC) routines
    • FDCs contained in ACDS, ACE RSN, PSE RSN, Comm RSN, X-Band RSN, WARP M5, Hyperion, ALI, and AC
  • Most are enabled at power-up and during nominal mission mode
    • The ACS FDCs are mode dependent and not all are used in any one mode
    • Most can be individually enabled or disabled
      • Some instrument FDCs cannot be disabled
    • Several are disabled for launch
slide28

FDCs (continued)

  • All have been tested
    • Many of the ACS FDCs can only be tested on the EO-1 hyperdynamic simulator
    • Most of the Instrument FDCs were tested before integration onto EO-1
    • The rest have been tested on the observatory
  • When a new software load is performed, all FDCs in that software load are retested
    • ACS FDCs are tested on the EO-1 hyperdynamic simulator

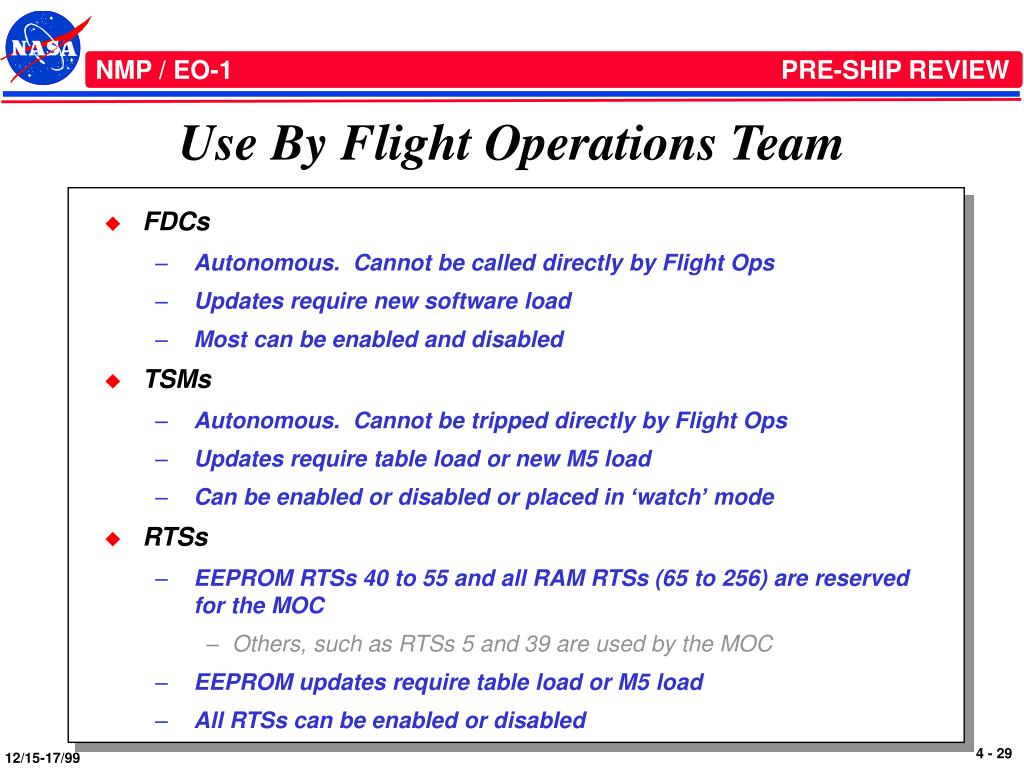

slide29

Use By Flight Operations Team

  • FDCs
    • Autonomous. Cannot be called directly by Flight Ops
    • Updates require new software load
    • Most can be enabled and disabled
  • TSMs
    • Autonomous. Cannot be tripped directly by Flight Ops
    • Updates require table load or new M5 load
    • Can be enabled or disabled or placed in ‘watch’ mode
  • RTSs
    • EEPROM RTSs 40 to 55 and all RAM RTSs (65 to 256) are reserved for the MOC
      • Others, such as RTSs 5 and 39 are used by the MOC
    • EEPROM updates require table load or M5 load
    • All RTSs can be enabled or disabled
slide30

Summary

  • All RTSs and all but 2 TSMs will be tested by December 14, 1999
    • 2 TSMs need special tests that may require a GSE change
  • Potential problems have been identified with 3 TSMs
    • Being investigated by Flight Software and Systems
  • After these items are completed the EO-1 Failure Detection and Correction System will be ready for launch
    • If software changes are made then re-testing will be required
