secchi flight software

SECCHI Flight Software

  • CPU Utilization
  • Memory Usage
  • VxWorks
  • H/W Interfaces
  • S/W Reuse and Upgrades
  • S/W Requirements
  • Current Activities

Dennis Wang

wang@ares.nrl.navy.mil

202-404-1401

SECCHI Consortium Meeting July 2001 - RAL

rad 750
RAD 750
  • 240 MIPS, 133 MHz clock speed, 33 MHz CPCI Bus speed, PowerPC = 10 W
  • 166 MHz version may be available
  • Clock speed can be reduced to save power

60 MIPS, 33 MHz clock = 6.1 W

  • Sleep modes with rapid wake can also be used to save power
lasco cpu utilization

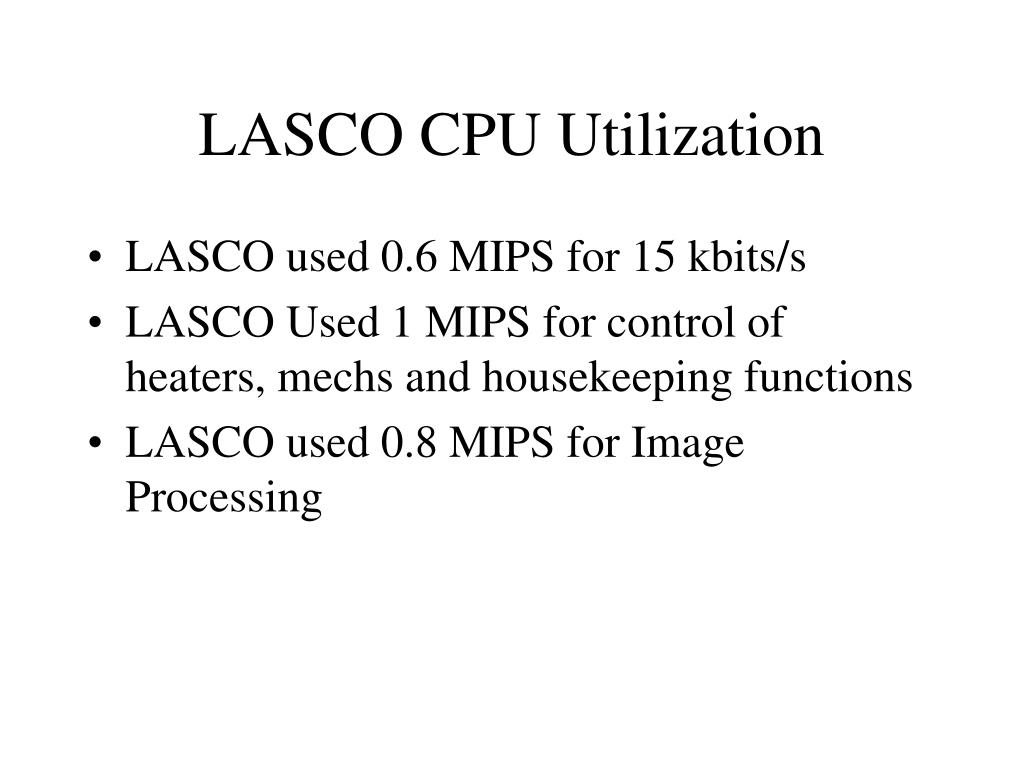

LASCO CPU Utilization
  • LASCO used 0.6 MIPS for 15 kbits/s
  • LASCO Used 1 MIPS for control of heaters, mechs and housekeeping functions
  • LASCO used 0.8 MIPS for Image Processing
cpu utilization
CPU Utilization
  • Image processing and compression for COR1, COR2, EUVI, HI-1 and HI-2 scales with the ratio of STEREO/LASCO TM
  • Guide scope and Space Weather equal to 1 MIP
  • HI requires additional processing for cosmic ray scrubbing and summing of images
  • HI-1 cadence is 222 images/hr
  • HI-2 cadence is 56 images/hr
cpu operations
CPU Operations
  • PCI Memory get/copy 1 pixel/33 MHZ clock
  • Add, compare, subtract (2 clocks @ 133MHz)
  • Multiply, Divide (20 clocks @ 133 MHz)
  • Processor pipeline typically gets >1 operations/clock
hi image processing
HI Image Processing
  • Bias subtraction – 1 subtract, 1 get/copy
  • 2 Image Cosmic Ray Scrub – 2 compare, 1 get/copy
  • 3 Image Cosmic Ray Scrub – 3 compare, 1 get/copy
  • Summing – 1 add/sub, 1 get/copy
memory map
Memory Map
  • Buffers for each instrument allow rapid image taking for PB and B images for COR 1 and COR 2, EUVI color sequence
  • Near independent timeline for each instrument – no sharing of image buffers
  • Only CCD readout needs to be managed
  • Important for HI-1 and HI-2
memory and cpu tradeoffs

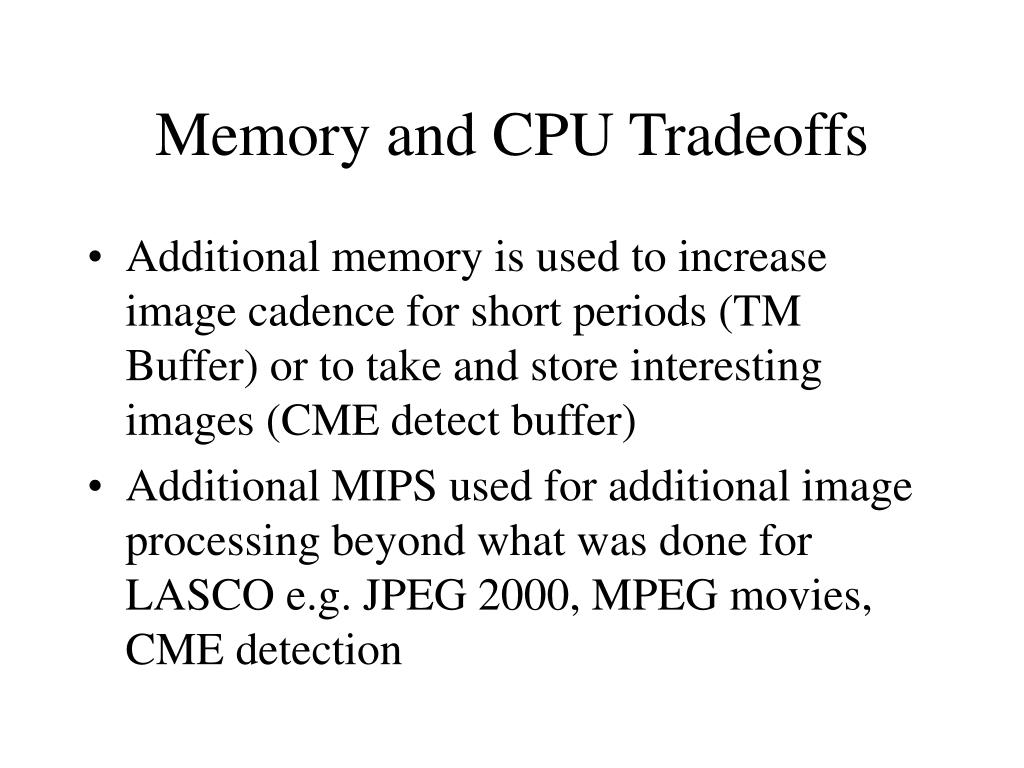

Memory and CPU Tradeoffs
  • Additional memory is used to increase image cadence for short periods (TM Buffer) or to take and store interesting images (CME detect buffer)
  • Additional MIPS used for additional image processing beyond what was done for LASCO e.g. JPEG 2000, MPEG movies, CME detection
vxworks

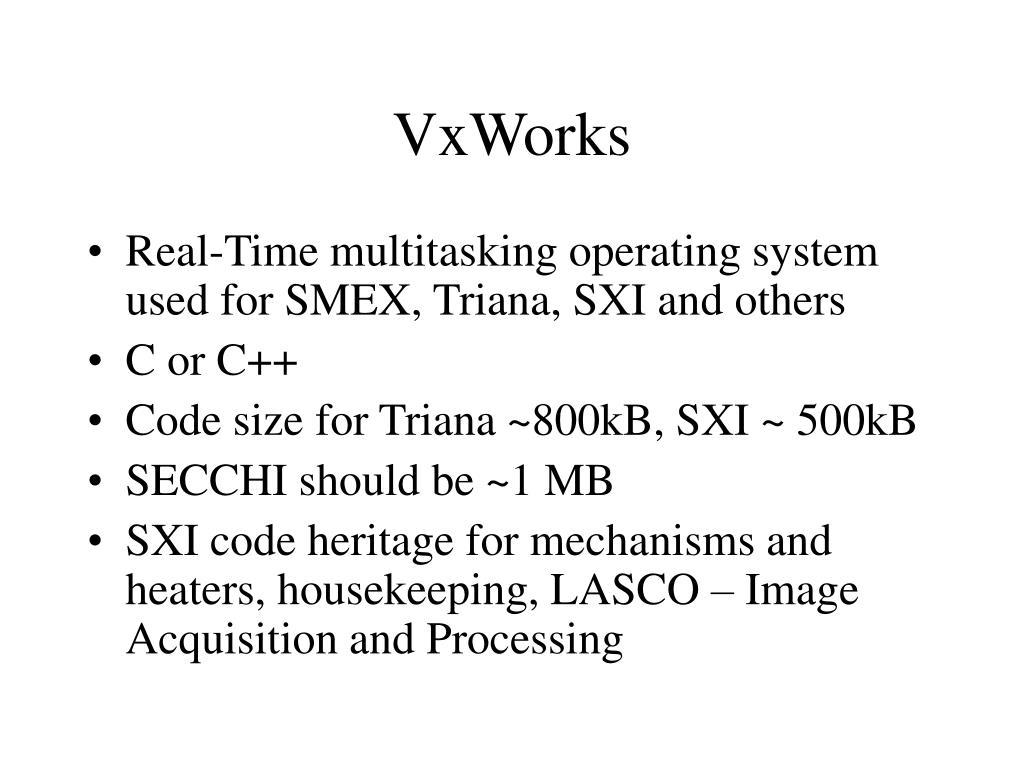

VxWorks
  • Real-Time multitasking operating system used for SMEX, Triana, SXI and others
  • C or C++
  • Code size for Triana ~800kB, SXI ~ 500kB
  • SECCHI should be ~1 MB
  • SXI code heritage for mechanisms and heaters, housekeeping, LASCO – Image Acquisition and Processing
triana
Triana ?

Hammers Co. has Triana code on PowerPC 750 and will have code on RAD750 by the end of the year

  • Familiarity with Triana S/C code and docs
  • Infrastructure routines such as VxWorks, EEPROM, watchdog should be 100% applicable
  • Other routines may be applicable (messaging, task management)
h w interfaces
H/W Interfaces
  • MIL-STD 1553 to spacecraft for HK and SC TM – 40-80 kbits/s SCI TM (SWIFT)
  • IEEE 1355 High Speed Serial Camera Interface (similar to SWIFT 1355)
  • RS-422 to HI/SCIP Mechanism Electronics
  • HK board to photodiodes of Guide Telescope
vxworks and sxi software
VxWorks and SXI Software
  • Fixed priority task scheduling
  • Multiple task threads
  • Interrupt control and vector setup
  • Intertask communications using message queues, signals and semaphores
  • SXI uses message queues for intertask communications
secchi upgrades
SECCHI Upgrades
  • Scheduling and timeline, schedule macros
  • Multiple SECCHI instruments vs single SXI telescope
  • Observing programs
  • Image Processing
  • Image Compression
s w req instruments

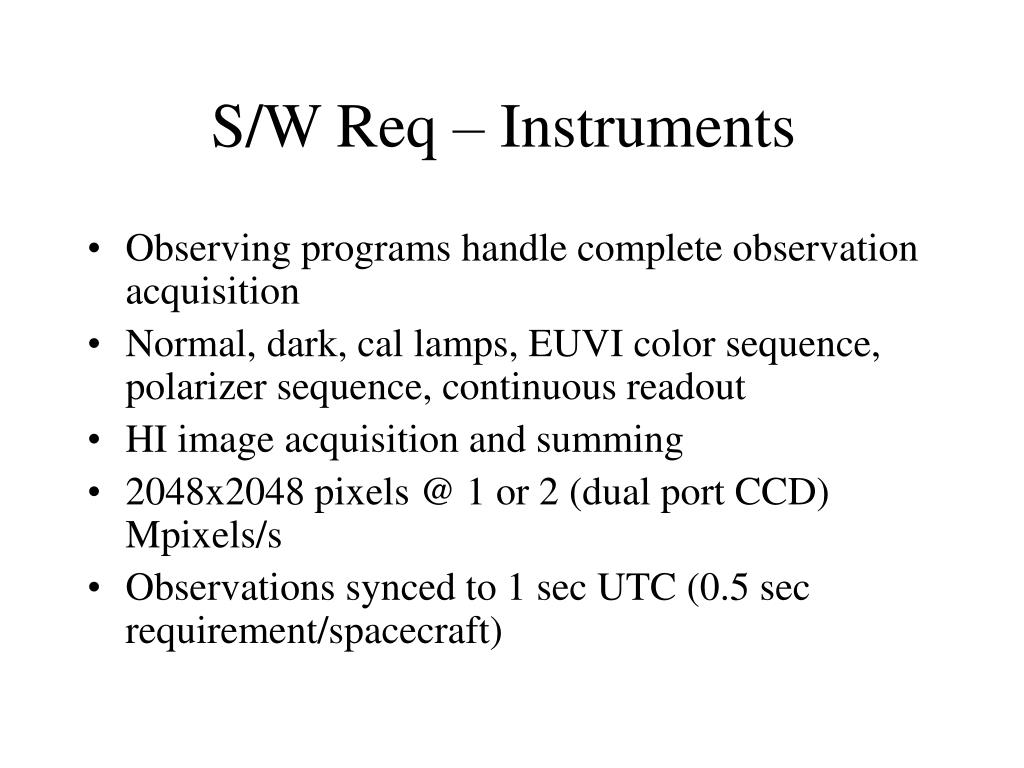

S/W Req – Instruments
  • Observing programs handle complete observation acquisition
  • Normal, dark, cal lamps, EUVI color sequence, polarizer sequence, continuous readout
  • HI image acquisition and summing
  • 2048x2048 pixels @ 1 or 2 (dual port CCD) Mpixels/s
  • Observations synced to 1 sec UTC (0.5 sec requirement/spacecraft)
s w req command

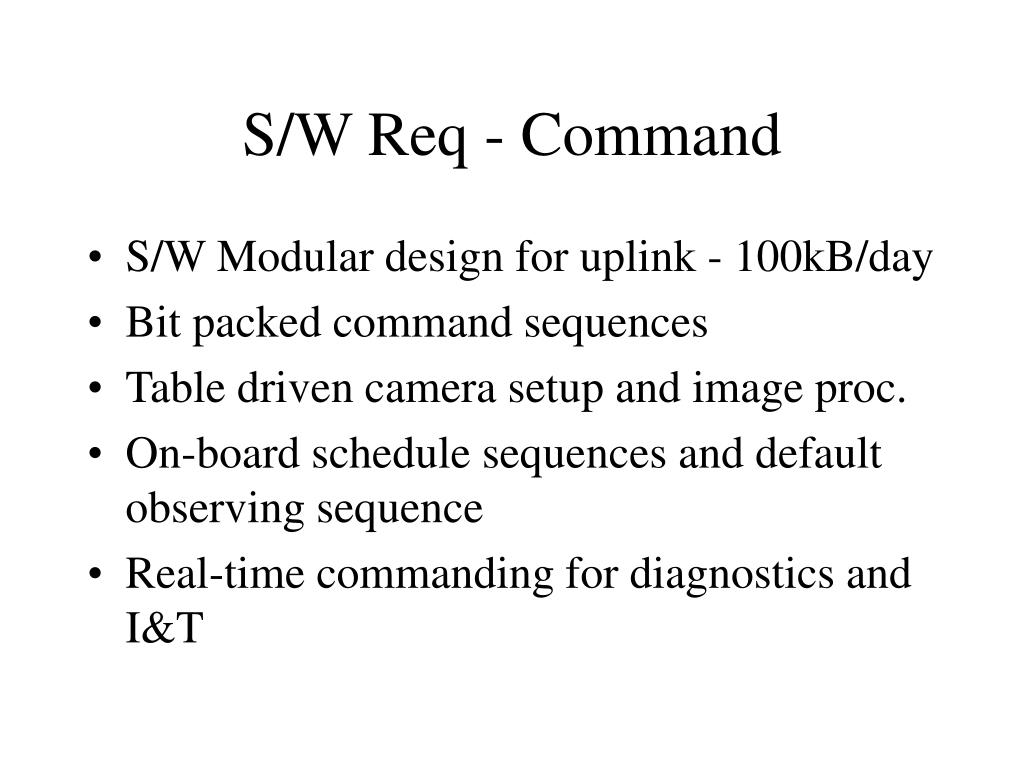

S/W Req - Command
  • S/W Modular design for uplink - 100kB/day
  • Bit packed command sequences
  • Table driven camera setup and image proc.
  • On-board schedule sequences and default observing sequence
  • Real-time commanding for diagnostics and I&T
s w req schedule ops
S/W Req – Schedule & Ops
  • Independent operation of each telescope’s mechanisms and lamps
  • Scheduled camera readout (1 HI camera and 1 SCIP camera simultaneously)
  • Schedule items can be modified/deleted
  • Schedule is based on daily uplink
  • Schedule is to be repeated if no ground contact or default sequence
s w req data handling
S/W Req – Data Handling
  • Image compression lossless (Rice) and lossy (H-compress, SQRT, divide by 2)
  • ROI, occulter and F.O.V masks
  • Diagnostics (Test, None, Debug, Header)
  • Summing and Cosmic Ray Scrub for HI
  • Space Weather channel – JPEG
  • Data Volume = 3.5 –7 Gbits/day/spacecraft
s w req spacecraft
S/W Req - Spacecraft
  • Time Sync Message 1 per sec to 1/256 sec resolution with additional 64 microsec offsets
  • Status Bits - Fine pointing, thruster firing, power off warning
  • Watchdog
  • Guide Telescope attitude data for ACS
  • Dual SSR partitions (overwrite or block when full) – priority of downlink ?
software development plan
Software Development Plan
  • Software Code Management (SCCS) and problem reporting and tracking software (GNATS or Teamwork) will be used to control the code, documentation and data
  • Snapshots of each build
  • Software Reviews will be used to validate requirements and design
  • Software Tests with well defined criteria for success will verify quality
s w schedule
S/W Schedule
  • 5/16/01 S/W, Ops, Data Sys Peer Review
  • 6/01/01 Flight Software Req Draft 1
  • 7/23/01 Flight Software Req Draft 2
  • 1/15/02 Build 1 – low level infrastructure
  • 5/31/02 Build 2 – driver level tests
  • 7/01/02 MOC-S/C Simulator Tests
recent activities
Recent Activities

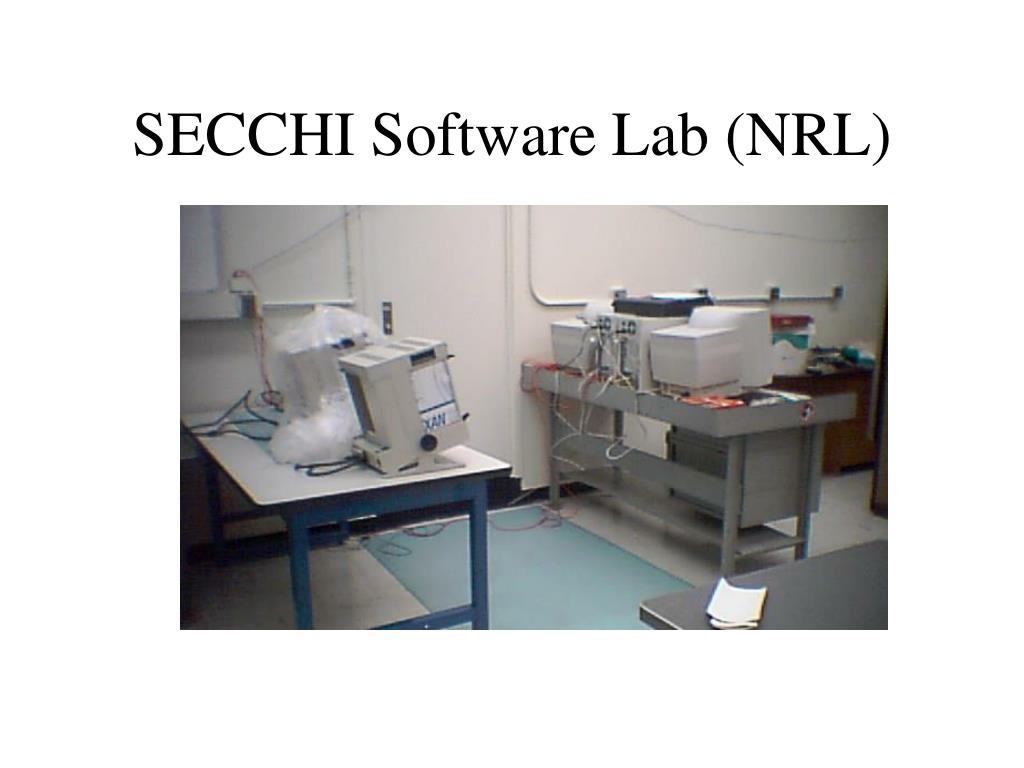

  • Software Development and GSE Lab Setup
  • Test setup for working with flight and non-flight hardware – commercial RAD750
  • 4links Space Wire tests
  • Software Requirements Draft 2 release
  • Software Development Plan
  • Study SXI and Triana flight software
