1 st io command land information ipb development tiger team

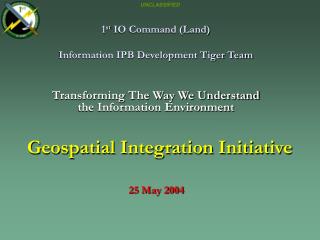

1st IO Command (Land)Information IPB Development Tiger Team

Transforming The Way We Understand the Information Environment

Geospatial Integration Initiative

25 May 2004

1st io cmd mission
Act as operational focal point for Information Operations (IO) for the Land Component Commander.

Coordinate, arrange and synchronize IO Intel support.

Deploy teams to assist Land Component Commands.

Assist TRADOC in development of doctrine, training, leader development, organization, materiel, facilities and personnel requirements.

Assist in development of IO requirements in Army modernization strategy, and assist in development of IO systems.

Conduct Computer Network Operations across the spectrum of defense, exploitation, and attack.

1st IO Cmd Mission
mission essential tasks

FST

1

VAT/Red

Team

CAC

INSCOM IOC

Other IC

DTLOM-FS

Training

Mission Essential Tasks

Develop global situational awareness of cyber threat events

Develop event situational understanding of specific cyber threats

Respond to cyber threats with CNE and CNA

Provide IO planning support to LCC

8

2

RCERT-CONUS

9

RCERT-E

RCERT-PAC

10

RCERT-K

Ops

RCERT-S

FSD

CNO

RCERT-SWA

1st IO Cmd

(Land)

Organize, train, equip, and deploy FSTs and VATs

Organize and prepare Intel products to support IO

Produce IO plans and COA development w/in 24 hrs of alert

Pursue IO capabilities requested from FSTs and ASCC via COTS, GOTS and traditional acquisition

4

HHC

5

VAD

6

PIT

ARAT-TA

  • Conduct VA of Army units for
  • Broad Spectrum IO
  • Network Vulnerability
  • SCADA Vulnerability

3

Develop and deploy new MDS within 72 hrs

7

slide4

Understanding the Information Environment

COGNITIVE

DESTROY

DISRUPT

DEGRADE

DENY

DECEIVE

EXPLOIT

Human situational understanding and decision-making.

INFORMATION

The substance of information…1’s & 0’s, written/spoken word, images, etc.

The means of transmission, infrastructure, technologies, groupsand populations.

PHYSICAL

gis integration matrix
GIS Integration Matrix

Integration Matrix

System Engineering

Business

Process

User

Interface

“Like a good roadmap, an overview of the method lets you know where you are going.”

Roger Tomlinson

Employment

Data

System

Owner

Information Requirements

Business Functions

System Context

Operating Locations

Accounts

Receivable

Database

Marketing

Customers order zero,

Credit

one, or more products.

Products may be ordered

Order

Picking

by zero, one, or more

Customer

Order

Management

Warehouse

Advertising

Sales

Order

System

customers.

Credit

Voucher

Orders

Cancellations

Services

(Scope)

Bank

System

User

Data Requirements

Business Processes

Interface Requirements

Communication Reqts.

rejected order

St.

PRODUCT

EDI

catalog

Products

order

Louis

Cust

changes

Catalog

CUSTOMER

credit

Check

product-no

HQ

Customers

credit

customer-no

product-name

Firecracker Sales

customer-name

unit-of-measure

customer

approved order

customer-rating

number

order with

ship

unit-price

West

East

order

valid products

Customers

balance-due

Customers

quantity-available

order

Validate

valid order

Validate

credit

credit

Orders

customer

products

Indy

LA

ship

NY

approved

ship order

Ware-

ORDER

order

Office

Office

order without

order

prices

house

order-no

valid

customer

service

order-date

picking

products-ordered

ticket

quantity

Release

Products

(Rqmt)

in stock

Maintenance

quantities-ordered

order

Records

System

Designer

Database Scehma

Application Schema

Interface Schema

Network Schema

Customer

Order

New Customer

Form

Processing

Program

PRODUCT

CUSTOMER

Logon

Order Accepted

product_no [Alpha(10)] INDEX

Change

customer_no [Alpha (10)] INDEX

Communications

product_name [Alpha(32)]

St. Louis

Initiation

Process

Shutdown

of

Controller

customer_name [Alpha(32)]

Mainframe

Routine

an Order

Routine

unit_of_measure [Alpha(2)]

Address

New Order

customer_rating [Alpha(1)] INDEX

unit_price [Real(3,2)]

balance_due [Real(5,2)]

NT Server LA

quantity_available [Integer(4)]

Get an

Validate

File an

Order Help Complete

Order Form

First Order

Order

an Order

Order

PBX

NT Server NY

Ethernet LAN/NT

Request

Request Order Help

Ethernet LAN/NT

Product

Check

Check

Check

Release

Lookup

ORDER_PRODUCT

ORDER

Customer

Product

Credit

an

ORDER.order_no

Credit

Data

Data

Order

Help +

order_no [Alpha(12)] INDEX

Request Product Lookup Help

PRODUCT.product_no

Indy AIX Server

order_date [Date(mmddyyyy)

Client PC

Client PC

quantity_ordered [Integer(2)

CUSTOMER.customer_no

Product

Client PC

Client PC

Enternet LAN AIX/Lan

Product Lookup Help Complete

Orders

(Specs)

Customers

Products

Lookup

Manager

System

Developer

Database Structures

Application Programs

Component Programs

Network Programs

CREATE TABLE CUSTOMER

VALIDATE_AN_ORDER.

On Event Help.ButtonClick Do

Create AccountType =

REPEAT UNTIL NO_MORE_ORDERS

(customer_no CHAR(10) NOT NULL

Change Focus HelpDialog

PERFORM CUSTOMER_VALIDATIO

SalesClerk

customer_name CHAR(32) NOT NULL

On Event OKButton Do

REPEAT UNTIL NO_MORE_ORDER

Set OrderDir.Rights=full

customer _rating CHAR(1) NOT NULL

Begin

PERFORM PRODUCT_VALIDATI

Set CustomerDir.Rights=full

balance_due DECIMAL(5,2)

{proecdure}

END REPEAT.

Set ProductDir.Rights=read

End

CREATE INDEX cust_no_idx on CUSTOMER

PERFORM CREDIT_CHECK.

Set OrderAppDir.Rights=copy

On Event CancelButton Do

CREATE INDEX cust_rt_idx on CUSTOMER

IF CREDIT_CHECK 'BAD' THEN

(Code)

Interface

Technology

(Facilitation)

HW / SW

Technology

Database

Technology

Networking

Technology

preliminary concept of employment

Geo-data

Preliminary Concept of Employment

Intelink Users

FST

FST

FST

Info IPB Data Sources

DIA

JIOC

NSA

CIA

NGIC

USATEC

COM

Census

MCIA

NGA

USGS

  • Info IPB Brief/Information
  • Info IPB Data GIS-based
  • Web-based Dissemination
  • Special Purpose Overlays
  • Standard Info IPB Templates (MCIO)
  • -- Display on COP
  • -- Hardcopy Plot

SQL Queries

Manual Downloads

Viewer

Arc Map

Input Forms

ArcReader

Custom GUI

Web

Arc GIS

Arc SDE

SQL Server

Arc IMS

GIS

Build Country Foundation:

-- Country Priority List

-- Crisis Support

Maintain/Update Foundation

Store Info IPB Country Files

Direct Support to Country

Planning Teams

  • COE Considerations
  • IO Analyst Interaction w/GIS
  • View Country Files via Arc IMS
  • - Input / Value Add Info IPB via Forms
  • - Input via tailored GUI to Arc Map
  • - Implement standard Info IPB Templates

IO Analyst

Country IO Analysis

Info IPB Brief

transforming information ipb
Transforming Information IPB

2. Actor Analysis

1. Mission Analysis

  • Physical Domain
  • Analysis

Operational/TacticalHuman Factors Analysis

Modern, Dynamic, Operationally and Tactically Actionable

Advanced Modeling and GIS

3-D Battlespace Visualization

  • Decision Support/
  • Refinement/
  • Planning
slide8

COGNITIVE DOMAIN VISUALIZATION PRODUCT

Ethnic Faction Zones vs. Recent Incidents Over Terrain Imagery

3-D View

(Red, Green Shows Ethnic Zones; Red and Blue Graphics

personnel resources
Team Composition

Government Oversight

MAJ x 2

GS-14 x 1

GIS Technical Support Team

Geospatial Technical Lead x 1

GIS Application Developer x 1

Senior Imagery Analyst x 1

GIS Analyst x 3

Personnel Resources
gis imagery technical resources
ArcGIS Desktop

ArcInfo Desktop x 2

ArcEditor Desktop x 13

ArcView Desktop x 3

Arc 3-D Analyst x 13

Arc Spatial Analyst x 13

Arc Tracking Analyst x 12

Arc Publisher x 6

ArcGIS Server

ArcIMS

ArcSDE

Erdas Imagine Desktop

Imagine Advantage x 13

Imagine VirtualGIS x 6

Imagine Vector x 2

NITF 2.1 x 13

Defense Package x 2

OthoBase Pro x 1

Developers Kit x 1

Other Tools

SQL Server 2000

Webster Electronic Tablet

Screen Capture Utilities

GIS/Imagery Technical Resources
objective architecture view

Information Sources

Field Support Teams

COM

CIA

NSA

DIA

NGA

Deployable GIS

Deployable GIS

Deployable GIS

Workstation

Workstation

Workstation

ArcGIS Editor 8.3

CMD

JIOC

NGIC

MCIA

TEC

USGS

- Spatial Analyst

S

- 3D Analyst

Imagine 8.6

- Advantage

Deployable GIS

Deployable GIS

- NITF

Workstation

Workstation

GIS General Support Section

ArcGIS Editor 8.3

ArcGIS Info 8.3

ArcGIS Editor 8.3

- Spatial Analyst

- Spatial Analyst

- Spatial Analyst

- 3D Analyst

- 3D Analyst

- 3D Analyst

Imagine 8.6

Imagine 8.6

Imagine 8.6

- Advantage

- Advantage

- Advantage

Monitor

Monitor

- Virtual GIS

Monitor

- Virtual GIS

- Virtual GIS

- OrthBase Pro

- NITF

- NITF

- NITF

ArcIMS

Switch

Switch

Switch

Planning Groups

NIPRNet

SIPRNet

JWICS

NIPRNet

SIPRNet

JWICS

NIPRNet

SIPRNet

JWICS

Tower box

Tower box

Tower box

Tower box

Tower box

Tower box

Tower box

Tower box

Tower box

1

2

3

Monitor

Monitor

Switch

Switch

Data Holdings

Geospatial /

LAN

IO Data

ArcSDE

SQL Svr/Oracle

JWICS

NIPRNet

SIPRNet

JWICS

NIPRNet

SIPRNet

Tower box

Tower box

Tower box

Tower box

ArcIMS

Tower box

Tower box

Windows Server

ArcIMS

ArcGIS Editor 8.3

ArcGIS Editor 8.3

ArcGIS Editor 8.3

- Spatial Analyst

- Spatial Analyst

- Spatial Analyst

- 3D Analyst

- 3D Analyst

- 3D Analyst

Imagine 8.6

Imagine 8.6

Imagine 8.6

Peripheral Devices

- Advantage

- Advantage

- Advantage

Monitor

Monitor

Monitor

- NITF

- NITF

- NITF

Switch

Switch

Switch

Printer

NIPRNet

SIPRNet

JWICS

NIPRNet

SIPRNet

JWICS

NIPRNet

SIPRNet

JWICS

Scanner

Plotter

Tower box

Tower box

Tower box

Tower box

Tower box

Tower box

Tower box

Tower box

Tower box

4

6

5

Windows 2000 Professional

Objective Architecture View
system evolution community maturity
System Evolution & Community Maturity

Project GIS Architecture

Community GIS Architecture

Export JPG Image

GIS Workstation

PPT Brief

IODB

(IO)

MIDB

(Intel)

NGA

(Source)

Other

Sources

Near-Term View (Jun 03)

Organizational GIS Architecture

External Data

FST

LCC

View

GIS-Based

Display

(C/JMTK)

1st IO

IODM

IO Analyst

“Relevance”

GIS Cell

Strategic (Objective) View

Mid-Term View (Dec 04)

issues lessons learned
Issues:

Service / Community Standards across multiple ‘business lines’

Licensing and maintenance agreement costs

Data access / metadata / accuracy

Lessons Learned:

Keys to current and future successes:

Senior leadership support

People

Planning

Training

Investment

Issues / Lessons Learned
