Siedentop trinocular Biological microscope

Labtron siedentop trinocular biological microscope features a user-friendly design with a finite optical system and a sliding, 360u00b0 inclined trinocular head. It includes an iris diaphragm and filter, WF10X eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

Siedentop trinocular Biological microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

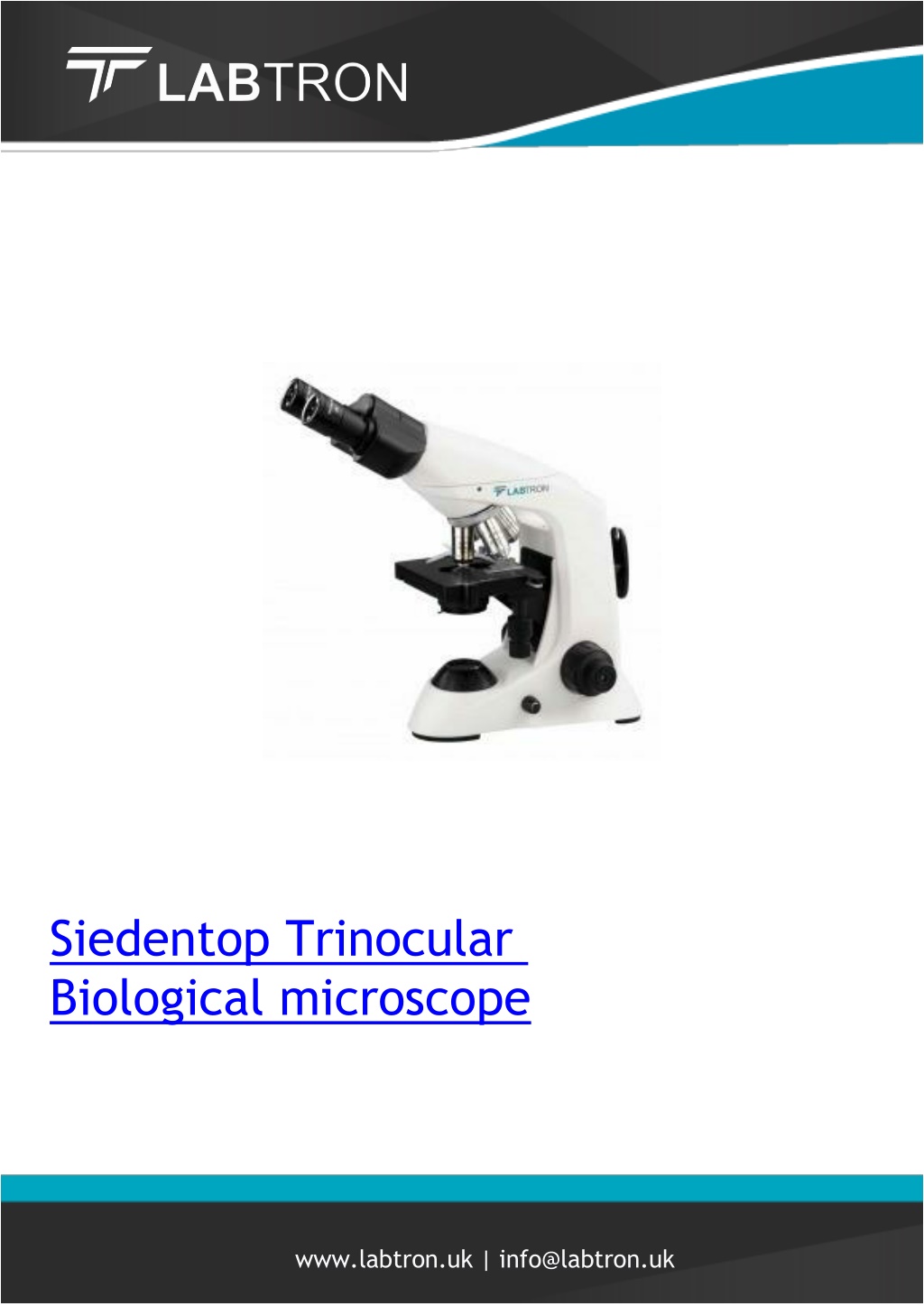

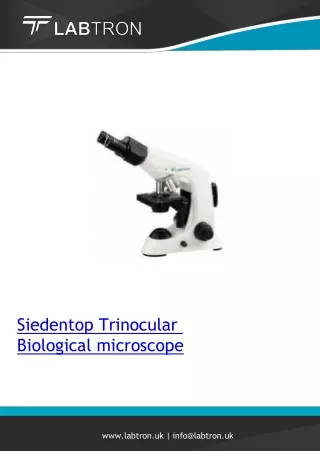

  1. Siedentop Trinocular Biological microscope www.labtron.uk | info@labtron.uk

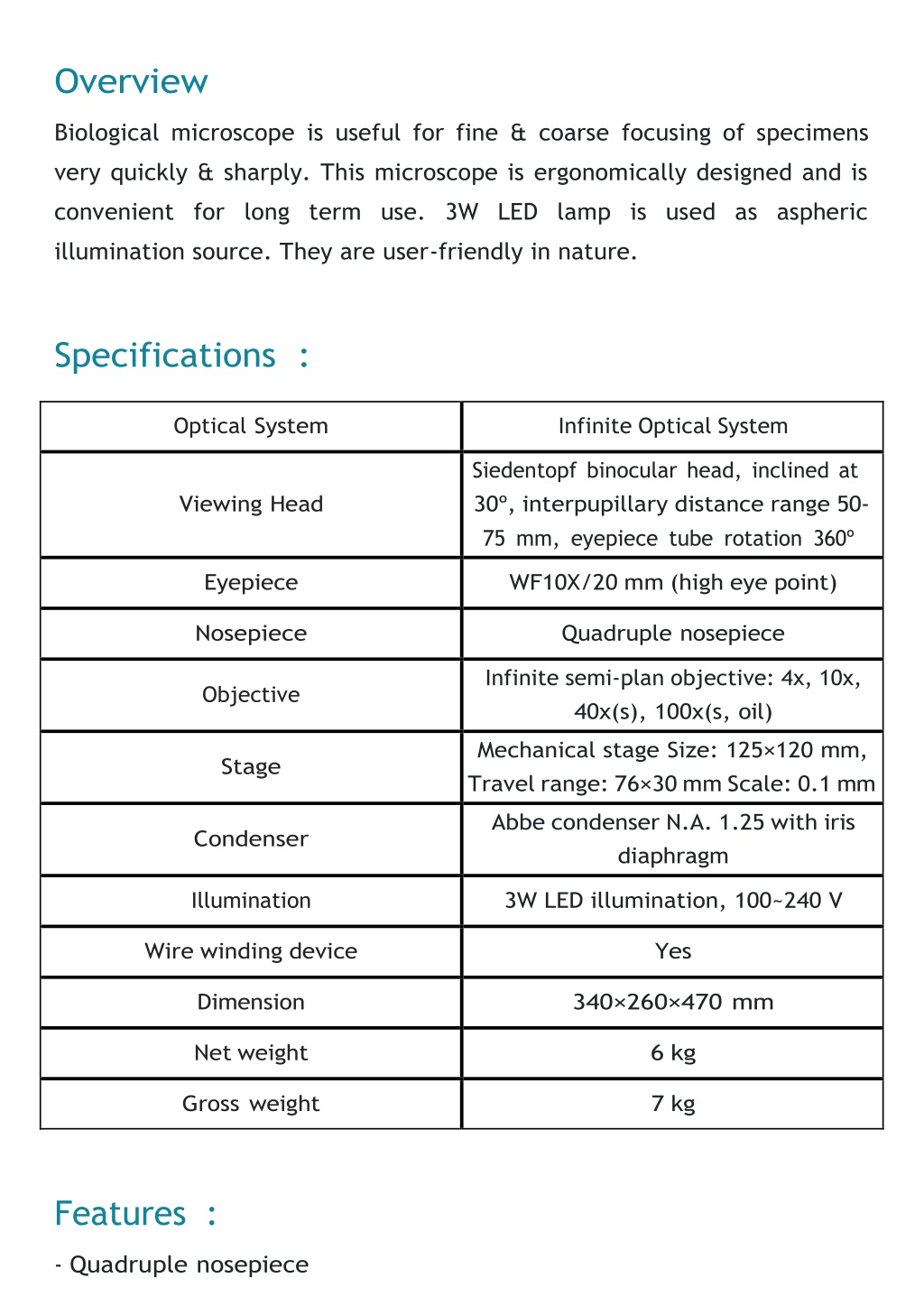

  2. Overview Biological microscope is useful for fine & coarse focusing of specimens very quickly & sharply. This microscope is ergonomically designed and is convenient for long term use. 3W LED lamp is used as aspheric illumination source. They are user-friendly in nature. Specifications: Optical System Infinite Optical System Siedentopf binocular head, inclined at 30º, interpupillary distance range 50- 75 mm, eyepiece tube rotation 360º Viewing Head Eyepiece WF10X/20 mm (high eye point) Nosepiece Quadruple nosepiece Infinite semi-plan objective: 4x, 10x, 40x(s), 100x(s, oil) Objective Mechanical stage Size: 125×120 mm, Travel range: 76×30 mm Scale: 0.1 mm Stage Abbe condenser N.A. 1.25 with iris diaphragm Condenser Illumination 3W LED illumination, 100~240 V Wire winding device Yes Dimension 340×260×470 mm Net weight 6 kg Gross weight 7 kg Features: -Quadruple nosepiece

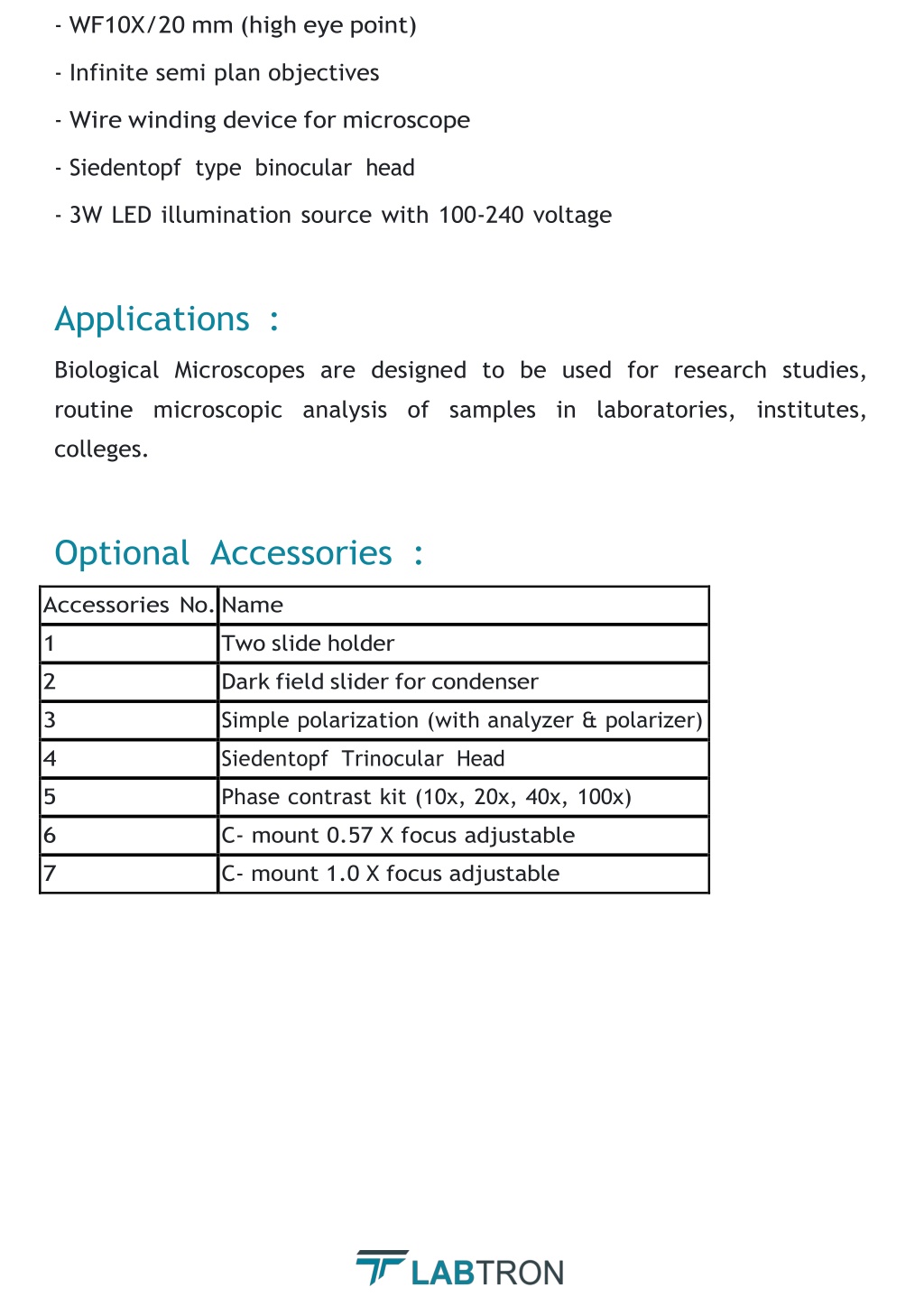

  3. -WF10X/20 mm (high eye point) -Infinite semi plan objectives -Wire winding device for microscope -Siedentopftypebinocularhead -3W LED illumination source with 100-240 voltage Applications: Biological Microscopes are designed to be used for research studies, routine microscopic analysis of samples in laboratories, institutes, colleges. OptionalAccessories: Accessories No.Name 1 Two slide holder 2 Dark field slider for condenser 3 Simple polarization (with analyzer & polarizer) 4 Siedentopf Trinocular Head 5 Phase contrast kit (10x, 20x, 40x, 100x) 6 C- mount 0.57 X focus adjustable 7 C- mount 1.0 X focus adjustable

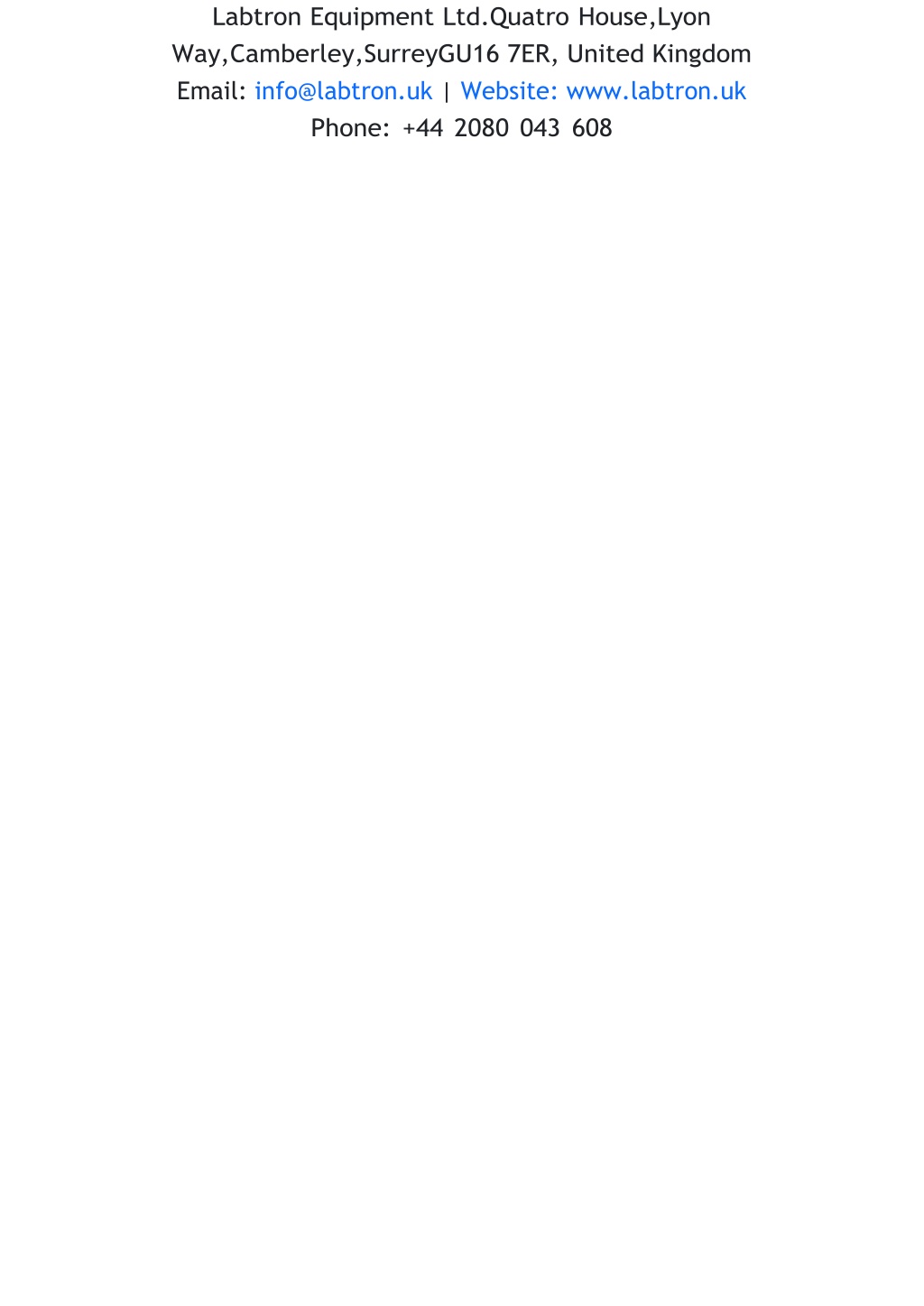

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
