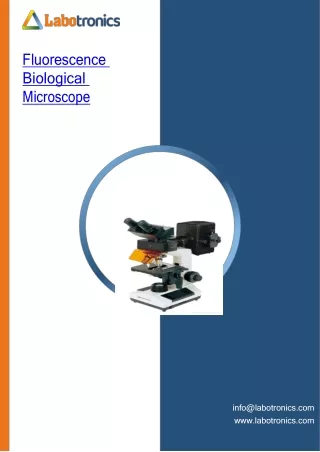

  1. Fluorescence Biological Microscope info@labotronics.com www.labotronics.com

  2. Overview Fluorescence biological microscope is a bench-top unit integrated with digital display for viewing. Optical systems include wide field high eyepieces and florescent achromatic objectives. Built in high resolution florescent objectives aids to achieve excellent florescent image. Coaxial coarse and fine adjustment focus knob with tension adjustment helps with mobility of the objective lenses. Specifications: Viewing head Binocular Eyepiece(Wide field eyepiece ) WF10X / 18 mm Inclination 45° Eyepiece tube diameter 23.2 mm Inter-pupillary distance 55 mm ⁓ 75 mm Rotation 360° 4X 10X Achromatic objective 40X 100X Focus fine division 0.002 mm Coarse stroke 37.7 mm per rotation Fine stroke 0.2 mm per rotation

  3. Moving range 28 mm Condenser Abbe condenser NA1.25 Double layer mechanical stage 140 mm × 140 mm Stage Cross travel 75 mm × 50 mm Lamp 100 W Transmitted illumination 1W S-LED illumination Power supply 220 V ⁓ 110 V Features : Rotatable, sliding view head Double layer mechanical stage ( X-Y-Z movement of sample ) Quadruple nosepiece ( holds four objective lenses ) Ultra Hi-voltage spherical mercury lamp Abbe condenser with Iris diaphragm ( concentrate and controls the light ) Filters : Excitation, barrier and dichromatic mirror Ergonomic design ( more comfortable viewing ) Applications : Used in biological, histological, pathological, bacteriology and pharmacy field. Widely used in medical institutes, laboratories, academic laboratories and colleges. OptionalAccessories:

  4. Accessory No. Accessory Accessory Specification 1FBMA1 Eyepiece WF16X / 11 mm 1FBMA2 Objective Achromatic objective 20X 1FBMA3 Objective Achromatic objective 60X 1FBMA4 Objective Plan achromatic objective 4X 1FBMA5 Objective Plan achromatic objective 10X 1FBMA6 Objective Plan achromatic objective 20X 1FBMA7 Objective Plan achromatic objective 40X 1FBMA8 Objective Plan achromatic objective 60X 1FBMA9 Objective Plan achromatic objective 100X 1FBMA10 Nosepiece Quintuple Transmitted illumination 1FBMA11 Halogen Lamp ( 6 V / 20 W ) Nikon ( Connect to Nikon digital single lens reflex ) 1FBMA12 Photo attachment Canon ( Connect to Canon digital single lens reflex ) 1FBMA13 Photo attachment 1FBMA14 Video attachment 0.5X microscope adapter 1FBMA15 Video attachment C-mount, 1X magnification 1FBMA16 Accessory Polarization set 1FBMA17 Accessory Phase contrast Kit Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
