Trinocular Fluorescence Microscope

Trinocular Fluorescence Microscope adopts infinity correct optical system and LED light is used as source of illumination. Fluorescence epi-illuminator incorporated<br>with a 5W fluorescence illumination and 3W LED Chroma transmitted light to produce wide spectrum of ultraviolet for dark field illumination systems. Trinocular head <br>comes with an u00d8 30 mm photo port. Bright field illumination system employs light source with a field diaphragm for precision control. Provided with Siedentopf <br>Trinocular head inclined at 30u00b0 by 360u00b0 rotatable head.

Kimber4
Download Presentation

Trinocular Fluorescence Microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

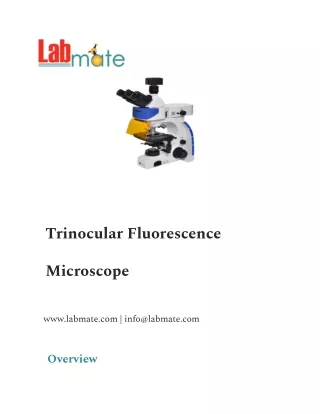

  1. Trinocular Fluorescence Microscope www.labmate.com | info@labmate.com Overview

  2. Trinocular Fluorescence Microscope adopts infinity correct optical system and LED light is used as source of illumination. Fluorescence epi-illuminator incorporated with a 5W fluorescence illumination and 3W LED Chroma transmitted light to produce wide illumination systems. Trinocular head comes with an Ø 30 mm photo port. Bright field illumination system employs light source with a field diaphragm for precision Trinocular head inclined at 30° by 360° rotatable head. Quintuple nosepiece ensures quick access to five plan achromatic objective lenses 4X, 10X, 20X, 40X, 100X to provide infinite correction for both chromatic aberration and field geometry. spectrum of ultraviolet for dark field control. Provided with Siedentopf Specifications : Viewing Head 30° Inclined

  3. Objective 4X/10X/40X/100X Nosepiece 5 Holes Eyepiece WF10X20 Power Supply AC100 to 240 V/DC 12V Light Source 3W LED Color White and Blue Features : - Focusing of specimen can be adjusted using coaxial coarse and fine focusing adjustment knob - Supplied with an adjustable stop to prevent damage to sample and objectives

  4. - Coarse adjustments are equipped with friction control - Innovative design offers larger apertures, allowing optical system of the microscope to produce images at higher resolutions - LED with low energy consumption - Abbe condenser with iris diaphragm and swing-out-filter-holder - Variable-intensity LED Koehler illumination system for efficient lighting - Precision mechanical stage with slide clamp - Infinity corrected optical system provides high quality and high resolution images Applications : It is widely used for biological research centers, environmental monitoring, industrial sectors and educational institutes

  5. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
