High performance plasma freezer

Labtron blood plasma freezer preserves plasma quality with a temperature range of -70u00b0C to 100u00b0C. It includes 12 plasma bag clips and employs dual-stage air cooling for rapid and stable temperature control. Features automatic defrosting and alarm functions for optimal performance with safety.

Erica57
Download Presentation

High performance plasma freezer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

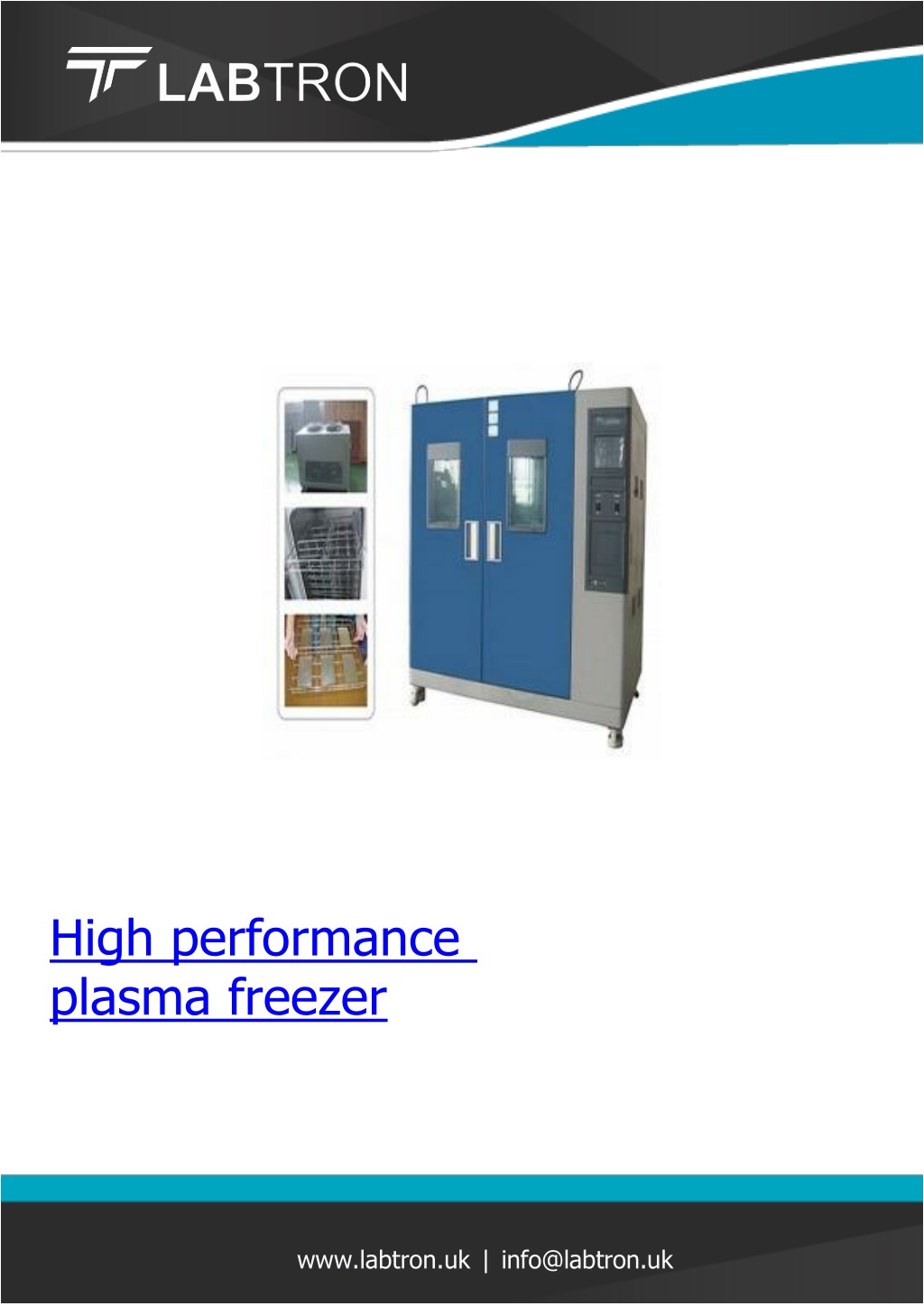

  1. High performance plasma freezer www.labtron.uk | info@labtron.uk

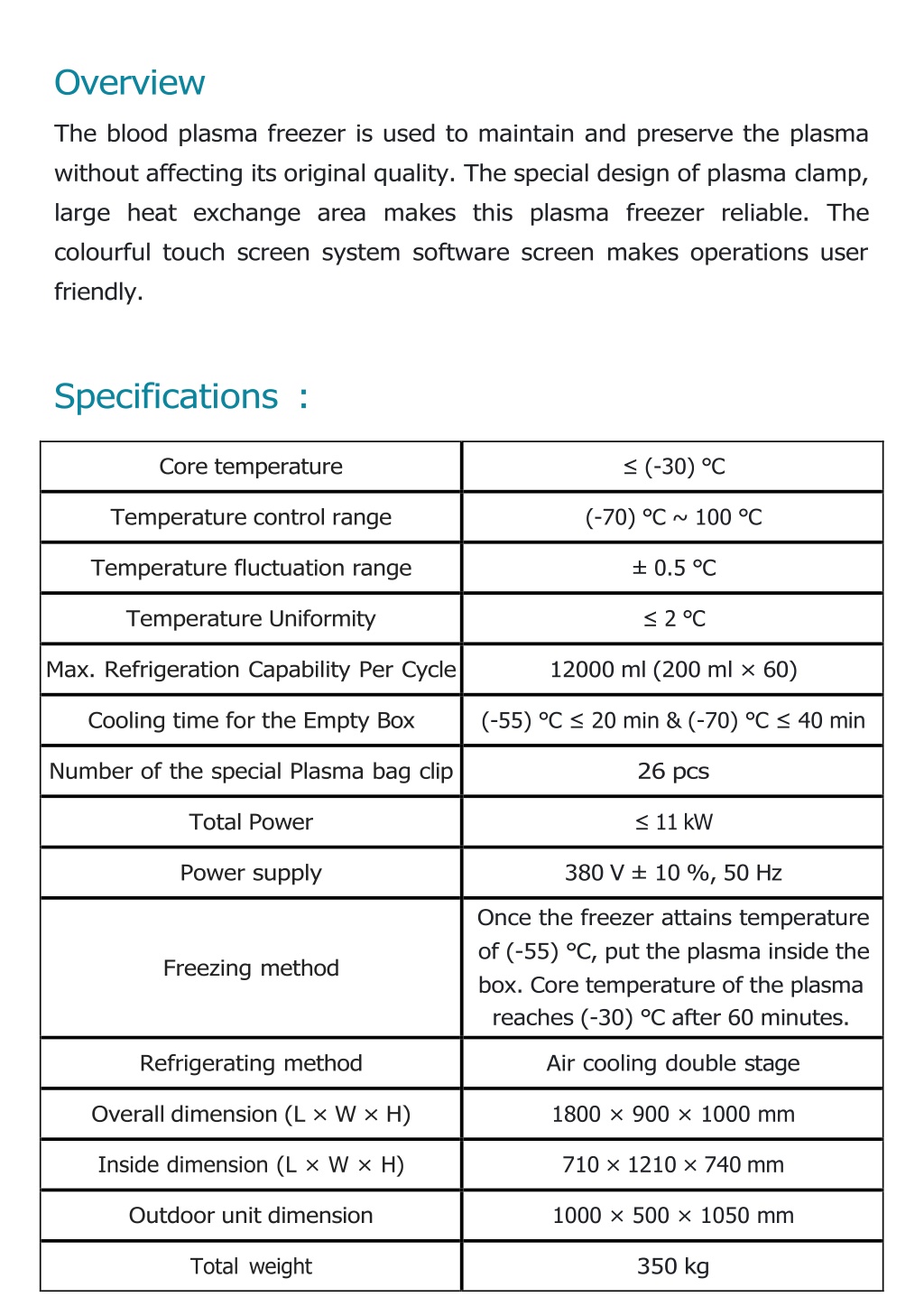

  2. Overview The blood plasma freezer is used to maintain and preserve the plasma without affecting its original quality. The special design of plasma clamp, large heat exchange area makes this plasma freezer reliable. The colourful touch screen system software screen makes operations user friendly. Specifications: Core temperature ≤ (-30) ℃ Temperature control range (-70) ℃ ~ 100 ℃ Temperature fluctuation range ± 0.5 ℃ Temperature Uniformity ≤ 2 ℃ Max. Refrigeration Capability Per Cycle 12000 ml (200 ml × 60) Cooling time for the Empty Box (-55) ℃≤ 20 min & (-70) ℃≤ 40 min Number of the special Plasma bag clip 26 pcs Total Power ≤ 11 kW Power supply 380 V ± 10 %, 50 Hz Once the freezer attains temperature of (-55) ℃, put the plasma inside the box. Core temperature of the plasma reaches (-30) ℃ after 60 minutes. Freezing method Refrigerating method Air cooling double stage Overall dimension (L × W × H) 1800 × 900 × 1000 mm Inside dimension (L × W × H) 710 × 1210 × 740 mm Outdoor unit dimension 1000 × 500 × 1050 mm Total weight 350 kg

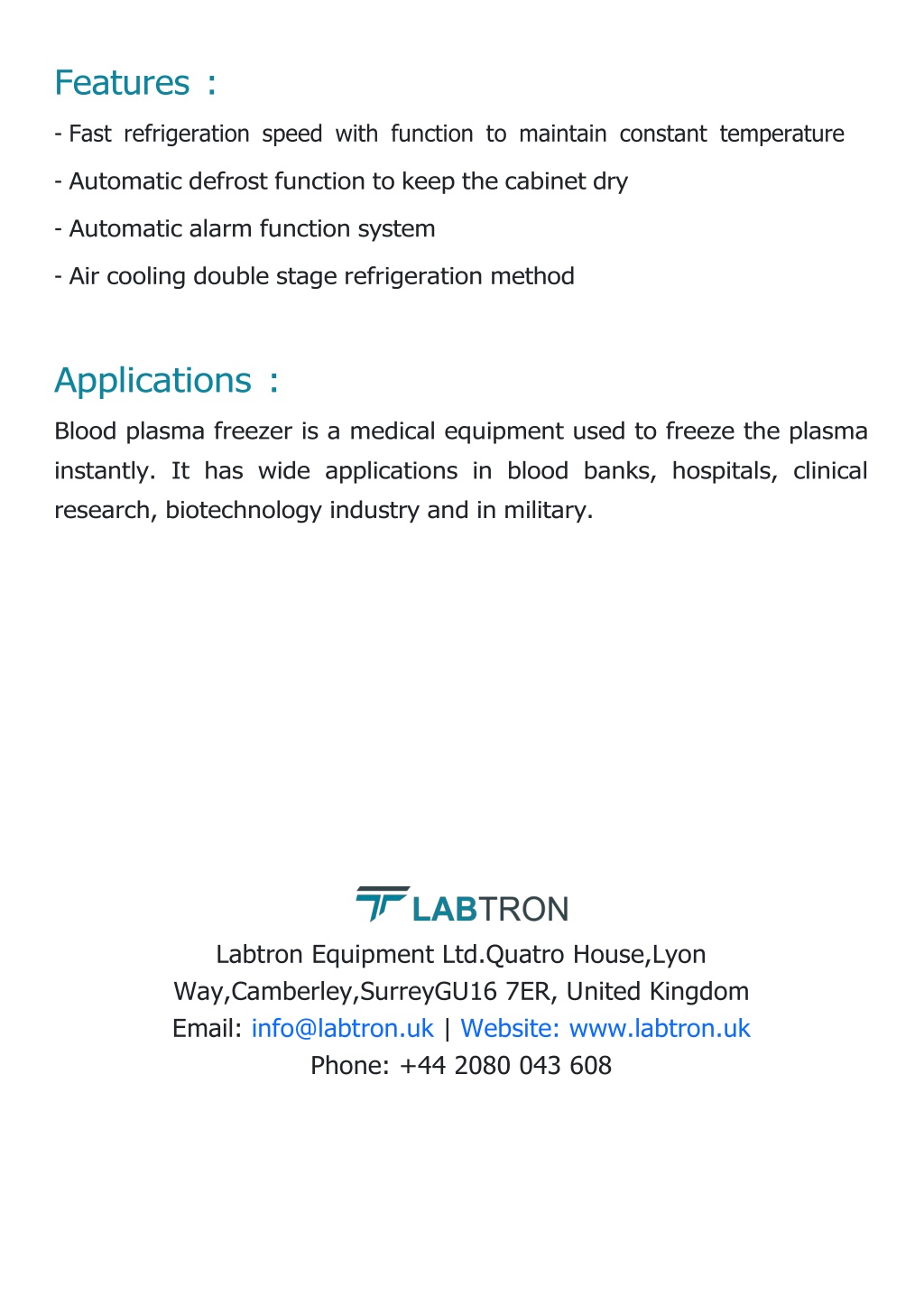

  3. Features : -Fast refrigeration speed with function to maintain constant temperature -Automatic defrost function to keep the cabinet dry -Automatic alarm function system -Air cooling double stage refrigeration method Applications : Blood plasma freezer is a medical equipment used to freeze the plasma instantly. It has wide applications in blood banks, hospitals, clinical research, biotechnology industry and in military. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
