Constant-Temperature-Needle-Penetration-Teste

Labtron constant temperature needle penetration tester adheres to ASTM D217 and D1403 standards. The temperature has a range of 0-700 taper degrees, a timing error of 0.1 s, and a temperature range of 10-50 u00b0C. It offers instrument options for various needles, sample dishes, thermometers, and weights.

Erica57
Download Presentation

Constant-Temperature-Needle-Penetration-Teste

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

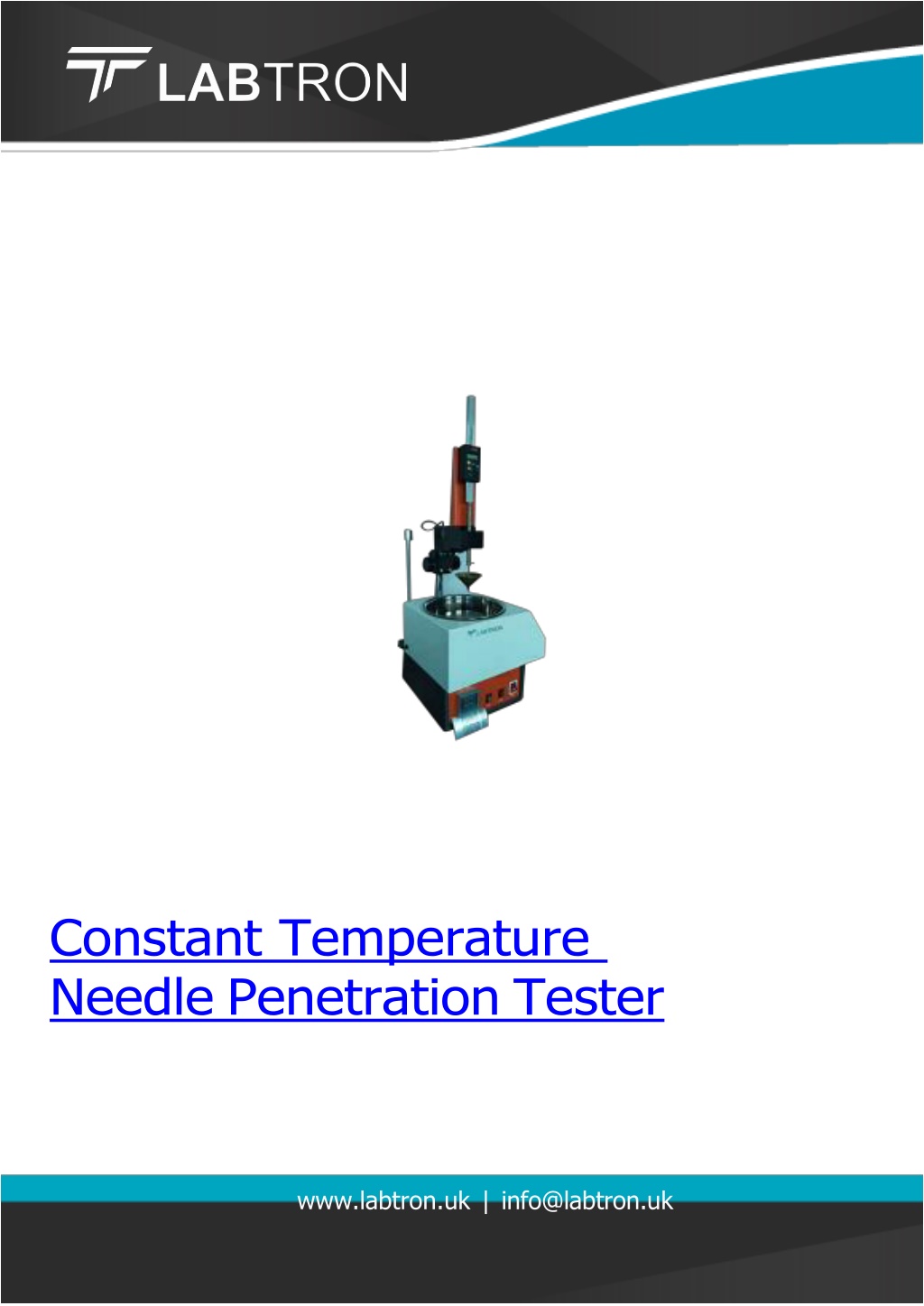

  1. Constant Temperature Needle Penetration Tester www.labtron.uk | info@labtron.uk

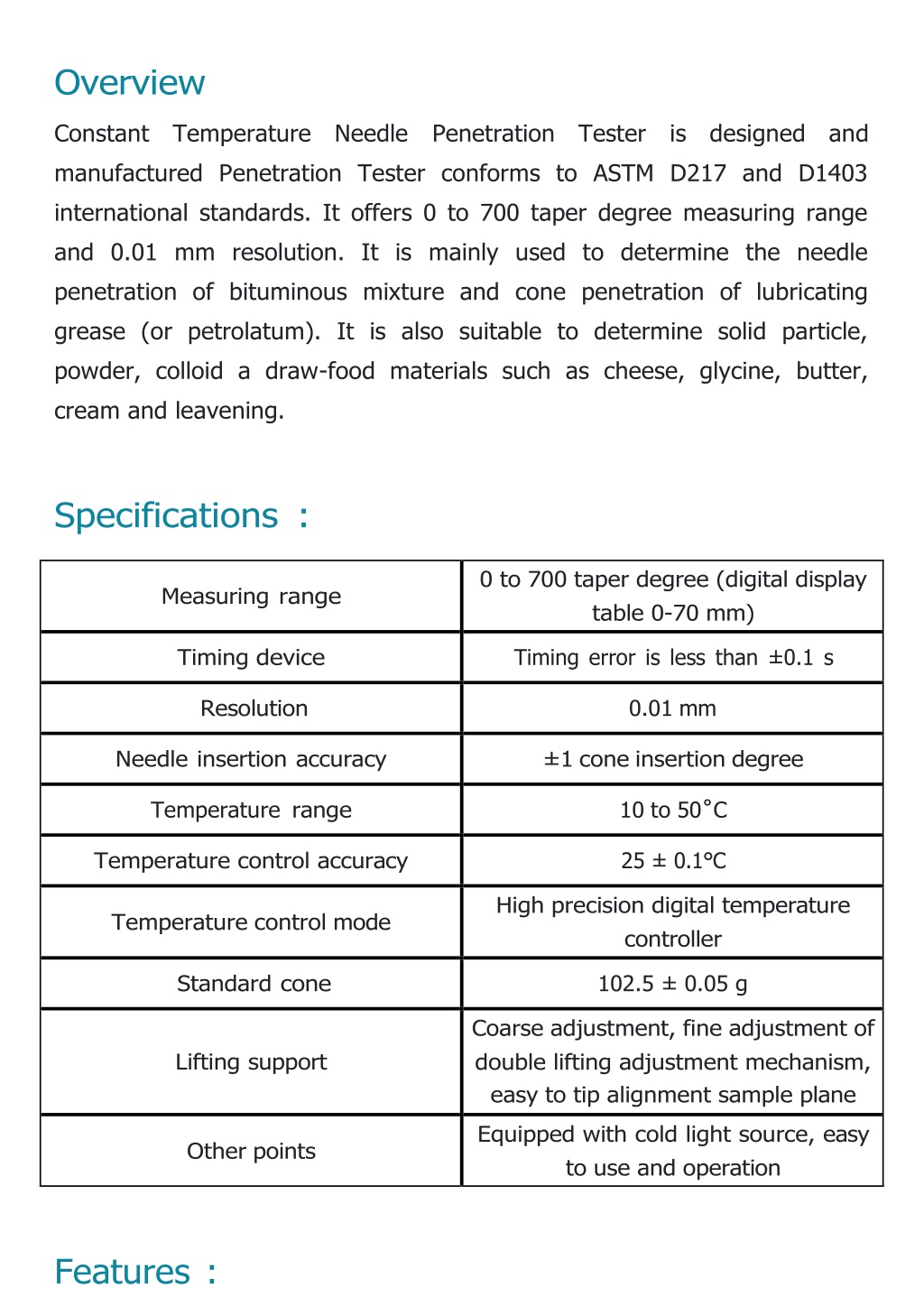

  2. Overview Constant Temperature Needle Penetration Tester is designed and manufactured Penetration Tester conforms to ASTM D217 and D1403 international standards. It offers 0 to 700 taper degree measuring range and 0.01 mm resolution. It is mainly used to determine the needle penetration of bituminous mixture and cone penetration of lubricating grease (or petrolatum). It is also suitable to determine solid particle, powder, colloid a draw-food materials such as cheese, glycine, butter, cream and leavening. Specifications: 0 to 700 taper degree (digital display table 0-70 mm) Measuring range Timing device Timing error is less than ±0.1 s Resolution 0.01 mm Needle insertion accuracy ±1 cone insertion degree Temperature range 10 to 50˚C Temperature control accuracy 25 ± 0.1℃ High precision digital temperature controller Temperature control mode Standard cone 102.5 ± 0.05 g Coarse adjustment, fine adjustment of double lifting adjustment mechanism, easy to tip alignment sample plane Lifting support Equipped with cold light source, easy to use and operation Other points Features :

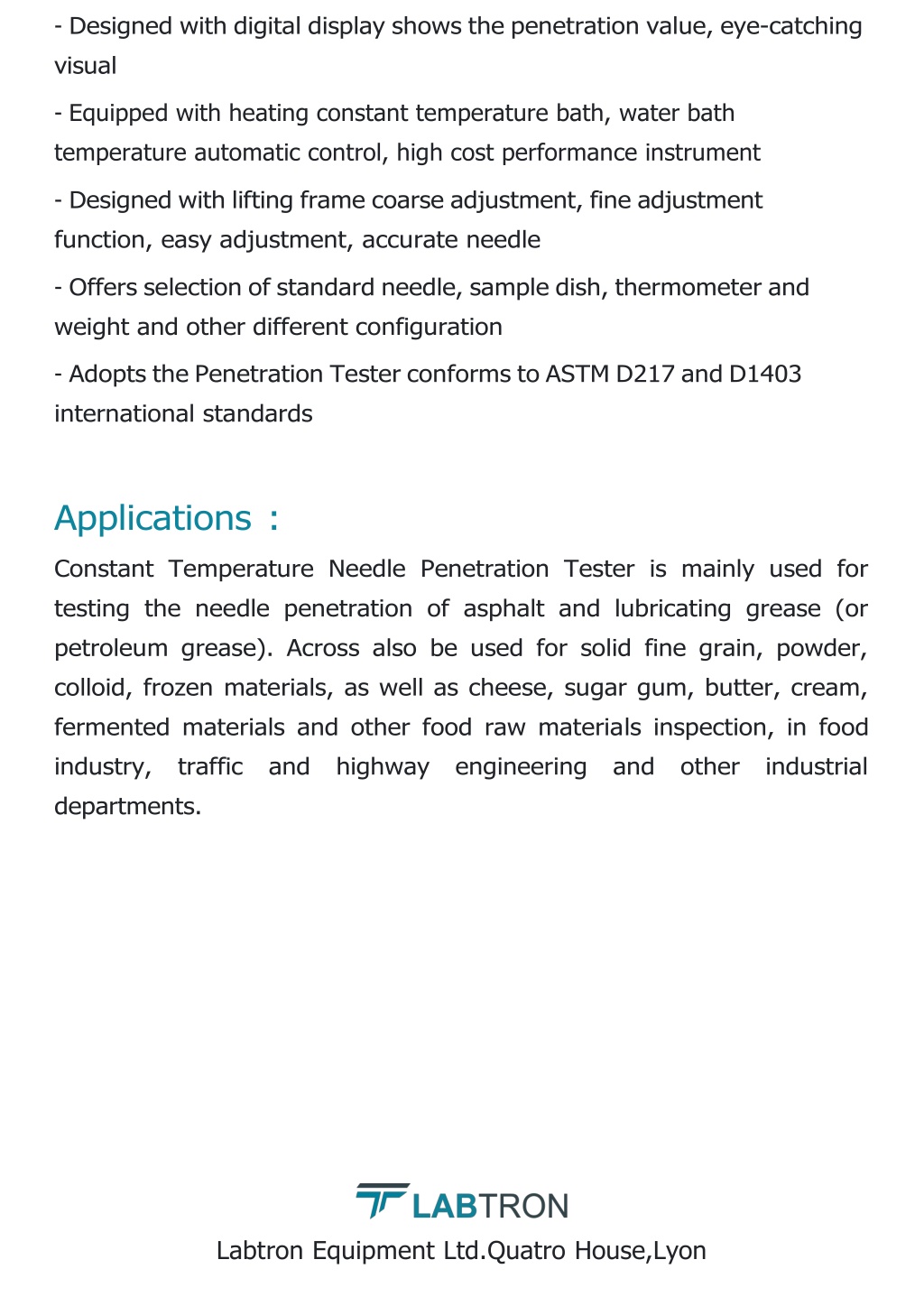

  3. -Designed with digital display shows the penetration value, eye-catching visual -Equipped with heating constant temperature bath, water bath temperature automatic control, high cost performance instrument -Designed with lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle -Offers selection of standard needle, sample dish, thermometer and weight and other different configuration -Adopts the Penetration Tester conforms to ASTM D217 and D1403 international standards Applications : Constant Temperature Needle Penetration Tester is mainly used for testing the needle penetration of asphalt and lubricating grease (or petroleum grease). Across also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments. Labtron Equipment Ltd.Quatro House,Lyon

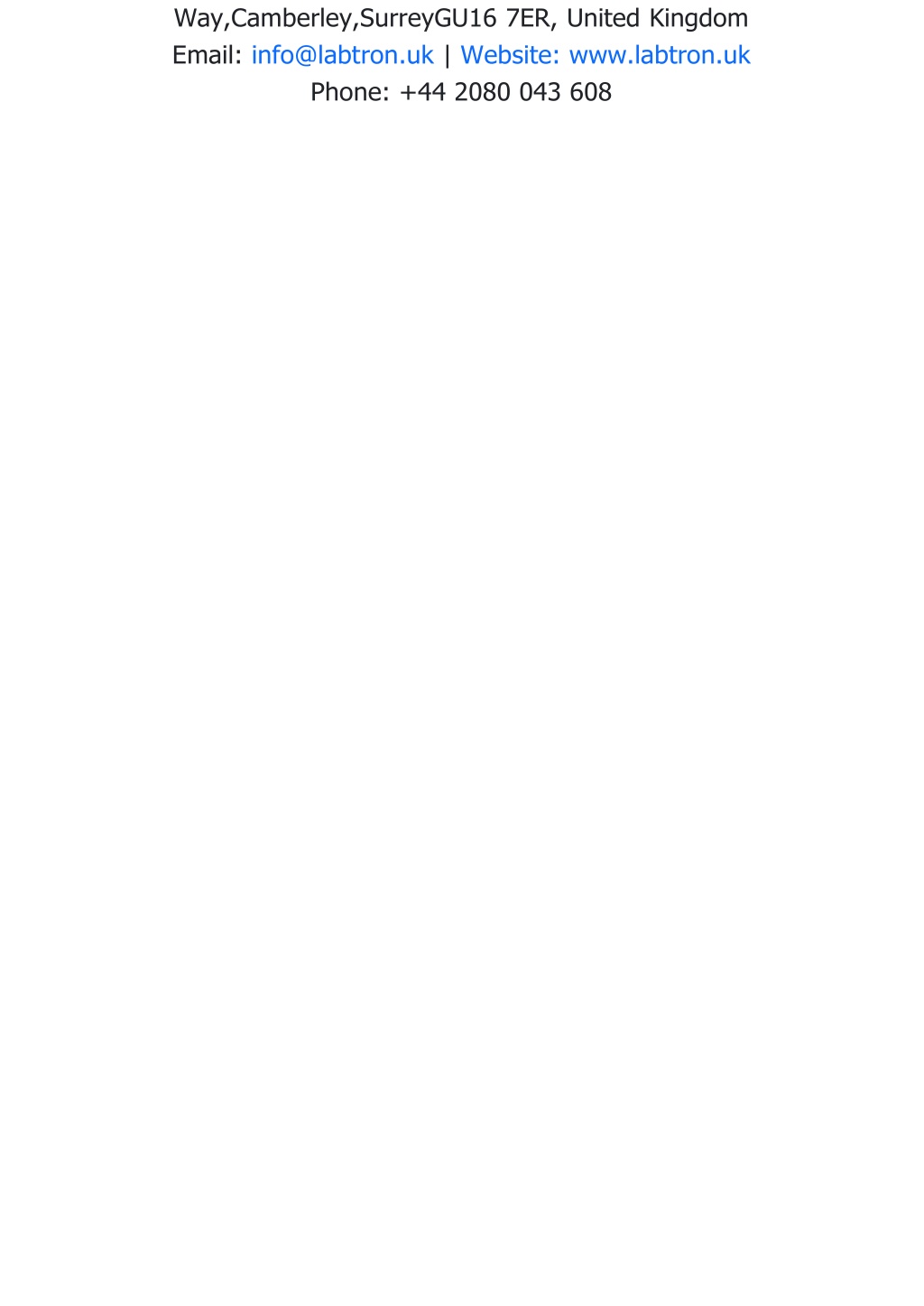

  4. Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
