Air Permeability Tester AP800FT

Air Permeability is a test which is done a lot to determine how much air can pass through any fabric. It measures the different types of permeability in any material. Air permeability defines how easily air or water passes through a material u2013 in simple words, it tells us how much air can pass between 2 surfaces of material when some force is applied.

Deepak251
Download Presentation

Air Permeability Tester AP800FT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

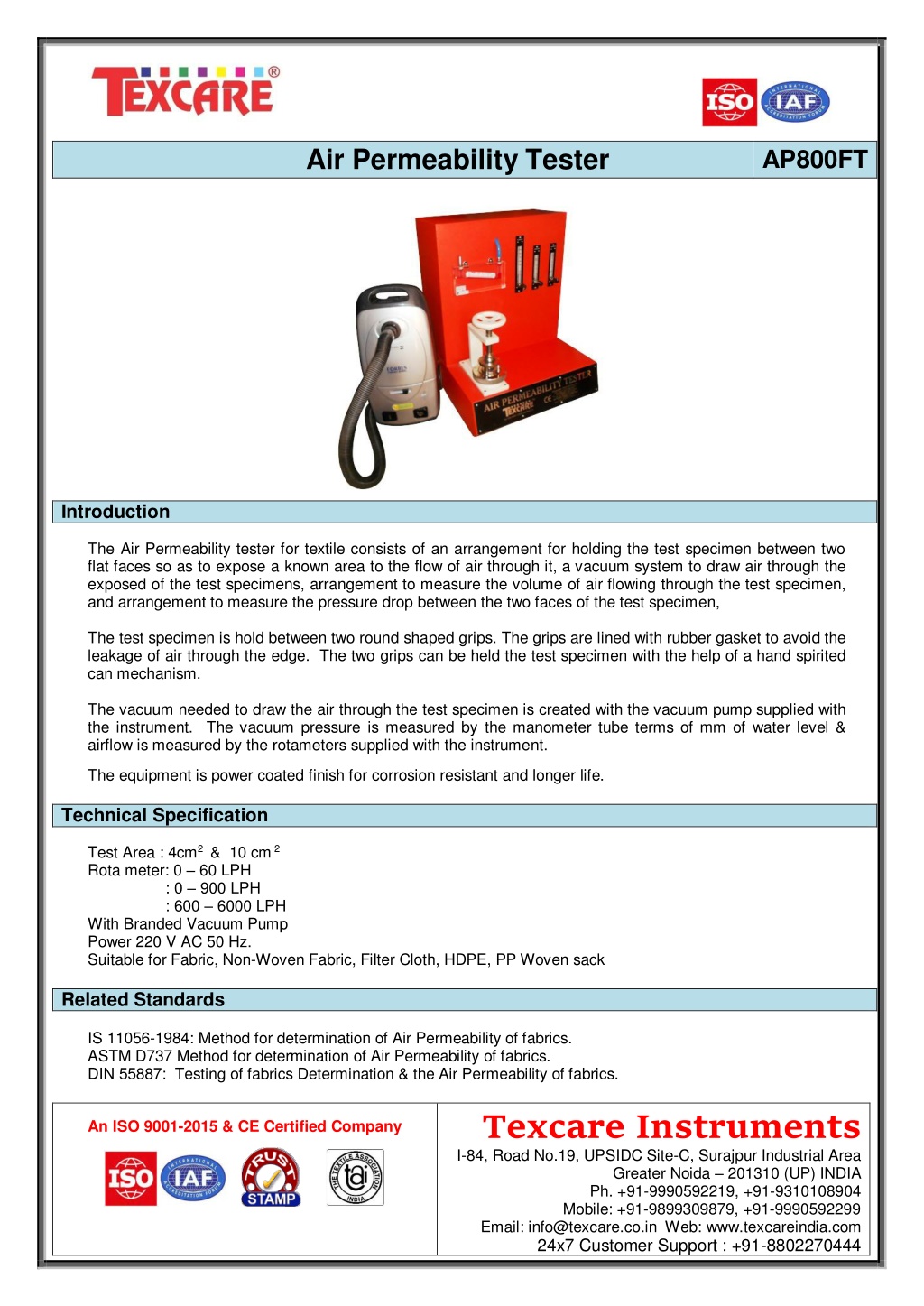

  1. Air Permeability Tester AP800FT Introduction The Air Permeability tester for textile consists of an arrangement for holding the test specimen between two flat faces so as to expose a known area to the flow of air through it, a vacuum system to draw air through the exposed of the test specimens, arrangement to measure the volume of air flowing through the test specimen, and arrangement to measure the pressure drop between the two faces of the test specimen, The test specimen is hold between two round shaped grips. The grips are lined with rubber gasket to avoid the leakage of air through the edge. The two grips can be held the test specimen with the help of a hand spirited can mechanism. The vacuum needed to draw the air through the test specimen is created with the vacuum pump supplied with the instrument. The vacuum pressure is measured by the manometer tube terms of mm of water level & airflow is measured by the rotameters supplied with the instrument. The equipment is power coated finish for corrosion resistant and longer life. Technical Specification Test Area : 4cm2 & 10 cm 2 Rota meter: 0 – 60 LPH : 0 – 900 LPH : 600 – 6000 LPH With Branded Vacuum Pump Power 220 V AC 50 Hz. Suitable for Fabric, Non-Woven Fabric, Filter Cloth, HDPE, PP Woven sack Related Standards IS 11056-1984: Method for determination of Air Permeability of fabrics. ASTM D737 Method for determination of Air Permeability of fabrics. DIN 55887: Testing of fabrics Determination & the Air Permeability of fabrics. An ISO 9001-2015 & CE Certified Company Texcare Instruments I-84, Road No.19, UPSIDC Site-C, Surajpur Industrial Area Greater Noida – 201310 (UP) INDIA Ph. +91-9990592219, +91-9310108904 Mobile: +91-9899309879, +91-9990592299 Email: info@texcare.co.in Web: www.texcareindia.com 24x7 Customer Support : +91-8802270444
