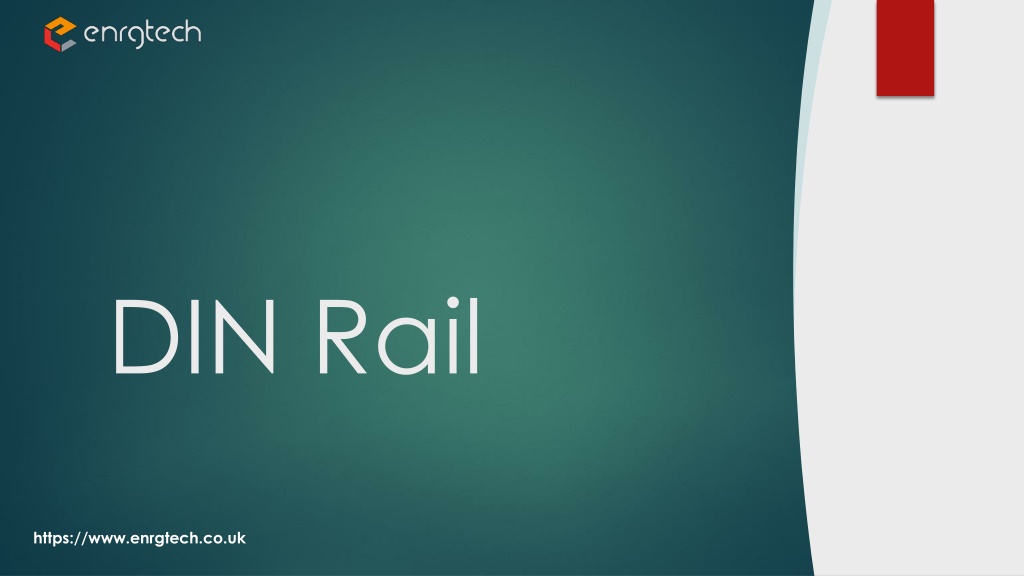

  1. DIN Rail https://www.enrgtech.co.uk

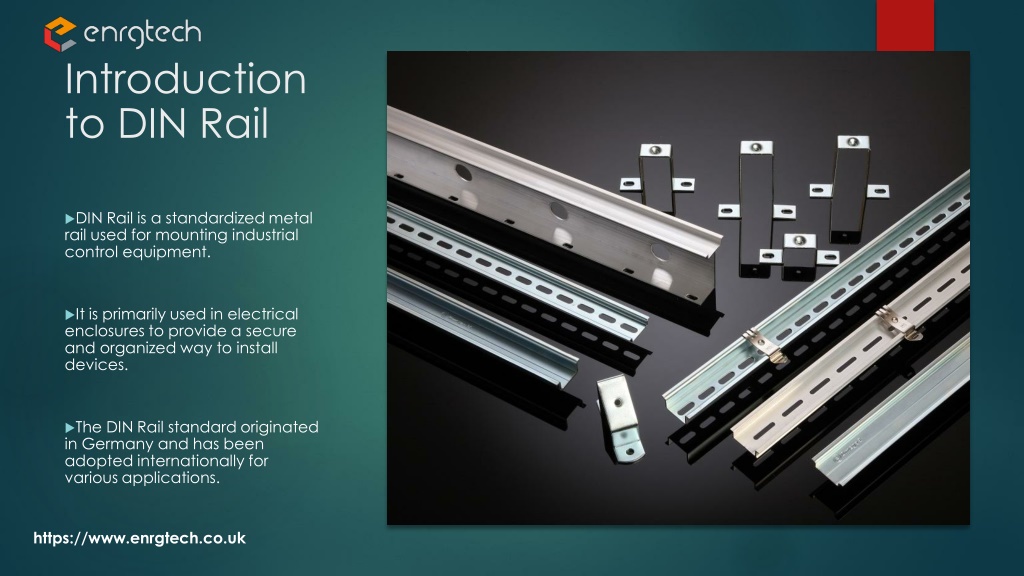

  2. Introduction to DIN Rail • DIN Rail is a standardized metal rail used for mounting industrial control equipment. • It is primarily used in electrical enclosures to provide a secure and organized way to install devices. • The DIN Rail standard originated in Germany and has been adopted internationally for various applications. https://www.enrgtech.co.uk

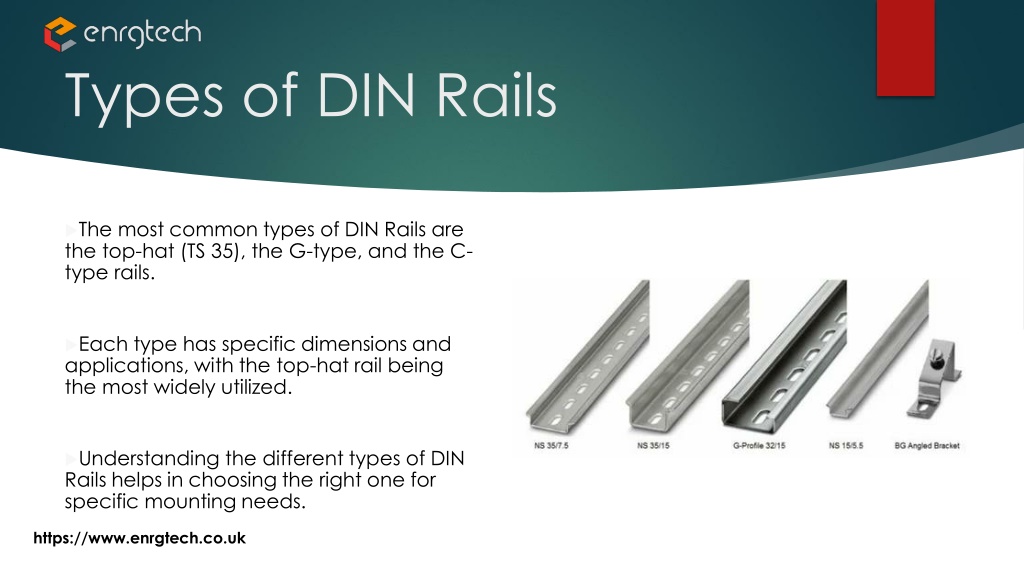

  3. Types of DIN Rails • The most common types of DIN Rails are the top-hat (TS 35), the G-type, and the C-type rails. • Each type has specific dimensions and applications, with the top-hat rail being the most widely utilized. • Understanding the different types of DIN Rails helps in choosing the right one for specific mounting needs. https://www.enrgtech.co.uk

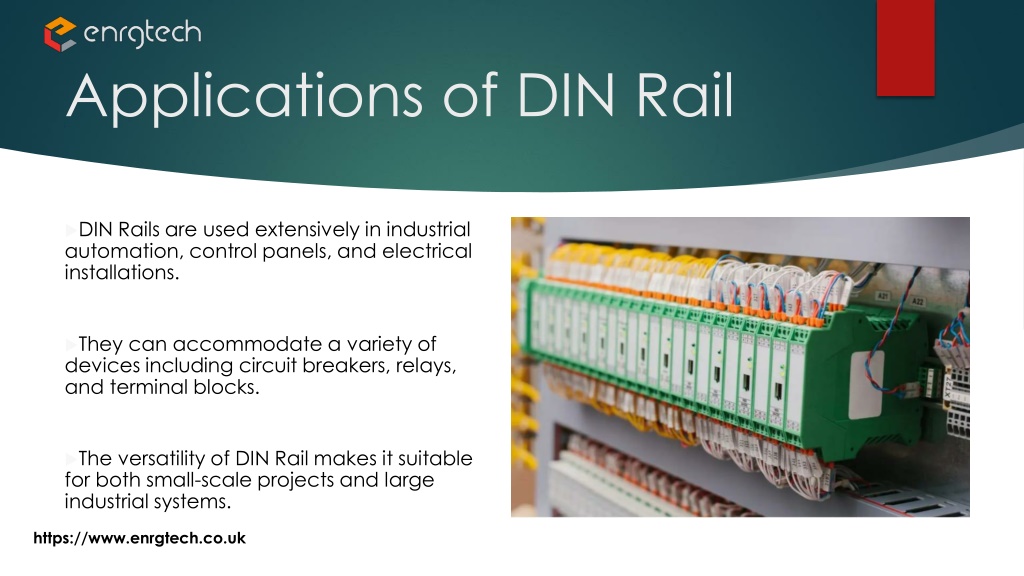

  4. Applications of DIN Rail • DIN Rails are used extensively in industrial automation, control panels, and electrical installations. • They can accommodate a variety of devices including circuit breakers, relays, and terminal blocks. • The versatility of DIN Rail makes it suitable for both small-scale projects and large industrial systems. https://www.enrgtech.co.uk

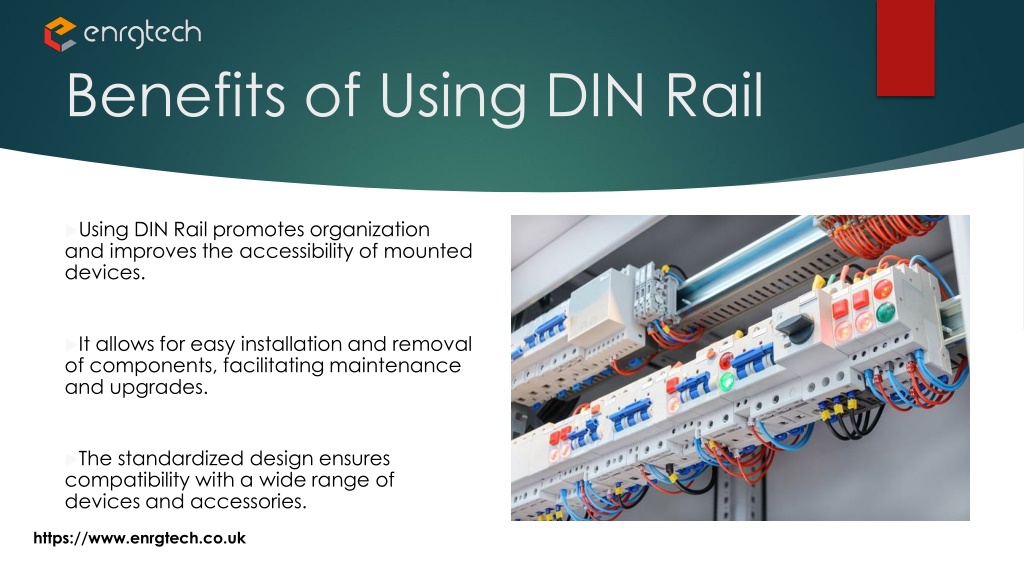

  5. Benefits of Using DIN Rail • Using DIN Rail promotes organization and improves the accessibility of mounted devices. • It allows for easy installation and removal of components, facilitating maintenance and upgrades. • The standardized design ensures compatibility with a wide range of devices and accessories. https://www.enrgtech.co.uk

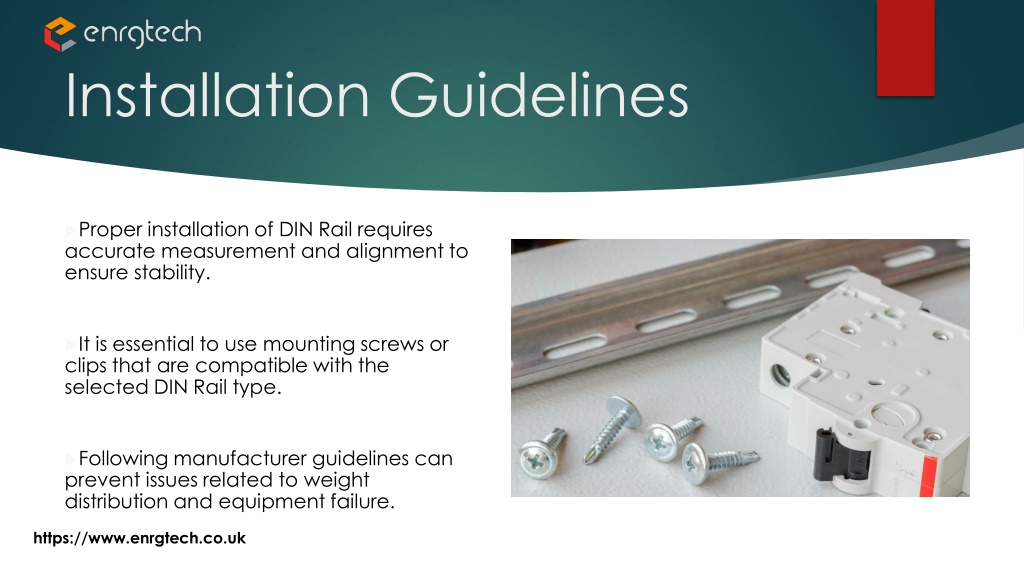

  6. Installation Guidelines • Proper installation of DIN Rail requires accurate measurement and alignment to ensure stability. • It is essential to use mounting screws or clips that are compatible with the selected DIN Rail type. • Following manufacturer guidelines can prevent issues related to weight distribution and equipment failure. https://www.enrgtech.co.uk

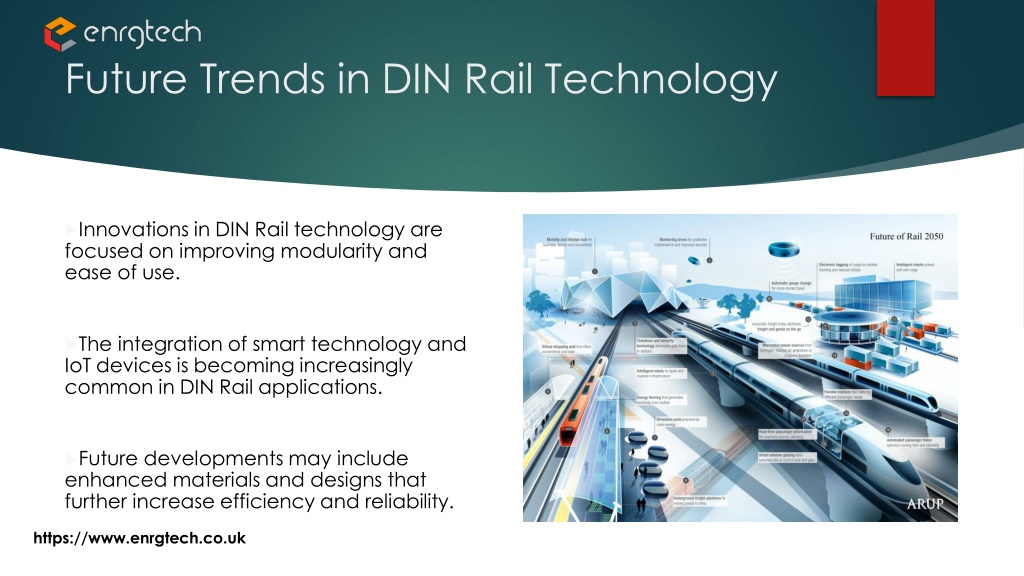

  7. Future Trends in DIN Rail Technology • Innovations in DIN Rail technology are focused on improving modularity and ease of use. • The integration of smart technology and IoT devices is becoming increasingly common in DIN Rail applications. • Future developments may include enhanced materials and designs that further increase efficiency and reliability. https://www.enrgtech.co.uk

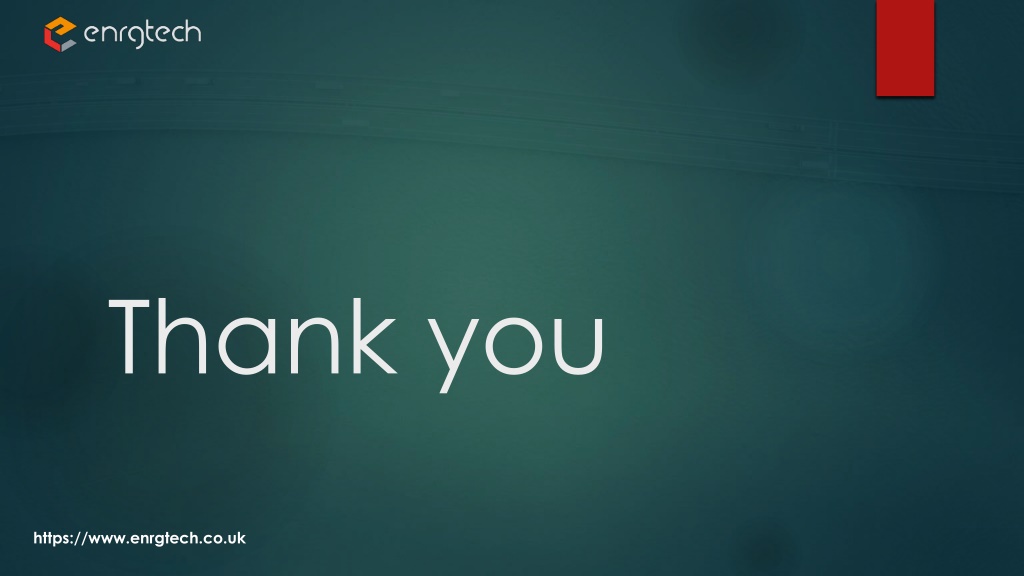

  8. Thank you https://www.enrgtech.co.uk
