Rail

Widder. 1. Schußrichtung. Rail. Kipp-Punkt (topple point). 2. Schußrichtung. 22 mm. schieben. Rail. 3. Schußrichtung. Rail. 22 mm. ggf. Anschlag als. Aufstellhilfe. 4. Schußrichtung. Rail. 22 mm. 0,6 lbfps = 2,7 Ns 0,7 lbfps = 3,1 Ns 0,8 lbfps = 3,5 Ns.

vicky
Download Presentation

Rail

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

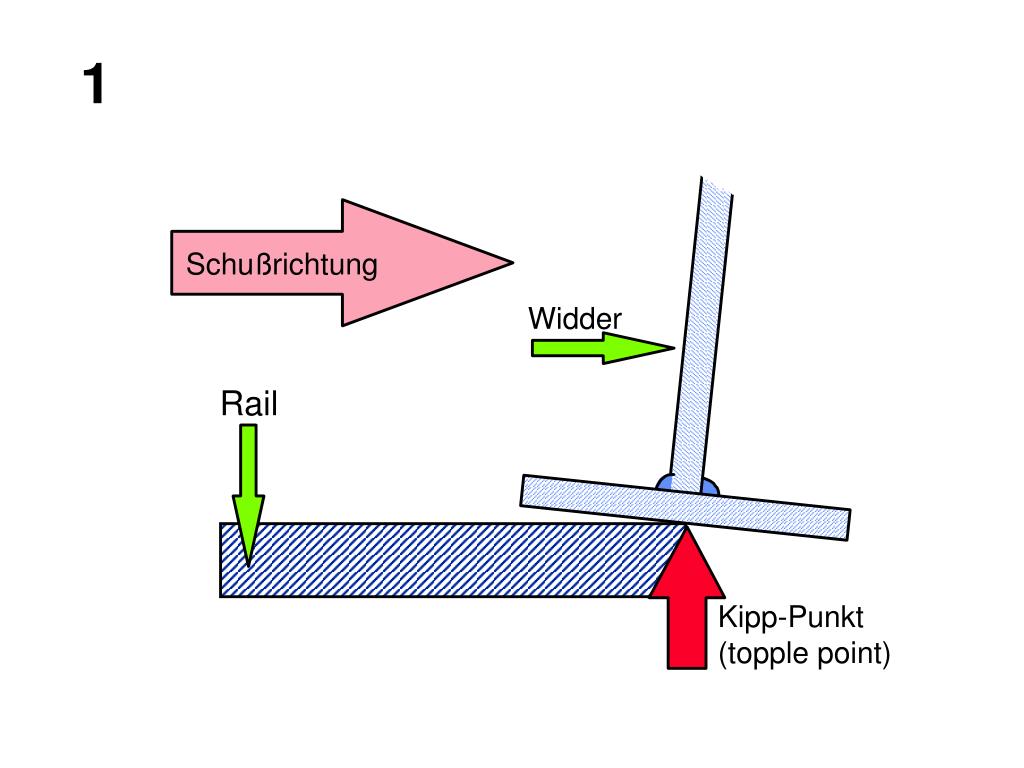

  1. Widder 1 Schußrichtung Rail Kipp-Punkt (topple point)

  2. 2 Schußrichtung 22 mm schieben Rail

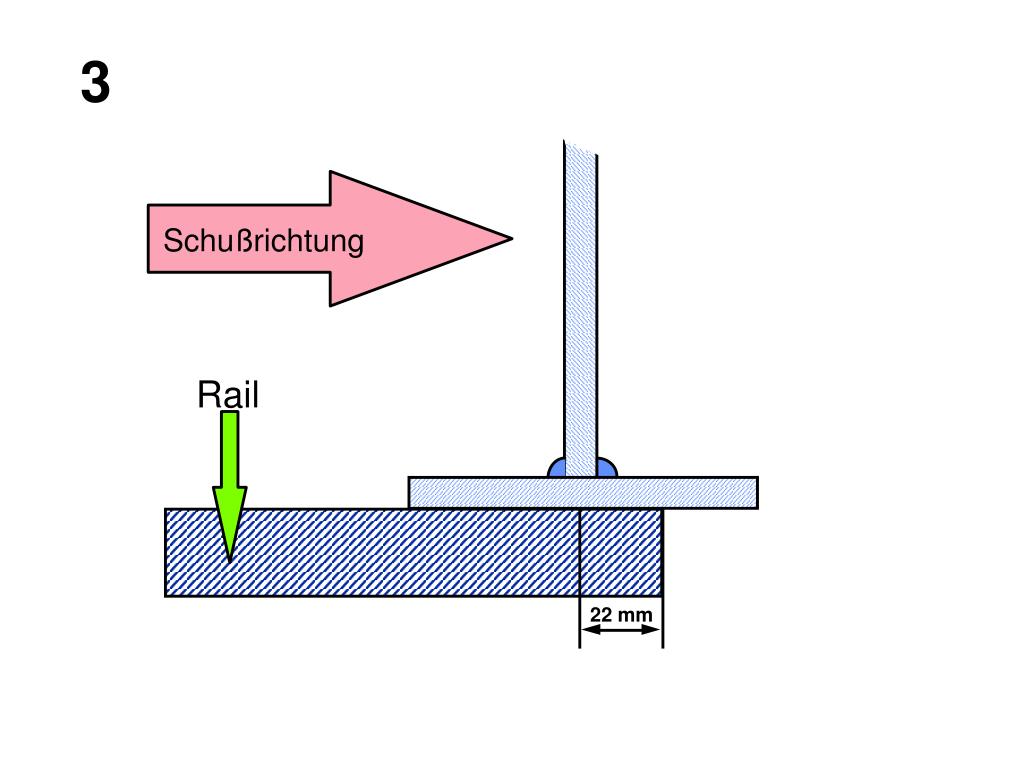

  3. 3 Schußrichtung Rail 22 mm

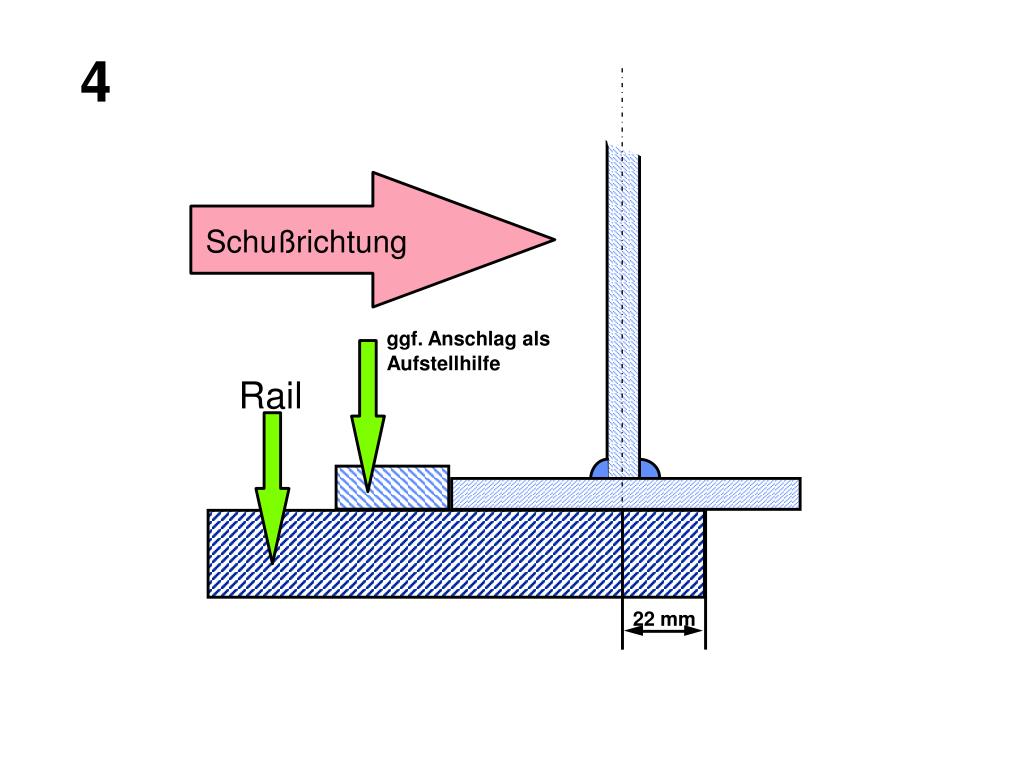

  4. ggf. Anschlag als Aufstellhilfe 4 Schußrichtung Rail 22 mm

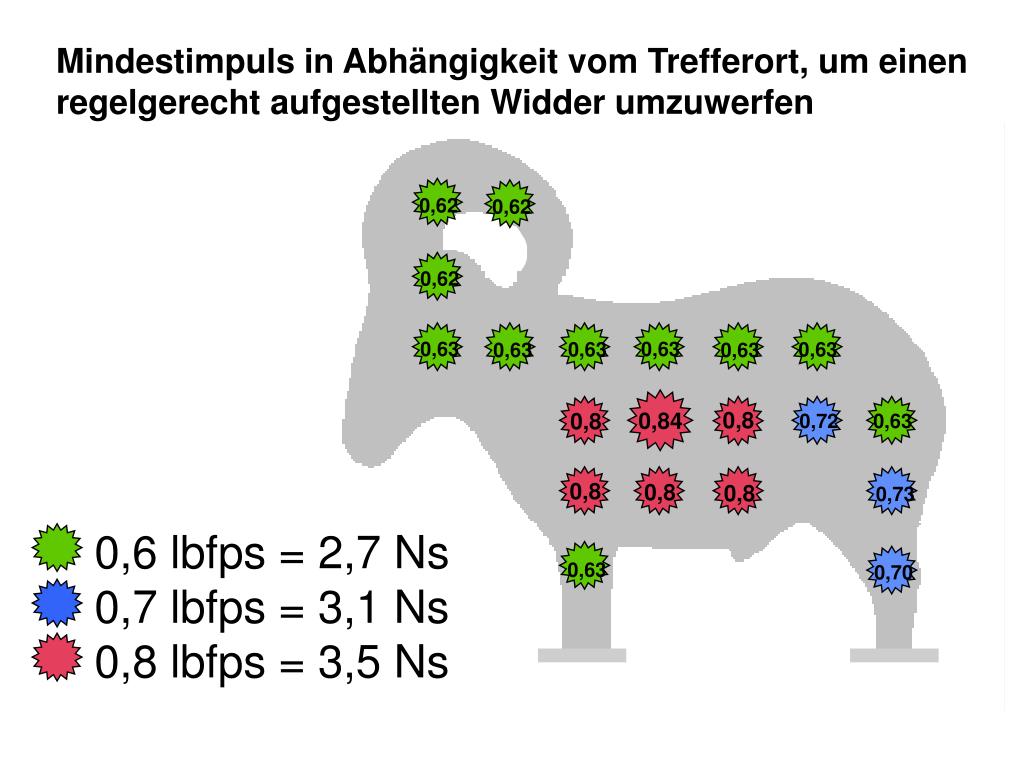

  5. 0,6 lbfps = 2,7 Ns 0,7 lbfps = 3,1 Ns 0,8 lbfps = 3,5 Ns Mindestimpuls in Abhängigkeit vom Trefferort, um einen regelgerecht aufgestellten Widder umzuwerfen 0,62 0,62 0,62 0,63 0,63 0,63 0,63 0,63 0,63 0,8 0,84 0,8 0,72 0,63 0,8 0,8 0,8 0,73 0,63 0,70
