Auto-Digital-Refractometer-FM-ADR-A101

The Auto Digital Refractometer provides accurate and rapid measurement of refractive index and Brix. With its automated digital interface, it ensures ease of use and <br>reliability in various industries such as food, beverage, and pharmaceuticals.

BrentFison
Download Presentation

Auto-Digital-Refractometer-FM-ADR-A101

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

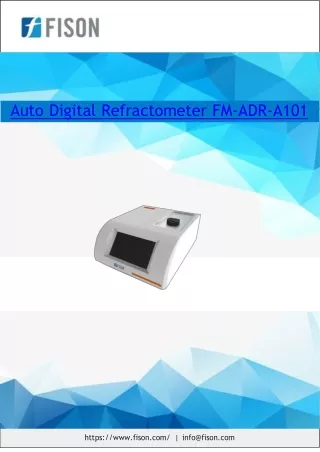

  1. Auto Digital Refractometer FM-ADR-A101 https://www.fison.com/ | info@fison.com

  2. Description : Auto Digital Refractometer FM-ADR-A101 is an automated, benchtop unit comprised with high resolution CCD detector, offers refractive index measuring range of 1.30000 to 1.70000 and brix measurement of 0 to 100%. With 10 to 50°C of temperature control range and high measuring resolution up to 0.0001 nD/ 0.1% Brix, features sapphire glass prism and built-in Peltier temperature control system. Designed with LED light source and 7-inch color touch screen, has LINUX operating system along with 4 GB of data storage capacity. With interface communication via RS232, USB, SD card, U-disk, internet and Wi-Fi, this refractometer also supports compliance with FDA 21 CFR part 11. Features: An automated, benchtop unit comprised with high resolution CCD detector Refractive index measuring range of 1.30000 to 1.70000 and brix measurement of 0 to 100% 10 to 50°C of temperature control range with 0.0001 nD and 0.1% Brix measuring resolution Sapphire glass prism, durable and, corrosion and scratch resistant Built-in Peltier temperature control system, ensures accuracy and precision LED light source, long working life of >100000 hours 7-inch color touch screen, convenient setting and monitoring of parameters LINUX operating system, efficient and easy-to-use 4 GB data storage capacity, convenient and reliable Interface communication via RS232, USB, SD card, U-disk, internet and Wi-Fi Supports compliance with FDA 21 CFR parts A fast and accurate unit with reliable and easy operation

  3. Specifications: Measuring range 1.30000 to 1.70000 nD Brix range 0 to 100% Temperature measure range 0 to 100°C Temperature control range 10 to 50°C Temperature accuracy ± 0.1°C Measured value error ± 0.0002 nD Measured value resolution 0.0001 nD Brix error ± 0.1% Brix resolution 0.001 Detector High resolution CCD detector Measuring prism Sapphire glass Temperature control system Built-in Peltier temperature control system Display 7-inch color touch screen Light source LED light source

  4. Operating system LINUX Data storage 4 GB RS232, USB, SD card, U-disk, internet and Wi-Fi Interface Power supply 110 to 240 V (12 V, 10 A) Power 45 W Dimension (W×D×H) 365×300×150 mm Net Weight 8 kg Packaging dimension (W×D×H) 500×420×330 mm Gross weight 10 kg Applications: Digital refractometer is used for rapid and accurate determination of the index of refraction of liquid samples, and to measure fluid concentrations, such as blood protein concentration, sugar content, and salinity across oil, pharmaceutical, paint, food, chemical, sugar, and petroleum industries etc.

  5. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com | Website: www.fison.com
