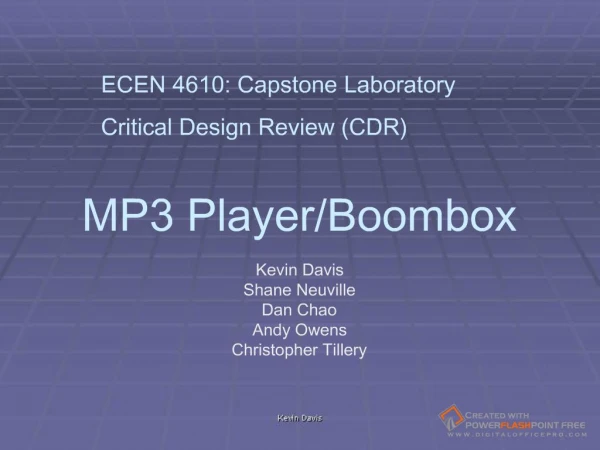

1. MP3 Player/Boombox Kevin Davis
Shane Neuville
Dan Chao
Andy Owens
Christopher Tillery
2. Project Objectives Play MP3s off of a CD-Rom
Ability to select current track
Ability to stop, pause, rewind, and fast forward
Interactive LCD display
Display artist and song title
Display Play Time
3. Project Components
4. Software Overview Driver for CD-Rom (VHDL)
Driver for LCD (C/Assembly)
MP3 decoder startup and control code (VHDL)
Input control & user interface (VHDL)
DMA Interface (VHDL)
5. File Storage IDE CD-Rom Drive
Store the songs in mp3 format.
ATAPI Interface
ISO 9660
Interface via Xilinx XCS-10
Mp3 Format CD’s
Compressed audio allowing more songs per CD.
ID3 tags can be utilized to display Artist, Song Title, etc.
6. FPGA ATAPI Interface DMA interaction will be designed in VHDL.
ISO9660 File System also in VHDL
FPGA will communicate the Path Table information to the MCU via the SPI interface
7. ATAPI DMA Communication Setup Sector, Cylinder and Device/Head Communications
Assert necessary lines to initiate DMA transfer. Transfer data according timing described in Multiword DMA
When transfer is done clear out Status registers
8. Multiword DMA data transfer
9. ISO 9660 File Structure
10. Xilinx XCS10 FPGA Decode controls
Arbitrate data transfer from CDROM to Decoder
Send data for the LCD to RAM
Chip select for RAM and EPROM
Simulate I2C to set the mode of our MP3 Decoder
11. FPGA & EPROM Schematic
12. I2C Simulation Simulate through FPGA
Timing
13. MAS3587F Setup
14. MAS3587F Data Transfer
15. MAS3587F Schematic
16. LCD Display - 4x20 characters Display ID3 tag information: Song Title, Artist, etc.
Playtime and Volume
17. LCD – Serial model 634 Built in Controller
Communicates with Processor using RS232
Baud Rate of 9600
Jumper setting allows for 5V TTL signal
Backlight powered by 5V source, 300mA
5V source to power LCD electronics
18. Communicating using RS232 Line from TxD on HC11 to DataIn on LCD
RxD tied to high or idle state
Data to be sent put in SCDR (Serial Comm. Data Register)
Data transfer into transmit data register and output on TxD
Baud rate set in Baud Rate Register in HC11
Baud rate set with dip switches on LCD
19. Control Codes
20. Characters
21. Knowing what to display FPGA communicates with processor using SPI Interface
State changed by push buttons (play, stop, next, prev)
ID3 & Table of Contents data transferred to into RAM from FPGA for LCD display
Flash memory will hold user interface software for LCD
22. Processor Motorola M68HC11E0
23. Processing Power 16 bit Address Bus
8 bit Data Bus
SCI and SPI serial interface
SCI interface for LCD Display
SPI interface for FPGA and CPU communication
24. Processor Schematic
25. Cost Estimates FPGA board: Donated
Processor: Donated
MP3 Encoder/Decoder: Donated
LCD Screen with controller: $80
PCB board: $100
RAM: Donated
CD-ROM Drive: Free (used)
Speakers: Free (donated)
Miscellaneous Parts: $70
Total Estimated Cost: $230
26. Risks and Contingency Plan Problem with reading CD-Rom
Send MP3’s through computer serial port
LCD malfunction
Display just control info and not ID3 tag information
Use a simpler LCD model
27. Division of Labor
28. Updated Schedule
