internet2 infraestructura y aplicaciones

Internet2:Infraestructura y Aplicaciones

Ana Preston Program Manager, Internet2 International

apreston@internet2.edu

JT RedIRIS 2002

Salamanca, España

outline for today s talk
Outline for today’s talk
  • Quick Overview of Internet2
  • Focus Areas - highlights
  • Backbone Infrastructure
  • Applications
  • Conclusions / Q&A

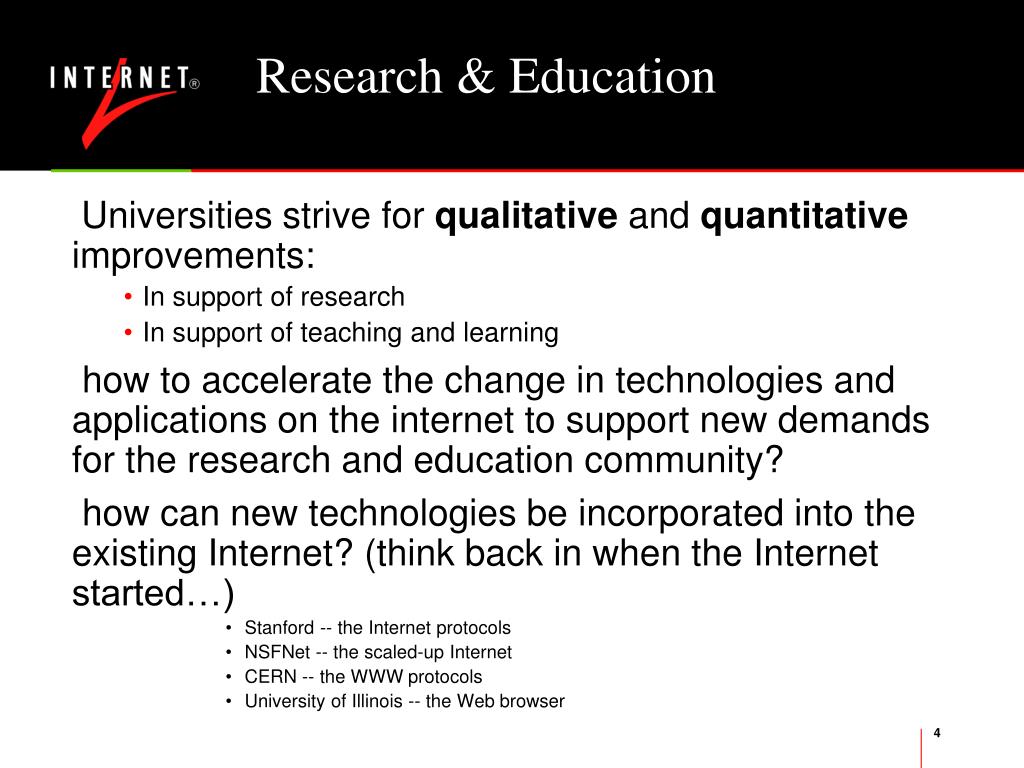

research education
Research & Education
  • Universities strive for qualitative and quantitative improvements:
    • In support of research
    • In support of teaching and learning
  • how to accelerate the change in technologies and applications on the internet to support new demands for the research and education community?
  • how can new technologies be incorporated into the existing Internet? (think back in when the Internet started…)
        • Stanford -- the Internet protocols
        • NSFNet -- the scaled-up Internet
        • CERN -- the WWW protocols
        • University of Illinois -- the Web browser

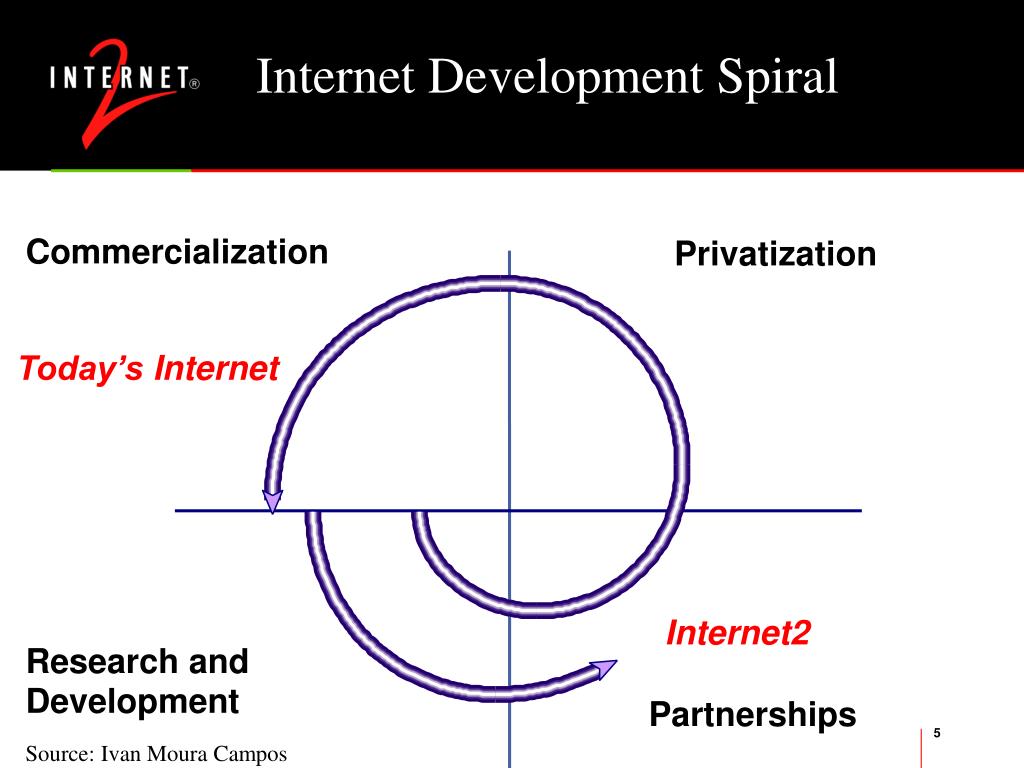

internet development spiral
Internet Development Spiral

Commercialization

Privatization

Today’sInternet

Internet2

Research and

Development

Partnerships

Source: Ivan Moura Campos

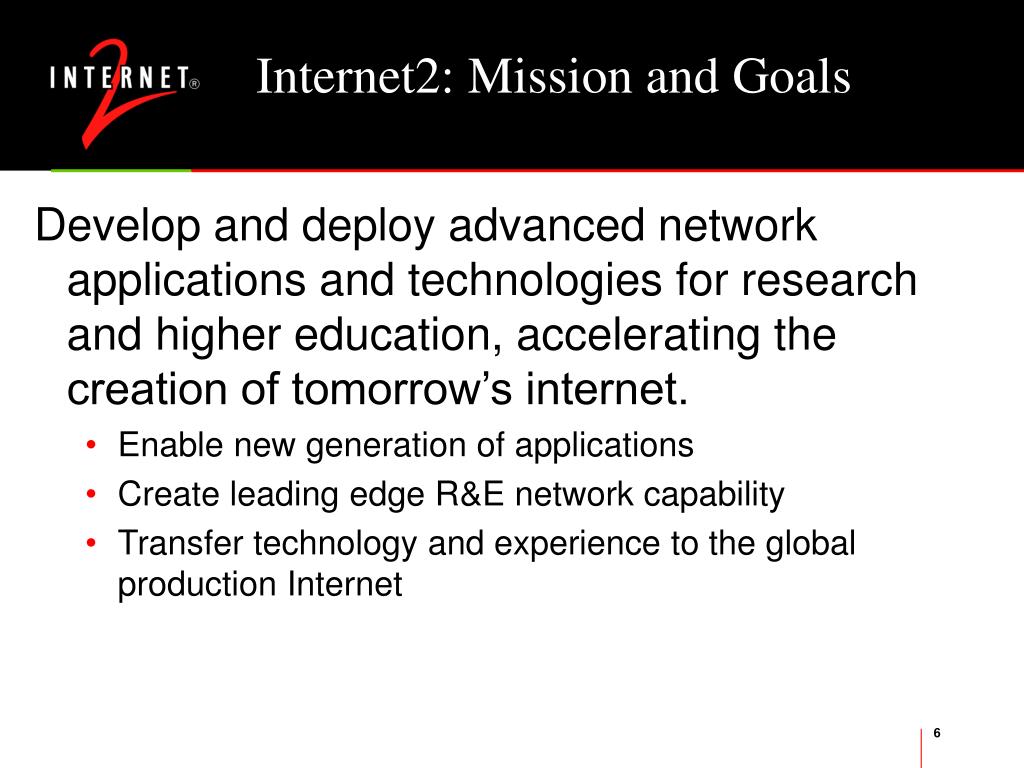

internet2 mission and goals
Internet2: Mission and Goals
  • Develop and deploy advanced network applications and technologies for research and higher education, accelerating the creation of tomorrow’s internet.
    • Enable new generation of applications
    • Create leading edge R&E network capability
    • Transfer technology and experience to the global production Internet

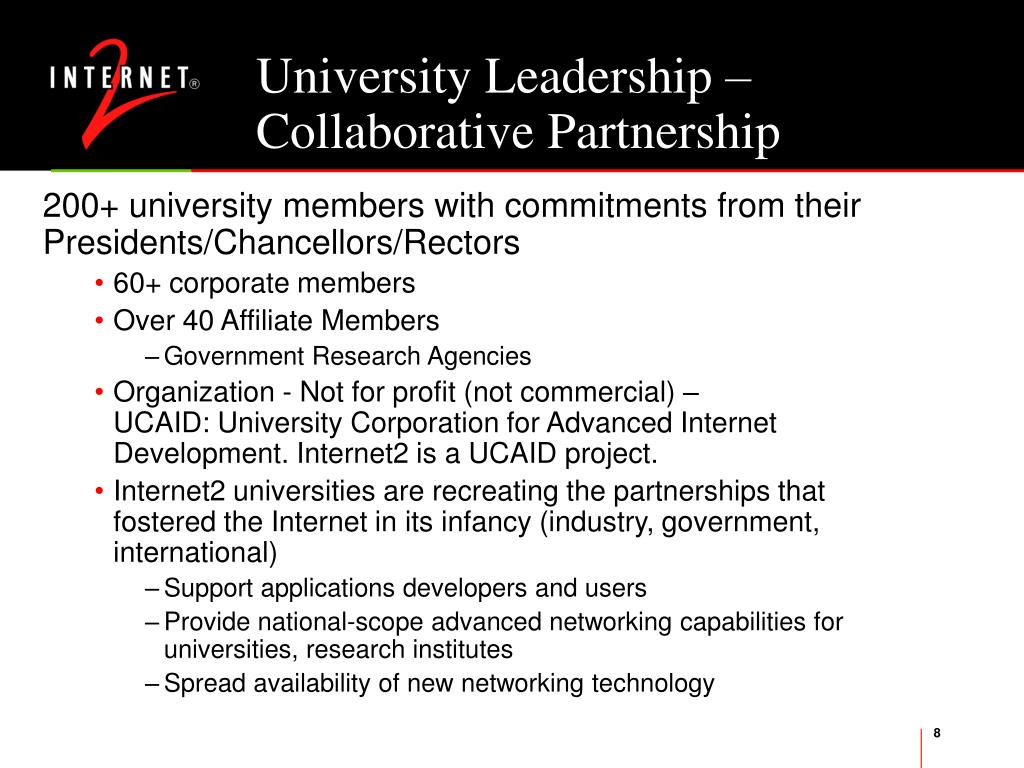

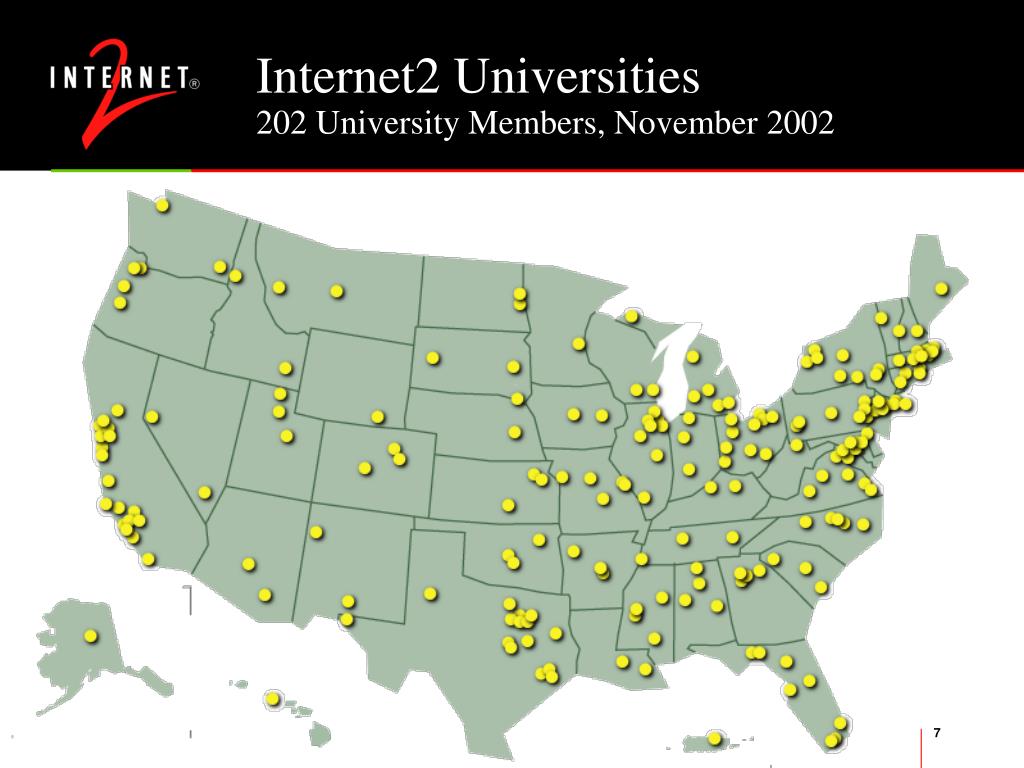

university leadership collaborative partnership
University Leadership – Collaborative Partnership
  • 200+ university members with commitments from their Presidents/Chancellors/Rectors
    • 60+ corporate members
    • Over 40 Affiliate Members
      • Government Research Agencies
    • Organization - Not for profit (not commercial) – UCAID: University Corporation for Advanced Internet Development. Internet2 is a UCAID project.
    • Internet2 universities are recreating the partnerships that fostered the Internet in its infancy (industry, government, international)
      • Support applications developers and users
      • Provide national-scope advanced networking capabilities for universities, research institutes
      • Spread availability of new networking technology
internet2 focus areas
Internet2 Focus Areas
  • Applications
  • Engineering
  • Middleware
  • Network Infrastructure
  • Partnerships
internet2 focus areas10
Internet2 Focus Areas
  • Advanced Network Infrastructure
  • Middleware
  • Engineering
  • Advanced Applications
  • Partnerships
internet2 and the next generation internet initiative
Internet2 and the Next Generation Internet Initiative

Internet2

NGI

Federal agency-led

University-led

Developing education and research driven applications

Agency mission-driven and general purpose applications

Building out campus networks, gigaPoPs and inter-gigapop infrastructure

Funding research testbeds and agency research networks

Interconnecting and interoperating to provide advanced networking capabilities needed to support advanced research and education applications

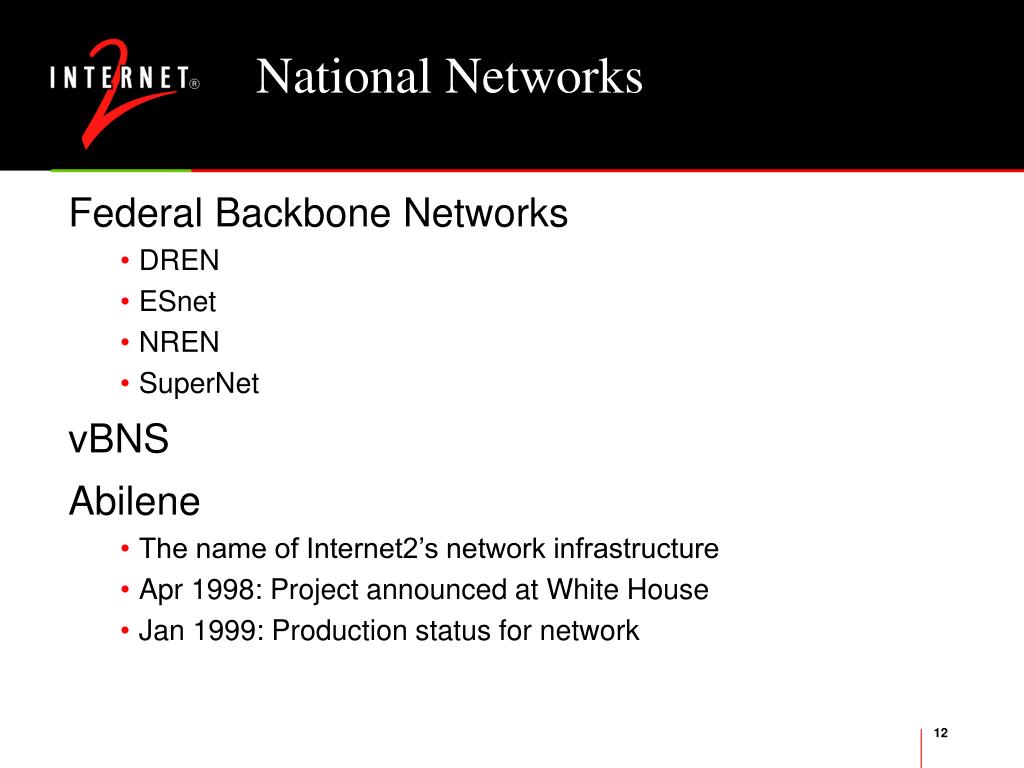

national networks
National Networks
  • Federal Backbone Networks
    • DREN
    • ESnet
    • NREN
    • SuperNet
  • vBNS
  • Abilene
    • The name of Internet2’s network infrastructure
    • Apr 1998: Project announced at White House
    • Jan 1999: Production status for network

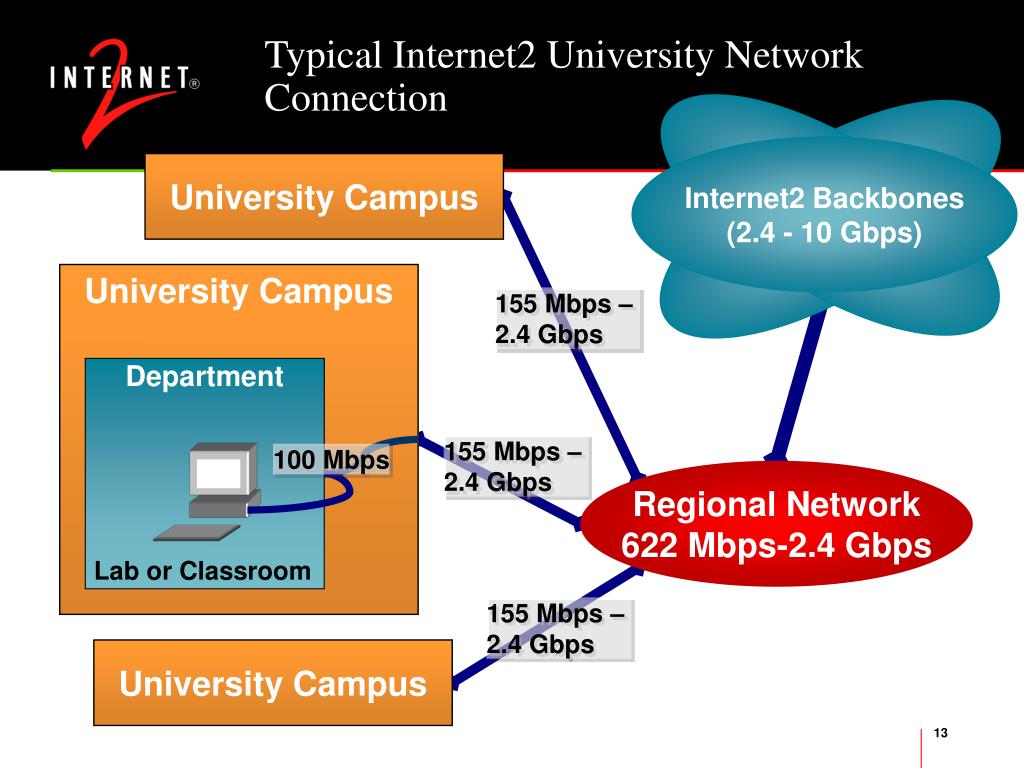

typical internet2 university network connection

Internet2 Backbones(2.4 - 10 Gbps)

Typical Internet2 University Network Connection

University Campus

University Campus

155 Mbps – 2.4 Gbps

Department

155 Mbps – 2.4 Gbps

100 Mbps

Regional Network622 Mbps-2.4 Gbps

Lab or Classroom

155 Mbps – 2.4 Gbps

University Campus

abilene partnership approach

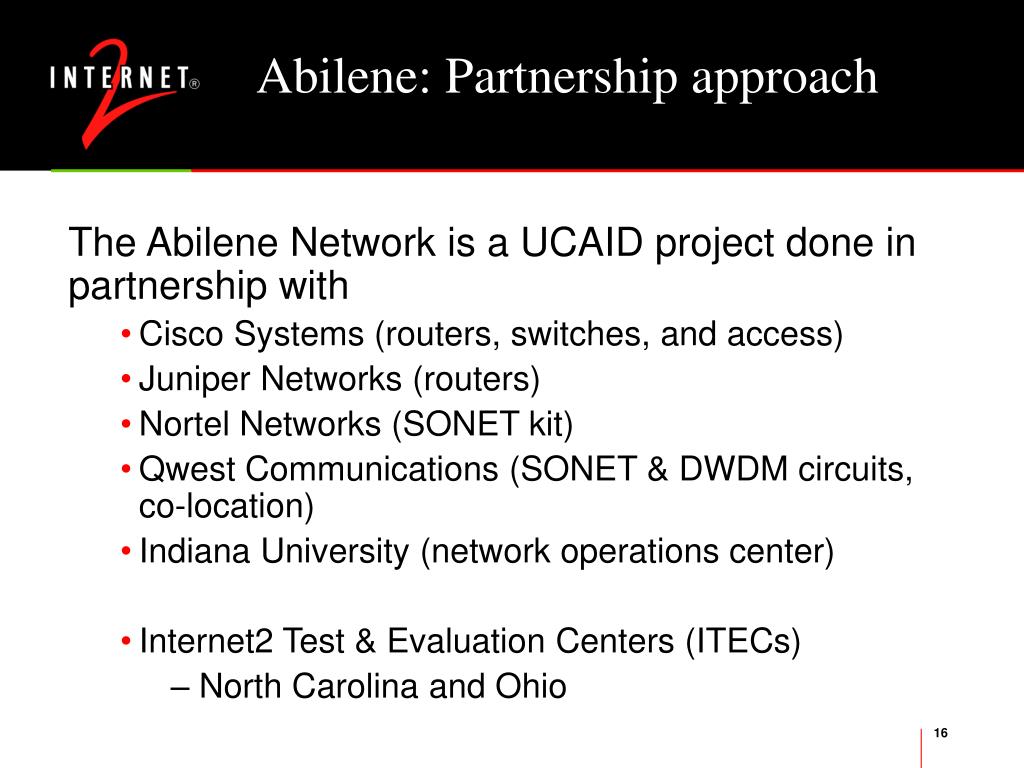

Abilene: Partnership approach
  • The Abilene Network is a UCAID project done in partnership with
    • Cisco Systems (routers, switches, and access)
    • Juniper Networks (routers)
    • Nortel Networks (SONET kit)
    • Qwest Communications (SONET & DWDM circuits, co-location)
    • Indiana University (network operations center)
    • Internet2 Test & Evaluation Centers (ITECs)
      • North Carolina and Ohio
abilene october 2002

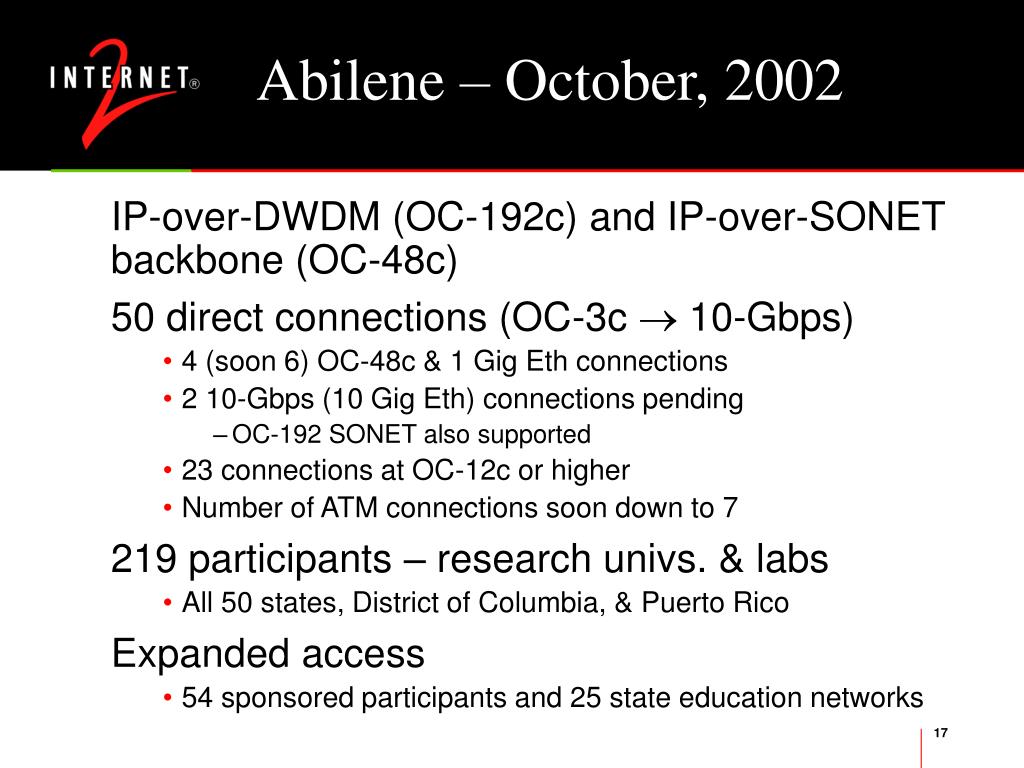

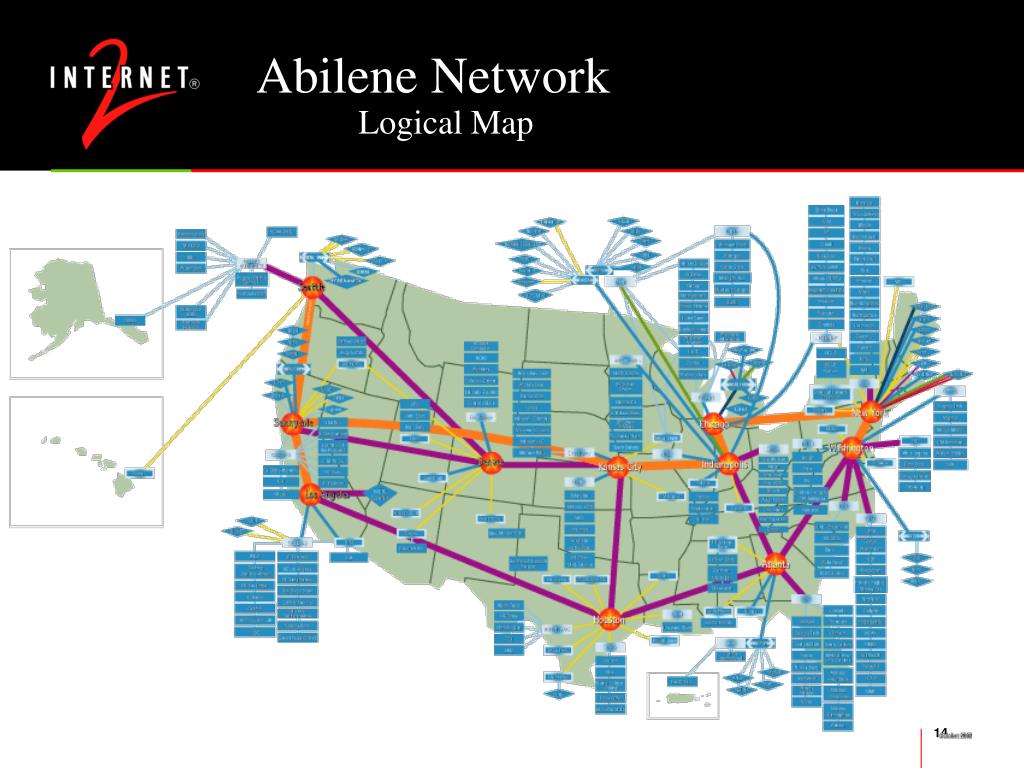

Abilene – October, 2002
  • IP-over-DWDM (OC-192c) and IP-over-SONET backbone (OC-48c)
  • 50 direct connections (OC-3c  10-Gbps)
    • 4 (soon 6) OC-48c & 1 Gig Eth connections
    • 2 10-Gbps (10 Gig Eth) connections pending
      • OC-192 SONET also supported
    • 23 connections at OC-12c or higher
    • Number of ATM connections soon down to 7
  • 219 participants – research univs. & labs
    • All 50 states, District of Columbia, & Puerto Rico
  • Expanded access
    • 54 sponsored participants and 25 state education networks
next generation abilene
Next Generation Abilene
  • Partnership with Qwest extended thru 2006
  • Juniper T640 routers selected for backbone
    • 10/11 next generation router nodes in place; 12th location pending
      • 2 racks in each location (Juniper T640 router & 4 measurement servers)
      • OC-48c SONET interconnects to Cisco 12008 routers
      • Very pleased to date with new router performance and interoperability with 1st generation backbone
  • 10-Gbps backbone  deployment has started this Fall
    • Transcontinental 10-Gbps ’s: 6 ’s connected to network
      • DC-NYC-Chicago-Indy-KC-Sunnyvale CA-Los Angeles
      • First  outage (3.5 hours): fiber cut in NYC
      • ITEC network performance validation test: 8 Gbps of 2-way traffic (v4 and v6 mix) transmitted without loss or reordering – Sunnyvale to San Diego

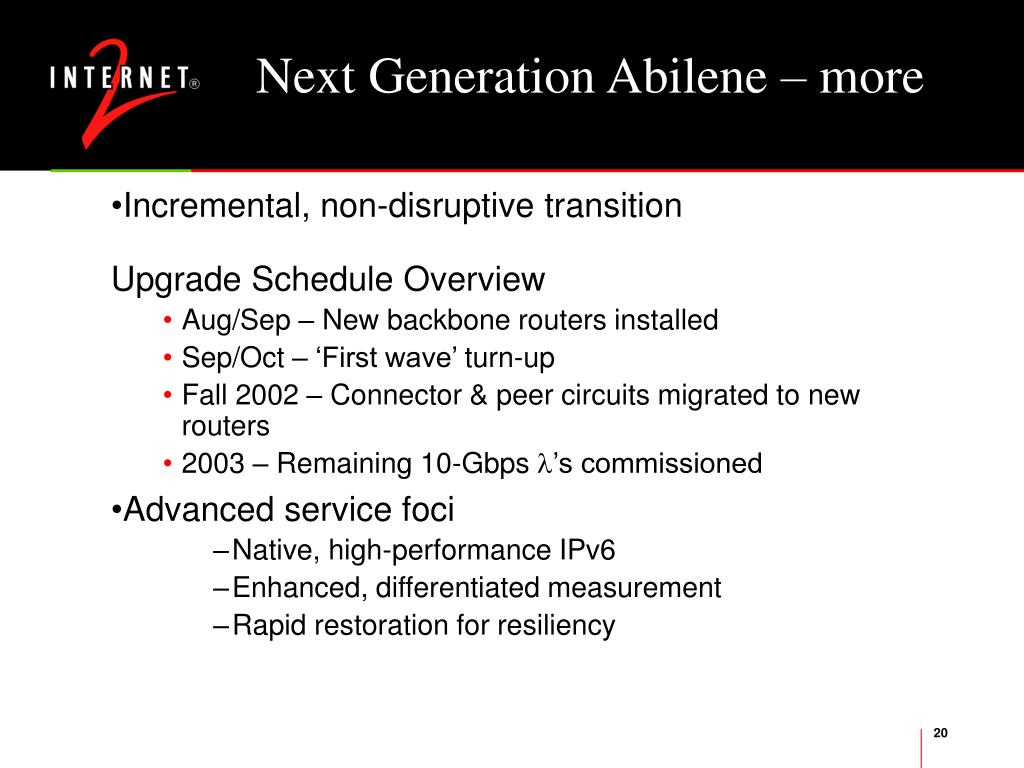

next generation abilene more
Next Generation Abilene – more
  • Incremental, non-disruptive transitionUpgrade Schedule Overview
    • Aug/Sep – New backbone routers installed
    • Sep/Oct – ‘First wave’ turn-up
    • Fall 2002 – Connector & peer circuits migrated to new routers
    • 2003 – Remaining 10-Gbps ’s commissioned
  • Advanced service foci
      • Native, high-performance IPv6
      • Enhanced, differentiated measurement
      • Rapid restoration for resiliency
native ipv6 deployment
Native IPv6 deployment
  • Abilene is now running native IPv6 over the entire Cisco 12008 and Juniper T640 backbone
    • Dual stack mode
    • IS-ISv6 used for internal routing
  • Significant number of peers and connectors already have converted
  • Tunnel support consolidated
    • IU-NOC provides support for existing tunnels; Not accepting any new tunnels
  • Abilene provided addressing
    • 2001:468::/35 from ARIN for participants – 63% allocated
    • 3ffe:3700::/24 from 6bone for SEGP / sponsored users
  • Native IPv6 (UCSD iGrid demo: 400 Mbps v6 SD-AMS)
  • Kudos to Abilene NOC, IPv6 WG, Cisco, and Juniper
abilene native ipv6 peerings october 2002
Connectors (12)

Great Plains Network

Indiana Gigapop

MAX

NYSERNet

Oregon Gigapop

Pittsburgh Gigapop

SDSC

WiscREN

NoX

South Florida Gigapop

Front Range Gigapop

ONEnet

Peers/Exchange Points (9)

6TAP

APAN/TransPAC

CUDI

JGNv6/WIDE

SingAREN

SURFNET

vBNS+

AMPATH

CA*NET(3)

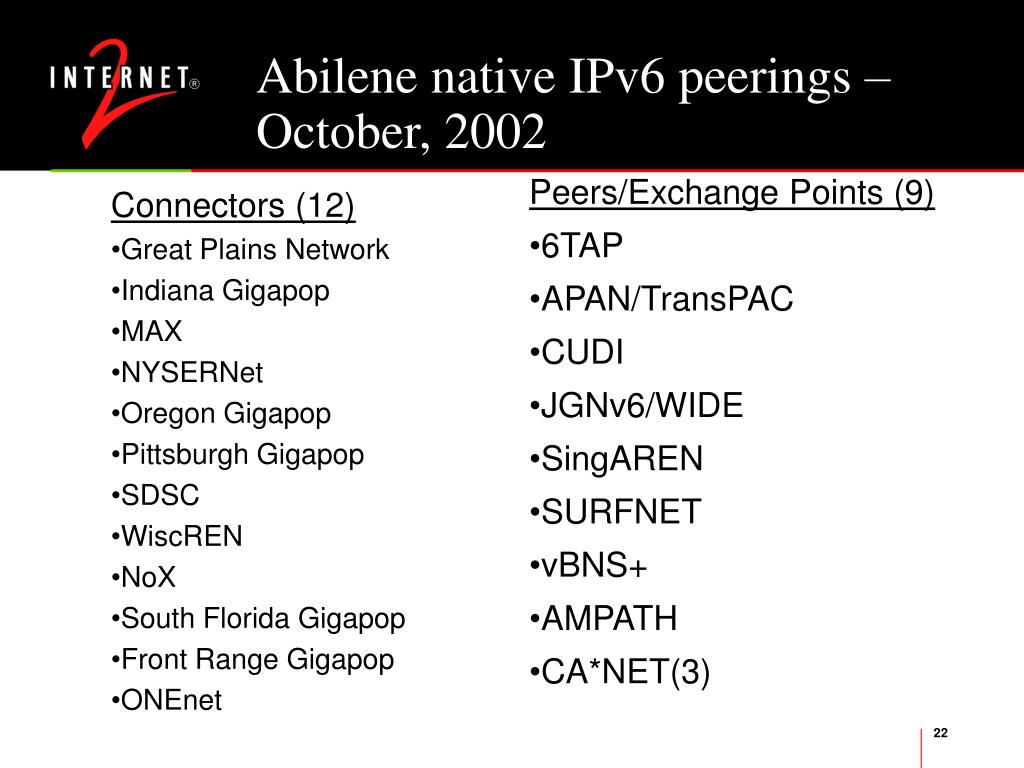

Abilene native IPv6 peerings – October, 2002
more key aspects of next generation abilene backbone i
More key aspects of next generation Abilene backbone - I
  • Resiliency
    • Moving from SONET rings to unprotected ’s is significant
    • Collaboration apps demand convergence times of ~100 ms
    • Faster converging IP-based IGP as ultimate solution
      • v4 unicast IGP switch from OSPF to IS-IS
  • Differentiated measurement capabilities
    • Starting w/four dedicated servers at each node
      • Local data collection to capture data at times of network instability
    • Enhance active probing
      • Now: latency & jitter, loss, reachability (Surveyor)
      • Regular TCP/UDP throughput tests – ~1 Gbps
        • Separate server for E2E performance beacon
    • Enhance passive measurement
      • Now: SNMP (NOC) & traffic matrix/type (Netflow)
      • Routing (BGP & IGP)
      • Optical splitter taps on backbone links at select location(s)
abilene international peering october 2002

09 January 2002

Sacramento

Washington

Los Angeles

Abilene International Peering (October 2002)

Pacific Wave

AARNET, APAN/TransPAC† CA*net4, TANET2

STAR TAP/Star Light

APAN/TransPAC†, CA*net4, CERN, NAUKAnet, GEMnet, HARNET, HEANET, KOREN/KREONET2, NORDUnet, SURFnet, SingAREN, TAnet2

NYCM

CA*net3,

GEANT*,

HEANET,

NORDUnet

SNVA

GEMNET, SINET, SingAREN, WIDE

LOSA

UNINET

OC3->OC12

San Diego (CALREN2)

CUDI

AMPATH

ANSP, REUNA, RNP2, RETINA

El Paso (UACJ-UT El Paso)

CUDI

  • ARNES, CARNET, CESnet, DFN, GRNET, JANET, NORDUNET, RENATER, RESTENA, SWITCH, HUNGARNET, GARR-B, POL-34, RCCN, RedIRIS
  • † WIDE/JGN, IMnet, CERNet, CSTnet,
abilene international connectivity model
Abilene international connectivity model
  • Abilene is a GTRN - Global Terabit Research Network -partner
    • Already peering with GTRN router in New York City
  • Peering at major int’l EPs in U.S. encouraged
    • Chicago: Star Light (migration from STAR TAP)
    • Seattle: Pacific Wave
    • Miami: AMPATH
    • New York City: MAN LAN (GigE/10GigE switch)

10 Gig Ethernet to Star Light now and P/WAVE when ready

  • Direct BGP peering preferred
    • via Layer-2 EP media or direct connection to Abilene router
  • ATM support generally ends by Sept 2003
    • No new ATM peers
gtrn current infrastructure
DANTE-provided router in NYC in GTRN AS

DANTE-provided 2.5gbps links across Atlantic to GEANT

Abilene providing tunnel between New York, (Chicago), Seattle

NSF-funded StarLight will provide GNAP

Pacific Wave hosting GNAP in Seattle

Global NOC at Indiana University

GTRN: Current Infrastructure

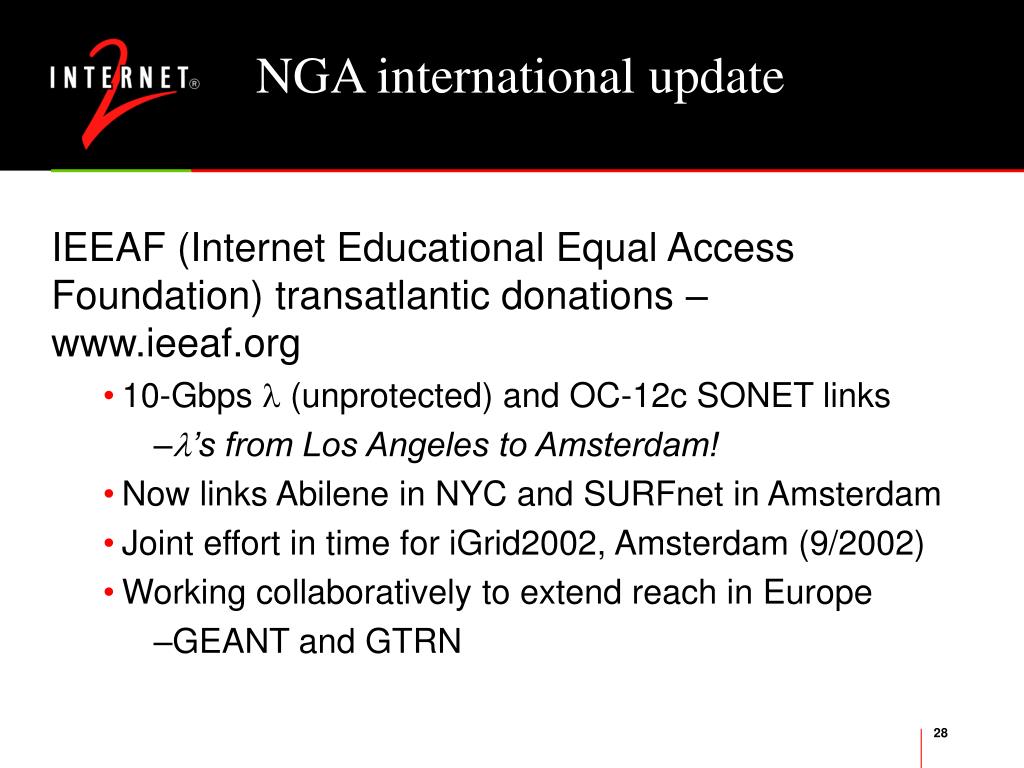

nga international update
NGA international update
  • IEEAF (Internet Educational Equal Access Foundation) transatlantic donations – www.ieeaf.org
    • 10-Gbps  (unprotected) and OC-12c SONET links
      • ’s from Los Angeles to Amsterdam!
    • Now links Abilene in NYC and SURFnet in Amsterdam
    • Joint effort in time for iGrid2002, Amsterdam (9/2002)
    • Working collaboratively to extend reach in Europe
      • GEANT and GTRN
abilene network objectives 2003

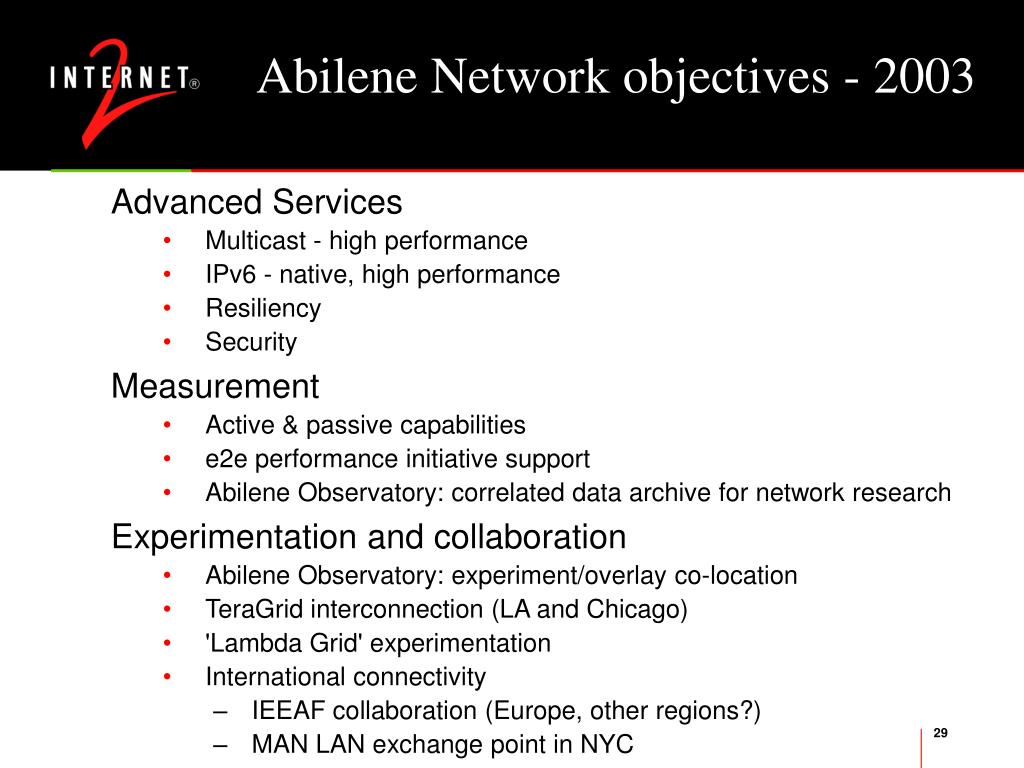

Abilene Network objectives - 2003
  • Advanced Services
    • Multicast - high performance
    • IPv6 - native, high performance
    • Resiliency
    • Security
  • Measurement
    • Active & passive capabilities
    • e2e performance initiative support
    • Abilene Observatory: correlated data archive for network research
  • Experimentation and collaboration
    • Abilene Observatory: experiment/overlay co-location
    • TeraGrid interconnection (LA and Chicago)
    • 'Lambda Grid' experimentation
    • International connectivity
      • IEEAF collaboration (Europe, other regions?)
      • MAN LAN exchange point in NYC
optical networking technology drivers
Optical networking technology drivers
  • Computational science: emerging interdiscipline
    • Now: Bandwidth + distributed data sensing and storage
    • Increasingly distributed data collection and storage
    • NSF Distributed Terascale Facility: TeraGrid Project
  • At end of aggressive period of fiber construction on the national & metro scales in U.S.
    • Now rapid industry contraction, capital crisises, bankruptcies
    • Glut of conduit and fiber, but not of bandwidth
  • Many university campuses and regional GigaPoPs already use dark fiber
    • Much metro DWDM/GigE and some regional (state based) DWDM
  • Optical transport is the focus with switching on horizon
u s r e optical networking scaling factors
U.S. R&E optical networking scaling factors
  • 11 Next Generation Abilene routers
  • ~50 Abilene connectors
  • ~220 Abilene participants
    • Research universities & labs
  • But…
  • 30-60 DWDM access nodes in leading viable carriers’ U.S. networks

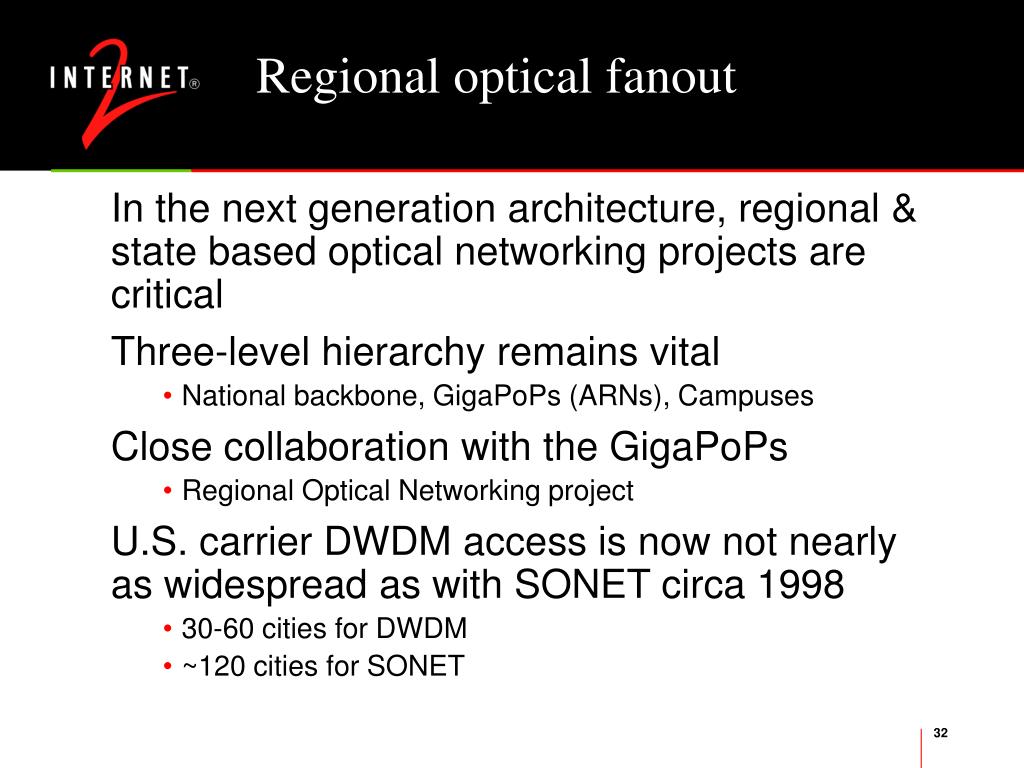

regional optical fanout
Regional optical fanout
  • In the next generation architecture, regional & state based optical networking projects are critical
  • Three-level hierarchy remains vital
    • National backbone, GigaPoPs (ARNs), Campuses
  • Close collaboration with the GigaPoPs
    • Regional Optical Networking project
  • U.S. carrier DWDM access is now not nearly as widespread as with SONET circa 1998
    • 30-60 cities for DWDM
    • ~120 cities for SONET

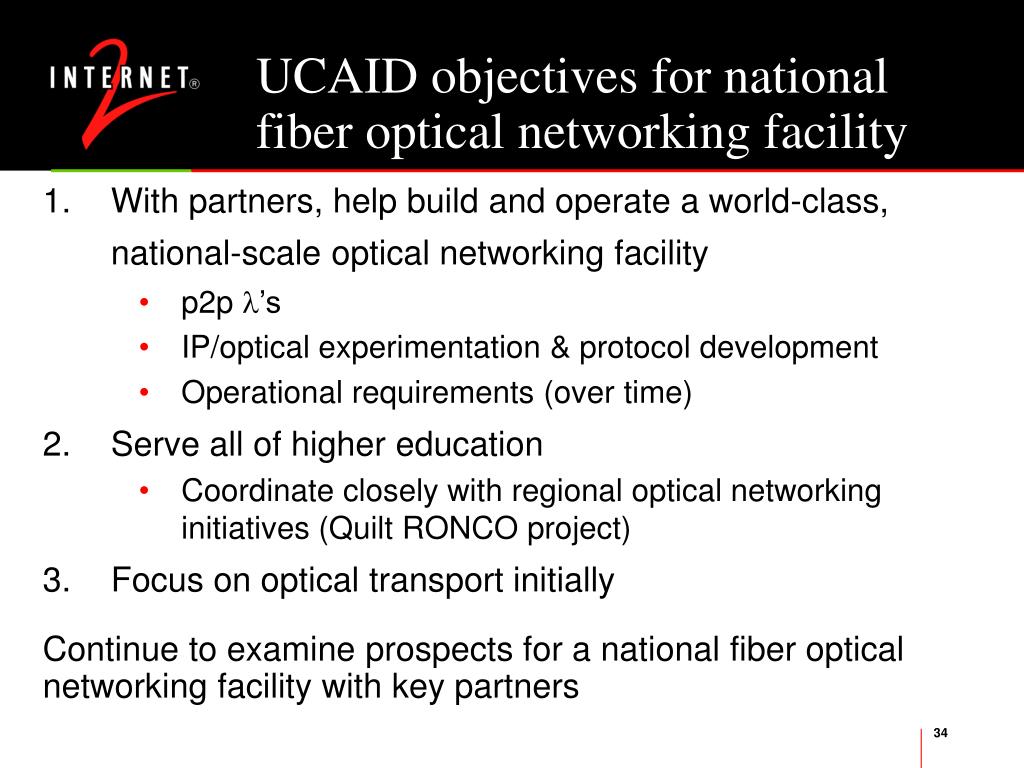

ucaid objectives for national fiber optical networking facility
UCAID objectives for national fiber optical networking facility
  • With partners, help build and operate a world-class, national-scale optical networking facility
    • p2p ’s
    • IP/optical experimentation & protocol development
    • Operational requirements (over time)
  • Serve all of higher education
    • Coordinate closely with regional optical networking initiatives (Quilt RONCO project)
  • Focus on optical transport initially

Continue to examine prospects for a national fiber optical networkingfacility with key partners

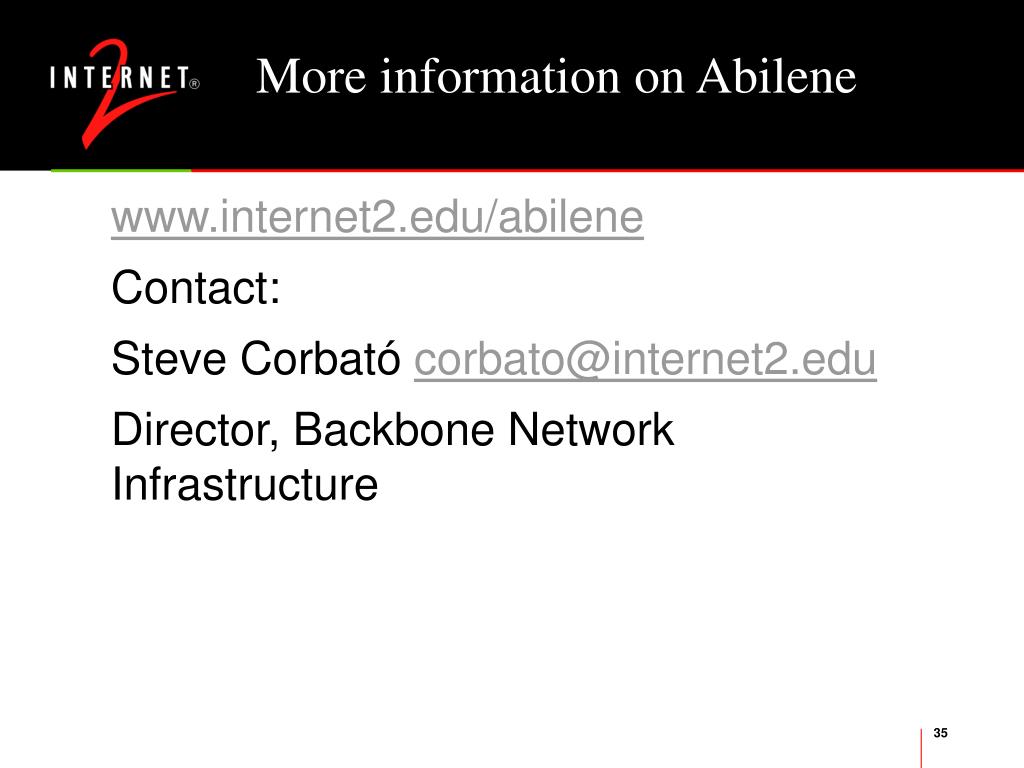

more information on abilene
More information on Abilene
  • www.internet2.edu/abilene
  • Contact:
  • Steve Corbató corbato@internet2.edu
  • Director, Backbone Network Infrastructure
internet2 focus areas34
Internet2 Focus Areas
  • Advanced Network Infrastructure
  • Middleware
  • Engineering
  • Advanced Applications
  • Partnerships
internet2 middleware initiative middleware internet2 edu
Internet2 Middleware Initiative – middleware.internet2.edu
  • Middleware: A layer of software between the network and the applications
  • Middleware Architecture Committee for Education
  • Early Harvest and Early Adopters
  • Internet2 PKI Labs
  • Shibboleth (authentication)
  • Computational middleware (Beta Grid)
  • Medical middleware
  • Directories
internet2 focus areas36
Internet2 Focus Areas
  • Advanced Network Infrastructure
  • Middleware
  • Engineering
  • Advanced Applications
  • Partnerships
engineering working groups
Engineering Working Groups
  • End to End Performance
  • Technologies
    • IPv6
    • Measurement
    • Multicast
    • Quality of Service
    • Routing
    • Security
    • Topology
  • http://www.internet2.edu/html/working-groups.html
end to end performance initiative http e2epi internet2 edu index shtml
End-to-End Performance Initiativehttp://e2epi.internet2.edu/index.shtml
  • To enable the researchers, faculty, students and staff who use high performance networks to obtain optimal performance from the current infrastructure on a consistent basis.

Applications Performance

Raw Connectivity

  • True End-to-End Performance requires a system approachuser perception, OS, Host IP stack, Host network card, …LAN, Campus, regional network/GigaPoP, link to I2 national backbones….all the way to International connections!
  • E2E piPEline: Performance Environment System:
    • To allow end-users and network operators to determine performance capabilities, locate problems, and contact the right person to get a problem resolved using a collaborative approach.
internet2 focus areas39
Internet2 Focus Areas
  • Advanced Network Infrastructure
  • Middleware
  • Engineering
  • Advanced Applications
  • Partnerships

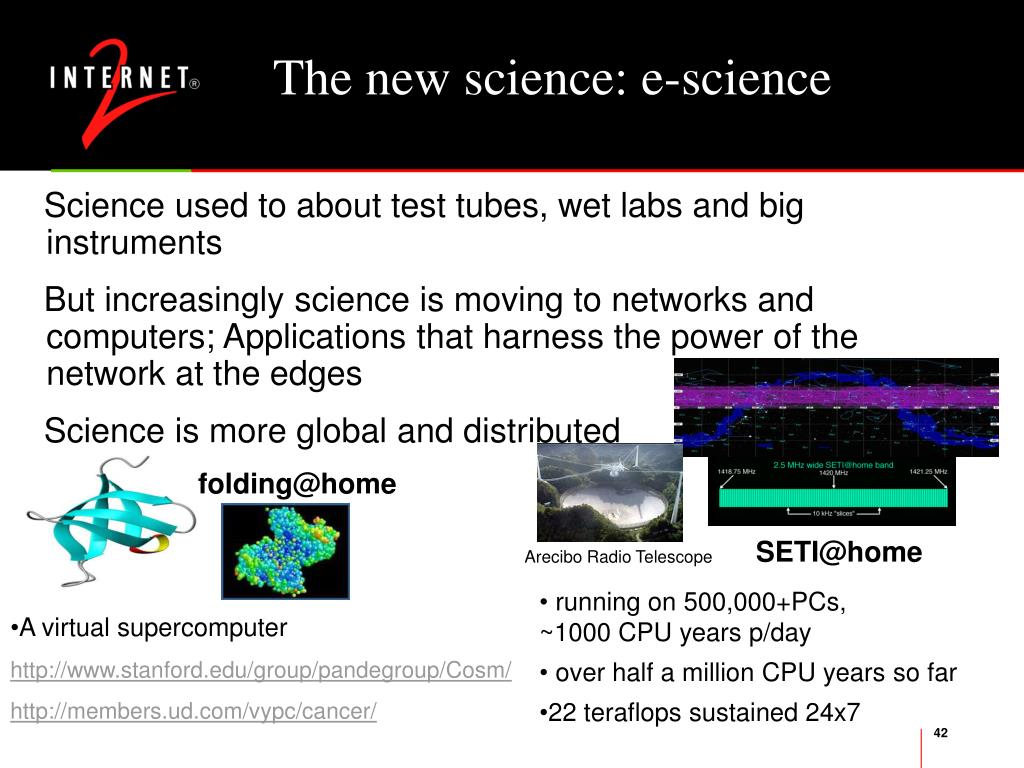

the new science e science
The new science: e-science
  • Science used to about test tubes, wet labs and big instruments
  • But increasingly science is moving to networks and computers; Applications that harness the power of the network at the edges
  • Science is more global and distributed

folding@home

SETI@home

Arecibo Radio Telescope

  • running on 500,000+PCs, ~1000 CPU years p/day
  • over half a million CPU years so far
  • 22 teraflops sustained 24x7
  • A virtual supercomputer
  • http://www.stanford.edu/group/pandegroup/Cosm/
  • http://members.ud.com/vypc/cancer/
virtual observatory
Virtual Observatory
  • www.voforum.org
  • Discovery process will rely on advanced visualization and data mining tools
  • Not tied to a single brick and mortar location
  • Will cross correlate existing multi-spectral databases petabytes in size

No new telescopes or radio dishes. Just big networks interconnecting large database

attributes of advanced apps
Attributes of Advanced Apps
  • Provide qualitative and quantitative improvements in how we conduct research and engage in teaching and learning
  • Common attributes:
    • Remote instrumentation and interactive collaboration
    • Distributed data storage and data mining
    • Large-scale, multi-site computation
    • Real-time access to remote resources
    • Dynamic data visualization
    • Shared virtual reality
    • Tele-immersion
    • Digital Libraries, virtual labs, etc…
    • …..

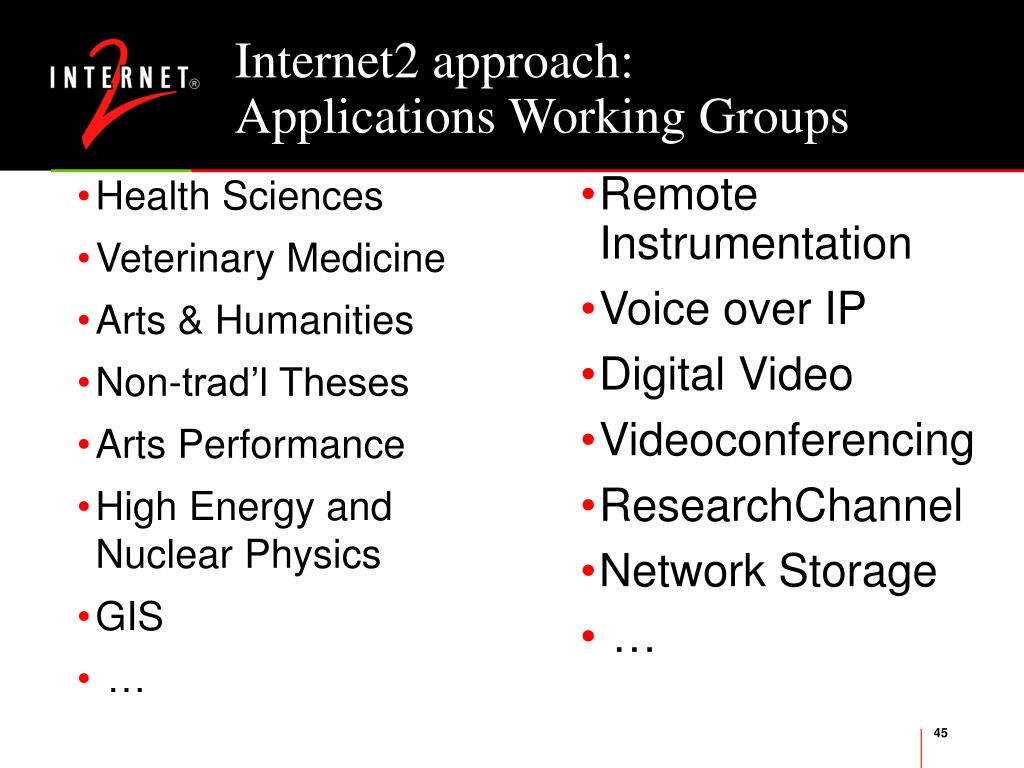

internet2 approach applications working groups
Health Sciences

Veterinary Medicine

Arts & Humanities

Non-trad’l Theses

Arts Performance

High Energy and Nuclear Physics

GIS

Remote Instrumentation

Voice over IP

Digital Video

Videoconferencing

ResearchChannel

Network Storage

Internet2 approach: Applications Working Groups
sciences and engineering highlights apps internet2 edu
Sciences and Engineering highlights – apps.internet2.edu
  • NEES: Network for Earthquake Engineering Simulation
    • Earthquake research using real buildings and computer simulations
    • Remote control of physical experiments requires extremely reliable and consistent network characteristics
    • Video will be crucial: both for conferencing and data collection
  • HENP-WG: High Energy and Nuclear Physics Working Group
    • Terabytes of data (1,000,000,000,000 or 1x1012) per experiment from CERN (Switzerland).
    • bulk data transfers that are extremely resistant to data loss. Work on several protocols that take advantage of parallel streams and good neighbor practices (passive QOS).
  • Astronomy: eVLBI - Electronic Very Long Baseline Interferometry
  • Remote-WG: Cross Disciplinary Remote Instrumentation Working Group

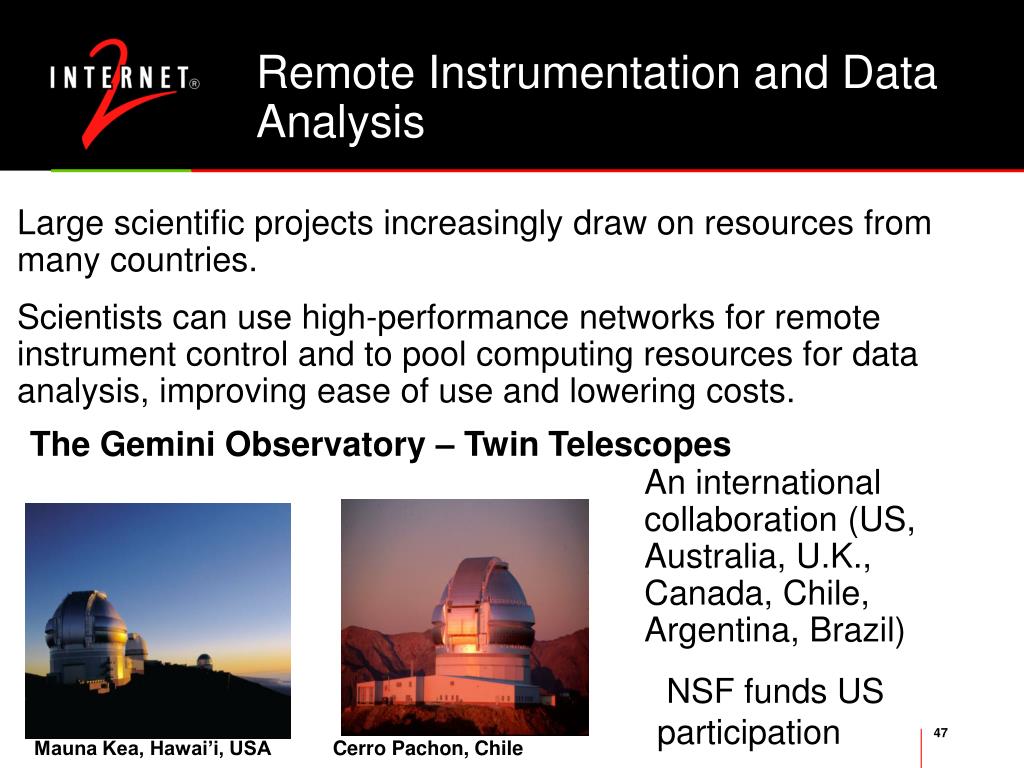

remote instrumentation and data analysis
Remote Instrumentation and Data Analysis

Large scientific projects increasingly draw on resources from many countries.

Scientists can use high-performance networks for remote instrument control and to pool computing resources for data analysis, improving ease of use and lowering costs.

  • The Gemini Observatory – Twin Telescopes
  • An international collaboration (US, Australia, U.K., Canada, Chile, Argentina, Brazil)
    • NSF funds US participation

Mauna Kea, Hawai’i, USA

Cerro Pachon, Chile

vlbi very long baseline interferometry
VLBI - Very Long Baseline Interferometry
  • Astronomers collect data about a star from many different earth based antennae and send the data to a specialized computer for analysis on a 24x7 basis.
  • VLBI is not as concerned with data loss as they are with long term stability.
  • The end goal is to send data at 1Gb/s from over 20 antennae that are located around the globe.

Interesting:

Successfully ran 788 Mbps sustained test between sites in U.S. Working on prototype experiment to test their ability to run data to Europe and Japan.

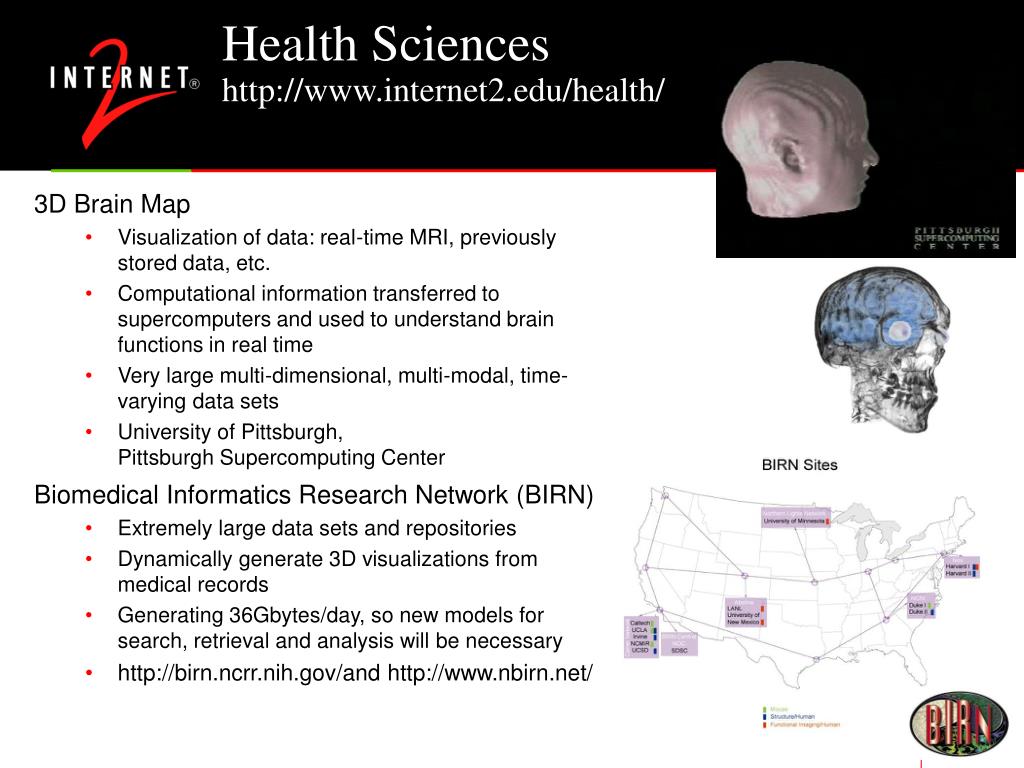

health sciences http www internet2 edu health
Health Sciences http://www.internet2.edu/health/
  • 3D Brain Map
    • Visualization of data: real-time MRI, previously stored data, etc.
    • Computational information transferred to supercomputers and used to understand brain functions in real time
    • Very large multi-dimensional, multi-modal, time-varying data sets
    • University of Pittsburgh,Pittsburgh Supercomputing Center
  • Biomedical Informatics Research Network (BIRN)
    • Extremely large data sets and repositories
    • Dynamically generate 3D visualizations from medical records
    • Generating 36Gbytes/day, so new models for search, retrieval and analysis will be necessary
    • http://birn.ncrr.nih.gov/and http://www.nbirn.net/
digital video distance ed
Digital Video – Distance Ed
  • Tele-presence environments
  • Real-time interactions with very high quality audio and MPEG-2 video
  • as needed “meetings” connecting faculty and staff across the ocean
  • Plain and Simple:Language/cultural Exchanges
  • CCIU World Tour/Univ. of Pennsylvania
  • Learning foreign languages through cultural exchanges and problem based experiential learning
arts and humanities
Arts and Humanities
  • University of Oklahoma Master Classes
    • High fidelity video and audio via MPEG2
    • Optimized latency, audio/video synchronization
    • Connecting Oklahoma with the New World Symphony in Miami, Florida
  • Zuckerman Interactive
  • A collaboration with:
    • Manhattan School of Music
    • Columbia University
    • National Arts Centre of Canada
    • National Research Council of Canada

Photo by R. Andrew Lepley

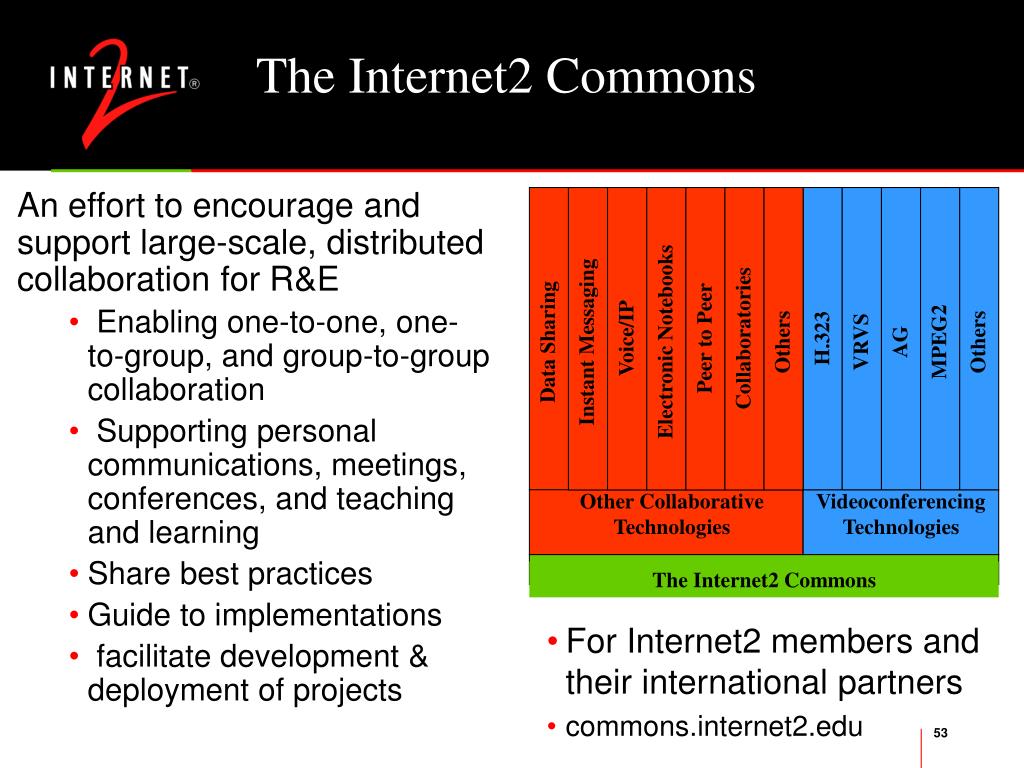

the internet2 commons
An effort to encourage and support large-scale, distributed collaboration for R&E

Enabling one-to-one, one-to-group, and group-to-group collaboration

Supporting personal communications, meetings, conferences, and teaching and learning

Share best practices

Guide to implementations

facilitate development & deployment of projects

For Internet2 members and their international partners

commons.internet2.edu

Voice/IP

Peer to Peer

Collaboratories

H.323

Electronic Notebooks

Data Sharing

Instant Messaging

Others

VRVS

AG

MPEG2

Others

Other Collaborative Technologies

Videoconferencing Technologies

The Internet2 Commons

The Internet2 Commons
internet2 focus areas51
Internet2 Focus Areas
  • Advanced Network Infrastructure
  • Middleware
  • Engineering
  • Advanced Applications
  • Partnerships
partnerships internet2 international
Partnerships:Internet2 International
  • Strategic importance to Internet2
  • Ensure global interoperability
    • of the next generation of Internet technologies and applications
  • Enable global collaboration
    • in research and education providing/promoting the development of an advanced networking environment internationally
  • Build effective partnerships in other countries
  • With organizations of similar goals/objectives and similar constituencies
  • Mechanism: Memoranda of Understanding
international mou partners

Europe-Middle East

ARNES (Slovenia)

BELNET (Belgium)

CARNET (Croatia)

CESnet (Czech Republic)

DANTE (Europe)

DFN-Verein (Germany)

GIP RENATER (France)

GRNET (Greece)

HEAnet (Ireland)

HUNGARNET (Hungary)

INFN-GARR (Italy)

Israel-IUCC (Israel)

NORDUnet (Nordic Countries)

POL-34 (Poland)

RCST (Portugal)

RedIRIS (Spain)

RESTENA (Luxembourg)

SANET (Slovakia)

Stichting SURF (Netherlands)

SWITCH (Switzerland)

TERENA (Europe)

JISC, UKERNA (United Kingdom)

Americas

CANARIE (Canada)

CEDIA (Ecuador)

CRNET (Costa Rica)

CNTI (Venezuela)

CUDI (Mexico)

REUNA (Chile)

RETINA (Argentina)

RNP2/ANSP (Brazil)

SENACYT (Panama)

Asia-Pacific

AAIREP (Australia)

APAN (Asia-Pacific)

APAN-KR (Korea)

APRU (Asia-Pacific)

CERNET, CSTNET, NSFCNET (China)

JAIRC (Japan)

JUCC (Hong Kong)

NECTEC / UNINET (Thailand)

SingAREN (Singapore)

TAnet2 (Taiwan)

International MoU Partners
mou partners
MoU Partners
  • Newest Internet2 MoU Partners: Ecuador (CEDIA), Slovakia (SANET), Venezuela (CNTI)
  • In discussion
  • America:
    • Uruguay, Colombia
    • Peru, Nicaragua, Guatemala, Cuba
  • Europe:
    • Russia
  • Africa:
    • South Africa
  • Asia:
    • Malaysia, India
resources more information
Resources – more information
  • On the Web
    • www.internet2.edu
    • apps.internet2.edu
    • www.internet2.edu/abilene
  • Email
    • info@internet2.edu
  • Contact us!Ana Preston apreston@internet2.edu
conclusion
Conclusion
  • Leading-edge, high-performance network infrastructure is being put in place to support science, research, teaching and learning in countries around the world
  • As a global community, we need to work even more closely together to ensure support for global applications on an end to end basis
